Wireless Camera kit with 7" monitor compatible with Furrion® Pre-wire
SKU#: CS-7FW
Availability:
Out of Stock
SKU#:
CS-7FW
$274.00
Quantity
Wireless camera kit compatible with Furrion® pre-wire
Description
Is your camper pre-wired for a Furrion® camera system? Easily connect this wireless camera kit to your pre-wired RV or trailer! This kit will allow you to use the pre-wire setup on your camper and view this camera on the included 7” display monitor. Just the right size for your dash!
Our digital wireless camera comes with an adapter bracket and power pigtail to connect directly to the existing pre-wired Furrion® system on your trailer or RV. This kit adds the convenience of a wireless rear camera to the back of your trailer. Our camera adapter plate fits perfectly into the Furrion® housing and with the included power pigtail you can plug directly into the existing pre-wired port. This monitor will allow you to view the camera at any time going down the road to check cargo and traffic and in reverse so you'll be able to see behind your trailer while backing up without having to have a spotter guiding you.
This monitor also allows for one additional wired camera. Therefore, you can expand the system at any time possibly adding a side camera.

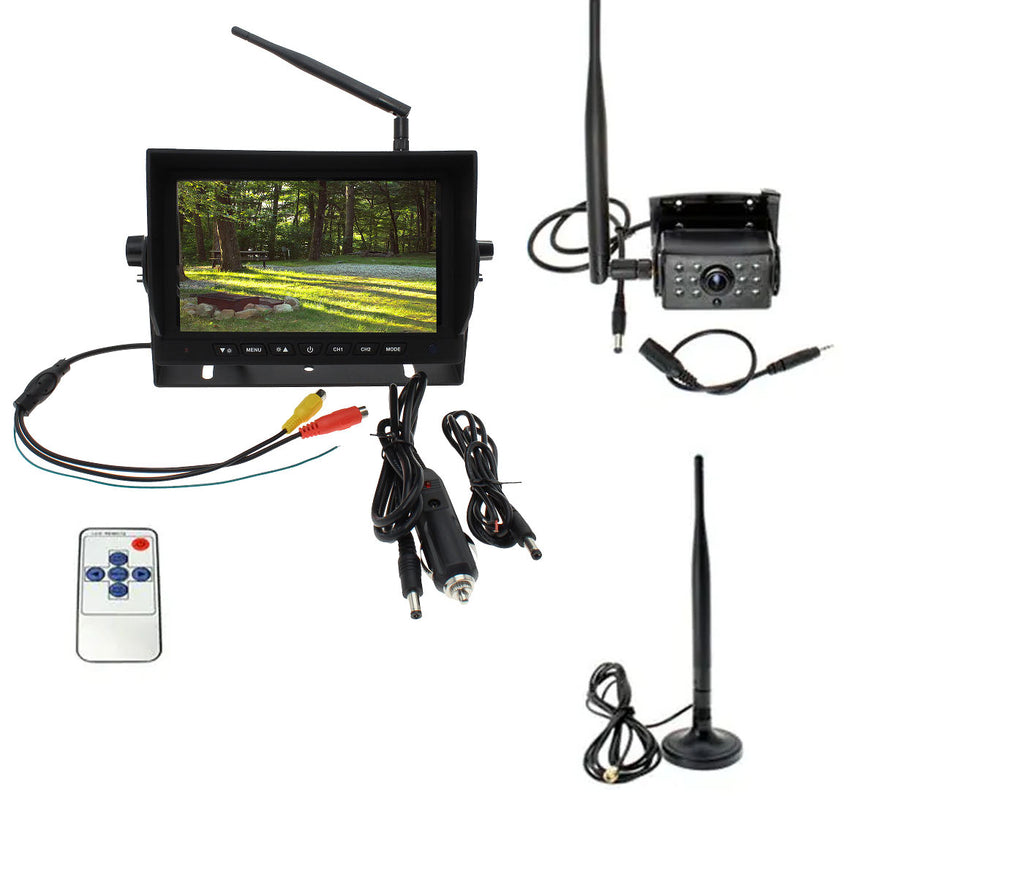

Kit Includes:

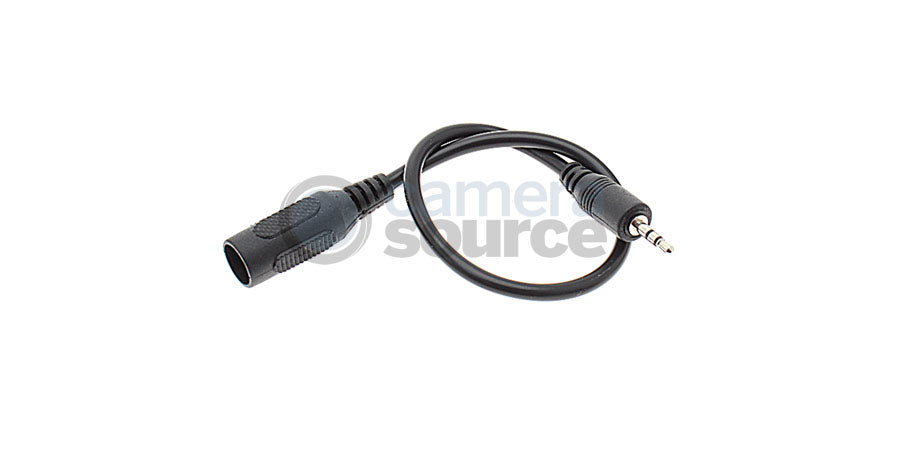

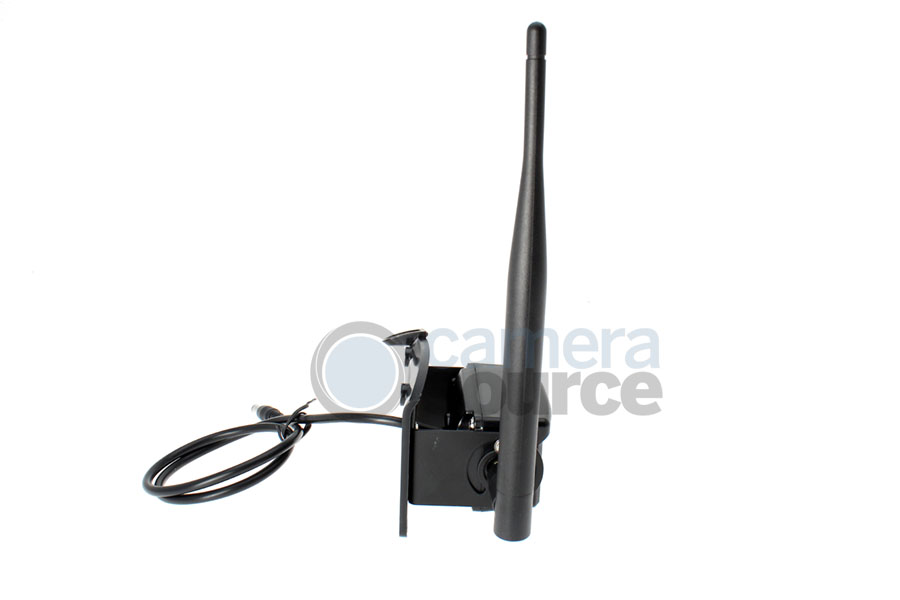

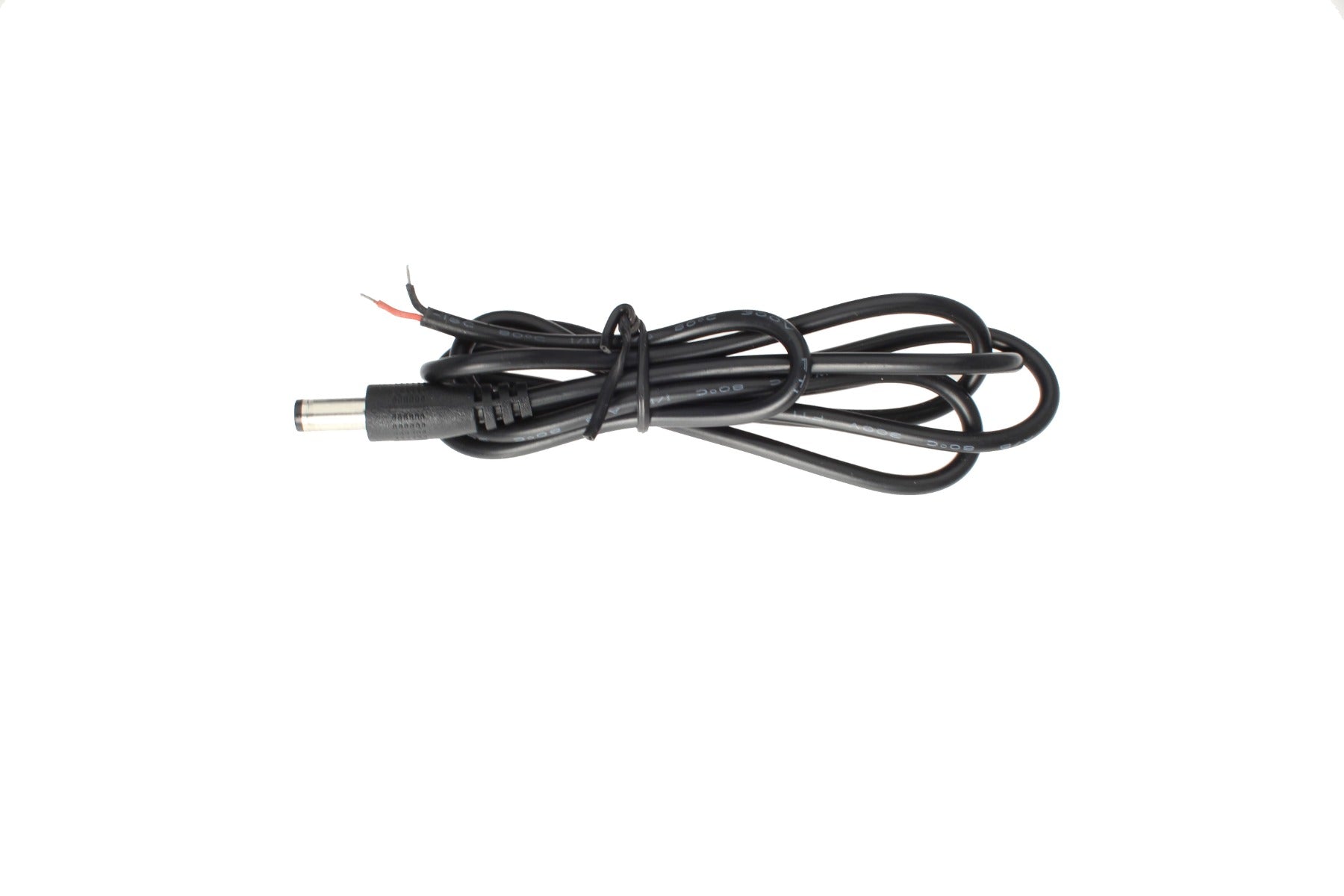

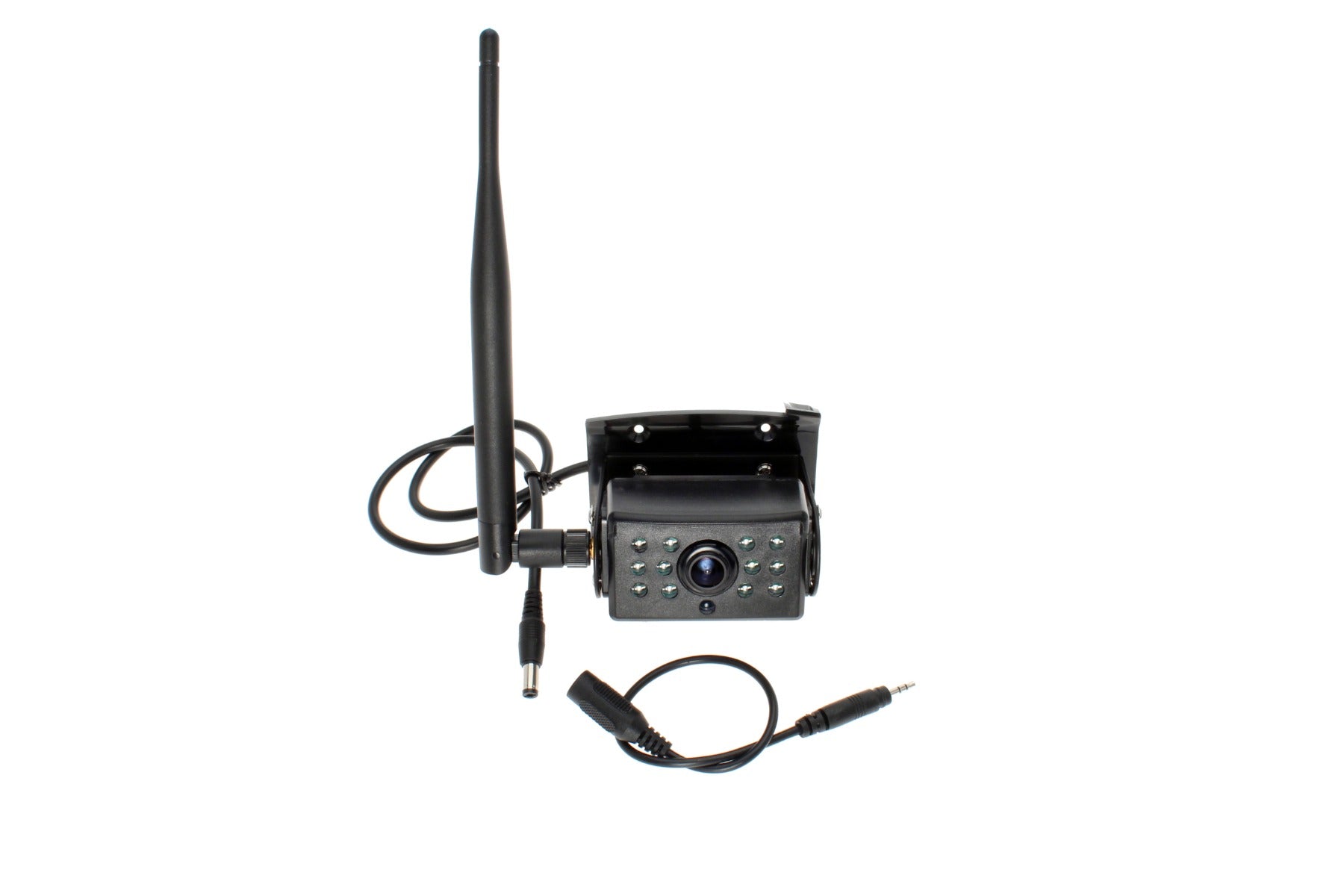

- Digital wireless camera with Furrion® compatible power pigtail

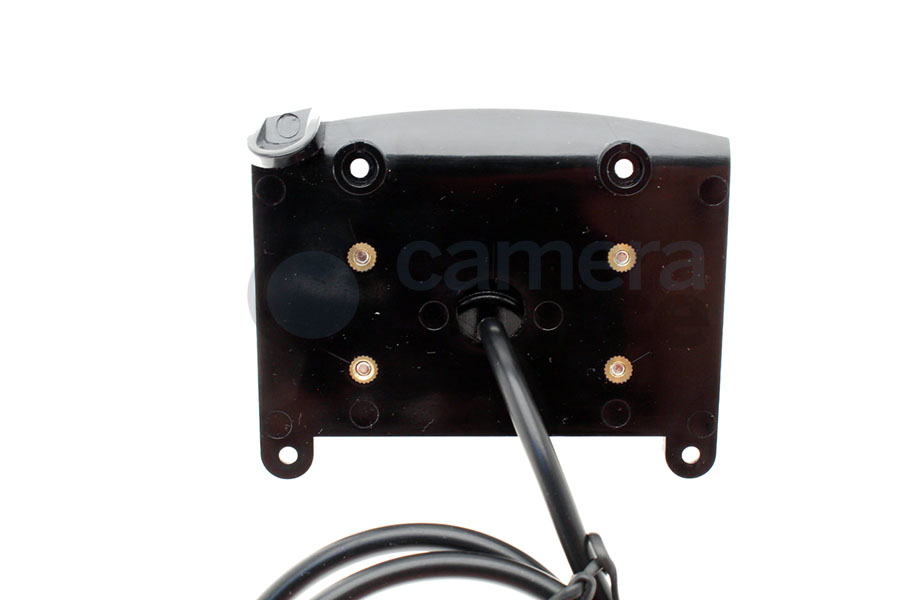

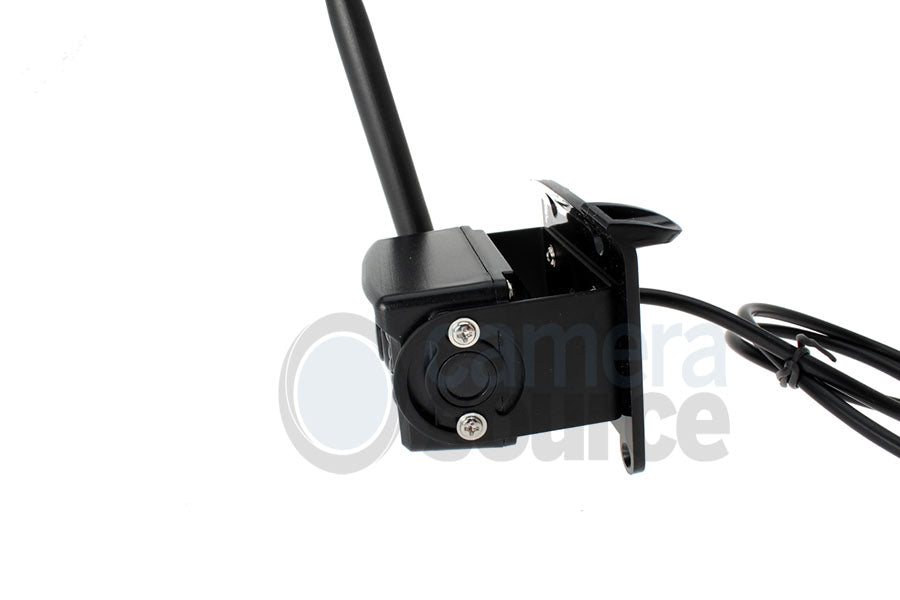

- Furrion® compatible adapter bracket- Perfect fit to adapt our camera to the existing bracket

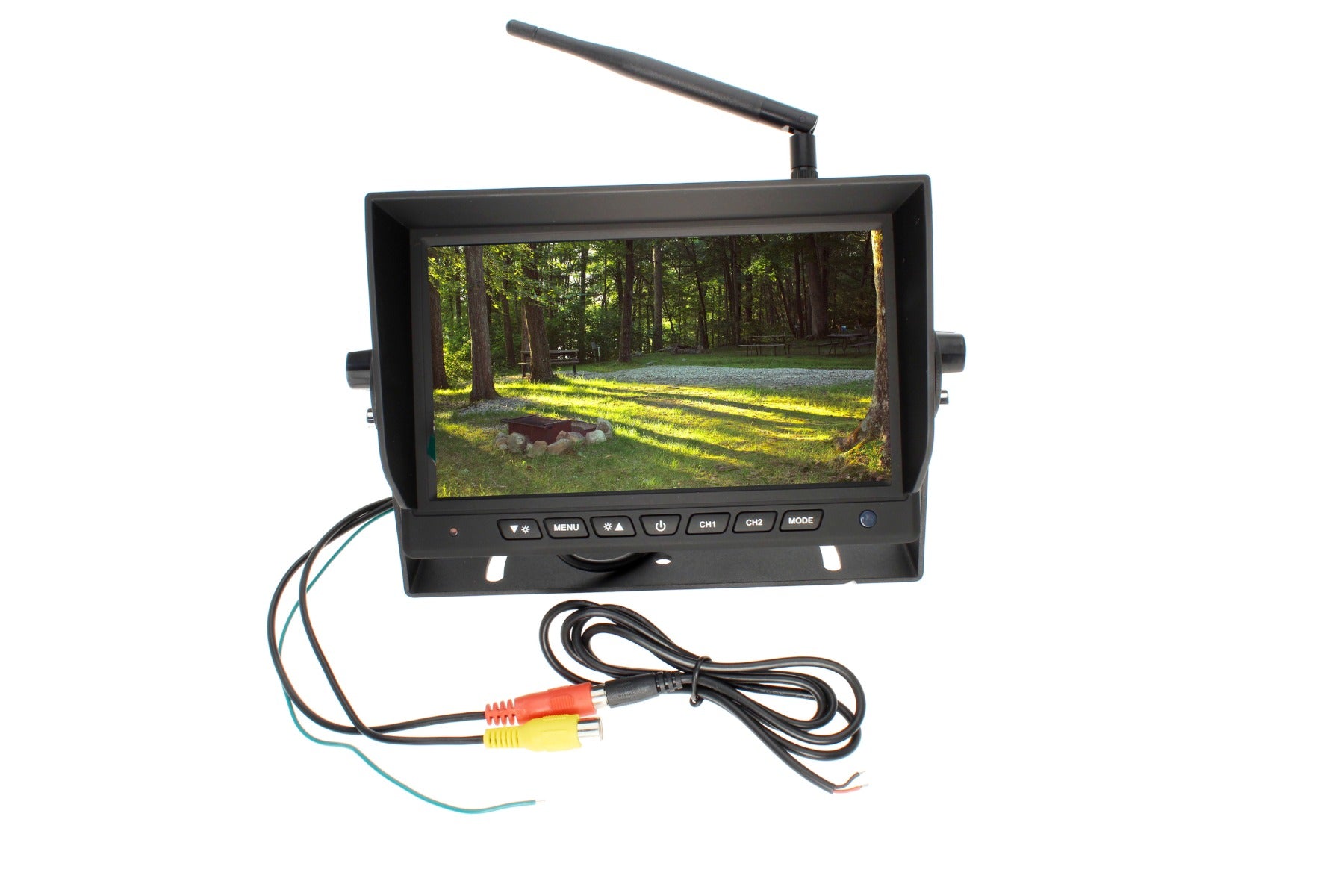

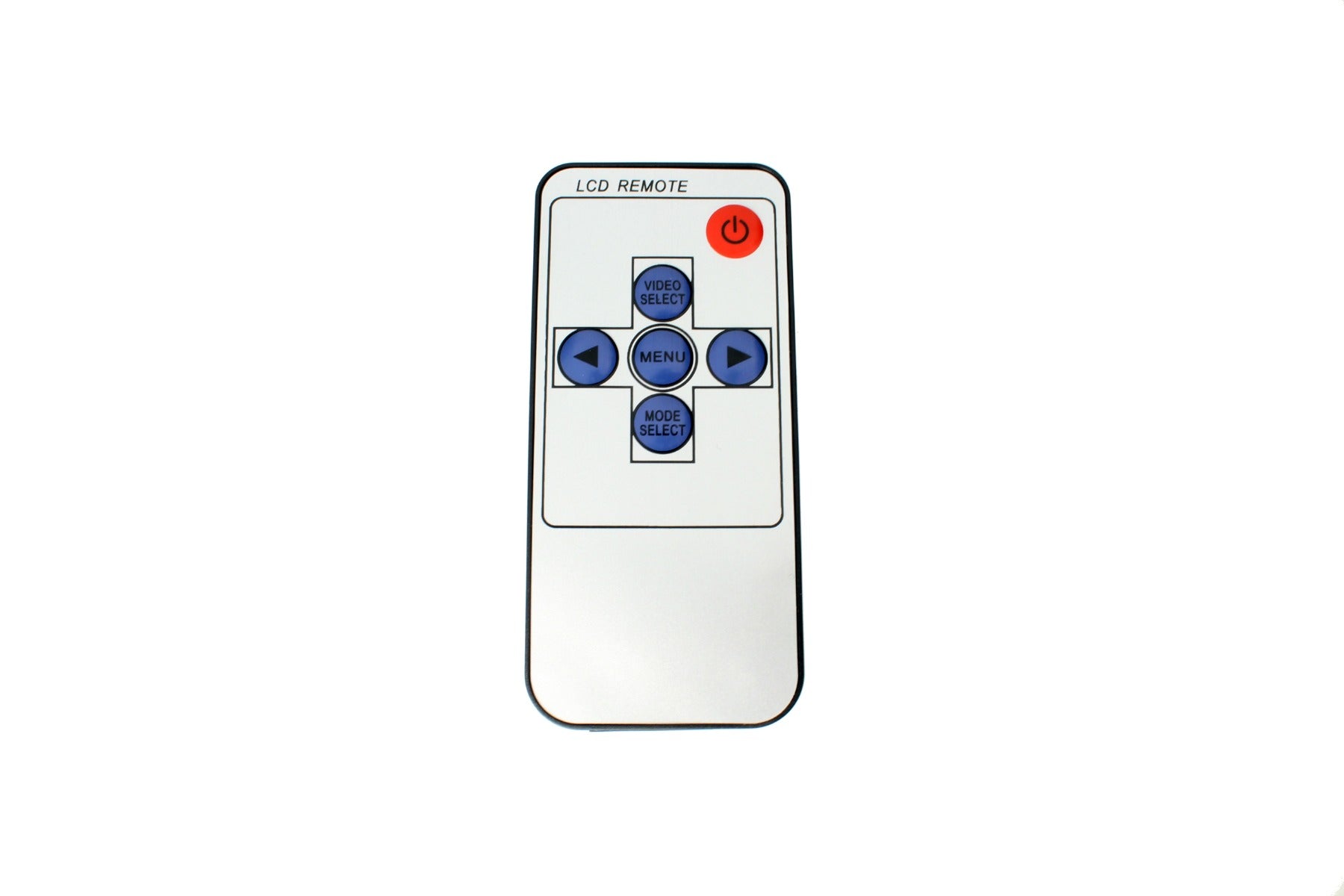

- 7" digital flat panel monitor - connect up to two cameras(1 wireless and 1 wired), switch between views with a button on the front of the display or use the included remote.

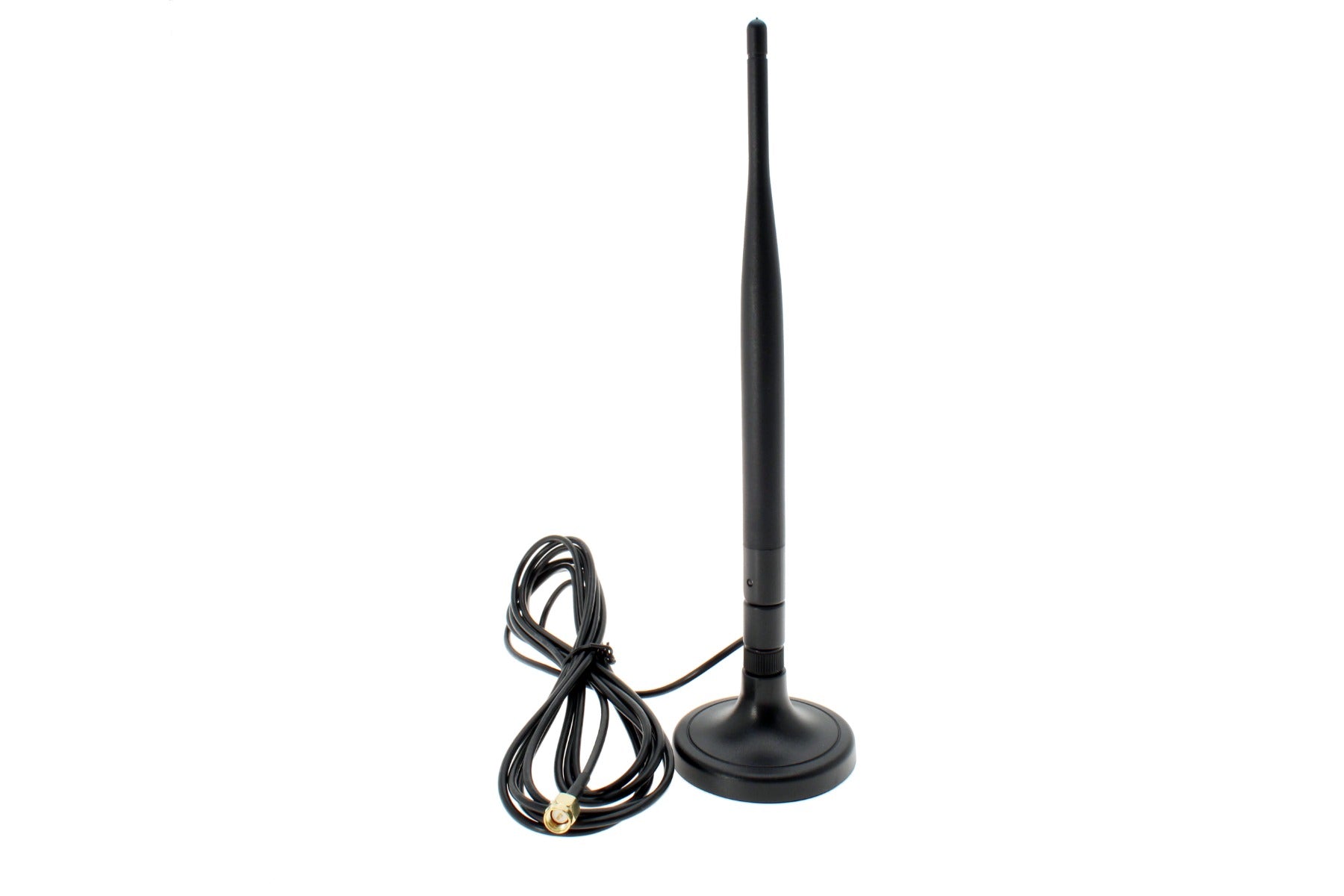

- Extension antenna-Connects to monitor or camera if additional signal strength is required.

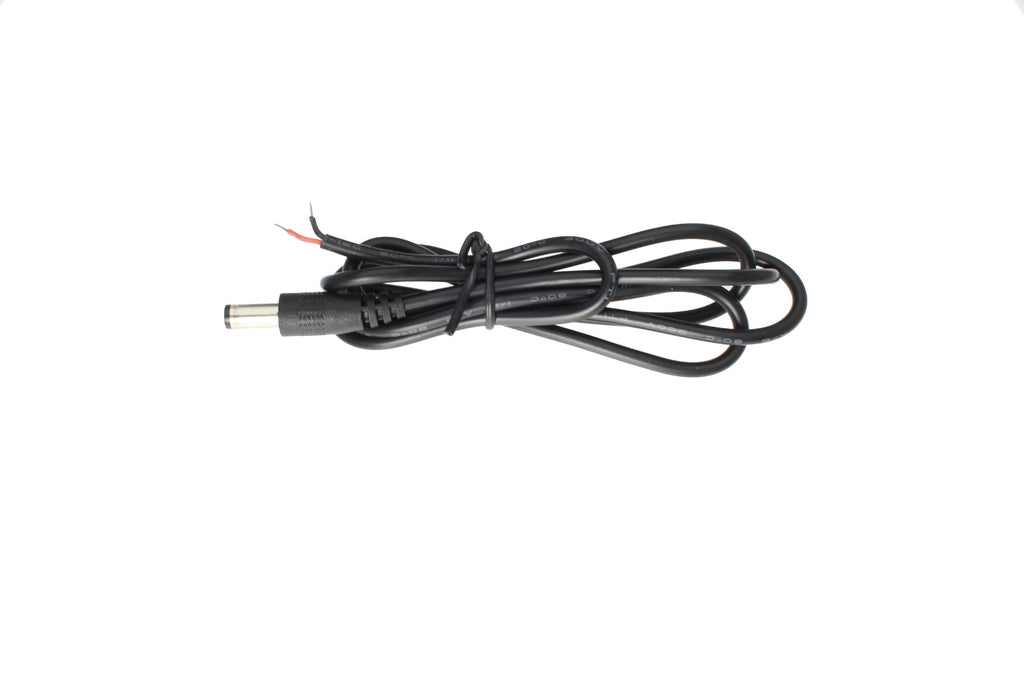

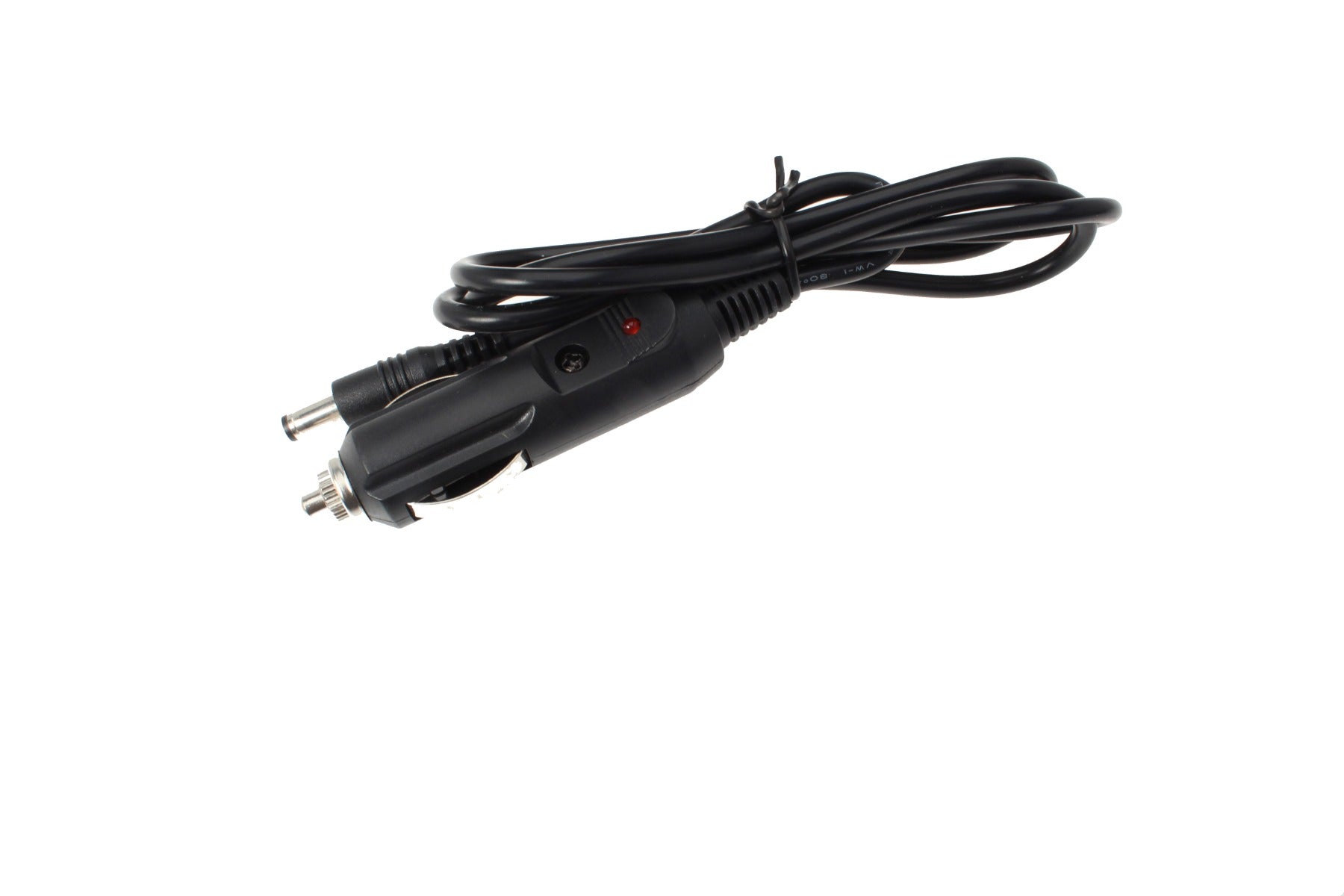

- Cig adapter for easy monitor disconnect or direct wire pigtail included
- Install instructions

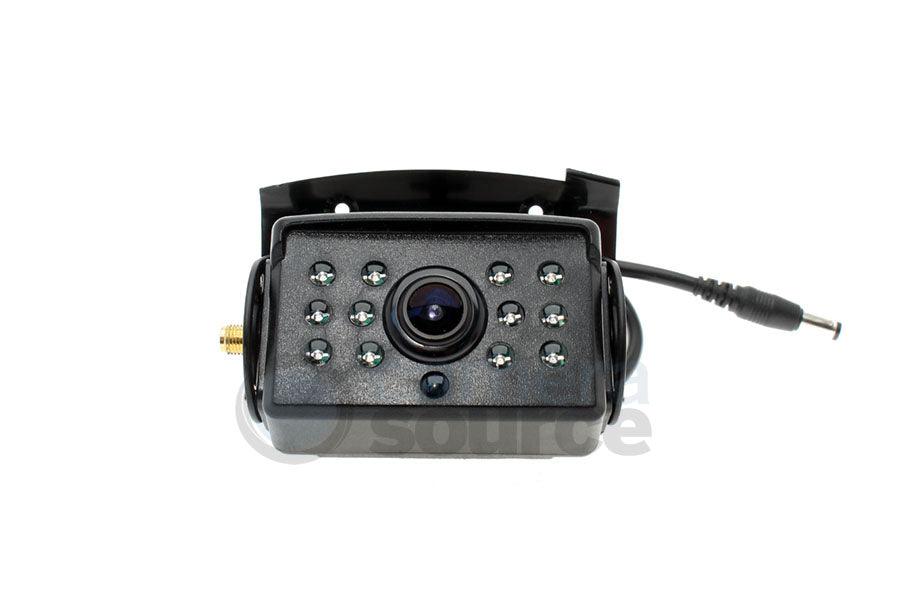

Wireless Camera specs:
- 1/4" Sony Color CMOS for ultimate clarity
- 2.5mm lens
- 700 TVL resolution - the best clarity you will find in a wireless camera!
- 0 LUX min illumination. 12 IR LED's for clear night vision even in complete blackness, night range up to 15 meters
- Aluminum alloy weather tight casing - steel mount bracket included
- 2.4GHz Digital FHSS Hopping and Pairing Technology, 2400-2483.5MHz frequency
- Reception for up to 75 feet guaranteed, over 300 feet line of sight overall reception range.
- IP69 waterproof, shockproof, dustproof, resistance to high temperature and humidity
- Industry leading 3 year warranty!

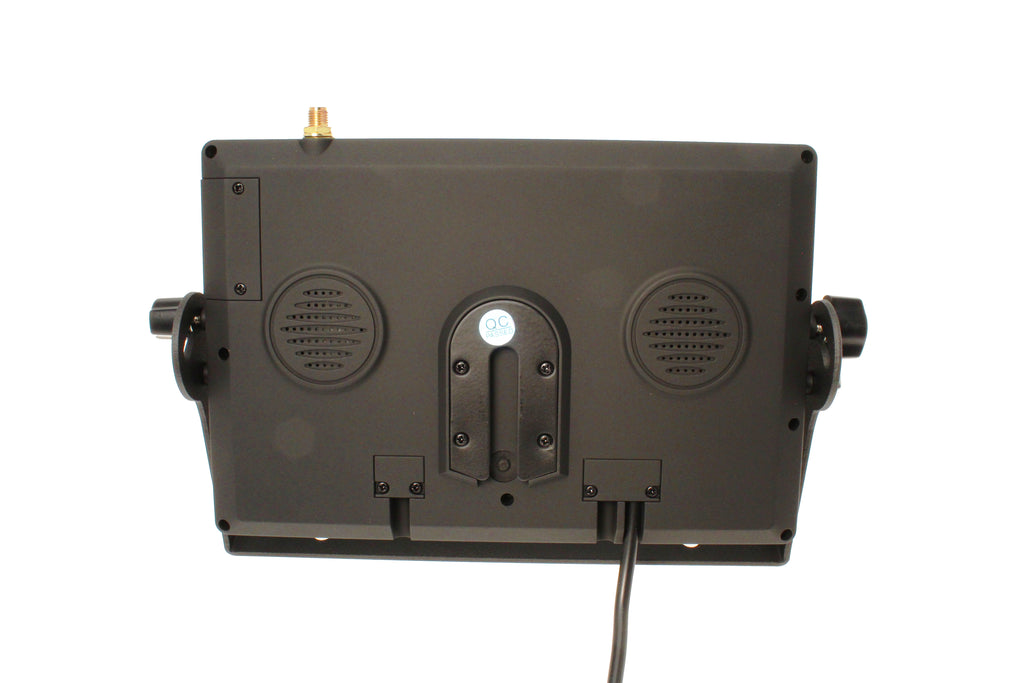

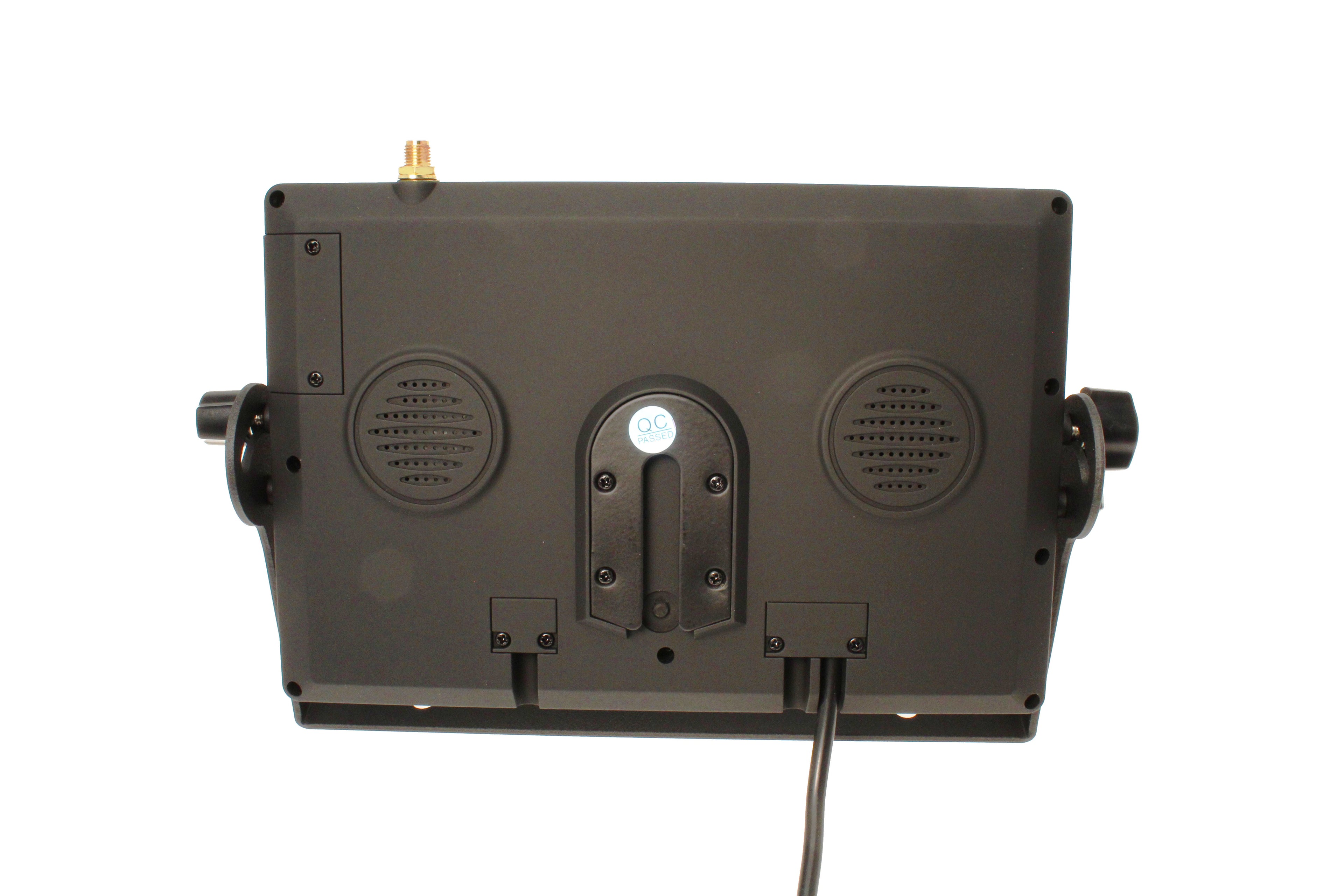

Monitor specs:
- screen size: 7 inch (diagonal length)
- High resolution
- 16 : 9 wide screen display
- NTSC system
- 1024x600 resolution
- Power supply is DC 12 V/24V compatible
- Remote control, OSD menu
- (1) RCA input for wired camera
- 1 year monitor warranty!
Specifications
| System Manufacturer | EVI Systems |
| Agriculture / Commercial | Agriculture |
| Audio Input Ports | None |
| Bracket Type | Pedestal monitor bracket, steel camera u bracket |
| Number of Cameras | 1 |
| Camera Resolution | 700 TVL |
| Camera Type | Rear Camera, Trailer/Camper/5th Wheel camera |
| Cam Only/Complete Kit | Complete Kit |
| For a monitor it uses | Packaged w/Aftermarket Monitor |
| Fit Type | Universal fit |
| Impact Rating | 4G Monitor, 20G Camera |
| Connection | Wireless + 4 Pin Coax |
| Includes Remote | Yes |
| Monitor Size | 7" |
| Camera Mount Location | Universal Mount |
| Night Vision | 0 Lux |
| Number of Triggers | 1 |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Not Available |
| Power Supply | 12 Volts |
| Screen Resolution | 1200x600 |
| Sensor Brand | Sony |
| Sensor Type | CMOS |
| Sound Options | Without Microphone |
| Split Screen | No |
| System Type | Standard Build |
| Vehicle Category | Truck, Camper/Trailer (if needing standalone system), Farm Equipment, Fleet Vehicle (i.e. cargo van), Construction Equipment (i.e. bulldozer), RV, Universal |
| Camera Input Ports | 2 |
| Video Input Type | 4 pin/convert to RCA with adapter |
| Video System | NTSC/PAL Auto Switching |
| Viewing Angle | 150 Degrees |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 69 Cameras |
| Wiring Type | Wireless |
Compatibility
12 volt DC systems. Universal design will fit on anything! Compatible with Furrion pre-wire trailers.
Installation
Our digital wireless camera comes with an adapter bracket and power pigtail to connect directly to the existing pre-wired Furrion® system on your trailer or RV. The 7 inch monitor has a built in receiver creating the wireless connection to the camera.
For an easy connection for the monitor we include a cig adapter that will plug into the cig adapter port on your vehicle.
Or if you'd like to wire the module directly to your vehicle we also include a wire pigtail. For direct wire installations you can add the CS-RPW-P power module to your order so there's no need to locate a 12 volt power source on the vehicle.
