Wireless Camera Kit for RAM® Factory Display Fits Furrion® Prewire -View In Reverse
SKU#: CS-DFW-FI
Availability:
In Stock
SKU#:
CS-DFW-FI
$322.00
Quantity
Pre-wire Furrion® adapter kit for factory display
Description
Is your camper pre-wired for a Furrion® camera system? Wouldn't it be great if you could view the camper camera on your factory display? We have a solution! This kit will allow you to use the pre-wire setup on your camper and view this camera on your factory display!
This kit includes a video harness that connects to your factory radio display and allows you to toggle between your factory installed back up camera and this digital wireless camera when in reverse. Our digital wireless camera comes with an adapter bracket and power pigtail to connect directly to the existing pre-wired Furrion® system on your trailer or RV. The included wireless receiver and video switcher harness connect to the same port on the back of your factory display that your factory rear camera uses. The included switcher harness allows you to choose which camera you want to display when in reverse by flipping a switch.
This kit adds the convenience of a wireless rear camera to the back of your trailer. Our camera adapter plate fits perfectly into the Furrion® housing and with the included power pigtail you can plug directly into the existing pre-wired port. You'll be able to see behind your trailer while backing up without having to have a spotter guiding you.

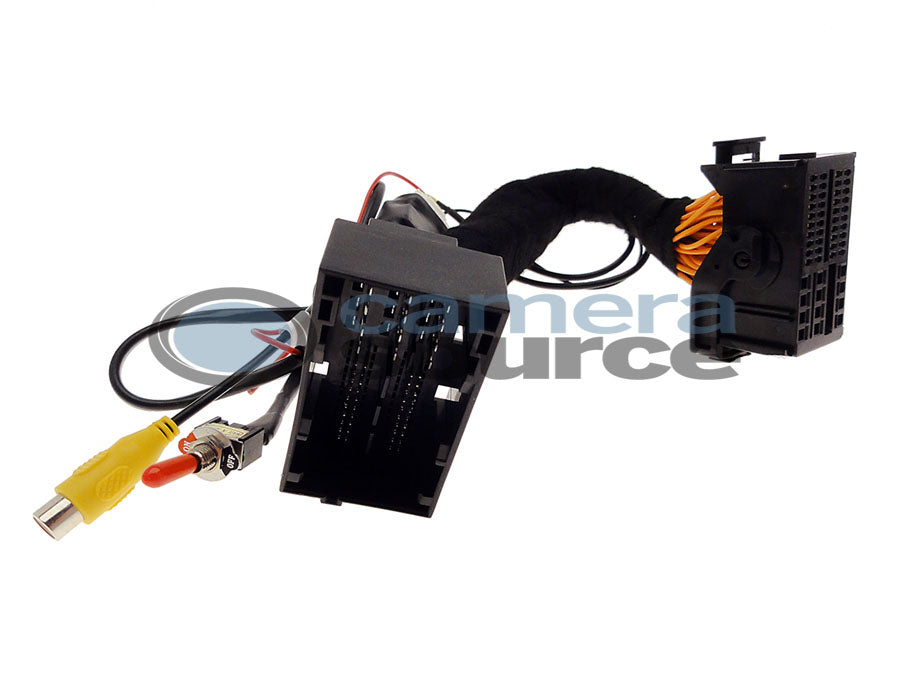

Notes about the included switcher harness:
- Truck must have a rear view camera that was installed at the factory and is displayed on your RAM® 4", 5", or 8.4" factory display radio screen.
- Kit includes a harness that allows you to connect both your factory tailgate camera and this digital wireless camera to your factory radio.

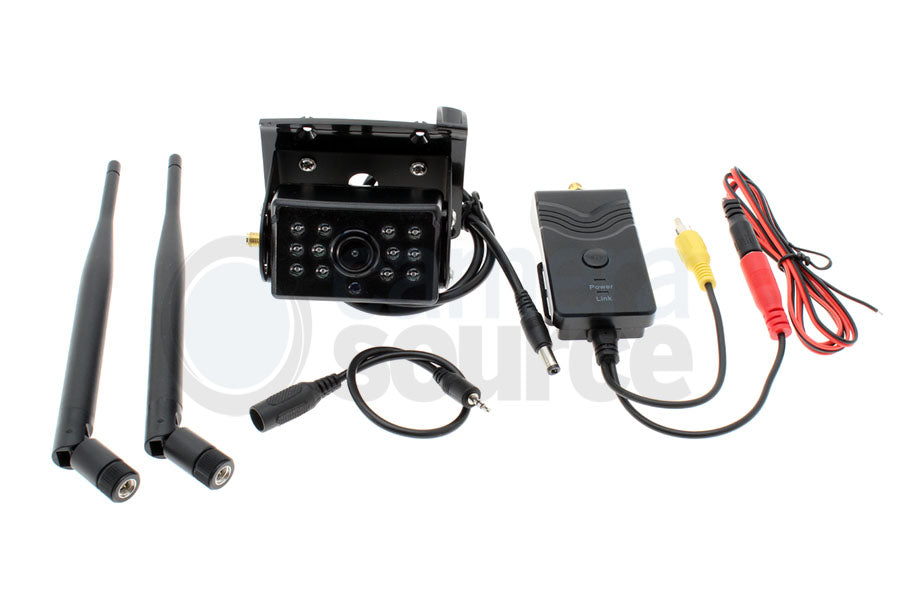

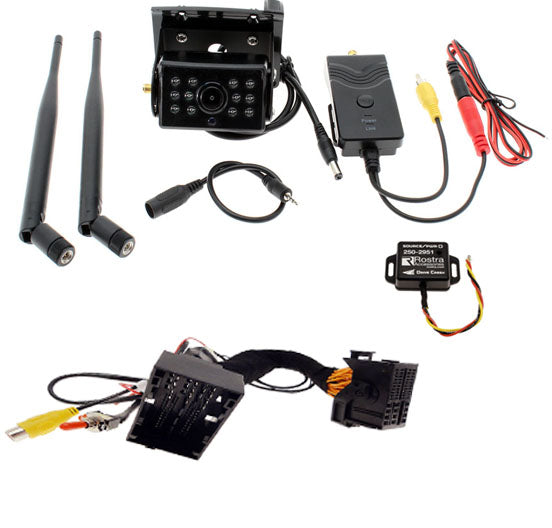

Kit Includes:

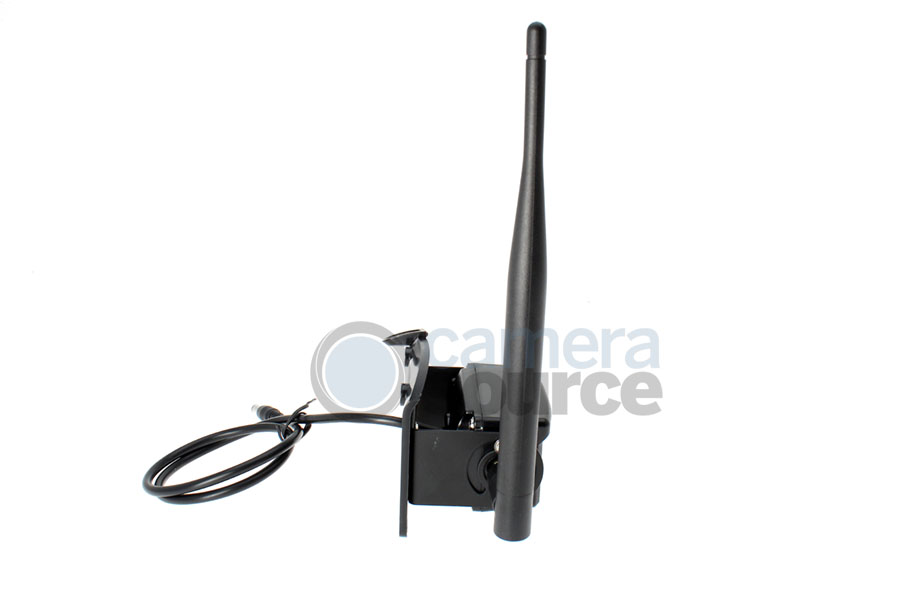

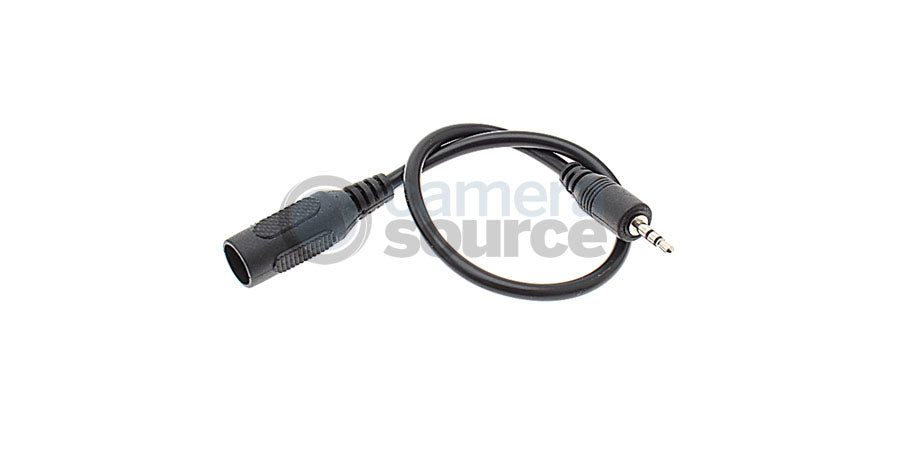

- Digital wireless camera with Furrion® compatible power pigtail

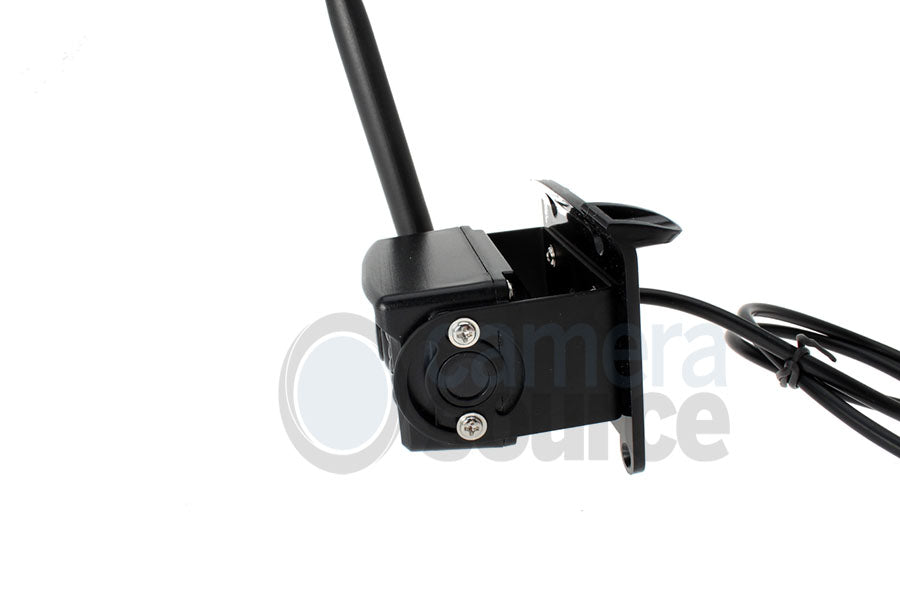

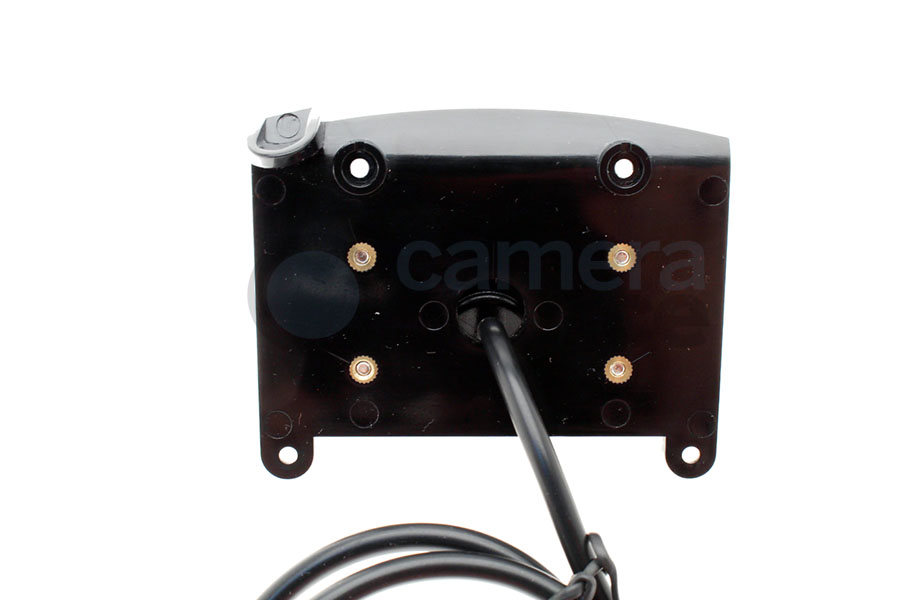

- Furrion® compatible adapter bracket- Perfect fit to adapt our camera to the existing bracket

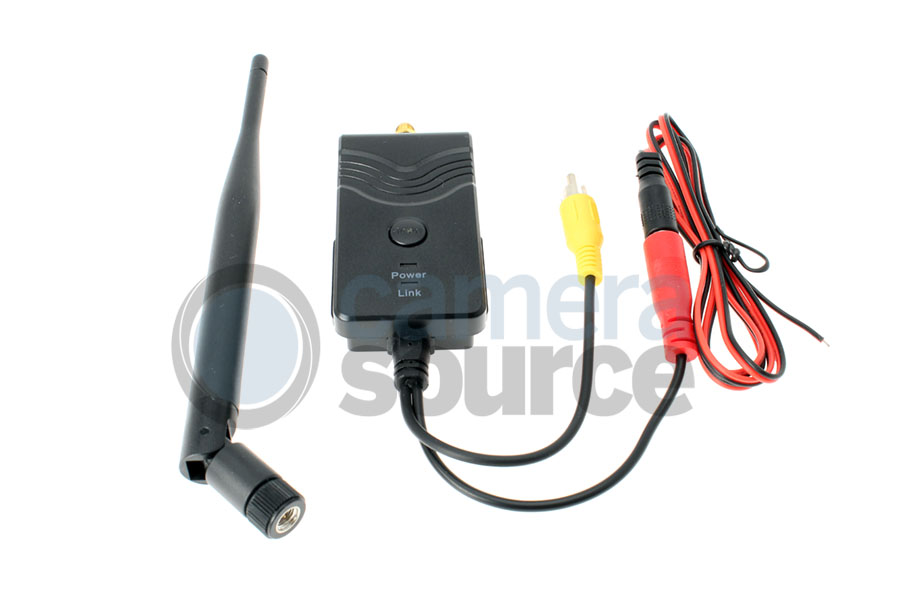

- Wireless receiver
- Integration harness for 4", 5", or 8.4" factory display 2013-2018.

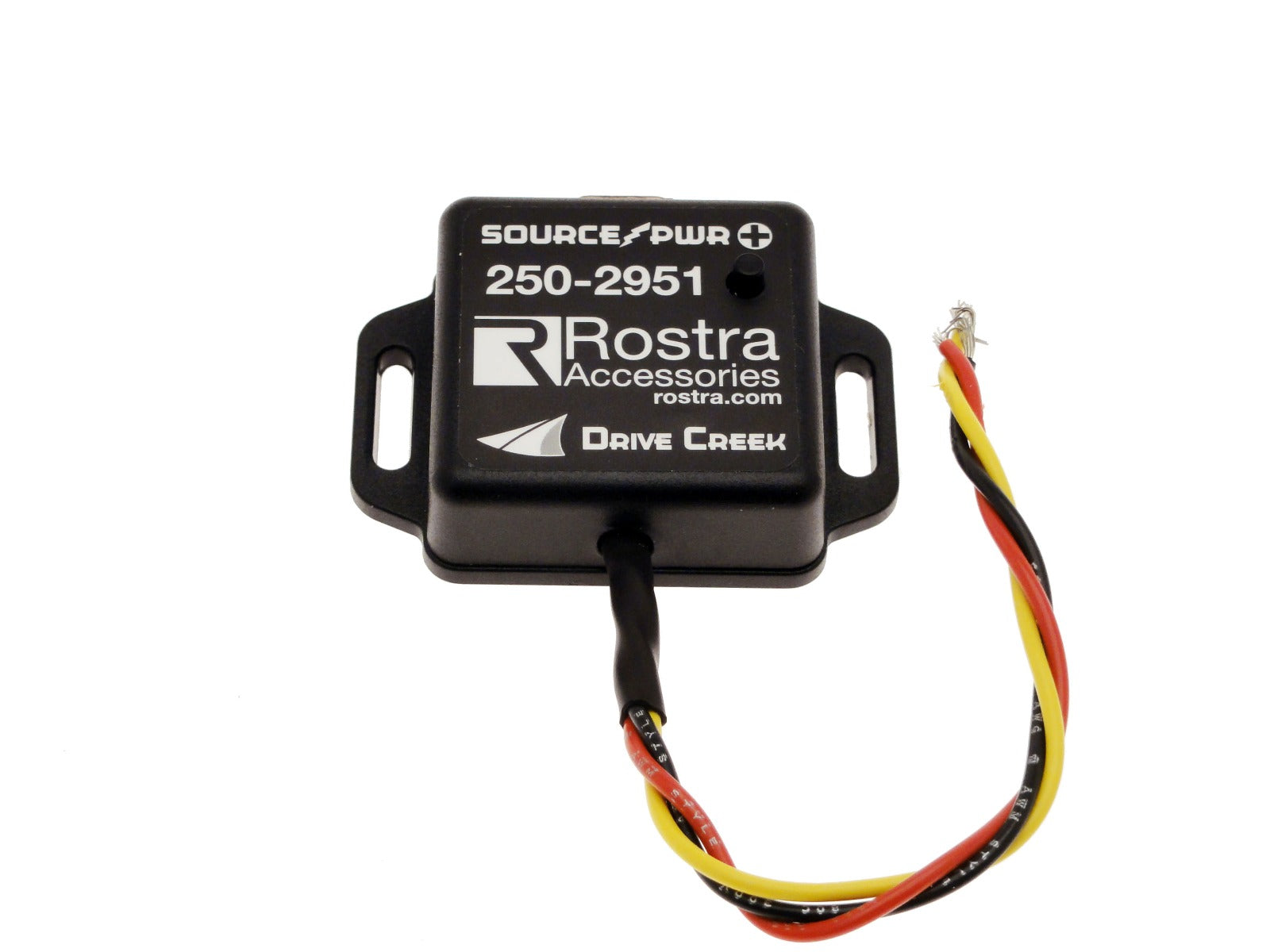

- Power module
- Wire connectors
- Zip ties
- Install instructions

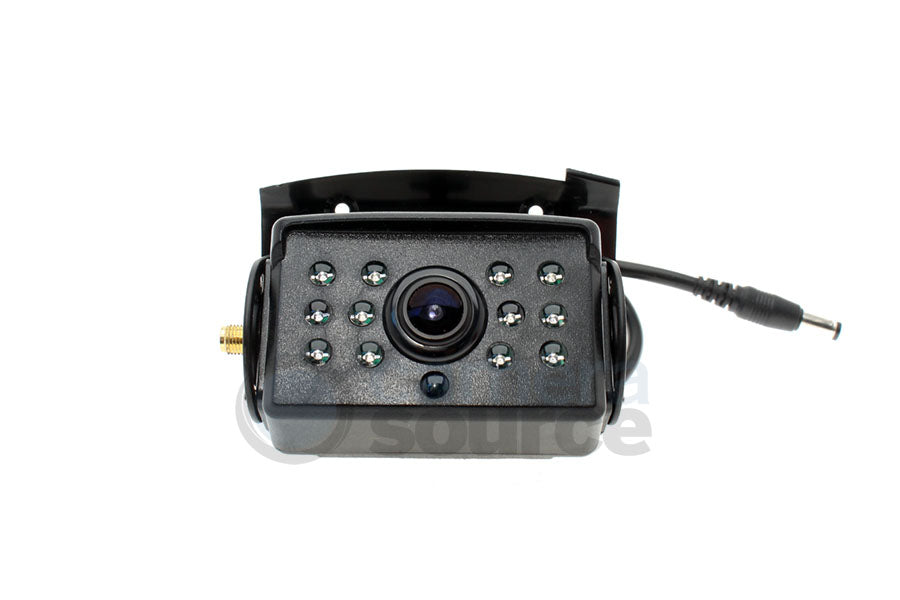

Wireless Camera specs:
- 1/4" Sony Color CMOS for ultimate clarity
- 2.5mm lens
- 700 TVL resolution - the best clarity you will find in a wireless camera!
- 0 LUX min illumination. 12 IR LED's for clear night vision even in complete blackness, night range up to 15 meters
- Aluminum alloy weather tight casing - steel mount bracket included
- 2.4GHz Digital FHSS Hopping and Pairing Technology, 2400-2483.5MHz frequency
- IP69 waterproof, shockproof, dustproof, resistance to high temperature and humidity
- Industry leading 3 year warranty!
**Display not included** This kit connects to your existing factory display.
Furrion® and the Furrion® logo and device are trademarks or registered trademarks licensed by Furrion Ltd. in the United States and/or other countries. Furthermore, all product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Specifications
| System Manufacturer | EVI Systems |
| Bracket Type | steel mount |
| Number of Cameras | 1 |
| Camera Resolution | 700 TVL |
| Camera Type | Rear Camera, Trailer/Camper/5th Wheel camera |
| Cam Only/Complete Kit | Complete Kit |
| For a monitor it uses | Your factory display |
| Connection | Plug and Play to Factory Dash Display |
| Make | RAM |
| Camera Mount Location | Camper/Utility Bed |
| Night Vision | 0 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Not Available |
| Power Supply | 12 Volts |
| Radio Screen Size | 4.3\ Mopar, 5\ Mopar, 8.4\ Mopar |
| Reason for Shopping | Adding camera(s) |
| Sensor Brand | Sony |
| Sensor Type | CCD |
| System Type | Wireless |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck, Camper/Trailer (if connecting to vehicle wiring) |
| Camera Input Ports | 1 |
| Viewing Angle | 150 Degrees |
| Model | 1500,HD |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 69 Cameras |
| Wiring Type | Wireless |
| Year | 2013,2014,2015,2016,2017,2018 |
| Make Filter | Ram |
| Model Filter | 1500, HD |
| Year Filter | 2013, 2014, 2015, 2016, 2017, 2018 |
Compatibility
2013-2018 RAM® trucks with a factory tailgate camera and 4", 5", or 8.4" factory display.
Installation
Remove the radio to gain access to the factory camera connector, install new multi-cam interface and wireless receiver with power module. Connect power module directly to vehicle battery.
Install the digital wireless camera on the back of your trailer using the Furrion® compatible adapter bracket and plug in power pigtail. No drilling or wiring required at the camera!
