Wireless Camera Kit for GM® Truck IOB Factory Display, Compatible with Furrion® Prewire -View On Demand
SKU#: CS-GMFW-VIOB4
Availability:
In Stock
SKU#:
CS-GMFW-VIOB4
$599.00
Quantity
Pre-wire Furrion® compatible-camera shows on your factory display while in motion!
Description
Is your camper pre-wired for a Furrion® camera system? Wouldn't it be great if you could view the camper camera on your factory display? We have a solution! This kit will allow you to use the pre-wire setup on your camper and view this camera on your factory display!
This kit includes a multi-cam interface that connects to your factory radio display and allows you to view your digital wireless camera at anytime going down the road or when in reverse. Our digital wireless camera comes with an adapter bracket and power pigtail to connect directly to the existing pre-wired Furrion® system on your trailer or RV. The included wireless receiver and interface module connect to the same port on the back of your factory display that your factory rear camera uses. The interface module allows you to choose which camera you want to display.
This kit adds the convenience of a wireless rear camera to the back of your trailer. Our camera adapter plate fits perfectly into the Furrion® housing and with the included power pigtail you can plug directly into the existing pre-wired port. You'll be able to see behind your trailer while backing up or without having to have a spotter guiding you. Also have your passenger view cargo and traffic behind the trailer while in motion.
Notes about the included interface module: Truck must have a rear view camera that was installed at the factory and is displayed on your factory IOB radio screen (2014-2019 models only)
Kit includes a harness that allows you to connect both your factory tailgate camera and this digital wireless camera to your factory radio.

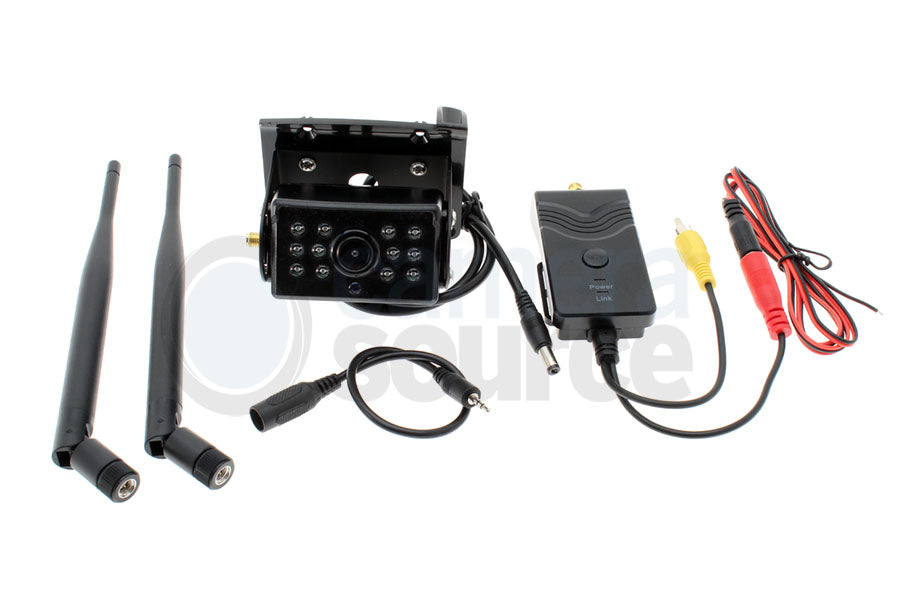

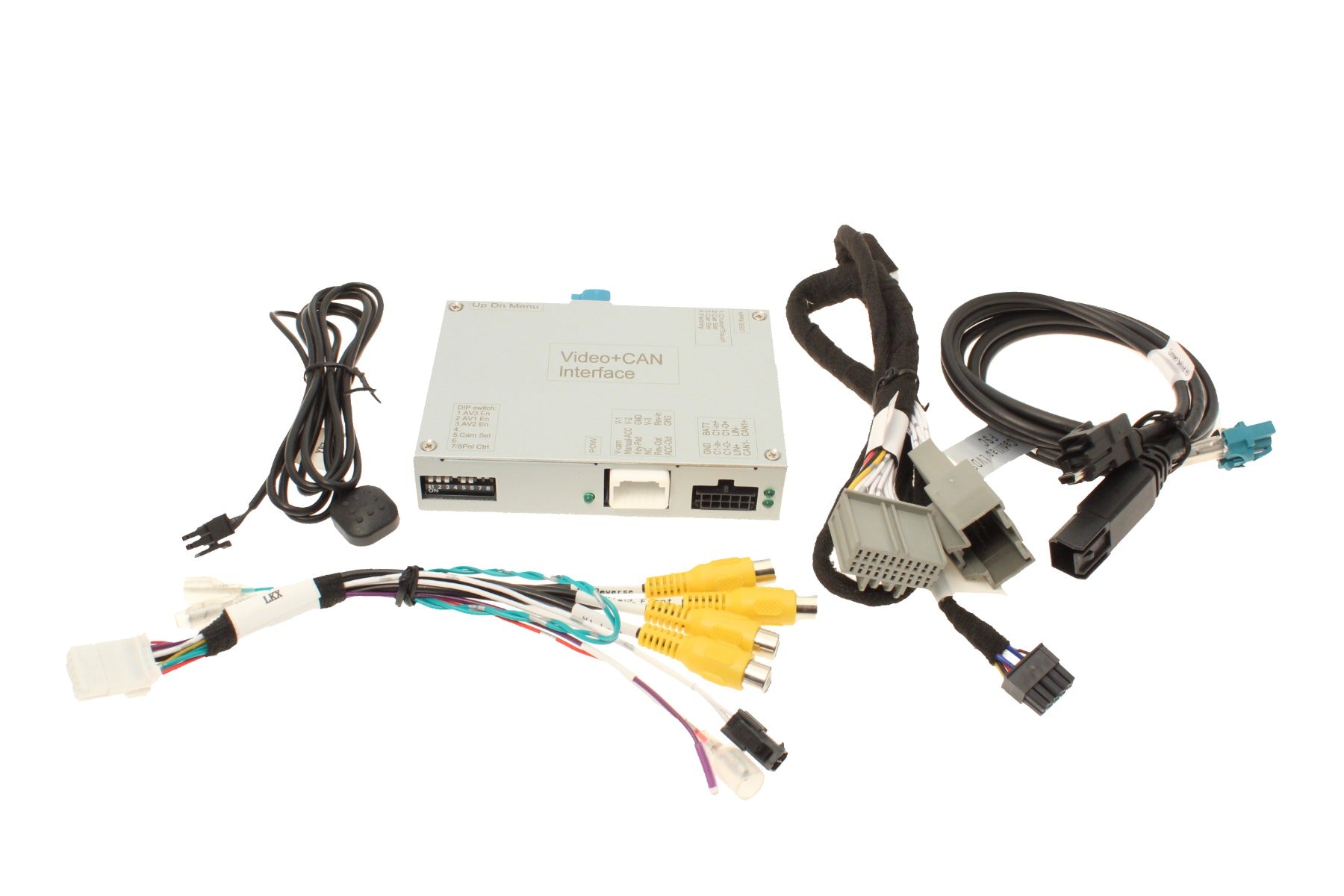

Kit Includes:

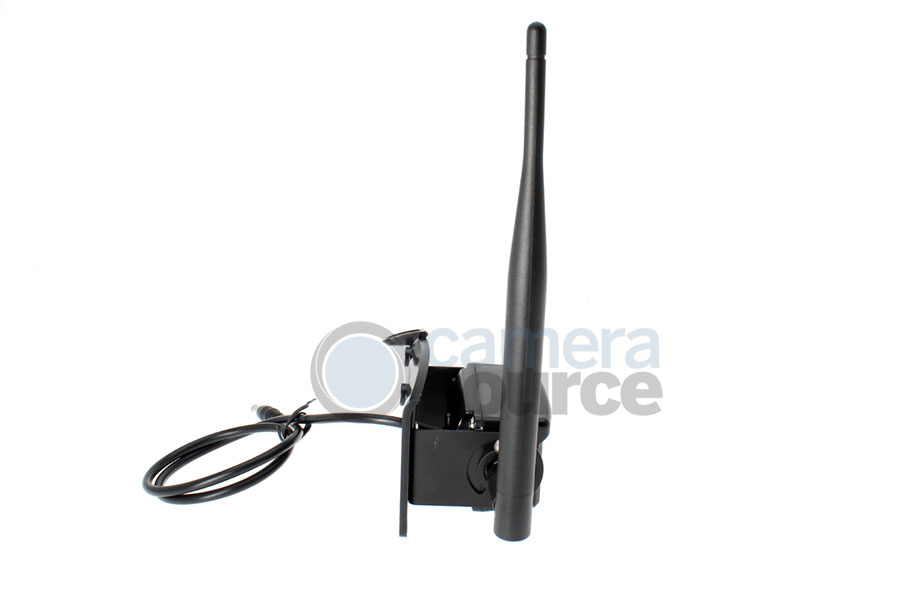

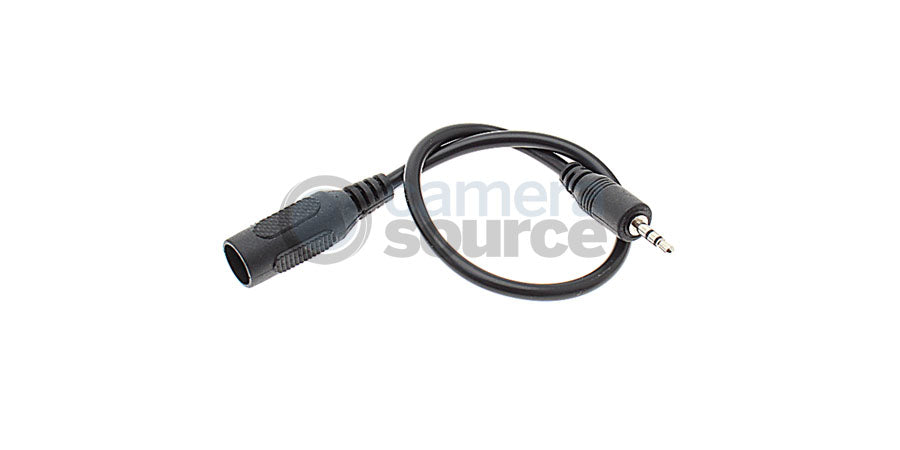

- Digital wireless camera with Furrion® compatible power pigtail

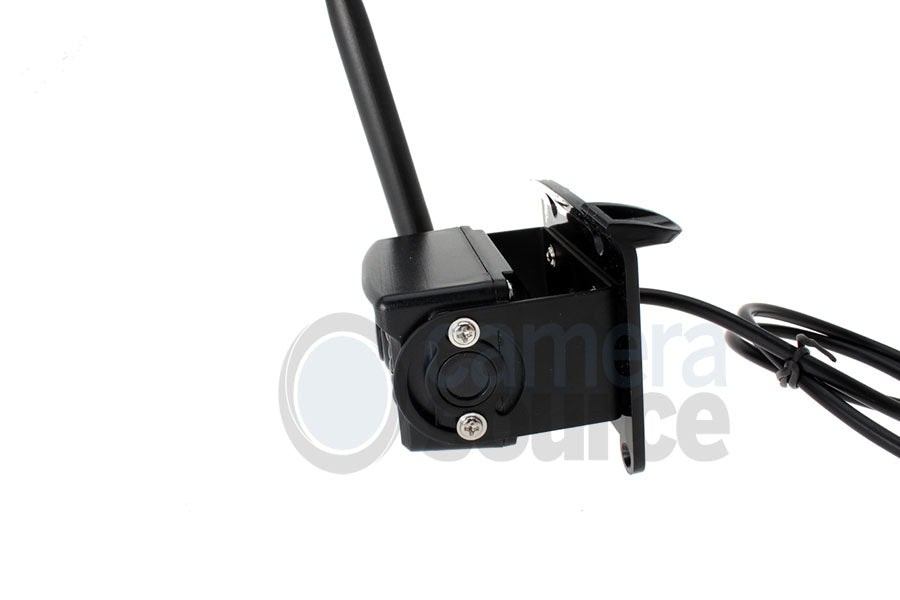

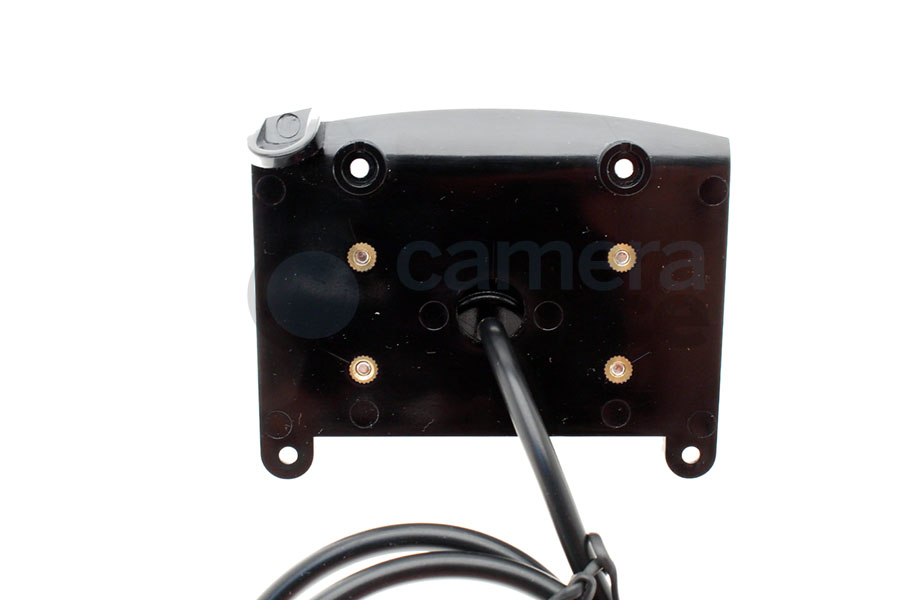

- Furrion® compatible adapter bracket- Perfect fit to adapt our camera to the existing bracket

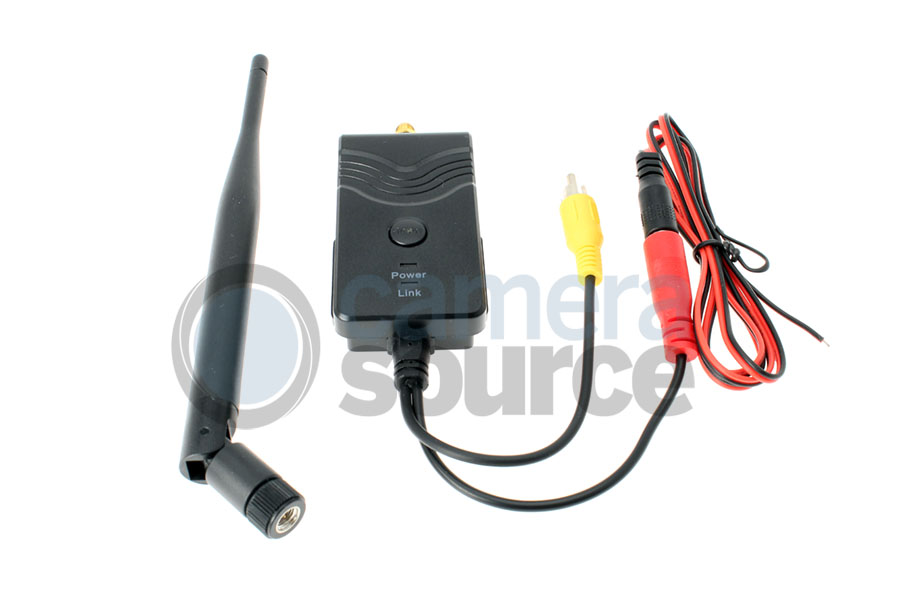

- Wireless receiver
- Integration module for GM® IOB display.
- Wire connectors
- Zip ties
- Install instructions
Interface Module Features:
- Uses existing 7" IOB factory display (display radio not included)
- Left and Right turn signal activated inputs
- Front camera input -Can be setup to come on automatically when shifting from reverse to drive or manually activated by pressing the external activation button
- Rear camera input (to either sustain factory camera or add your own)
- Dynamic Parking lines (with the option to turn them on or off)
- 3 year warranty

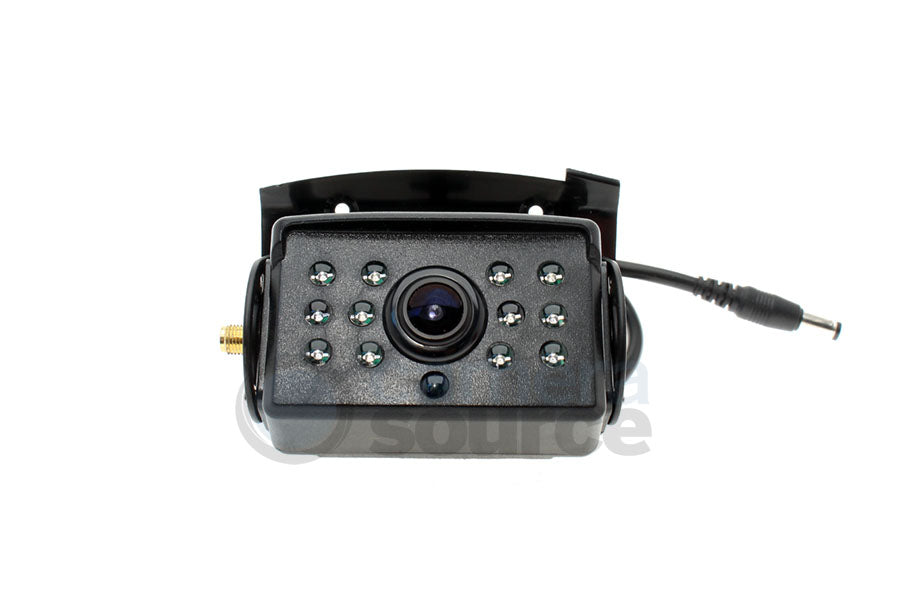

Wireless Camera specs:
- 1/4" Sony Color CMOS for ultimate clarity
- 2.5mm lens
- 700 TVL resolution - the best clarity you will find in a wireless camera!
- 0 LUX min illumination. 12 IR LED's for clear night vision even in complete blackness, night range up to 15 meters
- Aluminum alloy weather tight casing - steel mount bracket included
- 2.4GHz Digital FHSS Hopping and Pairing Technology, 2400-2483.5MHz frequency
- IP69 waterproof, shockproof, dustproof, resistance to high temperature and humidity
- Industry leading 3 year warranty!
**Display not included** This kit connects to your existing factory display. Not compatible with IO4,IO5,IO6 display.
Furrion® and the Furrion® logo and device are trademarks or registered trademarks licensed by Furrion Ltd. in the United States and/or other countries. Furthermore, all product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Specifications
| System Manufacturer | EVI Systems |
| Bracket Type | Steel |
| Number of Cameras | 1 |
| Camera Resolution | 700 TVL |
| Camera Type | Rear Camera, Trailer/Camper/5th Wheel camera |
| Cam Only/Complete Kit | Complete Kit |
| For a monitor it uses | Your factory display |
| Make | Chevrolet,GMC |
| Camera Mount Location | Camper/Utility Bed |
| Night Vision | 0 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Not Available |
| Power Supply | 12 Volts |
| Radio Screen Size | 7\ MyLInk/Intellilink |
| Reason for Shopping | Adding camera(s) |
| Sensor Brand | EVI Systems |
| Sensor Type | CMOS |
| System Type | Wireless |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck, Camper/Trailer (if connecting to vehicle wiring) |
| Camera Input Ports | 4 |
| Viewing Angle | 150 Degrees |
| Model | Sierra,Sierra HD,Silverado,Silverado HD |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 69 Camera |
| Wiring Type | Wireless |
| Year | 2014,2015,2016,2017,2018 |
| Make Filter | Chevrolet, GMC |
| Model Filter | Sierra, Sierra HD, Silverado, Silverado HD |
| Year Filter | 2014, 2015, 2016, 2017, 2018 |
Compatibility

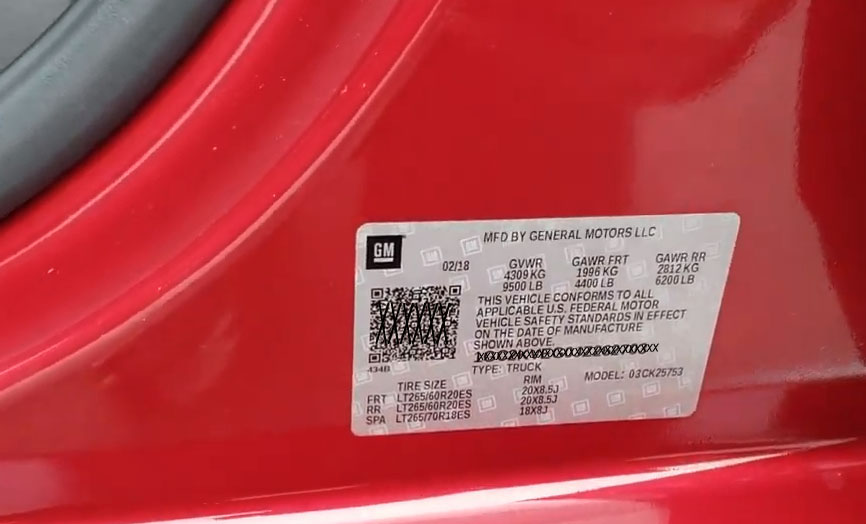

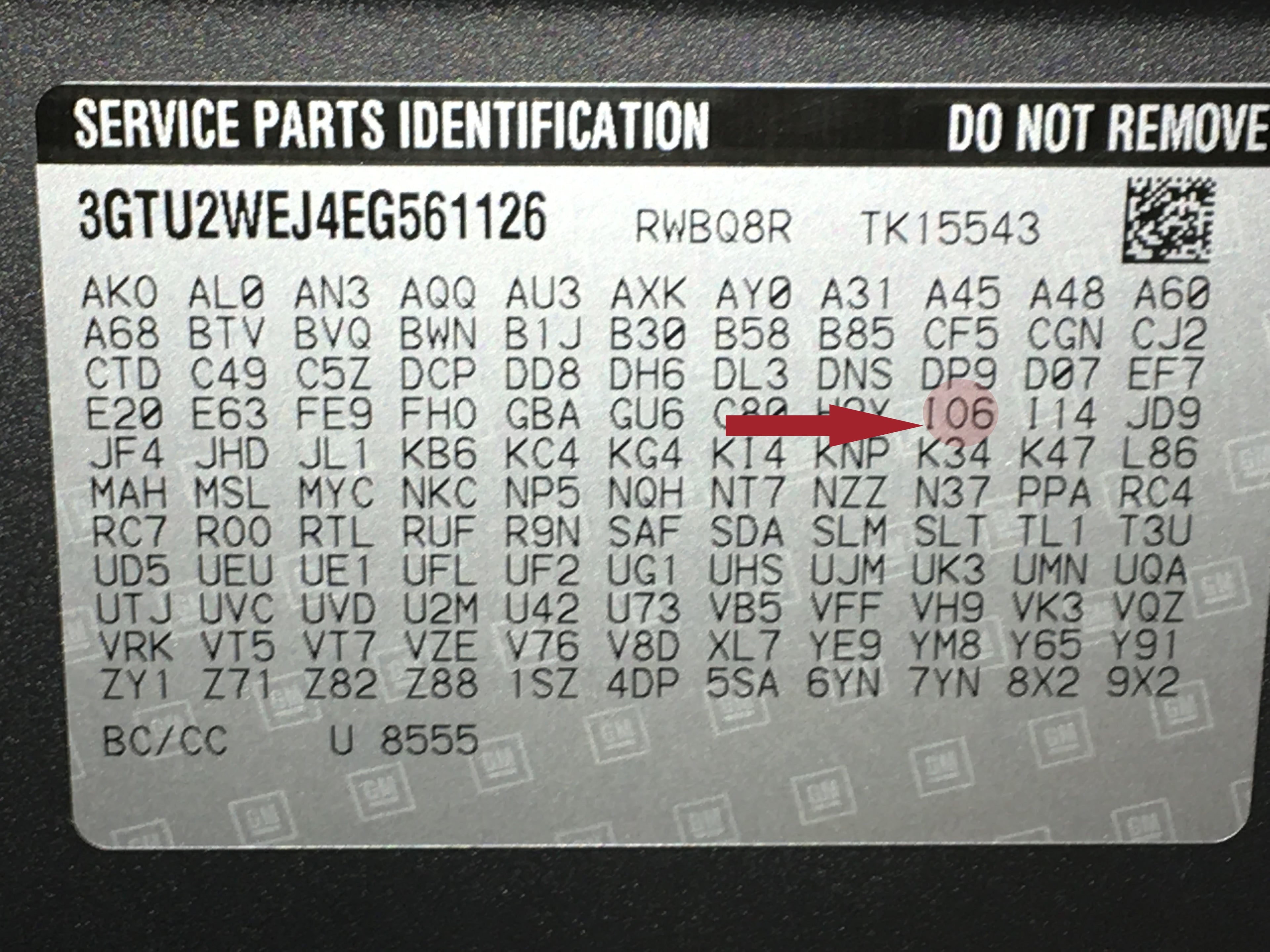

2014-2019 Sierra® or Silverado® with IOB factory radio and factory installed tailgate camera. To confirm radio type, locate the Service Parts Identification sticker in your glove box or on the driver's side door jam(2018+). Look for code IOB on this sticker to confirm compatibility. See images for example.
See SKU: CS-GMFW-VI for IO5 or IO6 display.
Installation
Remove the radio to gain access to the factory camera connector, install new multi-cam interface and wireless receiver. Receiver is powered directly from the interface module.
Install the digital wireless camera on the back of your trailer using the Furrion® compatible adapter bracket and plug in power pigtail. No drilling or wiring required at the camera!
