Wireless Camera Kit Compatible with Furrion® Prewire
SKU#: CS-FW
Availability:
In Stock
SKU#:
CS-FW
$179.00
Quantity
Compatible with Furrion Pre-wire!
Description
Is your camper pre-wired for a Furrion® camera system? Wouldn't it be great if you could view the camper camera on your aftermarket display or separate monitor? We have a solution! This kit will allow you to use the pre-wire setup on your camper and view this camera on any display with an RCA input! (display sold separately)
Our digital wireless camera comes with an adapter bracket and power pigtail to connect directly to the existing pre-wired Furrion® system on your trailer or RV. The included wireless receiver harness terminates in a RCA connection that can be plugged into any monitor with a RCA input.
This kit adds the convenience of a wireless rear camera to the back of your trailer. Our camera adapter plate fits perfectly into the Furrion® housing and with the included power pigtail you can plug directly into the existing pre-wired port. You'll be able to see behind your trailer while backing up without having to have a spotter guiding you.

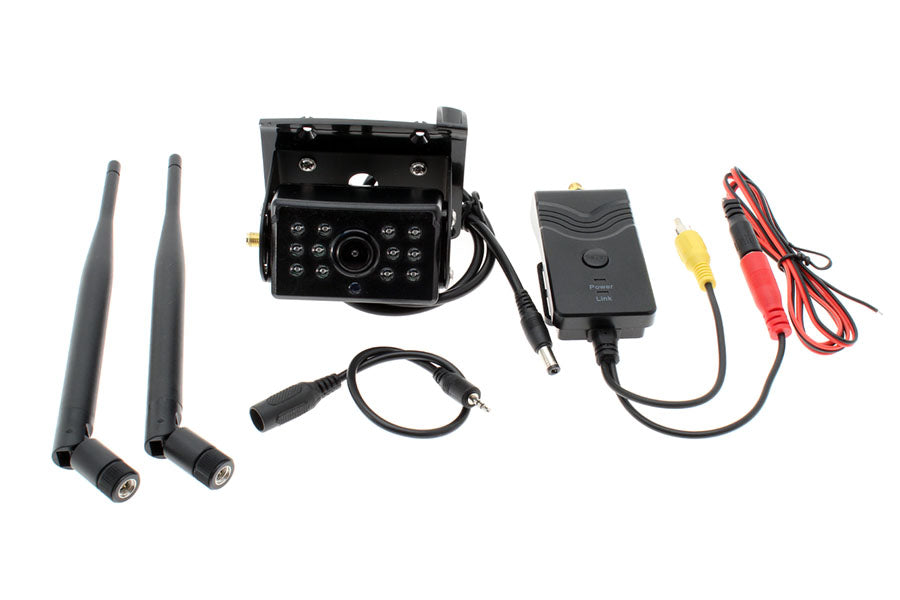

Kit Includes:

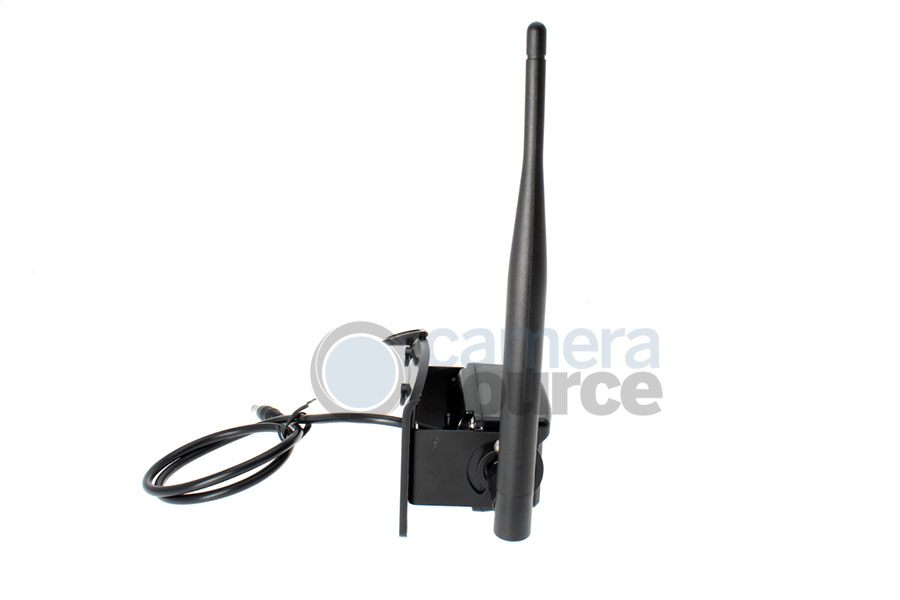

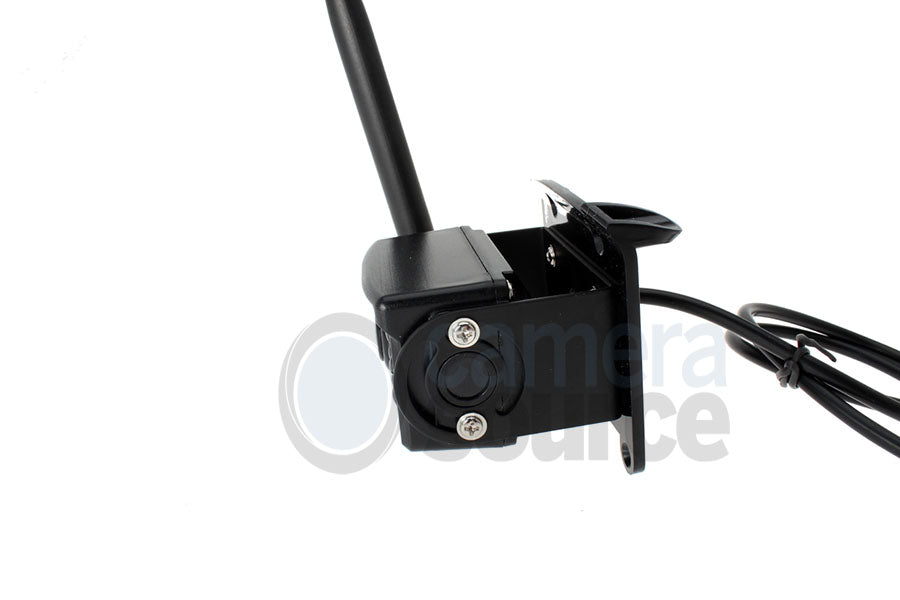

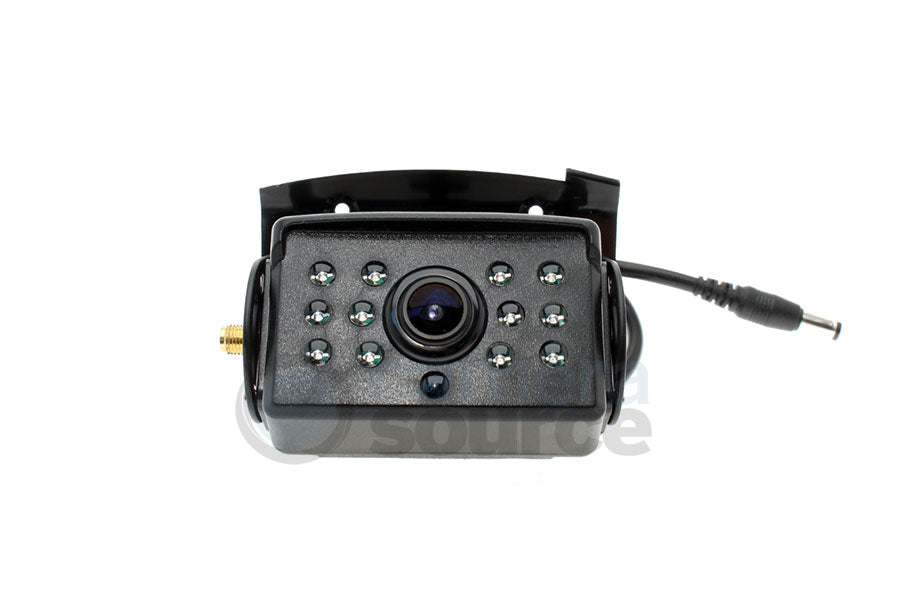

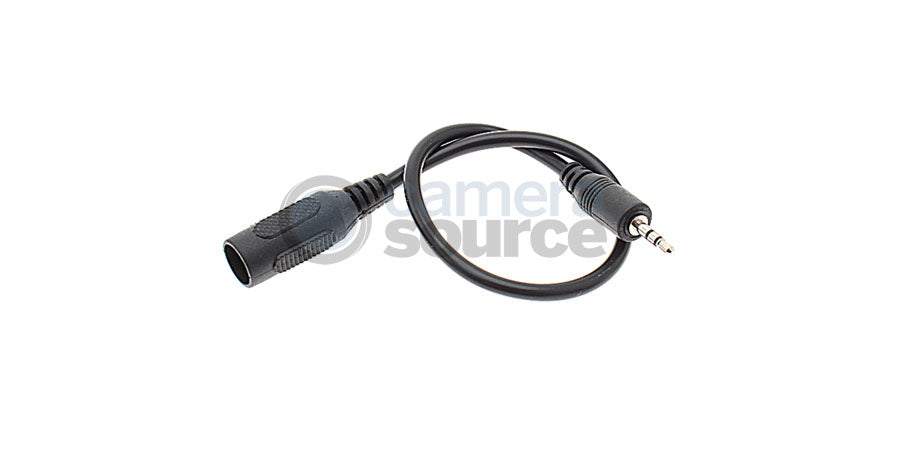

- Digital wireless camera with Furrion® compatible power pigtail

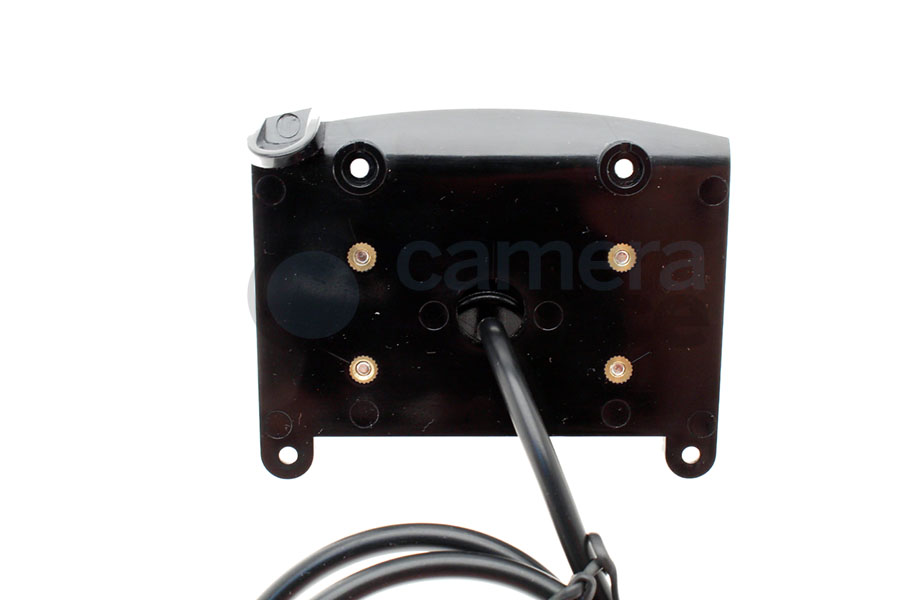

- Furrion® compatible adapter bracket- Perfect fit to adapt our camera to the existing bracket

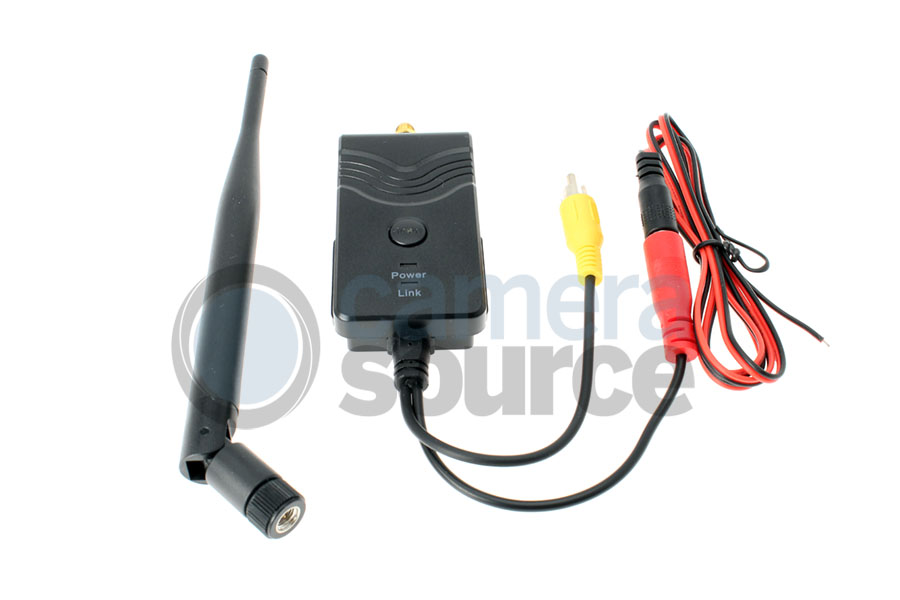

- Wireless receiver
- Install instructions
Wireless Camera specs:
- 1/4" Sony Color CMOS for ultimate clarity
- 2.5mm lens
- 700 TVL resolution - the best clarity you will find in a wireless camera!
- 0 LUX min illumination. 12 IR LED's for clear night vision even in complete blackness, night range up to 15 meters
- Aluminum alloy weather tight casing - steel mount bracket included
- 2.4GHz Digital FHSS Hopping and Pairing Technology, 2400-2483.5MHz frequency
- Reception for up to 75 feet guaranteed, over 300 feet line of sight overall reception range.
- IP69 waterproof, shockproof, dustproof, resistance to high temperature and humidity
- Industry leading 3 year warranty!
**Display not included**
Furrion® and the Furrion® logo and device are trademarks or registered trademarks licensed by Furrion Ltd. in the United States and/or other countries. Furthermore, all product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Specifications
| System Manufacturer | EVI Systems |
| Bracket Type | Steel |
| Number of Cameras | 1 |
| Camera Resolution | 700 TVL |
| Camera Type | Rear Camera, Trailer/Camper/5th Wheel camera |
| For a monitor it uses | Your aftermarket display (RCA) |
| Camera Mount Location | Camper/Utility Bed |
| Night Vision | 0 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Not Available |
| Power Supply | 12 Volts |
| Sensor Brand | EVI Systems |
| Sensor Type | CCD |
| System Type | Wireless |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck, Camper/Trailer (if needing standalone system), RV |
| Viewing Angle | 150 Degrees |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 69 Camera |
| Wiring Type | Wireless |
Compatibility
Compatible with Furrion Pre-wire trailers and any monitor that has a RCA input.
Installation
Locate a 12 volt accessory power source. Connect the wireless receiver to any display that has a RCA input.
Install the digital wireless camera on the back of your trailer using the Furrion® compatible adapter bracket and plug in power pigtail. No drilling or wiring required at the camera!
