Universal Front Camera Kit for Factory 8" or 12" Navigation Display, Fits 2022-2024 RAM®
SKU#: 7CS-23DTR-VIF
Availability:
In Stock
SKU#:
7CS-23DTR-VIF
$702.00
Quantity
Universal Front Cam + Multi-camera Support!
Description
Can't see over that hood? This is your solution and is a Camera Source exclusive for a 2022-2024 RAM® 1500,2500,3500 series with 8.4" or 12" UConnect 5 factory display with Navigation!!
This universal camera can be converted to mount on any flat surface or even tucked right into your grille! The camera has adjustable tilt to obtain the optimum view and comes with parking guideline options, meaning that the guidelines can be turned off. The included screen interface provides multi-cam support so you can add up to 4 cameras to your factory 8.4" or 12" UConnect 5 Navigation display screen!
The integration module allows for plug and play integration into your factory screen without having to flash a program your radio. The factory rear camera will come on automatically when in reverse and front camera can be manually activated using the included activation button or by pressing the forward arrow on the steering wheel.

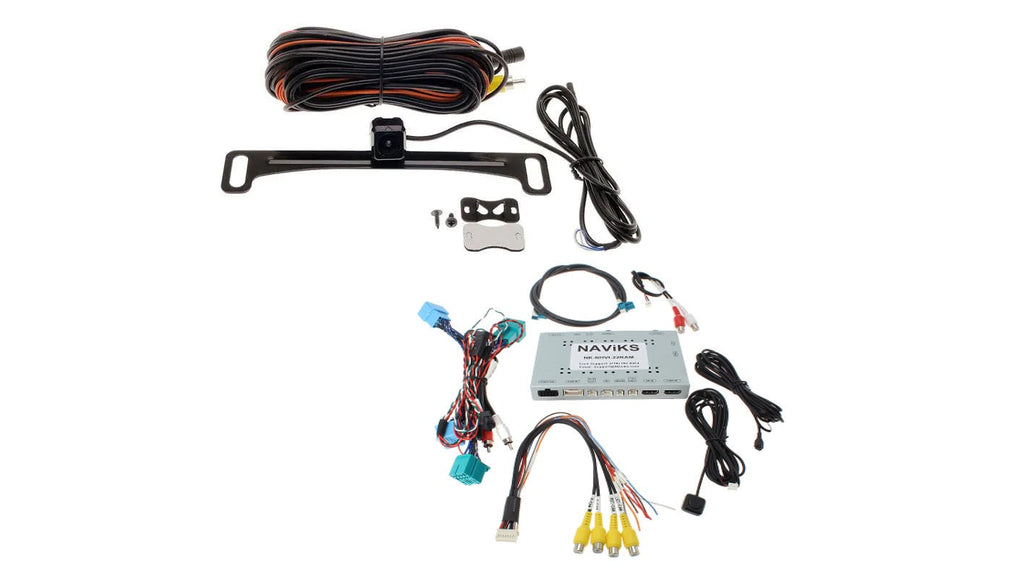

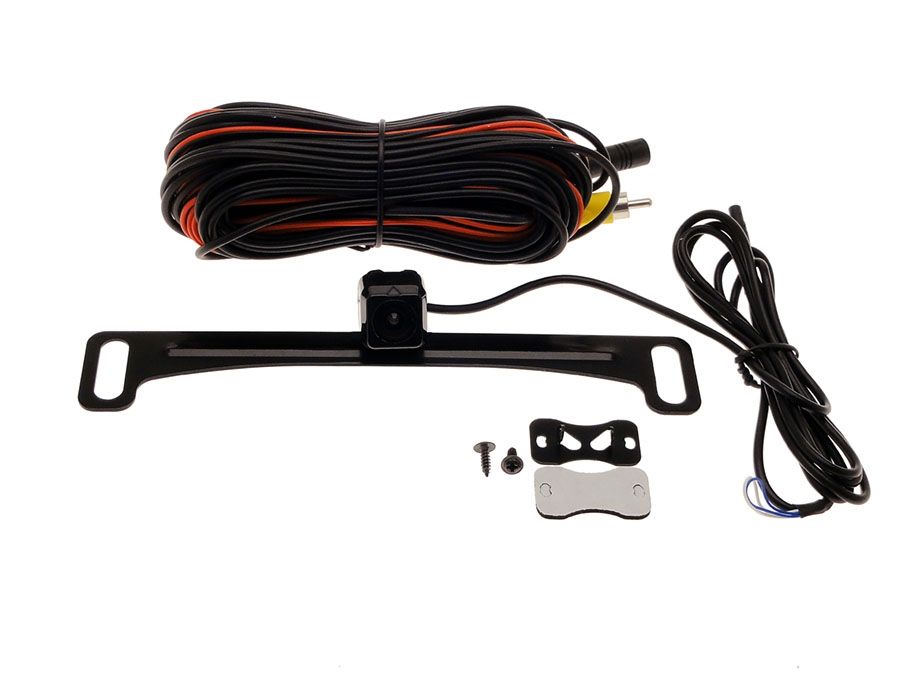

Kit includes:

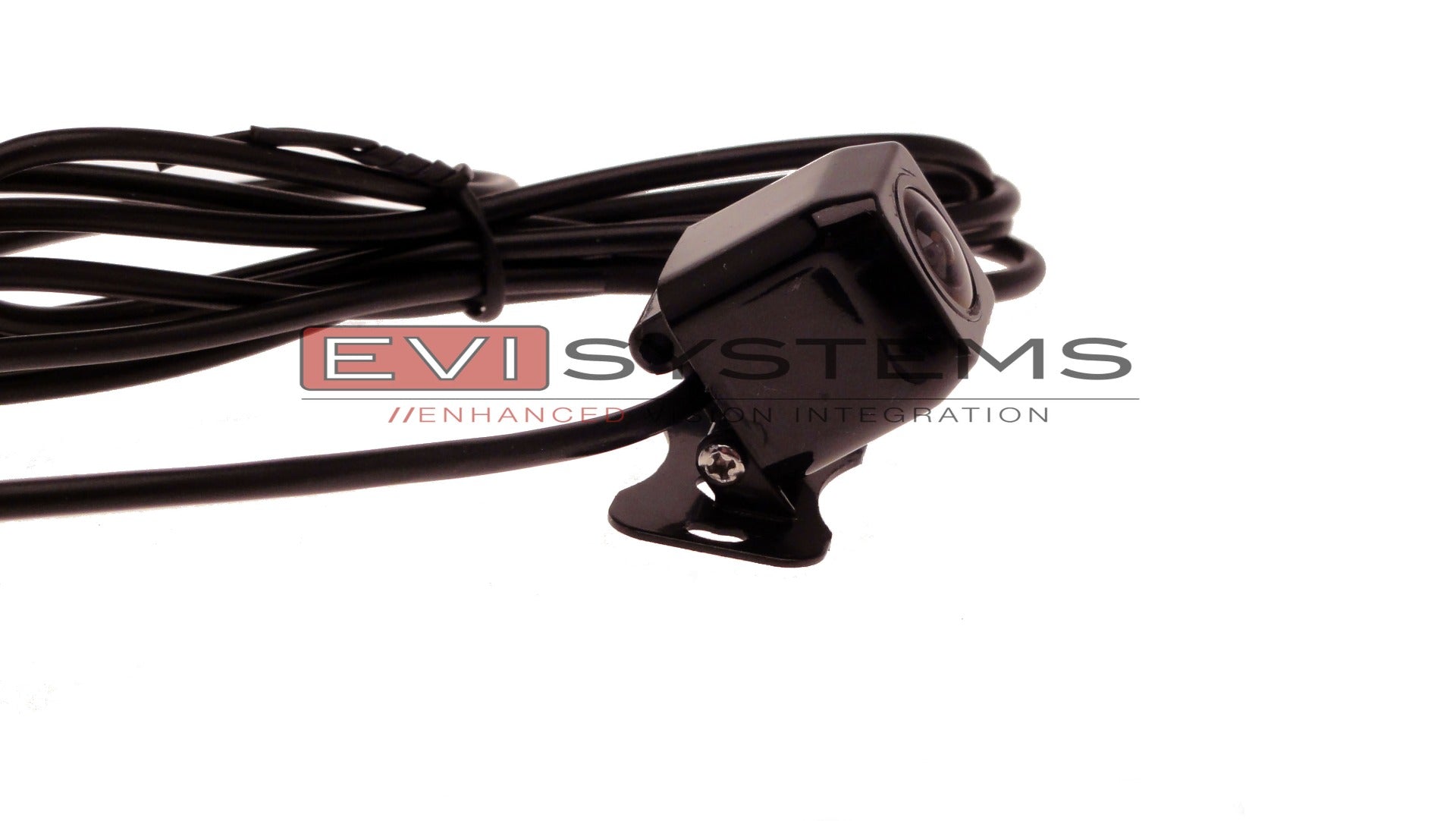

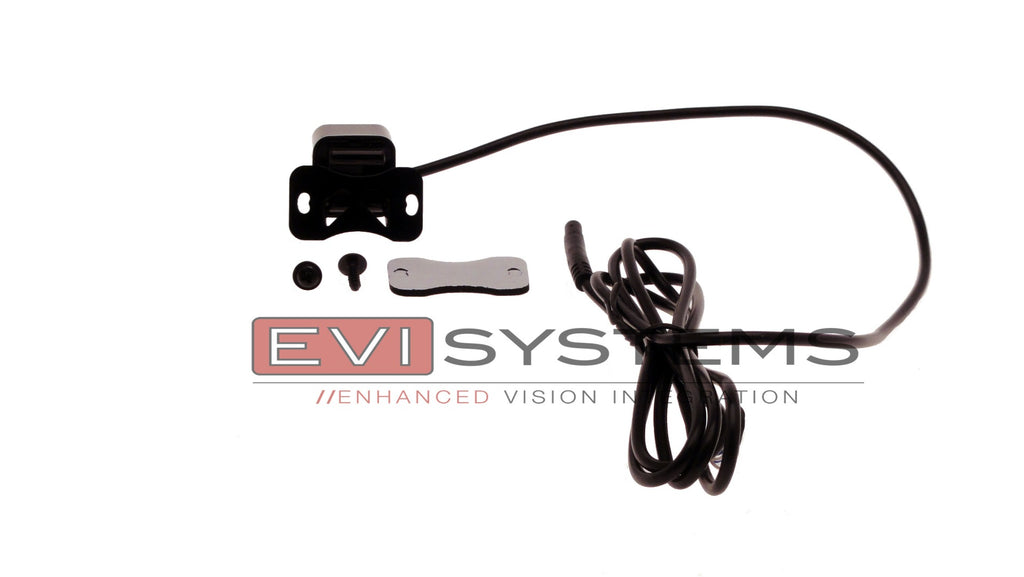

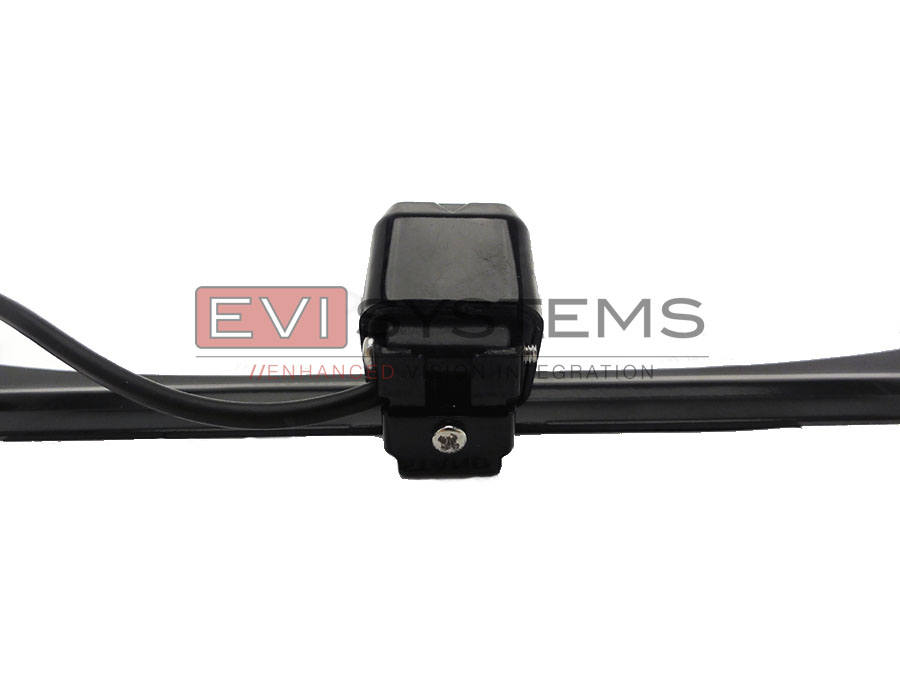

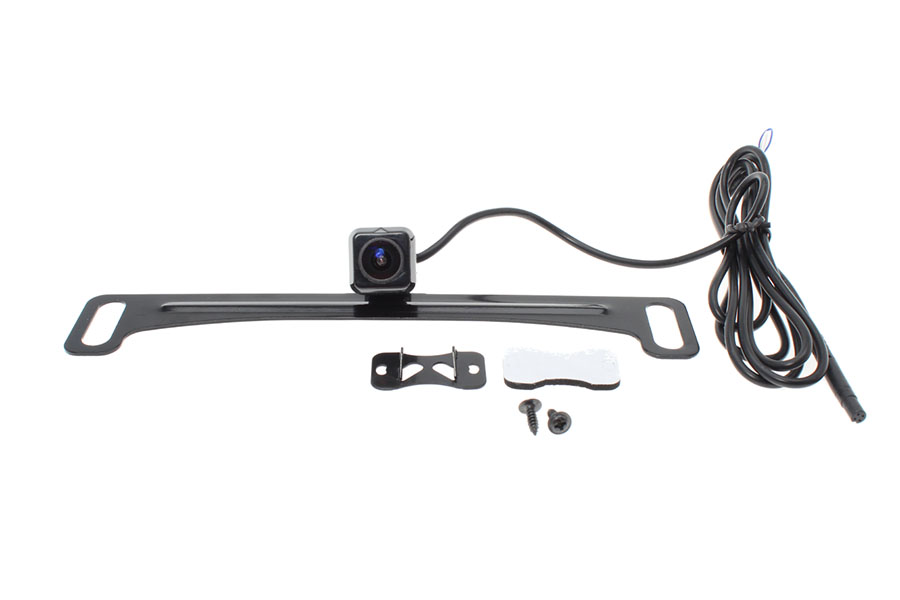

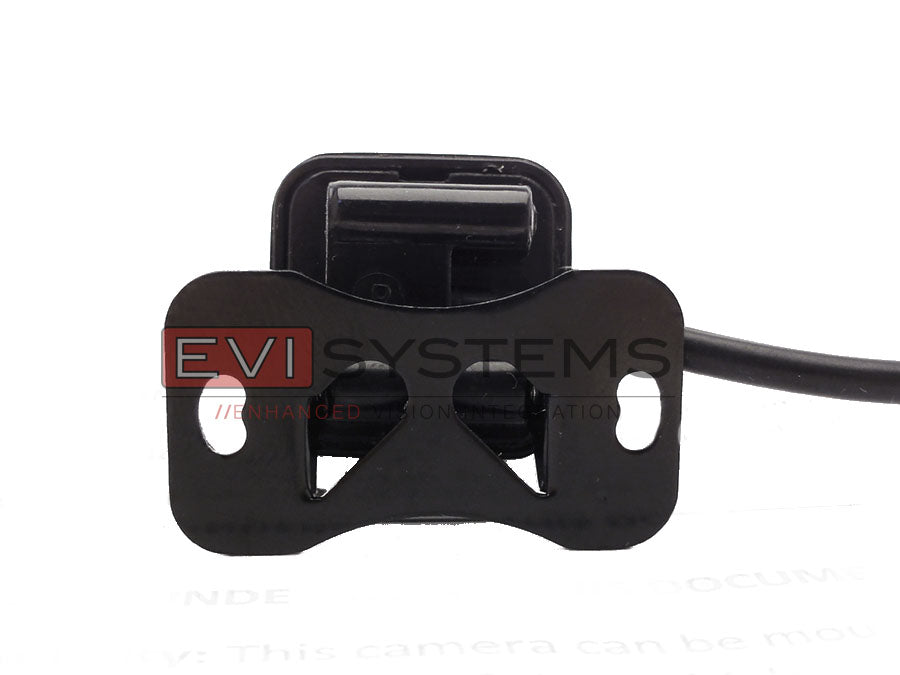

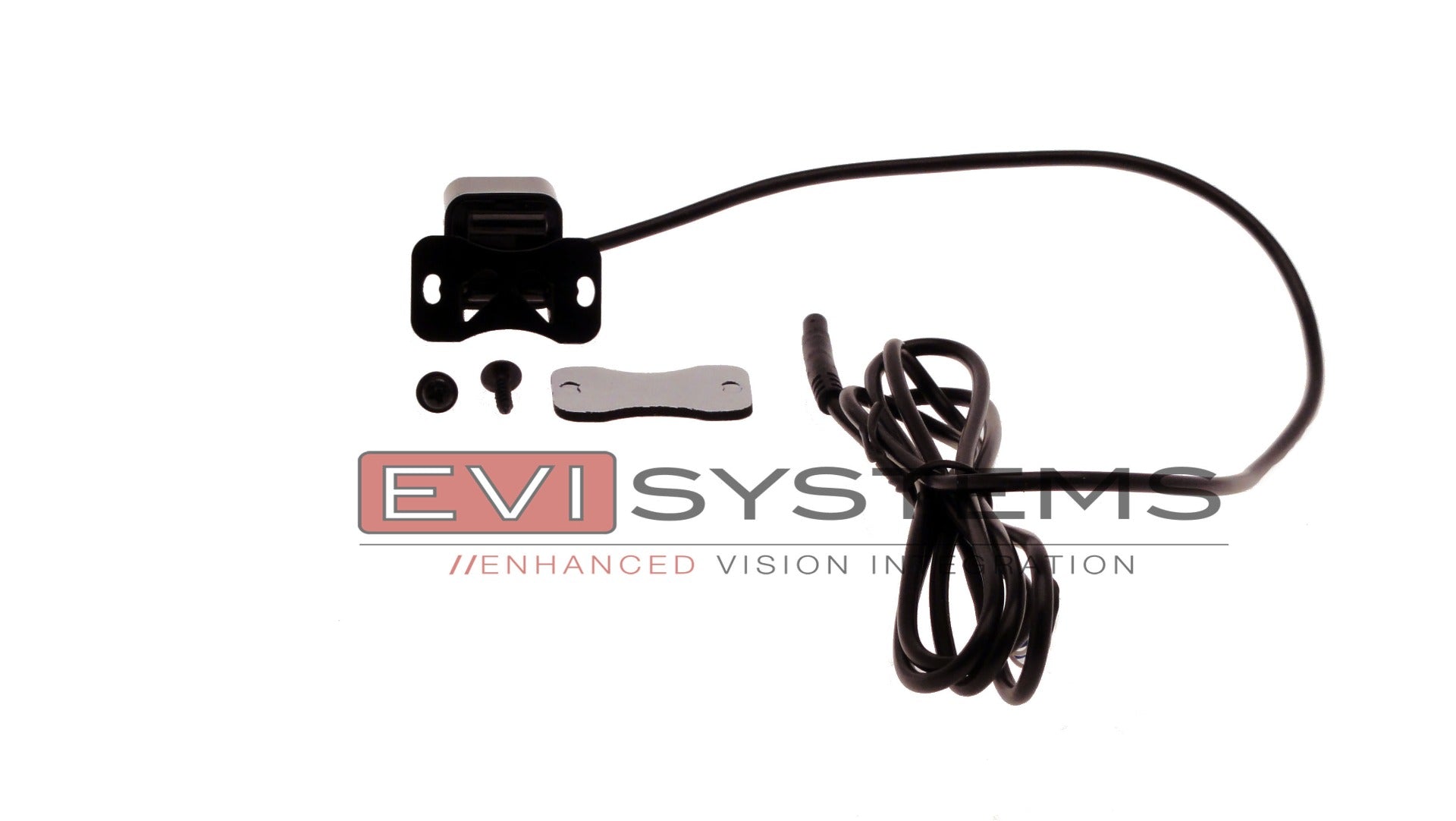

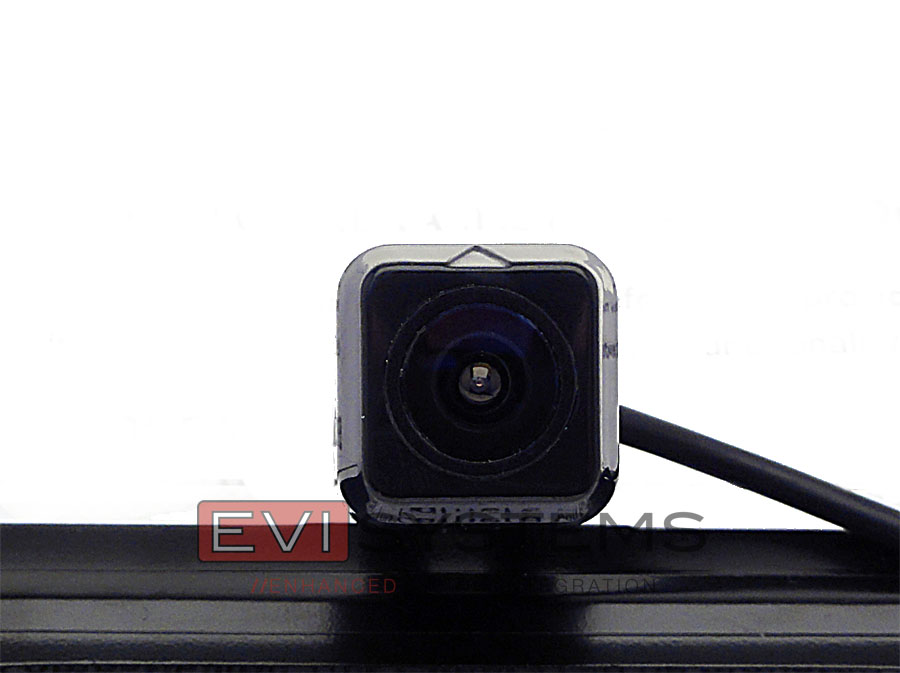

-CMOS license plate mounted camera-with dual mounting bracket
-Interface module for your factory radio (radio not included). Provides multi-camera support for up to 4 cameras in addtion to your factory tailgate camera.
-Camera wiring harness
-Zip ties
-Detailed installation instructions
-3 year limited warranty on camera. 1 year warranty on interface module
Camera Specifications:
-Super CMOS sensor for ultra clear display
-Resolution: 600 TV lines
-Minimum Illumination: 0.2 Lux
-View Angle: 170
-Video Output: Full color video
-Working Voltage: DC 9-16V
-Parking Line: On/Off selectable
-Image: Mirror/Non mirror selectable

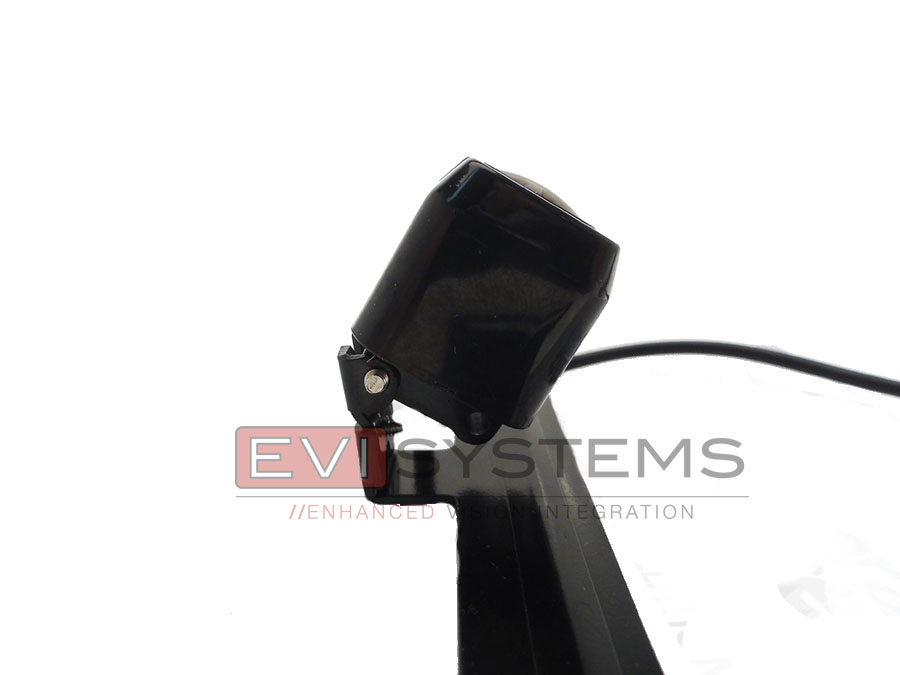

-Adjustable tilt to obtain the best view!
-Waterproof: IP67
-25 foot harness

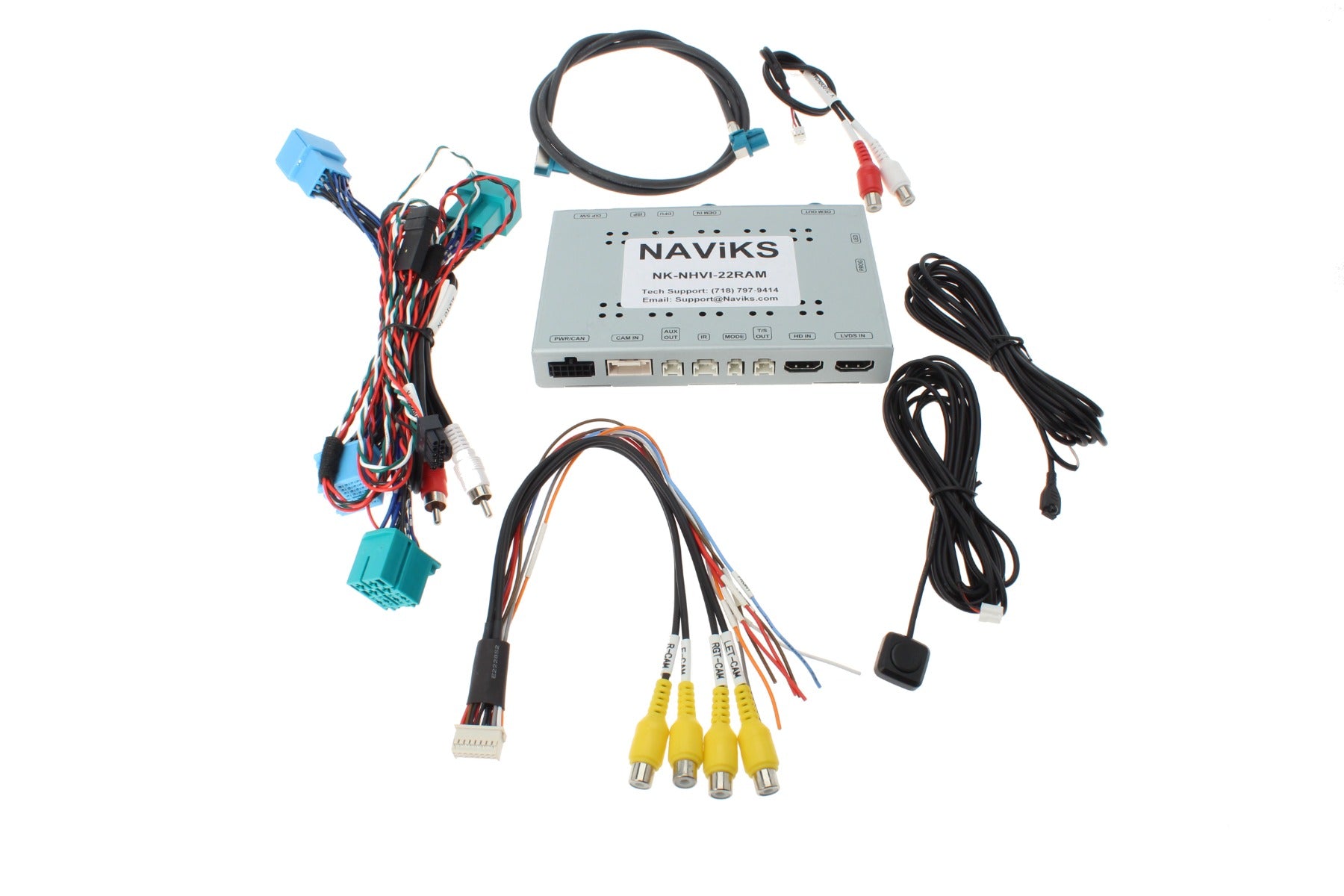

RAM Multi Cam interface for 8.4" or 12" UConnect 5 Navigation display.
- Built-in HDMI video input could be used with: Smartphone HDMI Adapter, Firestick, Apple TV, Amazon Stick, Hulu Stick.
- Built-in audio input, true auxiliary input with no audio lag.
- Retains ALL factory features.
- Will not affect backup camera, tested and confirmed to work with vehicle's that have just a backup camera and vehicles with a 360 birds eye view camera system.
- Automatic switching to the left and right camera using the cars turn signal switch.
- Left, right and front Camera can be setup to be turned on using a 12 Volt trigger.
- Rear Camera input for customers looking to override original backup camera, add a trailer camera with priority over OEM camera in reverse gear.
-Cameras can also be viewed and cycled through individually by pressing and holding the "right arrow" button located on the steering wheel for 5-7 seconds or the external black push button switch.
- Retains ALL factory features.
- Will not affect backup camera, tested and confirmed to work with vehicle's that have just a backup camera and vehicles with a 360 birds eye view camera system.
- Automatic switching to the left and right camera using the cars turn signal switch.
- Left, right and front Camera can be setup to be turned on using a 12 Volt trigger.
- Rear Camera input for customers looking to override original backup camera, add a trailer camera with priority over OEM camera in reverse gear.
-Cameras can also be viewed and cycled through individually by pressing and holding the "right arrow" button located on the steering wheel for 5-7 seconds or the external black push button switch.
- Great solution for customers looking to add trailer cameras.
- For Audio Auxiliary operation you will need a USB storage device with at least one audio file.
Click here for a video demonstration of the interface module.
This kit allows you to see what is directly in front of truck! This camera comes with a 3 year warranty and interface module has a 1 year warranty. Professional installation is recommended.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Front Camera |
| For a monitor it uses | Your factory display |
| Connection | Plug and Play to Factory Dash Display |
| Make | RAM |
| Camera Mount Location | Universal Mount |
| Night Vision | .1 Lux |
| Parking Guidelines | Yes |
| Power Supply | 12 Volts |
| Radio Screen Size | 8.4\ Mopar, 12.1\ Mopar, Factory LCD |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 4 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | 1500,HD |
| Warranty | 1 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2022,2023,2024 |
| Make Filter | Ram |
| Model Filter | 1500, HD |
| Year Filter | 2022, 2023, 2024 |
Compatibility
Compatible with 2022-2024 RAM® trucks with factory 8.4" or 12" Uconnect 5 radio system with navigation.
Must have factory navigation, not just CarPlay or Android Auto.
Installation
Front camera-Simple installation may not even require the removal of the front grille. Install on either your license plate mount or on any flat surface - comes with two brackets. The RCA cable will run inside the vehicle to the interface module. All the wiring is included and installation can be accomplished in 2-3 hours (times vary with experience).
You will need to remove your factory screen to gain access to the back of the connections. The module will be plug and play and stubs out to a female RCA connection for the camera to connect directly to the screen. Detailed instructions included.
Camera is powered directly from the interface module. No cutting or splicing of factory wiring!
