Universal Front Camera Kit for 7" or 8.4" Factory Display, Fits 2018-2024 Charger/Challenger®
SKU#: 7CS-DC-FCAM
Availability:
Out of Stock
SKU#:
7CS-DC-FCAM
$405.00
Quantity
Universal Front Cam for your Uconnect 4 display!
Description
Can't see over that hood? Tired of scraping the curb with your front spoiler? This is your solution and is a Camera Source exclusive for a 2018-2024 Dodge Charger or Challenger with the 7" or 8.4" UConnect 4 factory display!
This universal camera can be converted to mount on any flat surface. The camera has adjustable tilt to obtain the optimum view and comes with parking guideline options, meaning that the guidelines can be turned off. The included screen interface allows you view the camera directly on your factory 7" or 8.4" UConnect 4 display screen!
The integration module allows for plug and play integration into your factory screen without having to flash a program your radio. The factory rear camera will come on automatically when in reverse and front camera can be manually activated by pressing and holding the middle button on the back-right side of the steering wheel for 5-7 seconds.

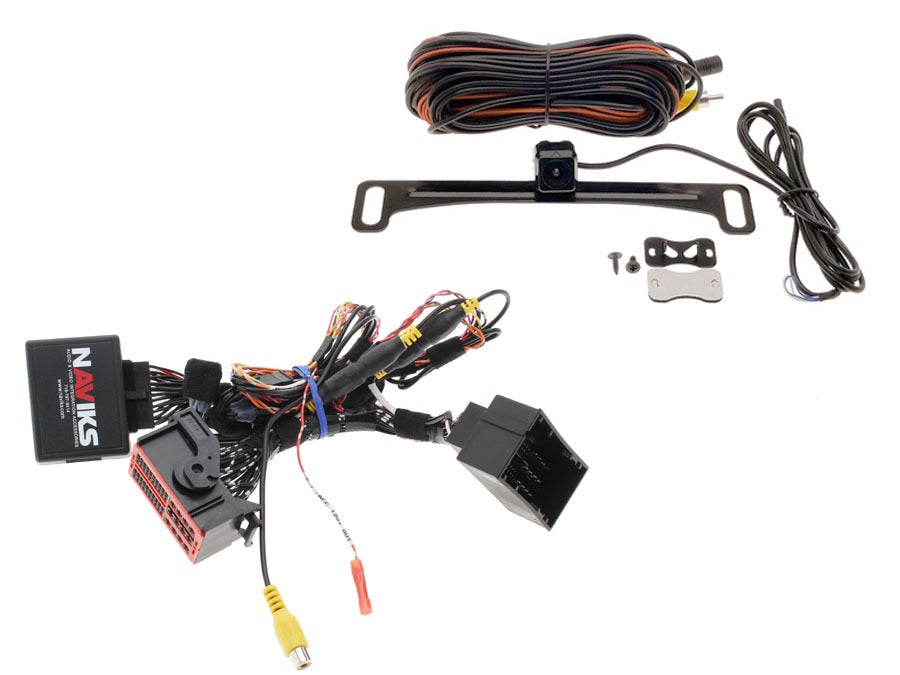

Kit includes:

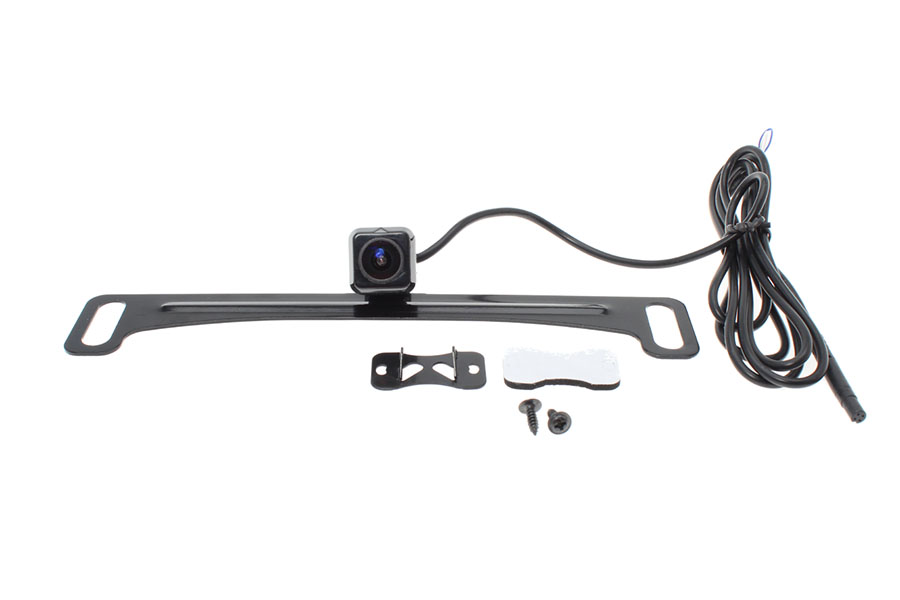

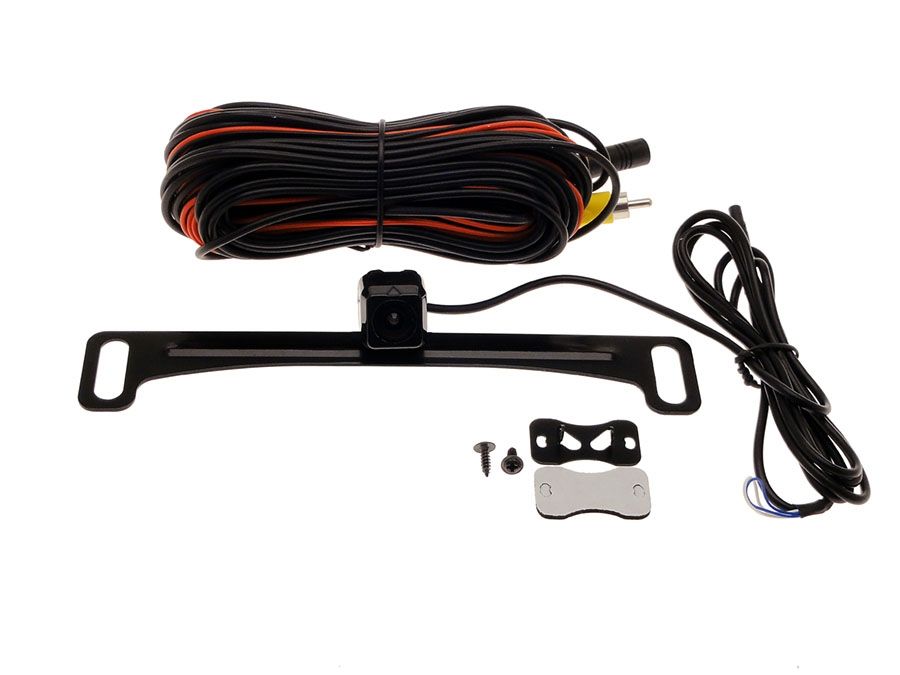

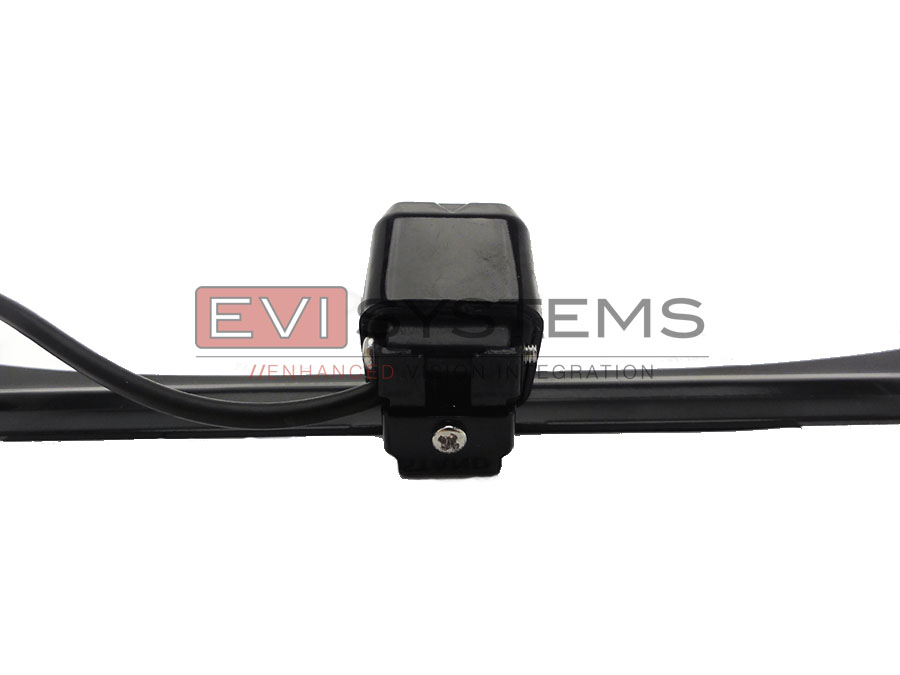

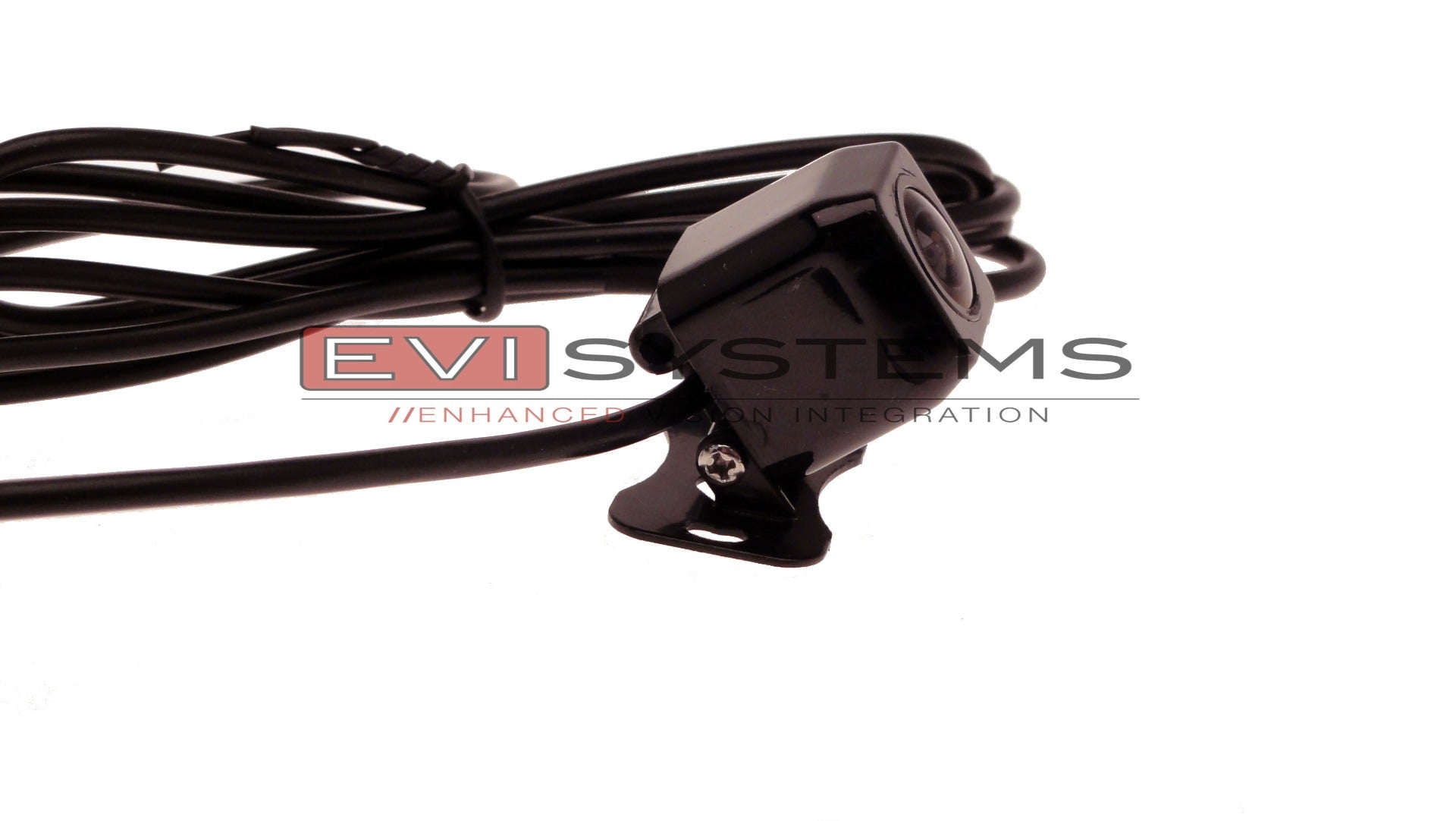

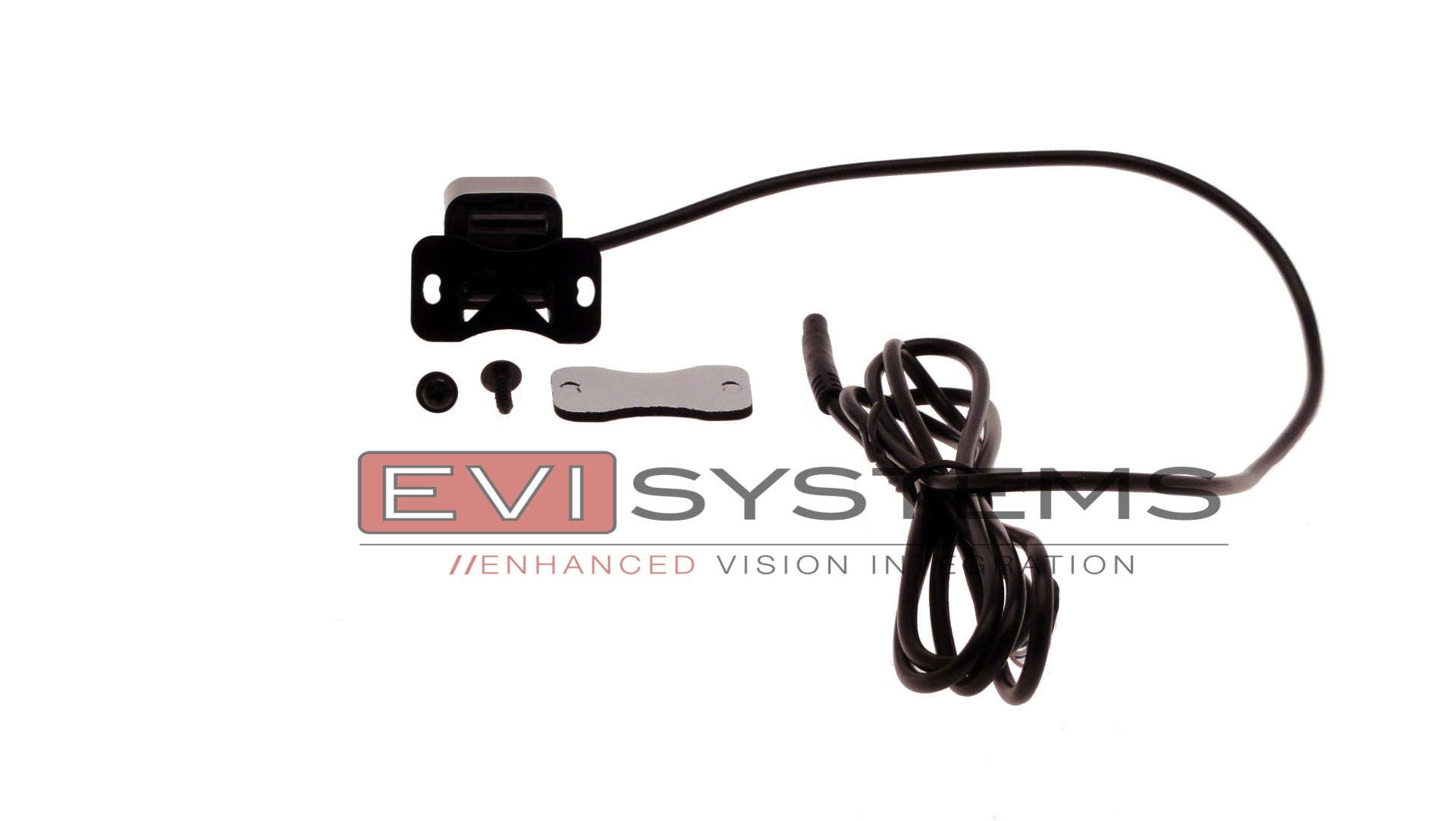

-CMOS license plate mounted camera-with dual mounting bracket. Mount on the license plate or tuck into the grille!

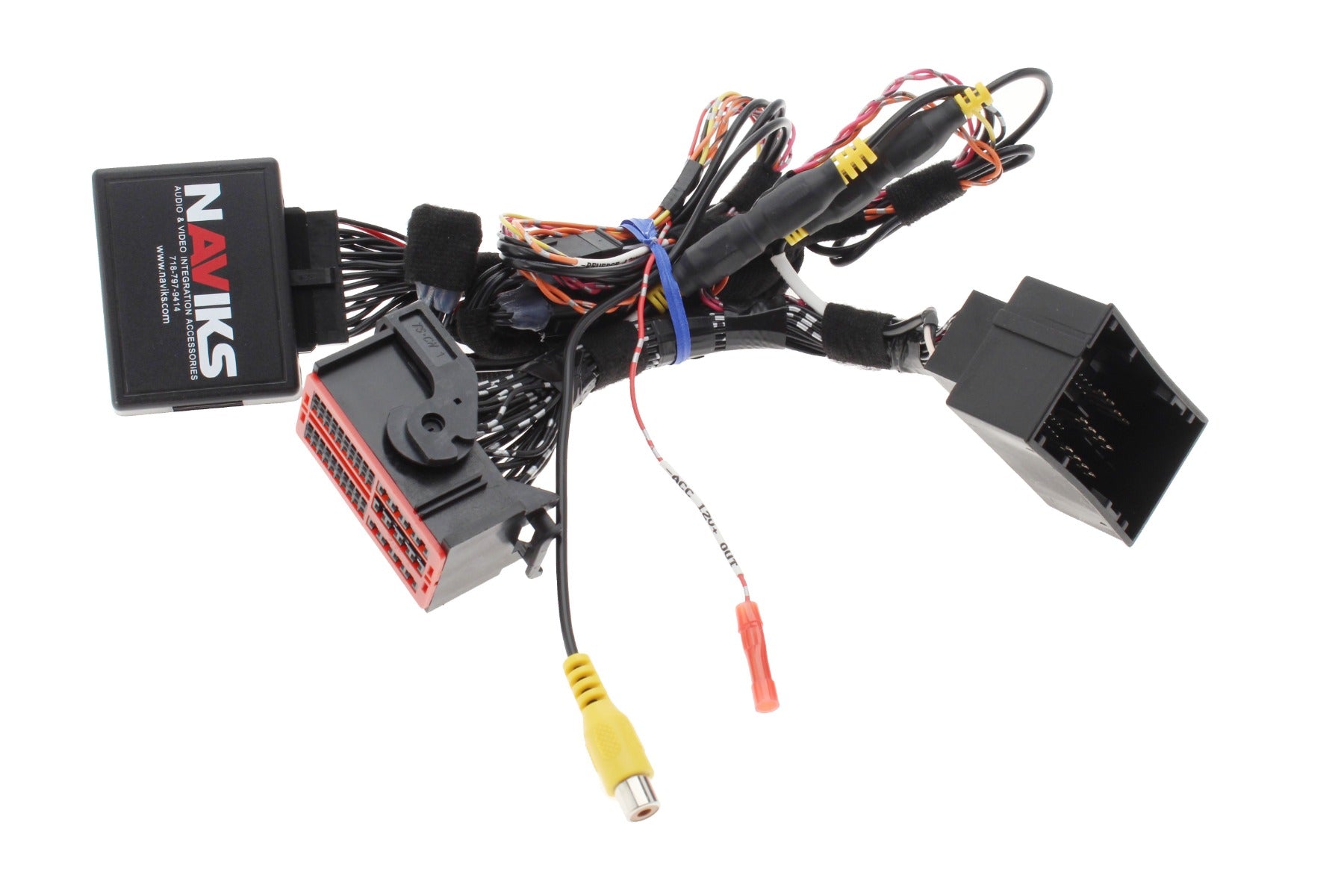

-Interface module for your factory radio (radio not included). Provides single camera support for 1 front camera in addtion to your factory tailgate camera.
-Camera wiring harness
-Zip ties
-Detailed installation instructions
-3 year limited warranty on camera. 1 year warranty on interface module
Camera Specifications:

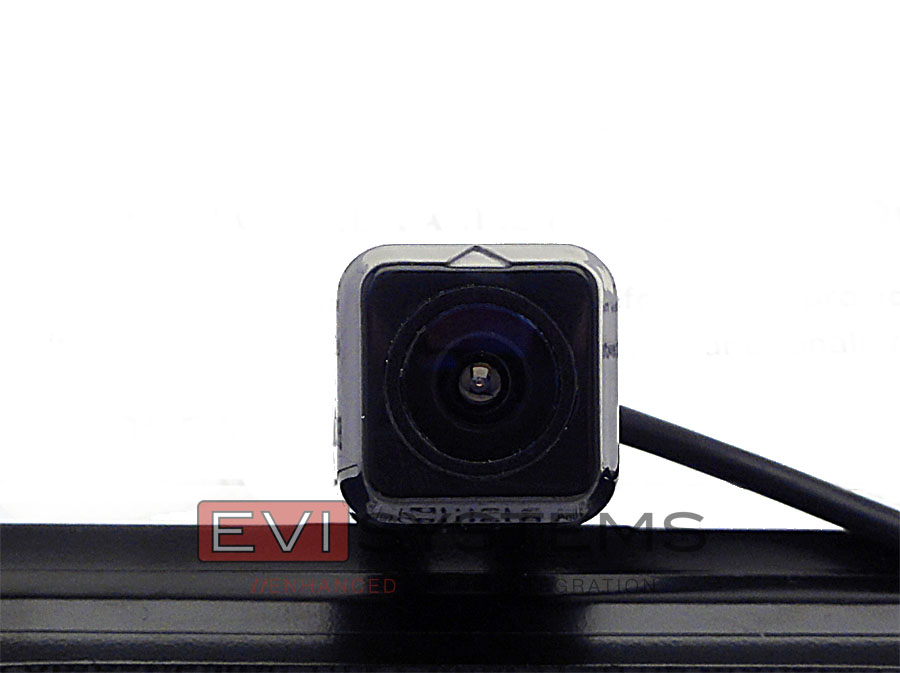

-Super CMOS sensor for ultra clear display
-Resolution: 600 TV lines
-Minimum Illumination: 0.2 Lux
-View Angle: 170
-Video Output: Full color video
-Working Voltage: DC 9-16V
-Parking Line: On/Off selectable
-Image: Mirror/Non mirror selectable

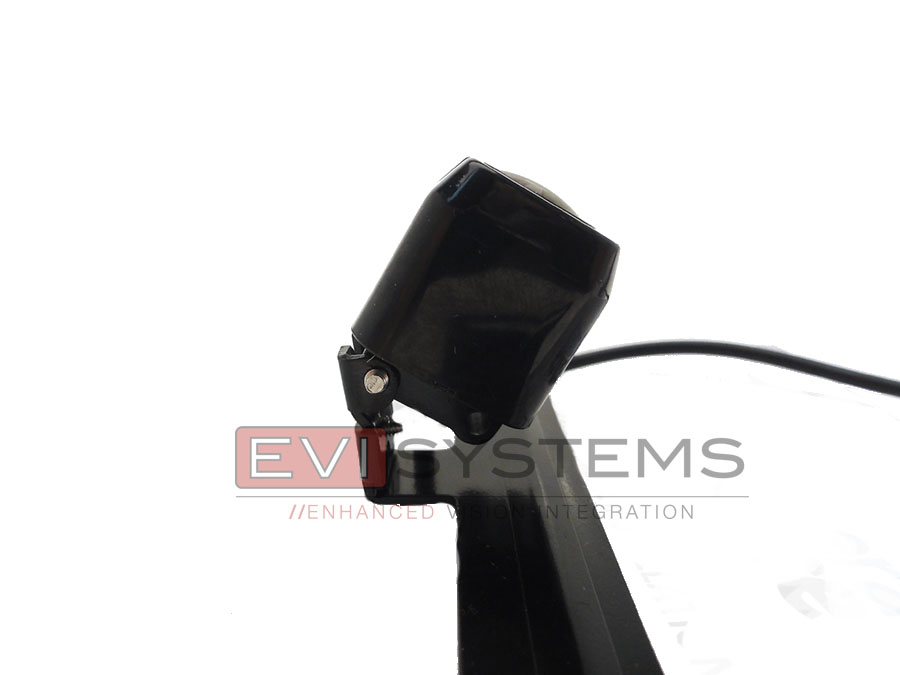

-Adjustable tilt to obtain the best view!
-Waterproof: IP67
-25 foot harness
Front camera interface for 7" or 8.4" UConnect 4 display.
- Nav In Motion lockout bypass.
- 1 Front View camera input.
- Vehicle's with OEM rear view camera: camera will continue to work as it did.
- NAV menu access in motion, function must be turned off after entering new address (back left side of the steering wheel, round middle button).
*While motion lockout function is active NAV will not track.
- Front view camera input is triggered by a button on the steering wheel (back right side of the steering wheel, round middle button).
- OEM rear view camera can be displayed up on the screen while in gear "D" (back right side of the steering wheel, round middle button).
- Video interface is 100% Plug & Play and comes with a vehicle specific harness that eliminates the need for wire splicing.
- 1 Front View camera input.
- Vehicle's with OEM rear view camera: camera will continue to work as it did.
- NAV menu access in motion, function must be turned off after entering new address (back left side of the steering wheel, round middle button).
*While motion lockout function is active NAV will not track.
- Front view camera input is triggered by a button on the steering wheel (back right side of the steering wheel, round middle button).
- OEM rear view camera can be displayed up on the screen while in gear "D" (back right side of the steering wheel, round middle button).
- Video interface is 100% Plug & Play and comes with a vehicle specific harness that eliminates the need for wire splicing.
This kit allows you to see what is directly in front of the vehicle! This camera comes with a 3 year warranty and interface module has a 1 year warranty. Professional installation is recommended.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Front Camera |
| For a monitor it uses | Your factory display |
| Connection | Plug and Play to Factory Dash Display |
| Make | Dodge |
| Camera Mount Location | Front Grille, Universal Mount |
| Night Vision | .1 Lux |
| Parking Guidelines | Yes |
| Power Supply | 12 Volts |
| Radio Screen Size | 8.4\ Mopar |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Car |
| Camera Input Ports | 1 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Charger,Challenger |
| Warranty | 1 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2018,2019,2020,2021,2022,2023,2024 |
| Make Filter | Dodge |
| Model Filter | Challenger, Charger |
| Year Filter | 2018, 2019, 2020, 2021, 2022, 2023, 2024 |
Compatibility
Compatible with 2018-2024 Dodge Charger and Challenger with factory 7" or 8.4" Uconnect 4 radio system.
Installation
Front camera-Simple installation may not even require the removal of the front grille. Install on either your license plate mount or on any flat surface - comes with two brackets. The RCA cable will run inside the vehicle to the interface module. All the wiring is included and installation can be accomplished in 2-3 hours (times vary with experience).
You will need to remove your factory screen to gain access to the back of the connections. The module will be plug and play and stubs out to a female RCA connection for the camera to connect directly to the screen. Detailed instructions included.
Camera is powered directly from the interface module. No cutting or splicing of factory wiring!
