Universal Camera for Ford® 8" SYNC 4 Displays - Use Front or Rear, Cab Chassis trucks
SKU#: 7CS-ULPM-8S4CC
Availability:
In Stock
SKU#:
7CS-ULPM-8S4CC
$766.00
Quantity
For cab & chassis trucks with an 8" SYNC 4 display!
Description
Adding a backup camera to a Ford® cab & chassis truck with an 8" SYNC 4 Factory Display Radio could never be simpler and more affordable! Compatible with trucks that are not pre-wired or programmed for a camera from the factory.

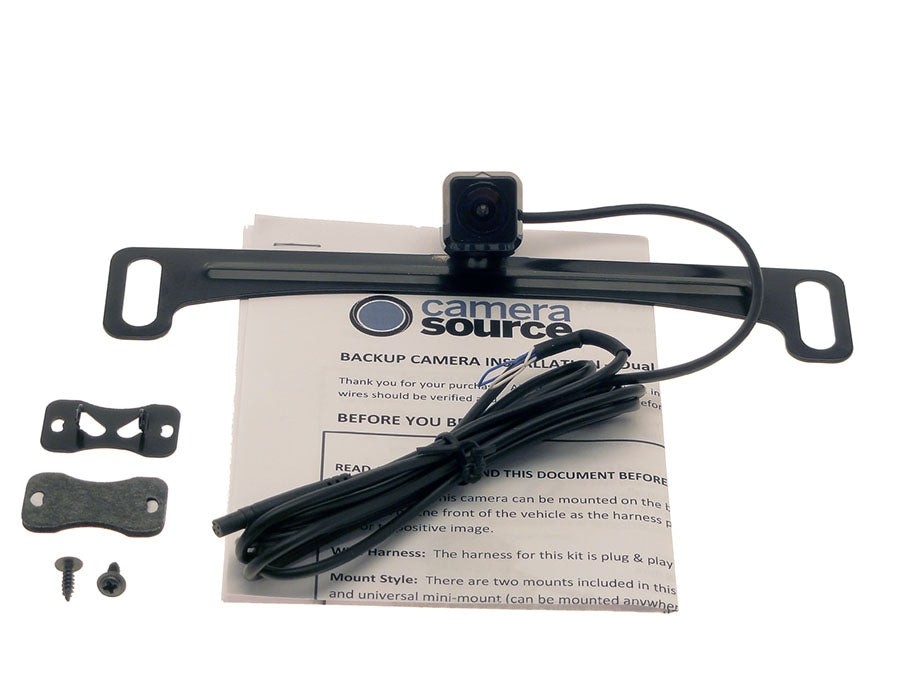

This CMOS license plate mounted backup camera kit will allow you to integrate rear view or front view safety to any vehicle with a license plate and an 8" factory SYNC 4 factory display. In fact, the camera can be converted to mount on any flat surface! All the cables are included and the 25' long harness terminates with an RCA connection so you can integrate into the included multi-Camera Interface. The camera has adjustable tilt and comes with parking guideline options, meaning that the guidelines can be turned off. This camera can also be used as a front camera by simply switching it to a forward-looking image on the harness during the installation!

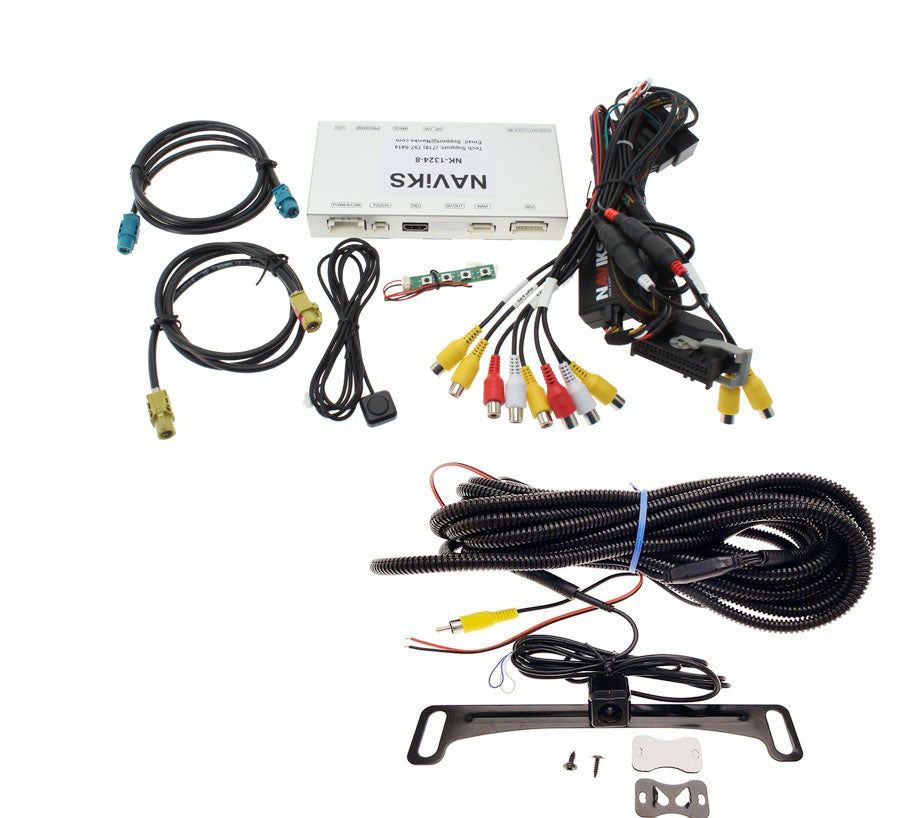

Kit includes:
- SYNC 4 interface module for 8" displays-No dealer flashing required!
- Universal front camera with harness and dual mount brackets
- Zip ties
- Detailed installation instructions
- 3 year warranty on the camera
- 1 year warranty on the interface module
Camera specifications:

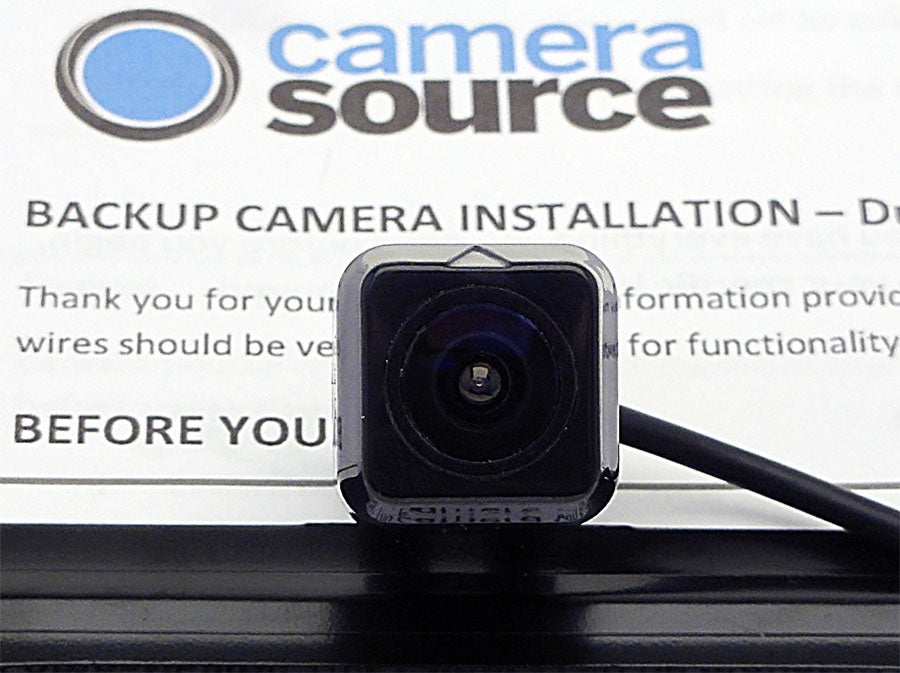

- Mini license bar universal mount camera
- Super CMOS sensor for ultra clear display (the best available)
- Resolution: 600 TV lines
- Minimum Illumination: 0.2 Lux
- View Angle: 170
- Video Output: Full color video
- Working Voltage: DC 9-16V
- Parking Line: On/Off selectable
- Image: Mirror/Non mirror selectable
- Waterproof: IP67
- 25-foot harness- loomed if you select vehicle type "Truck" from drop-down when ordering
- 3-year warranty on the camera

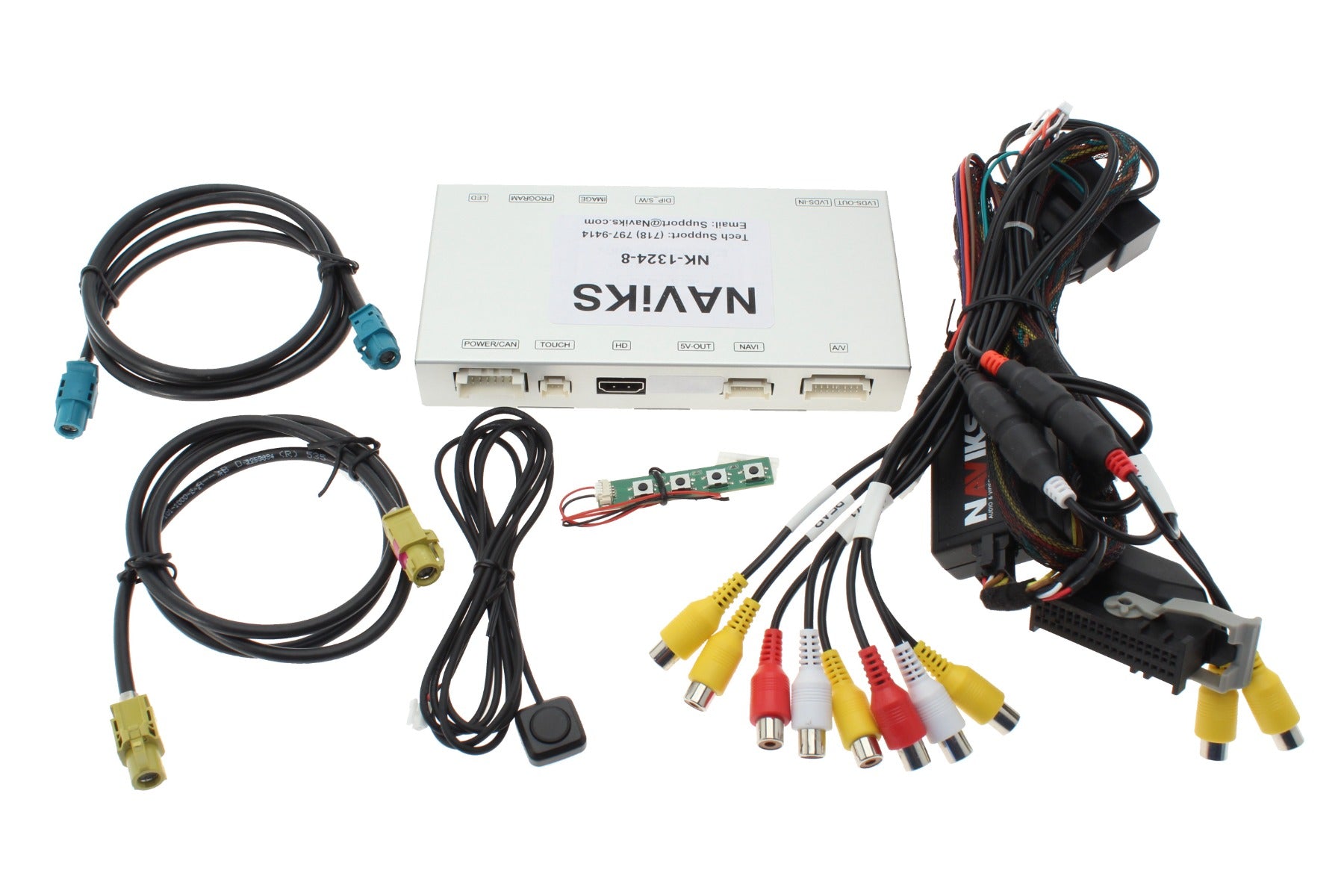

Interface module features:
The integration module is plug and play with your factory SYNC 4 system. Allows connection of 2 cameras to the factory screen. Also, allows monitoring of any connected camera at any time while driving.
Features:
- 1 HDMI Video input.
- 2 Composite Video inputs.
- 1 Composite Video output (Not possible to output HDMI).
- 1 Front Camera input.
- 1 Rear Camera input.
- Rear Camera: Aftermarket rear view camera comes on automatically when the vehicle is put in reverse and can be triggered at any time in any speed by pressing the Left Arrow button on the steering wheel or the Voice button on the steering wheel. Or use the included push button to activate the camera.
- Front Camera: Can be triggered at any time in any speed, by pressing the Left Arrow button on the steering wheel or the Voice button on the steering wheel. Or use the included push button to activate the camera. Can be programmed for the front camera to come on automatically when going from reverse to drive.
- Video interface is 100% Plug & Play and requires no wire splicing.
- NO DEALER ACTIVATION REQUIRED!
Composite Video Input: is controlled by the Volume button and is designed for:
***Sold separately***
- 1. DVD
- 2. Game Consoles
- 3. PC’s
- 4. Smartphones / Tablets (Depending on the type of smartphone / Tablet you intend to use a Smartphone Mirror Interface is required and sold separately)
Music or Video playback from Smartphones / Tablets can be achieved with a Smartphone Mirror Interface add-on.(sold separately)
- NO DEALER ACTIVATION REQUIRED!
No monitor is included with this kit as it is designed to work with your existing 8" SYNC 4 radio screen . This camera comes with a 3 year warranty and the interface module has a 1 year warranty. Professional installation is recommended.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera, Front Camera |
| For a monitor it uses | Your factory display |
| Fit Type | Universal fit |
| Connection | Plug and Play to Factory Dash Display |
| Make | Ford |
| Camera Mount Location | Universal Mount |
| Night Vision | < .2 Lux |
| Camera Orientation | Front or Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 8\ Ford Sync 4 |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Car, Truck |
| Camera Input Ports | 2 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Cab & Chassis |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 68 Camera |
| Wiring Type | Hard Wired |
| Year | 2022,2023,2024 |
| Make Filter | Ford |
| Model Filter | Cab & Chassis |
| Year Filter | 2022, 2023, 2024 |
Compatibility
Vehicle must have a 8" factory SYNC 4 radio display that has not been programmed from the factory. Compatible with trucks that are not pre-wired or programmed from the factory.
2022-2024 Ford Cab & Chassis trucks

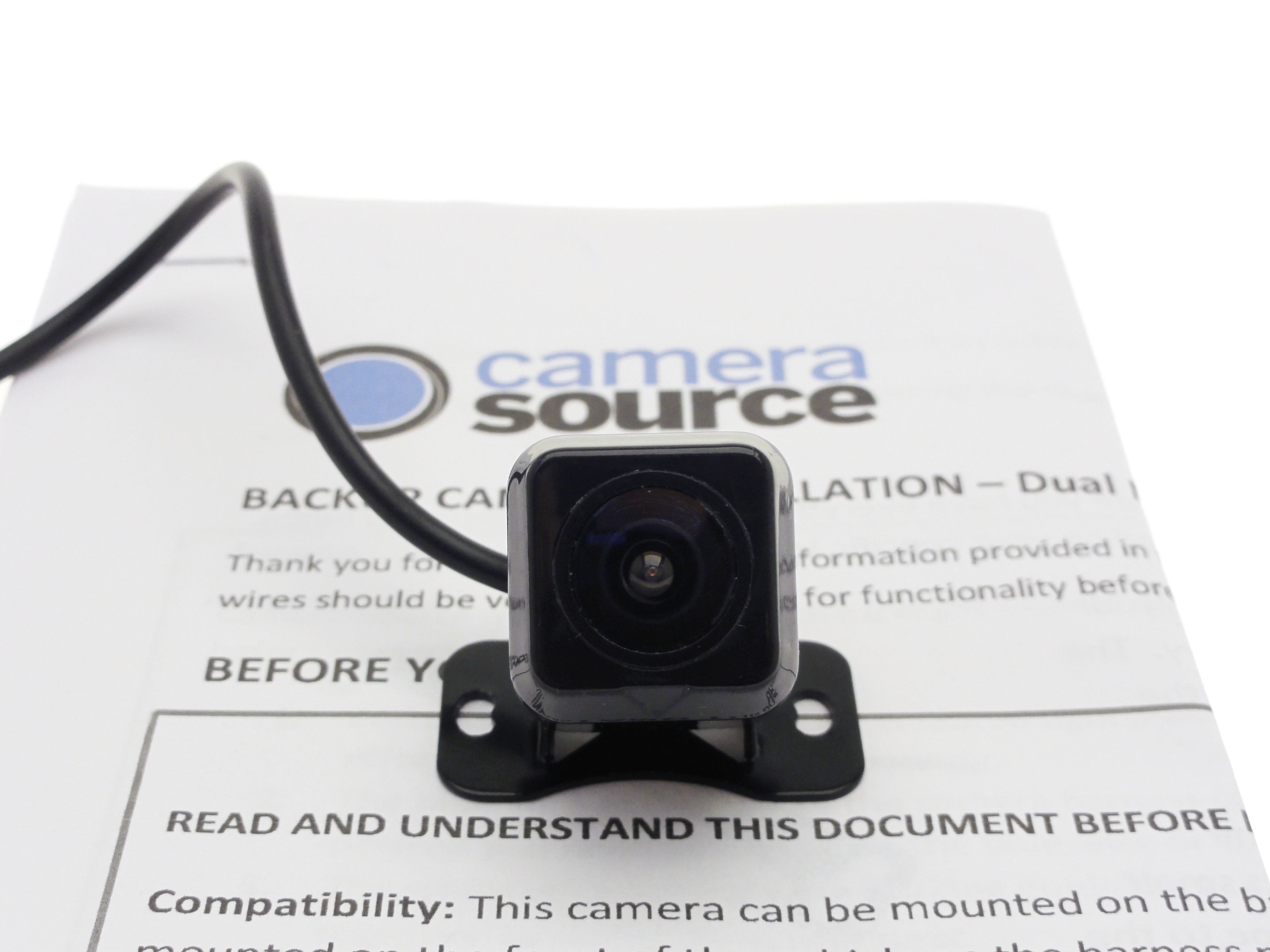

This camera kit will fit any vehicle with a license plate when using the license plate bracket. When using the small mount bracket the minimum surface required is 1.5 inches wide by .75 inches deep.
Installation

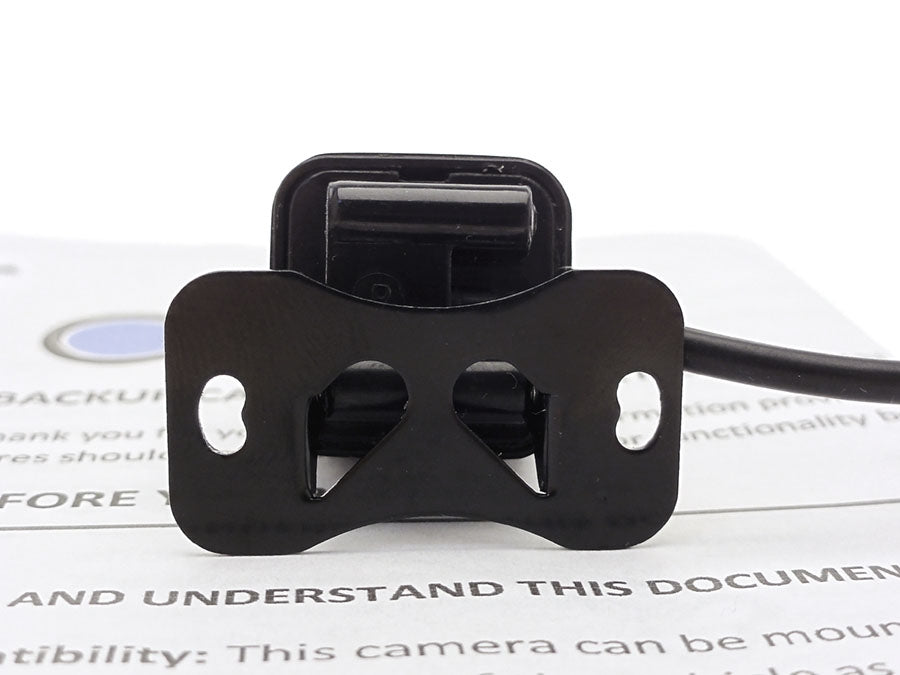

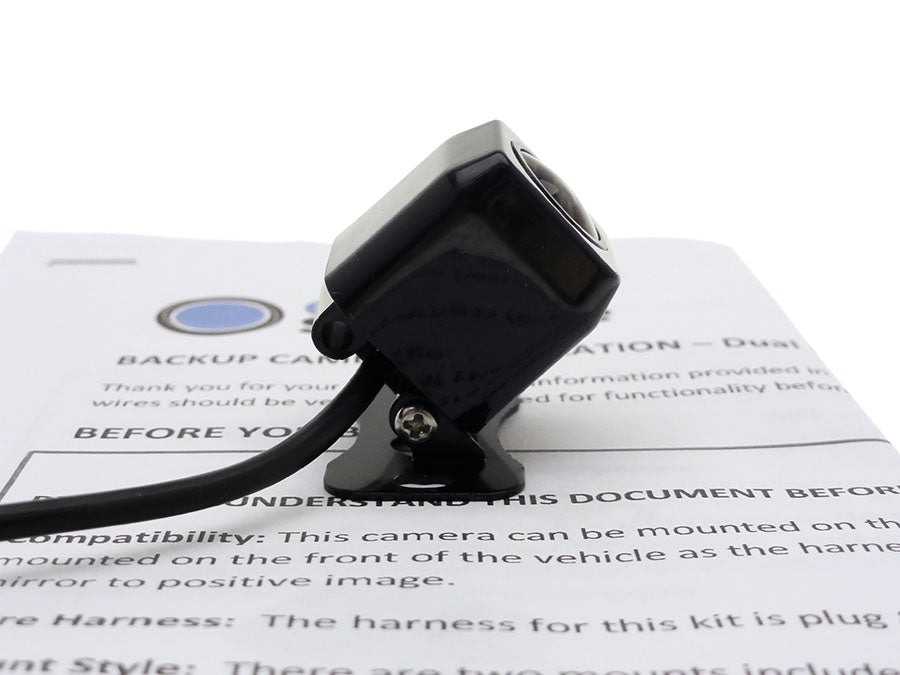

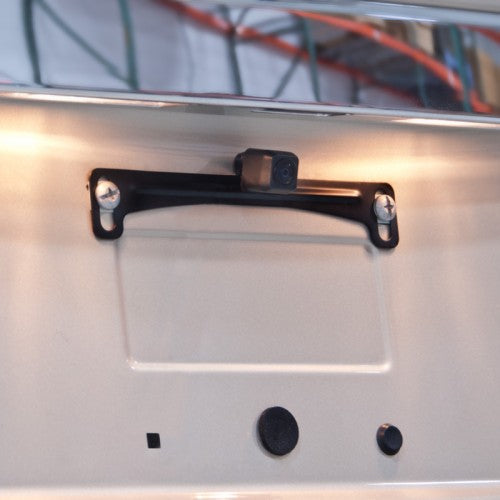

Install the camera on either your license plate mount or on any flat surface - comes with two brackets.
You'll need to open the dash to access the back of the radio screen. The multi-camera interface is plug and play with your factory radio wiring and does not require any dealer programming. Interface module is powered through the radio harness.
The camera needs to be powered directly from the vehicle, so you'll need to use a voltmeter to locate a 12-volt accessory power source.
