Universal backup camera with OBD Programmer for Factory Display-C1T, Fits Select Mopar® Vehicles
SKU#: CS-ULPM-C1TG
Availability:
In Stock
SKU#:
CS-ULPM-C1TG
$272.00
Quantity
No dealer programming required!
Description
This is a high quality OEM integrated backup camera solution for several Chrysler®/Dodge®/RAM®/Jeep® vehicles that integrates right into your 8" factory display screen with the C1T connector! No dealer programming is required making this a simple OEM integrated solution for your vehicle The camera can be mounted on the license plate or it also comes with a mini mount that will allow you to mount the camera to the ledge above the license plate if you choose.

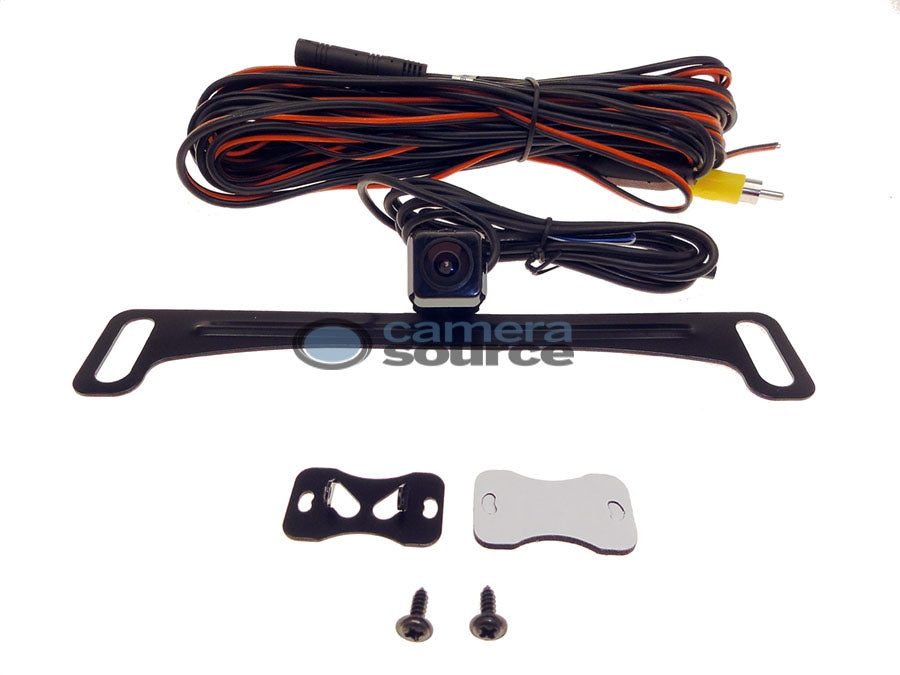

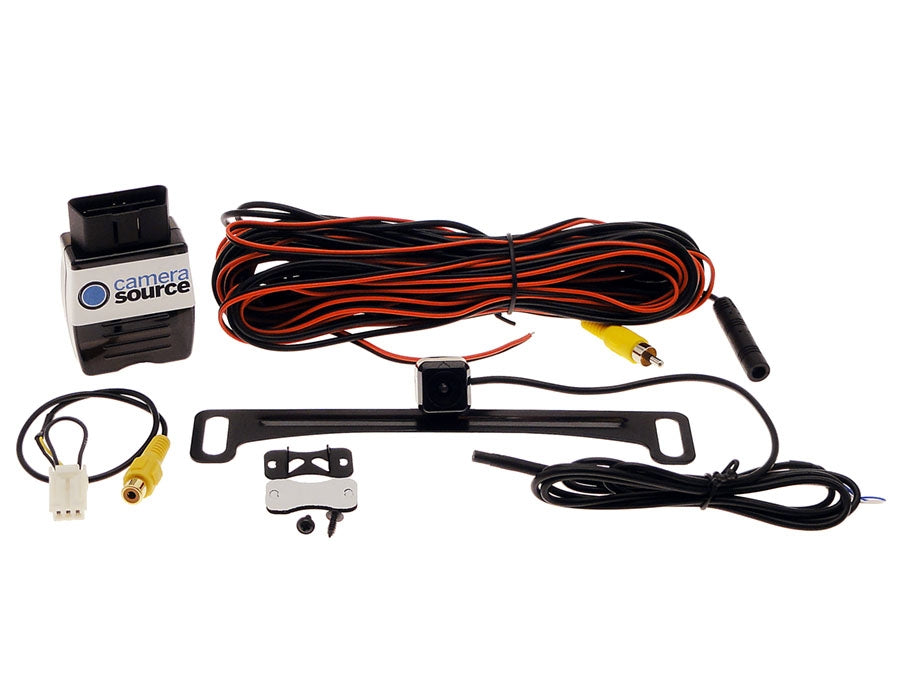

The kit comes with the following:

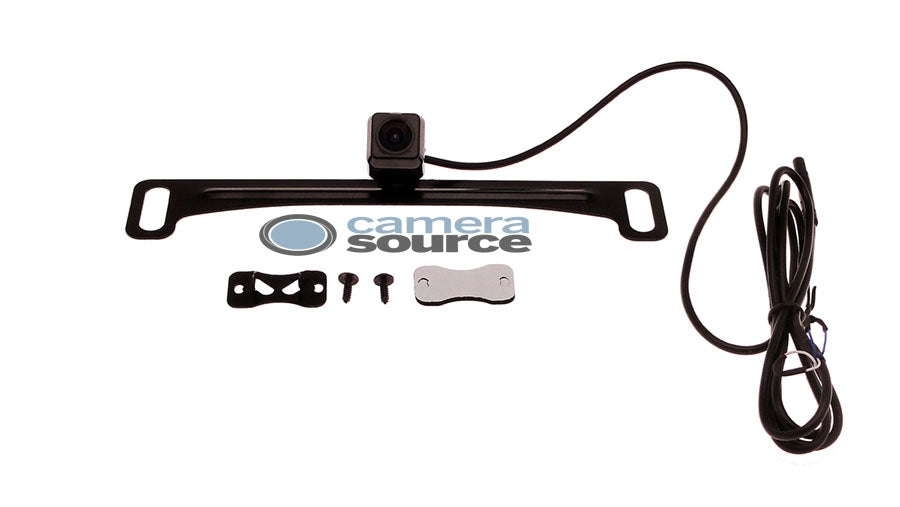

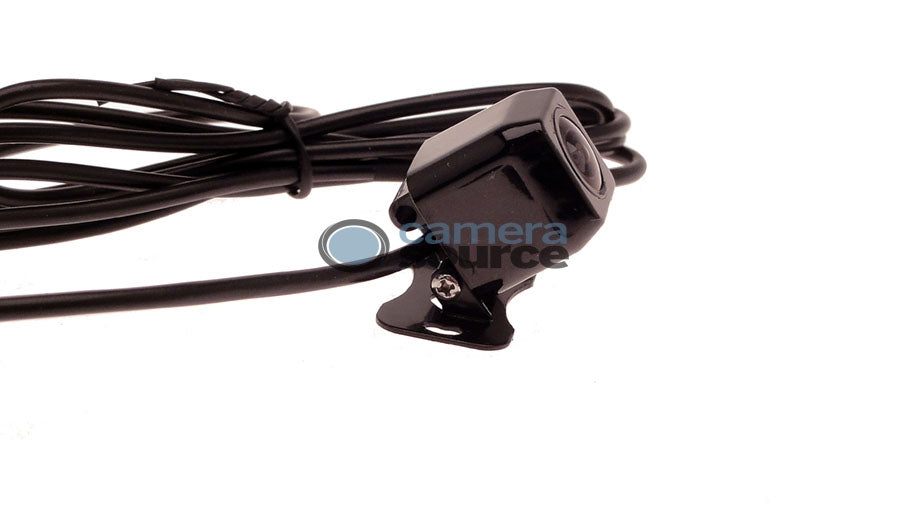

- Dual mount camera system with high grade Super CMOS sensor for an ultra clear view, mount on license plate or lip mount as desired
- Full chassis harness

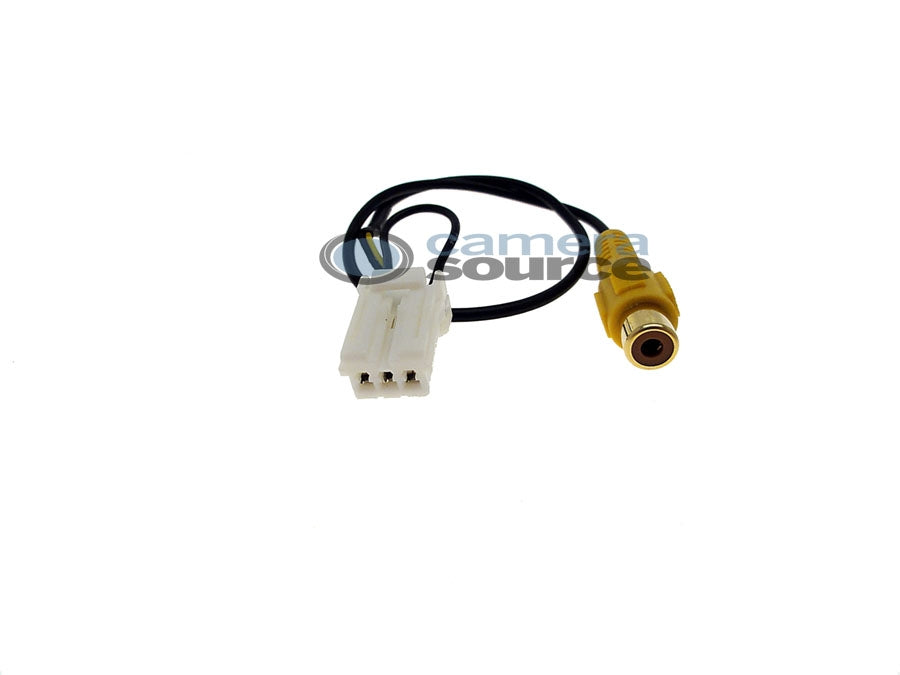

- Factory radio integration harness-C1T (Monitor not included)

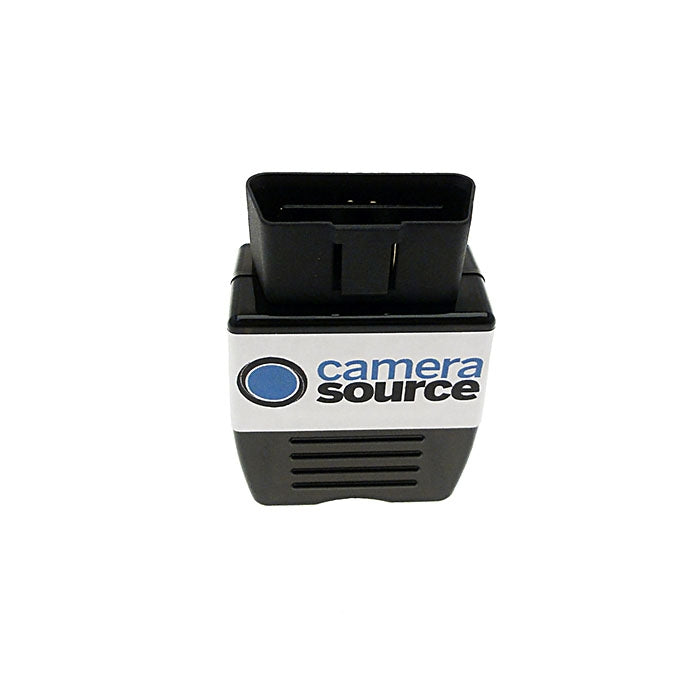

- OBD programming module
- Required mounting hardware/connectors
Camera Specifications:

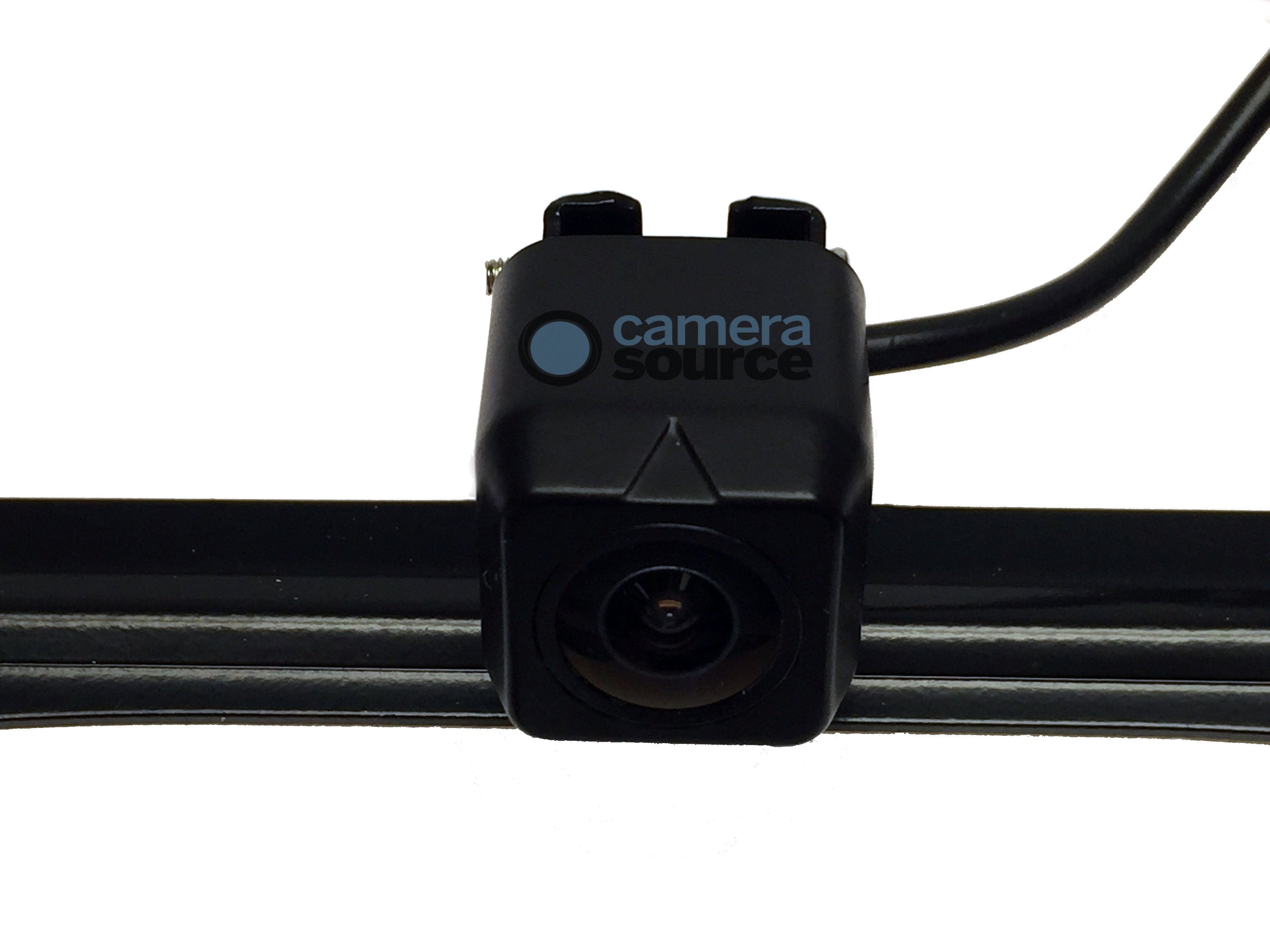

- Camera Source exclusive Super CMOS high grade sensor with night vision
- Selectable parking guidelines (can be turned off if desired) NOTE: Black center line is not present on actual display
- 600 TV lines of resolution
- <.2 lux minimum illumination - Outstanding night vision!
- 170 degree viewing angle
System has a 3 year warranty!
**Monitor not included.**
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera |
| For a monitor it uses | Your factory display |
| Fit Type | Universal fit |
| Connection | Plug and Play to Factory Dash Display |
| Make | Dodge,Chrysler,Jeep,RAM |
| Camera Mount Location | Universal Mount |
| Night Vision | .3 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 8.4\ Mopar |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | CMOS III |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Car, Truck |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Caliber,Charger,Durango,Magnum,1500,HD,200,Aspen,Commander,Compass,Grand Cherokee,Patriot |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 68 Camera |
| Wiring Type | Hard Wired |
| Year | 2007,2008 |
| Make Filter | Chrysler, Dodge, Jeep, Ram |
| Model Filter | 200, 1500, Aspen, Caliber, Charger, Commander, Compass, Durango, Grand Cherokee, HD, Magnum, Patriot |
| Year Filter | 2007, 2008 |
Compatibility
Compatible with the listed vehicles that have the 8" factory display screen. Not compatible with 4.3" screen.
| Chrysler® | 200 | 2007 |
| Aspen | 2007 | |
| Dodge® | Caliber | 2007-08 |
| Charger | 2007 | |
| Durango | 2007 | |
| Magnum | 2007 | |
| Commander | 2007 | |
| RAM® | 1500,2500,3500 | 2007-08 |
| Jeep® | Compass | 2007-08 |
| Grand Cherokee | 2007 | |
| Patriot | 2007-08 |
Installation
Install on either your license plate mount or on any flat surface - comes with two brackets. The camera harness will run inside the vehicle to the back of your factory display and you will need to locate a reverse activated 12v power source and ground.
Make installation even easier with an add on 12 Volt power source to eliminate the need to locate a power source on the vehicle and avoid cutting or splicing into factory wiring! See related item SKU: CS-RPW-P
You will need to remove your factory radio to install the RCA adapter harness to the back of your factory display. Connect the RCA from the main chassis harness to the adapter Harness.
Plug the OBD programmer into the OBD port under the steering wheel and programming is completed in less than a minute!
NO DEALER ACTIVATION REQUIRED
