Backup Camera Kit For Entune/Display Audio, Fits 2016-2018 Toyota®
SKU#: CS-TDA132-16
Availability:
In Stock
SKU#:
CS-TDA132-16
$89.99
Quantity
Plug & Play to factory radio!
Description
Toyota backup camera kit for vehicles with Display Audio/Entune touch screen radios - Plugs right in** with no cutting of factory harness! Super CMOS camera for the best picture available!!
This backup camera kit is designed for Toyota® vehicles with the Display Audio 6.1" non-navigation radio and Entune 6.1" or 7" navigation radios. This includes the following applications:
- 2016-2018 Avalon
- 2014.5-2018 Camry and Corolla
- 2016-2018 Prius, Prius C Three and Four, Prius V One Two Three and Five, Prius GEN3 Two Three Four Five
- 2016-2018 Matrix
- 2016-2018 Venza
- 2016-2018 RAV 4

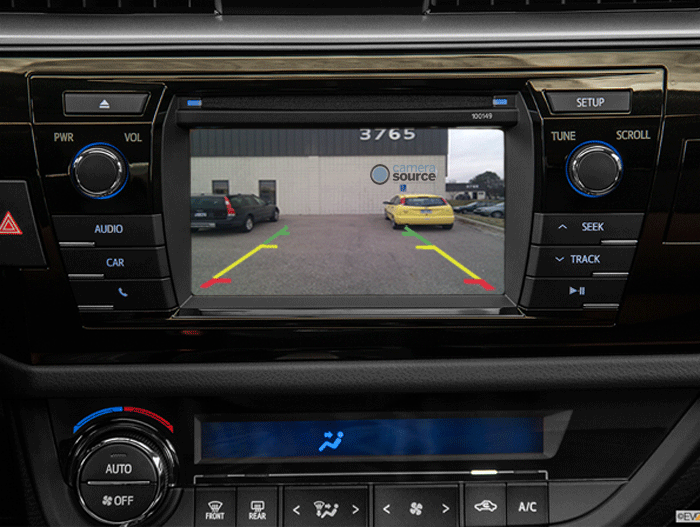

The camera kit is plug and play and will not require you to cut any factory wires to install. The front harness plugs into the factory radio and the full chassis harness runs back to the OE fit rear camera - a quick and simple install! The camera will come on in reverse and will display parking guidelines for added safety and convenience, though the lines can be turned off with the flip of a switch on the harness.

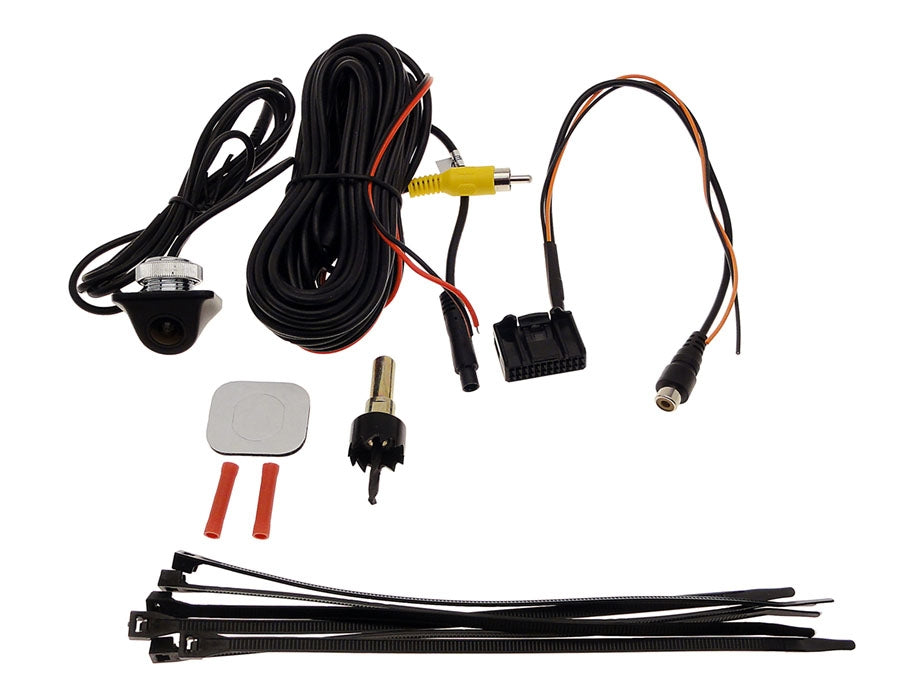

Kit includes:

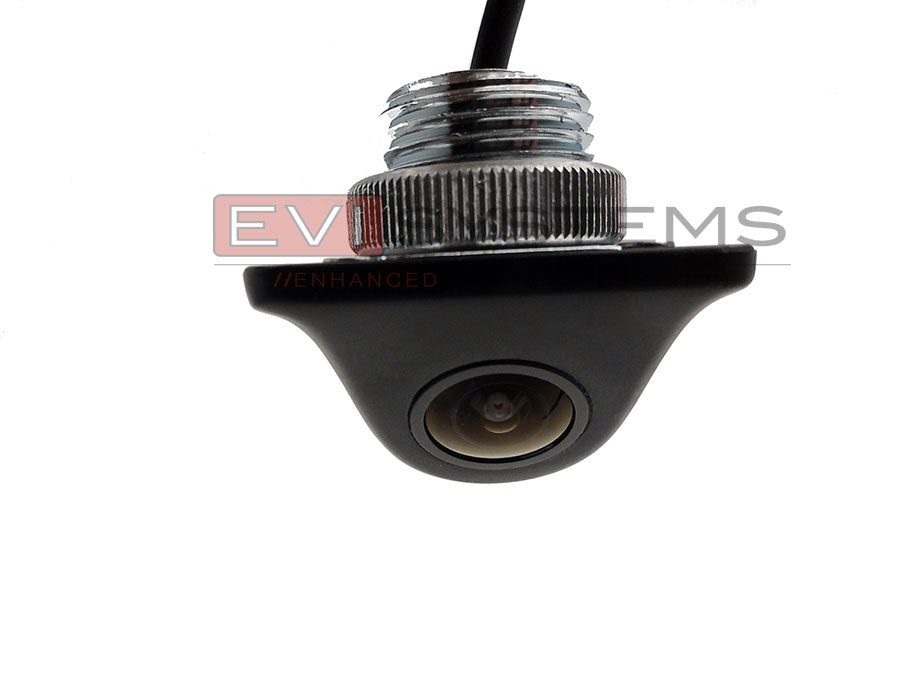

- Super CMOS OE fit rear camera - ultra high clarity, color, and contrast, 5-7v operating range (a Camera-Source exclusive)
- Optional parking guidelines - can be turned off on the harness
- OEM Front integration harness
- Chassis harness
- Hole saw for installing camera
- Zip ties
Specifications
| System Manufacturer | Camera Source |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera |
| For a monitor it uses | Your factory display |
| Connection | Plug and Play to Factory Dash Display |
| Make | Toyota |
| Camera Mount Location | Undermount/Lip Mount |
| Night Vision | < .2 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 6 Volts |
| Radio Screen Size | 6.1\ LCD |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Category | Car |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Camry,Corolla,Prius,Prius C,Prius V,Venza,RAV 4,Avalon,Matrix |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2016,2017 |
| Make Filter | Toyota |
| Model Filter | Avalon, Camry, Corolla, Matrix, Prius, Venza |
| Year Filter | 2016, 2017 |
Compatibility
- 2016-2018 Avalon
- 2014.5-2018 Camry and Corolla
- 2016-2018 Prius, Prius C Three and Four, Prius V One Two Three and Five, Prius GEN3 Two Three Four Five
- 2016-2018 Matrix
- 2016-2018 Venza
- 2016-2018 RAV 4
Installation

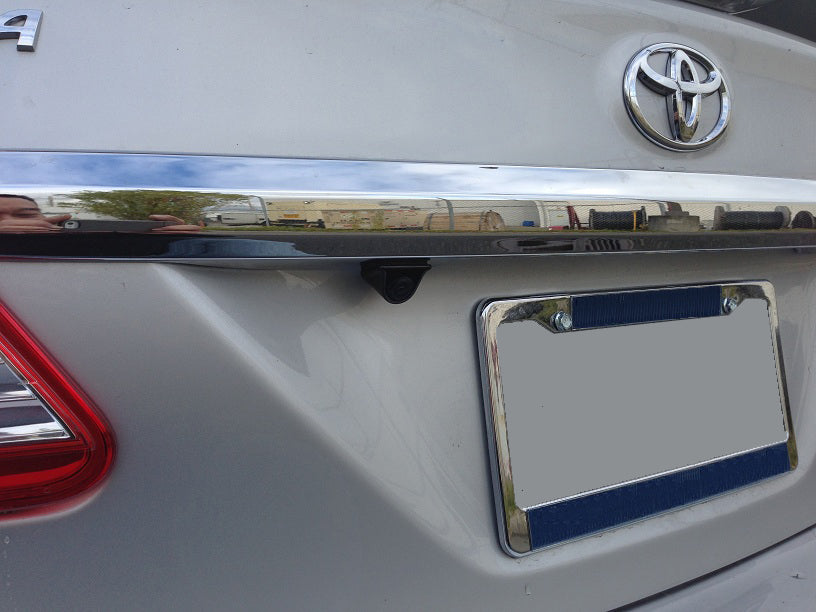

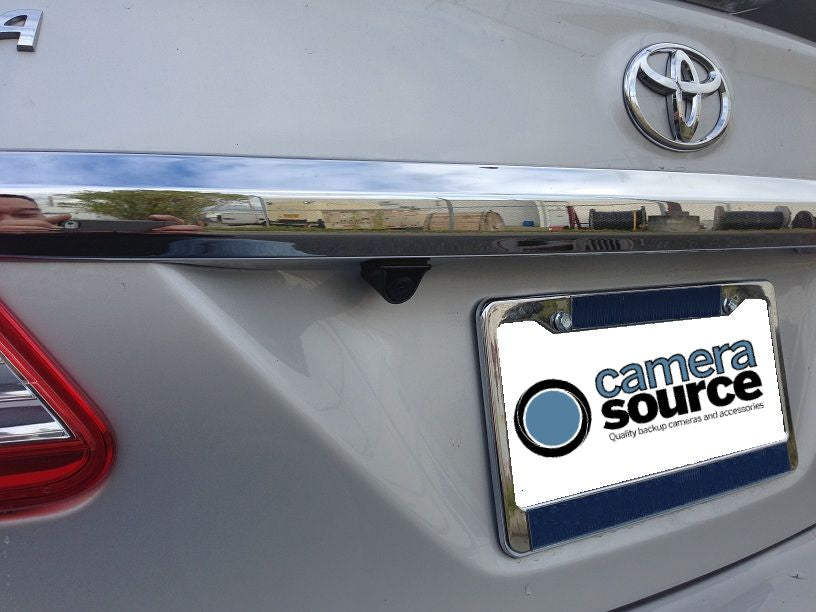

Simply remove the radio and plug the new camera harness into the appropriate slot and run the chassis harness to the rear of the car through the interior. Camera installs in upper lip above the license plate; using the included hole saw cut an opening in the trim, install the camera, tighten with locking nut, and connect to chassis harness. Installs quickly and easily!
There is a wire in the chassis harness that will turn the guidelines on or off.
