Tailgate backup camera for 7" IOB system, Fits 2016-2018 Sierra,Silverado
SKU#: CS-16GM-IOB4
Availability:
In Stock
SKU#:
CS-16GM-IOB4
$452.00
Quantity
Plug & Play into factory 7" screen!
Description
Now you can integrate a backup camera directly into your new GMC® Sierra or Chevy® Silverado 7" IOB screen! (See application section for specific fit)

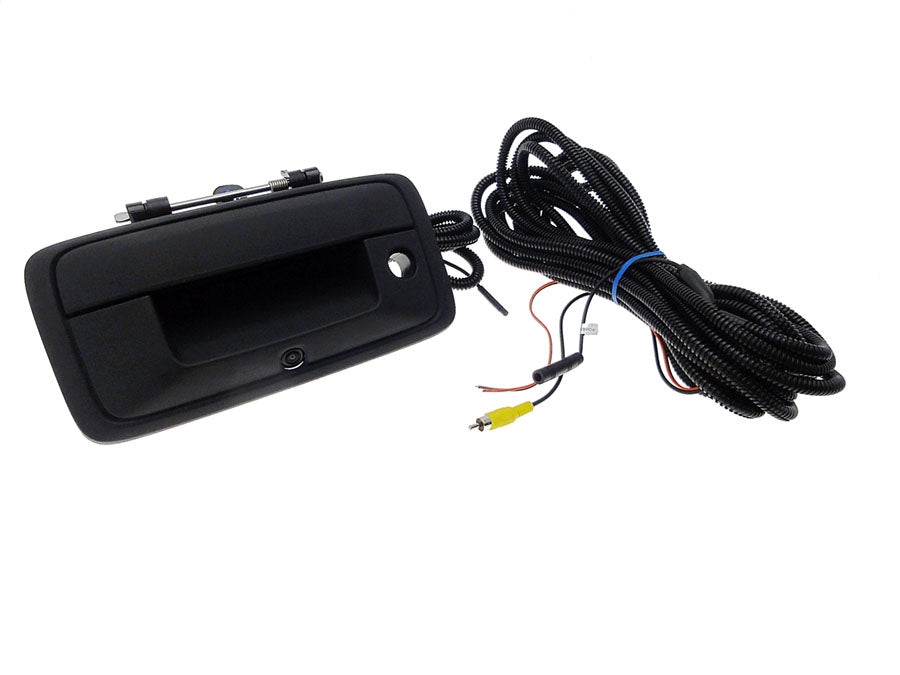

This camera kit is the perfect solution for those who own a 2016-2018 GM® truck with the 7" IOB screen and are in need of a rear view camera. The kit comes complete with OE fit rear camera system, which is a high resolution camera mounted in an OEM GM® tailgate handle assembly. Comes with all the wiring and OEM screen integration harness needed to interface directly with your IOB system with no dealer flashing required. This system will also enable the steerable parking guidelines directly into your screen!

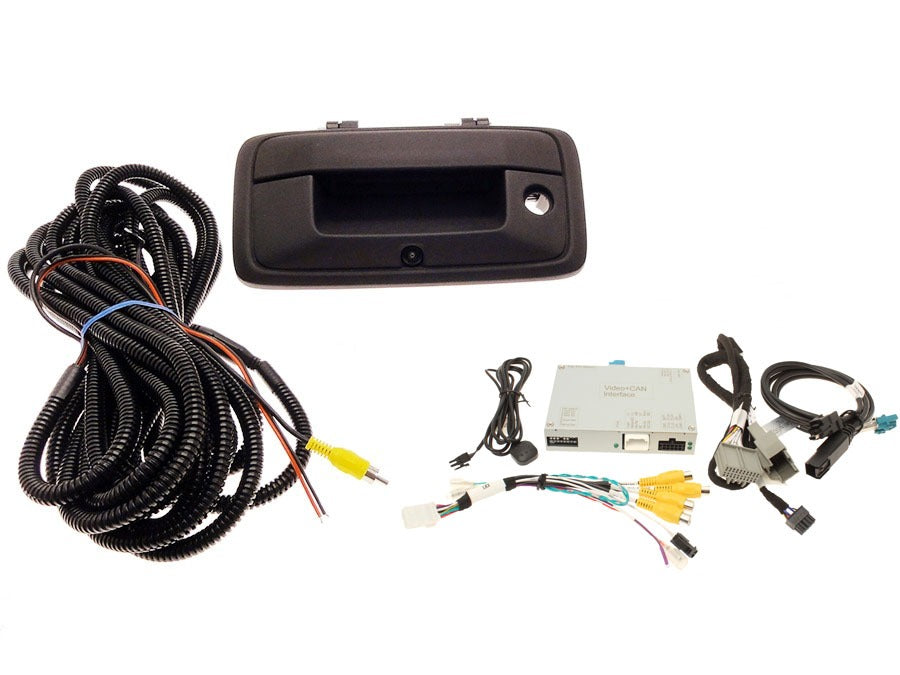

The kit comes with the following:
- OE GM® handle with our night vision, high resolution camera pre-mounted - 600 lines of resolution
- Full chassis harness
- IOB integration harness and module
- Required mounting hardware/connectors
Interface module features:
- Uses existing 7" IOB factory display (display radio not included)
- Left and Right turn signal activated inputs
- Front camera input -Can be setup to come on automatically when shifting from reverse to drive or manually activated by pressing the external activation button
- Rear camera input
- Dynamic Parking lines (with the option to turn them on or off)
- 3 year warranty
Camera Specifications:
- Camera-Source exclusive-Super CMOS chip - outstanding color, contrast, and clarity!
- 170 degree view
- 600 TV lines of resolution
- .1 lux minimum illumination - Outstanding night vision!

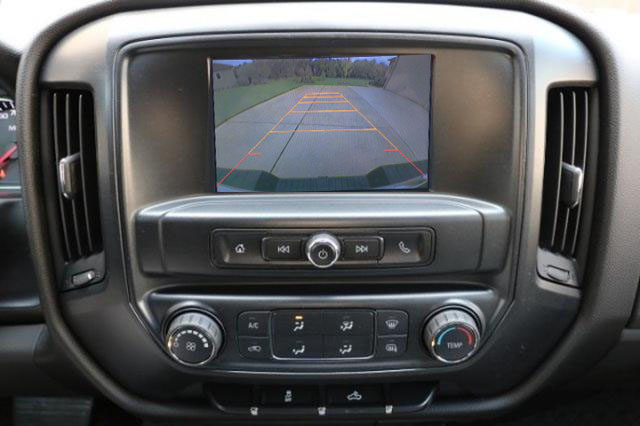

- Backup guidelines (These are the red, yellow, green lines on the screen)
- 3 year warranty
Camera kit has a 3 year warranty and will look like it was installed at the factory!
Specifications
| System Manufacturer | EVI Systems |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera |
| For a monitor it uses | Your factory display |
| Connection | Plug and Play to Factory Dash Display |
| Make | Chevrolet,GMC |
| Camera Mount Location | Factory Tailgate |
| Night Vision | < .2 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 7\ MyLInk/Intellilink |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 4 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Silverado,Silverado HD,Sierra,Sierra HD,Colorado,Canyon |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2016,2017,2018 |
| Make Filter | Chevrolet, GMC |
| Model Filter | Canyon, Colorado, Sierra, Sierra HD, Silverado, Silverado HD |
| Year Filter | 2016, 2017, 2018 |
Compatibility
2016-2018 Silverado, Sierra, Colorado, Canyon
IOB systems with a 7" screen
Installation

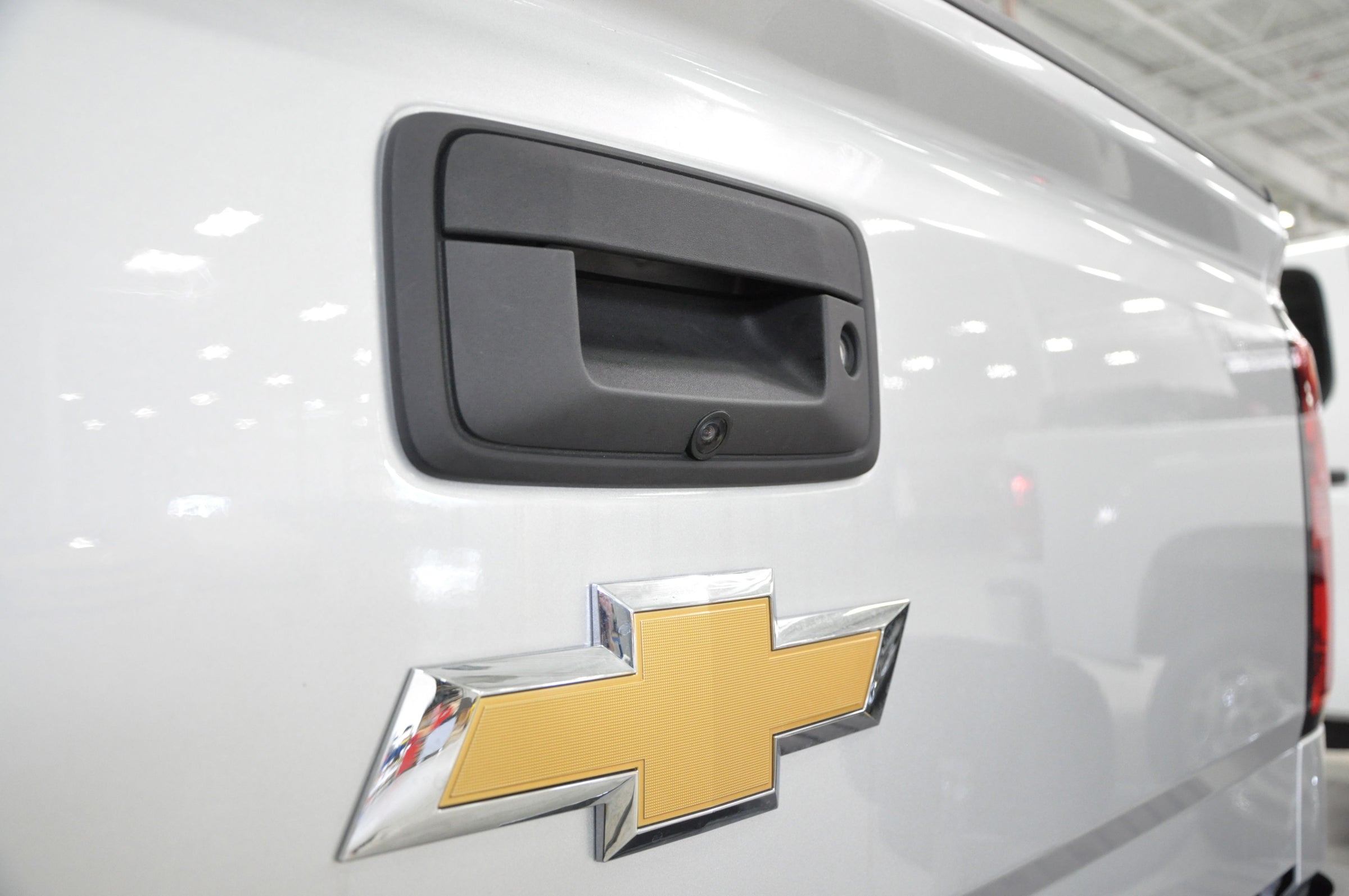

Replace your existing tailgate handle assembly with this assembly, which is preloaded with rear camera.
Route the harness to the cab and install the IOB integration module and harness. Interface module is plug and play with your factory radio. No dealer programming is necessary!
Interface module creates the RCA connection for the camera, programs the radio for the camera, and powers the camera. No cutting or splicing of factory wiring!
