Backup Cam + OnStar® Mirror, Temp and Compass, Fits 2007-2008 Tahoe, Suburban, Yukon,
SKU#: CS-GMSUVb-356T
Availability:
In Stock
SKU#:
CS-GMSUVb-356T
$518.95
Quantity
With COMPASS/TEMP display!
Description
Premium camera kit with an OnStar® video mirror with compass and temp - superior quality camera and mirror for the best in color, clarity, and outstanding night vision. This camera will also allow you to see the rear bumper and trailer hitch for easy connections - even at night!
This Premium Super CMOS camera provides superior high definition color, clarity, and excellent night vision! This camera contains the latest technology that even outperforms the factory camera in all categories! This camera system looks like a factory camera, but at a much lower price. This kit comes with all the wiring and connectors to install into your SUV. *See note below for description of the interface options above.
This package contains:
- Premium high definition Super CMOS camera - (Camera Source exclusive)
- OnStar® auto dimming video mirror with 4.3" video screen and compass/temp (includes sensor)
- 25' wiring harness
- Wire connectors
- Hole grommets
- Detailed installation instructions
- 3-Year limited camera warranty and 1-year mirror warranty
Camera Specs:
- Super CMOS - The best available and only at Camera Source
- 600 TV lines of resolution
- 170 degree view
- Optional custom OE inspired parking guidelines - can be turned off at the harness
Additional Information: This camera mounts under the lift gate license plate panel in the same place that the factory camera would be mounted. Installation requires locating power and ground on the vehicle for mirror and camera.

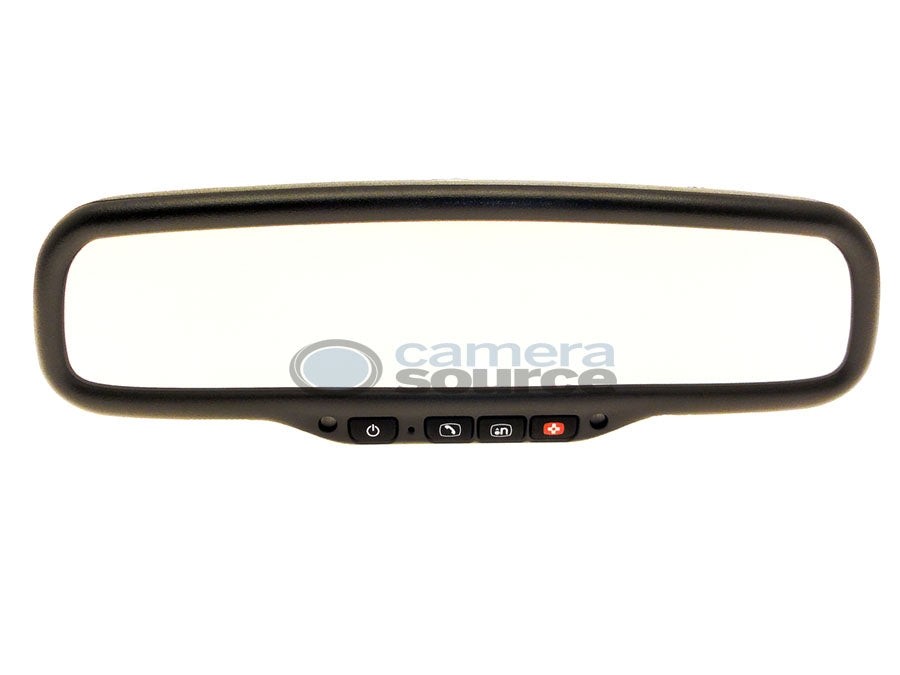

Includes OnStar® Rear View Mirror with 4.3" Inch Rear Camera Display and Auto Dimming with Flying Lead Harness: GM® vehicle owners don't have to sacrifice the convenience and safety of their current mirror to gain the use of a Rear Camera Display. Mirror auto dims in accordance with the amount of glare from the headlights behind the vehicle, when used with a back up camera (included) the display automatically turns on to show what is directly behind the vehicle whenever shifted into reverse.
Specifications
| System Manufacturer | EVI Systems |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera |
| For a monitor it uses | Packaged w/Rear view mirror display |
| Connection | Rearview Mirror |
| Make | Chevrolet,GMC |
| Mirror Mount | Wedge Style |
| Mirror Options | Video, OnStar, Compass, Temp Display |
| Monitor Size | 4.3" |
| Camera Mount Location | Undermount/Lip Mount |
| Night Vision | < .2 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Rearview Mirror |
| Vehicle Category | Truck |
| Camera Input Ports | 1 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Tahoe,Yukon,Suburban,Denali |
| Warranty | 1 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2007,2008 |
| Make Filter | Chevrolet, GMC |
| Model Filter | Denali, Suburban, Tahoe, Yukon |
| Year Filter | 2007, 2008 |
Compatibility
2007, 2008 GM® NBS full size SUV to include:
GMC® Yukon, Denali
Chevrolet® Tahoe, Suburban
If you have a 2009 or newer without the compass/temp in the mirror see our other items.
Installation

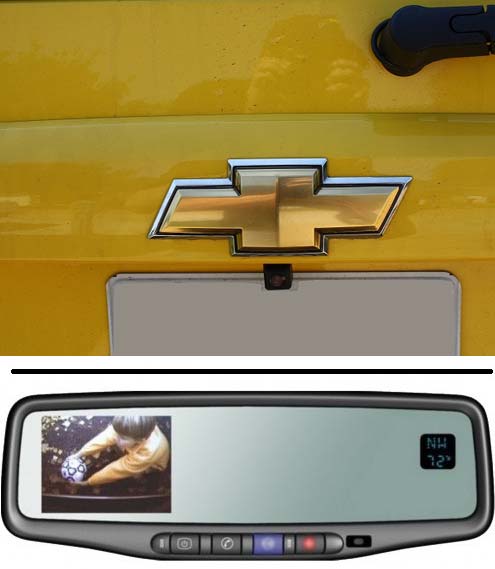

You will install the camera in the panel above the license plate and replace your factory mirror with this 4.3" OnStar® video mirror replacement. You can expect it to have the fit and finish that you would expect from the factory!
The reverse activated power, 12 volt accessory power, and ground for the camera and mirror will be tapped into the junction box by the drivers left foot area.
The mirror is a direct replacement and comes with the necessary harness to retain the OnStar® feature along with a power and video harness for connecting the camera.
Temperature sensor and harness is included and will need to be mounted in front of vehicle grille and wire run into the cab to plug into the mirror. If your vehicle has a factory temperature sensor it will need to be replaced with the included sensor.
