Single Camera Interface module for IOR Display, Fits 2019-2023 GM®
SKU#: CS-GMIOR-VI
Availability:
In Stock
SKU#:
CS-GMIOR-VI
$453.00
Quantity
Front cam interface for 7" or 8" IOR display
Description
This is a front camera integration module for your factory 7" or 8" IOR radio.
Compatible with several 2019-2024 GM® trucks with factory IOR 7" or 8" radio without OEM Navigation. Steering wheel controls required for manual camera activation. See compatibility tab.
This kit will allow you to add a front camera to see what is directly in front of the truck! The front-cam integration module allows for integration into your factory screen without having the dealer flash program your radio. The factory rear camera will come on automatically when in reverse and front camera will come on when you shift from reverse to drive or you can manually activate it by holding or double-tapping the phone Hang- Up button on the steering wheel. Factory rear camera not available above speeds of 7mph. If you do not have steering wheel controls you will need to add a toggle switch to activate.(not included)
Kit includes:

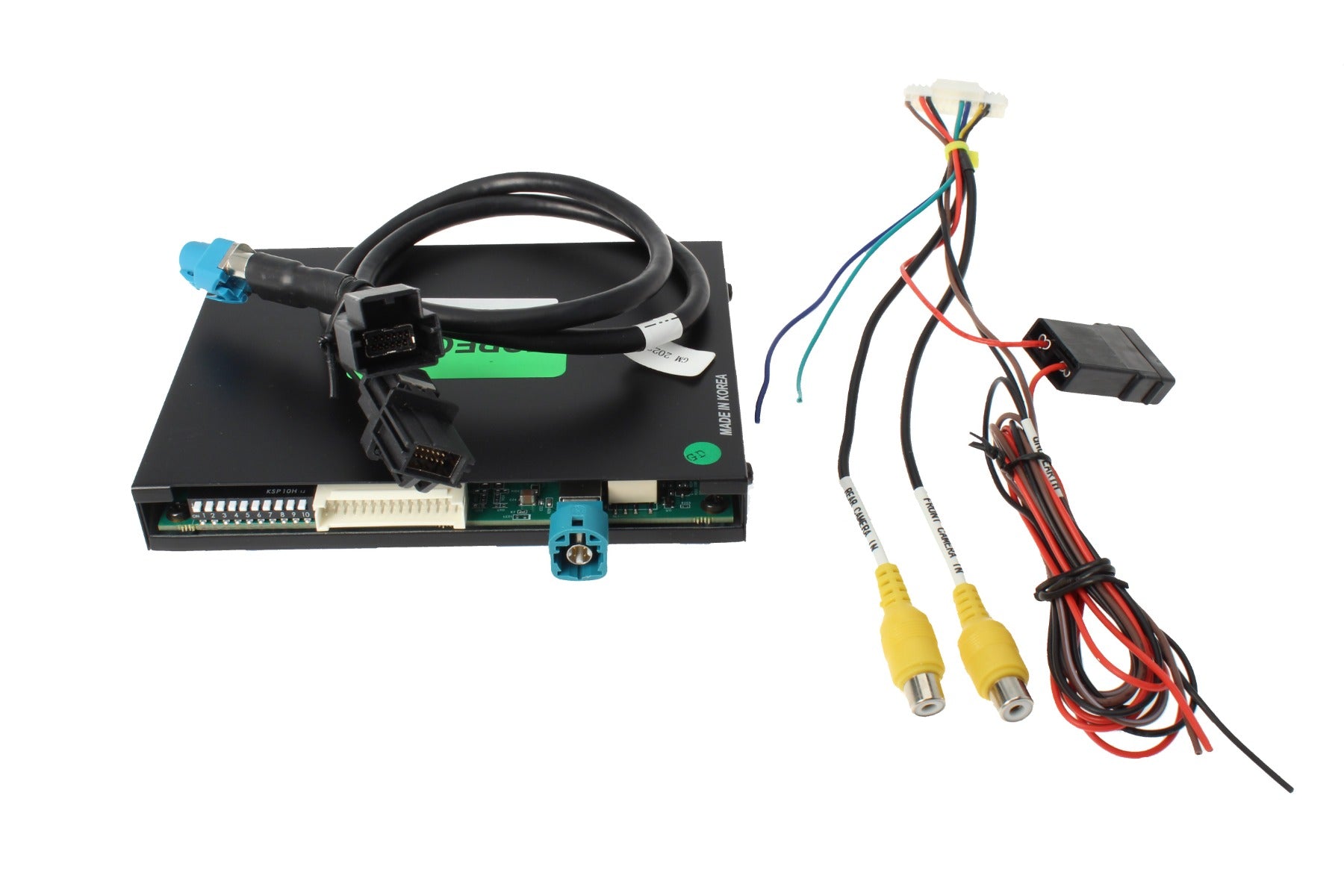

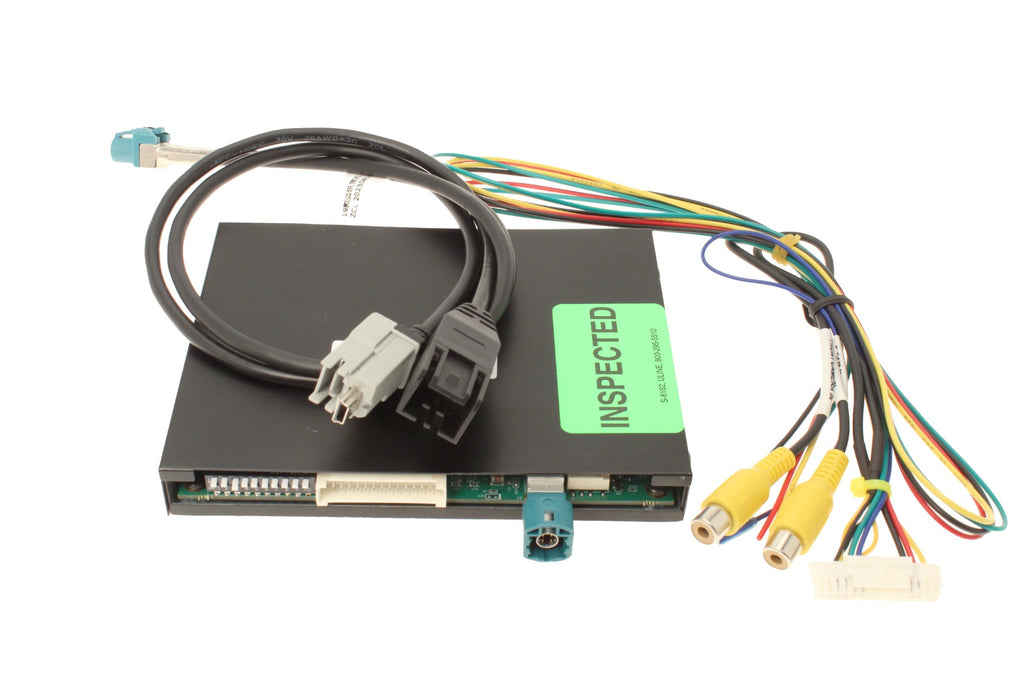

- Front-cam interface for your factory 7" or 8" GM® display with IOR radio code without OEM Navigation(display not included)- No dealer flashing required!
- Detailed installation instructions
- 3 year warranty
Front Cam interface features:
- Front facing camera can be triggered to power on automatically when the vehicle is shifted from reverse to drive. Or manually activated using the hang-up button on the steering wheel. *Toggle switch required if you don't have steering wheel controls.
- NO DEALER ACTIVATION REQUIRED!
*Monitor and camera are not included with this kit. It is designed to work with your existing IOR radio screen. This interface module has a 3 year warranty. Professional installation is recommended.
Specifications
| Camera Type | Front Camera |
| For a monitor it uses | Your factory display |
| Make | GMC,Chevrolet |
| Radio Screen Size | 8\ MyLInk/Intellilink |
| Reason for Shopping | Adding camera(s) |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 1 |
| Video System | NTSC |
| Model | Sierra,Sierra HD,Colorado,Silverado,Silverado HD,Canyon |
| Warranty | 3 Year |
| Wiring Type | Hard Wired |
| Year | 2019,2020,2021,2022,2023 |
| Make Filter | Chevrolet, GMC |
| Model Filter | Canyon, Colorado, Sierra, Sierra HD, Silverado, Silverado HD |
| Year Filter | 2019, 2020, 2021, 2022, 2023 |
Compatibility

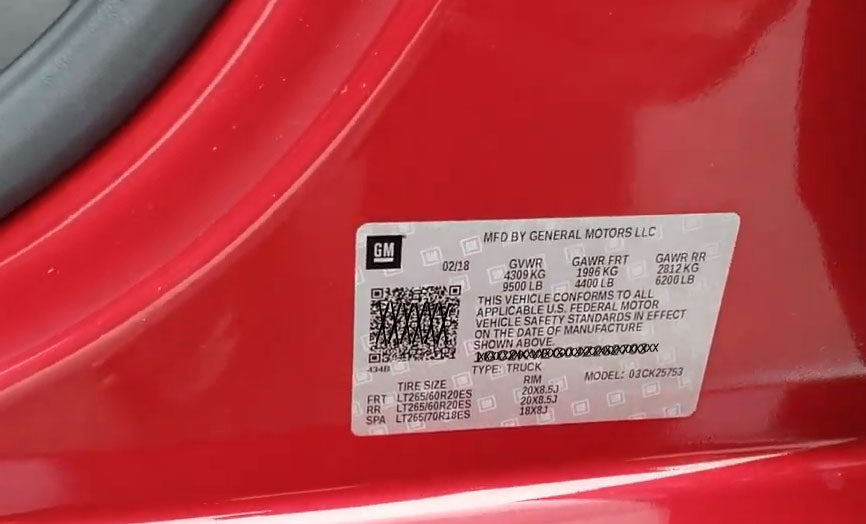

Vehicle must have IOR option code on the service parts sticker located in the driver's side door jamb by the "B" pillar. You can scan the QR code on the sticker using a mobile device to view the vehicle options.
Compatible with 7" or 8" IOR display- without OEM Navigation only.
Vehicle must have steering wheel controls for camera activation. If vehicle does not have steering wheel controls a toggle switch will be required for activation.(not included)
2019-2023 GMC® Sierra pickup truck with 7" or 8" IOR display screen without OEM Navigation.
2019-2023 GMC® Canyon pickup truck with 7" or 8" IOR display screen without OEM Navigation.
2019-2023 Chevrolet® Silverado pickup truck with 7" or 8" IOR display screen without OEM Navigation.
2019-2023 Chevrolet® Colorado pickup truck with 7" or 8" IOR display screen without OEM Navigation.
**Measure the screen diagonally like a T.V. to determine screen size**
Installation
The front-cam integration module connects your factory 7" or 8" IOR non navigation radio. You will need to open the dash to gain access to the radio connections. Splicing into the vehicle wiring is required.
*For an easy power source option see SKU: CS-RPW-P
