Second Cam Option for Factory IOB Display, Fits 2014-2018 Sierra/Silverado

Second Cam Option for Factory IOB Display, Fits 2014-2018 Sierra/Silverado

SKU#: CS-ULPM-SWIOB

Availability: In Stock
SKU#: CS-ULPM-SWIOB
$243.00

Quantity

Toggle between cameras!

Description

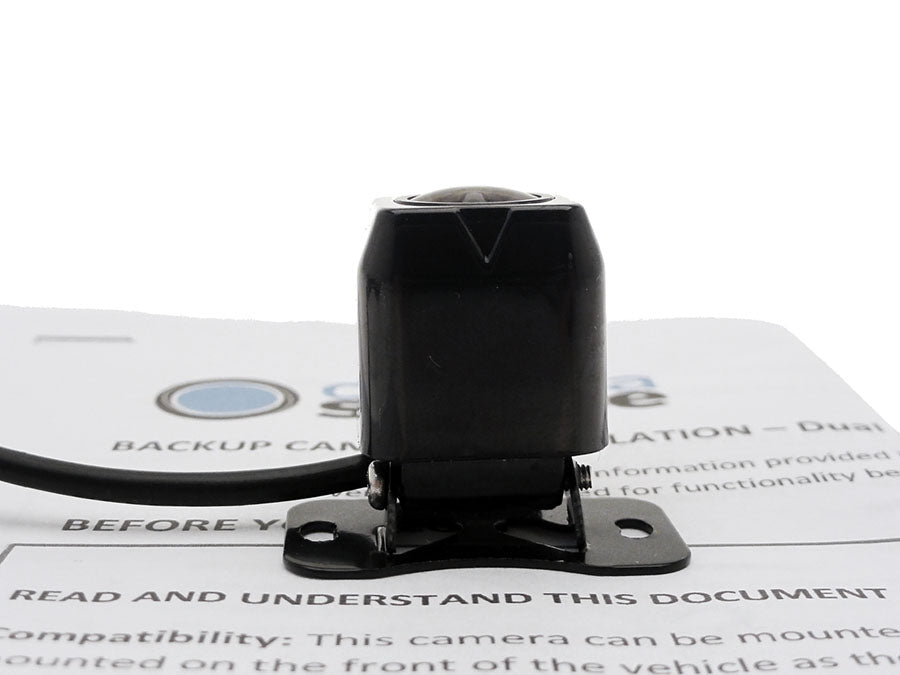

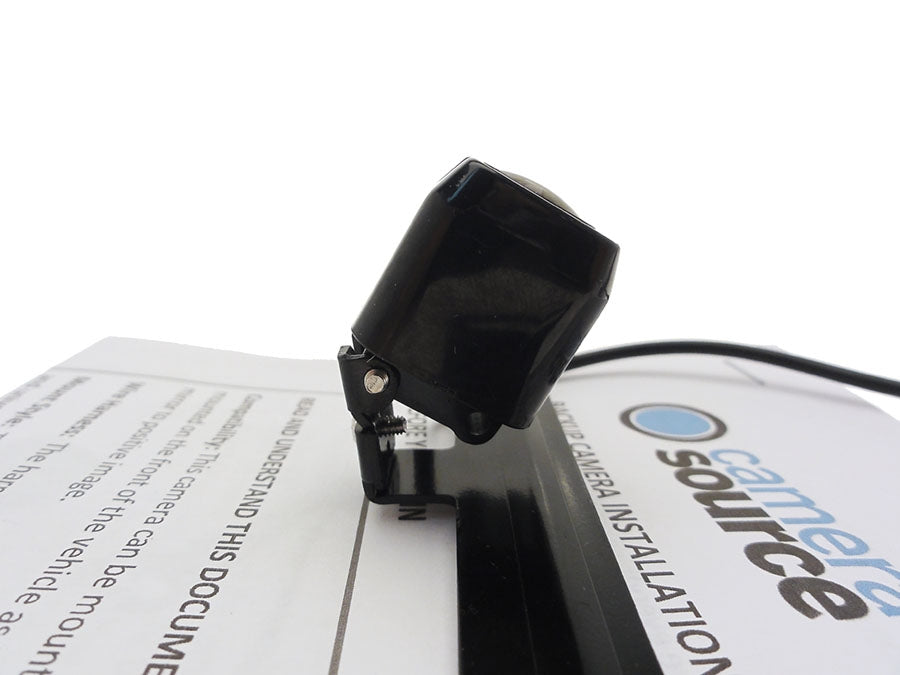

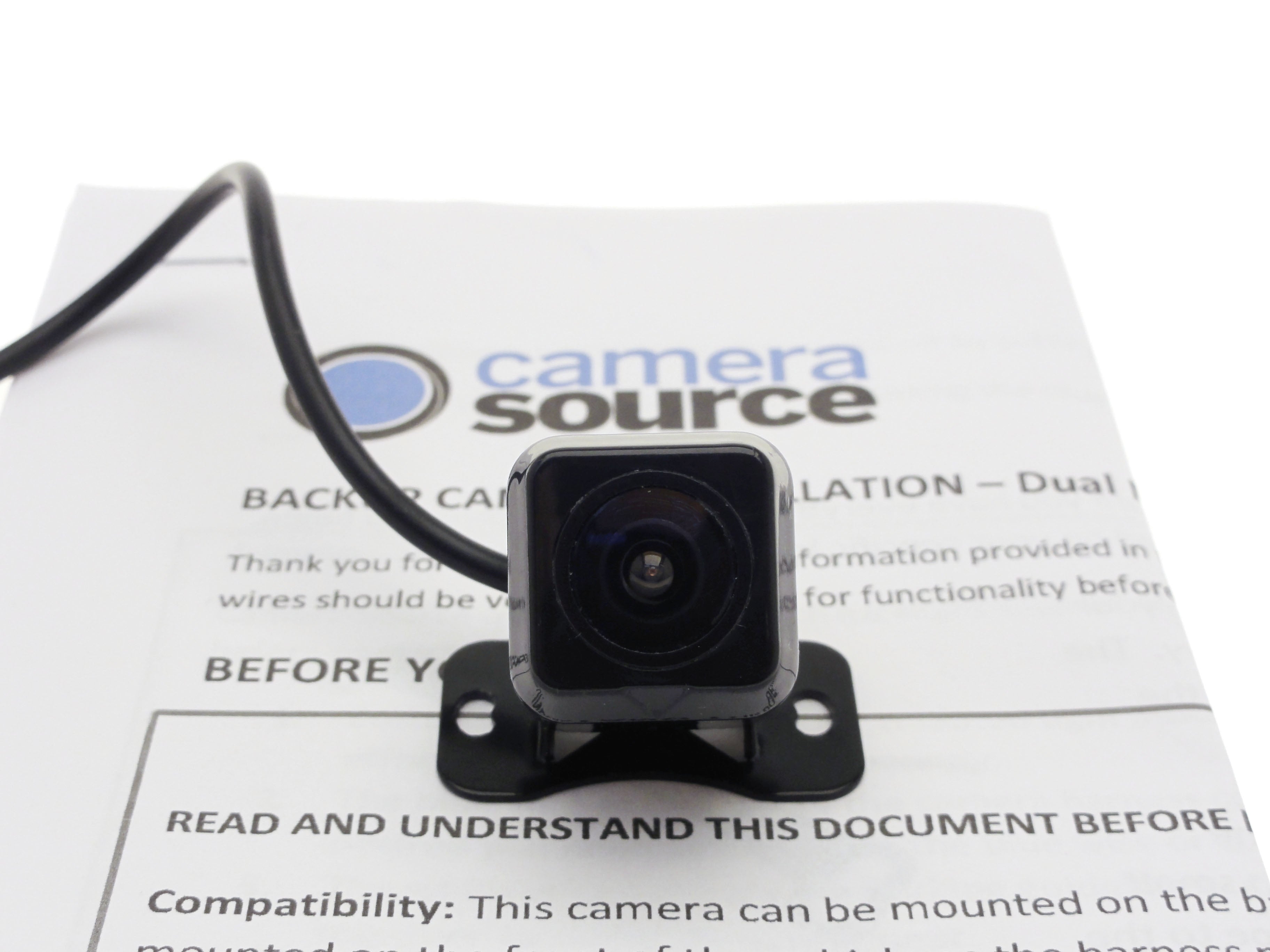

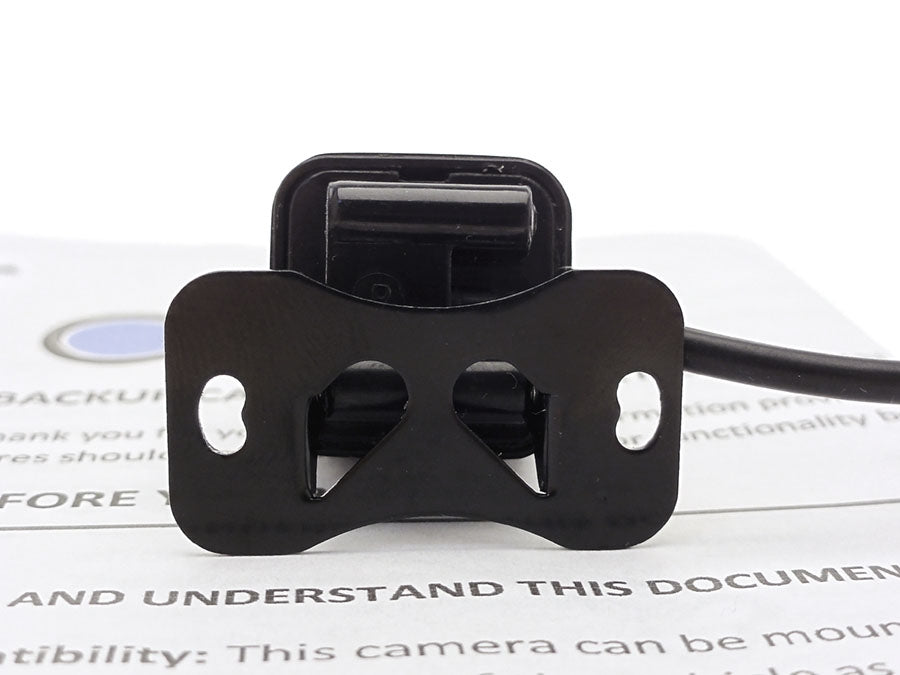

This kit includes a plug and play harness that will allow you to use your factory radio display and toggle between your factory installed back up camera and this universal camera when in reverse. This is a universal camera that features two mounting options; it can be installed behind the license plate or on a flat vehicle surface with minimal surface area requirements. The camera connects to the same connector on the back of your factory display that your factory rear camera uses.

Adds the convenience of a 2nd rear camera to a toolbox, headache rack, cab and chassis, or other specialty bed. With this added camera you can see your fifth wheel hitch or anything else that is inside your bed without having to have a spotter guiding you for trailer connections etc.

The included plug and play harness allows you to choose which camera you want to display when in reverse by flipping a switch.



Notes about the included integration harness:

  • Truck must have a rear view camera that was installed at the factory and is displayed on your factory IOB radio screen (2014-2018 models only)
  • Kit includes a plug and play harness that allows you to connect both your factory tailgate camera and this universal camera to your factory radio. The switch allows you to choose which one is displayed in reverse.

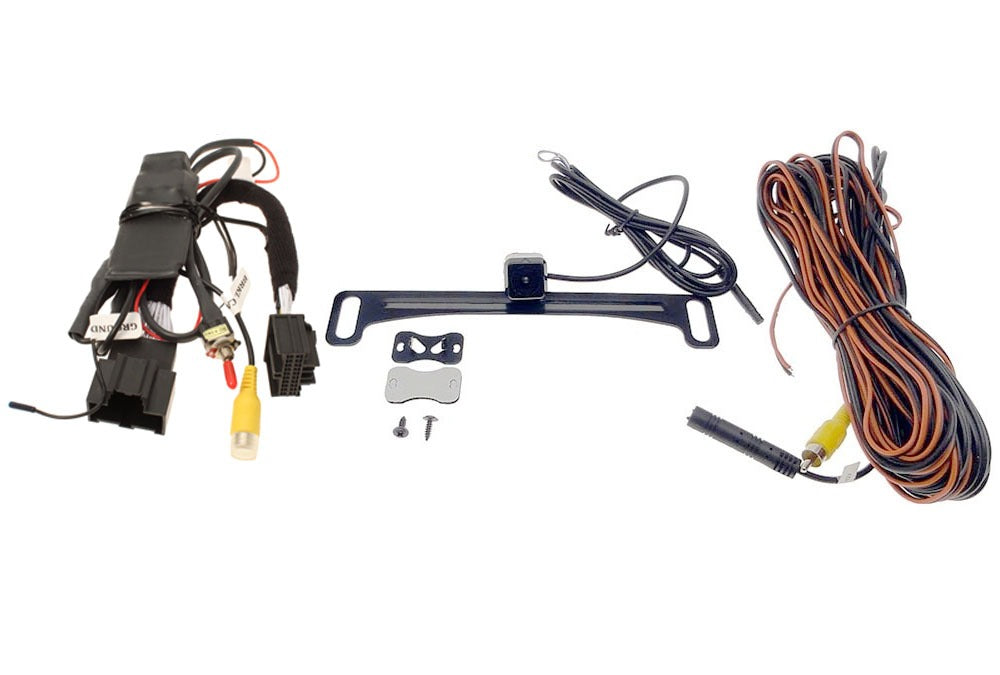

Kit Includes:

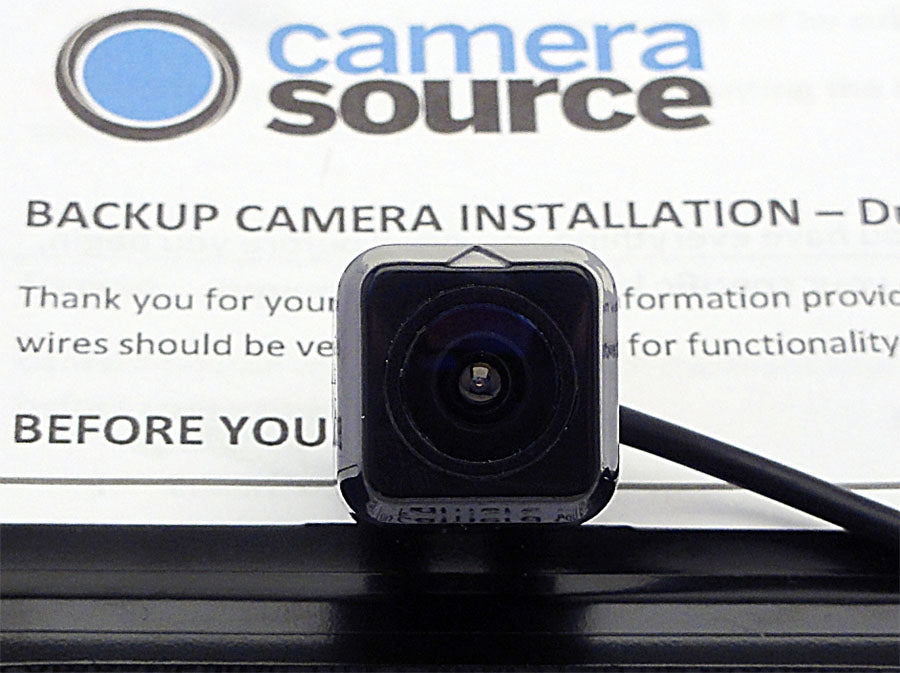

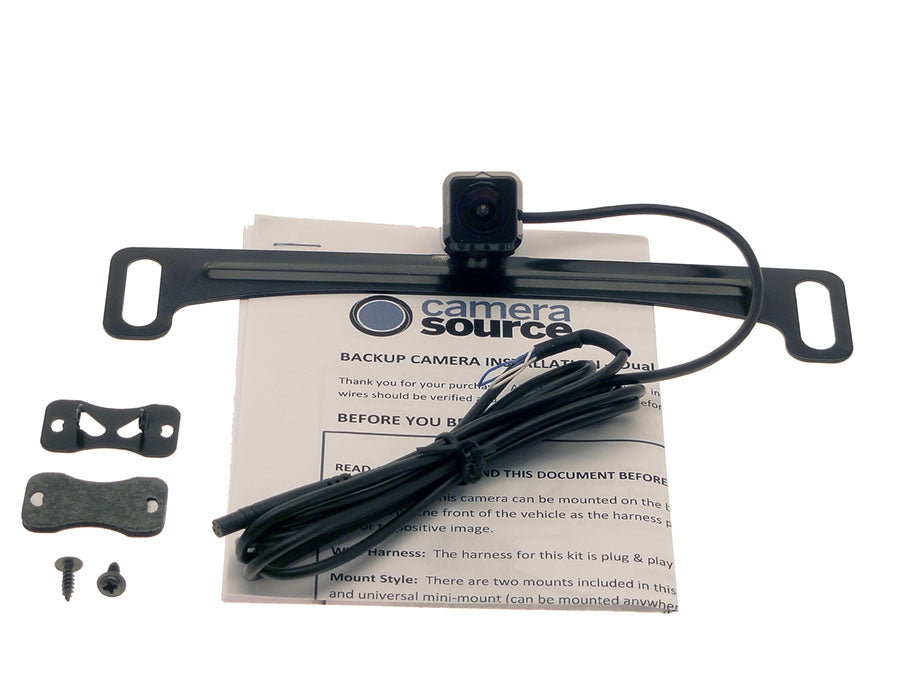

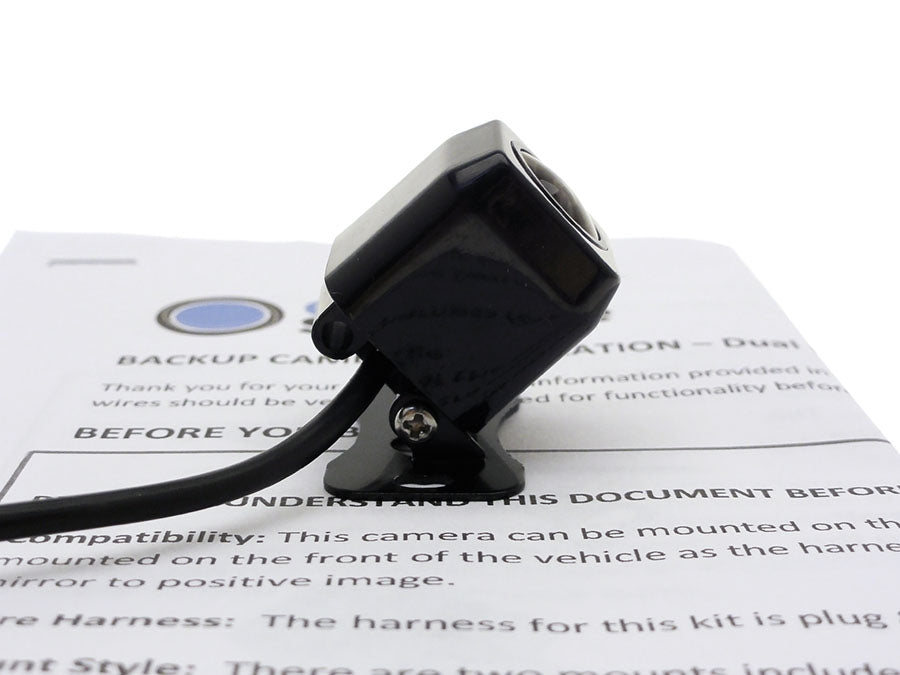

  • Dual mount camera system with high grade Super CMOS sensor for an ultra clear view, mount on license plate or universal bracket to be mounted anywhere
  • 25 foot harness
  • Wire connectors
  • Zip ties

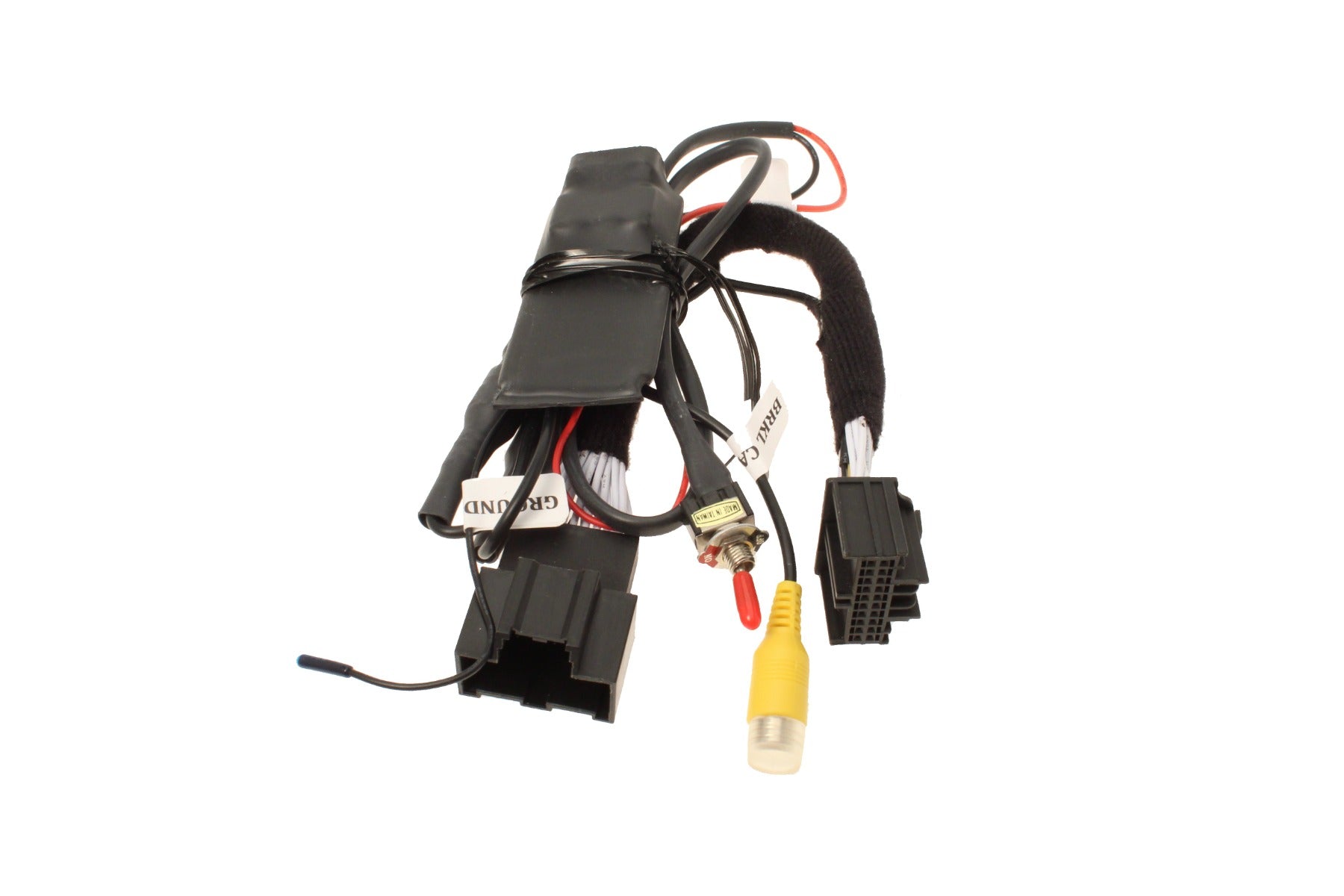

  • Integration harness with toggle switch for GM® IOB display.
  • Install instructions

Camera Specifications:

  • Camera Source exclusive Super CMOS high grade sensor with night vision
  • Selectable parking guidelines (can be turned off if desired) When using parking lines, it is recommended to mount the camera on the centerline of the vehicle. NOTE: Black center line is not present on actual display.
  • 600 TV lines of resolution
  • <.2 lux minimum illumination - Outstanding night vision!
  • 170 degree viewing angle
  • 3 Year warranty



**Display not included** This kit connects to your existing factory display. Not compatible with IO4,IO5, IO6 display.

Specifications
System Manufacturer EVI Systems
Camera Resolution 600 TVL
Camera Type Rear Camera, Utility Bed Camera Systems, Trailer/Camper/5th Wheel camera
For a monitor it uses Your factory display
Fit Type Universal fit
Connection RCA with opt. Factory Interface
Make GMC,Chevrolet
Camera Mount Location Camper/Utility Bed, Universal Mount
Night Vision < .2 Lux
Camera Orientation Rear Facing
Power Supply 12 Volts
Radio Screen Size 7\ MyLInk/Intellilink
Reason for Shopping Adding camera(s)
Sensor Brand EVI Systems
Sensor Type CMOS
Vehicle Interface Not Included
Vehicle Category Truck, Camper/Trailer (if connecting to vehicle wiring)
Viewing Angle 170 Degrees
Model Sierra,Sierra HD,Silverado,Silverado HD
Warranty 3 Year
Waterproof/Dustproof Level IP68
Wiring Type Hard Wired
Year 2014,2015,2016,2017,2018
Make Filter Chevrolet, GMC
Model Filter Sierra, Sierra HD, Silverado, Silverado HD
Year Filter 2014, 2015, 2016, 2017, 2018
Compatibility

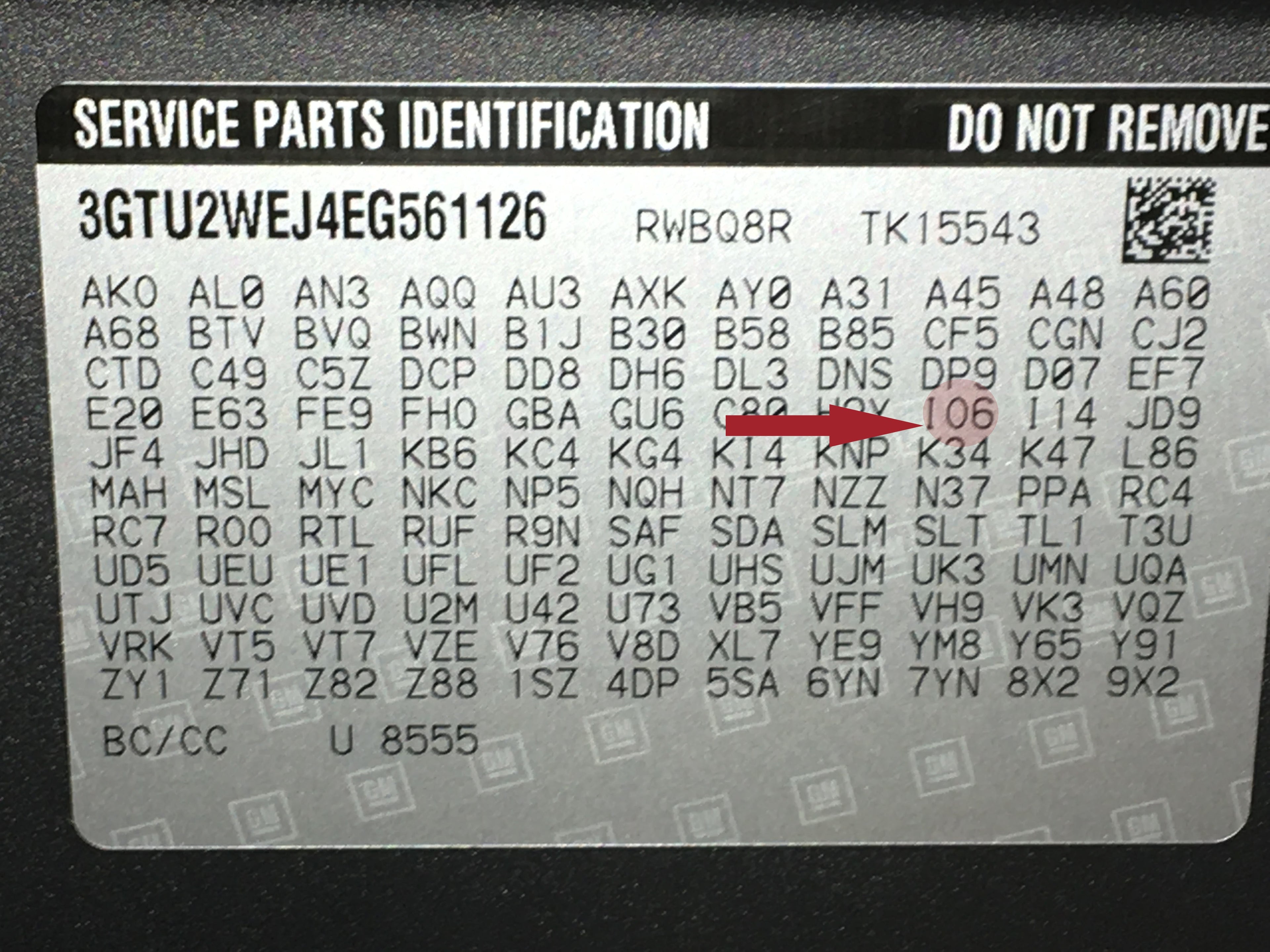

2014-2018 Sierra or Silverado with iOB factory radio.  To confirm radio type, locate the Service Parts Identification sticker in your glove box.  Look for code IOB on this glove box sticker to confirm compatibility.  See images for example.

Will not work with IO4, IO5, IO6 screen.

Installation
Remove the radio to gain access to the camera connector, install new plug and play harness.
Install the universal camera on either your license plate mount or on any flat surface - comes with two brackets. Then route the camera harness into the cab of the vehicle to the back of your factory display.  Plug the RCA connector from the camera harness into the T-harness.  Locate a reverse activated 12v power source and clean piece of metal for grounding.  Power connections for camera must be made inside the cab.
Make installation even easier with an add on 12 Volt power source to eliminate the need to locate a power source on the vehicle and avoid cutting or splicing into factory wiring!  See related item SKU: CS-RPW-P
