Flush Mount Cam Kit-Manual Splice, Fits RAM®
SKU#: CS-DTRSK-FMMS4
Availability:
In Stock
SKU#:
CS-DTRSK-FMMS4
$199.00
Quantity

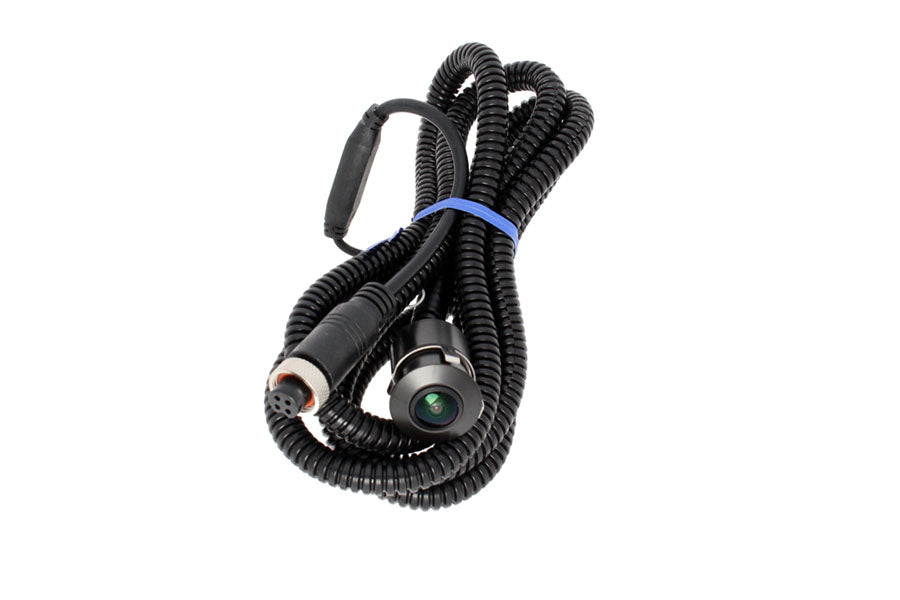

Manual splice flush mount camera kit
Description
FMVSS 111 compliant! Rear facing flush mount camera! Kit is not plug and play and requires manual splicing into the factory camera harness.

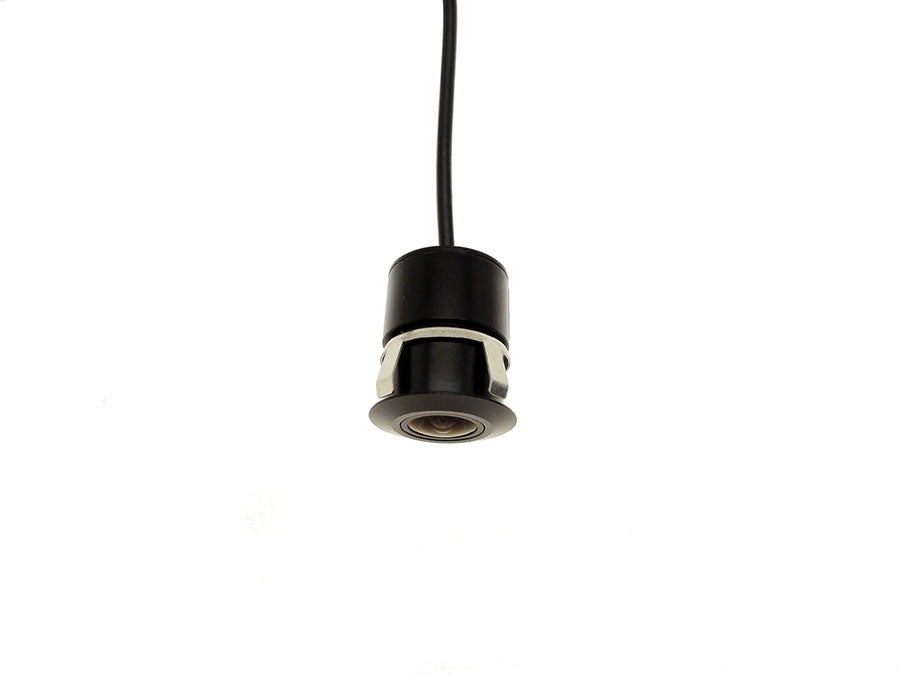

This universal camera mounts flush with a flat surface. Drill a 22.5mm hole(hole saw included) and run the cable through to your factory backup camera connection.

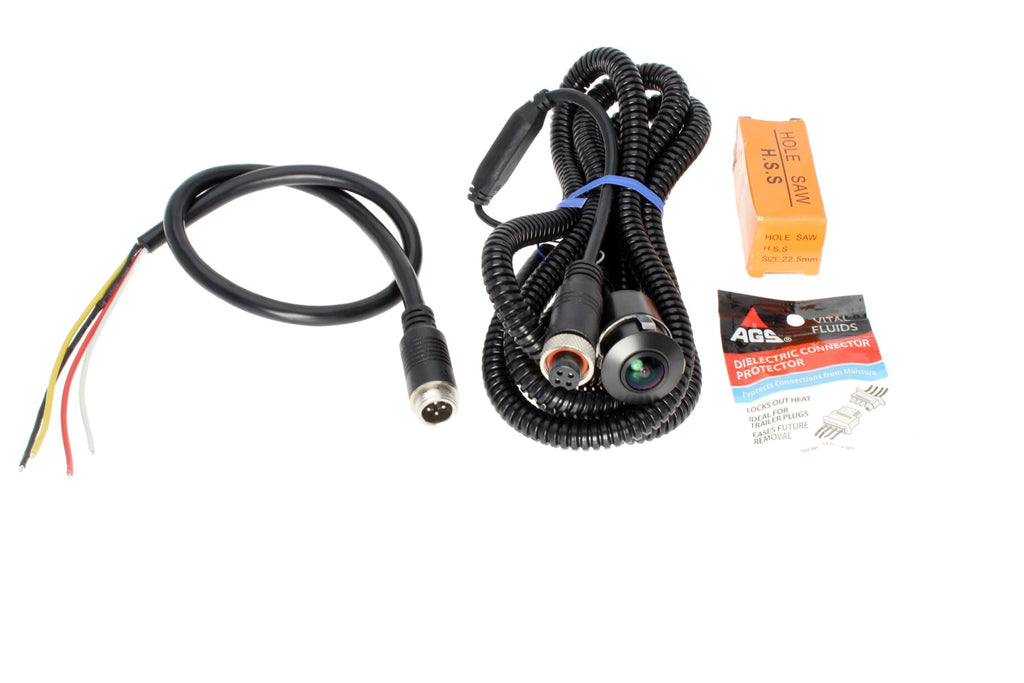

Kit includes the following:
- Black rear facing surface mount camera with our latest super CMOS camera - the latest camera technology!

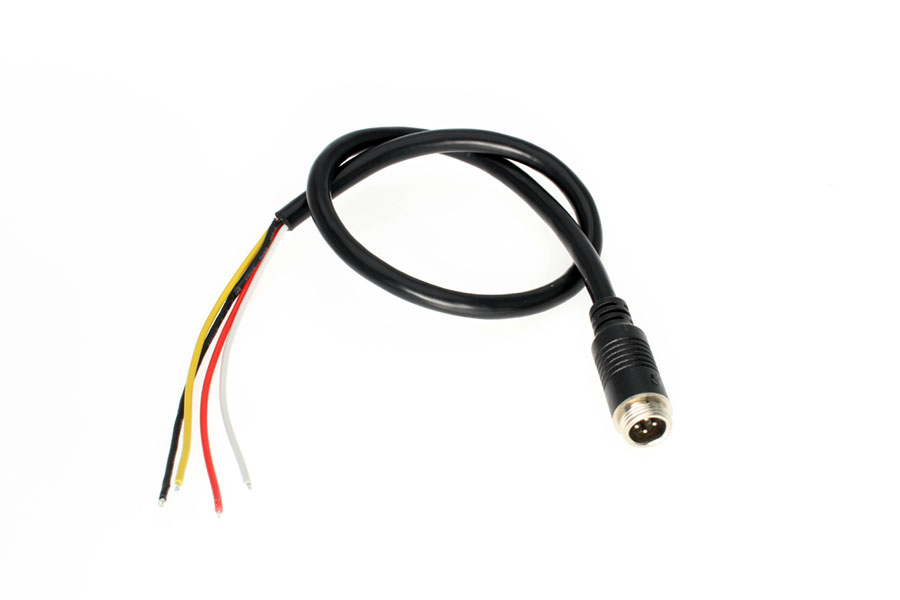

- Open ended harness for splicing into factory harness
- 22.5 mm hole saw
- Installation instructions
- 3 year limited camera warranty
Camera Specifications:
- Super CMOS chip - outstanding color, contrast, and clarity!
- Removable parking guidelines
- 170 degree view
- 600 TV lines of resolution
- .1 lux minimum illumination - Outstanding night vision!
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera, Utility Bed Camera Systems |
| For a monitor it uses | Your factory display |
| Fit Type | Universal fit |
| Connection | Factory Connector |
| Make | RAM |
| Camera Mount Location | Camper/Utility Bed, Universal Mount |
| Night Vision | .1 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 4.3\ Mopar, 5\ Mopar, 8.4\ Mopar |
| Reason for Shopping | Relocating factory camera |
| Sensor Brand | EVI Systems |
| Sensor Type | Super CMOS |
| Vehicle Category | Truck, Camper/Trailer (if connecting to vehicle wiring) |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | 1500,HD, Cab & Chassis |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2010,2011,2012,2013,2014,2015,2016,2017,2018,2019 |
| Make Filter | Ram |
| Model Filter | 1500, Cab & Chassis, HD |
| Year Filter | 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 |
Compatibility
2010-2019 RAM® truck with a factory installed backup camera.
**EVI Systems has certified this camera system to comply with FMVSS 111 regulations as set forth by the National Highway Traffic Safety Administration (NHTSA). Testing has been performed jointly in-house and by a certified laboratory to meet or exceed the minimum requirements set forth by TP-111-V-01. FMVSS 111 field of view requirements and any other vehicle related certification is ultimately the responsibility of the vehicle up-fitter to ensure compliance.
Installation
Camera requires a 22.5 mm hole on a flat surface for flush mounting. It will require a flat section approximately 1" x 1" for mounting. Drill the hole and connect the camera harness to the manual splice harness. Run the cable to your factory backup camera connection under the truck and manually splice. Pinout details included in the install instructions.
There is approximately a total of 6' of wire between the camera and the factory connector.
