Plug & Play Lug Mount Camera Kit, Fits Ford® Super Duty
SKU#: LG-FTRSD-LP
Availability:
In Stock
SKU#:
LG-FTRSD-LP
$249.00
Quantity
Uses factory camera connector under tailgate!
Description
The new Lug Mounted Camera Relocation Kit improves rear visibility and allows the camera to be relocated to the RiG'd UltraSwing® or other aftermarket spare tire mount where the factory backup camera is now obstructed.
Simply mount the camera with lug mount bracket to your spare tire mount and connect the cable to your factory backup camera connection for a simple and seamless installation.
NOTE: Power locking tailgate feature is lost when this kit is connected.

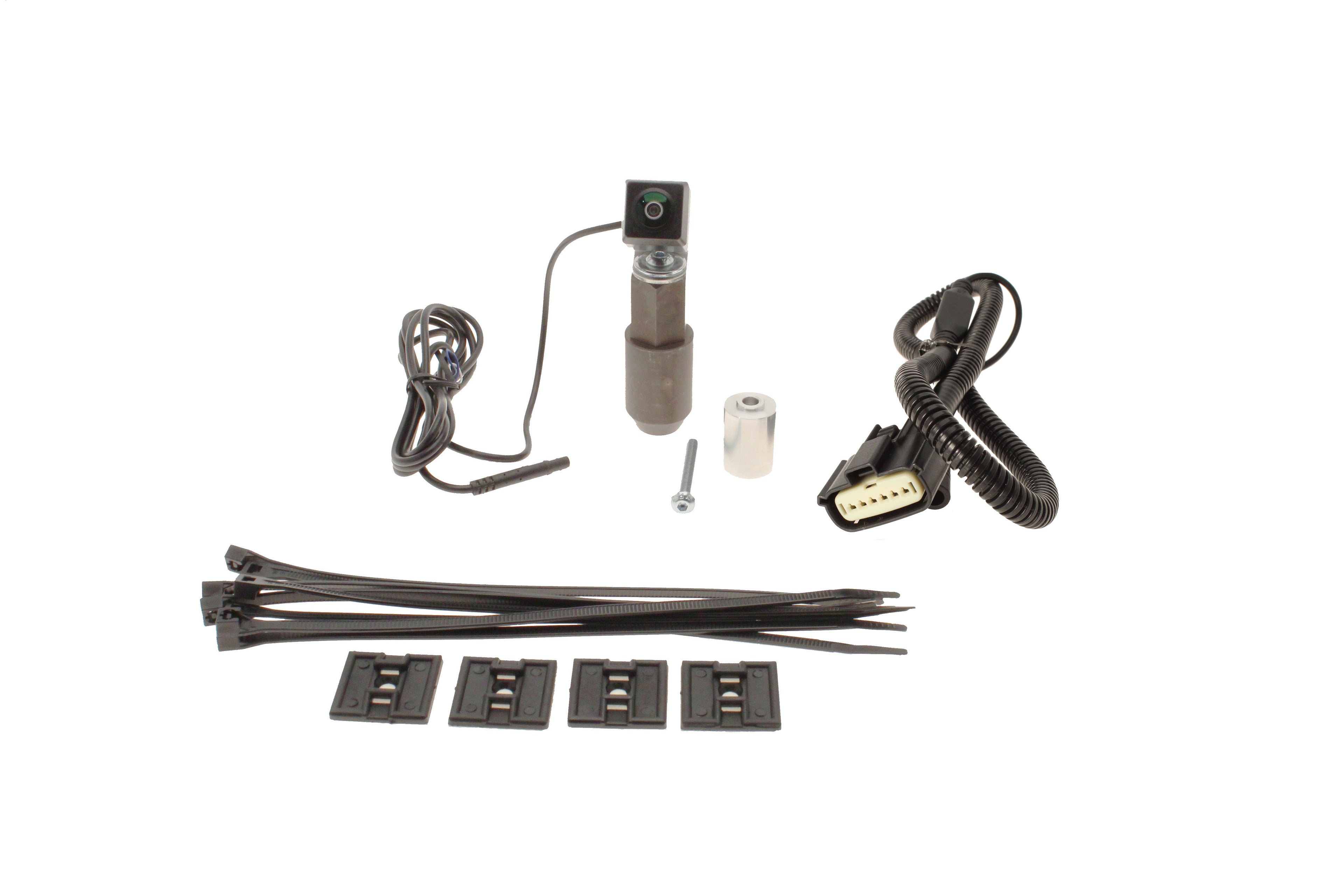

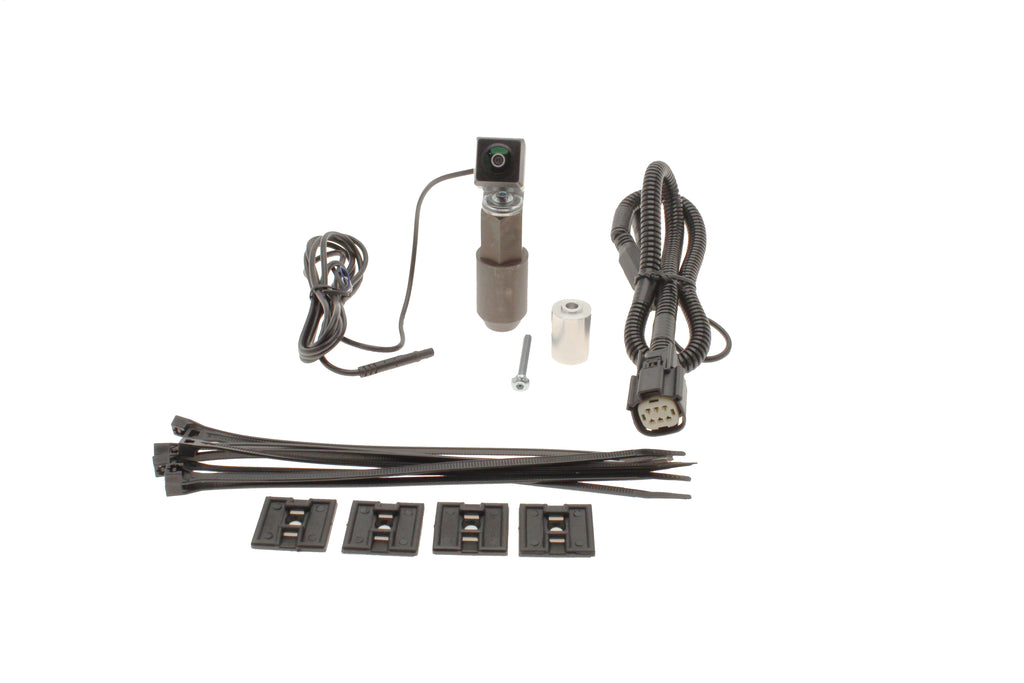

Kit includes the following:
- Mini universal camera with Super CMOS sensor
- OEM wiring conversion harness — allows the system to be plug and play with your factory camera connector **Main image is for illustrative purposes only. Your actual connector may be different. See thumbnail pictures for additional images. Select model year from drop down above.
- 10' cable
- Lug mount bracket — mounts to your spare tire lug
- Lug mount spacer — use for oversized spare tire
- 3 year warranty!
Camera Specifications:
- Camera Source Super CMOS for a super clear image
- Night vision
- 170 degree view
- 600 TV lines of resolution
- Parking guidelines (selectable at the harness)
Lug Mount Specifications:
- Heat treated stainless steel 19mm hex lug nut
- Stainless steel camera mounting bracket
- Billet aluminum spacer
**Not compatible with trucks that have the 360 degree view system. See our other kits for options.
**Main image is for illustrative purposes only. Your actual connector may be different. See thumbnail pictures for additional images.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera, Spare tire lug mount |
| For a monitor it uses | Your factory display |
| Fit Type | Specific fit |
| Connection | Factory Connector |
| Make | Ford |
| Camera Mount Location | Universal Mount, Spare tire lug mount |
| Night Vision | < .2 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 4.2” Ford, 8” Ford Sync 2, 8\ Ford Sync 3, 8\ Ford Sync 4, 12\ Ford Sync 4 |
| Reason for Shopping | Relocating factory camera |
| Sensor Type | Super CMOS |
| Vehicle Category | Truck |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Super Duty |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 68 Camera |
| Wiring Type | Factory Plug&Play |
| Year | 2008,2009,2010,2011,2012,2013,2014,2015,2016,2017,2018,2019,2020,2021,2022,2023,2024,2025,2026 |
| Make Filter | Ford |
| Model Filter | Super Duty |
| Year Filter | 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 |
Compatibility
Ford® Super Duty series trucks with a factory installed backup camera and the RiG'd UltraSwing® or other aftermarket spare tire mount. This kit relies on the factory camera chassis harness to operate. Not compatible if your truck has the 360 view system or cab-chassis truck.
2008-2026: F-250, F-350
NOTE: power locking tailgate feature is lost when this kit is connected.
For cab-chassis trucks see SKU: CS-17SDLP-CC
Installation
Camera is pre-mounted to the lug mount bracket. Attach the lug mount to your spare tire lug and tighten. Camera tilt is adjustable so the view can be adjusted to accommodate any view required!
Plug OEM conversion harness into factory camera connection located behind the bumper, under the truck.
