Plug & Play Lug Mount Camera Kit Fits 2010-2013 + 2014 HD GM® Sierra, Silverado
SKU#: LG-10GMTRSK-LP
Availability:
In Stock
SKU#:
LG-10GMTRSK-LP-10
$249.00
Quantity
Uses factory camera connector under tailgate!
Description
The new Lug Mounted Camera Relocation Kit improves rear visibility and allows the camera to be relocated to the RiG'd UltraSwing® or other aftermarket spare tire mount where the factory backup camera is now obstructed.
Simply mount the camera with lug mount bracket to your spare tire mount and connect the cable to your factory backup camera connection for a simple and seamless installation.

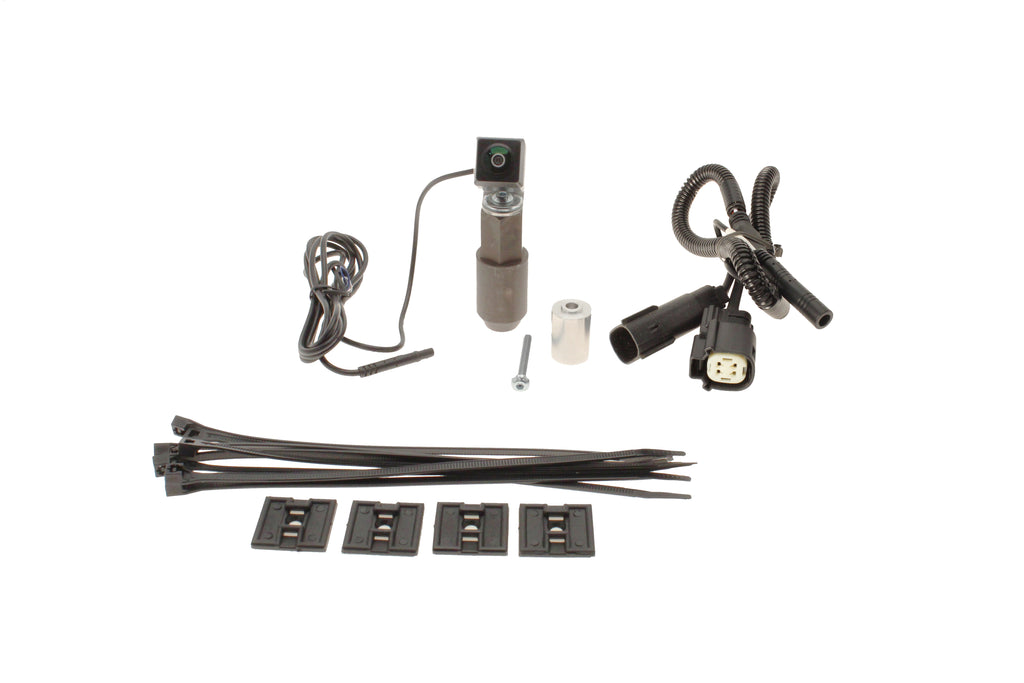

Kit includes the following:
- Adjustable camera with Super CMOS sensor

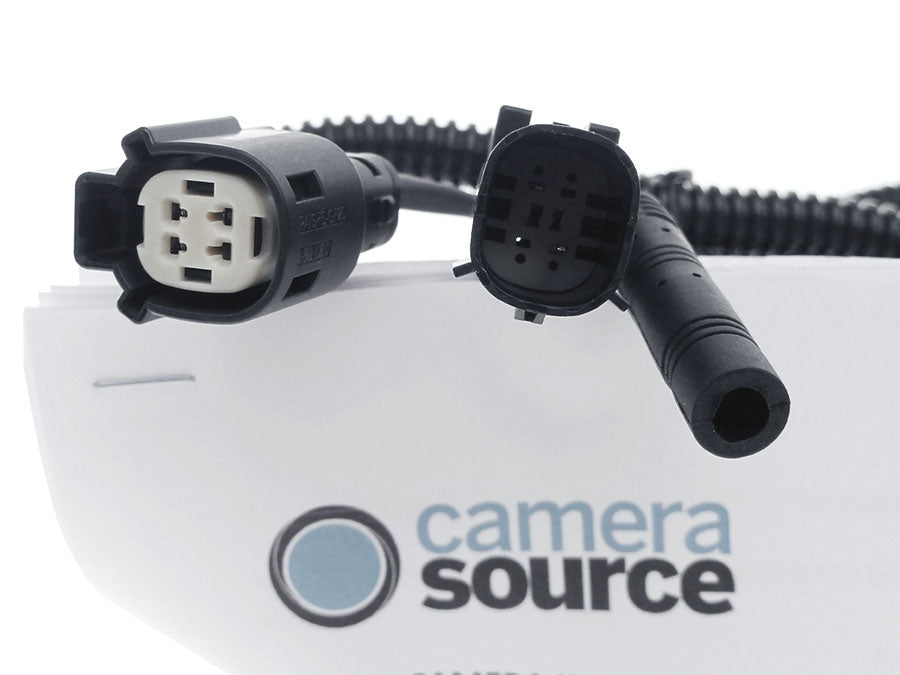

- OEM wiring conversion harness — allows the system to be plug and play with your factory camera connector, just plug it in!
- 10’ cable
- Lug mount bracket — mounts to your spare tire lug
- Lug mount spacer — use for oversized spare tire
- 3 year warranty!
Camera Specifications:
- Camera Source Super CMOS for a super clear image
- Night vision
- 170 degree view
- 600 TV lines of resolution
- Parking guidelines (selectable at the harness)
Lug Mount Specifications:
- Heat treated stainless steel 19mm hex lug nut
- Stainless steel camera mounting bracket
- Billet aluminum spacer
Specifications
| System Manufacturer | EVI Systems |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera, Spare tire lug mount |
| For a monitor it uses | Your factory display |
| Fit Type | Specific fit |
| Connection | Factory Connector |
| Make | Chevrolet,GMC |
| Camera Mount Location | Universal Mount, Spare tire lug mount |
| Night Vision | < .2 Lux |
| Camera Orientation | Front or Rear Facing |
| Parking Guidelines | Not Available |
| Power Supply | 12 Volts |
| Reason for Shopping | Relocating factory camera |
| Sensor Type | Super CMOS |
| Vehicle Category | Truck |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Silverado,Silverado HD,Sierra,Sierra HD |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 68 Camera |
| Wiring Type | Factory Plug&Play |
| Year | 2010,2011,2012,2013,2014 |
| Make Filter | Chevrolet, GMC |
| Model Filter | Sierra, Sierra HD, Silverado, Silverado HD |
| Year Filter | 2010, 2011, 2012, 2013, 2014 |
Compatibility
2010-2013 GMC® Sierra and Chevrolet® Silverado and 2010-2014 HD series truck with a factory installed backup camera and the RiG'd UltraSwing® or other aftermarket spare tire mount. This kit relies on the factory camera chassis harness to operate.
Installation
Camera is pre-mounted to the lug mount bracket. Attach the lug mount to your spare tire lug and tighten. Camera tilt is adjustable so the view can be adjusted to accommodate any view required!
Plug OEM conversion harness into factory camera connection located behind the bumper, under the truck.
