Plug & Play Lug Mount Camera, Fits 2013-2018 RAM®
SKU#: LG-DTRSK
Availability:
In Stock
SKU#:
LG-DTRSK
$249.00
Quantity
Plug and Play with factory wiring
Description
This is a plug and play camera kit that will allow you to replace your factory tailgate camera with this mini lug mount camera - Plug and Play!
The new Lug Mounted Camera Relocation Kit improves rear visibility and allows the camera to be relocated to the RiG'd UltraSwing® or other aftermarket spare tire mount where the factory backup camera is now obstructed.

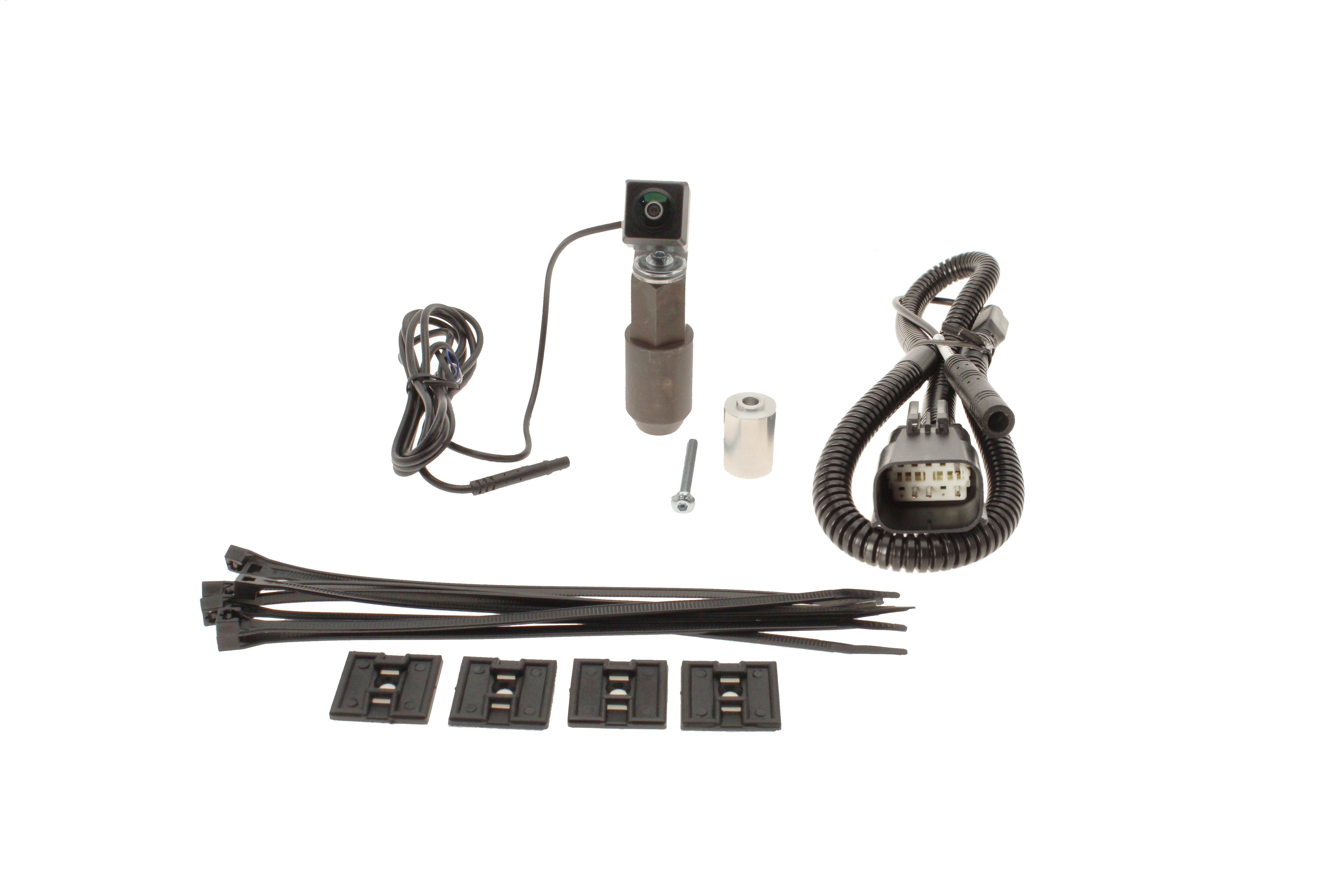

Simply mount the camera with lug mount bracket to your spare tire mount and connect the cable to your factory backup camera connection for a simple and seamless installation.Kit includes the following:
- Camera with Super CMOS sensor
- 10 foot OEM wiring conversion harness (10 pin) - allows the system to be plug and play with your factory camera connector, just plug it in!
- Lug mount
- Lug mount spacer-Use for oversized spare tires
- 3 year warranty!
Camera Specifications:
- Camera Source Super CMOS for a super clear image
- Night vision
- 170 degree view
- 600 TV lines of resolution
- Parking guidelines (selectable at the harness)
- Camera can face forward or backward (selectable at the harness)
Lug Mount Specifications:
- Heat treated stainless steel 19mm hex lug nut
- Stainless steel camera mounting bracket
- Billet aluminum spacer
NOTE: power locking tailgate feature is lost when this kit is connected.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera, Utility Bed Camera Systems, Trailer/Camper/5th Wheel camera |
| For a monitor it uses | Your factory display |
| Fit Type | Specific fit |
| Connection | Factory Connector |
| Make | RAM |
| Camera Mount Location | Spare tire lug mount |
| Night Vision | < .2 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 4.3\ Mopar, 5\ Mopar, 8.4\ Mopar |
| Reason for Shopping | Relocating factory camera |
| Sensor Type | Super CMOS |
| Vehicle Category | Truck, Camper/Trailer (if connecting to vehicle wiring) |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | 1500,HD |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 68 Camera |
| Wiring Type | Factory Plug&Play |
| Year | 2013,2014,2015,2016,2017,2018 |
| Make Filter | Ram |
| Model Filter | 1500, HD |
| Year Filter | 2013, 2014, 2015, 2016, 2017, 2018 |
Compatibility
Any 2013-2018 RAM® truck with a factory installed backup camera and RiG'd UltraSwing® or other aftermarket spare tire mount where the factory backup camera is now obstructed. This kit relies on the factory camera chassis harness to operate (power locking tailgate feature is lost).
Installation
Camera is pre-mounted to the lug mount bracket. Attach the lug mount to your spare tire lug and tighten. Camera tilt is adjustable so the view can be adjusted to accommodate any view required!
Plug OEM conversion harness into factory camera connection located behind the bumper, under the truck.
