OE Fit Recessed Lip Mounted Camera Kit with Gentex Mirror
SKU#: CS-ULIP132-332
Availability:
In Stock
SKU#:
CS-ULIP132-332
$378.00
Quantity
OE Fit Camera Kit w/ Gentex Mirror
Description
OE fit backup camera kit for vehicles with mounting space in the trim panel above the license plate. Super CMOS camera for the best picture available and includes Gentex Auto Dim video mirror!
The camera kit is plug and play with the included Gentex auto dimming mirror. The camera harness plugs into the mirror harness, power wire to 12 volt reverse activated power source, 12 volt accessory power source, and the full chassis harness runs back to the OE fit rear camera - a quick and simple install! The camera will come on in reverse and will display parking guidelines for added safety and convenience. Mirror requires standard wedge style mount.

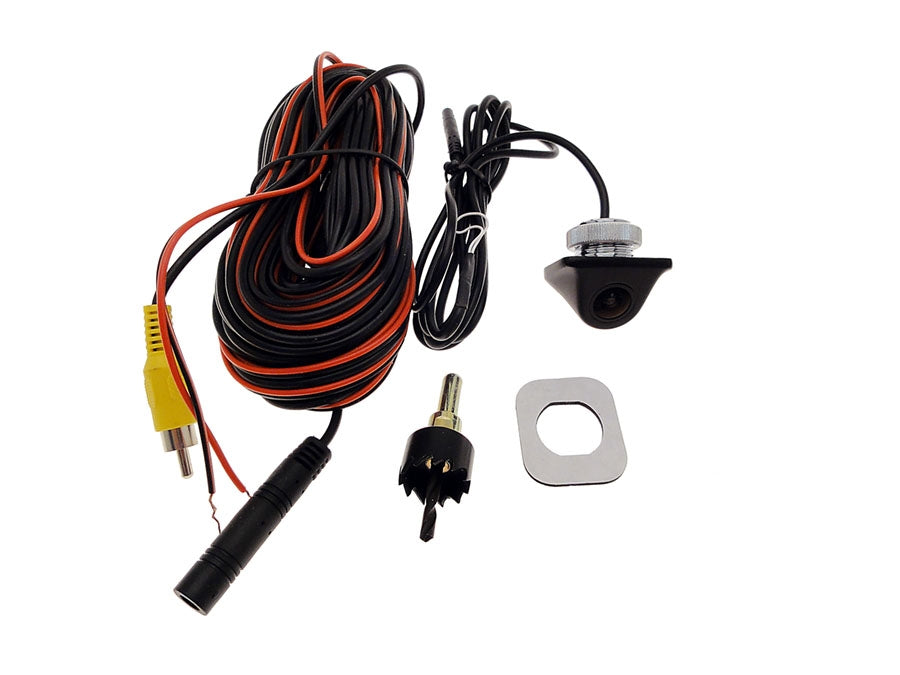

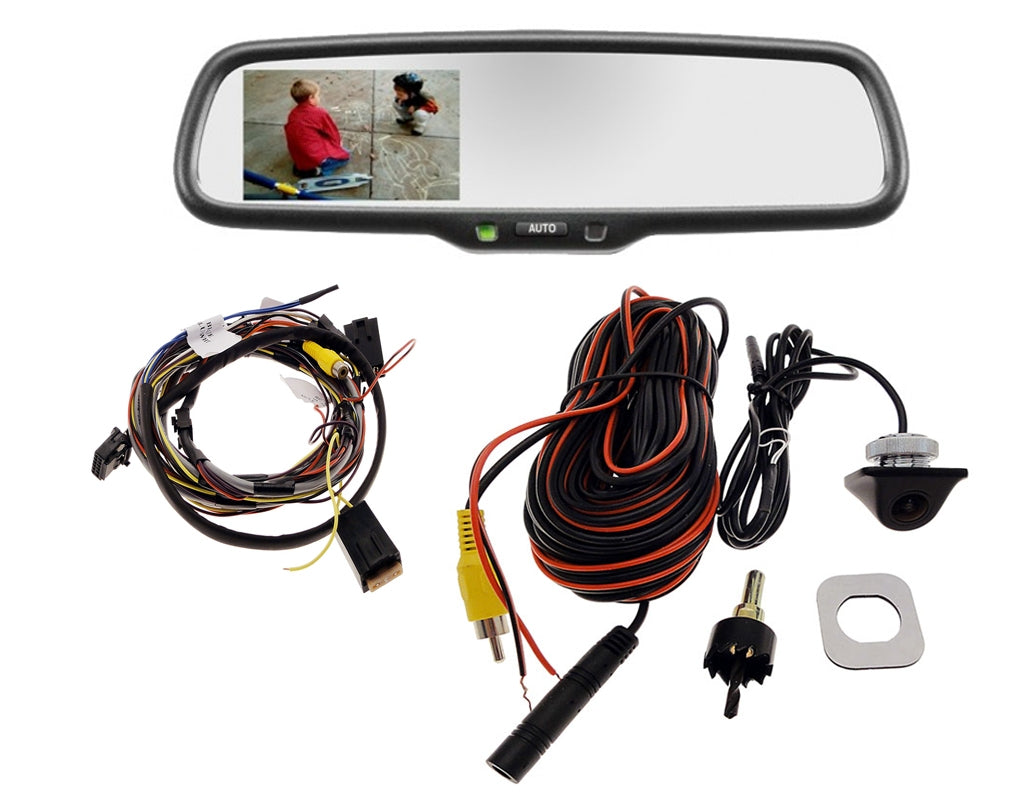

Kit includes:
- Super CMOS OE fit rear camera - ultra high clarity, color, and contrast (a Camera-Source exclusive)

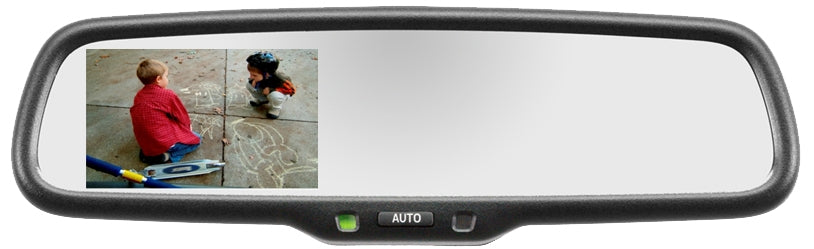

- Gentex auto dimming mirror with 3.5" RCD screen
- Parking guidelines built into the camera program
- Chassis harness
- Hole saw for installing camera
- Zip ties
- 3 YEAR WARRANTY ON EVERYTHING!
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 700 TVL |
| Camera Type | Rear Camera |
| For a monitor it uses | Packaged w/Rear view mirror display |
| Fit Type | Universal fit |
| Connection | Rearview Mirror |
| Mirror Mount | Wedge Style |
| Mirror Options | Auto Dim, Video |
| Monitor Size | 3.5" |
| Camera Mount Location | Undermount/Lip Mount |
| Night Vision | < .2 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Rearview Mirror |
| Vehicle Category | Car, Universal |
| Camera Input Ports | 1 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
Compatibility
Any vehicle with a flat space above the license plate (next to where the license plate light is mounted) and a standard wedge style mount (most vehicles). Camera and mirror require 12 volts.
Installation

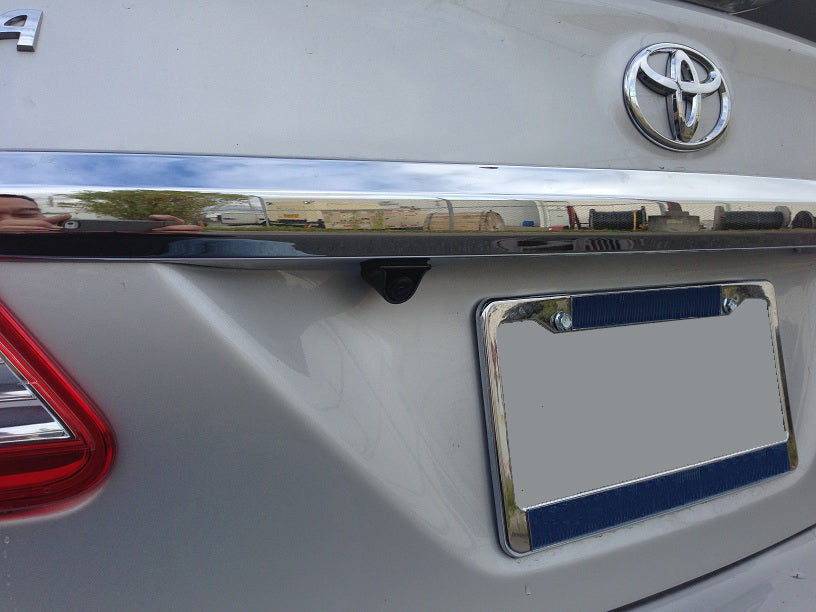

Simply plug the new camera harness into the RCA connector on the new rear view mirror and run the chassis harness to the rear of the car through the interior. The camera and mirror reverse power wire goes to any reverse activated power source such as a reverse lamp and the mirror auto dimming power goes to accessory power source. Camera installs in upper lip above the license plate; using the included hole saw cut an opening in the trim, install the camera, tighten with locking nut, and connect to chassis harness. Installs quickly and easily!
