OE Fit Grille Front Camera Kit for UAV or UAX Factory Display, Fits 2019-2022 RAM® Trucks
SKU#: CS-19RAMA-OEF
Availability:
In Stock
SKU#:
CS-19RAMA-OEF
$583.00
Quantity
OE fit Front Camera + Multi-camera Support!
Description
Can't see over that hood? This is your solution and is a Camera Source exclusive for any 2019-2022 RAM® 1500,2500,3500 series with UAV 8.4" or UAX 12.1" factory display!!
This camera fits perfectly into your grille and looks like it came from the factory! The camera has parking guideline options, meaning that the guidelines can be turned off. The included screen interface provides multi-camera support so you can add up to 4 cameras to your factory UAV 8.4" or UAX 12.1" display screen!
The integration module allows for plug and play integration into your factory screen without having to flash a program your radio. The factory rear camera will come on automatically when in reverse and front camera can be manually activated using the included activation button.

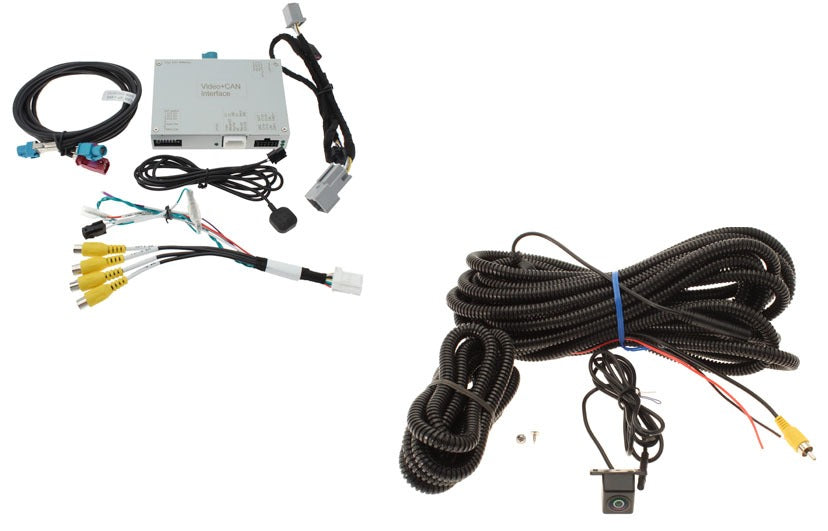

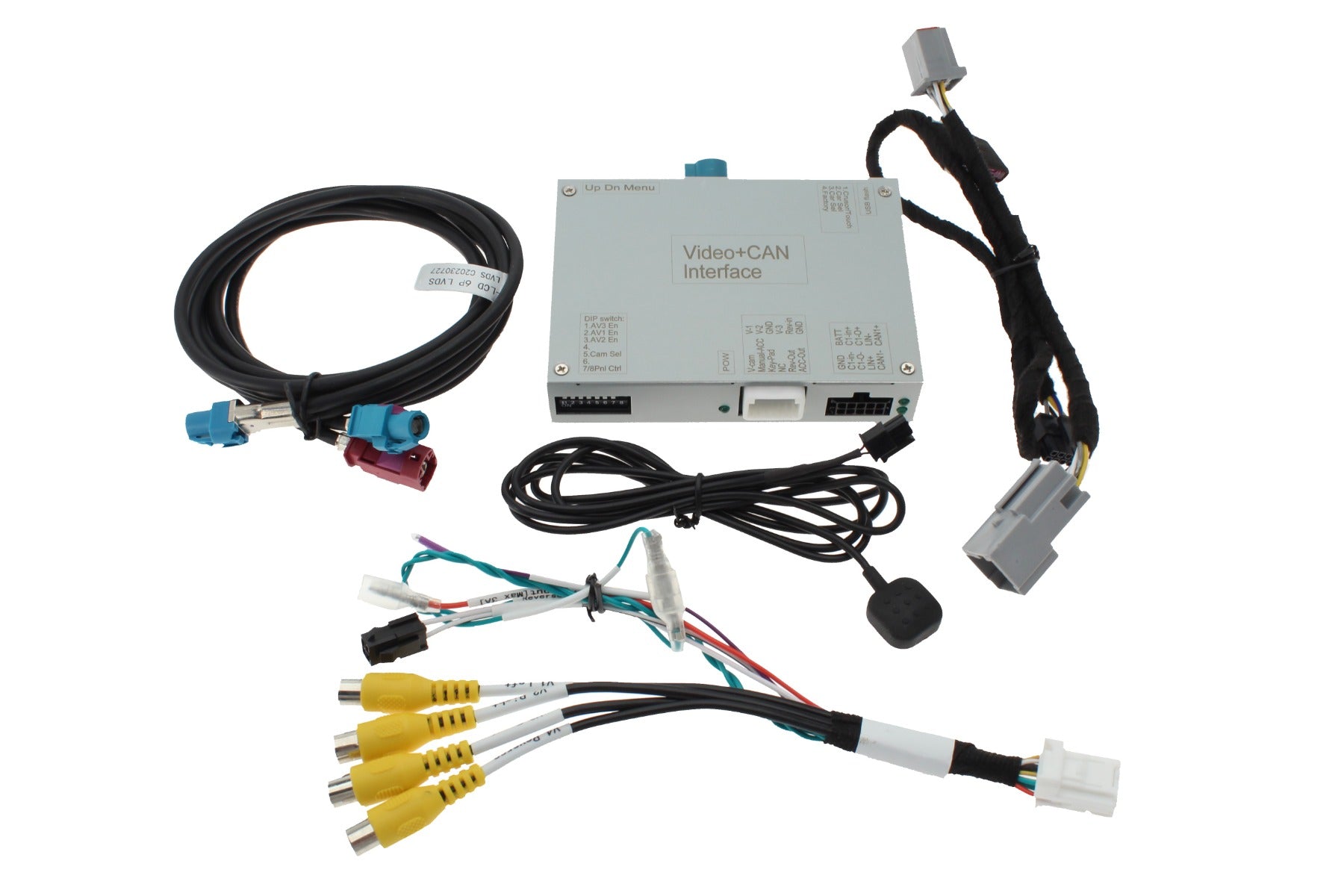

Kit includes:

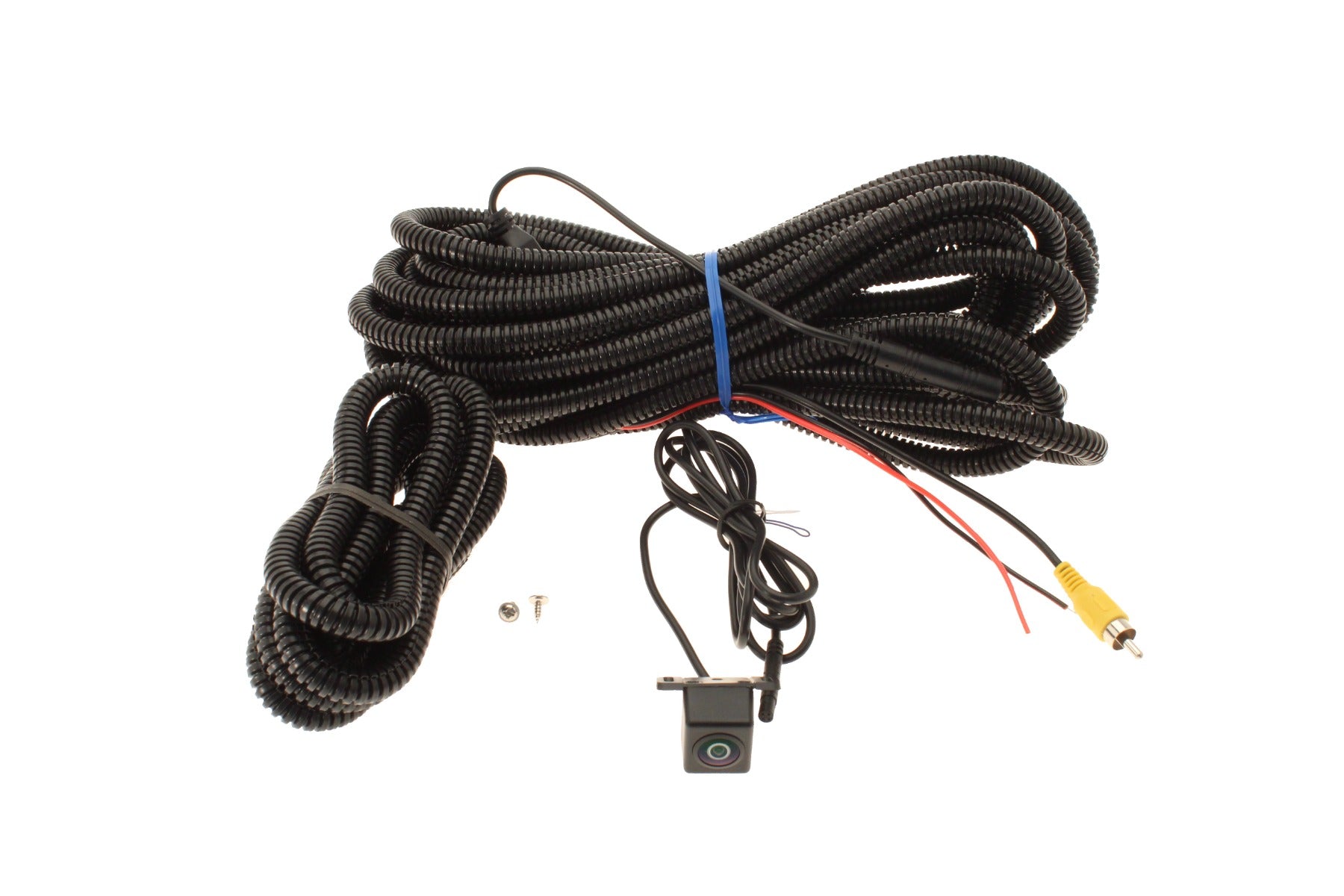

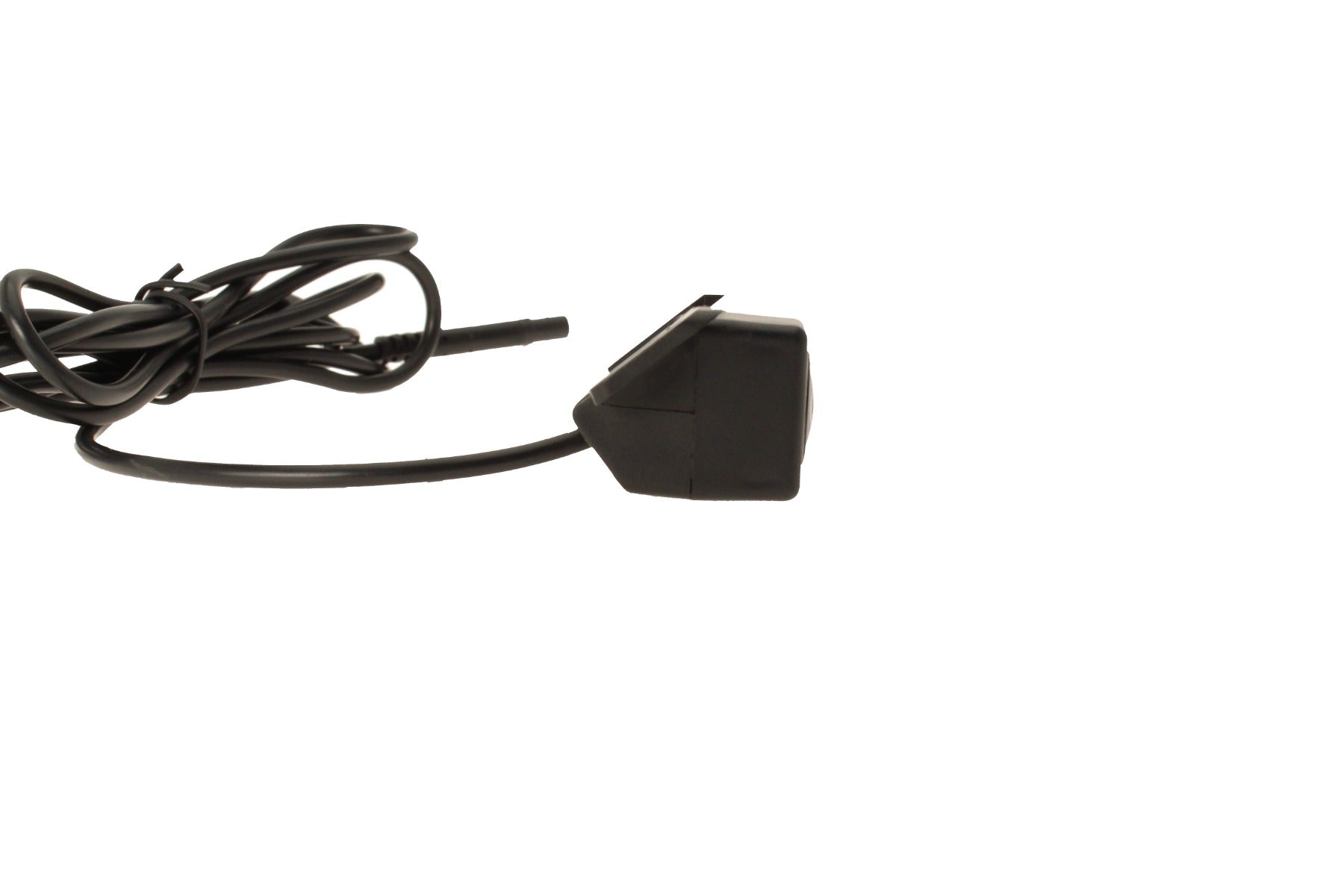

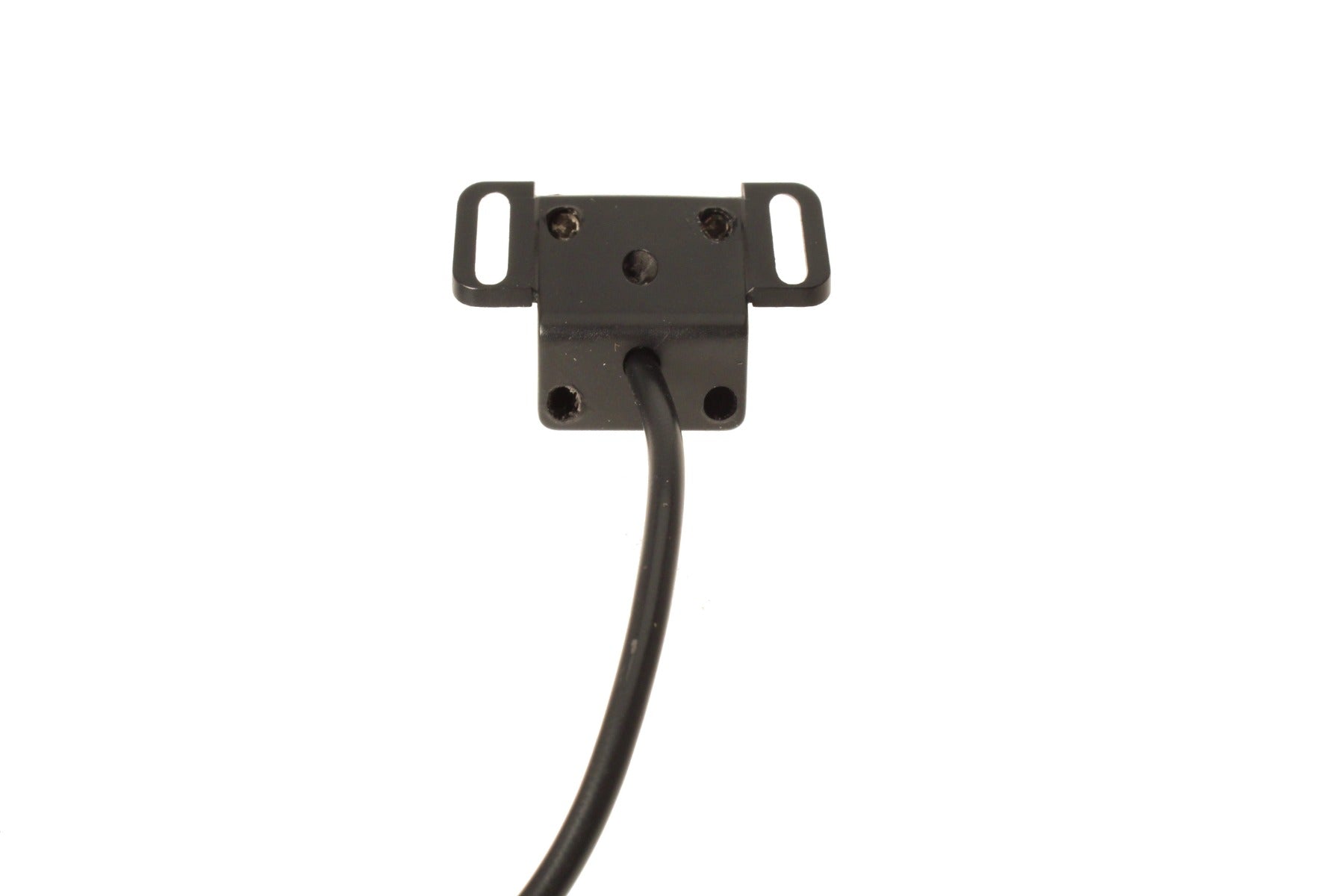

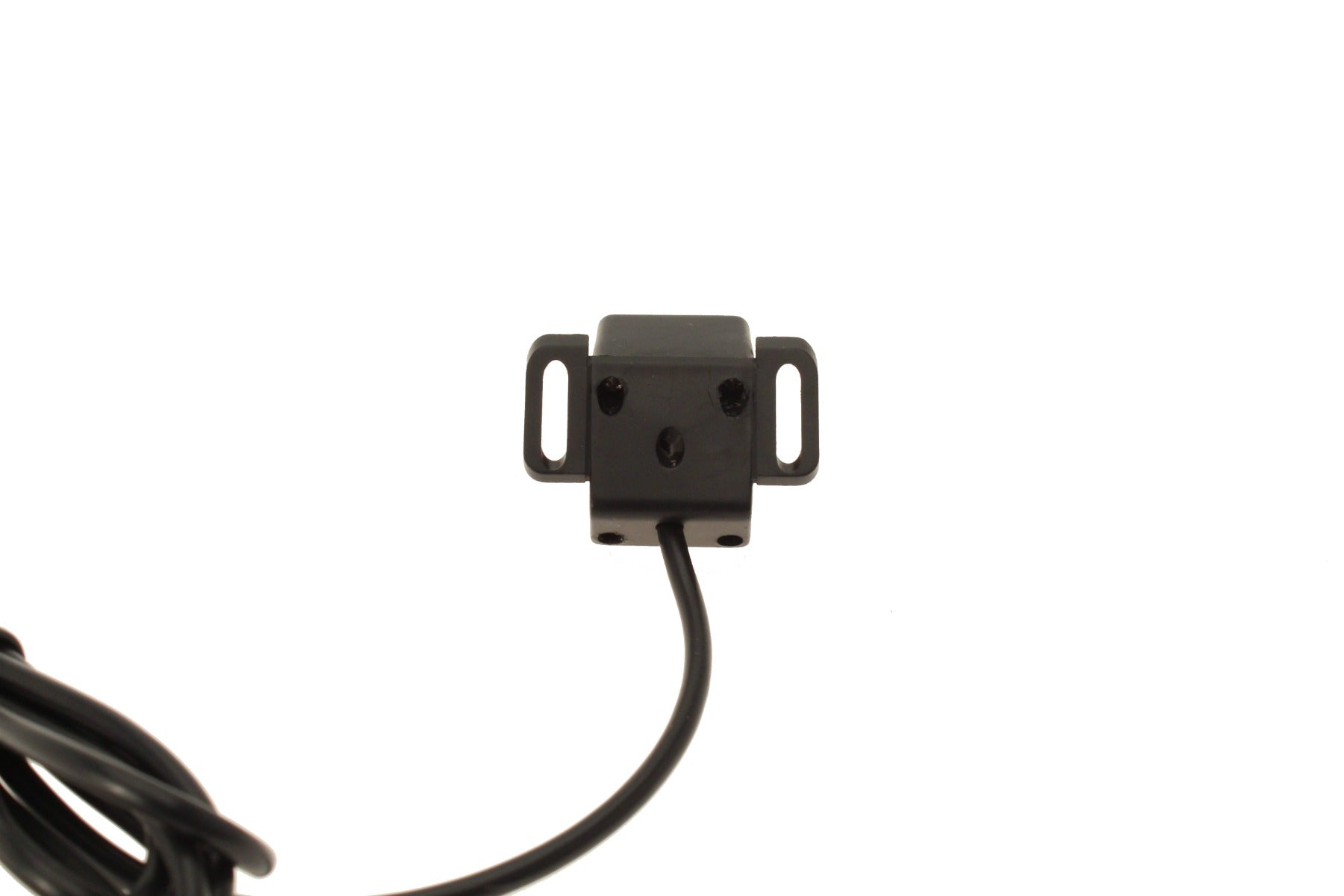

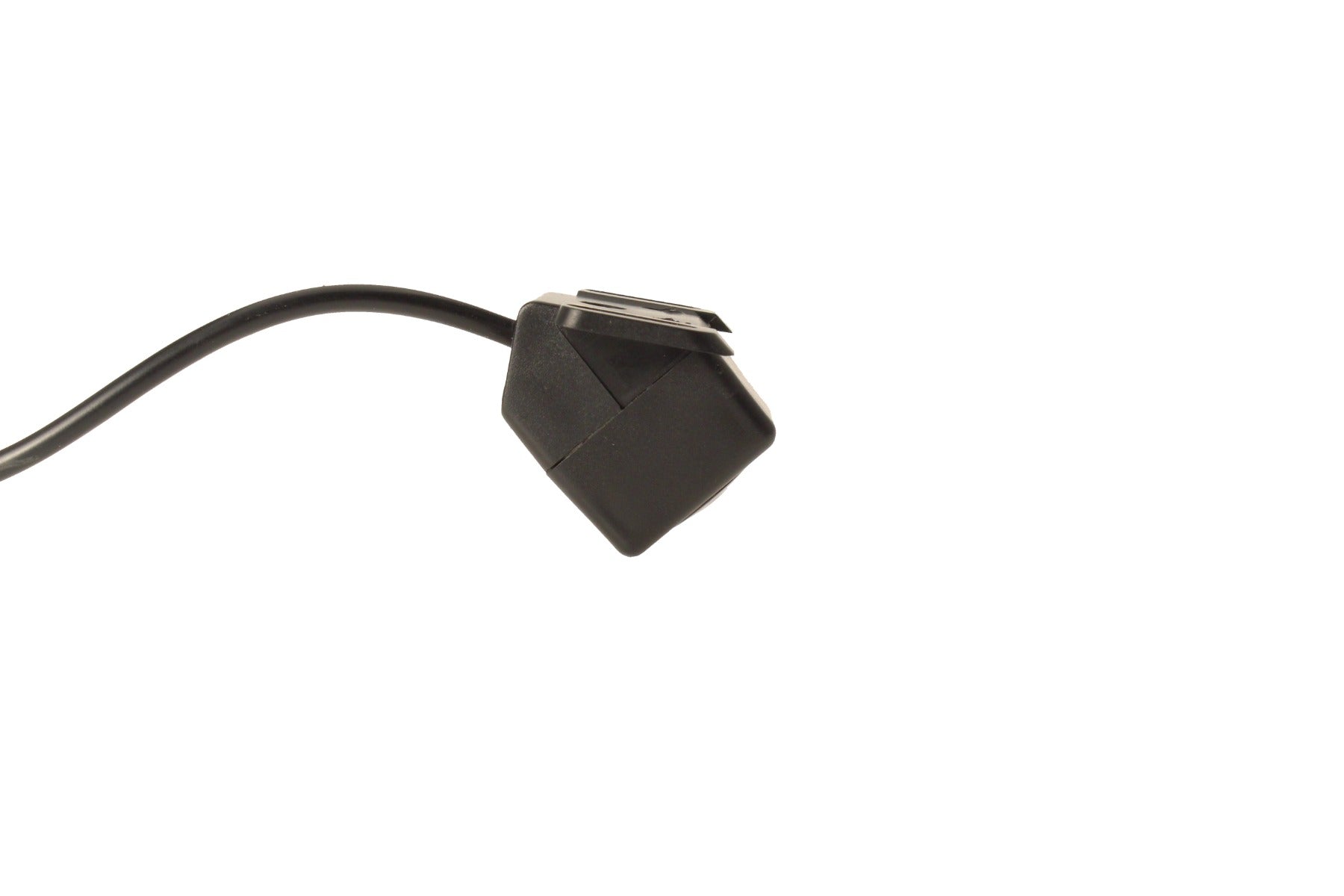

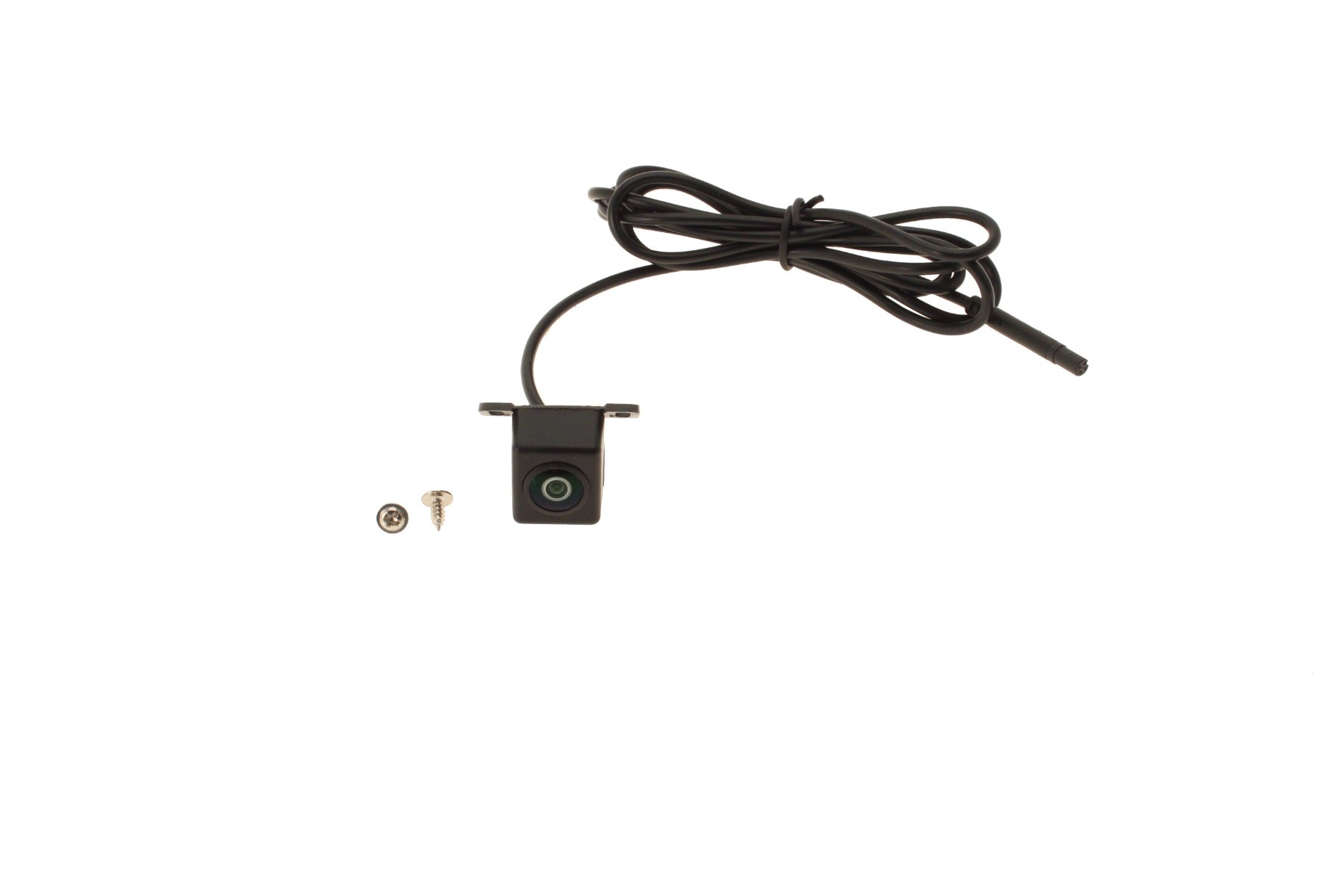

- Grille mount camera with 2 mounting screws

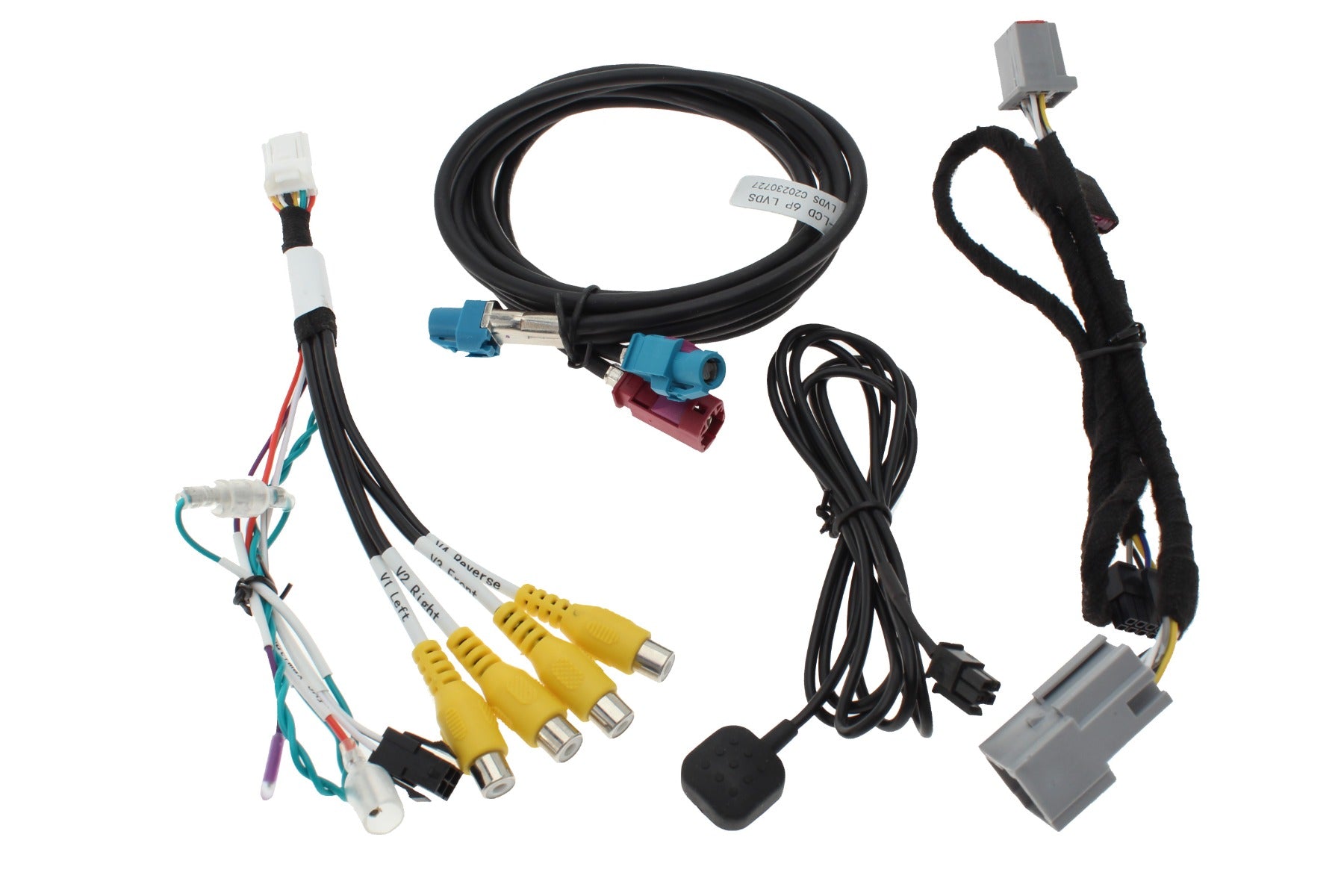

- Camera wiring harness
- Interface module for your factory radio (radio not included). Provides multi-camera support for up to 4 cameras in addition to your factory tailgate camera.
- Detailed installation instructions
- 3 year limited warranty on camera and interface module
Camera Specifications:
- Super CMOS sensor for ultra clear display
- Resolution: 600 TV lines
- Minimum Illumination: 0.2 Lux
- View Angle: 170
- Video Output: Full color video
- Working Voltage: DC 9-16V
- Parking Line: On/Off selectable
- Image: Mirror/Non mirror selectable
- Waterproof: IP67
- 25 foot harness
RAM Multi Cam interface for UAV 8.4" or UAX 12.1 Display:
- Uses existing UAV 8.4" or UAX 12.1 factory display (screen not included)
- Allows addition of this front camera that can be manually triggered using the included activation button
- Pass through for existing factory backup camera
- RCA inputs for 4 additional cameras
This kit allows you to see what is directly in front of truck! This camera comes with a 3 year warranty and the interface module has a 1 year warranty.
Professional installation is recommended.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Front Camera |
| For a monitor it uses | Your factory display |
| Connection | Plug and Play to Factory Dash Display |
| Make | RAM |
| Camera Mount Location | Front Grille |
| Night Vision | .1 Lux |
| Parking Guidelines | Yes |
| Power Supply | 12 Volts |
| Radio Screen Size | 8.4\ Mopar, 12.1\ Mopar, Factory LCD |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 4 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | 1500,HD |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2019,2020,2021,2022 |
| Make Filter | Ram |
| Model Filter | 1500, HD |
| Year Filter | 2019, 2020, 2021, 2022 |
Compatibility
Compatible with 2019-2022 RAM® 1500,2500,3500 trucks with factory UAV 8.4" or UAX 12.1" Uconnect 4 radio system.
To confirm your radio code, contact your dealer with your VIN. This interface module is only compatible with the 2 radio codes listed above.
* Not compatible with UAM non-NAV or Uconnect 5 radio systems.
Installation

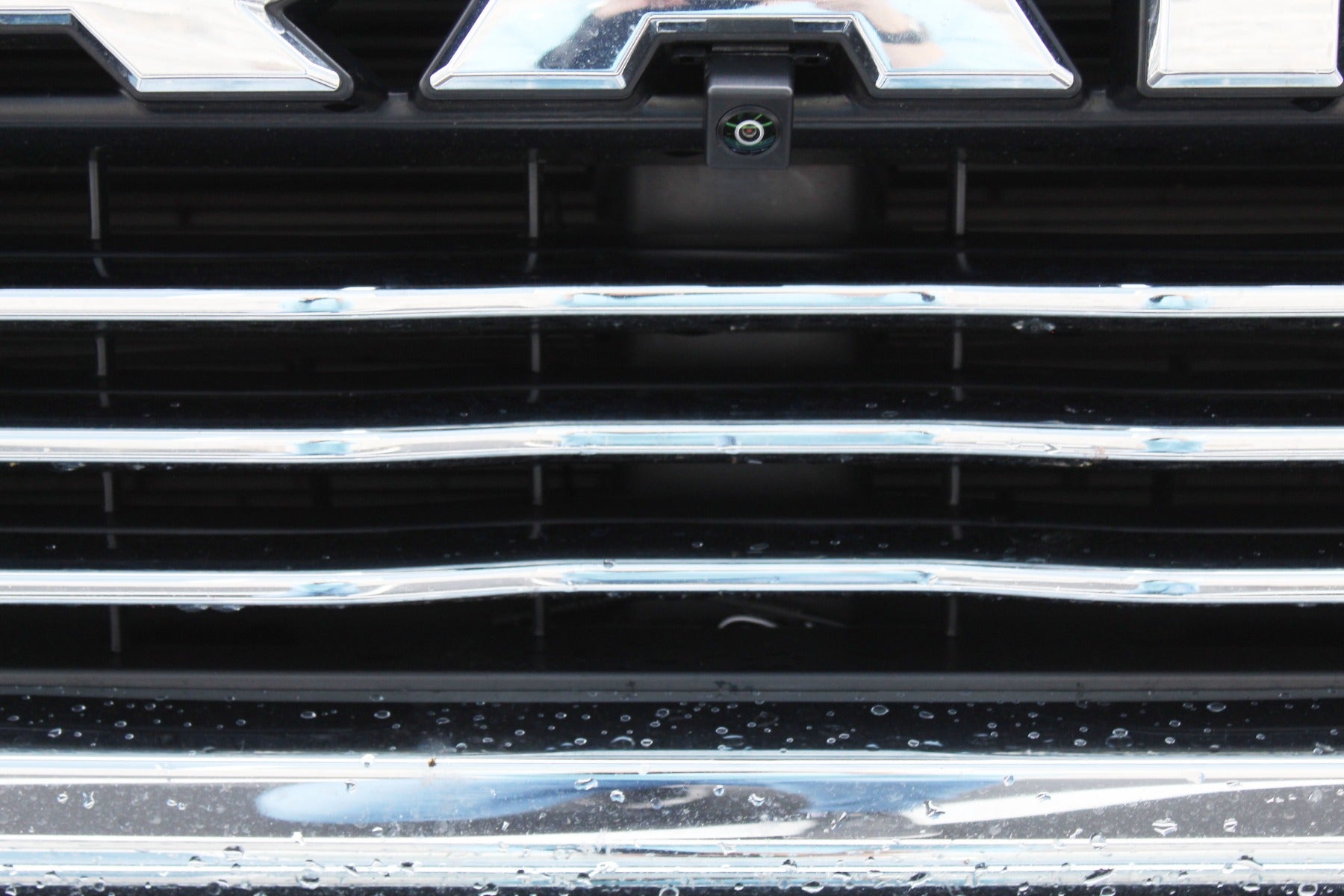

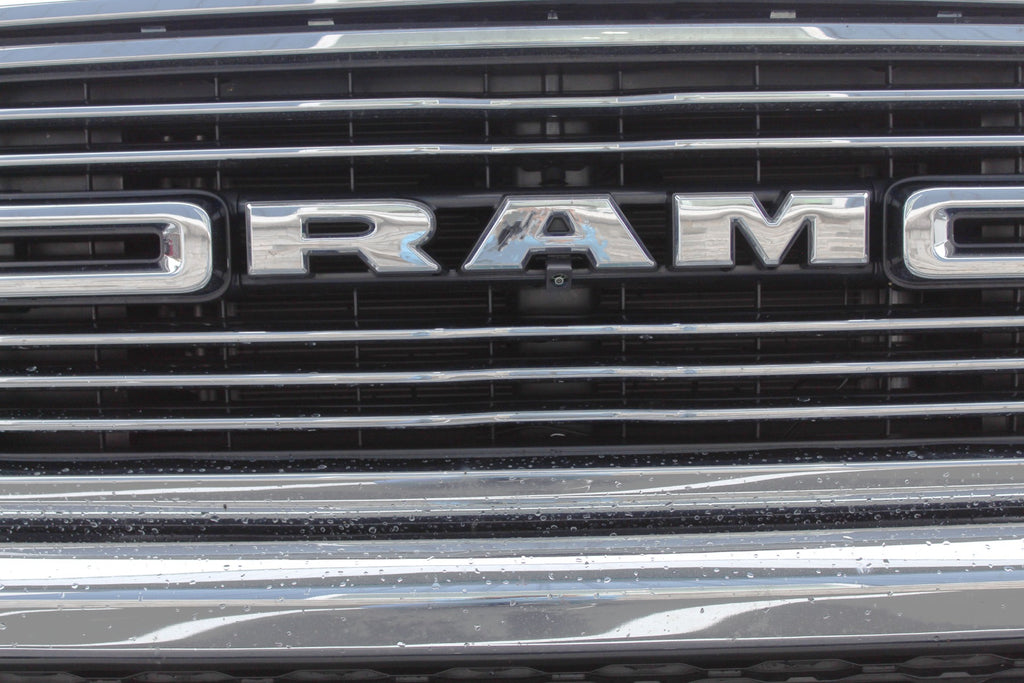

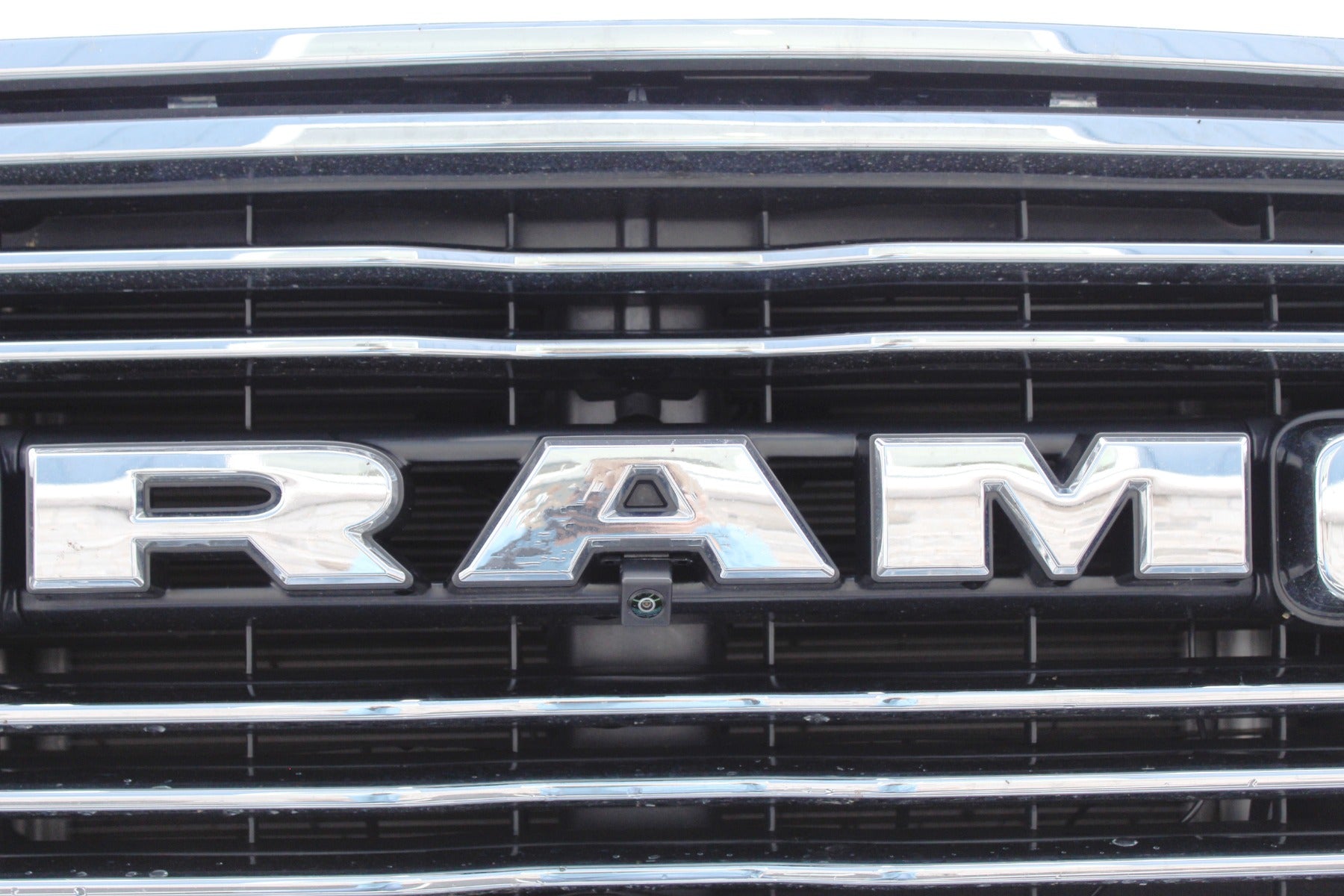

Locate the open space below the "A" in the RAM front grille logo. Thread the camera cable through the hole and mount the camera under the "A" using the 2 included screws. Easy install without removing the grille!
Connect camera cable to the main harness. Run the harness to the inside of the vehicle to the interface module.
You will need to remove your factory screen to gain access to the back of the connections. The module will be plug and play and stubs out to a female RCA connection for the camera to connect directly to the screen. Detailed instructions included.
The interface module has a 12 volt-3amp output that can be used to power the camera. If you add multiple cameras you will need to locate a different power source and we recommend CS-RPW-P
