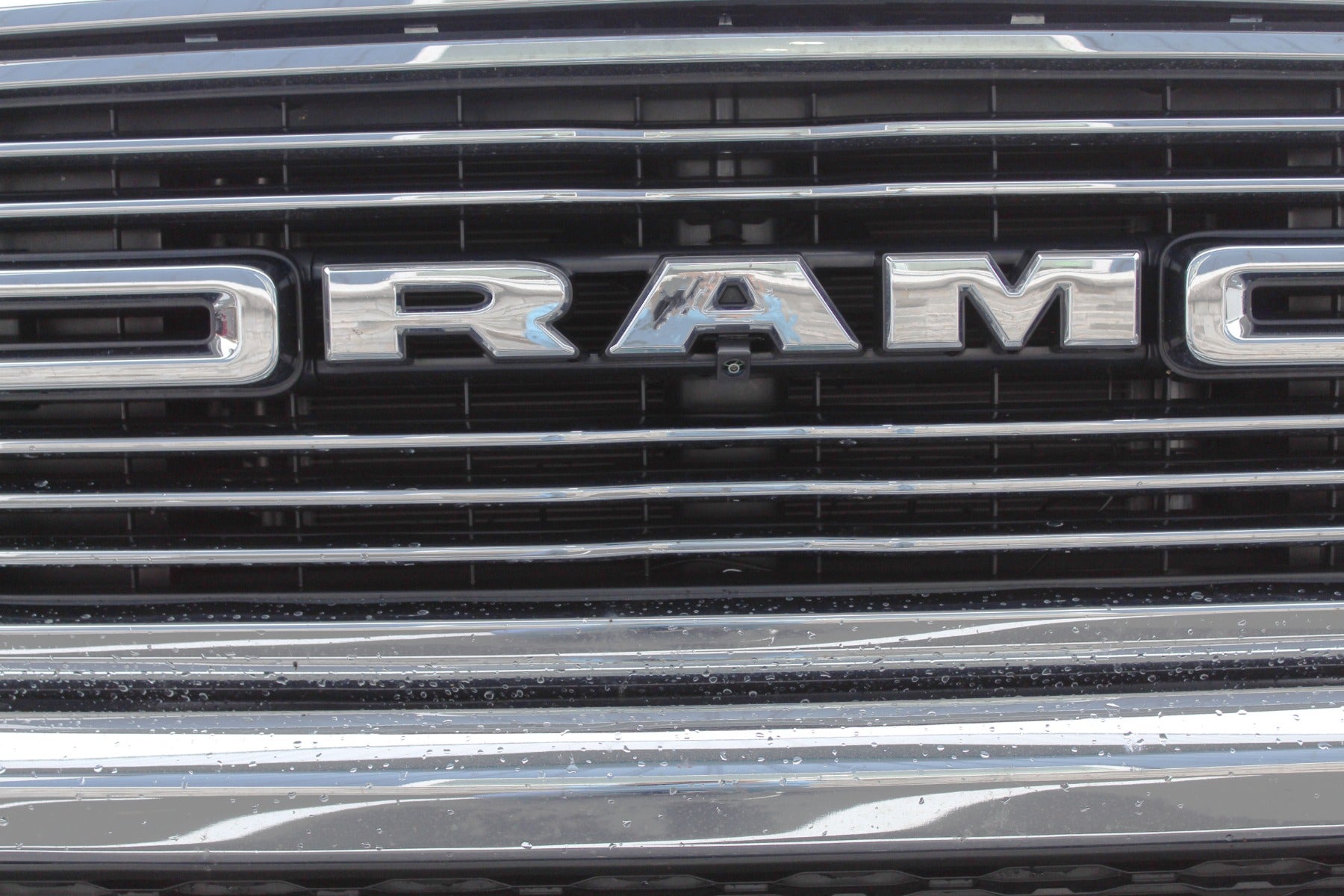

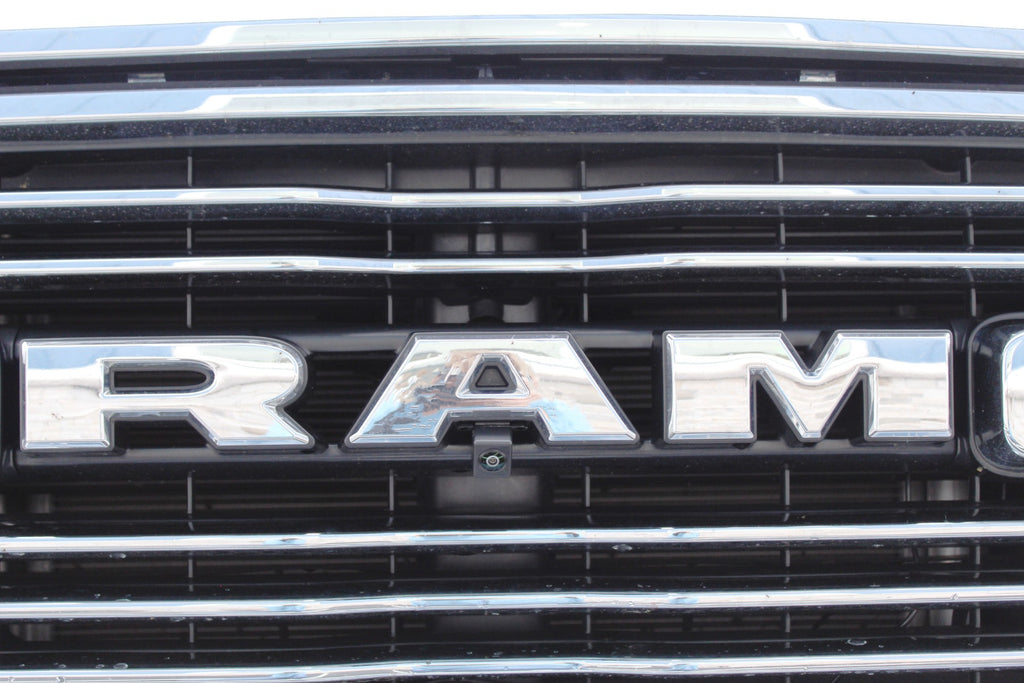

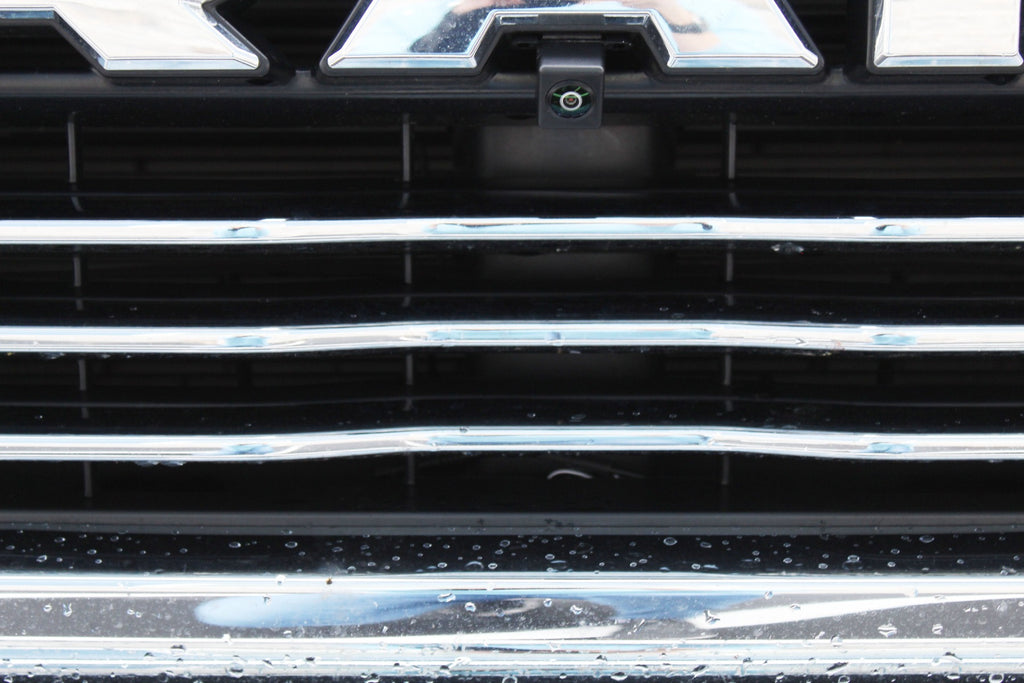

Can't see over that hood? This is your solution and is a Camera Source exclusive for a 2022-2024 RAM® 1500, 2500,3500 series trucks with 8.4" or 12" UConnect 5 factory display with Navigation!! This camera fits perfectly into your grille and looks like it came from the factory! The camera comes with parking guideline options, meaning that the guidelines can be turned off. The included screen interface provides multi-cam support so you can add up to 4 cameras to your factory 8.4" or 12" UConnect 5 Navigation display screen! The integration module allows for plug and play integration into your factory screen without having to flash a program your radio. The factory rear camera will come on automatically when in reverse and front camera can be manually activated using the included activation button or the forward arrow button on the steering wheel.

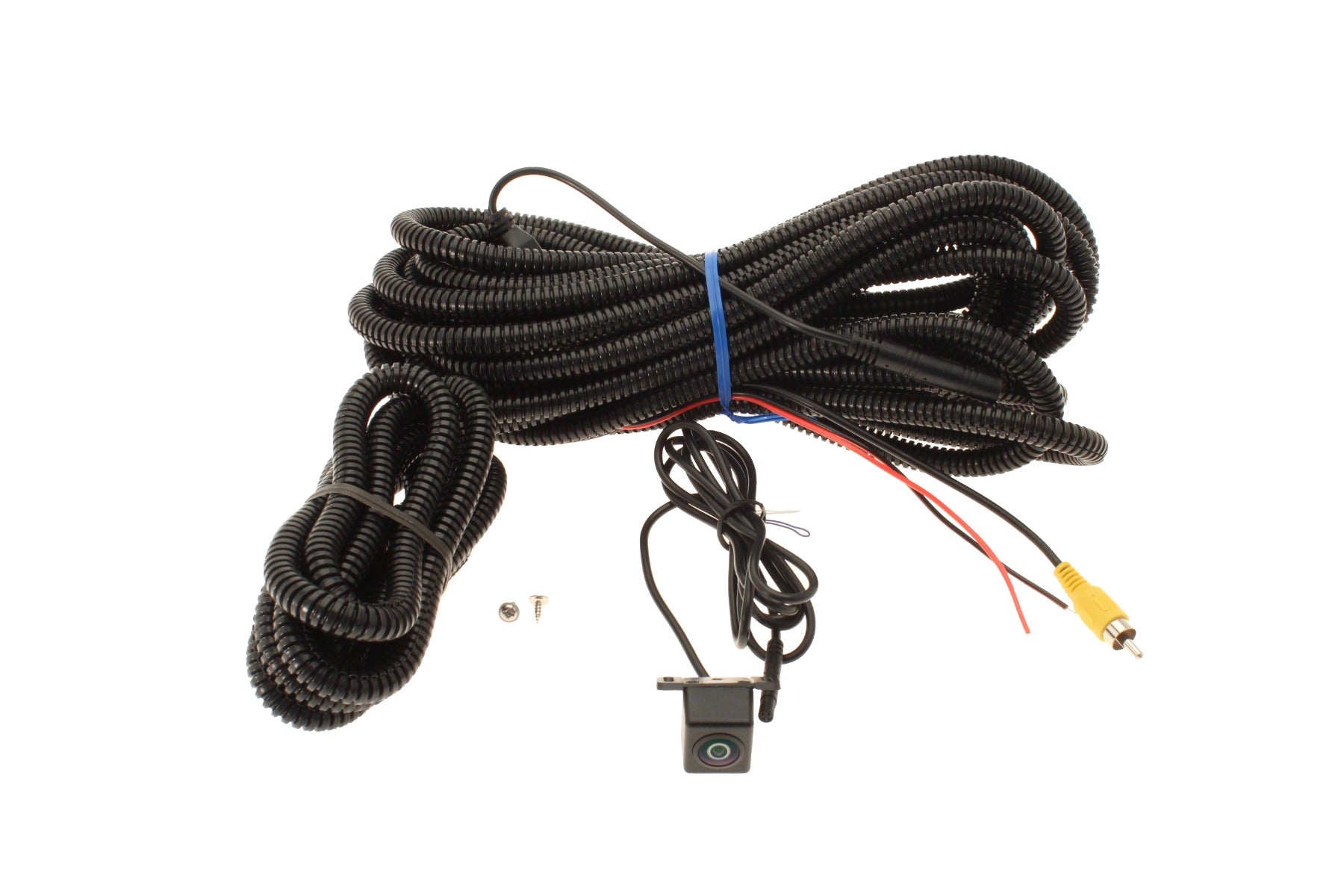

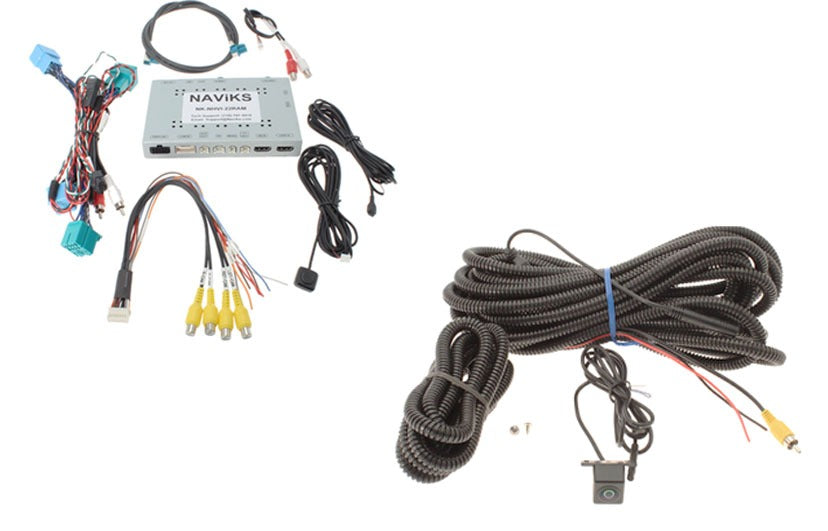

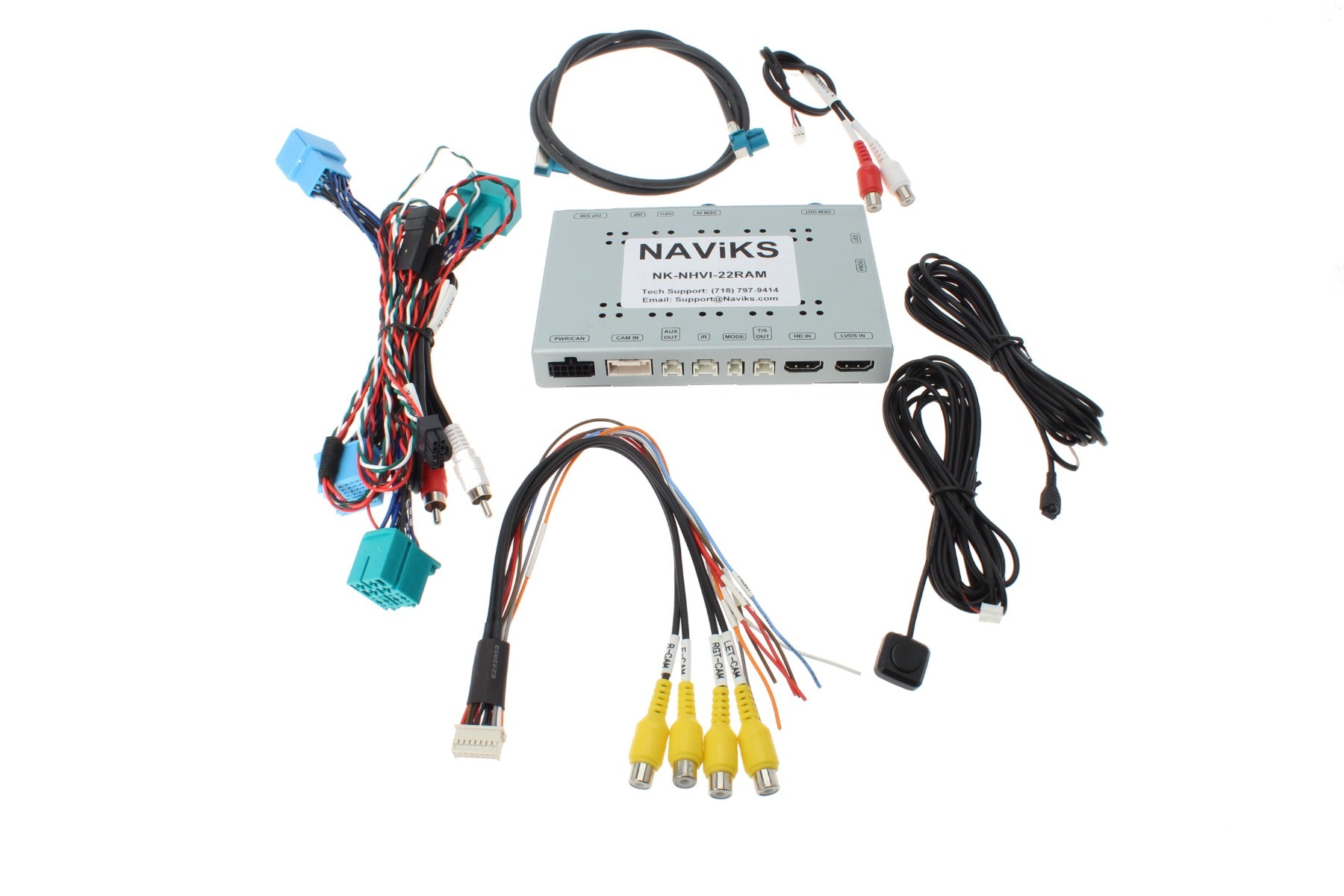

Kit includes:

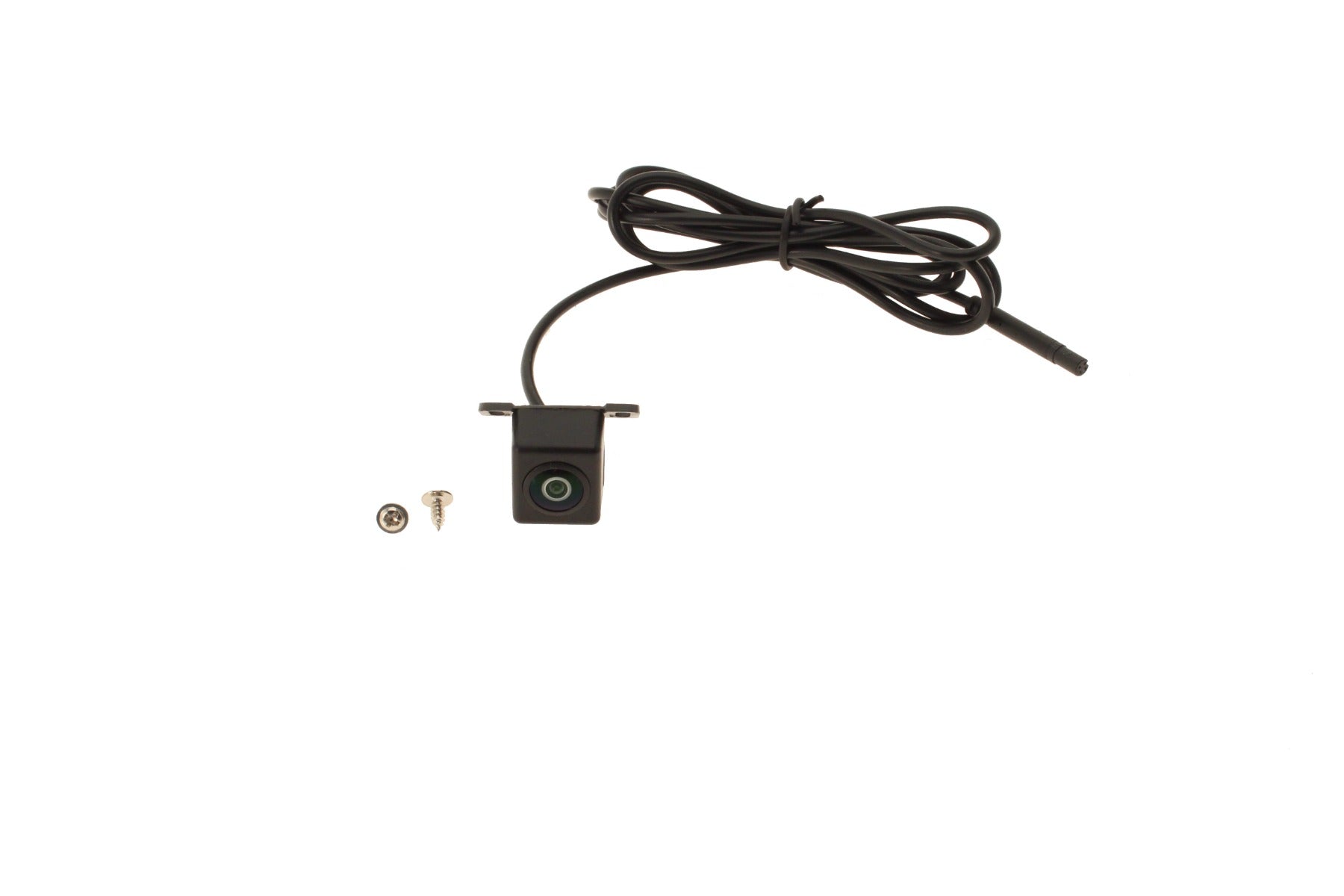

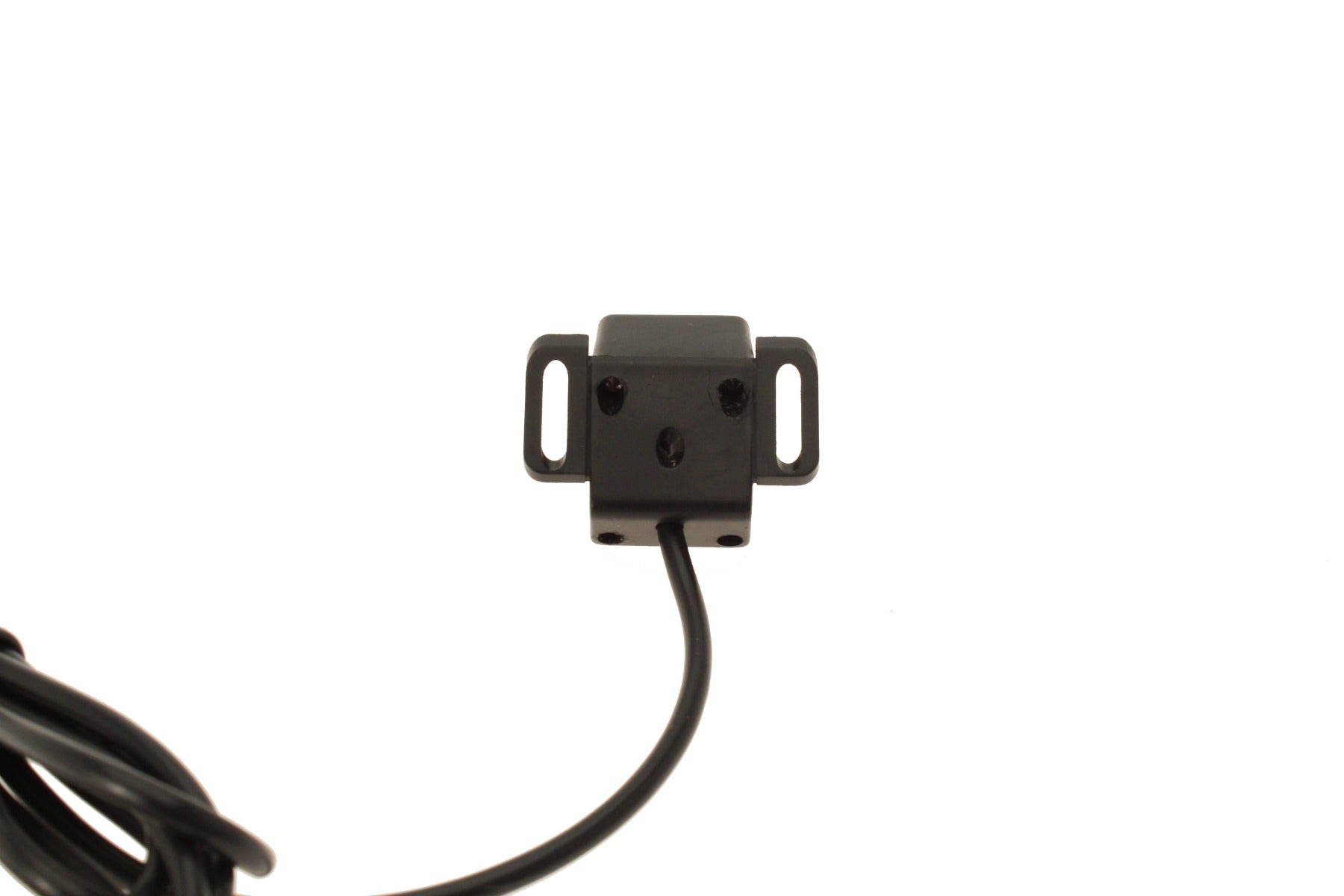

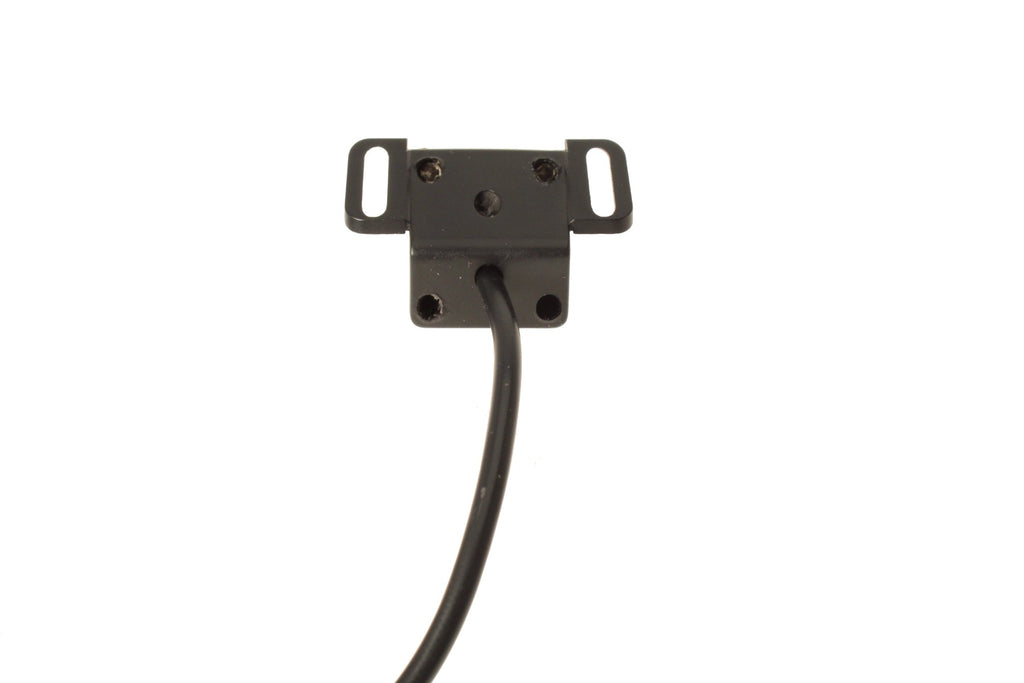

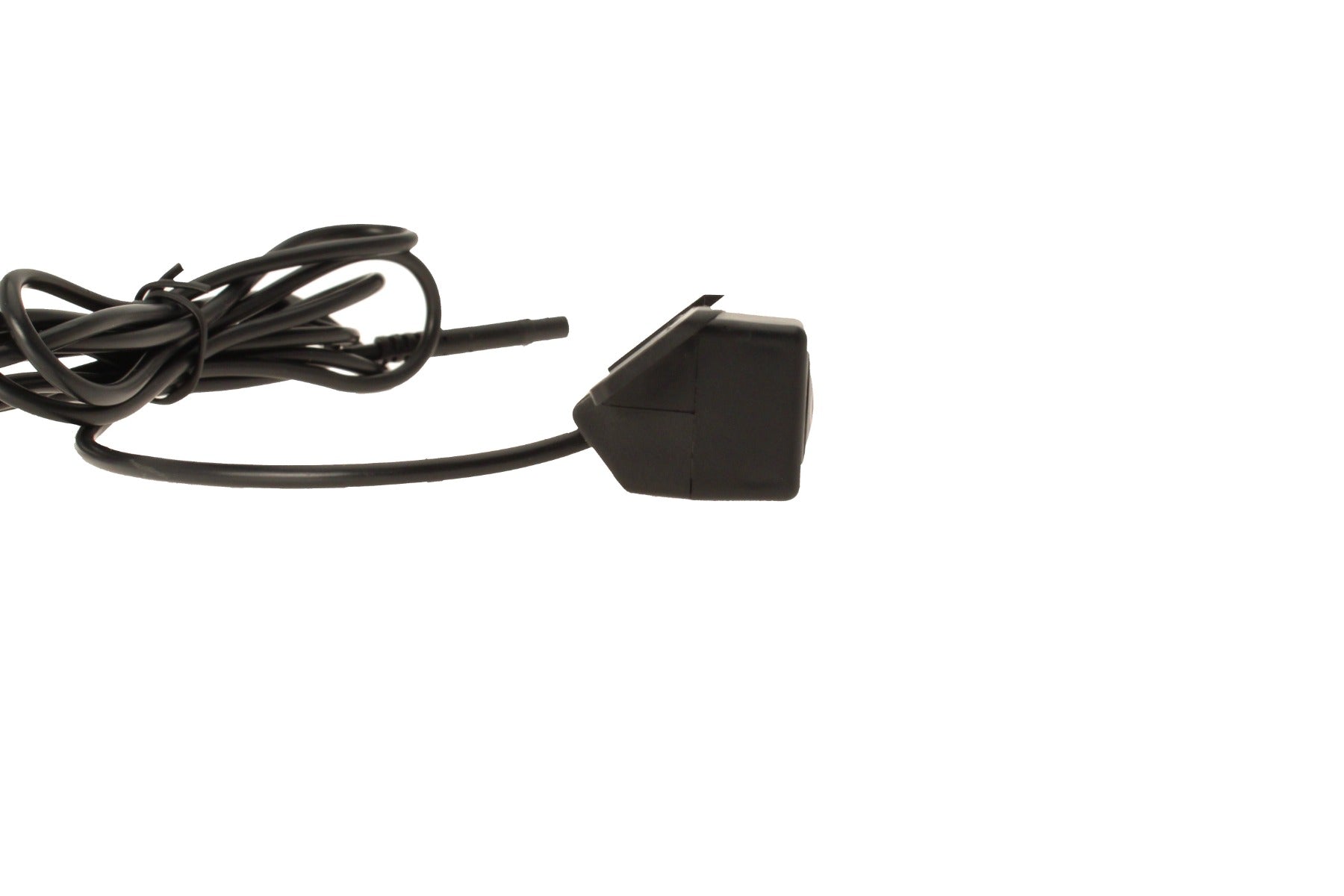

-Grille mount camera with 2 mounting screws

-Camera wiring harness

-Zip ties

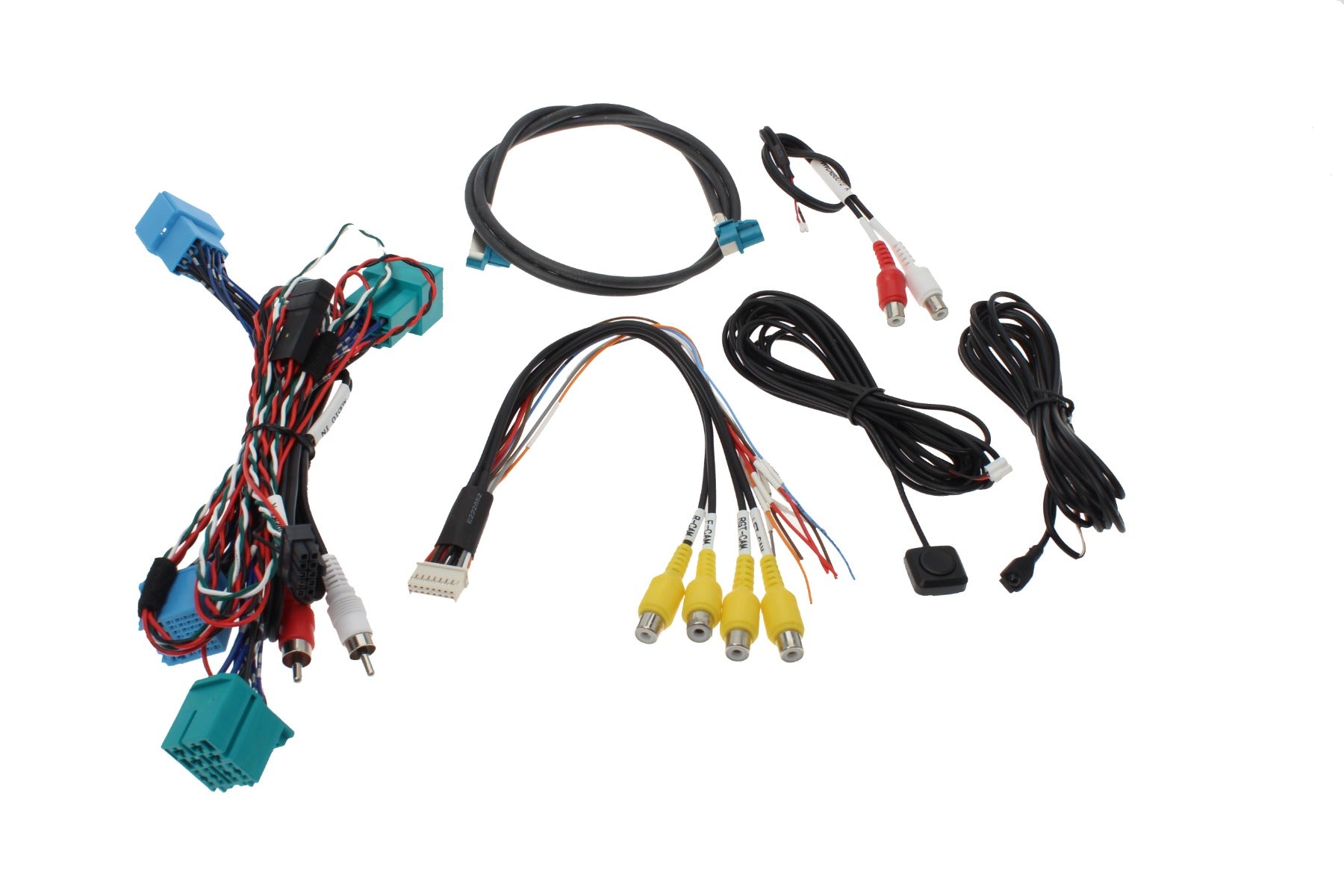

-Interface module for your factory radio (radio not included). Provides multi-camera support for up to 4 cameras in addtion to your factory tailgate camera.

-Detailed installation instructions

-3 year limited warranty on camera 1 year limited warranty on interface module

Camera Specifications:

-Super CMOS sensor for ultra clear display

-Resolution: 600 TV lines

-Minimum Illumination: 0.2 Lux

-View Angle: 170

-Video Output: Full color video

-Working Voltage: DC 9-16V

-Parking Line: On/Off selectable

-Image: Mirror/Non mirror selectable

-Waterproof: IP67

-25 foot harness

- Built-in HDMI video input could be used with: Smartphone HDMI Adapter, Firestick, Apple TV, Amazon Stick, Hulu Stick.
- Built-in audio input, true auxiliary input with no audio lag.
- Retains ALL factory features.
- Will not affect backup camera, tested and confirmed to work with vehicle's that have just a backup camera and vehicles with a 360 birds eye view camera system.
- Automatic switching to the left and right camera using the cars turn signal switch.
- Left, right and front Camera can be setup to be turned on using a 12 Volt trigger.
- Rear Camera input for customers looking to override original backup camera, add a trailer camera with priority over OEM camera in reverse gear.

-Cameras can also be viewed and cycled through individually by pressing and holding the "right arrow" button located on the steering wheel for 5-7 seconds or the external black push button switch.

- Great solution for customers looking to add trailer cameras.

- For Audio Auxiliary operation you will need a USB storage device with at least one audio file.

Click here for a video demonstration of the interface module.

This kit allows you to see what is directly in front of truck! This camera comes with a 3 year warranty and interface module has a 1 year warranty. Professional installation is recommended.
