10% OFF Discount for Military and Public Service Workers
Thank You Veterans and Civil Servants!
Multi-Camera Interface for MyFord® 4.2" Factory Display Radios
SKU#: CS-FRD42MC-VI
Availability:
In Stock
SKU#:
CS-FRD42MC-VI
$309.00
Quantity

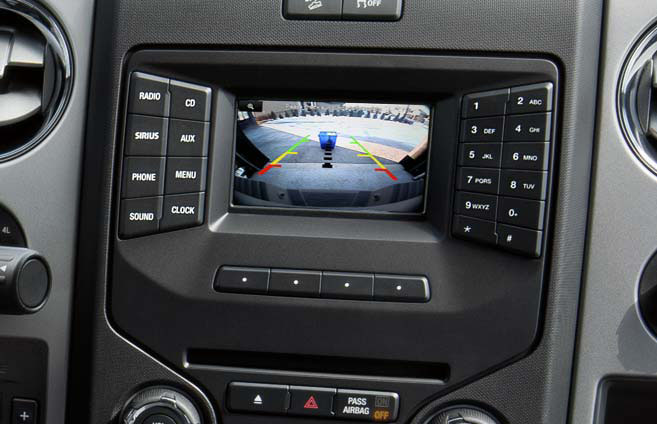

Integrate camera into 4.2" Ford® Screen!
Description
This multi camera interface allows users to integrate a rear camera and/or add a front camera and have it display on the factory 4.2" screen (4.2" radio screen and cameras not included with this kit). This interface module is plug and play and requires no dealer programming as it does it all for you!
Features:
- Uses existing 4.2" MyFord® factory display (display screen not included)
- Allows addition of front camera that can be triggered with a manual switch or using steering wheel controls
- Pass through for existing factory backup camera or add an aftermarket rear camera
Kit Includes:

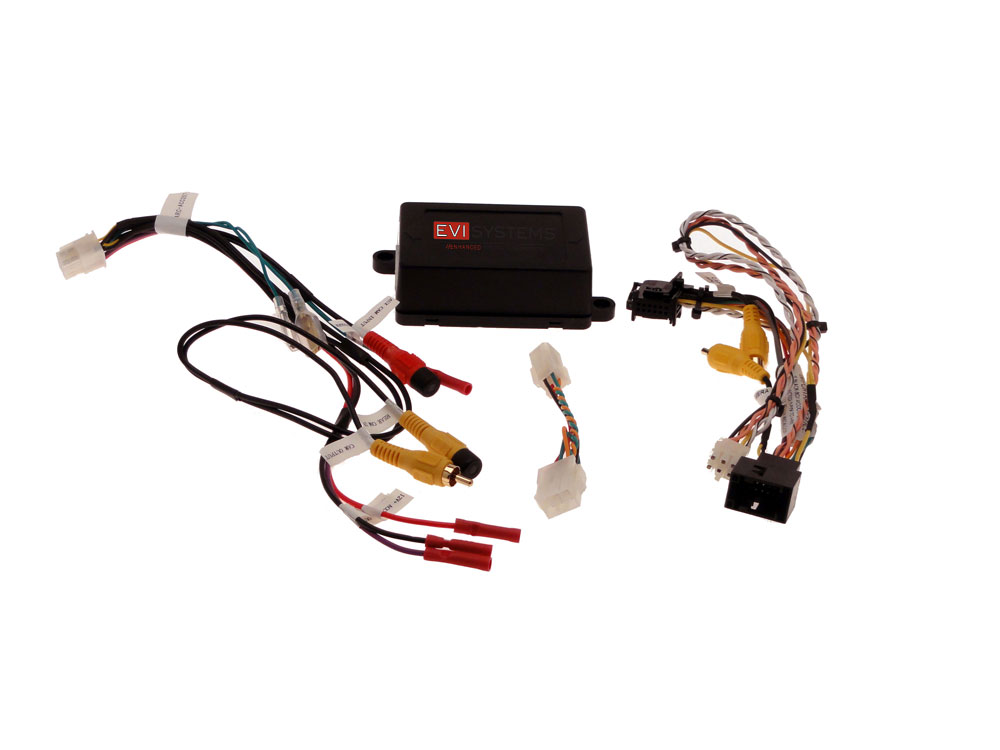

- 4.2" Multi-Cam interface module
- Install instructions
This interface kit comes with a 3 year warranty. Module can only be used on one vehicle and cannot be returned once you program your screen.
Specifications
| System Manufacturer | EVI Systems |
| For a monitor it uses | Your factory display |
| Connection | Plug and Play to Factory Dash Display |
| Make | Ford,Lincoln |
| Camera Orientation | Front or Rear Facing |
| Radio Screen Size | 4.2” Ford |
| Sensor Brand | EVI Systems |
| Vehicle Interface | Includes Factory Integration Module |
| Camera Input Ports | 2 |
| Model | C-Max,Edge,Explorer,F-150, Raptor,Super Duty,Flex,Focus,Fusion,Transit,Taurus,MKX |
| Warranty | 1 Year |
| Wiring Type | Hard Wired |
| Year | 2013,2014,2015,2016,2017,2018,2019 |
| Make Filter | Ford, Lincoln |
| Model Filter | C-Max, Edge, Explorer, F-150, Flex, Focus, Fusion, MKX, Raptor, Super Duty, Taurus, Transit |
| Year Filter | 2013, 2014, 2015, 2016, 2017, 2018, 2019 |
Compatibility
This kit is compatible with select Ford® and Lincoln® 4.2” MyFord® factory displays. Not all Ford® 4.2" displays are camera-compatible(SEE LIST BELOW). If adding a backup camera, first remove the display and verify that it is compatible. Your Ford® dealership can also verify this number by VIN.
-C-MAX 2013 - 2020
-EDGE 2011 - 2020
-EXPLORER 2011- 2020
-F-150/RAPTOR 2013 - 2021
-FLEX 2013 - 2020
-FOCUS 2012 - 2020
-FUSION 2013 - 2020
-SUPER DUTY 2013 - 2021
-TAURUS 2013 - 2020
-TRANSIT 2014-2020
-MKX 2011 - 2020
INCOMPATIBLE DISPLAYS: BB5T-19C116-CJ, BT4T-19C116-CN, CE8T-18B955-AA, CE8T18B955-AD, CJ5T-18B955-GC, CJ5T-18B955-GE, CJ5T18B955-GF, CM5T18B955-AB, CM5T-18B955-AD, CM5T18B955-CE, CM5T18B955-GF, CM5T-18B99-AD, D2BT-18B955-BE, DA6T-18B955-BB,DM5T-18B955-CD, EM5T-18B955-CA, EM5T-18B955-CB
Installation
This kit connects up to 2 cameras to your factory 4.2" MyFord® screen using a multi-cam interface. All plug and play - no cutting of factory wires! The interface module plugs into the back of your factory navigation screen. The instructions walk you through the entire installation process.
