Multi-Camera Interface for MyFord® Touch 8" Factory Display Radios (SYNC 2)
SKU#: CS-FRD8MC-VIa
Availability:
In Stock
SKU#:
CS-FRD8MC-VIa
$419.00
Quantity
Adds Multi-Cam Support to 8" MyFord®!
Description
This multi camera interface allows users to integrate to an existing rear view camera, or add a rear camera if vehicle doesn't have one. Also, add a front camera all integrated into an 8” factory display in a large number of Ford® vehicles. If you want to add more cameras you can choose to add-on the expansion port and the system will allow up to 4 cameras total to your factory display.

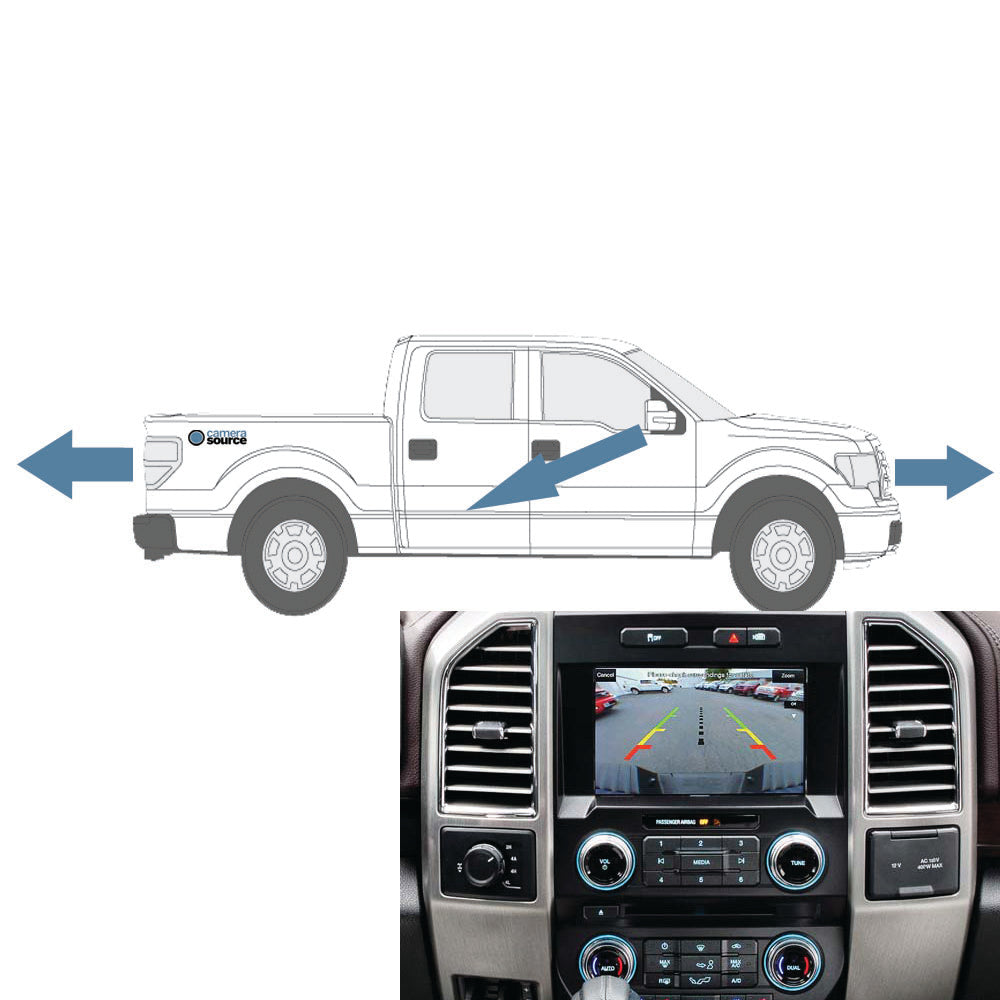

Using this interface module, combined with a rear view camera and front or side cameras (not included) provides the driver with a complete, unobstructed view of what’s around the vehicle displayed on the existing 8” MyFord® Touch SYNC 2 factory display.
Features:
- Uses existing 8” MyFord® Touch SYNC 2 factory display (display radio not included)
- Pass through for existing factory backup camera
- Allows addition of front camera that can be automatically triggered or with a manual switch. Press and hold OK button to manually activate camera at speeds under 7mph(not including factory rear cam)
- Allows addition of rear camera if the vehicle did not have one from the factory

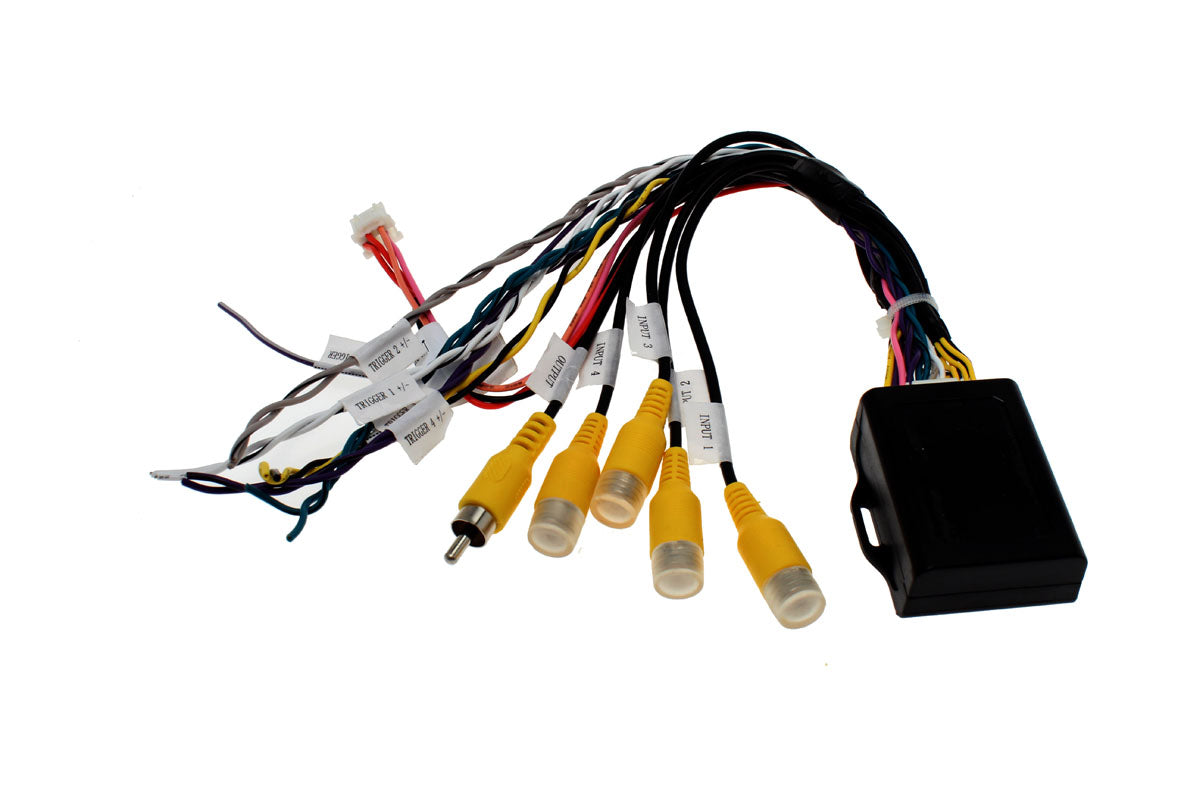

Expansion module features:
- Adds 4 additional camera ports in addition to your factory rear camera.
- Manually connect trigger wires for auto activation of inputs.
Kit Includes:

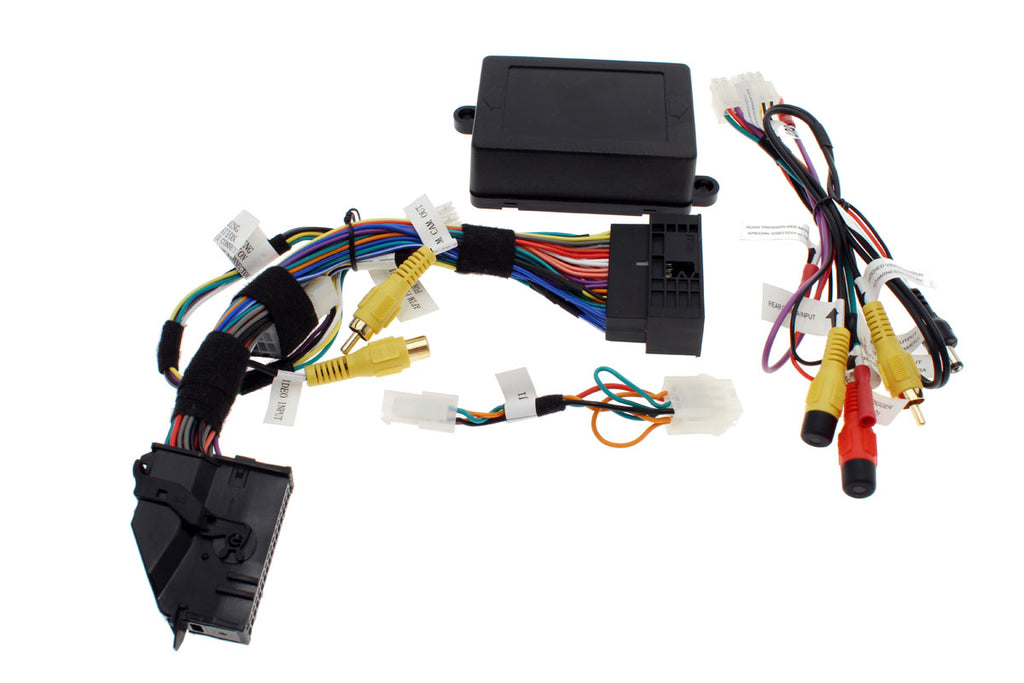

- MyTouch Multi-Cam interface module
- OPTIONAL: Expansion module
- Install instructions
- CAMERAS AND DISPLAY RADIO NOT INCLUDED
This interface kit comes with a 3 year warranty.
Specifications
| System Manufacturer | EVI Systems |
| Connection | Plug and Play to Factory Dash Display |
| Make | Ford,Lincoln |
| Radio Screen Size | 8” Ford Sync 2 |
| Vehicle Interface | Includes Factory Integration Module |
| Camera Input Ports | 2 |
| Model | C-Max,Escape,Edge,Expedition,F-150,Raptor,Super Duty,Flex,Focus,Fusion,Mustang,Transit,Taurus,MKS,MKT,MKX |
| Warranty | 3 Year |
| Wiring Type | Factory Plug&Play |
| Year | 2013,2014,2015,2016 |
| Make Filter | Ford, Lincoln |
| Model Filter | C-Max, Edge, Escape, Expedition, F-150, Flex, Focus, Fusion, MKS, MKT, MKX, Mustang, Raptor, Super Duty, Taurus, Transit |
| Year Filter | 2013, 2014, 2015, 2016 |
Compatibility
This kit is compatible with select Ford® and Lincoln® 8” MyTouch factory SYNC 2 displays.
2013-2014 C-MAX
2013-2016 EDGE
2013-2014 ESCAPE
2015-2016 EXPEDITION
2013-2015 F-150/RAPTOR
2013-2016 FLEX
2013-2016 FOCUS
2013-2016 FUSION
2015-2016 MUSTANG
2013-2016 SUPER DUTY
2013-2016 TAURUS
2015 TRANSIT
2013-2016 MKS
2013-2016 MKT
2013-2016 MKX
Installation
The interface module plugs into the back of your factory navigation screen.
This kit connects up to 2 cameras to your factory MyFord® Touch 8" radio, all plug and play - no cutting of factory wires! NOTE: if you have a factory rear camera that counts as the rear camera connection allowing you to add 1 camera.
Add the expansion port and you can connect up to 4 cameras. NOTE: if you have a factory rear camera that counts as the rear camera connection so there would be 3 ports remaining; front, and 2 sides.
The instructions walk you through the entire installation process.
