This multi camera interface allows users to integrate to an existing factory rear view camera, add a front, side cameras, and/or trailer camera all integrated into the 12” factory display with SYNC 4 on a Bronco. Using this interface module, combined with a rear-view camera and front or side cameras (not included) provides the driver with a complete, unobstructed view of what’s around the vehicle displayed on the existing 12” SYNC 4 factory display.

The integration module is plug and play with your factory SYNC 4 system. Allows connection of 4 cameras to the factory screen in addition to the OEM backup camera. Also, allows monitoring of any connected camera at any time while driving (not including OEM backup camera). Right and left blind spot camera inputs are automatically triggered by the turn signals. Factory rear camera is not available above 7 mph.

Features:

- Built-in HDMI video input could be used with: Smartphone HDMI Adapter, Firestick, Apple TV, Amazon Stick, Hulu Stick.
- Built-in audio input, true auxiliary input with no audio lag.
- Retains ALL factory features.
- Will not affect backup camera, tested and confirmed to work with vehicle's that have just a backup camera and vehicles with a 360 birds eye view camera system.
- Automatic switching to the left and right camera using the cars turn signal switch.
- Left, right and front Camera can be setup to be turned on using a 12 Volt trigger.
- Rear Camera input for customers looking to override original backup camera, add a trailer camera with priority over OEM camera in reverse gear.
- Front Camera can be setup to turn on atomically after shifting out of reverse gear, it can stay on from 3 seconds to 25 seconds you select the time using the unit's interface.
- Great solution for customers looking to add trailer cameras.
- For Audio Auxiliary operation you will need a USB storage device with at least one audio file.

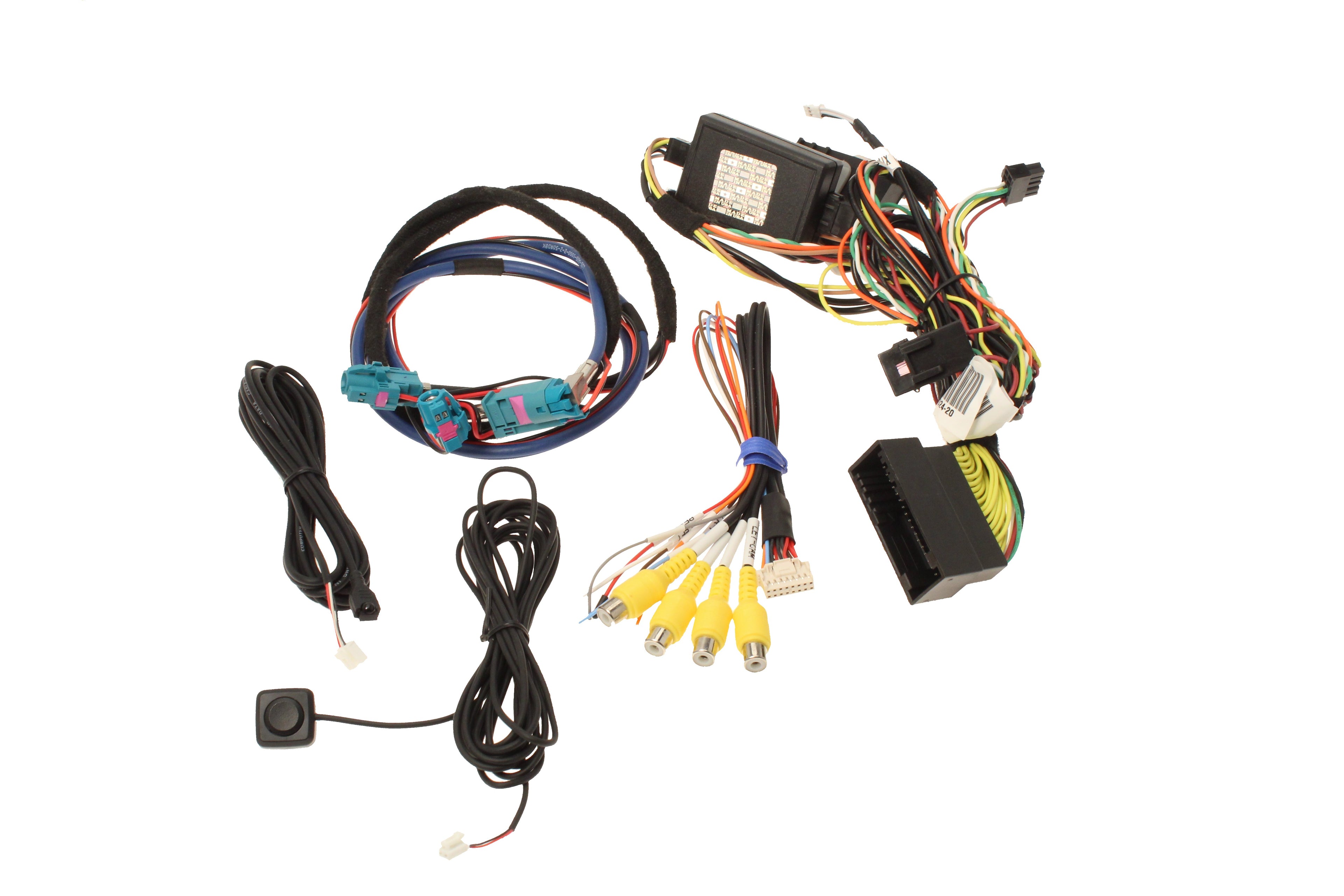

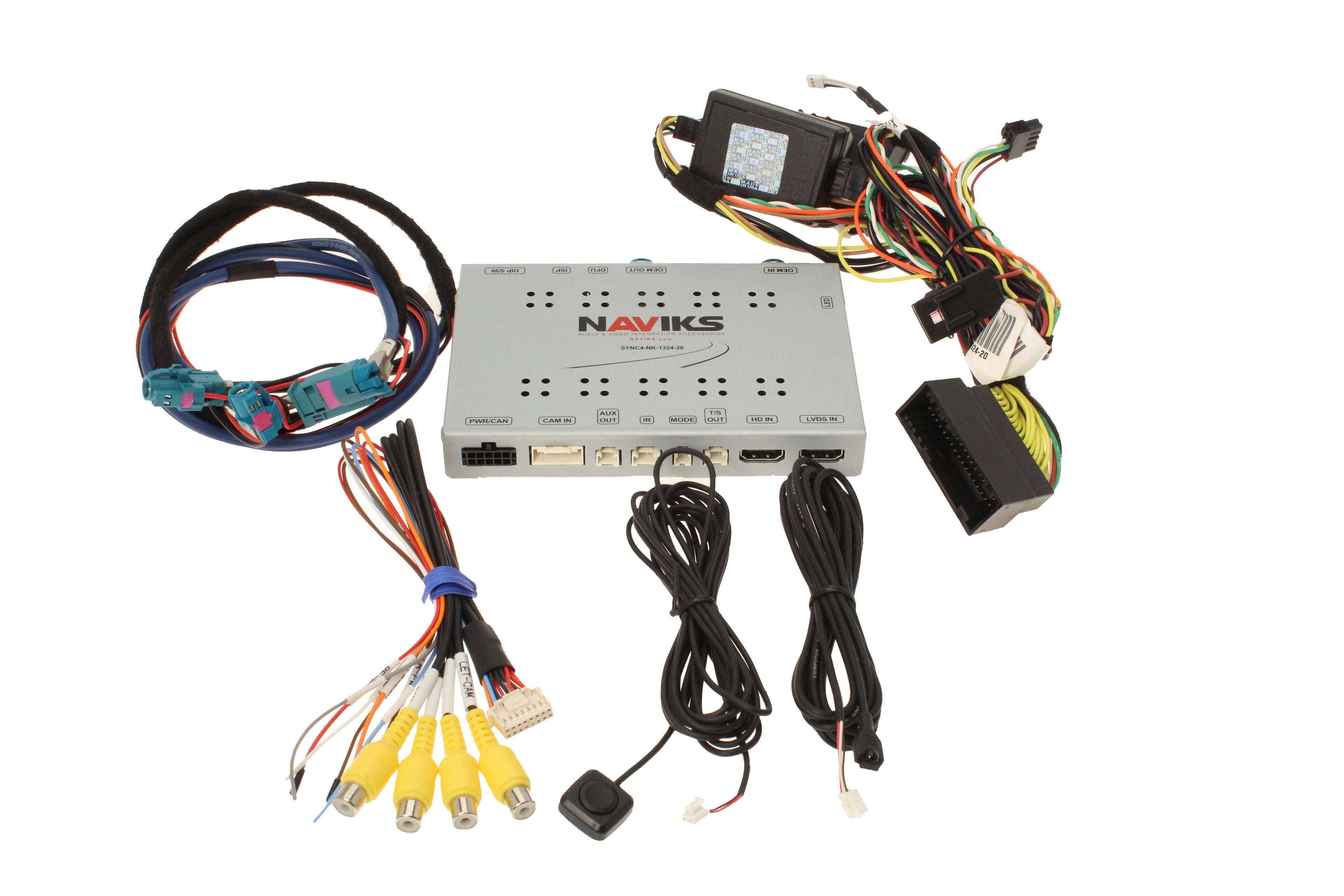

• SYNC 4 Multi-Camera interface module-Plug and play with Bronco 12" factory display
• Install instructions
• CAMERAS AND DISPLAY RADIO NOT INCLUDED

This interface kit comes with a 1 year warranty.
