Multi-Cam interface for UAV/UAX Factory Display, Fits 2019-2022 RAM®
SKU#: CS-19RAM-VI
Availability:
In Stock
SKU#:
CS-19RAM-VI
$449.00
Quantity
Multi-camera Support!
Description
Looking to add cameras to your truck? This is your solution and is a Camera Source exclusive for a 2019-2022 RAM® 1500,2500,3500 series with UAV 8.4" or UAX 12.1" factory display!! This interface provides multi-cam support so you can add up to 4 cameras to your factory UAV 8.4" or UAX 12.1" display screen! The integration module allows for plug and play integration into your factory screen without having to flash a program your radio. The factory rear camera will come on automatically when in reverse and a front camera can be manually activated using the included activation button. Side cameras are activated by turn signals.
Kit includes:

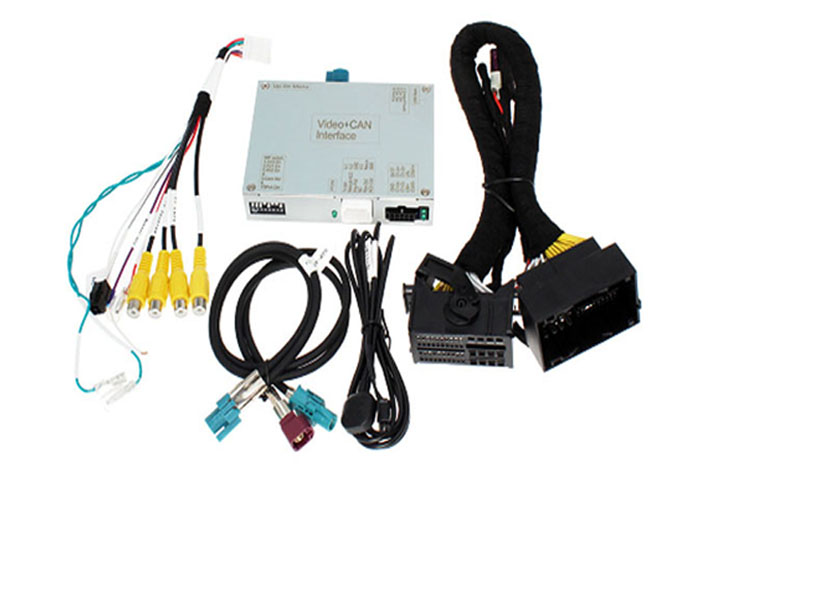

-Screen interface module for your factory radio (radio not included). Provides multi-camera support for up to 4 cameras in addtion to your factory tailgate camera.
-12V power module
-Detailed installation instructions
-3 year limited warranty
RAM Multi Cam interface:

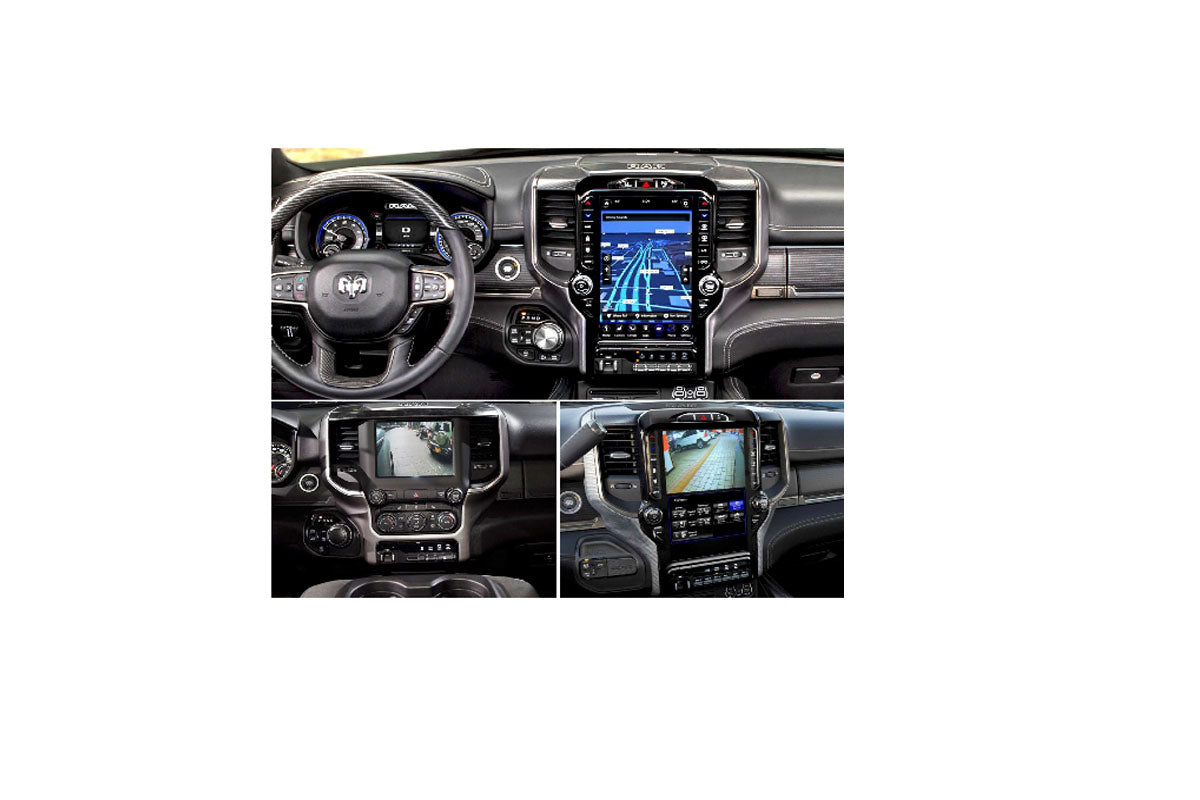

-Display: Uses existing UAV 8.4" or UAX 12.1 factory display (screen not included)
-Allows addition of front camera that can be manually triggered using the included activation button
-Side cameras activated by turn signals
-Pass through for existing factory backup camera
-RCA inputs for 4 additional cameras
This camera comes with a 3 year warranty and professional installation is recommended.
Specifications
| System Manufacturer | EVI Systems |
| Camera Type | Front Camera |
| For a monitor it uses | Your factory display |
| Connection | Plug and Play to Factory Dash Display |
| Make | RAM |
| Camera Mount Location | Front Grille |
| Power Supply | 12 Volts |
| Radio Screen Size | 8.4\ Mopar |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 4 |
| Video System | NTSC |
| Model | 1500,HD |
| Warranty | 3 Year |
| Wiring Type | Hard Wired |
| Year | 2019,2020,2021,2022 |
| Make Filter | Ram |
| Model Filter | 1500, HD |
| Year Filter | 2019, 2020, 2021, 2022 |
Compatibility
Compatible with 2019-2022 RAM® trucks with factory UAV 8.4" or UAX 12.1" Uconnect 4 radio system.
* Not compatible with UAM non-NAV or Uconnect 5 radio system.
Installation

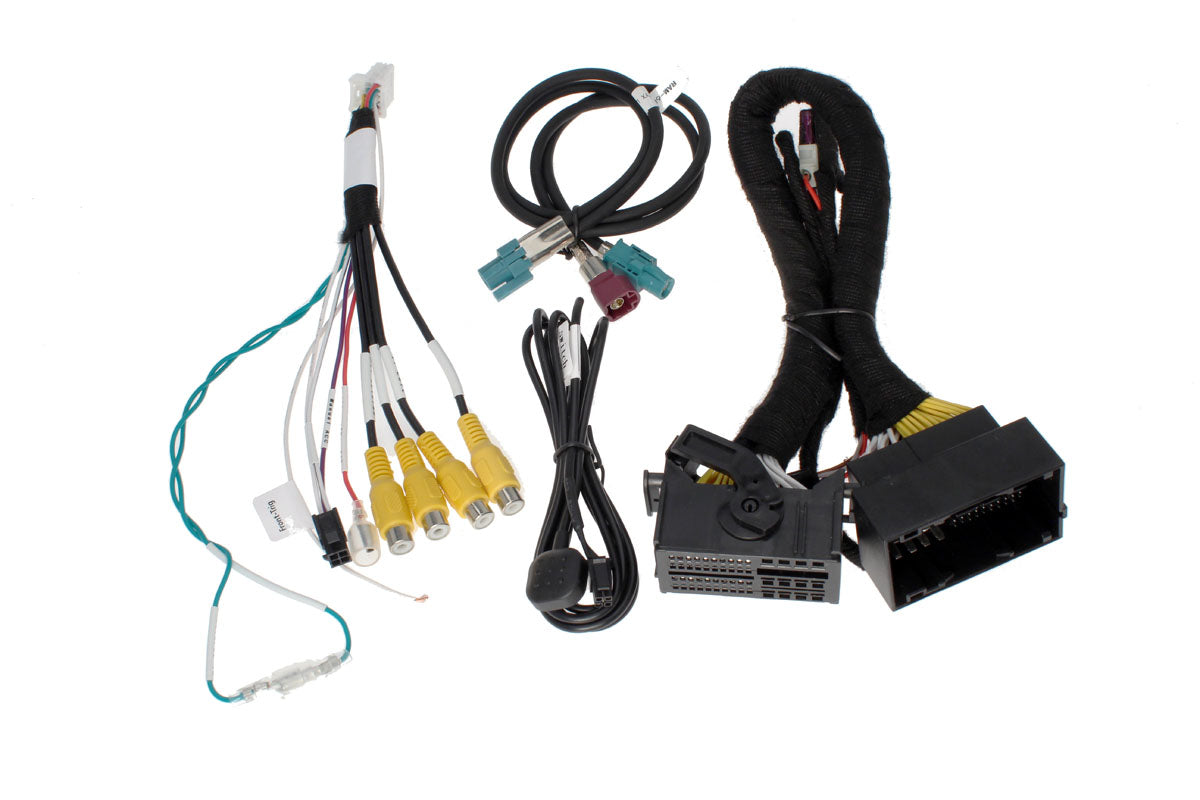

You will need to remove your factory screen to gain access to the back of the connections. The module will be plug and play and stubs out to a female RCA connection for the camera to connect directly to the screen. Detailed instructions included.
Power module connects directly to battery to provide power for cameras.
