Mini Universal Camera for 7" IOB Display
SKU#: CS-ULPM-IOB4
Availability:
In Stock
SKU#:
CS-ULPM-IOB4
$454.00
Quantity
For 7" IOB factory display!
Description

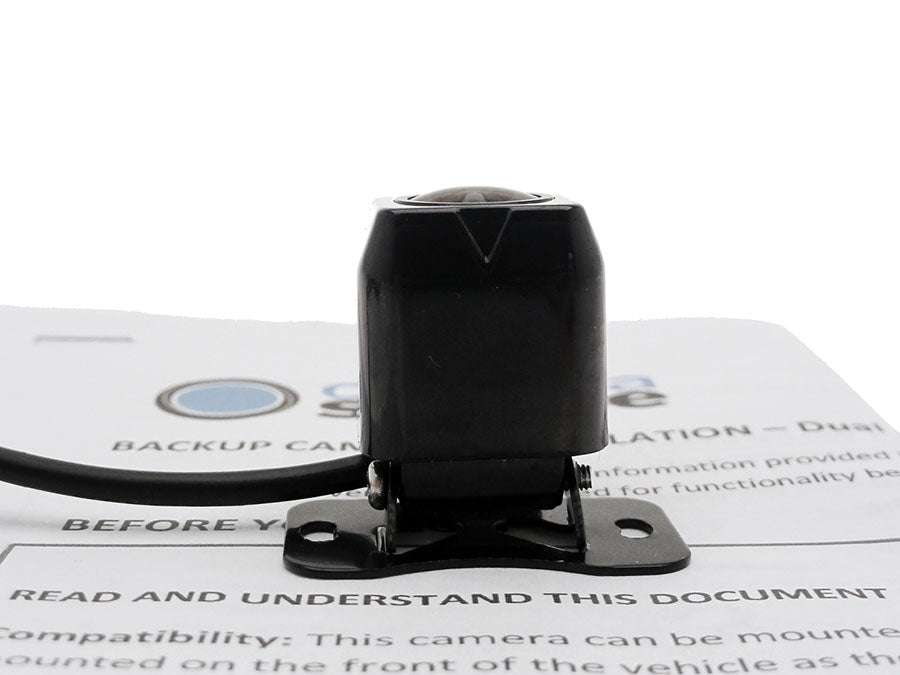

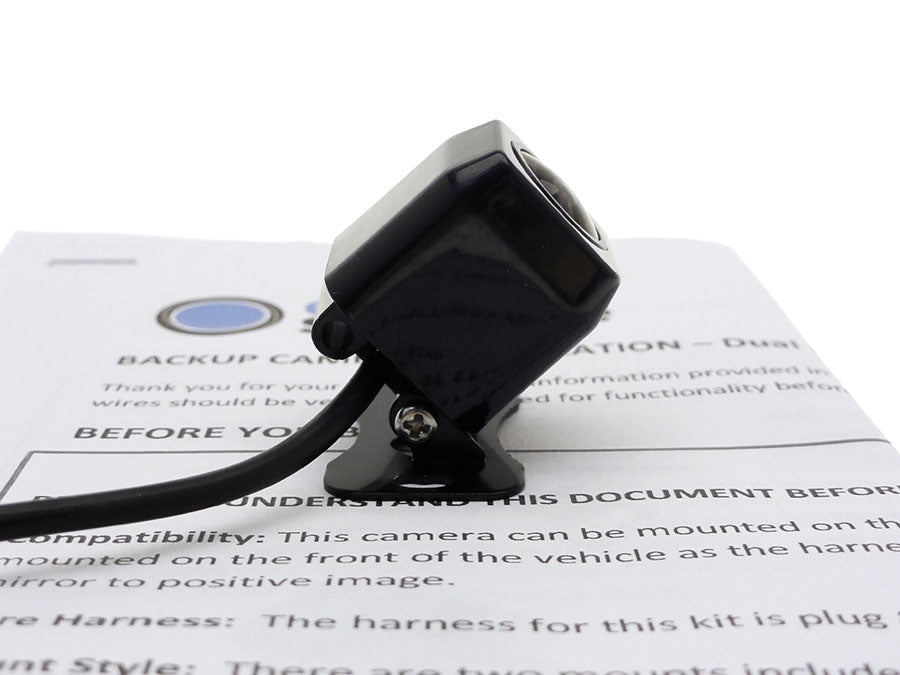

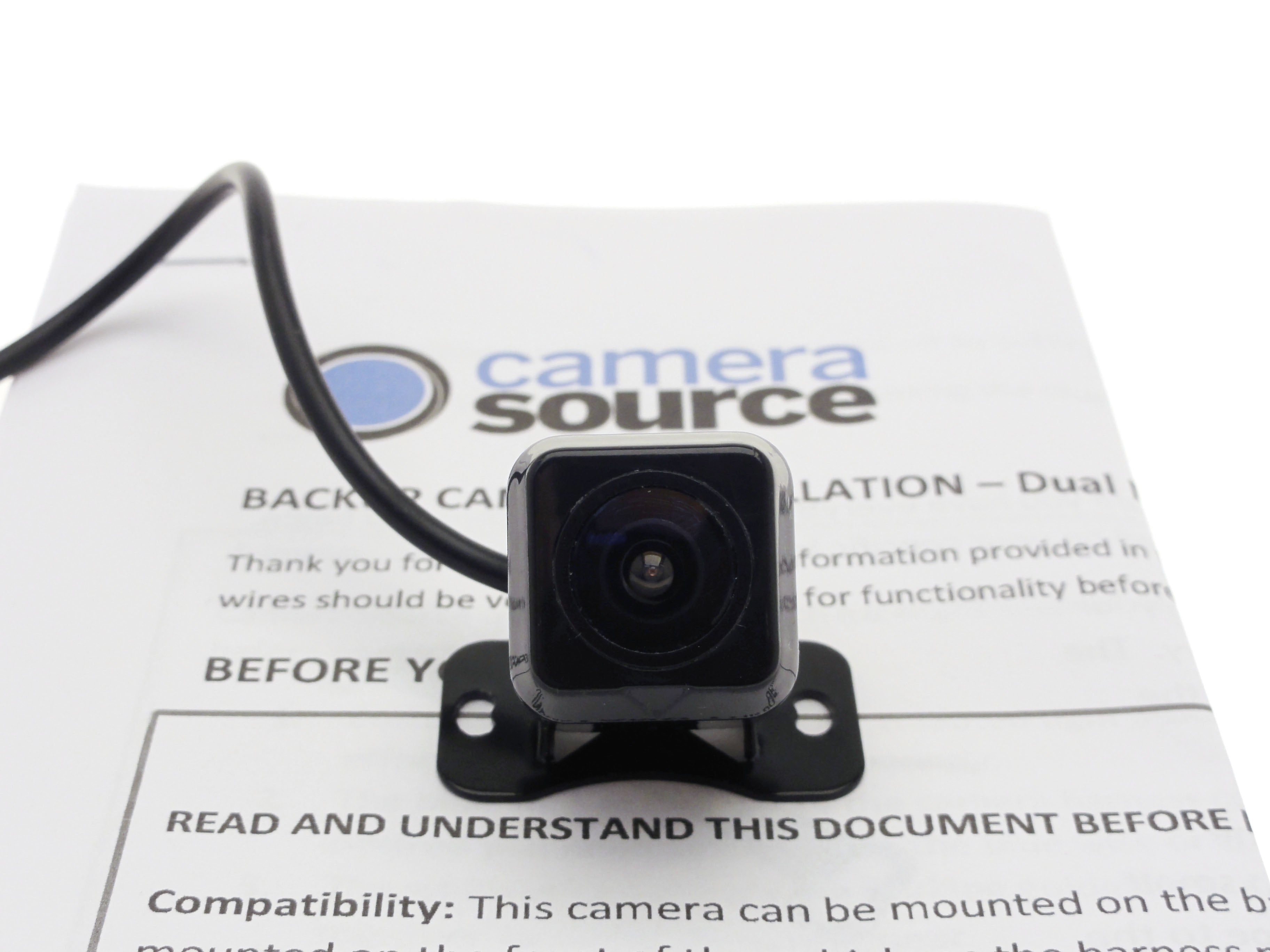

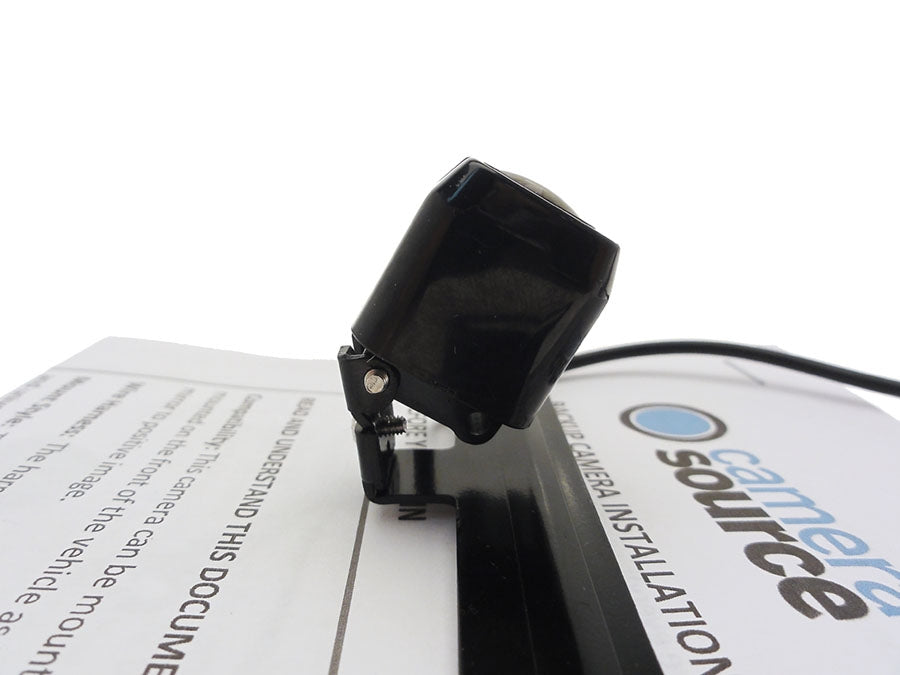

Camera is FMVSS 111 compliant! This is a high quality OEM integrated backup camera solution for several GM vehicles with the factory 7" IOB radio display screen! This kit is plug and play into the back of the screen so no cutting or splicing into the vehicle electrical system is required! In addition, no dealer programming is required making this a simple OEM integrated solution for your GM! The camera can be mounted on the license plate or it also comes with a mini mount that will allow you to mount the camera to the ledge above the license plate if you choose.

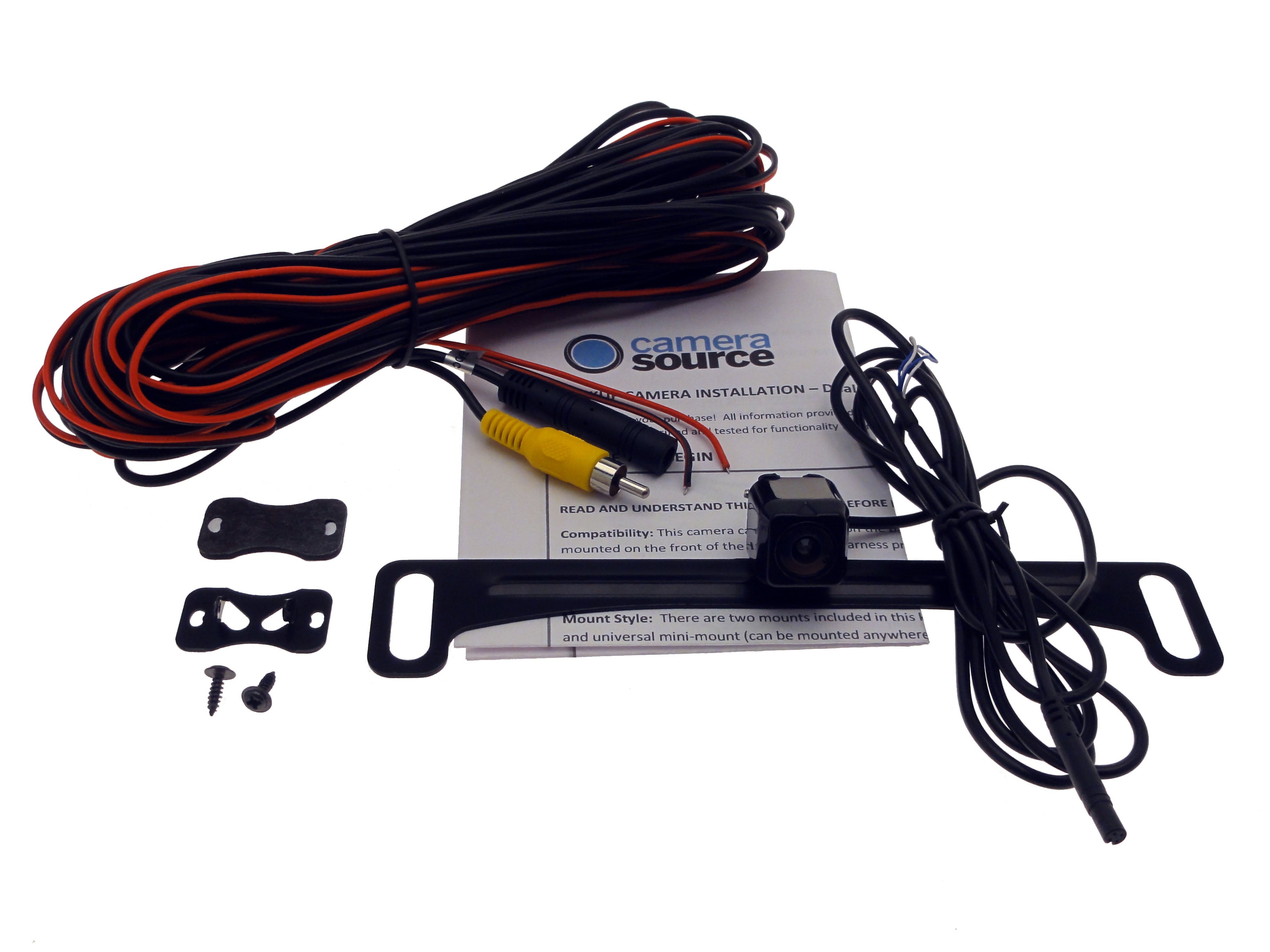

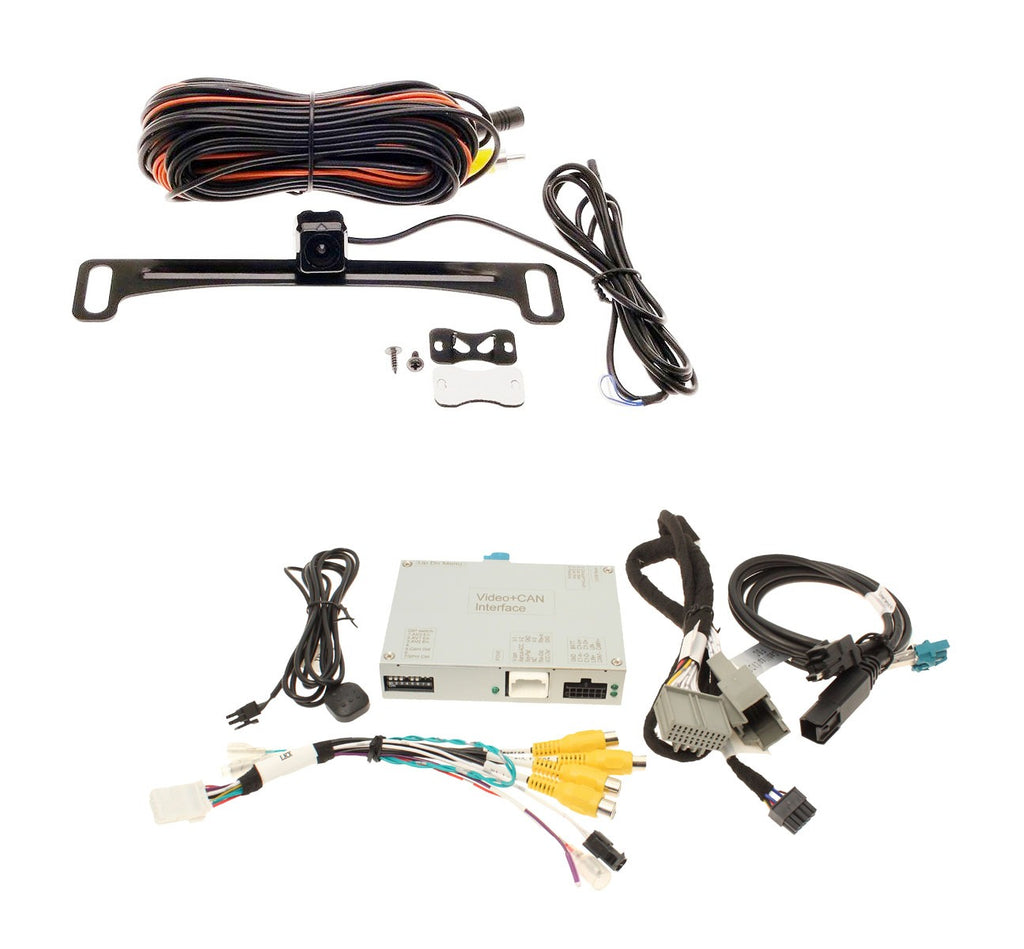

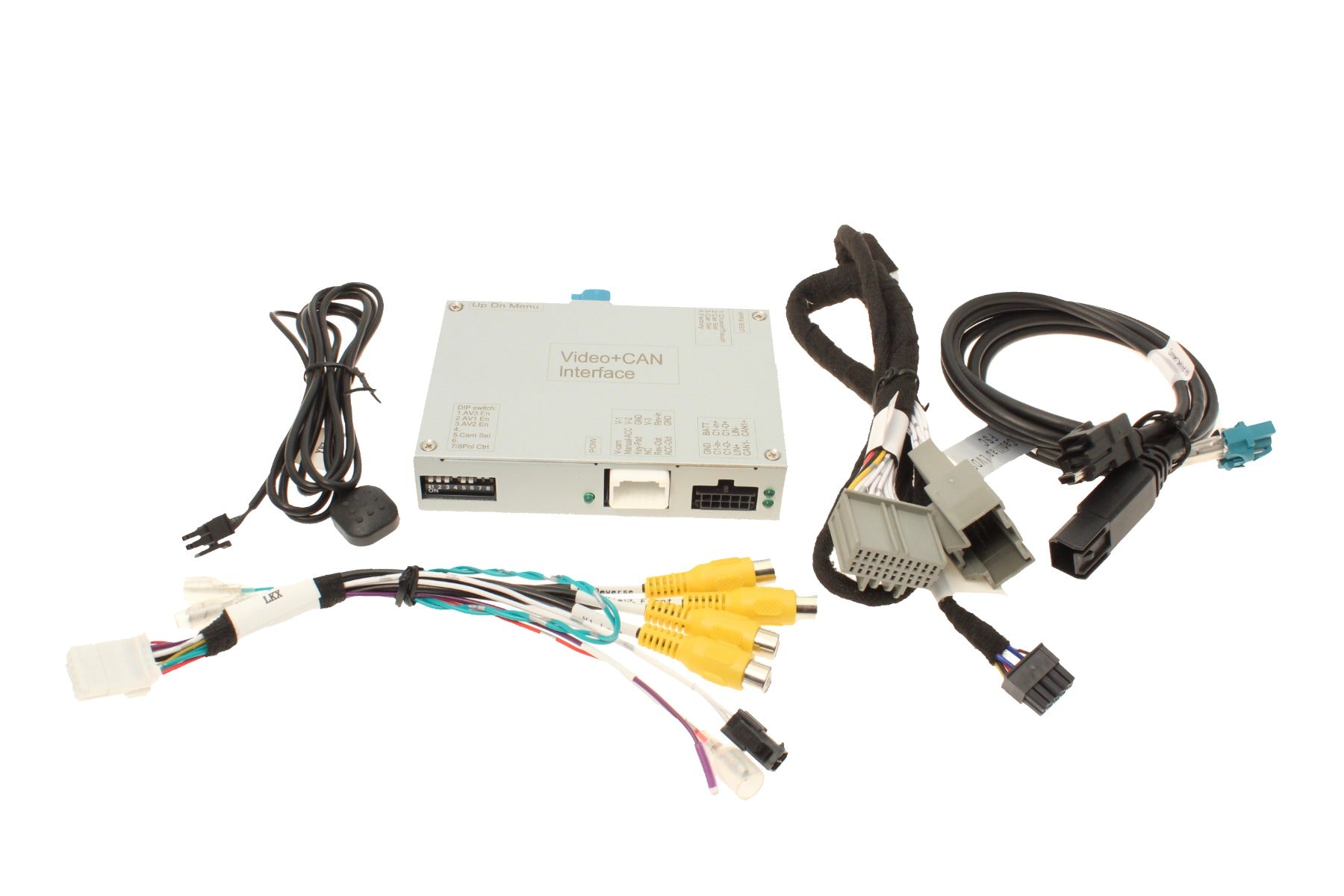

Kit includes:
- IOB Factory display interface module - plug and play and no dealer flashing required. Interface also includes an option for additional cameras.(Additional cameras not included)

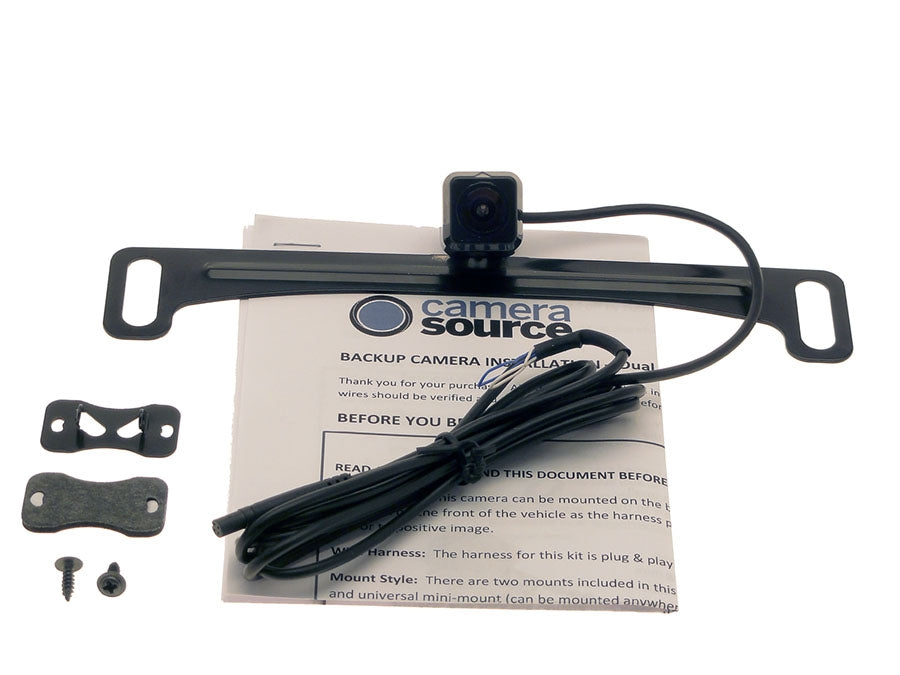

- Dual mount camera system with high grade Super CMOS sensor for an ultra clear view, mount on license plate or lip mount as desired
- Wire connectors for connecting camera to included IOB screen interface
- Zip ties
- Installation instructions
Camera Specifications:

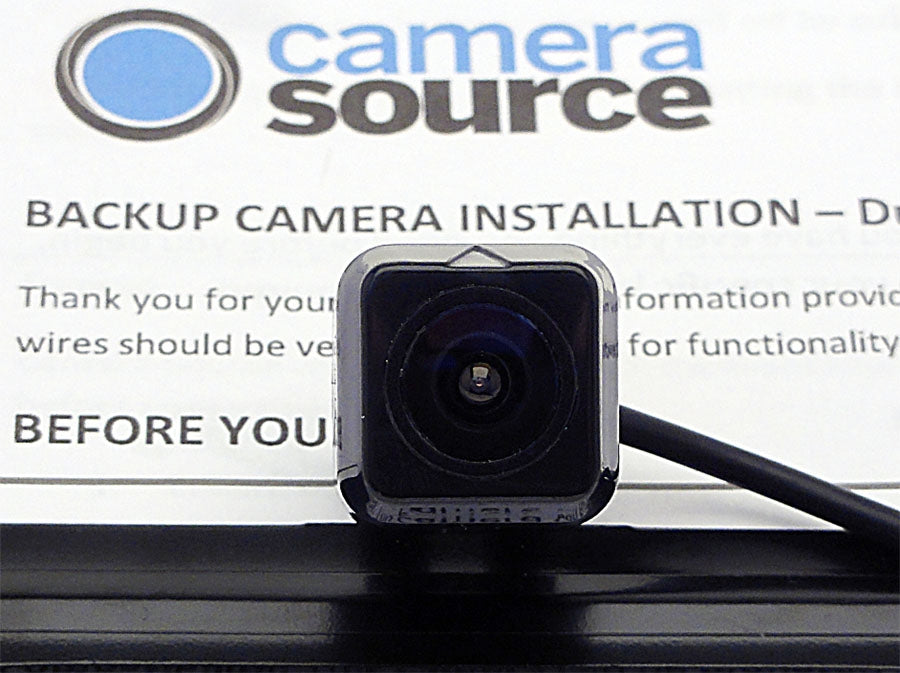

- Camera Source exclusive Super CMOS high grade sensor with night vision
- Selectable parking guidelines (can be turned off if desired) NOTE: Black center line is not present on actual display
- 600 TV lines of resolutions
- .2 lux minimum illumination - Outstanding night vision!
- 170 degree viewing angle
Interface module features:
- Uses existing 7" IOB factory display (display radio not included)
- Left and Right turn signal activated inputs
- Front camera input -Can be setup to come on automatically when shifting from reverse to drive or manually activated by pressing the external activation button
- Rear camera input (to either sustain factory camera or add your own)
- Dynamic Parking lines (with the option to turn them on or off)
- 3 year warranty
Everything you need to install is included.No monitor is included with this kit as it is designed to work with your existing 7" IOB radio screen.This camera comes with a 3 year warranty. Professional installation is recommended.
Specifications
| System Manufacturer | EVI Systems |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera, Front Camera |
| For a monitor it uses | Your factory display |
| Fit Type | Universal fit |
| Connection | Plug and Play to Factory Dash Display |
| Make | GMC,Chevrolet |
| Camera Mount Location | Camper/Utility Bed, Universal Mount |
| Night Vision | < .2 Lux |
| Camera Orientation | Front or Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 7\ MyLInk/Intellilink |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Car, Truck |
| Camera Input Ports | 4 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Silverado,Sierra,Colorado,Canyon,Equinox,Terrain |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2016,2017,2018 |
| Make Filter | Chevrolet, GMC |
| Model Filter | Canyon, Colorado, Equinox, Sierra, Silverado, Terrain |
| Year Filter | 2016, 2017, 2018 |
Compatibility
This kit will fit GM vehicles with the 7" IOB display screen in the radio: 2016-2018 Silverado, Sierra, Colorado, Canyon.
This kit is designed to mount above your license plate and interface your radio screen directly. Also includes a universal bracket to mount the camera anywhere.
Installation

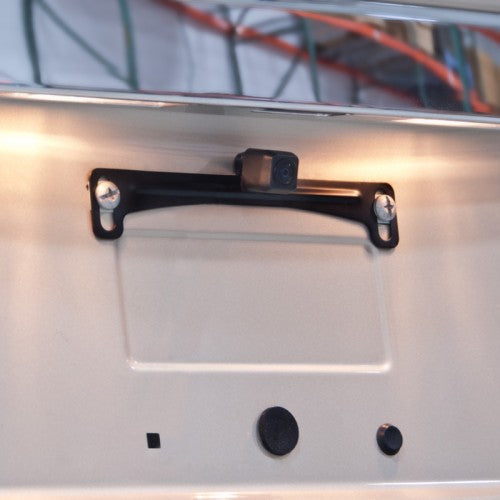

Install on either your license plate mount or on any flat surface - comes with two brackets.
The interface module is plug and play with your factory radio. The interface module powers the camera, creates the RCA connection for the camera, and programs the radio. NO splicing of factory wiring!
