Lug Mount Relocation Kit With Camera Included, Fits 2019-2024 RAM® 1500 W/360 View
SKU#: LG-DTR-19RSCU
Availability:
In Stock
SKU#:
LG-DTR-19RSCU
$669.00
Quantity
Camera included!
Description

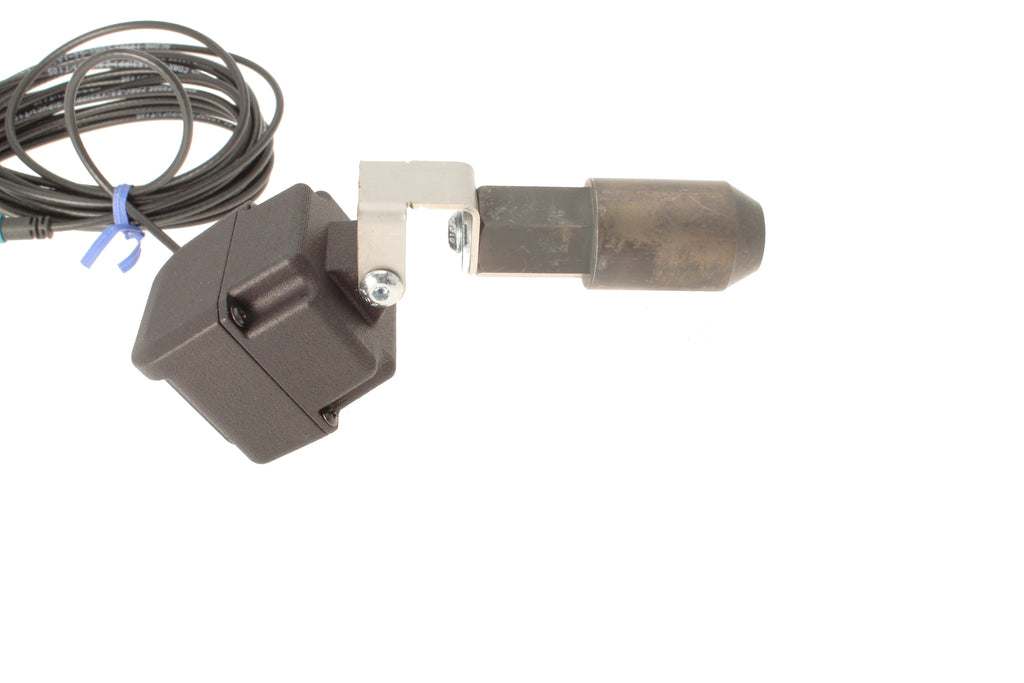

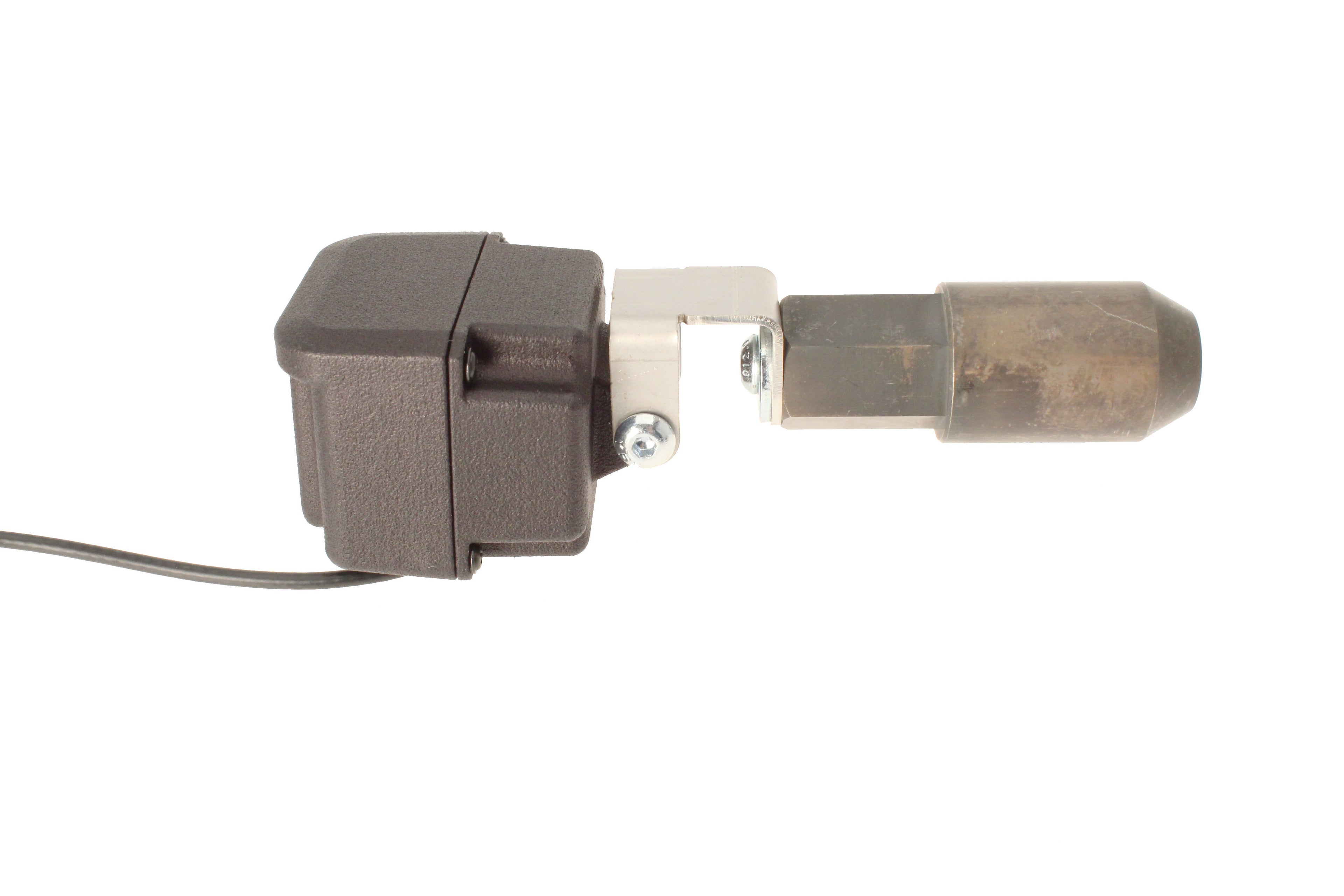

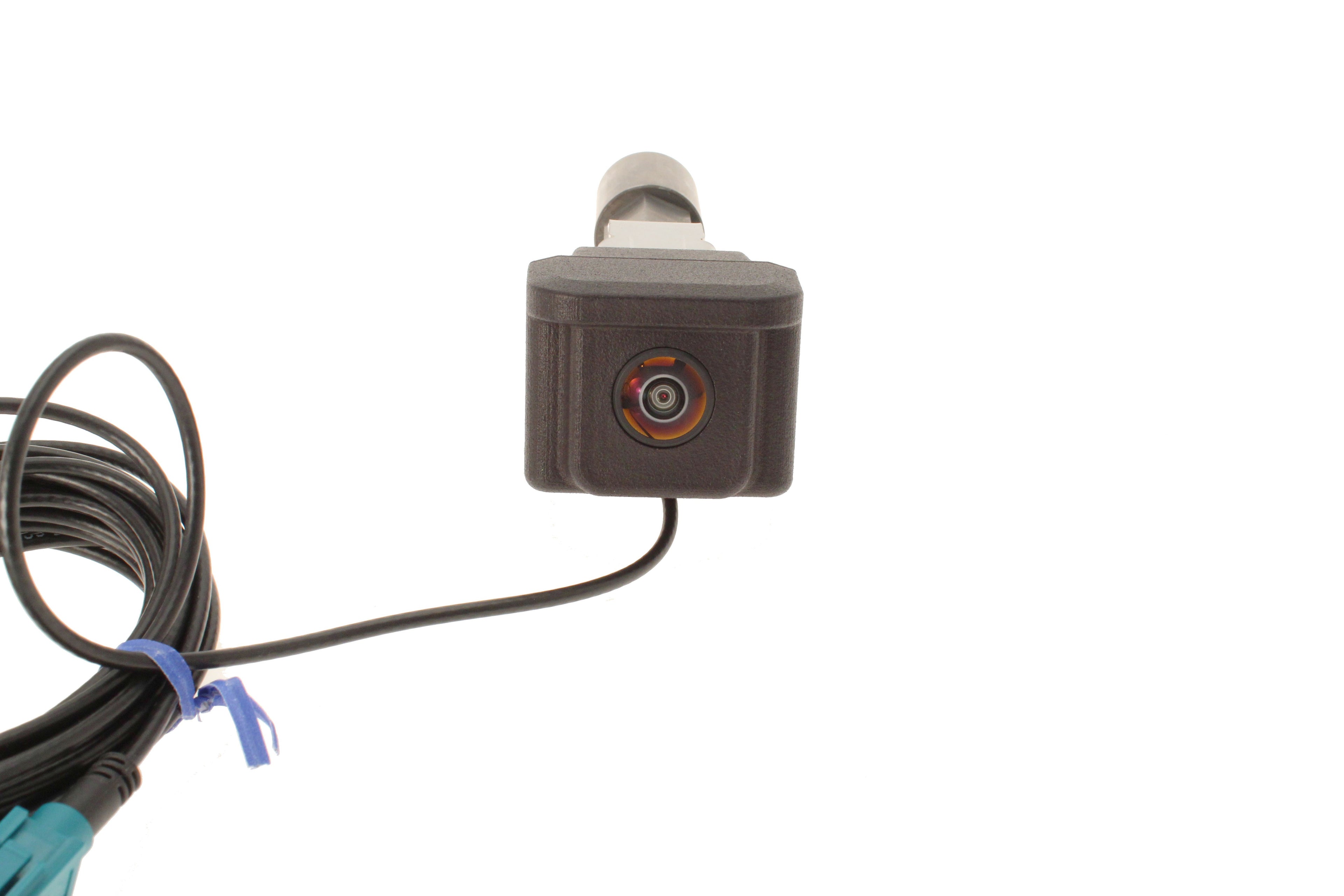

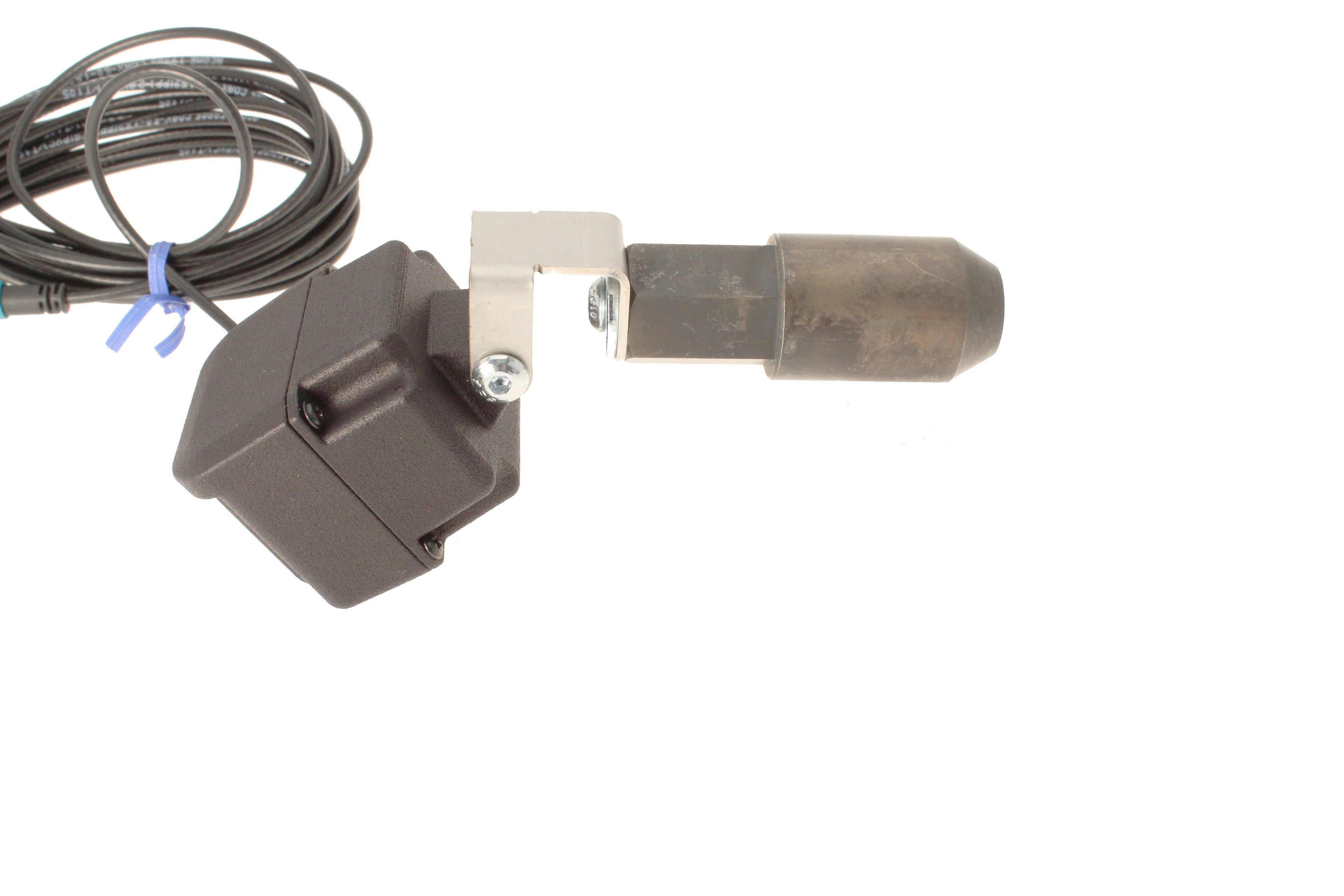

This is an adjustable lug mount bracket with OEM camera that will allow you to relocate your factory installed tailgate camera on your 2019-2024 RAM® 1500 truck that has the factory 360-degree camera system!
The new Lug Mounted Camera Relocation Kit improves rear visibility and allows the camera to be relocated to the RiG'd UltraSwing® or other aftermarket spare tire mount where the factory backup camera is now obstructed.
Simply mount the camera with lug mount bracket to your spare tire mount and connect the cable to your factory backup camera connection for a simple and seamless installation.
Relocation housing bracket has adjustable tilt to obtain the perfect view!
The camera will function the same on your factory display.
This kit is only compatible with 2019-2024 RAM® 1500 trucks that came from the factory with the 360 degree surround view camera system. Display not included as this kit uses your existing factory display.

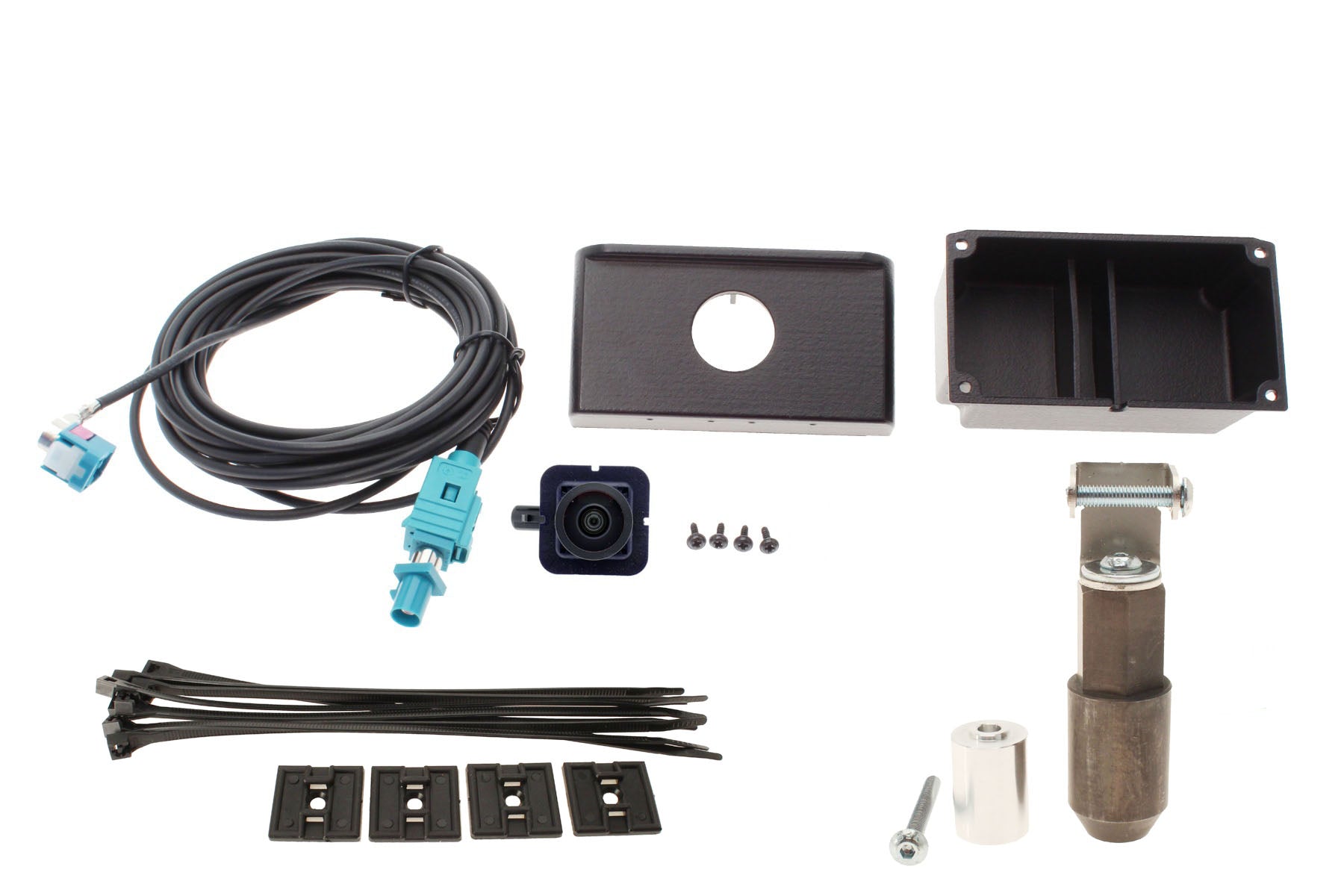

Kit includes the following:
- Adjustable mounting bracket
- OEM 360 Surround View camera for RAM® 1500
- 14 foot extension harness
- Hardware
- Lug Mount

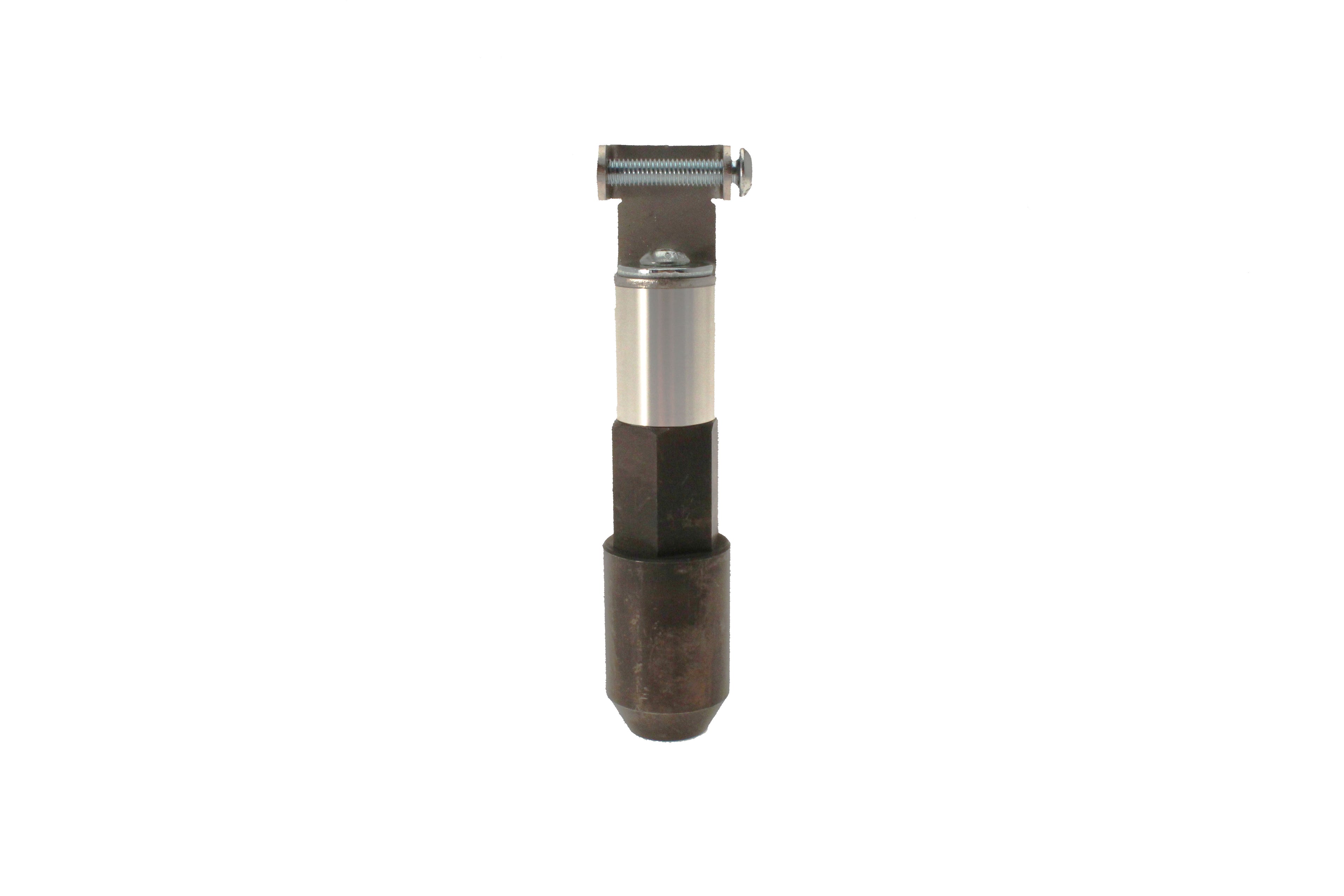

- Lug Mount extension-use for oversized spare tire
- One year warranty!

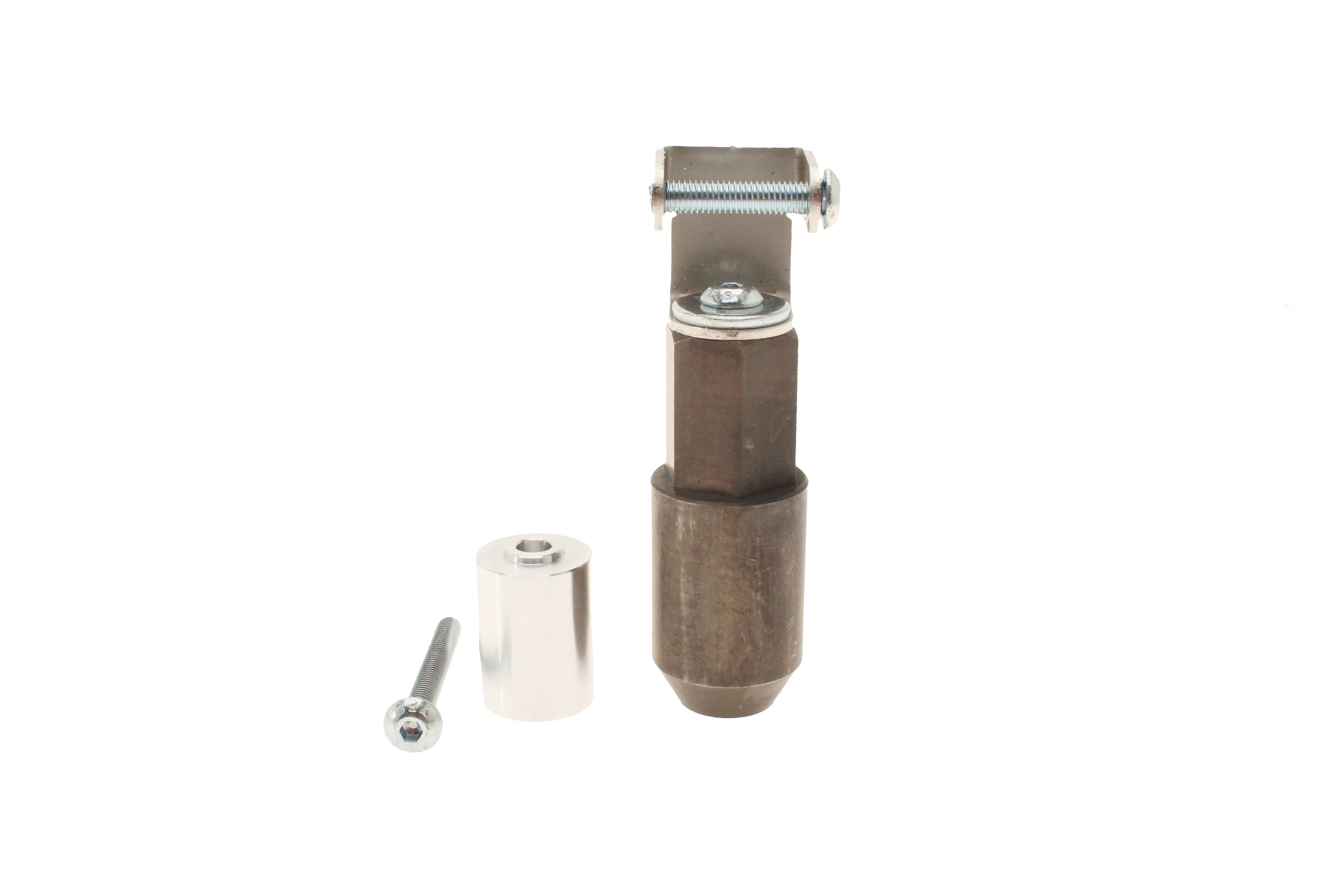

Lug Mount Specifications:
- Heat treated stainless steel 19mm hex lug nut
- Stainless steel camera mounting bracket
- Billet aluminum spacer
Specifications
| System Manufacturer | Camera Source |
| Number of Cameras | 1 |
| Camera Type | Rear Camera, Spare tire swing arm |
| For a monitor it uses | Your factory display |
| Connection | Factory Connector |
| Make | RAM |
| Camera Mount Location | Universal Mount, Spare tire swing arm |
| Camera Orientation | Rear Facing |
| Radio Screen Size | 8.4\ Mopar |
| Reason for Shopping | Relocating factory camera |
| Vehicle Category | Truck, Camper/Trailer (if connecting to vehicle wiring) |
| Model | 1500 |
| Warranty | 1 Year |
| Wiring Type | Factory Plug&Play |
| Year | 2019,2020,2021,2022,2023,2024 |
| Make Filter | Ram |
| Model Filter | 1500 |
| Year Filter | 2019, 2020, 2021, 2022, 2023, 2024 |
Compatibility
2019-2024 RAM® 1500 trucks that came from the factory with the 360 degree surround view system and have a RiG'd UltraSwing® or other aftermarket spare tire mount. Not compatible if your truck only has the tailgate camera.
Installation
Camera is pre-mounted to the lug mount bracket. Attach the lug mount to your spare tire lug and tighten. Camera tilt is adjustable so the view can be adjusted to accommodate any view required!
Plug OEM conversion harness into factory camera connection located behind the bumper, under the truck.
