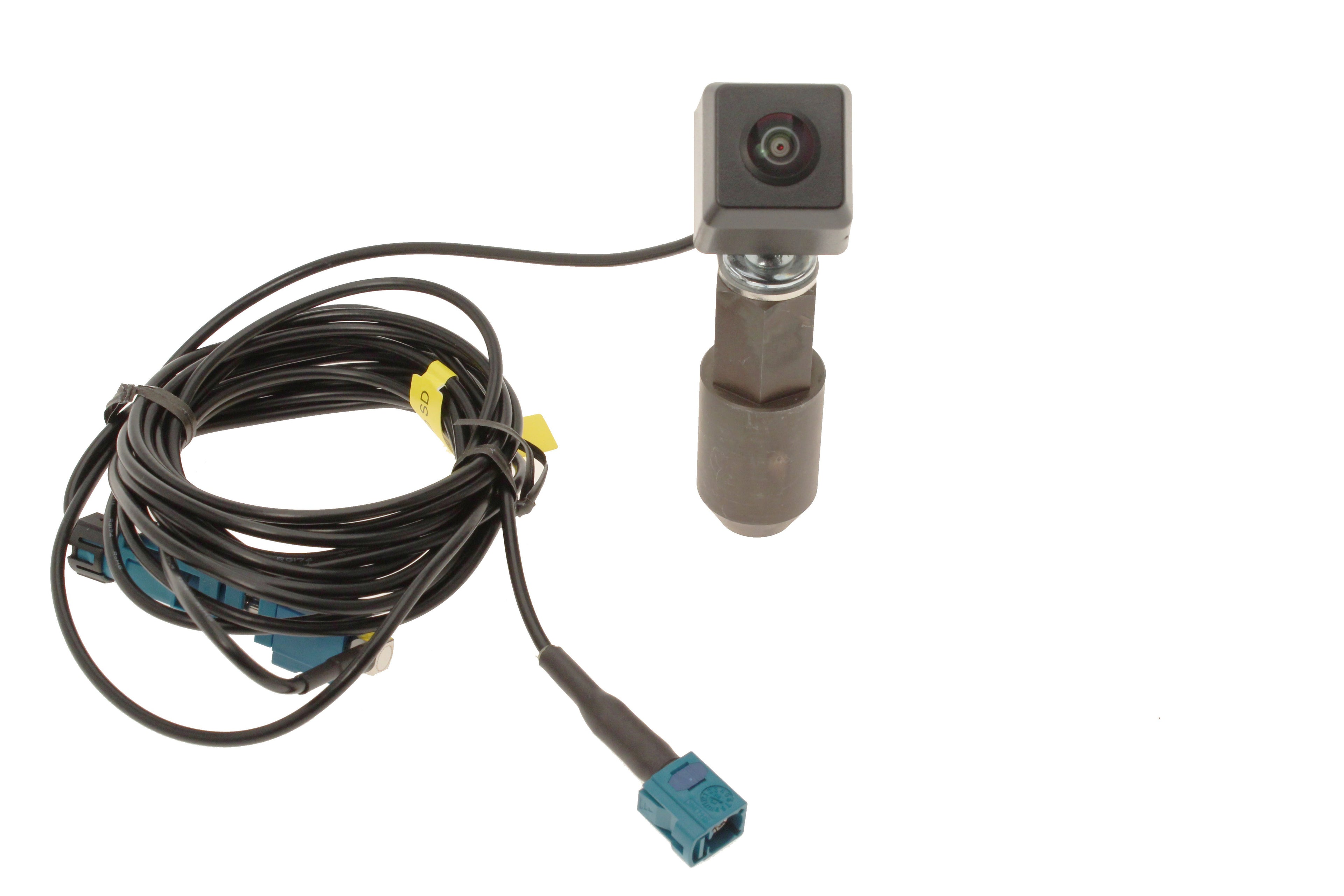

Lug Mount LVDS Camera Relocation kit for 2017-2022 Ford Super Duty with 360 view
SKU#: LG-FRSD360-LP-1722
Availability:
In Stock
SKU#:
LG-FRSD360-LP-1722
$322.00
Quantity
Tailgate camera lug mount relocation!
Description
This is a lug mount bracket that will allow you to relocate your factory installed tailgate camera on your 2017-2022 Ford Super Duty Trucks F250, F350, F450, F550 that came from the factory with the 360 degree view system.
*Not compatible if your truck has a tailgate camera only!
The new Lug Mounted Camera Relocation Kit improves rear visibility and allows the camera to be relocated to the RiG'd UltraSwing® or other aftermarket spare tire mount where the factory backup camera is now obstructed.
Simply mount the camera with lug mount bracket to your spare tire mount and connect the cable to your factory backup camera connection for a simple and seamless installation. The camera will function the same as before, just in a different location.
- LVDS camera in adjustable housing-4 foot LVDS cable attached.
- 8' extension LVDS cable included.
- Hardware
- Lug mount bracket-mounts to your spare tire lug
- Lug mount spacer-use for oversized tires
- Two year warranty!
- Heat treated stainless steel 19mm hex lug nut
- Stainless steel camera mounting bracket
- Billet aluminum spacer
Specifications
| System Manufacturer | EVI Systems |
| Bracket Type | Universal |
| Number of Cameras | 1 |
| Camera Resolution | 720P |
| Camera Type | Rear Camera, Spare tire swing arm |
| For a monitor it uses | Your factory display |
| Fit Type | Universal fit, Spare tire swing arm |
| Connection | Factory Connector |
| Make | Ford |
| Camera Mount Location | Universal Mount, Spare tire swing arm |
| Night Vision | .5 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Not Available |
| Power Supply | 12 Volts |
| Radio Screen Size | 8\ Ford Sync 3 |
| Reason for Shopping | Relocating factory camera |
| Sensor Brand | EVI Systems |
| Sensor Type | Super CMOS |
| Vehicle Category | Truck, Camper/Trailer (if connecting to vehicle wiring) |
| Viewing Angle | 170 Degrees |
| Model | Super Duty |
| Warranty | 2 Year |
| Waterproof/Dustproof Level | IP68 |
| Wiring Type | Factory Plug&Play |
| Year | 2017,2018,2019,2020,2021,2022 |
| Make Filter | Ford |
| Model Filter | Super Duty |
| Year Filter | 2017, 2018, 2019, 2020, 2021, 2022 |
Compatibility
2017-2022 Ford Super Duty Trucks F250, F350, F450, F550 that came from the factory with the 360 degree view system and has the RiG'd UltraSwing® or other aftermarket spare tire mount.
Installation
Camera is pre-mounted to the lug mount bracket. Attach the lug mount to your spare tire lug and tighten. Camera tilt is adjustable so the view can be adjusted to accommodate any view required!
Plug OEM conversion harness into factory camera connection located behind the bumper, under the truck.
