Lug Mount LVDS Camera kit for 2019-2022 GM® 1500-Non Surround View
SKU#: LG-GMLP-D1922-8
Availability:
In Stock
SKU#:
LG-GMLP-D1922-8
$322.00
Quantity
Non-Surround view, Tailgate camera lug mount relocation!
Description
This is a lug mount bracket that will allow you to relocate your factory installed tailgate camera with a factory installed backup camera and RiG'd UltraSwing® or other aftermarket spare tire mount where the factory backup camera is now obstructed on your 2019-2022 GM® 1500 Series truck (Silverado, Sierra).
*Not compatible with factory surround view system with multiple cameras or tailgate and cargo camera configuration. Truck must have tailgate camera only!
The camera will function the same as before, just in a different location.
This kit is only compatible with GM® trucks that came from the factory with a tailgate camera. Display not included.

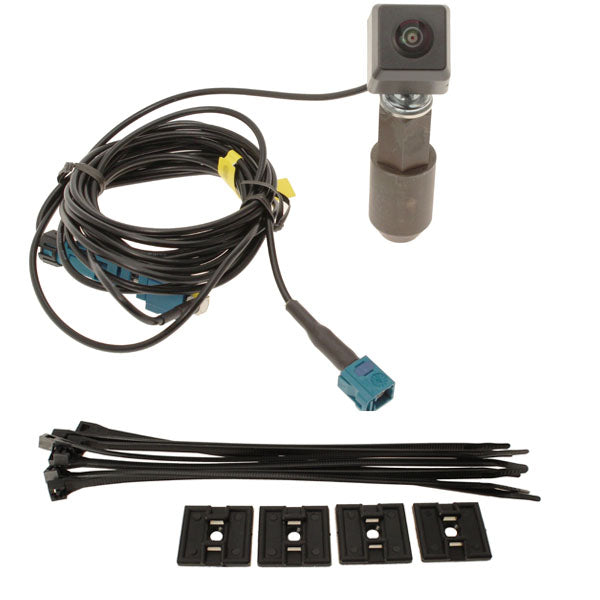

Kit includes the following:
- LVDS camera in adjustable housing — 2 foot LVDS cable attached
- 8 foot LVDS extension cable
- Lug mount bracket — mounts to your spare tire lug
- Lug mount spacer — use for oversized spare tire
- One year warranty!
Lug Mount Specifications:
- Heat treated stainless steel 19mm hex lug nut
- Stainless steel camera mounting bracket
- Billet aluminum spacer
*For 2019 Heavy Duty Trucks (2500, 3500) see SKU: LG-16GMTRSK-LP
Specifications
| System Manufacturer | EVI Systems |
| Bracket Type | Universal |
| Number of Cameras | 1 |
| Camera Resolution | 720P |
| Camera Type | Rear Camera, Spare tire swing arm |
| For a monitor it uses | Your factory display |
| Fit Type | Specific fit |
| Connection | Factory Connector |
| Make | GMC,Chevrolet |
| Camera Mount Location | Universal Mount, Spare tire lug mount |
| Night Vision | .5 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Not Available |
| Power Supply | 12 Volts |
| Radio Screen Size | Factory LCD |
| Reason for Shopping | Relocating factory camera |
| Sensor Brand | EVI Systems |
| Sensor Type | Super CMOS |
| Vehicle Category | Truck |
| Viewing Angle | 170 Degrees |
| Model | Silverado,Sierra |
| Warranty | 2 Year |
| Waterproof/Dustproof Level | IP68 |
| Wiring Type | Factory Plug&Play |
| Year | 2019,2020,2021,2022 |
| Make Filter | Chevrolet, GMC |
| Model Filter | Sierra, Silverado |
| Year Filter | 2019, 2020, 2021, 2022 |
Compatibility
2019-2022 GM® 1500 Series Trucks that came from the factory with only a tailgate camera and have a RiG'd UltraSwing® or other aftermarket spare tire mount
Not compatible with trucks that have the surround view system with multiple cameras or tailgate and cargo camera configuration.
2019-2022 Silverado® 1500
2019-2022 Sierra® 1500
* For 2019 Heavy Duty trucks (2500,3500) see SKU: LG-16GMTRSK-LP
Installation
Camera is pre-mounted to the lug mount bracket. Attach the lug mount to your spare tire lug and tighten. Camera tilt is adjustable so the view can be adjusted to accommodate any view required!
Plug OEM conversion harness into factory camera connection located behind the bumper, under the truck.
