License plate mounted backup camera, Mirror with dash cam and DVR

License plate mounted backup camera, Mirror with dash cam and DVR

SKU#: CS-ULPM-RVMDVR

Availability: In Stock
SKU#: CS-ULPM-RVMDVR
$408.00

Quantity

Includes Mirror with built in dash cam and DVR!

Description

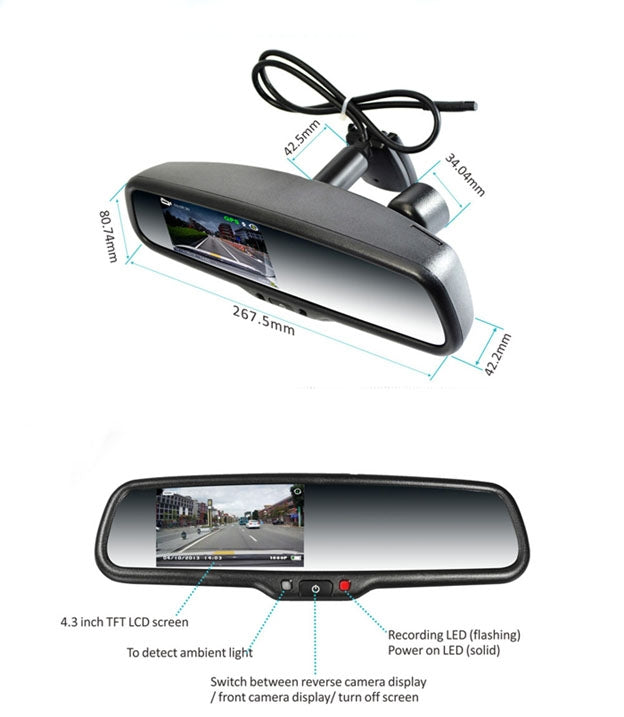

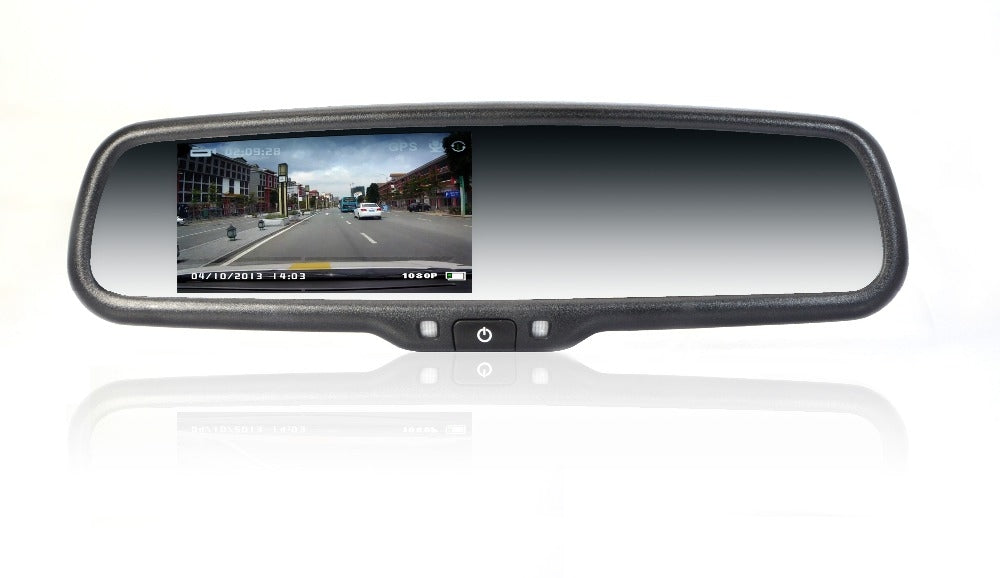

This mirror is a high quality 4.3" LCD rear view mirror monitor with integrated HD Dash Cam DVR. This kit contains a DVR mirror that has a front facing dash cam and a universal license plate backup camera. Use as a car DVR for recording all the driving actions, and as a rearview mirror to display the real-time status behind the car when backing.
With a standard wedge style mount, this mirror will fit just about anything. The large 4.3" display has auto-brightness control so it's ultra-bright in the daytime for great video clarity and automatically dims at night. The mirror glass is also auto-dimming so headlights will be dimmed when shining directly into the mirror.

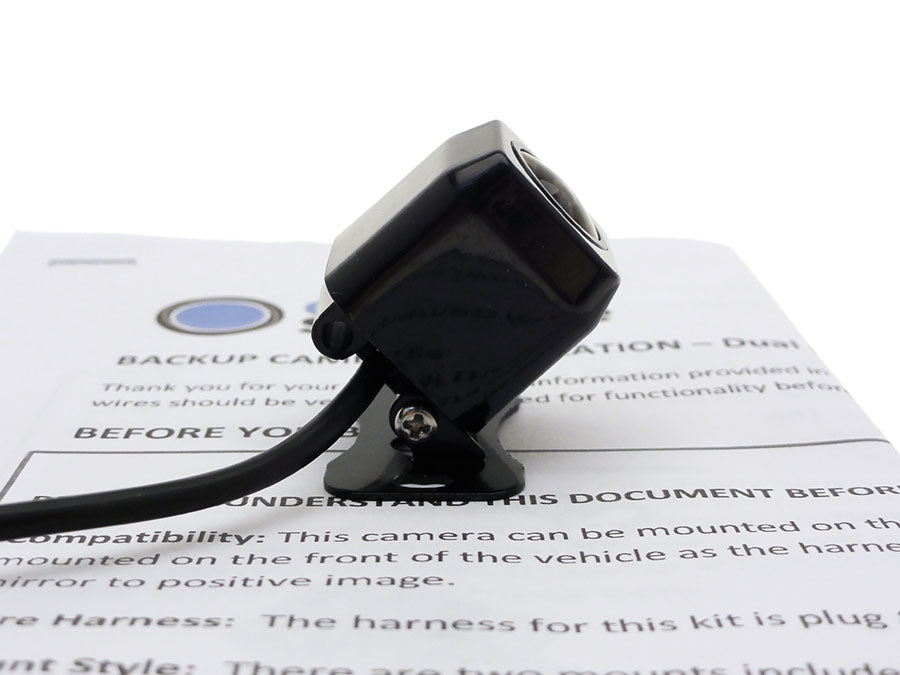

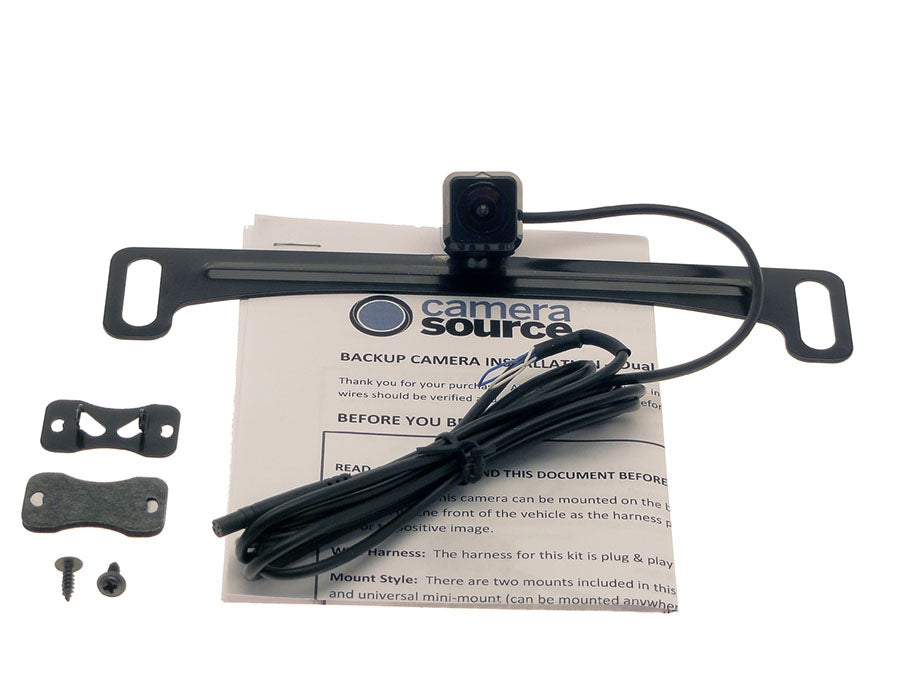

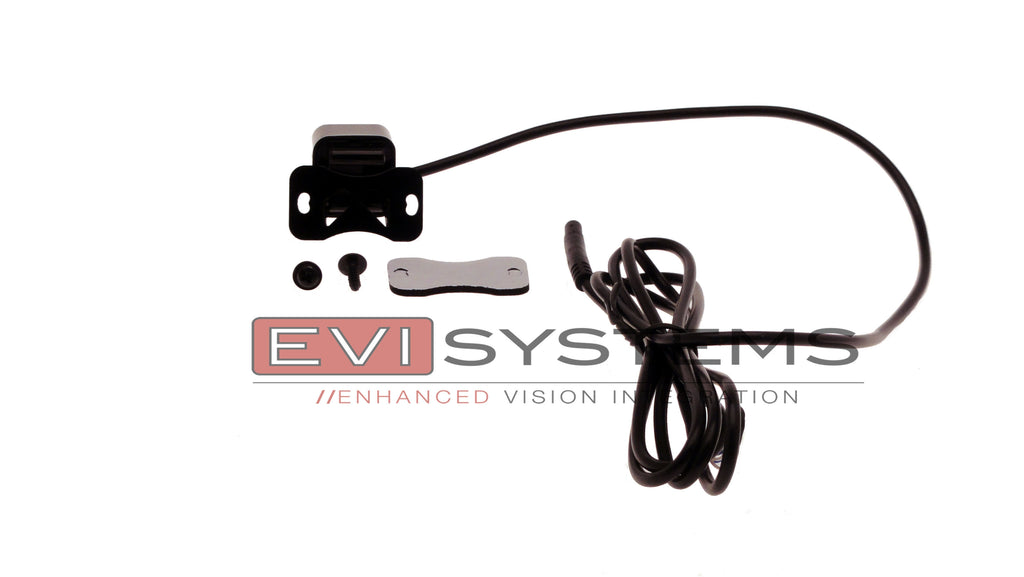

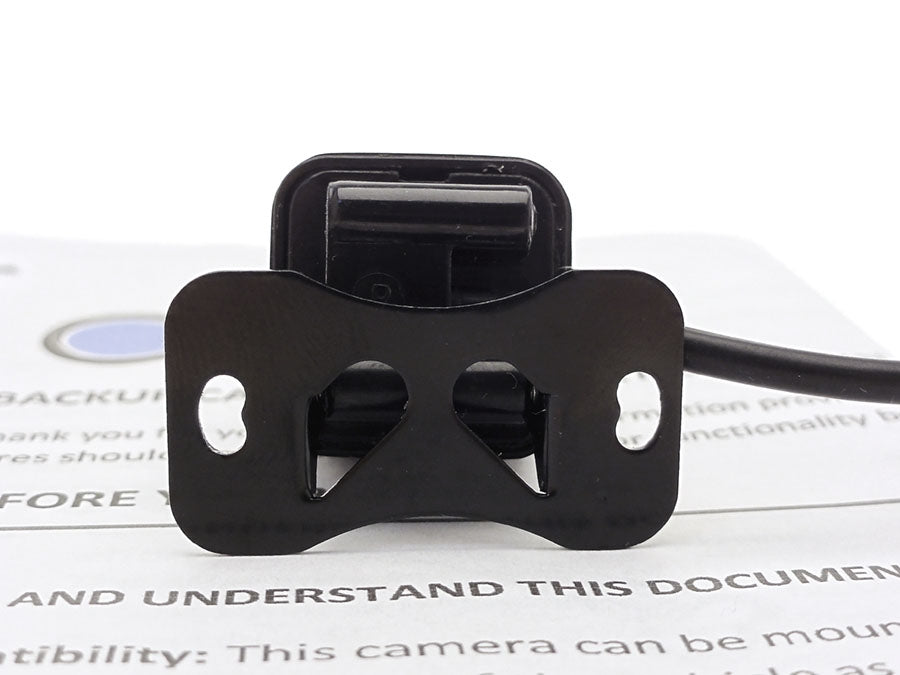

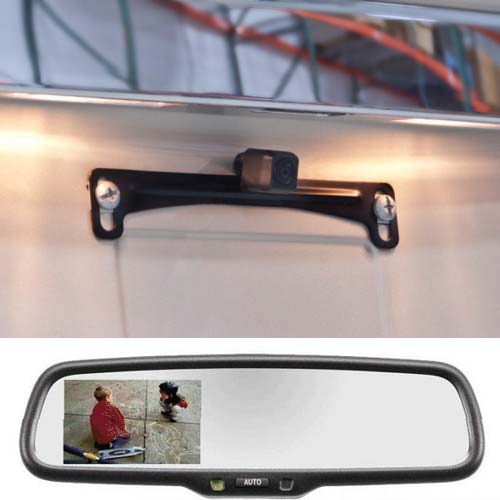

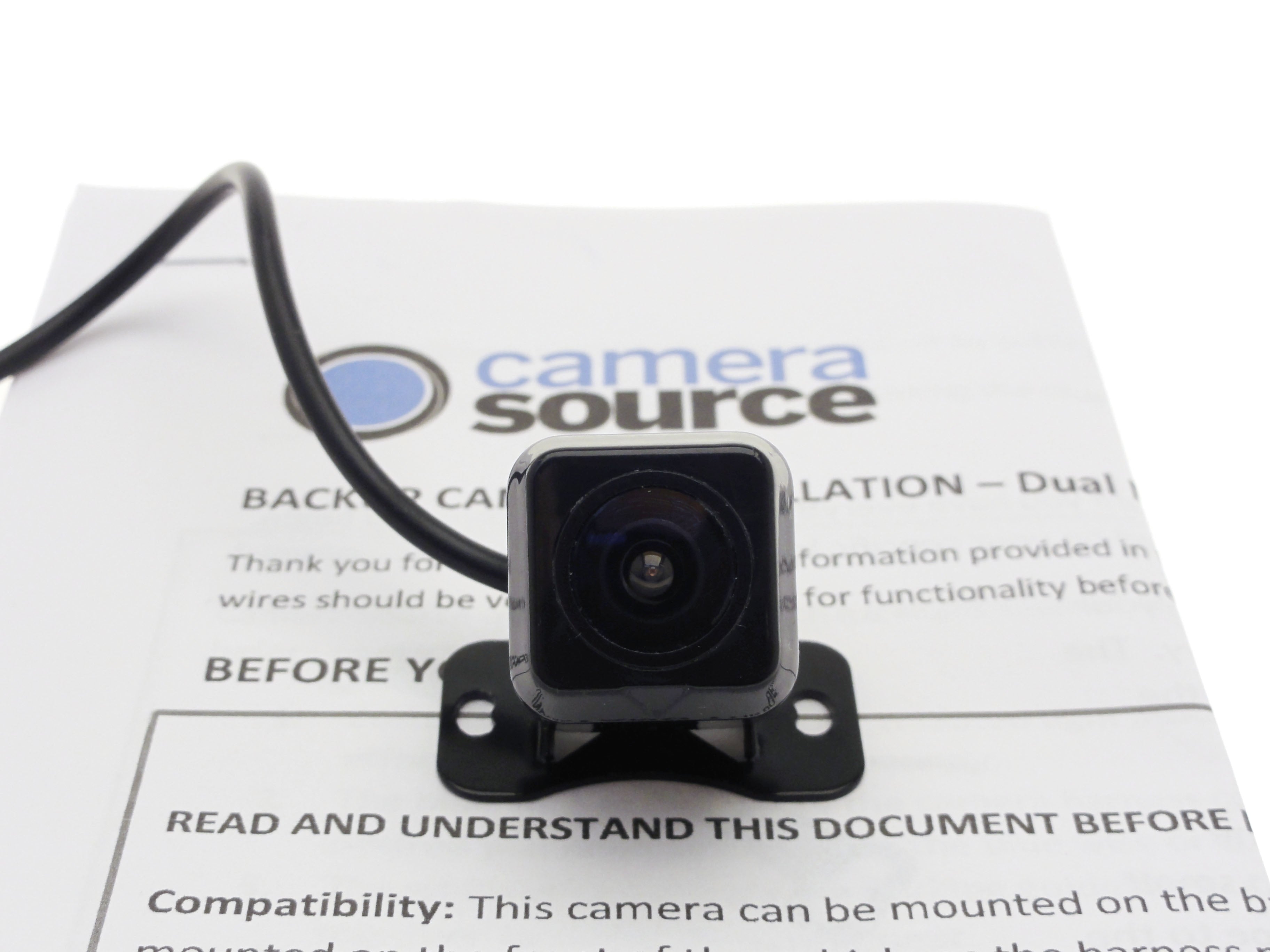

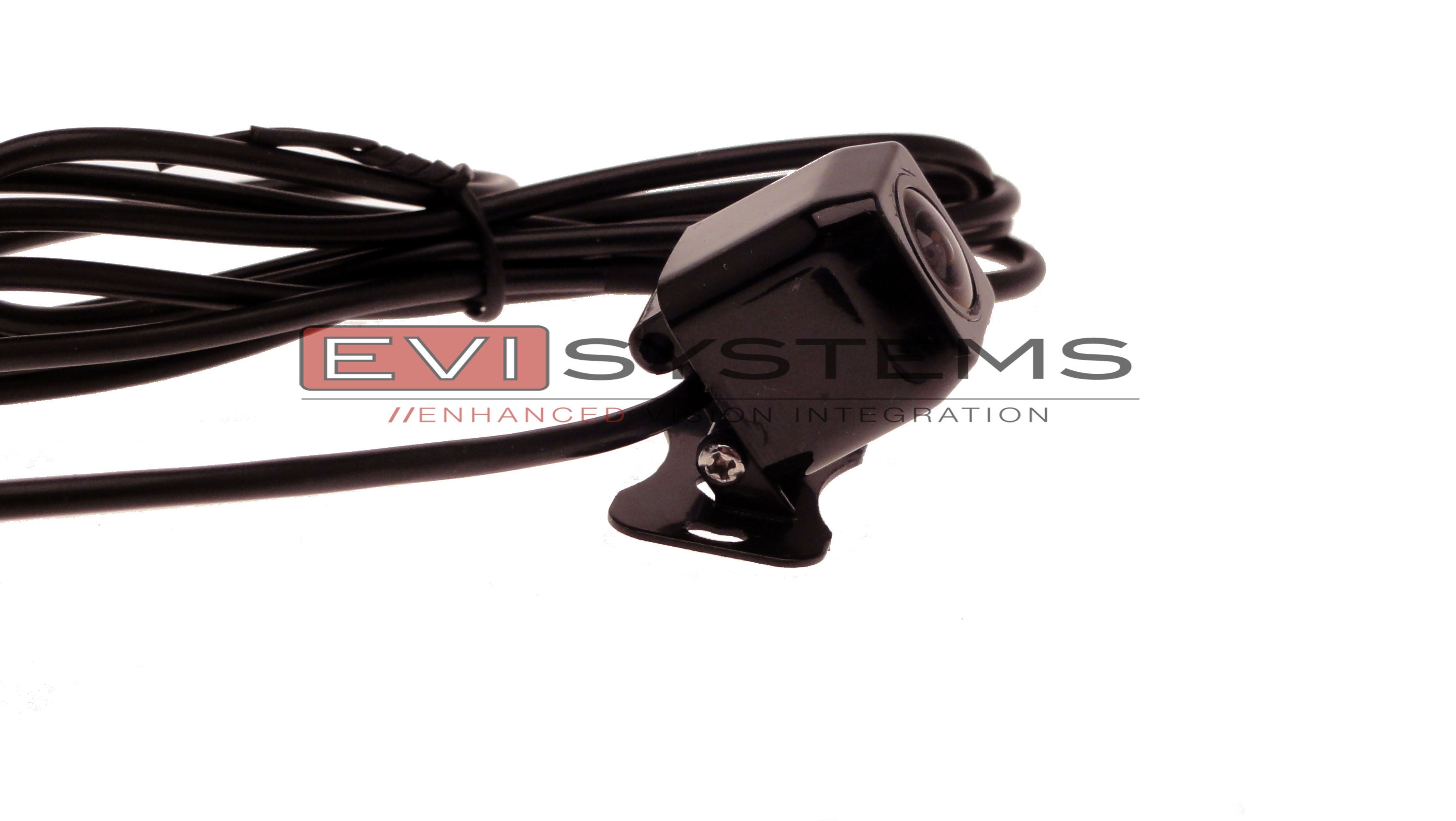

This CMOS license plate mounted backup camera kit will allow you to integrate rear view safety to any vehicle with a license plate and a wedge mount style mirror. In fact, the camera can be converted to mount on any flat surface! The camera can be mounted on the license plate or it also comes with a mini mount that will allow you to mount the camera to the ledge above the license plate if you choose.

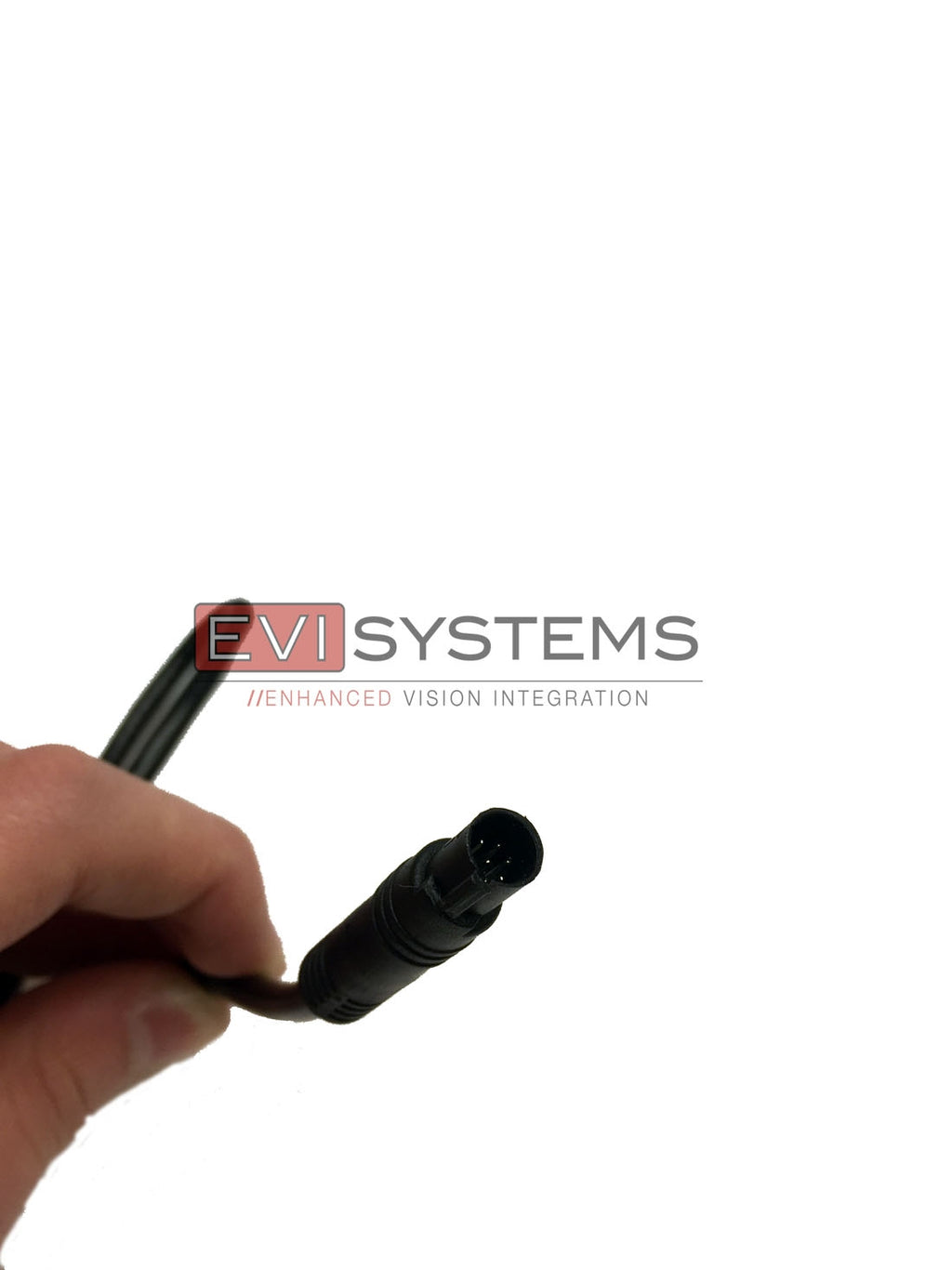

All the cables are included and the 25' long harness terminates with a RCA connection so you can plug directly into the HD DVR Rear View Mirror Monitor. The camera has adjustable tilt and comes with parking guideline options, meaning that the guidelines can be turned off.

Product specifications:

  • Mini license bar universal mount camera
  • Super CMOS sensor for ultra clear display (the best available)
  • Resolution: 600 TV lines
  • Minimum Illumination: 0.2 Lux
  • View Angle: 170
  • Video Output: Full color video
  • Working Voltage: DC 9-16V
  • Parking Line: On/Off removable
  • Water proof: IP67
  • 25 foot harness
  • 3 year warranty on the camera

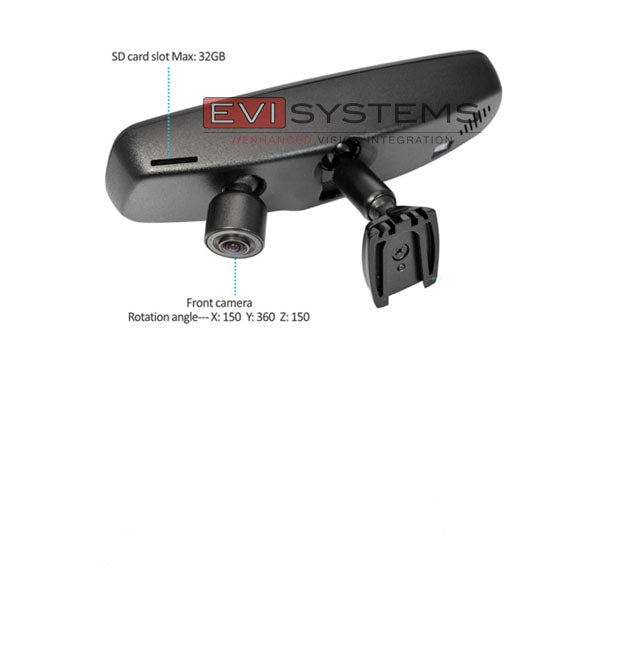

Rear View Mirror with DVR (CS-RVMDVR-43) specifications:

  • DVR rearview mirror with 4.3" ultra high bright TFT-LCD screen
  • Automatic brightness adjustment
  • Wide view angle: 140 degree front view, 170 degree rear view
  • 2-channel recording: front (default), rear (option)
  • High resolution: full HD: 1080P(1920x1080)at 30 fps, VGA:(1280x720)at 30 fps
  • High speed recording: 30 frames per second
  • Automatically record when power on
  • Seamless cyclic recording
  • Record: 1 min /3mins /5mins /Continuous recording
  • LCD Screen off function
  • Motion detection function
  • Parking mode for 48 hours
  • Rear camera display
  • Auto Dimming
  • 10 language options
  • 1 year warranty

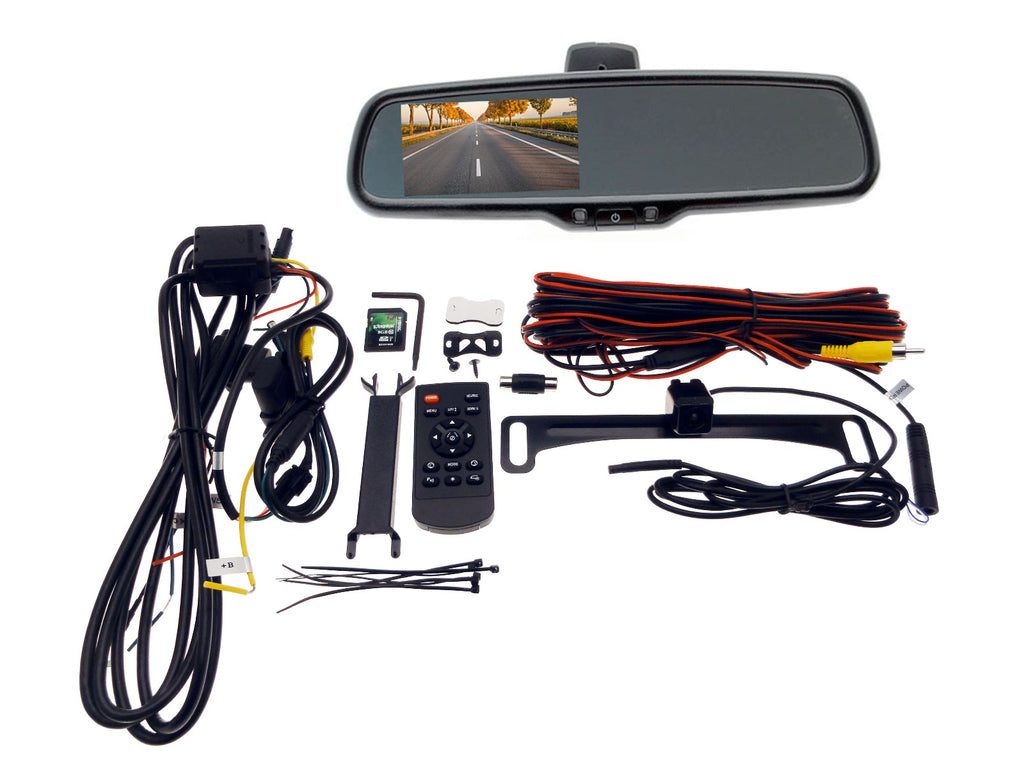

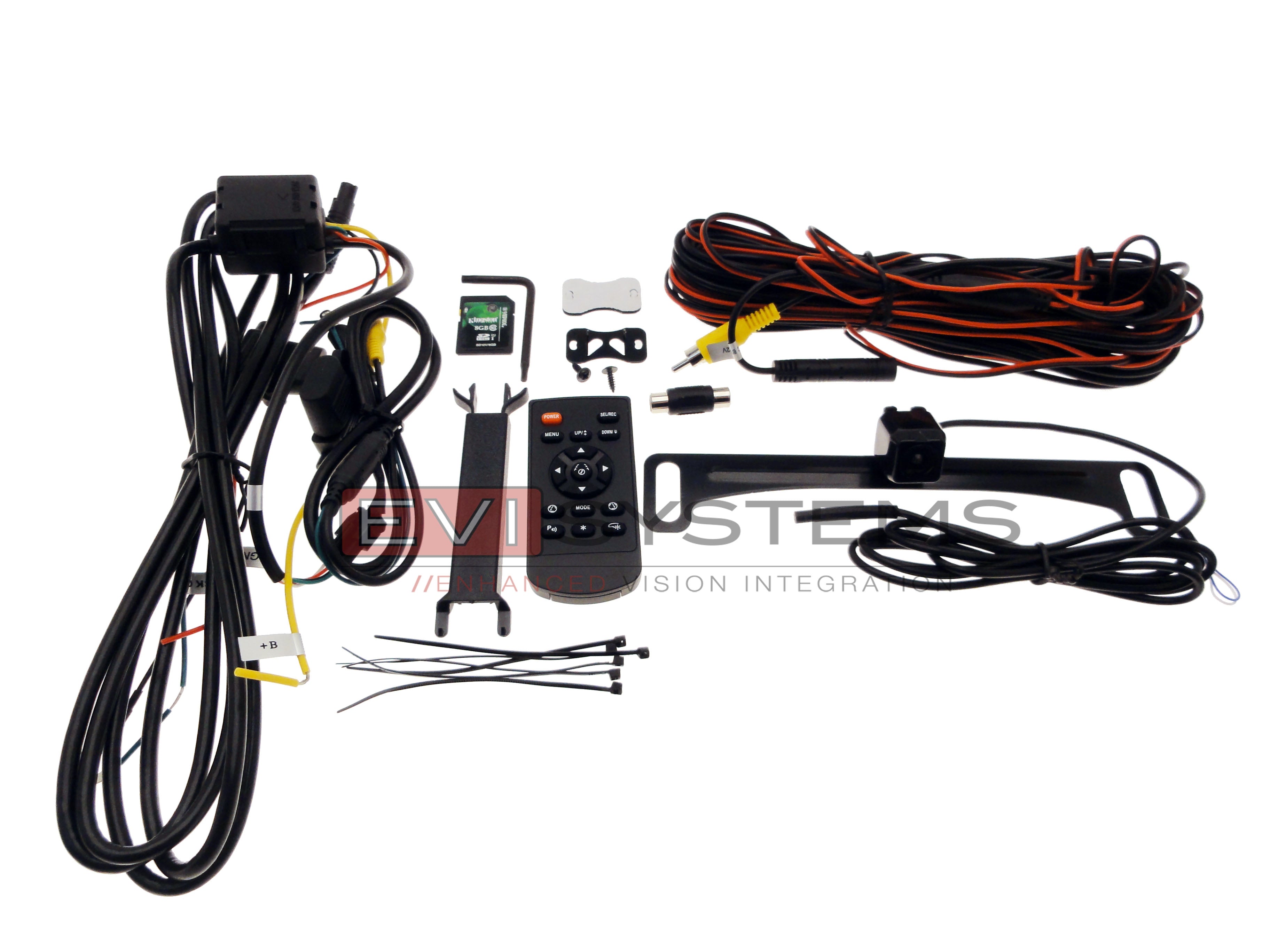

This package contains:
  • DVR mirror with built in front facing camera

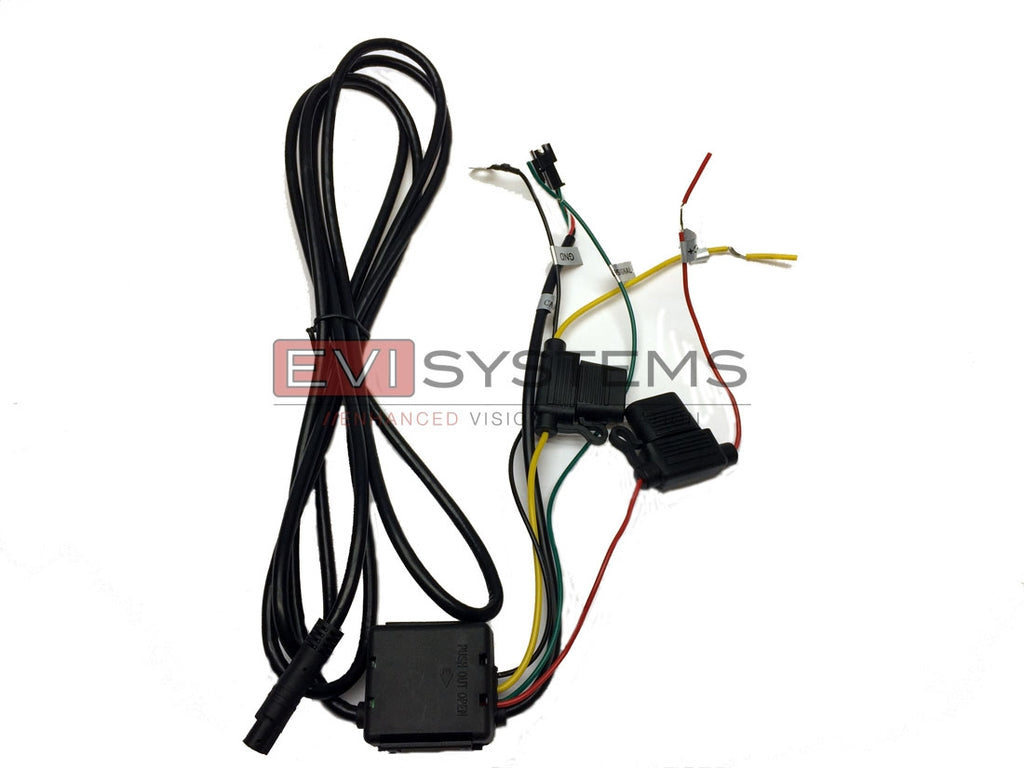

  • Power harness
  • Mirror wire cover

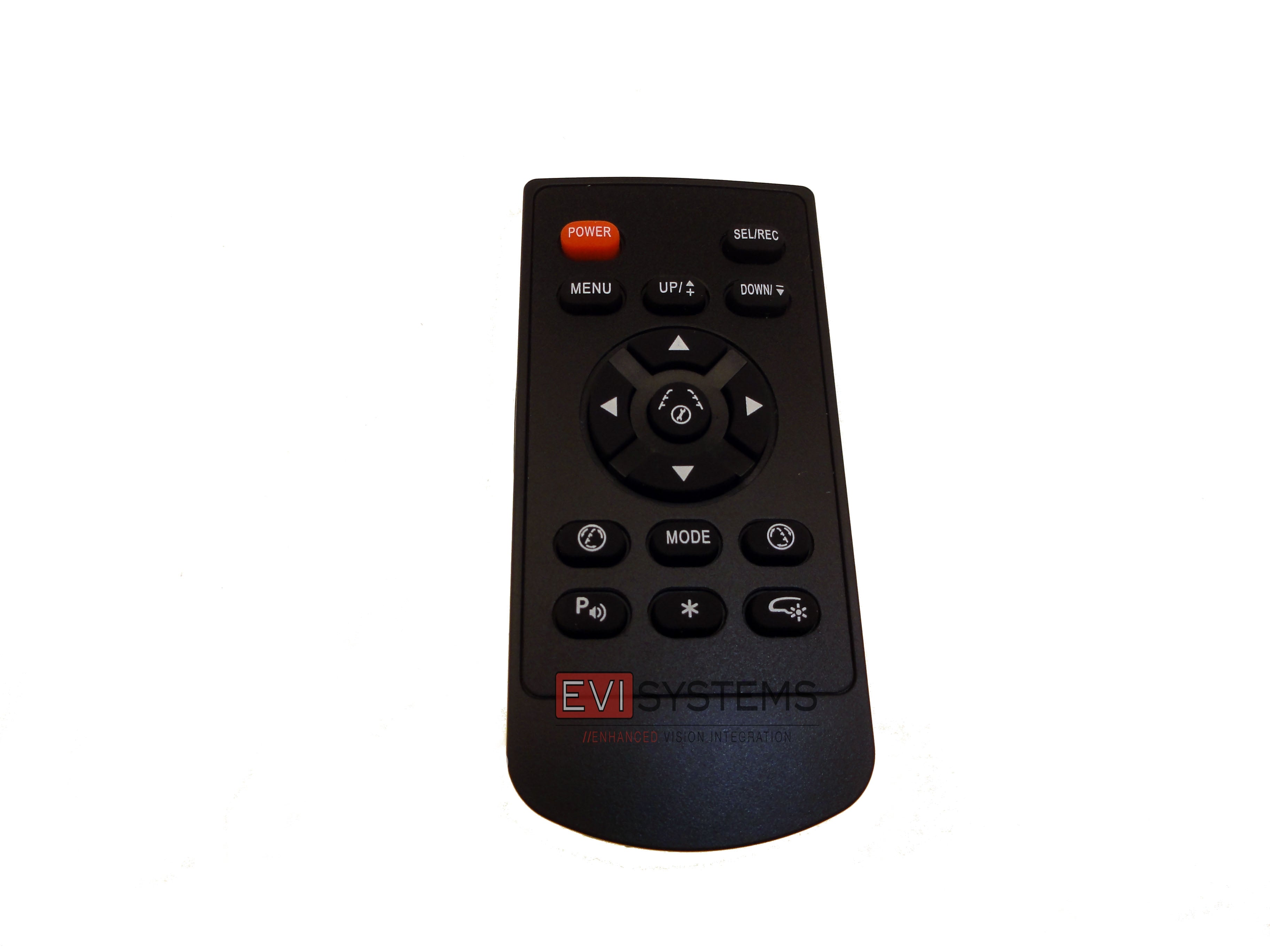

  • Remote control
  • 8GB SD card

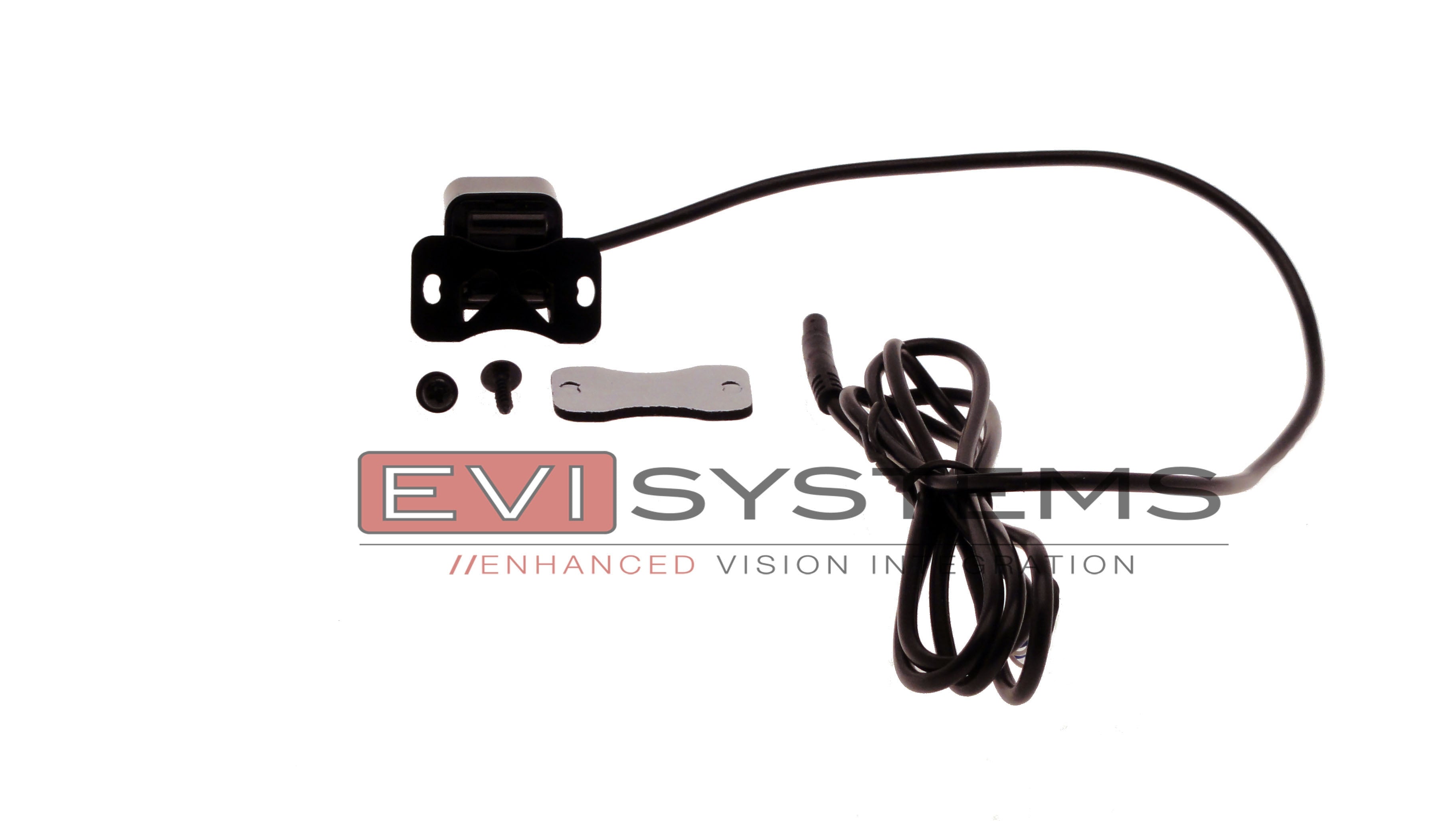

  • Universal License Plate cam with dual mounting brackets
  • 25' chassis harness
  • Zip ties
  • Install instructions
Specifications
System Manufacturer EVI Systems
Number of Cameras 2
Camera Resolution 600 TVL
Camera Type Rear Camera, Front Camera, Trailer/Camper/5th Wheel camera
Cam Only/Complete Kit Complete Kit
For a monitor it uses Packaged w/Rear view mirror display
Fit Type Universal fit
Connection Rearview Mirror
Includes Remote Yes
Mirror Mount Wedge Style
Mirror Options Video, DVR
Monitor Size 4.3'' Mirror
Camera Mount Location Universal Mount
Night Vision < .2 Lux
Number of Triggers 2
Camera Orientation Front or Rear Facing
Parking Guidelines Selectable on/off
Power Supply 12 Volts
Reason for Shopping Adding camera(s)
Sensor Brand EVI Systems
Sensor Type Super CMOS
Sound Options With Microphone
Split Screen No
Vehicle Interface Includes Rearview Mirror
Vehicle Category Car, Truck, Camper/Trailer (if needing standalone system), Universal
Camera Input Ports 2
Video System NTSC
Viewing Angle 170 Degrees
Warranty 1 Year
Waterproof/Dustproof Level IP 67
Wiring Type Hard Wired
Compatibility

This camera kit will fit any vehicle with a license plate when using the license plate bracket. When using the small mount bracket the minimum surface required is 1.5 inches wide by .75 inches deep.

It is recommended to turn off the parking lines on the camera and use the lines in the mirror instead. The lines in the mirror are adjustable for your vehicle!

This mirror with fit any vehicle with a standard wedge style mirror mount.

Installation

Install on either your license plate mount or on any flat surface - comes with two brackets.  Run the wiring harness to the front of the vehicle and make connections to the mirror and power source.

Replace your existing mirror with this replacement mirror, harness is included!  You will need to locate a reverse activated power source, an accessory power source (only on when the ignition is turned on), and a 12-volt constant power source.
