Multi-Cam Interface for 8" IO5, IO6Factory Display Radios, Fits Select GM®
SKU#: CS-GM8MC-VI
Availability:
In Stock
SKU#:
CS-GM8MC-VI
$410.00
Quantity
Adds Multi-Cam Support to 8" GM® Screen!
Description
This multi camera interface allows users to integrate to an existing rear view camera or add a rear camera if vehicle doesn't have one. Also, add a front and/or side cameras, all integrated into a IO5 or IO6 8” factory display in Chevrolet® and GMC® vehicles. Using this interface module, combined with a rear-view camera and front or side cameras (not included) provides the driver with a complete, unobstructed view of what’s around the vehicle displayed on the existing 8” IO5 or IO6 factory display.
The integration module is completely plug and play with your factory IO5 or IO6 system. Allows connection of four cameras to the factory screen in addition to the OEM backup camera. Also, allows monitoring of any connected camera at any time while driving (not including OEM backup camera). Right and left blind spot camera inputs are automatically triggered by the turn signals. Cameras can be triggered at any time using the included push button. Factory rear camera is not available above 7 mph.
Features:
- Front facing camera can be triggered to power on automatically when the vehicle is shifted from reverse to drive (5 seconds) or manually pressing the external push button.
- Mirror mount cameras are turn signal activated and can also be powered on manually via the external push button. The camera will turn off after 7 seconds of turn signal staying "ON" in cases like at a traffic light.
- Reverse triggered rear view camera (aftermarket). Can also be manually powered on using the push button.
- Factory reverse camera works the same- comes on automatically when vehicle is put in reverse. Not available over 7 mph.

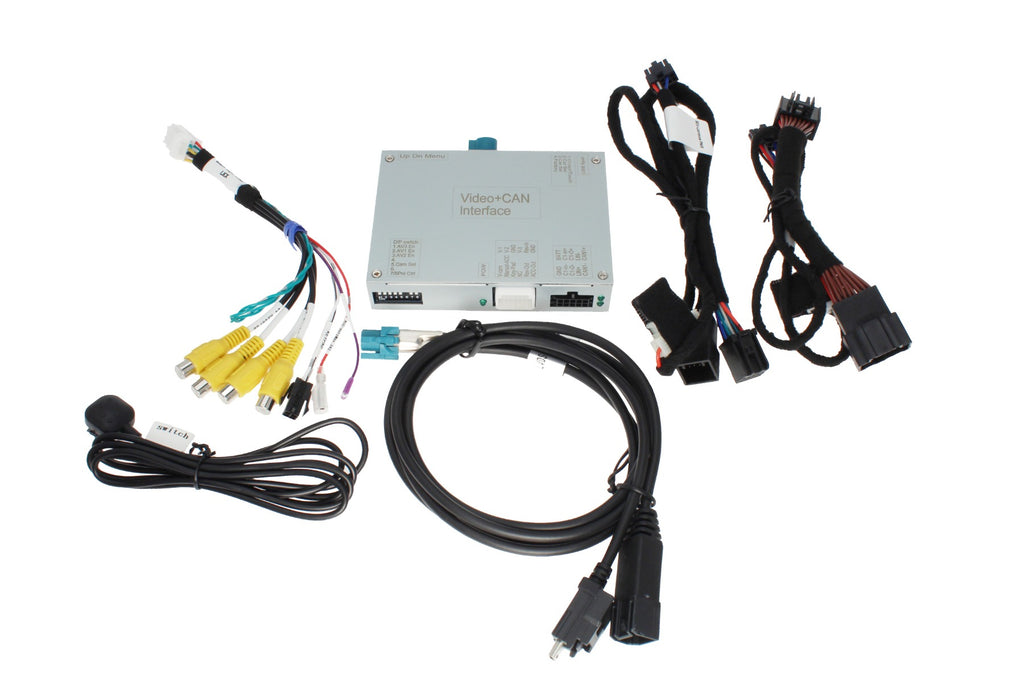

Kit Includes:
- GM® Multi-Cam interface module
- Install instructions
- CAMERAS AND DISPLAY RADIO NOT INCLUDED
This interface kit comes with a 3 year warranty.
**Not compatible if vehicle has Rear Seat Entertainment system.
Specifications
| System Manufacturer | EVI Systems |
| For a monitor it uses | Your factory display |
| Connection | Plug and Play to Factory Dash Display |
| Make | GMC,Chevrolet |
| Radio Screen Size | 8\ MyLInk/Intellilink |
| Vehicle Interface | Includes Factory Integration Module |
| Camera Input Ports | 4 |
| Model | Sierra,Canyon,Colorado,Silverado |
| Warranty | 3 Year |
| Wiring Type | Factory Plug&Play |
| Year | 2014,2015,2016,2017,2018,2019 |
| Make Filter | Chevrolet, GMC |
| Model Filter | Canyon, Colorado, Sierra, Silverado |
| Year Filter | 2014, 2015, 2016, 2017, 2018, 2019 |
Compatibility
Vehicle must have the IO5 or IO6 code listed on the service parts sticker. Not compatible if vehicle has Rear Seat Entertainment system.
Chevrolet®
2016-2019 Colorado
2014-2019 Silverado 1500
2014-2019 Silverado 2500
2014-2019 Silverado 3500
GMC®
2016-2019 Canyon
2014-2019 Sierra 1500
2014-2019 Sierra 2500
2014-2019 Sierra 3500
Vehicle must have IO5 or IO6 option code on the service parts sticker located in the glove box OR 2018+ vehicles will have this sticker located in the driver's side door jam by the "B" pillar. You can scan the QR code on the sticker using a mobile device to view the options.
Installation
This kit connects up to 4 cameras to your GMC® factory 8" IO5 or IO6 radio, all plug and play - no cutting of factory wires! The interface module plugs into the back of your factory navigation screen. The instructions walk you through the entire installation process.
