Front Camera Kit for IOR Display, Fits 2019-2021 GM®
SKU#: CS-GMIOR-F1921
Availability:
In Stock
SKU#:
CS-GMIOR-F1921
$606.00
Quantity
Front cam for 7" or 8" IOR display
Description
This is a complete kit that contains our universal front camera and a front-camera integration module for your factory 7" or 8" IOR radio.
Compatible with several 2019-2021 GM® trucks with factory IOR 7" or 8" radio without OEM Navigation. See compatibility tab.
This kit allows you to see what is directly in front of the truck! The front-cam integration module allows for integration into your factory screen without having the dealer flash program your radio. The factory rear camera will come on automatically when in reverse and front camera will come on when you shift from reverse to drive or you can manually activate it by using the included push button. Factory rear camera not available above speeds of 7mph.

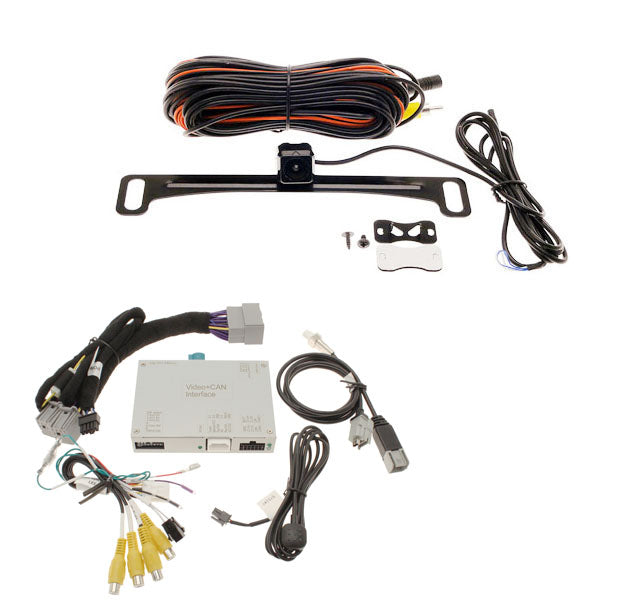

Kit includes:
- Front-cam interface for your factory 7" or 8" GM® display with IOR radio code without OEM Navigation(display not included)- No dealer flashing required!
- Universal front camera with harness and dual mount brackets
- Zip ties
- Detailed installation instructions
- 3 year warranty
Camera Specifications:
- CMOS forward looking camera - designed for front applications
- 170 degree view
- 600 TV lines of resolution
- .2 lux minimum illumination - Outstanding night vision!
Front Cam interface features:
- Front facing camera can be triggered to power on automatically when the vehicle is shifted from reverse to drive and stays on 10 seconds. Or manually activated using the included push button.
- NO DEALER ACTIVATION REQUIRED!
*Monitor is not included with this kit. It is designed to work with your existing IOR radio screen. Professional installation is recommended.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Front Camera |
| For a monitor it uses | Your factory display |
| Connection | RCA with opt. Factory Interface |
| Make | GMC,Chevrolet |
| Camera Mount Location | Front Grille |
| Night Vision | .2 Lux |
| Camera Orientation | Front or Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | Factory LCD |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 1 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Sierra,Sierra HD,Colorado,Silverado,Silverado HD,Canyon |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2019,2020,2021,2022,2023,2024,2025 |
| Make Filter | Chevrolet, GMC |
| Model Filter | Canyon, Colorado, Sierra, Sierra HD, Silverado, Silverado HD |
| Year Filter | 2019, 2020, 2021 |
Compatibility
Vehicle must have IOR option code on the service parts sticker located in the driver's side door jamb by the "B" pillar. You can scan the QR code on the sticker using a mobile device to view the vehicle options.
Compatible with 7" or 8" IOR display- without OEM Navigation only.
2019-2021 GMC® Sierra pickup truck with 7" or 8" IOR display screen without OEM Navigation.
2019-2021 GMC® Canyon pickup truck with 7" or 8" IOR display screen without OEM Navigation.
2019-2021 Chevrolet® Silverado pickup truck with 7" or 8" IOR display screen without OEM Navigation.
2019-2021 Chevrolet® Colorado pickup truck with 7" or 8" IOR display screen without OEM Navigation.
Installation
Determine which bracket is more suitable for your installation and swap the camera if necessary. The license plate bracket is already mounted on the camera. Universal bracket mounts to any flat surface and can be mounted on a rung in the grille or hanging from a rung in the grille.
The front-cam integration module connects your factory 7" or 8" IOR non navigation radio. You will need to open the dash to gain access to the radio connections. Splicing into the vehicle wiring is required.
Locate a 12 volt power source on the vehicle to tap into for powering the cameras.
