Front and Side Camera Kit for 10" or 13" IOK Display, Fits 2022-2025 GM®

Front and Side Camera Kit for 10" or 13" IOK Display, Fits 2022-2025 GM®

SKU#: 7CS-GMIOK-FS

Availability: In Stock
SKU#: 7CS-GMIOK-FS
$885.00

Quantity

Front and side cameras for IOK display

Description
This is a complete kit that contains our universal front camera, side cameras and an integration module for your 10" or 13" factory IOK radio.
Compatible with several 2022-2025 GM® trucks with factory 10" or 13" IOK radio. See compatibility tab.
This kit allows you to see what is directly in front of the truck and beside you! The camera interface module allows for integration into your factory screen without having the dealer flash program your radio.
The factory rear camera will come on automatically when in reverse and front camera will come on when you shift from reverse to drive or you can manually activate it by pressing the Home button for the radio. Factory rear camera not available above speeds of 7mph. The side cameras get installed under your side mirrors to give you a full view of your typical blind spots - all automatically activated using your turn signals!

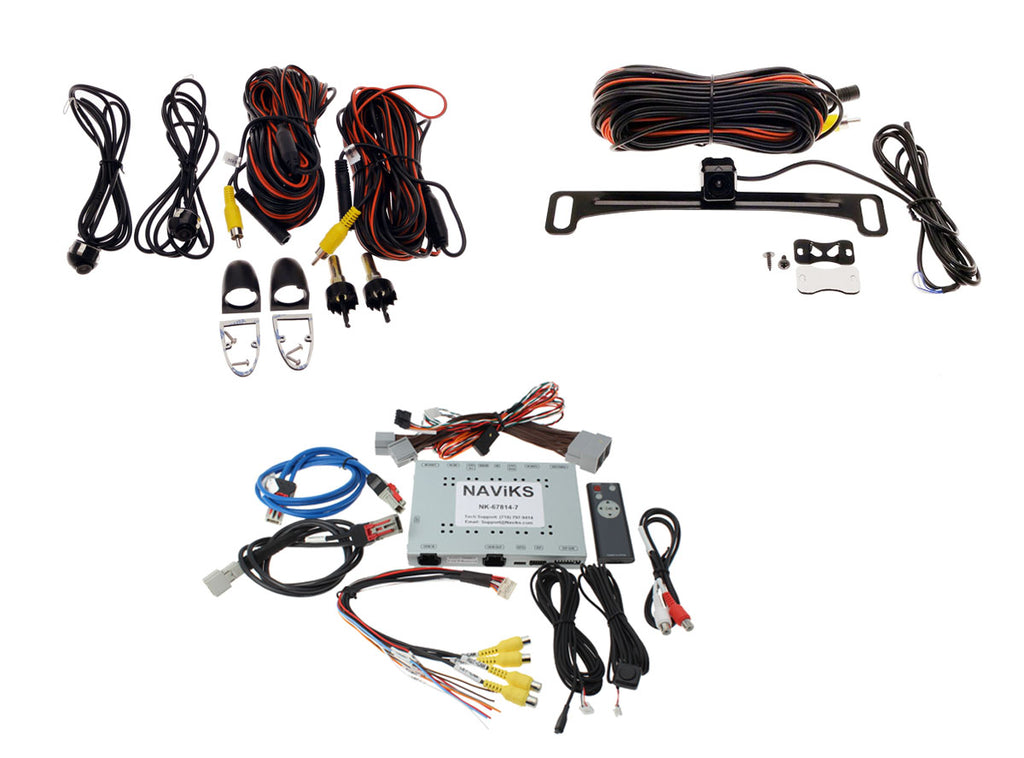

Kit includes:

  • Multi-camera interface for your 10" or 13" factory GM® display with IOK radio code (display not included)- No dealer flashing required!

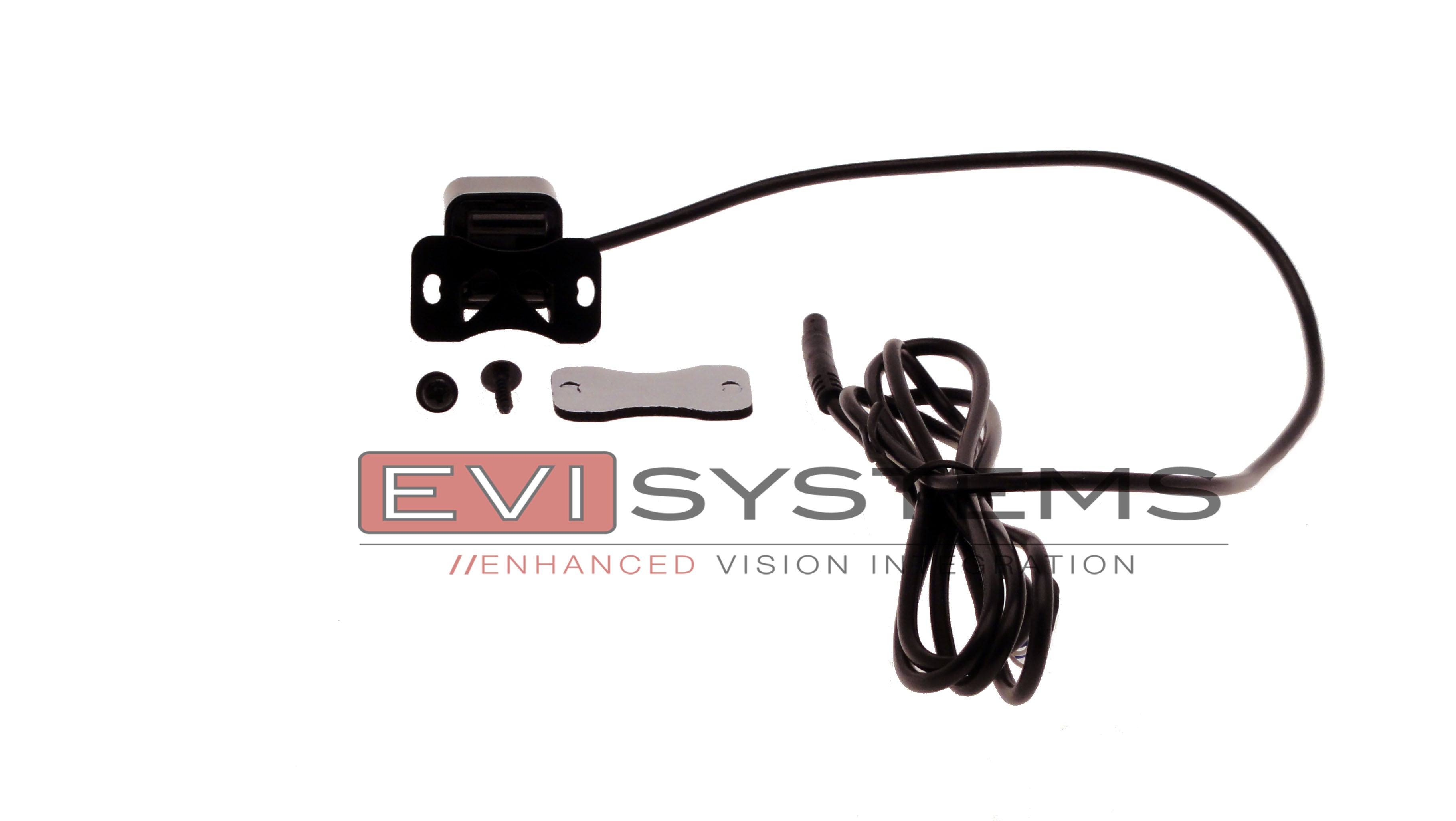

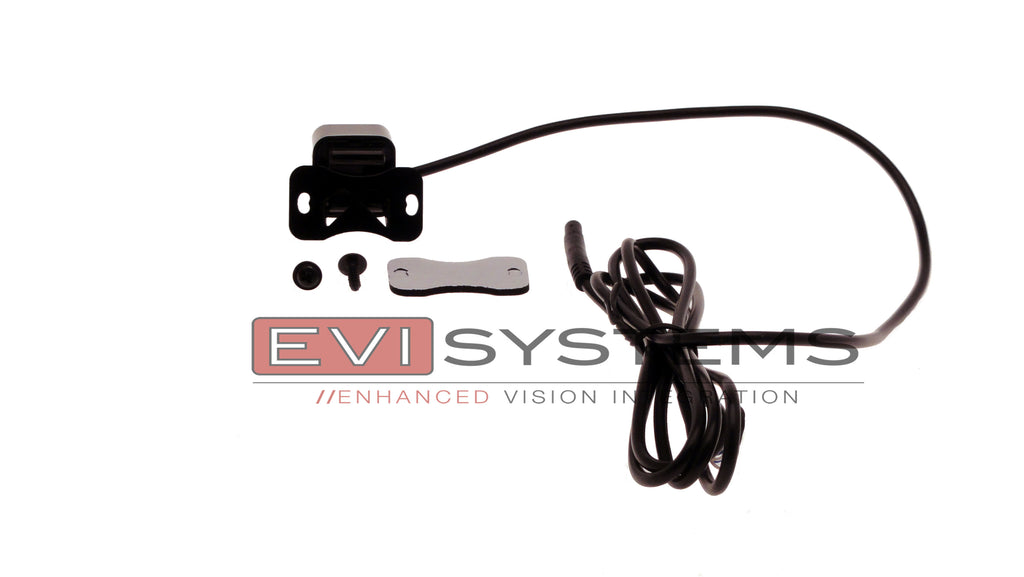

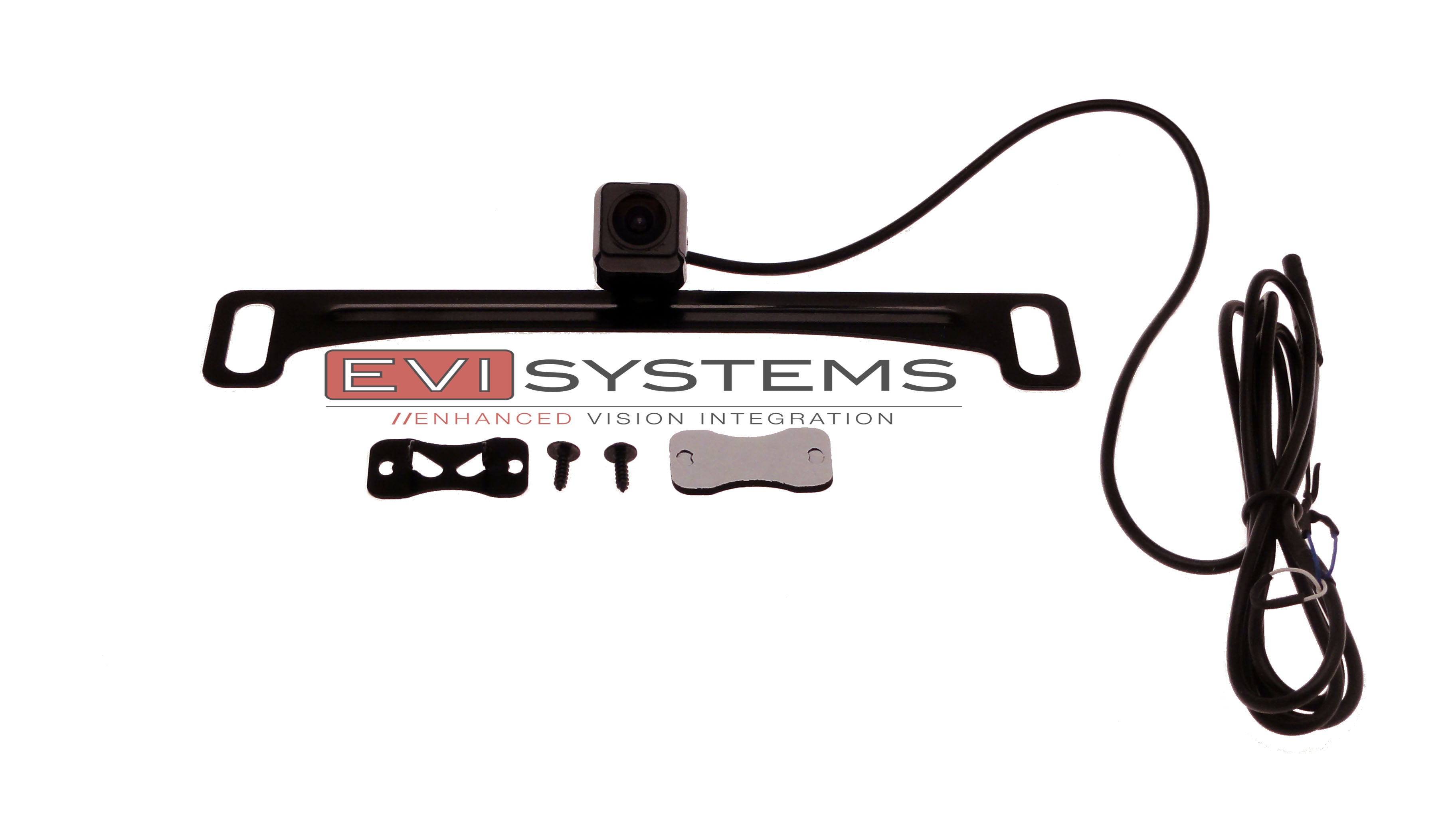

  • Universal front camera with harness and dual mount brackets

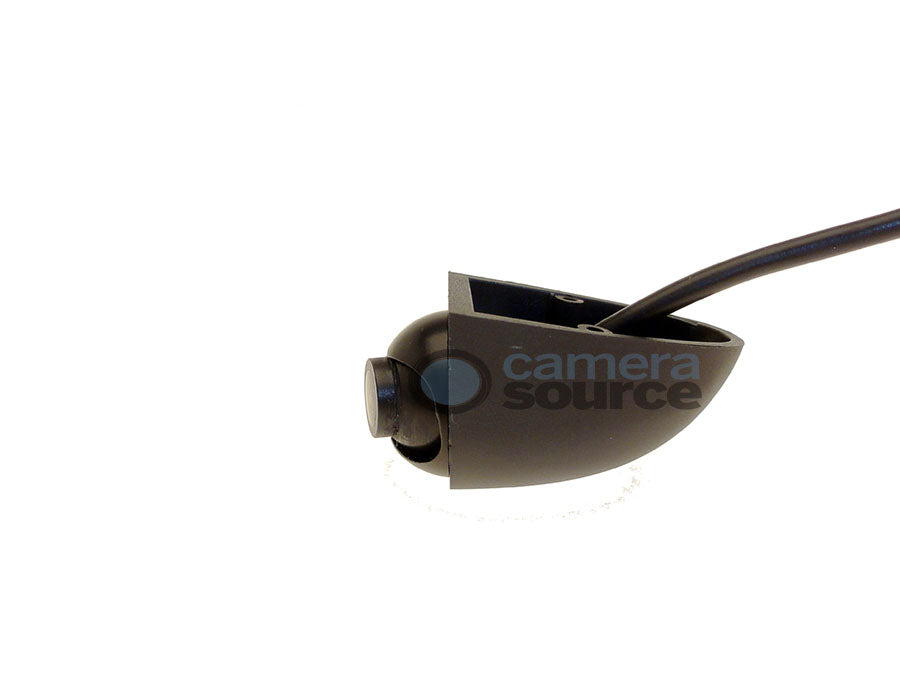

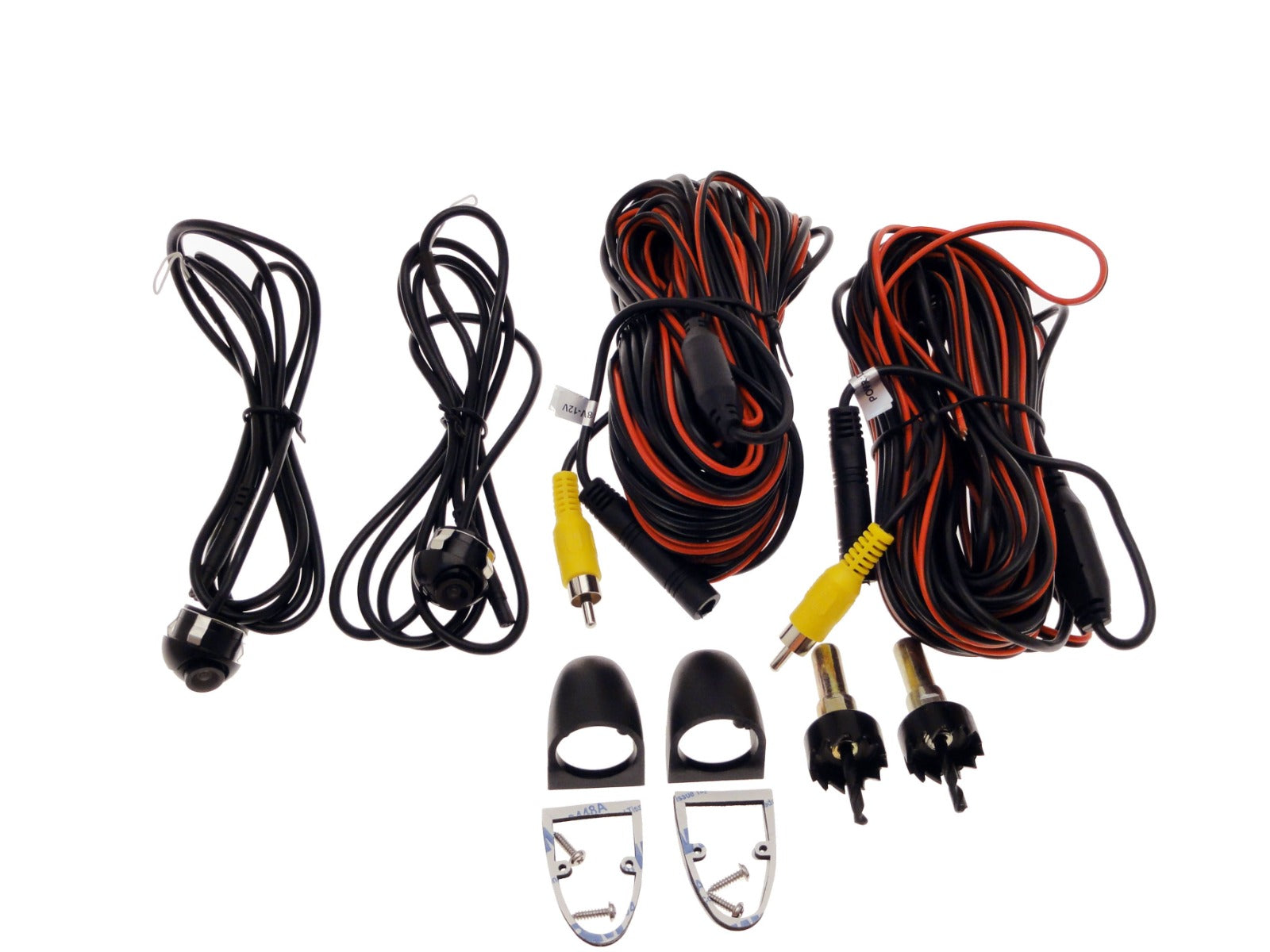

  • (2) Side cameras with harnesses and mounting brackets
  • Zip ties
  • Detailed installation instructions
  • 3 year warranty on the cameras

Camera Specifications:

  • CMOS forward looking camera - designed for front applications
  • 170 degree view
  • 600 TV lines of resolution
  • .2 lux minimum illumination - Outstanding night vision!

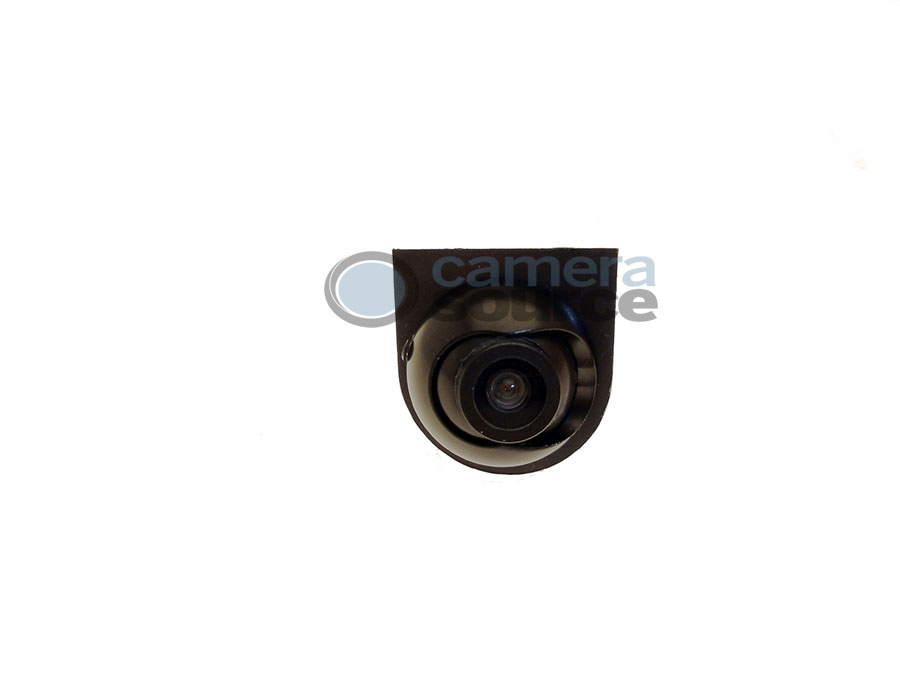

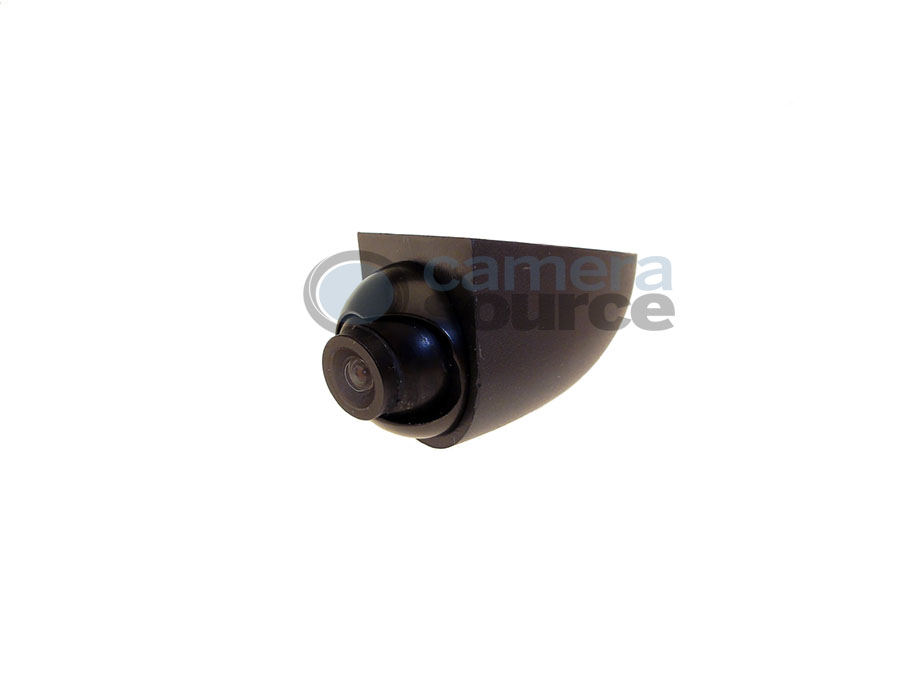

  • Side cameras are designed for rear-view applications and can be fully adjusted to meet your view needs
  • Side cameras have a 150 degree view

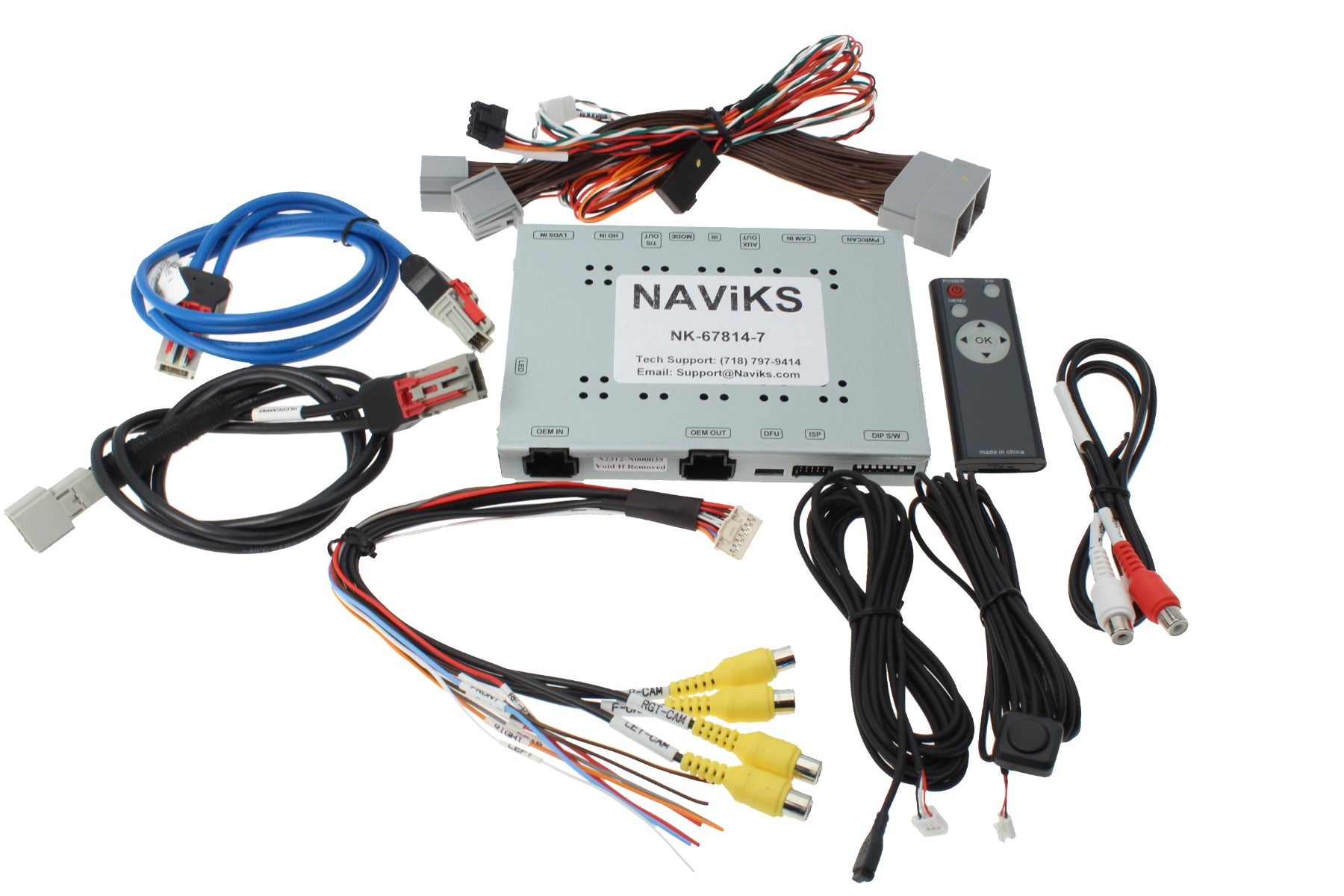

Multi-cam interface features:

Front facing camera can be triggered to power on automatically when the vehicle is shifted from reverse to drive. Or manually activated by pressing the HOME button on the radio for 3 seconds.
  • Built-in HDMI video input could be used with: Smartphone HDMI Adapter, Firestick, Apple TV, Amazon Stick, Hulu Stick.
  • Built-in audio input, true auxiliary input with no audio lag.
  • Retains ALL factory features.
  • Will not affect backup camera, tested and confirmed to work with vehicle's that have just a backup camera system and vehicles with the 360 view system.
  • Automatic switching to the left and right camera using the cars turn signal switch.
  • Left, right and front Camera can be setup to be turned on using a 12 Volt trigger if desired.
  • Rear Camera input for customers looking to override original backup camera, add a trailer camera with priority over OEM camera in reverse gear.
  • Front Camera can be setup to turn on automatically after shifting out of reverse gear, it can stay on from 3 seconds to 25 seconds you select the time using the unit's interface.
  • Great solution for customers looking to add trailer cameras as well.
  • For Audio Auxiliary operation you will need a USB storage device with at least one audio file.
  • NO DEALER ACTIVATION REQUIRED!

*Monitor is not included with this kit. It is designed to work with your existing factory radio screen. This camera kit comes with a 3 year warranty and the interface module has a 1 year warranty. Professional installation is recommended.

Specifications
System Manufacturer EVI Systems
Number of Cameras 3
Camera Resolution 600 TVL
Camera Type Front Camera, Side Camera, Multiple cameras (kit)
For a monitor it uses Your factory display
Connection Plug and Play to Factory Dash Display
Make GMC,Chevrolet
Camera Mount Location Side Mirror, Front Grille
Night Vision .2 Lux
Camera Orientation Front or Rear Facing
Parking Guidelines Selectable on/off
Power Supply 12 Volts
Radio Screen Size 10\ GM Display, 13\ GM Display, Factory LCD
Reason for Shopping Adding camera(s)
Sensor Type Super CMOS
Vehicle Interface Includes Factory Integration Module
Vehicle Category Truck
Camera Input Ports 1
Video System NTSC
Viewing Angle 170 Degrees
Model Sierra,Sierra HD,Silverado,Silverado HD,Colorado,Canyon
Warranty 3 Year
Waterproof/Dustproof Level IP 67
Wiring Type Hard Wired
Year 2022,2023,2024,2025
Make Filter Chevrolet, GMC
Model Filter Sierra, Sierra HD, Silverado, Silverado HD, Colorado, Canyon
Year Filter 2022, 2023, 2024, 2025
Compatibility

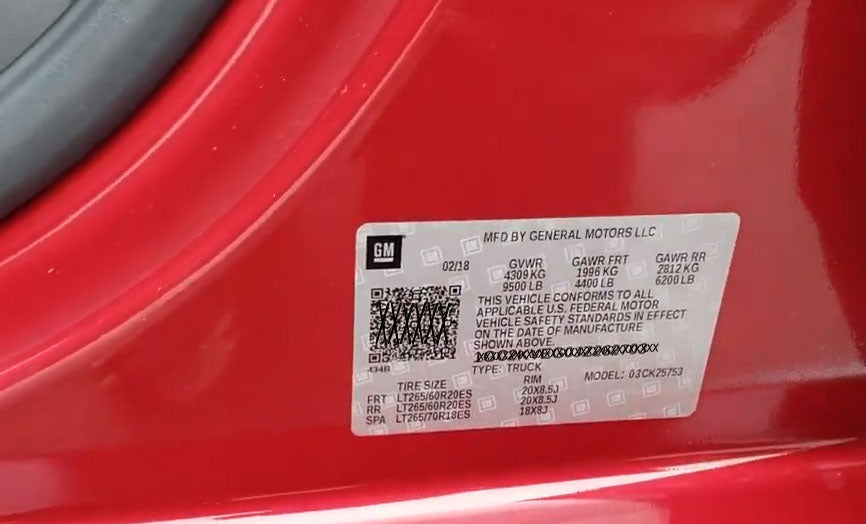

Vehicle must have IOK option code on the service parts sticker located in the driver's side door jamb by the "B" pillar. You can scan the QR code on the sticker using a mobile device to view the vehicle options.

2022-2025 GMC® Sierra pickup truck with the IOK 10" or 13" display screen.
2022-2025 GMC® Canyon pickup truck with the IOK 10" or 13" display screen.

2022-2025 Chevrolet® Silverado pickup truck with the IOK 10" or 13" display screen.
2022-2025 Chevrolet® Colorado pickup truck with the IOK 10" or 13" display screen.













Installation

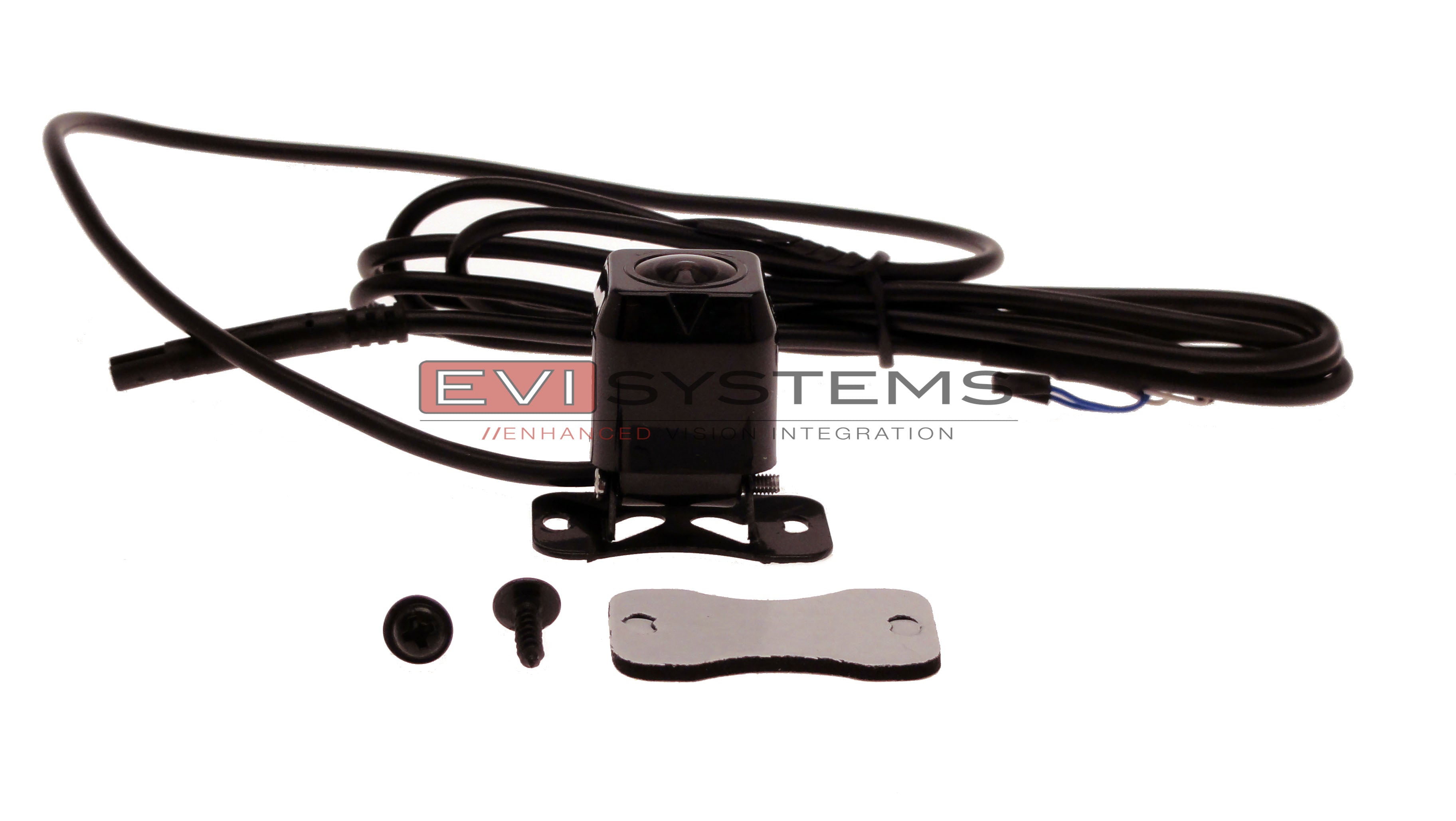

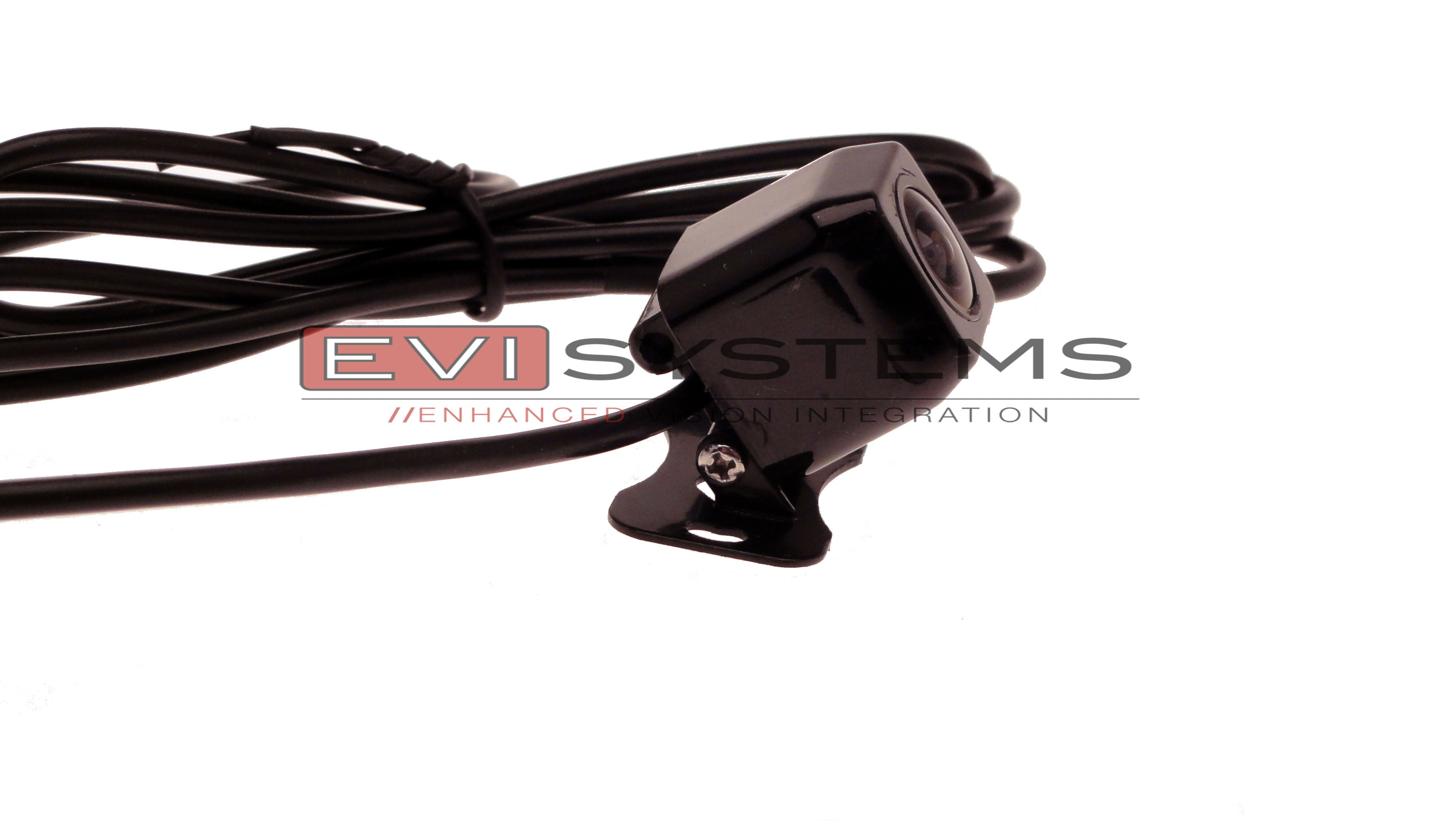

Determine which bracket is more suitable for your front camera installation and swap the camera if necessary.  The license plate bracket is already mounted on the camera.  Universal bracket mounts to any flat surface and can be mounted on a rung in the grille or hanging from a rung in the grille.

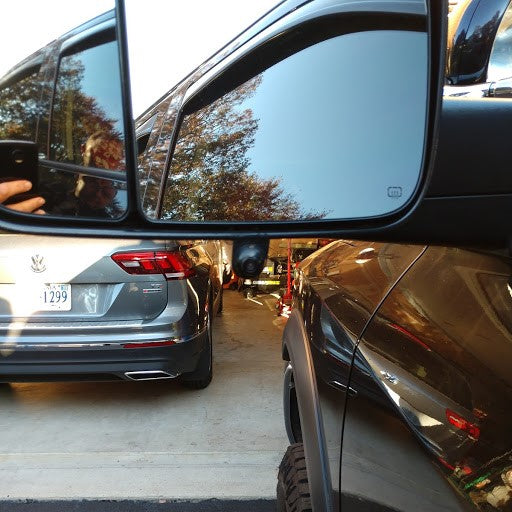

The side cameras will mount under your side mirrors, which will require complete removal and disassembly of your mirrors. These mirrors can be challenging to disassemble so professional installation is recommended for this kit.

The multi-cam integration module connects your factory 10" or 13" IOK factory radio.  You will need to open the dash to gain access behind the glovebox to the radio connections.

Cameras can be powered directly from the interface module.
