Universal backup camera with OBD Programmer For Ford® 4.2" Display
SKU#: CS-ULPM-F2T42G
Availability:
In Stock
SKU#:
CS-ULPM-F2T42G
$322.00
Quantity
No dealer programming required!
Description
This is a high quality OEM integrated backup camera solution for several Ford® vehicles that integrates right into the factory 4.2" display screen! This kit is plug and play into the back of the screen! In addition, no dealer programming is required making this a simple OEM integrated solution for your vehicle. The camera can be mounted on the license plate or it also comes with a mini mount that will allow you to mount the camera to the ledge above the license plate if you choose.
Make installation even easier with an add on 12 Volt power source to eliminate the need to locate a power source on the vehicle and avoid cutting or splicing into factory wiring! See related item SKU: CS-RPW-P

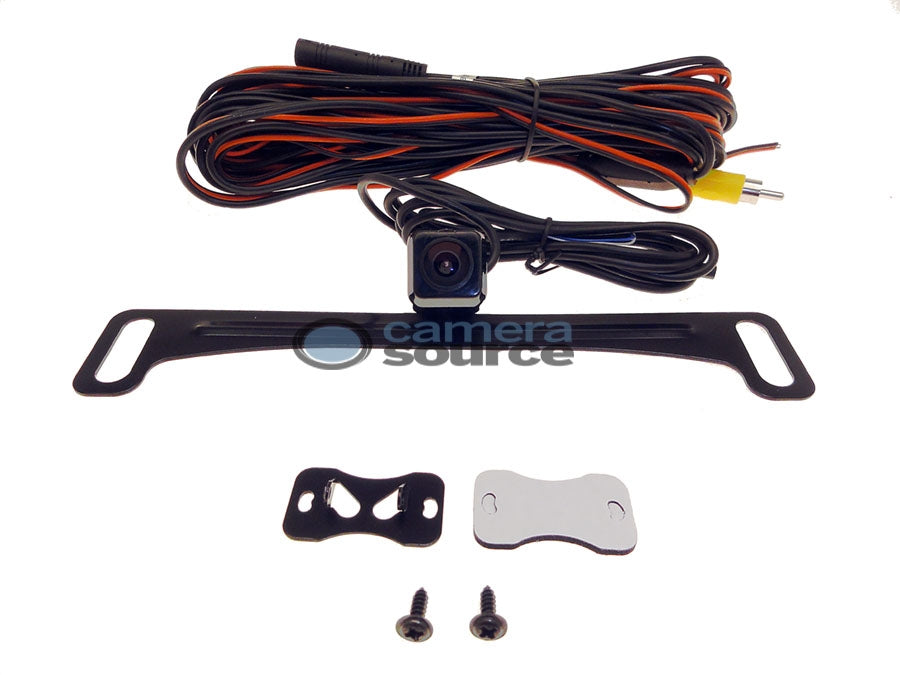

The kit comes with the following:

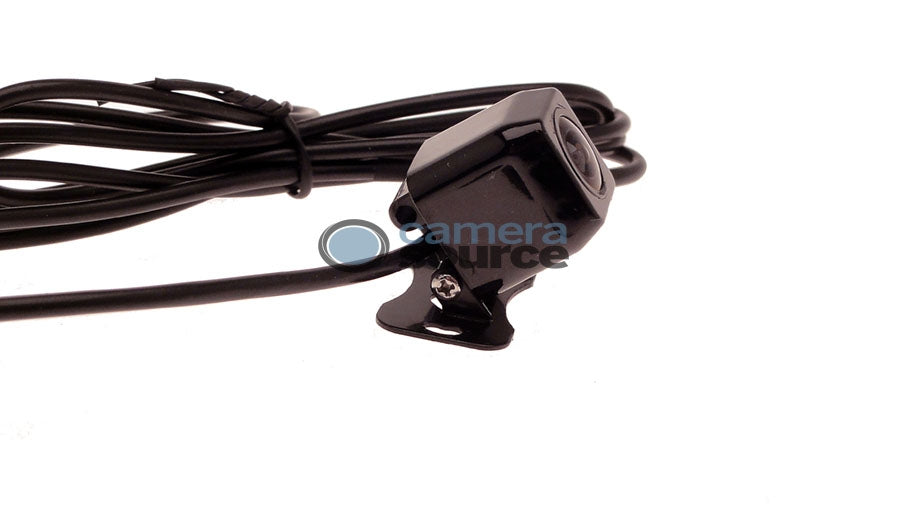

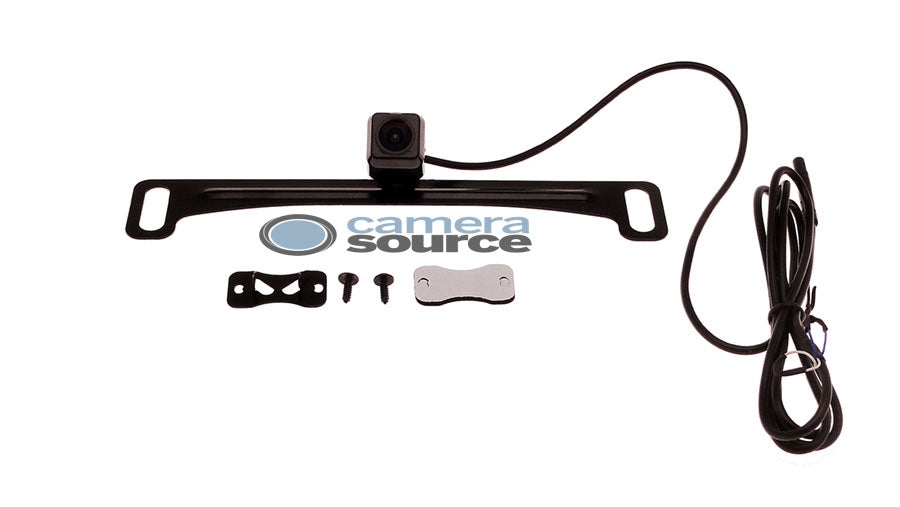

- Dual mount camera system with high grade Super CMOS sensor for an ultra clear view, mount on license plate or lip mount as desired
- Full chassis harness

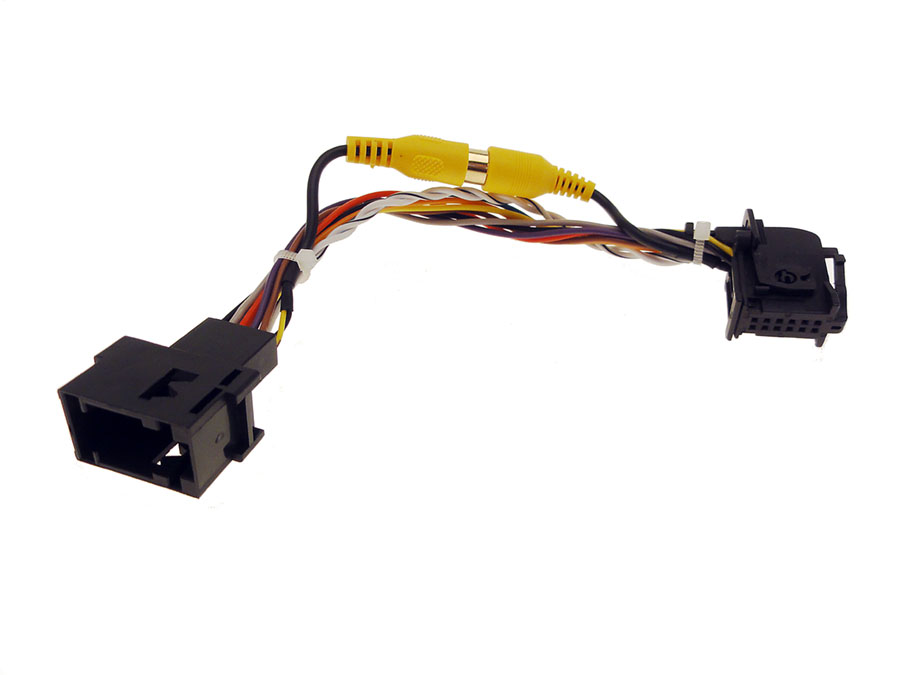

- Ford integration harness(compatible with 4.2" MyFord® display)

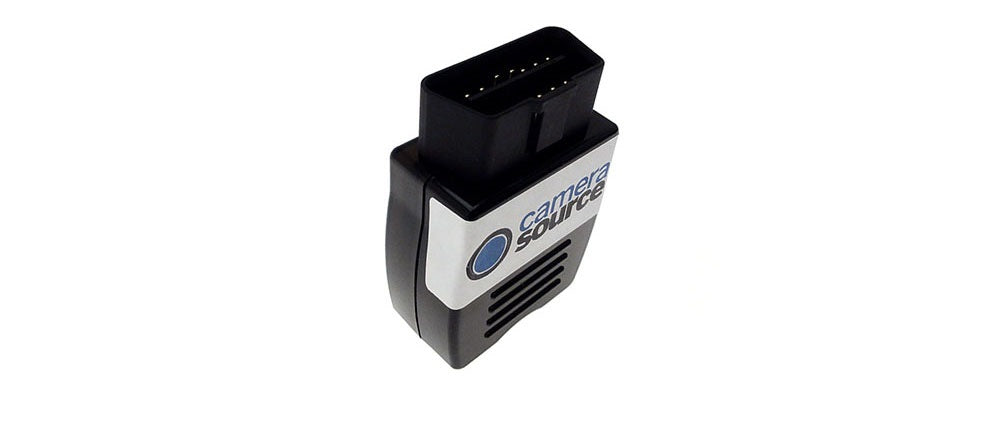

- OBD programming module
- Required mounting hardware/connectors
Camera Specifications:

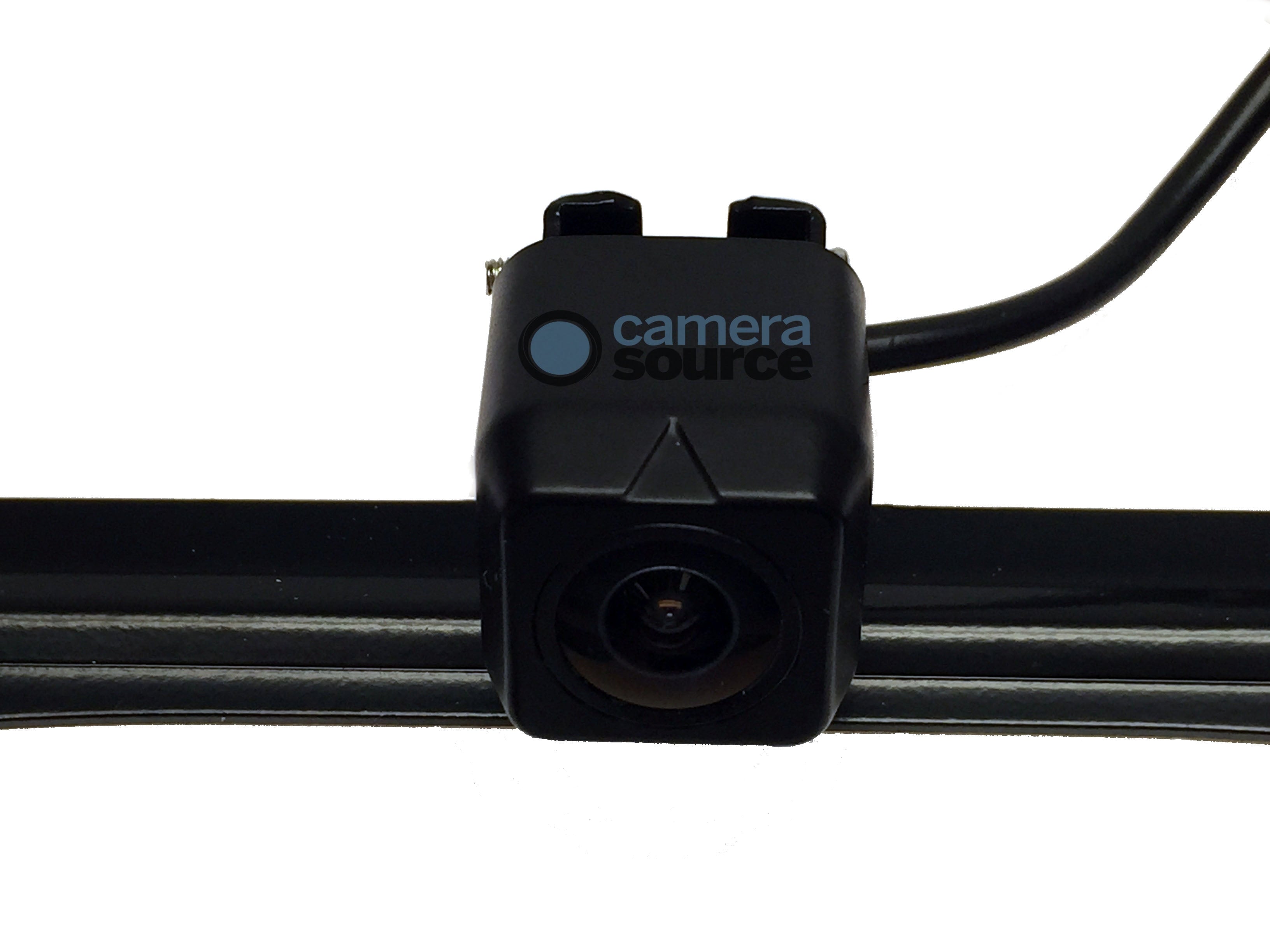

- Camera Source exclusive Super CMOS high grade sensor with night vision
- Selectable parking guidelines (can be turned off if desired) NOTE: Black center line is not present on actual display
- 600 TV lines of resolution
- <.2 lux minimum illumination - Outstanding night vision!
- 170 degree viewing angle
System has a 3 year warranty! **Monitor not included.**
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera |
| For a monitor it uses | Your factory display |
| Fit Type | Universal fit |
| Connection | Plug and Play to Factory Dash Display |
| Make | Ford,Lincoln |
| Camera Mount Location | Universal Mount |
| Night Vision | .3 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 4.2” Ford |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | CMOS III |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Car, Truck |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | CMax,Edge,Explorer,SportTrac,Expedition,Flex,Focus,Mustang,Taurus,Escape,Fusion,MKC,MKS,MKT,MKX,MKZ |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 68 Camera |
| Wiring Type | Hard Wired |
| Year | 2011,2012,2013,2014, 2015, 2016,2017,2018,2019,2020 |
| Make Filter | Ford, Lincoln |
| Model Filter | Edge, Escape, Expedition, Explorer, Flex, Focus, Fusion, MKC, MKS, MKT, MKX, MKZ, Mustang, SportTrac, Taurus |
| Year Filter | 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020 |
Compatibility
Compatible with the listed vehicles that have the 4.2" MyFord® screen.
- 2010-2014 Ford Econoline E-Series
- 2010-2020 Ford Edge
- 2010-2020 Ford Escape & Escape Hybrid
- 2010-2020 Ford Expedition
- 2010-2020 Ford F-150
- 2010-2020 Ford Flex
- 2010-2020 Ford Fusion
- 2010-2020 Ford Mustang
- 2010-2020 Ford Super Duty F-250-F-550
- 2010-2020 Ford Taurus
- 2012-2020 Ford Explorer & Sport Trac
- 2012-2020 Ford Focus
- 2013-2020 Ford C-Max
- 2014-2020 Ford Fiesta
- 2014-2020 Ford Transit (excludes Transit Connect)
Installation
Install on either your license plate mount or on any flat surface - comes with two brackets. The RCA cable will run inside the vehicle to the back of your factory display and you will need a reverse activated 12v power source and ground wire.
Make installation even easier with an add on 12 Volt power source to eliminate the need to locate a power source on the vehicle and avoid cutting or splicing into factory wiring! See related item SKU: CS-RPW-P
Install the RCA T-Harness to the back of your factory 4.2" SYNC display. Connect the RCA from the main chassis harness to the T-Harness.
Plug the OBD programmer into the OBD port under the steering wheel and programming is completed in less than a minute!
NO DEALER ACTIVATION REQUIRED
