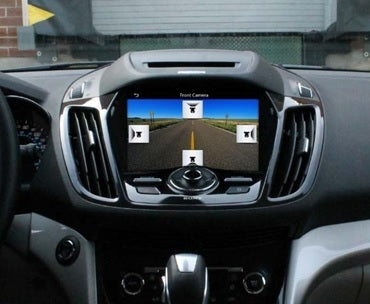

Universal backup camera with OBD Programmer for Ford® 8" Display
SKU#: CS-ULPM-F2T8G
Availability:
In Stock
SKU#:
CS-ULPM-F2T8G
$322.00
Quantity
No dealer programming required!
Description

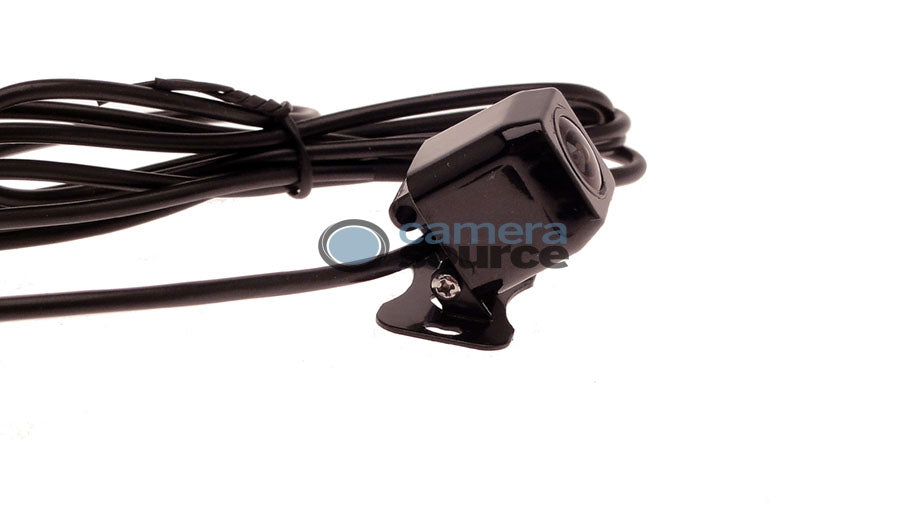

This is a high quality OEM integrated backup camera solution for several Ford® vehicles that integrates right into the factory display screen! This kit is plug and play into the back of the screen! In addition, no dealer programming is required making this a simple OEM integrated solution for your vehicle The camera can be mounted on the license plate or it also comes with a mini mount that will allow you to mount the camera to the ledge above the license plate if you choose.

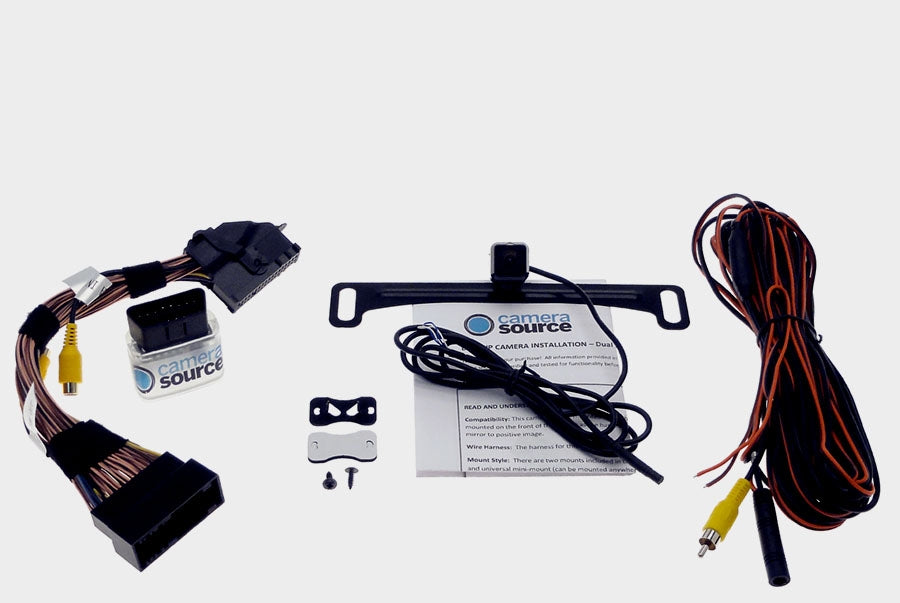

The kit comes with the following:

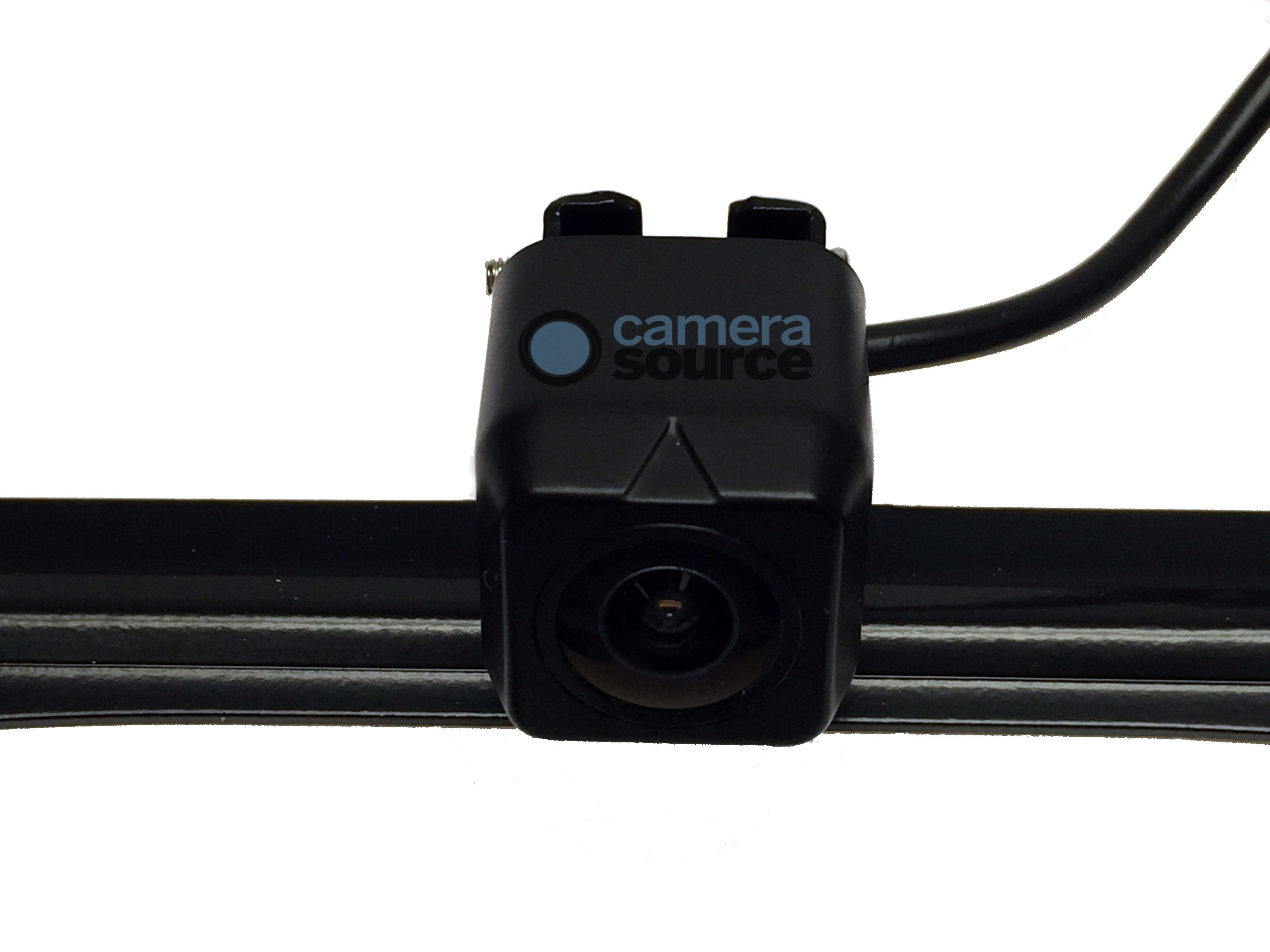

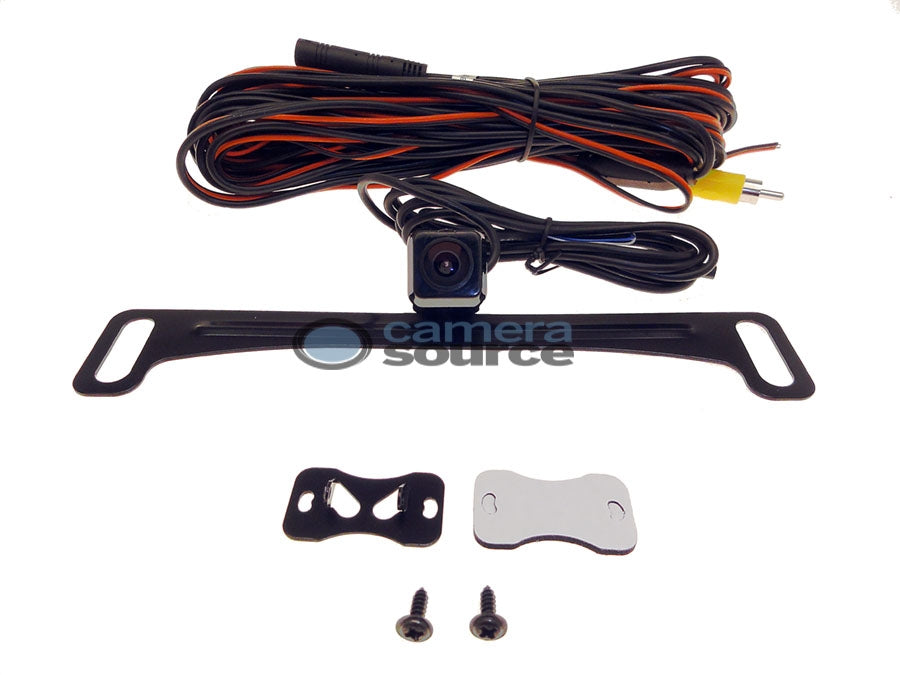

- Dual mount camera system with high grade Super CMOS sensor for an ultra-clear view, mount on license plate or lip mount as desired
- Full chassis harness

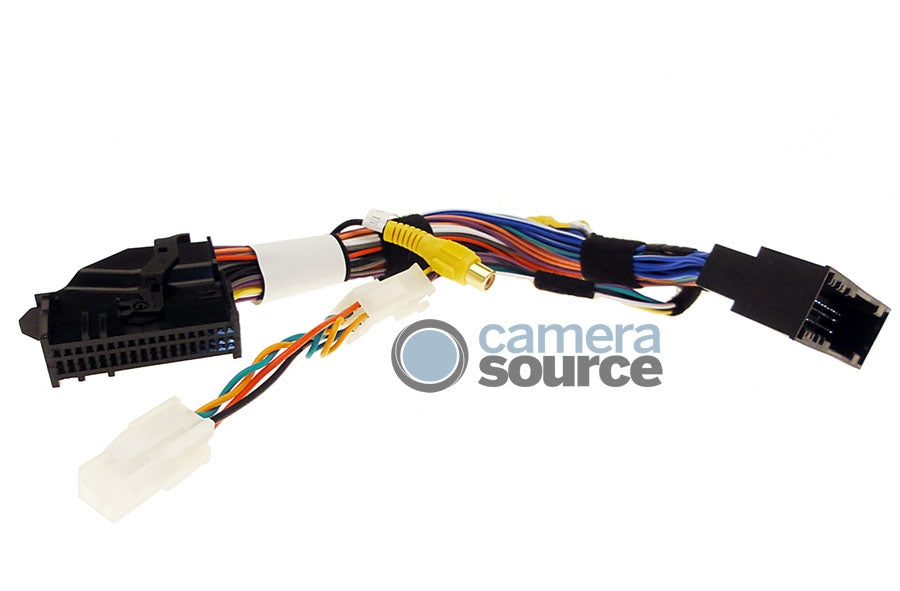

- Ford® Sync integration harness(compatible with SYNC 2 or SYNC 3)

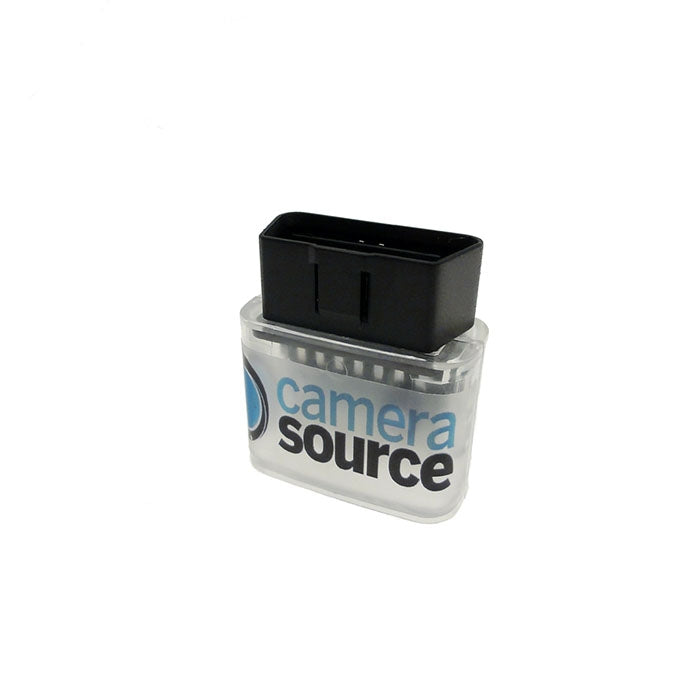

- OBD programming module
- Required mounting hardware/connectors
Camera Specifications:
- Camera Source exclusive Super CMOS high grade sensor with night vision

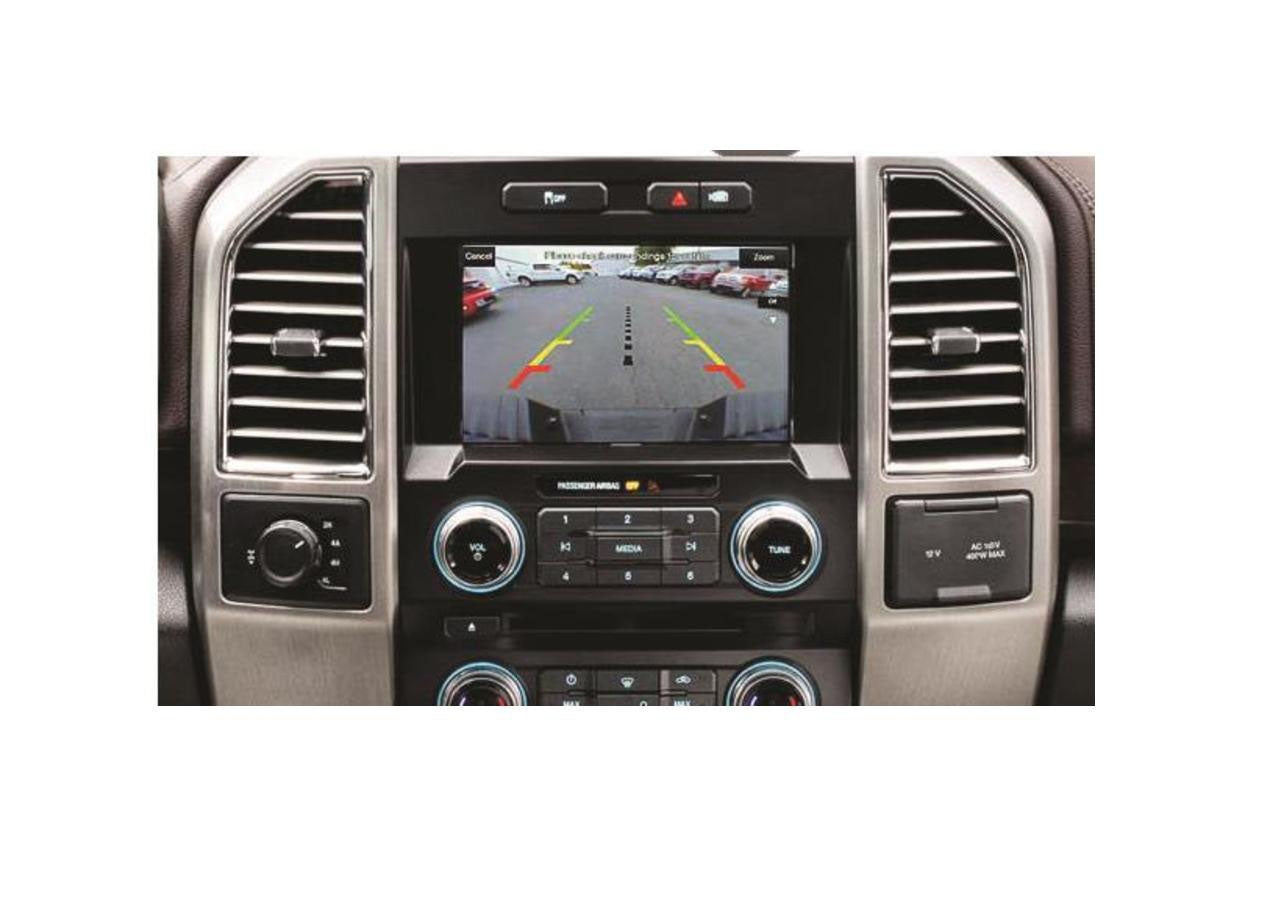

- Selectable parking guidelines (can be turned off if desired) NOTE: Black center line is not present on actual display
- 600 TV lines of resolution
- <.2 lux minimum illumination - Outstanding night vision!
- 170 degree viewing angle
System has a 3 year warranty! **Monitor not included.**
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera |
| For a monitor it uses | Your factory display |
| Fit Type | Universal fit |
| Connection | Plug and Play to Factory Dash Display |
| Make | Ford,Lincoln |
| Camera Mount Location | Universal Mount |
| Night Vision | .3 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 8” Ford Sync 2, 8\ Ford Sync 3 |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | CMOS III |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Car, Truck |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | C-Max,Edge,Explorer,SportTrac,Expedition,Flex,Focus,Mustang,Taurus,Escape,Fusion,MKC,MKS,MKT,MKX,MKZ |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 68 Camera |
| Wiring Type | Hard Wired |
| Year | 2011,2012,2013,2014,2015,2016,2017,2018,2019,2020 |
| Make Filter | Ford, Lincoln |
| Model Filter | C-Max, Edge, Escape, Explorer, Flex, Focus, Fusion, MKC, MKS, MKT, MKX, MKZ, Mustang, Super Duty |
| Year Filter | 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020 |
Compatibility
Compatible with the listed vehicles that have the 8" SYNC 2 or SYNC 3 screen.
| C-Max | 2013-2020 |
| Edge | 2011-2020 |
| Escape | 2013-2020 |
| Expedition | 2015-2020 |
| Explorer/Sport Trac | 2011-2020 |
| Flex | 2013-2020 |
| Focus | 2012-2020 |
| Fusion | 2013-2020 |
| MKC | 2015-2020 |
| MKS | 2013-2020 |
| MKT | 2013-2020 |
| MKX | 2011-2020 |
| MKZ | 2013-2020 |
| Mustang | 2015-2020 |
| Taurus | 2013-2020 |
Installation

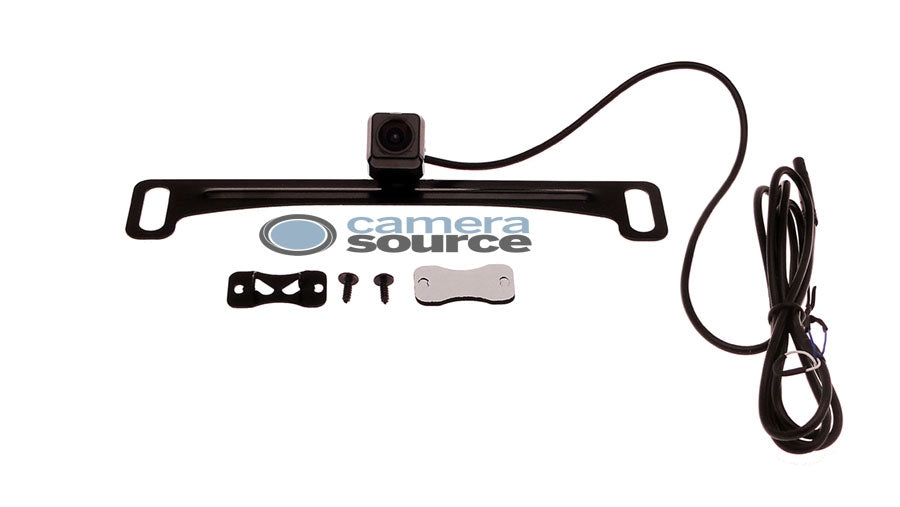

Install on either your license plate mount or on any flat surface - comes with two brackets. The RCA cable will run inside the vehicle to the back of your factory display and you will need a reverse activated 12v power source and ground wire.
Install the RCA T-Harness to the back of your factory 8" SYNC display. Connect the RCA from the main chassis harness to the T-Harness.
Plug the OBD programmer into the OBD port under the steering wheel and programming is completed in less than a minute!
NO DEALER ACTIVATION REQUIRED
