Front Grille Camera System for Universal Display fits Ford® Super Duty
SKU#: CS-FSDF
Availability:
In Stock
SKU#:
CS-FSDF
$179.00
Quantity
Chrome OE fit, RCA harness!
Description

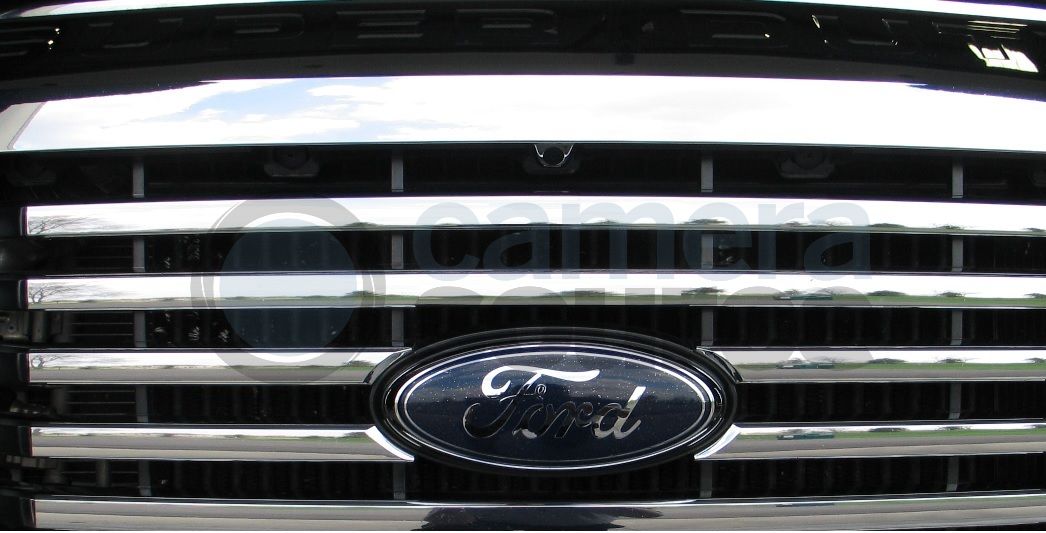

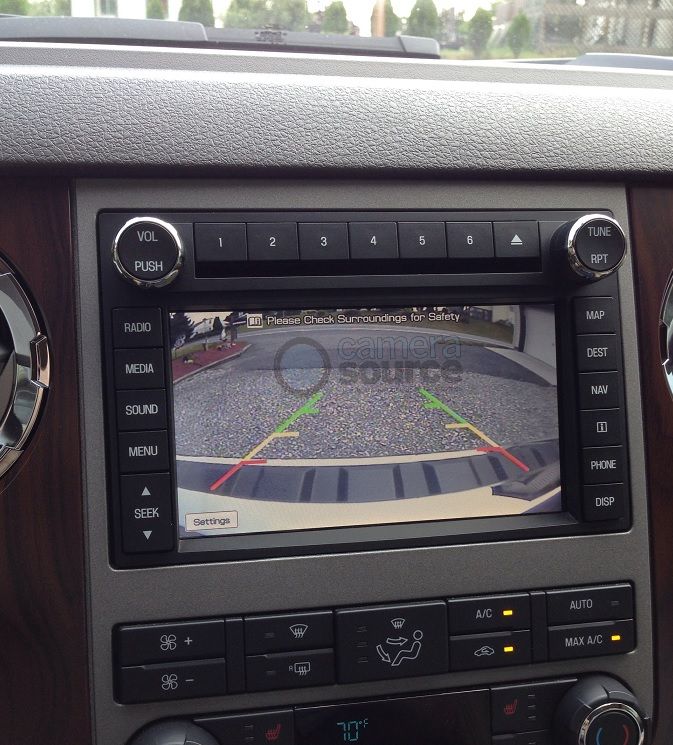

Can't see over that hood? This is your solution and is a Camera Source exclusive for your Super Duty!! This kit is especially designed for the Ford® Super Duty pickup trucks and the camera is barely visible embedded in the grille as shown in the product photo. This camera is chrome plated and utilizes our latest Super CMOS forward looking camera for a kit that looks like it came from the factory! Includes factory Ford® duplicated parking guidelines in the display!

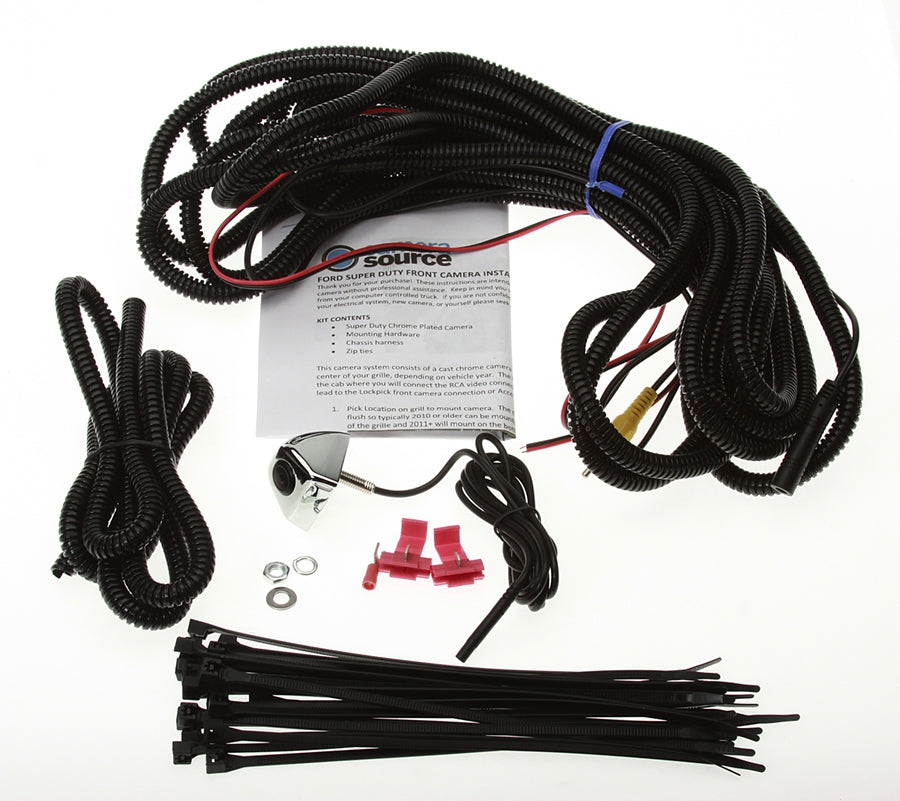

Kit includes:

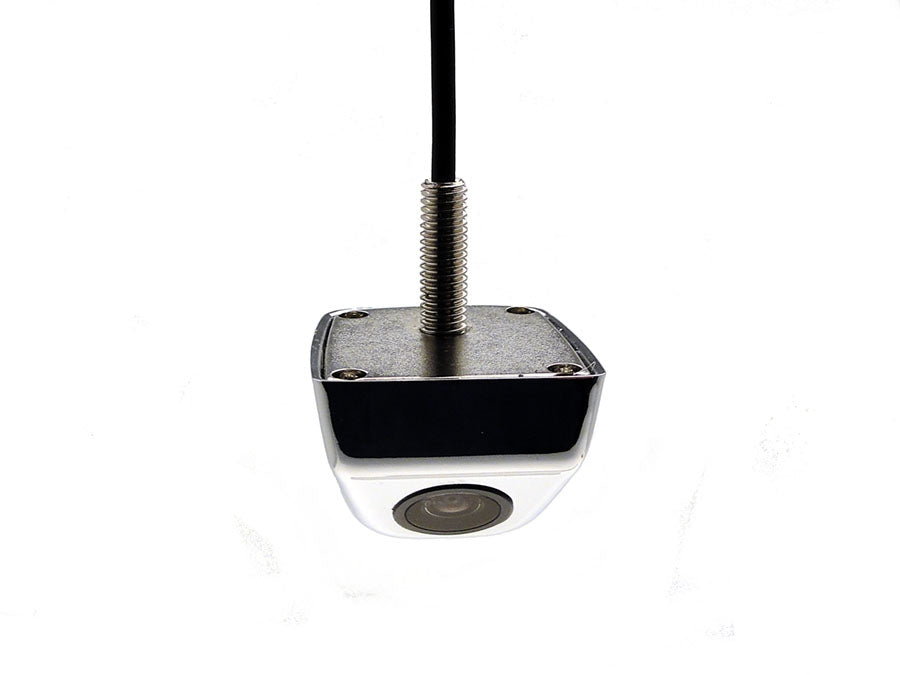

- Chrome plated metal grille mounted camera with our latest super CMOS camera - the latest camera technology!
- Mounting hardware
- Camera wiring harness
- Zip ties
- Installation instructions
- 3 year limited camera warranty
Camera Specifications:
- Super CMOS chip - outstanding color, contrast, and clarity!
- forward looking camera - designed for front applications
- 170 degree view
- 600 TV lines of resolution
- .1 lux minimum illumination - Outstanding night vision!
NO MONITOR IS INCLUDED IN THIS KIT. We also stock this kit with various configurations for navigation plug and play capabilities... see our online catalog. Professional installation is recommended.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Front Camera |
| For a monitor it uses | Your aftermarket display (RCA) |
| Connection | Aftermarket Display (RCA) |
| Make | Ford |
| Camera Mount Location | Front Grille |
| Night Vision | .1 Lux |
| Camera Orientation | Front Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Not Included |
| Vehicle Category | Truck |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Super Duty |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2009,2010,2011,2012,2013,2014,2015,2016 |
| Make Filter | Ford |
| Model Filter | Super Duty |
| Year Filter | 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016 |
Compatibility
2009-2016 F Series Super Duty.
NOTE: if you have the smaller emblem on your grille you should use our other kit - CS-FTRF. The quick way to tell which kit to use is if the front emblem is larger than the rear emblem, use this kit. If both emblems are the same size use the CS-FTRF kit.

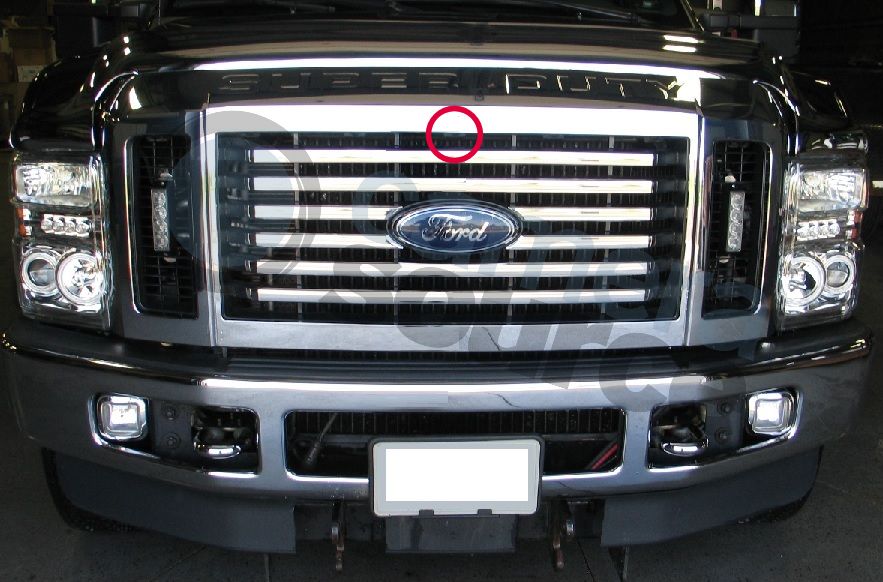

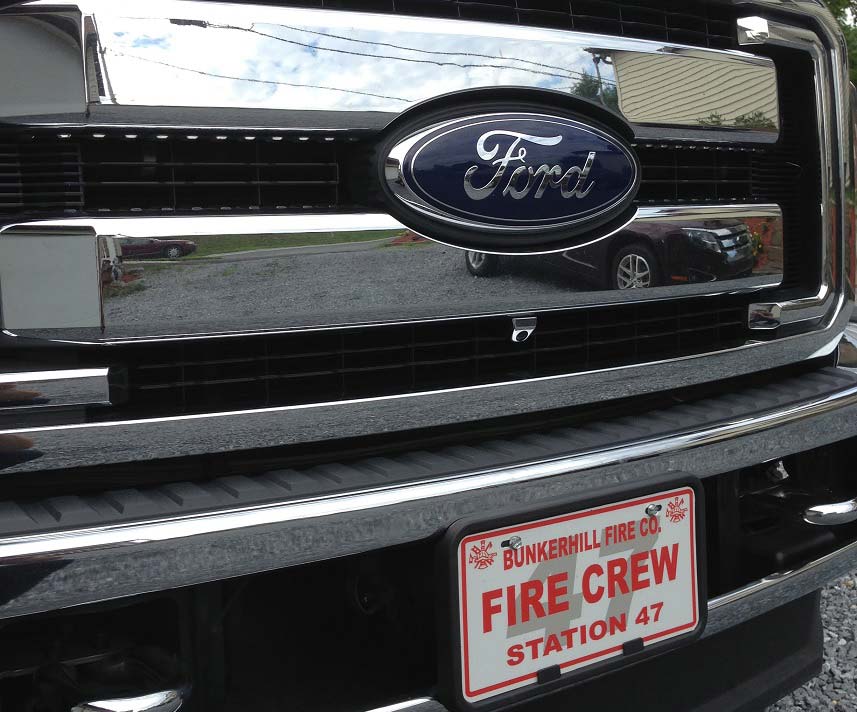

NOTE: The camera is mounted in either the top or the bottom rung of your front grille, depending on the model year. See the photos for details.
Installation
Simple installation requires the removal of the front grille, drill hole for camera mount, and run harness to the cab through an existing grommet in the firewall. Harness terminates with RCA so it will connect to any monitor with RCA input.
Make installation even easier with an add on 12 Volt power source to eliminate the need to locate a power source on the vehicle and avoid cutting or splicing into factory wiring! See related item SKU: CS-RPW-P
