Flush Mount Camera for Ford® 8" SYNC 4 Displays-without pre-wire Cab Chassis trucks
SKU#: 7CS-FM4-8S4CC
Availability:
In Stock
SKU#:
7CS-FM4-8S4CC
$766.00
Quantity
For cab & chassis trucks with an 8" SYNC 4 display!
Description
Adding a backup camera to a Ford® cab & chassis truck with an 8" SYNC 4 Factory Display Radio could never be simpler and more affordable! Compatible with trucks that are not pre-wired or programmed for a camera from the factory.
Use this camera for factory ordered cab and chassis trucks. This universal camera mounts flush with a flat surface. Drill a 22.5mm hole(hole saw included) and run the cable through to your factory backup camera connection. The included interface module is plug and play with your 8" factory SYNC 4 factory display.

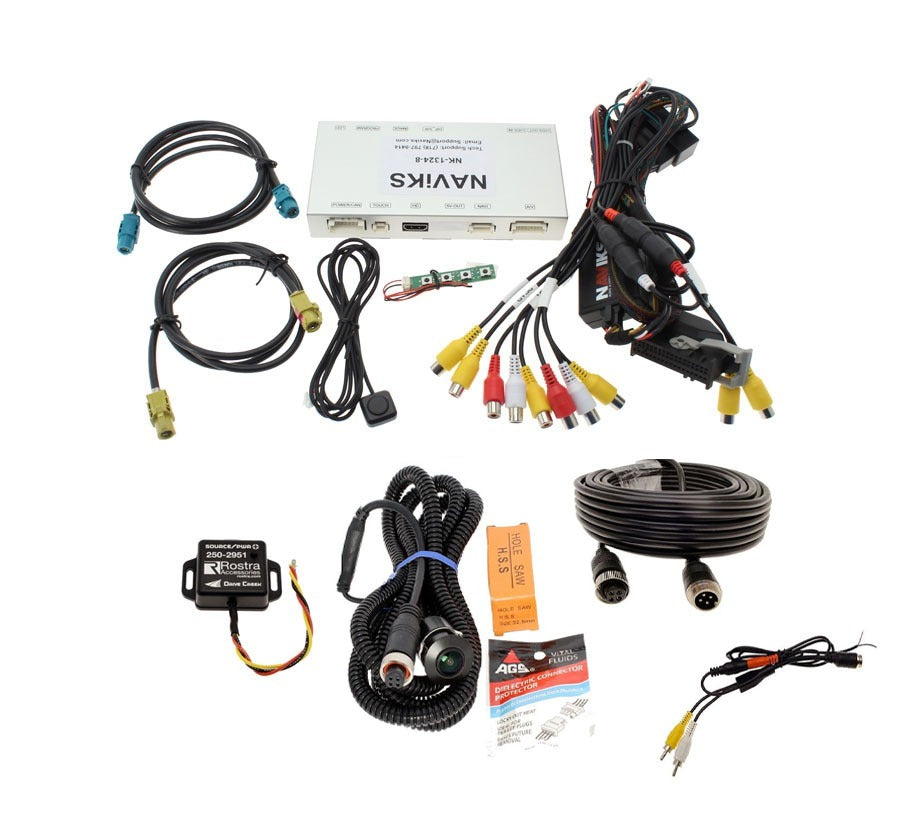

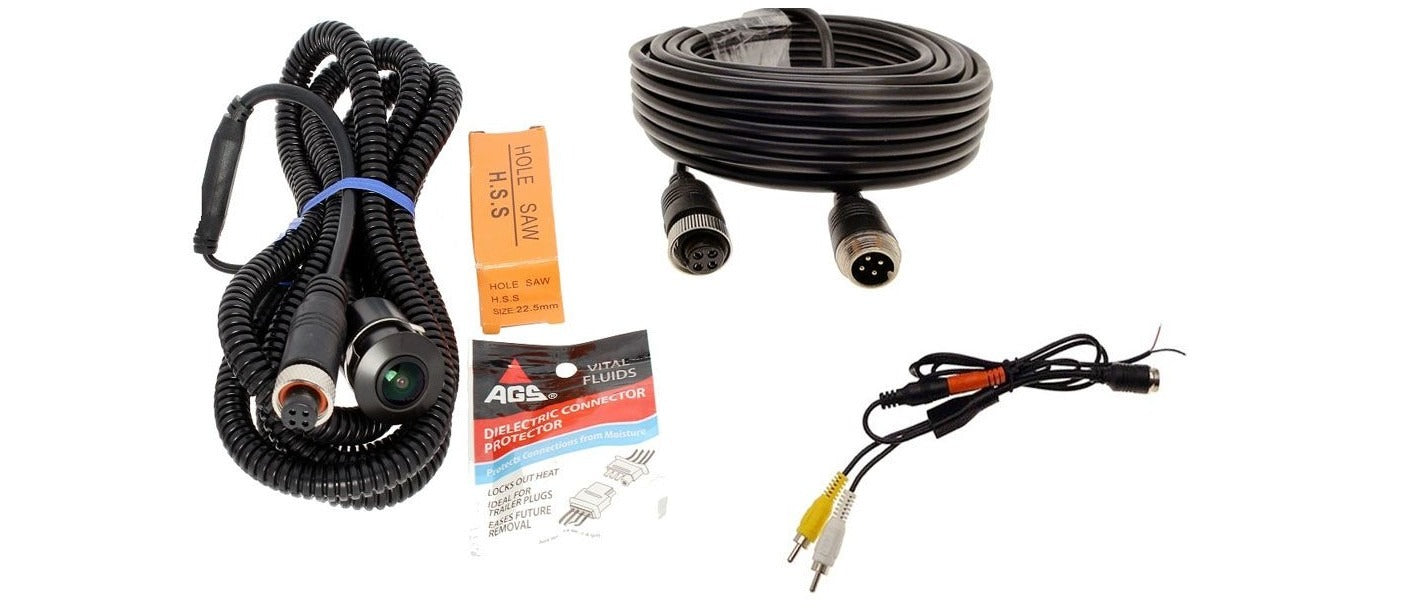

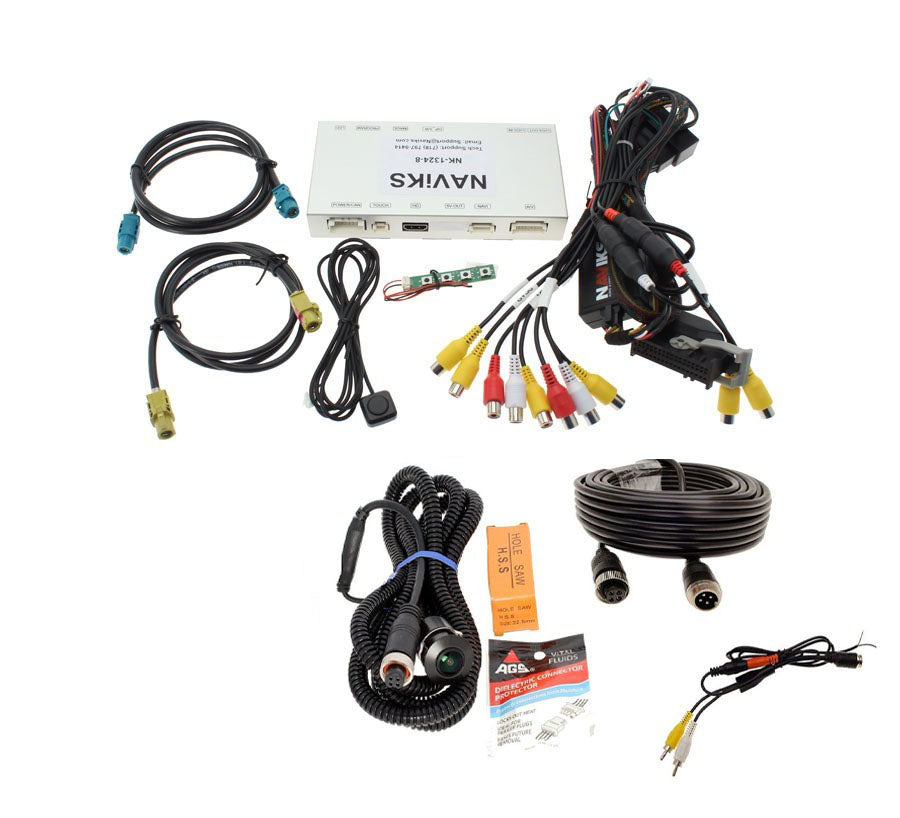

Kit includes:
- SYNC 4 interface module for 8" displays-No dealer flashing required!

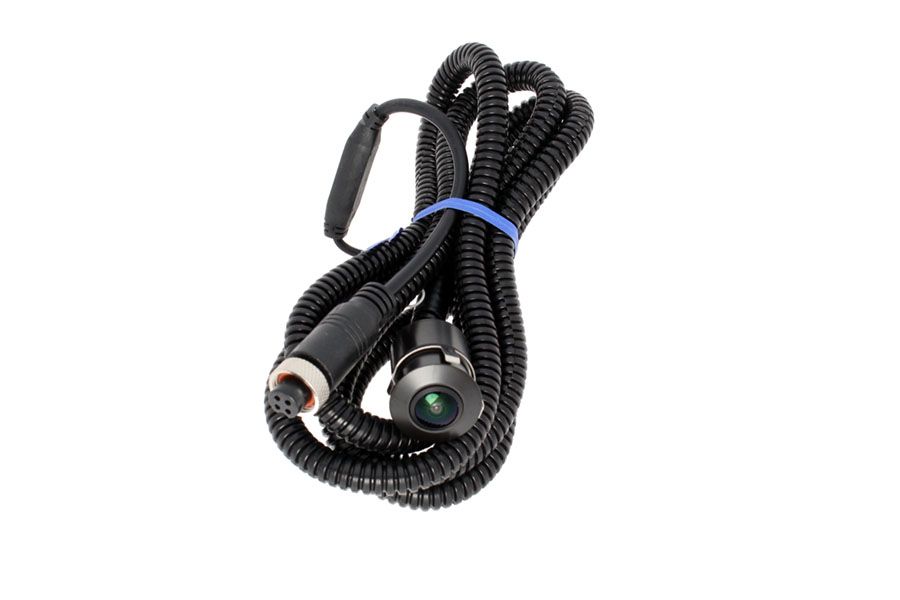

- Universal front camera with harness and dual mount brackets
- Intelligent power module
- Zip ties
- Detailed installation instructions
- 3 year warranty on the camera
- 1 year warranty on the interface module
Camera specifications:
- Mini license bar universal mount camera
- Super CMOS sensor for ultra clear display (the best available)
- Resolution: 600 TV lines
- Minimum Illumination: 0.2 Lux
- View Angle: 170
- Video Output: Full color video
- Working Voltage: DC 9-16V
- Parking Line: On/Off selectable
- Image: Mirror/Non mirror selectable
- Water proof: IP67

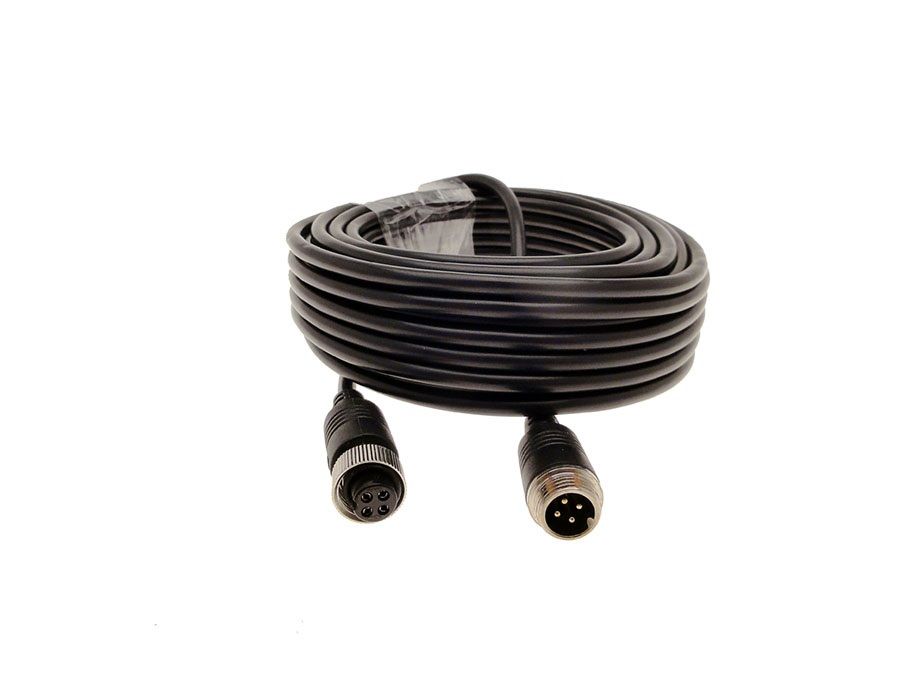

- 25 foot harness- loomed if you select vehicle type "Truck" from drop-down when ordering
- 3 year warranty on the camera

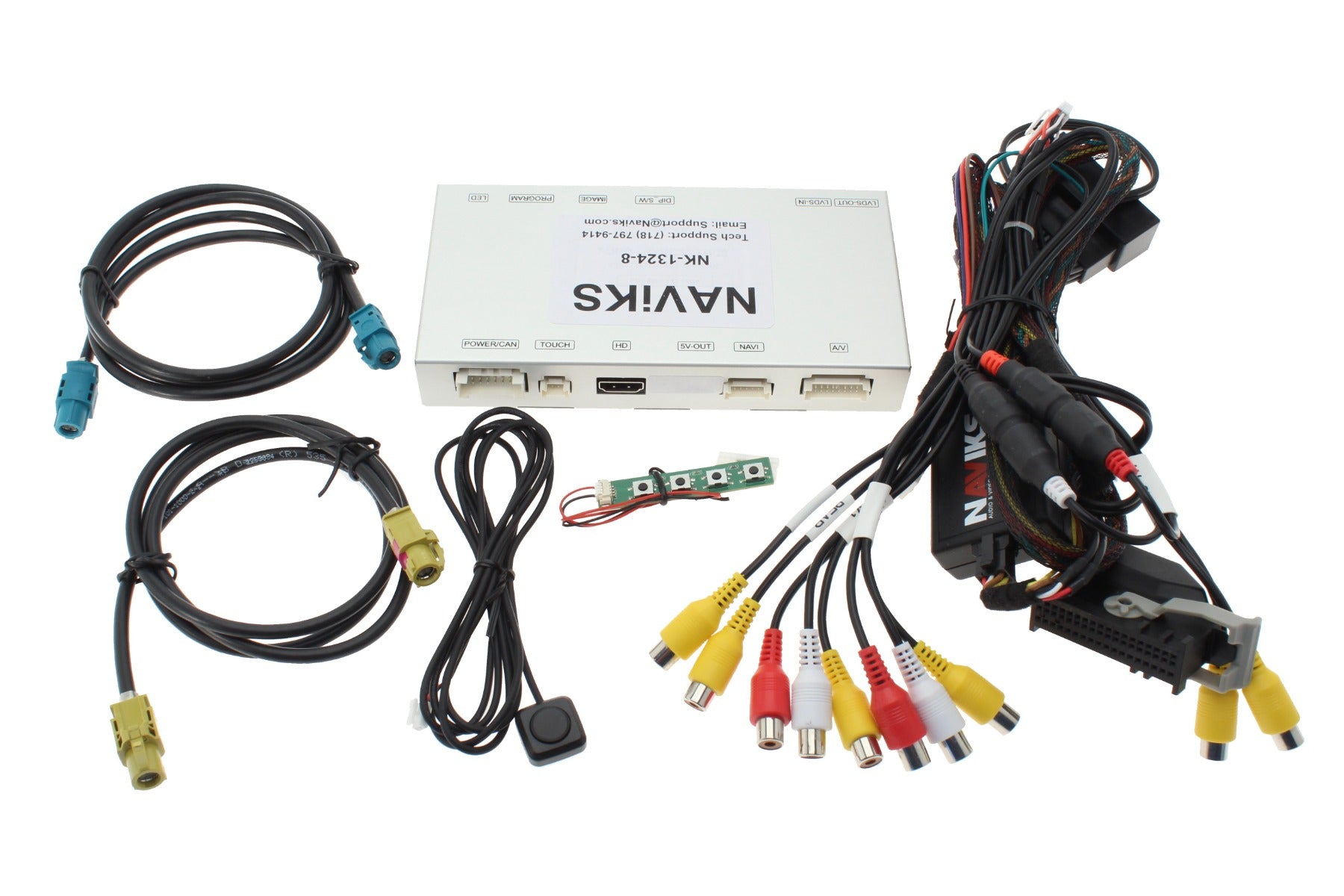

Interface module features:
The integration module is plug and play with your factory SYNC 4 system. Allows connection of 2 cameras to the factory screen. Also, allows monitoring of any connected camera at any time while driving.
Features:
- 1 HDMI Video input.
- 2 Composite Video inputs.
- 1 Composite Video output (Not possible to output HDMI).
- 1 Front Camera input.
- 1 Rear Camera input.
- Rear Camera: Aftermarket rear view camera comes on automatically when the vehicle is put in reverse and can be triggered at any time in any speed by pressing the Left Arrow button on the steering wheel or the Voice button on the steering wheel. Or use the included push button to activate the camera.
- Front Camera: Can be triggered at any time in any speed, by pressing the Left Arrow button on the steering wheel or the Voice button on the steering wheel. Or use the included push button to activate the camera. Can be programmed for the front camera to come on automatically when going from reverse to drive.
- Video interface is 100% Plug & Play and requires no wire splicing.
- NO DEALER ACTIVATION REQUIRED!
Composite Video Input: is controlled by the Volume button and is designed for:
***Sold separately***
- 1. DVD
- 2. Game Consoles
- 3. PC’s
- 4. Smartphones / Tablets (Depending on the type of smartphone / Tablet you intend to use a Smartphone Mirror Interface is required and sold separately)
Music or Video playback from Smartphones / Tablets can be achieved with a Smartphone Mirror Interface add-on.(sold separately)
- NO DEALER ACTIVATION REQUIRED!
No monitor is included with this kit as it is designed to work with your existing 8" SYNC 4 radio screen . This camera comes with a 3 year warranty and the interface module has a 1 year warranty. Professional installation is recommended.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera |
| For a monitor it uses | Your factory display |
| Fit Type | Universal fit |
| Connection | Plug and Play to Factory Dash Display |
| Make | Ford |
| Camera Mount Location | Universal Mount |
| Night Vision | < .2 Lux |
| Camera Orientation | Front or Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 8\ Ford Sync 4 |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 2 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Cab & Chassis |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 68 Camera |
| Wiring Type | Hard Wired |
| Year | 2022,2023,2024 |
| Make Filter | Ford |
| Model Filter | Cab & Chassis |
| Year Filter | 2022, 2023, 2024 |
Compatibility
Vehicle must have a 8" factory SYNC 4 radio display that has not been programmed from the factory. Compatible with trucks that are not pre-wired or programmed from the factory.
2022-2024 Ford Cab & Chassis trucks
This camera kit will fit on any flat surface and it mounts flush with surface.
Installation
Camera requires a 22.5 mm hole on a flat surface for flush mounting. It will require a flat section approximately 1" x 1" for mounting. Drill the hole and connect the camera harness. Run camera harness towards the front of the vehicle and into the cab.
You'll need to open the dash to access the back of the radio screen. The multi-camera interface is plug and play with your factory radio wiring and does not require any dealer programming. Interface module is powered through the radio harness.

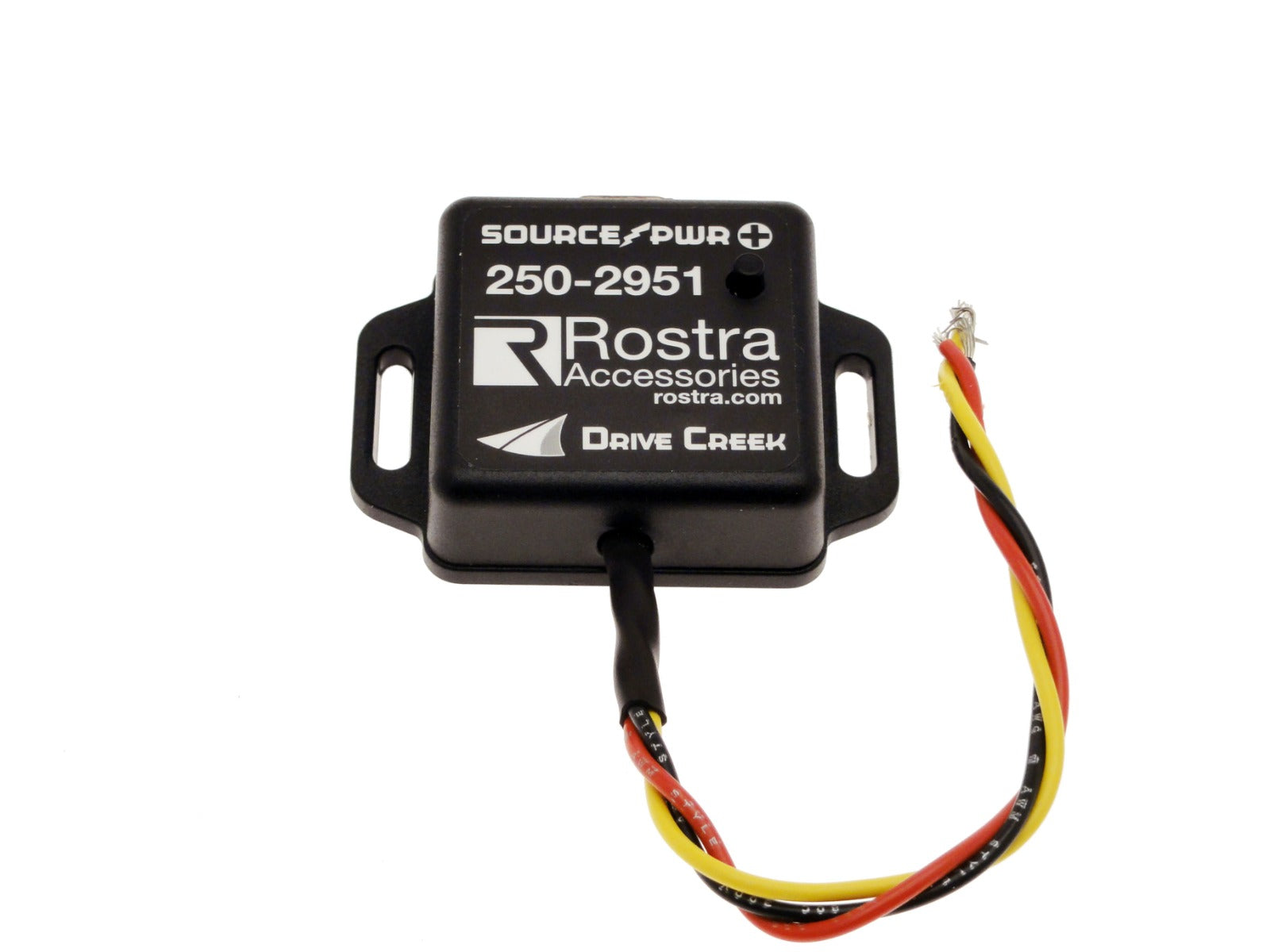

Camera needs to be powered from the vehicle. Install the included smart power module, CS-RPW-P, to the vehicle battery per the included instructions.
