Flush Mount LVDS Camera, Fits 2024-2026 GM Work Truck, Cab Chassis, 2500,3500
SKU#: CS-24GMHD-FM
Availability:
In Stock
SKU#:
CS-24GMHD-FM
$272.00
Quantity
Flush mount!
Description
This is a flush mount camera that will allow you to relocate a factory rear camera on a 2024-2026 GM® Work Truck, Cab Chassis and 2500,3500 HD Trucks.

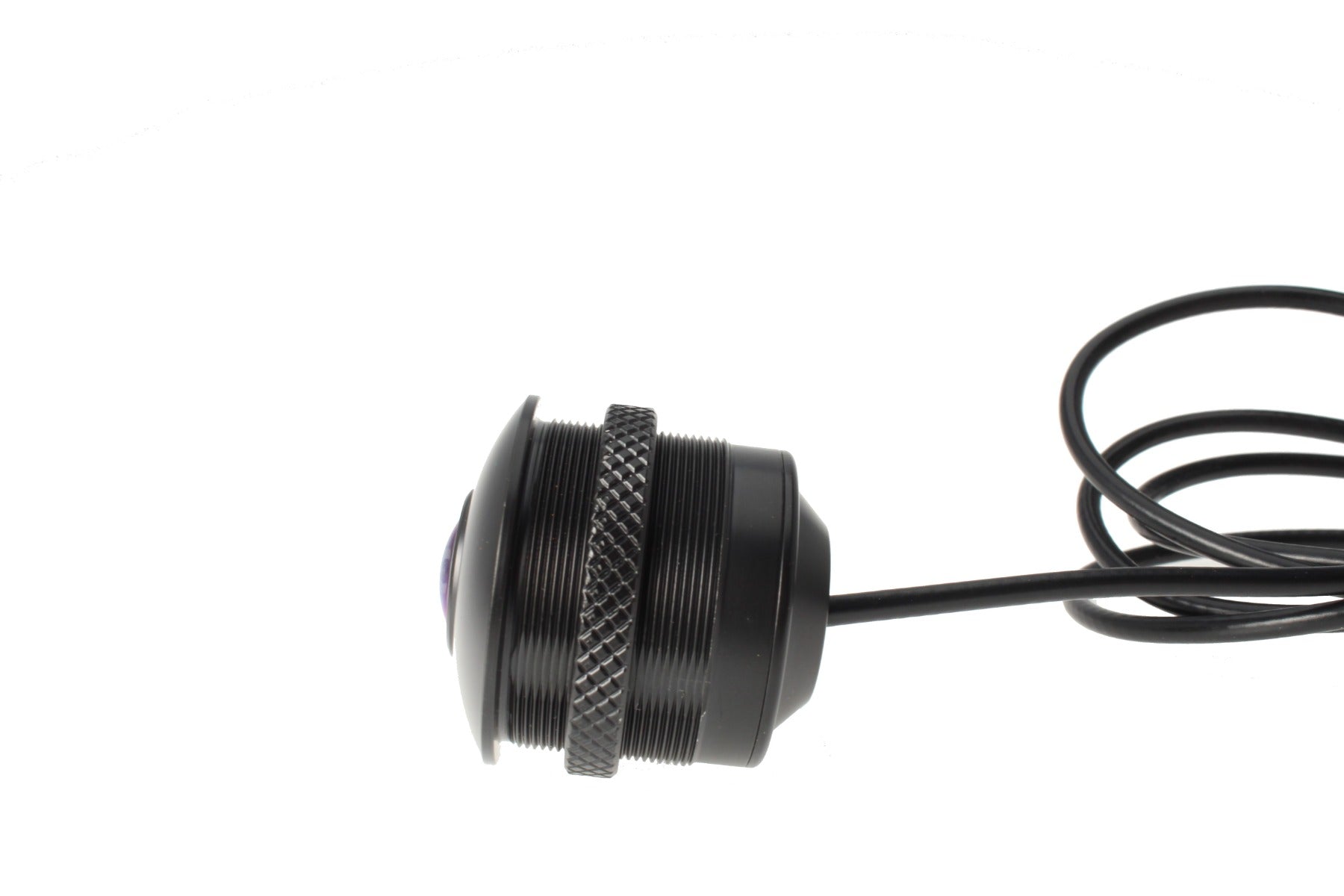

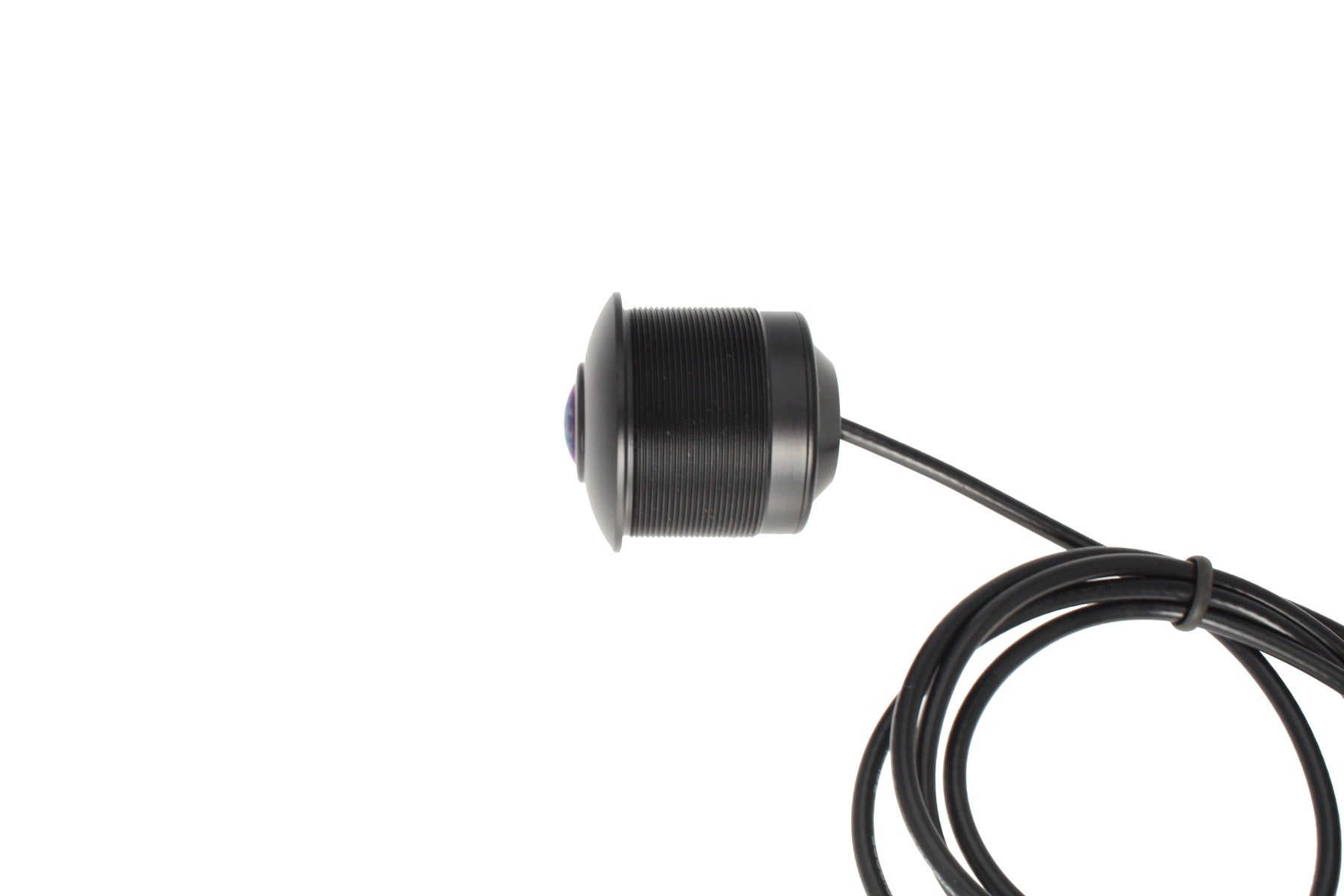

This camera mounts flush with a flat surface. Drill a 32mm hole(hole saw included), thread the locking nut on the back of the camera to secure. Run the LVDS cable through to your factory backup camera connection under the truck and connect. Camera will automatically come on when the vehicle is put in reverse.
The camera will function the same as before, just in a different location!
This kit is only compatible with GM® Work Trucks, Cab Chassis, and 2500,3500 HD trucks.
*Truck radio must be programmed for a camera for this kit to work. See Compatibility tab.
**Not compatible with factory surround view system with multiple cameras or rear and cargo camera configuration

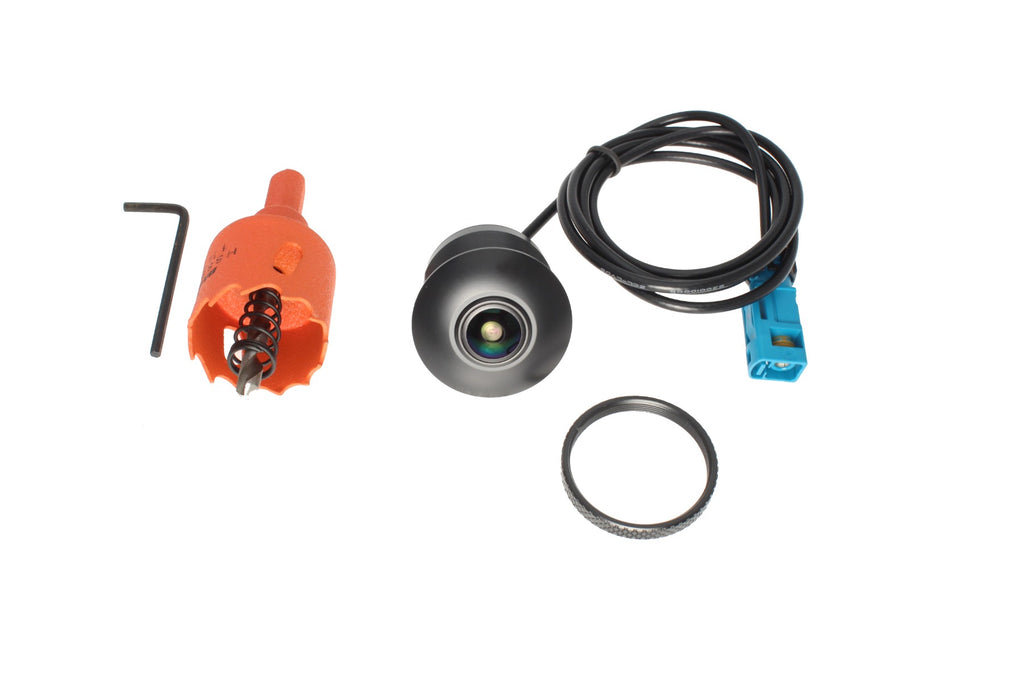

Kit includes the following:

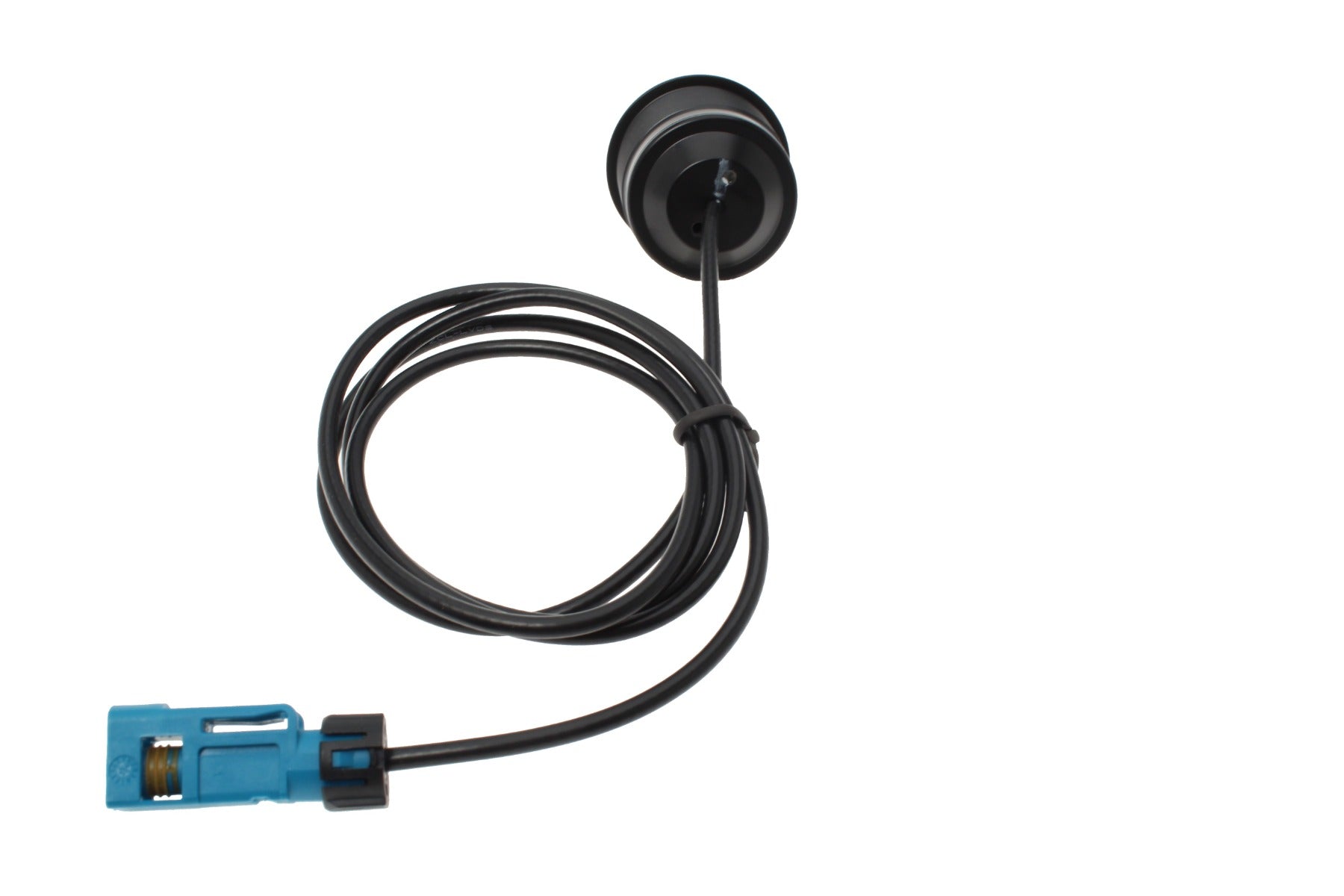

- Flush mount camera with 3 foot LVDS cable attached. Allows the system to be plug and play with your factory camera wiring.

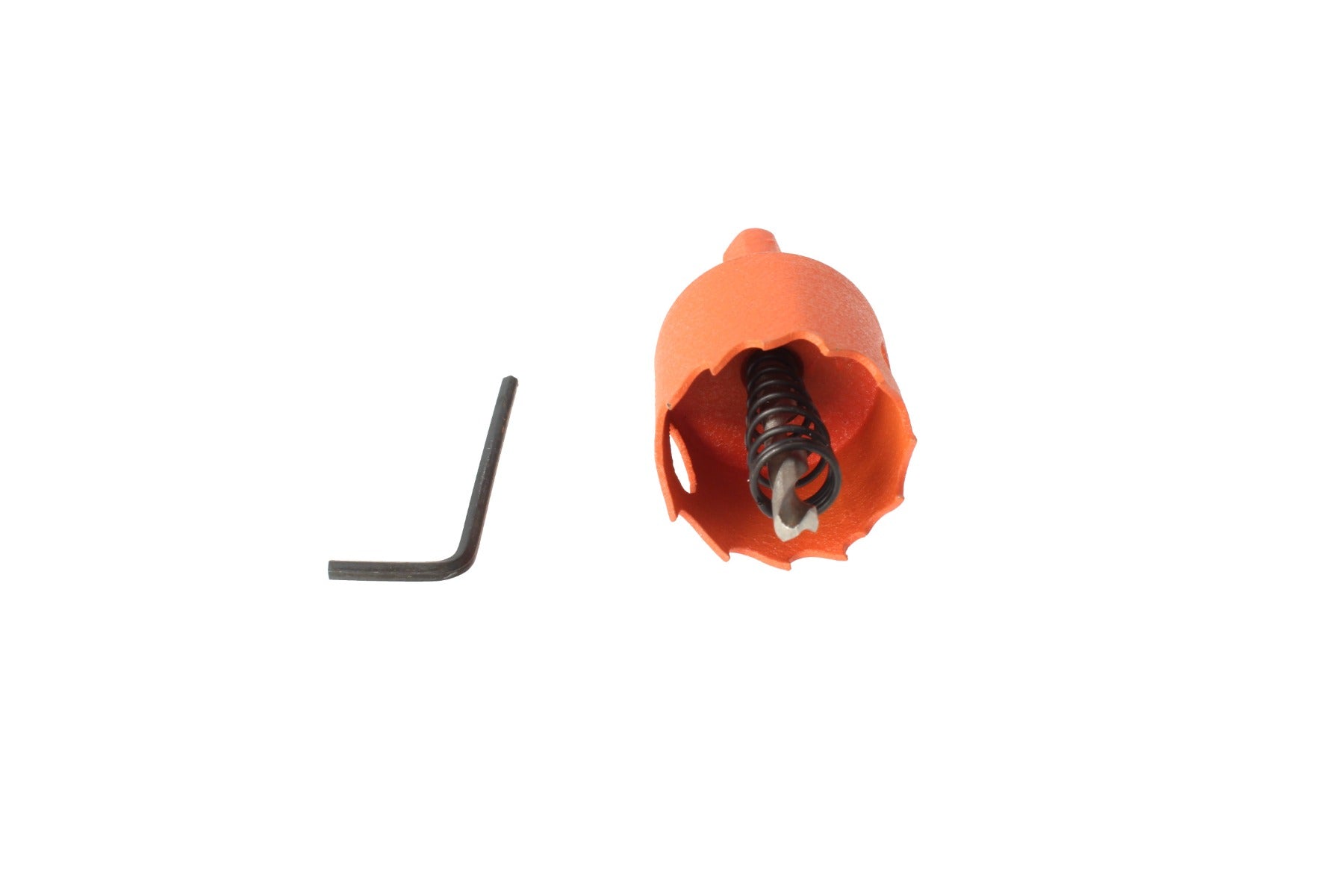

- 32mm hole saw
- Extension cable (OPTIONAL)
- Two year warranty!
Display not included.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera, Utility Bed Camera Systems, Trailer/Camper/5th Wheel camera |
| Cam Only/Complete Kit | Cam Only |
| For a monitor it uses | Your factory display |
| Fit Type | Factory OE Fit Replacement |
| Connection | Factory Connector |
| Make | GMC,Chevrolet |
| Camera Mount Location | Camper/Utility Bed, Universal Mount |
| Night Vision | < .1 Lux |
| Camera Orientation | Rear Facing |
| Radio Screen Size | 8\ MyLInk/Intellilink, 10\ GM Display, 13\ GM Display |
| Reason for Shopping | Relocating factory camera |
| Sensor Brand | EVI Systems |
| Vehicle Category | Truck, Camper/Trailer (if connecting to vehicle wiring) |
| Viewing Angle | 120 Degrees |
| Model | Silverado,Sierra, Silverado HD, Sierra HD, Cab & Chassis |
| Warranty | 2 Year |
| Waterproof/Dustproof Level | IP69 |
| Wiring Type | Factory Plug&Play |
| Year | 2024,2025,2026 |
| Make Filter | Chevrolet, GMC |
| Model Filter | Cab & Chassis, Sierra, Sierra HD, Silverado, Silverado HD |
| Year Filter | 2024, 2025, 2026 |
Compatibility
2024-2026 GM® Work Truck, Cab Chassis, and 2500, 3500 HD.
Truck must be programmed for a camera for this to work. If the radio screen changes to a warning screen when put in reverse the radio is already programmed and you'll only need to plug the camera in. If the radio doesn't change at all when put in reverse it means the radio is not programmed and you will need to take the vehicle to a GM dealership to have this feature turned on for the camera to work.
Not compatible with trucks that have the surround view system with multiple cameras or rear and cargo camera configuration.
Installation
This camera mounts flush with a flat surface. Drill a 32mm hole(hole saw included), thread the locking nut on the back of the camera to secure. Run the LVDS cable through to your factory backup camera connection under the truck and connect.

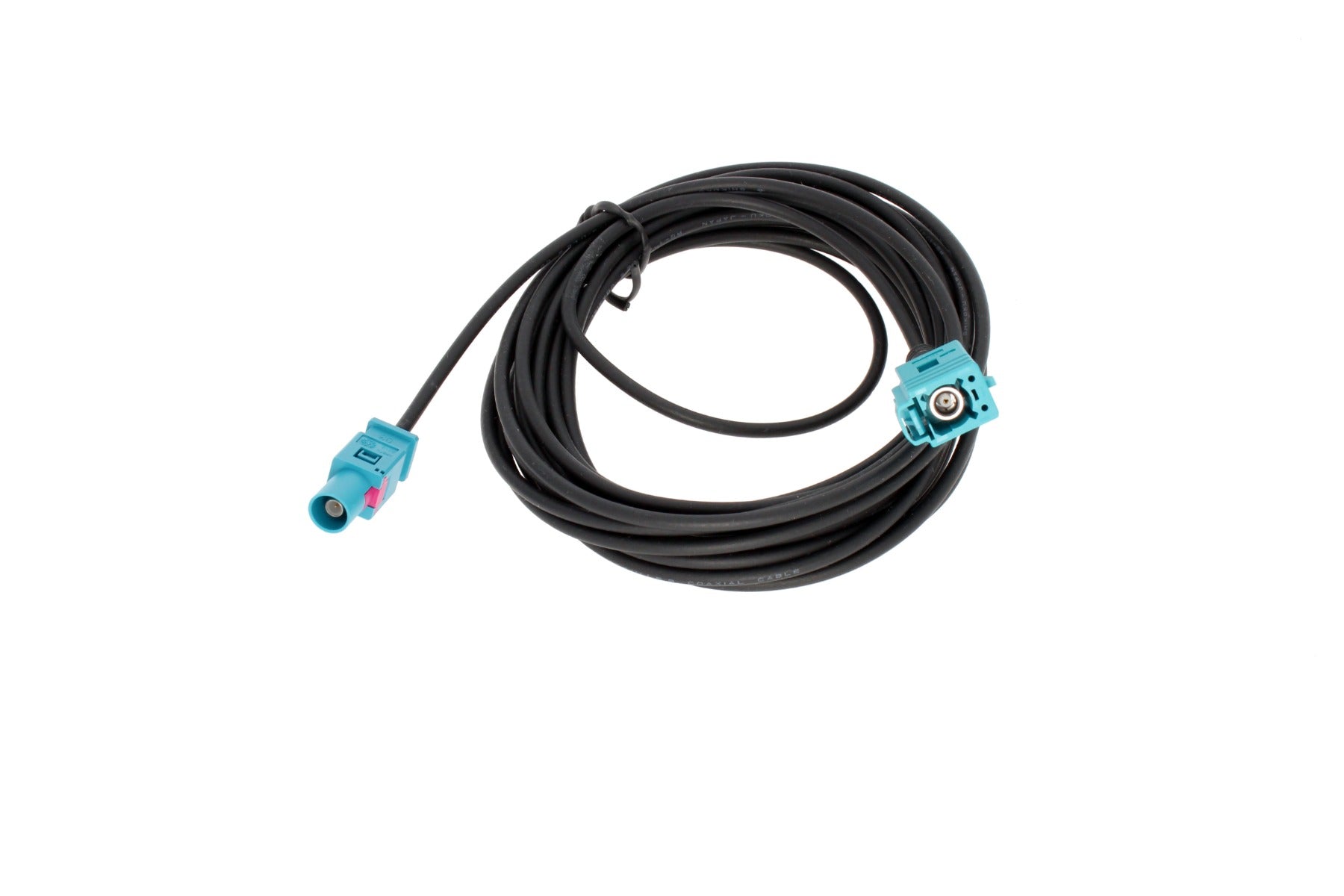

Camera has approximately 3 feet of LVDS cable attached. Choose an 8 foot or 14 foot extension cable if more cable is required for your specific installation.
*Truck radio must be programmed for a camera for this to work.
