Flush Mount Backup Camera For Intellilink/Mylink Systems, Fits 2014-2018 GM®
SKU#: CS-FM4-G2TG
Availability:
In Stock
SKU#:
CS-FM4-G2TG
$315.00
Quantity
No dealer programming required!
Description
This is a high quality OEM integrated backup camera solution for several GMC and Chevrolet trucks that integrates right into your factory display screen! No dealer programming is required making this a simple OEM integrated solution for your vehicle. Drill a 22.5mm hole(hole saw included) in any flat surface, mount the camera and run the cable to the backup camera integration harness(included) on the back of your factory radio. Choose the cable length from the drop down.
Vehicle must have option code IO4, IO5, or IO6 on the glovebox sticker to be compatible.

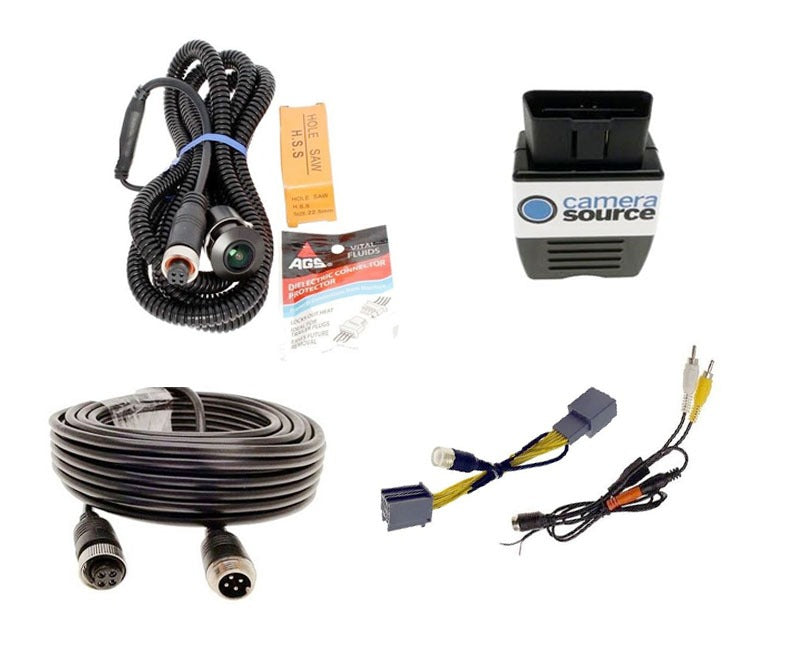

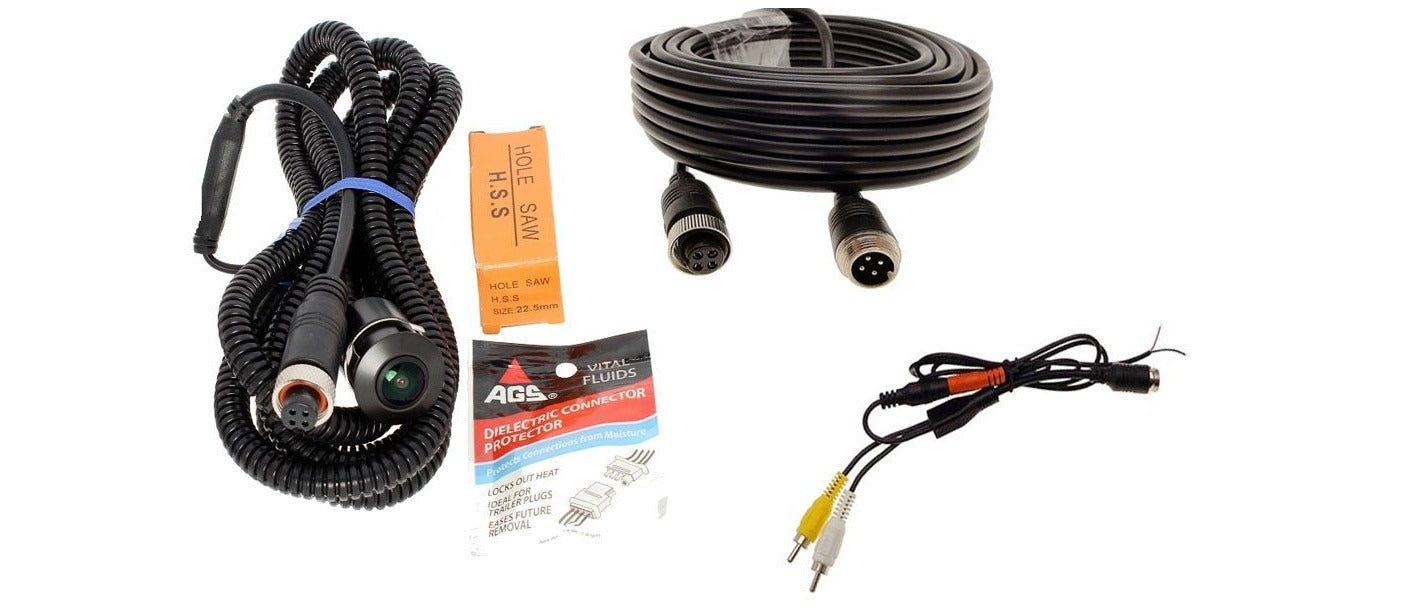

The kit comes with the following:

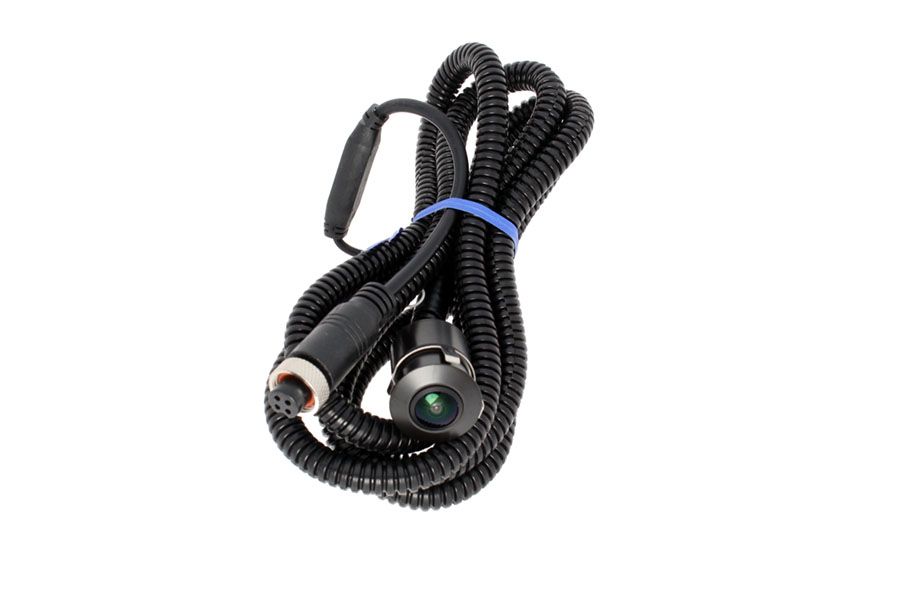

- Black rear facing flush mount camera with our latest super CMOS camera - the latest camera technology!

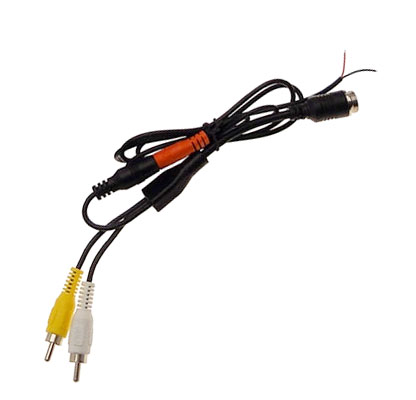

- 4 pin to RCA conversion

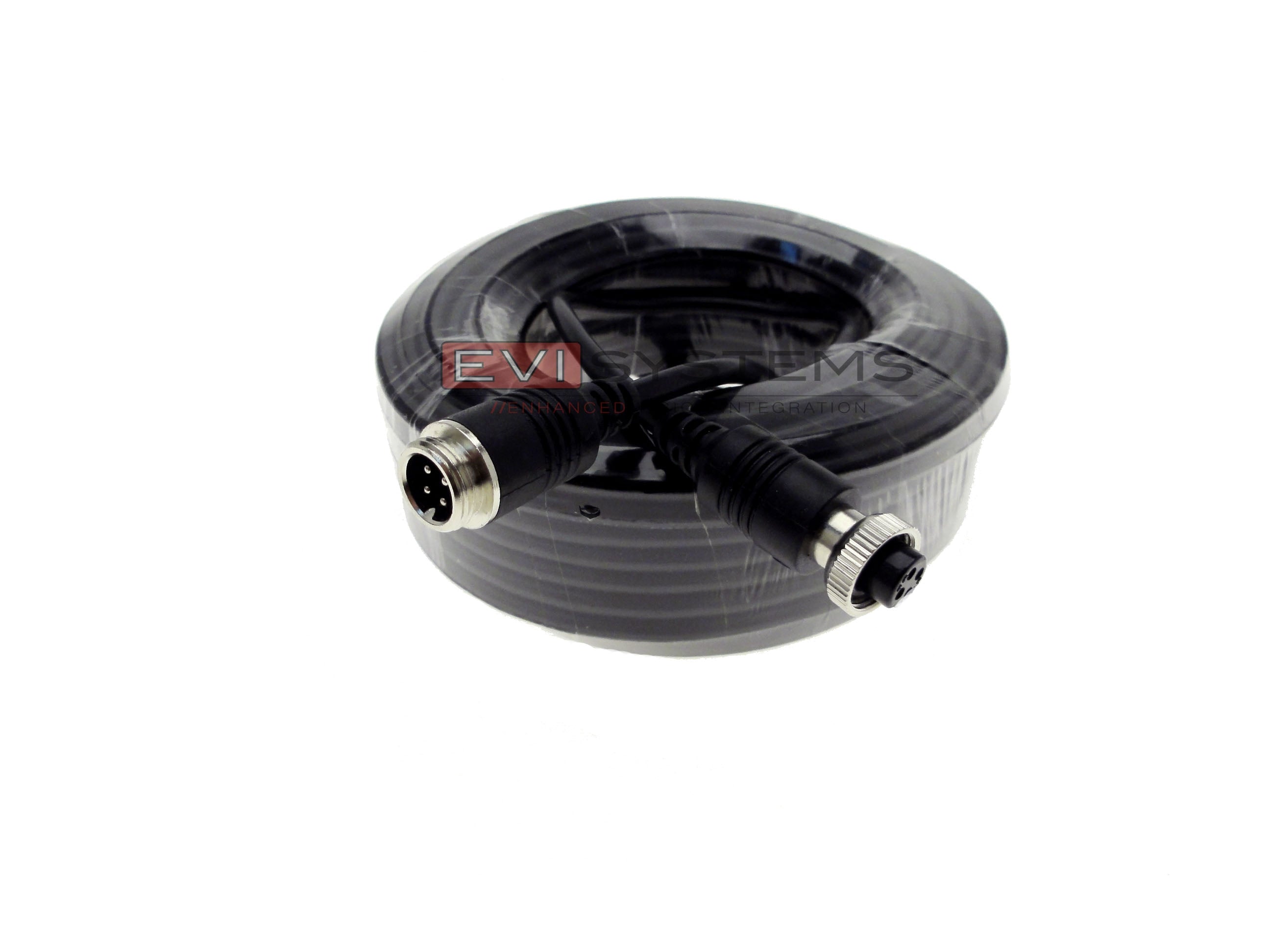

- 4 pin commercial grade 32' cable length
- 22.5 mm hole saw

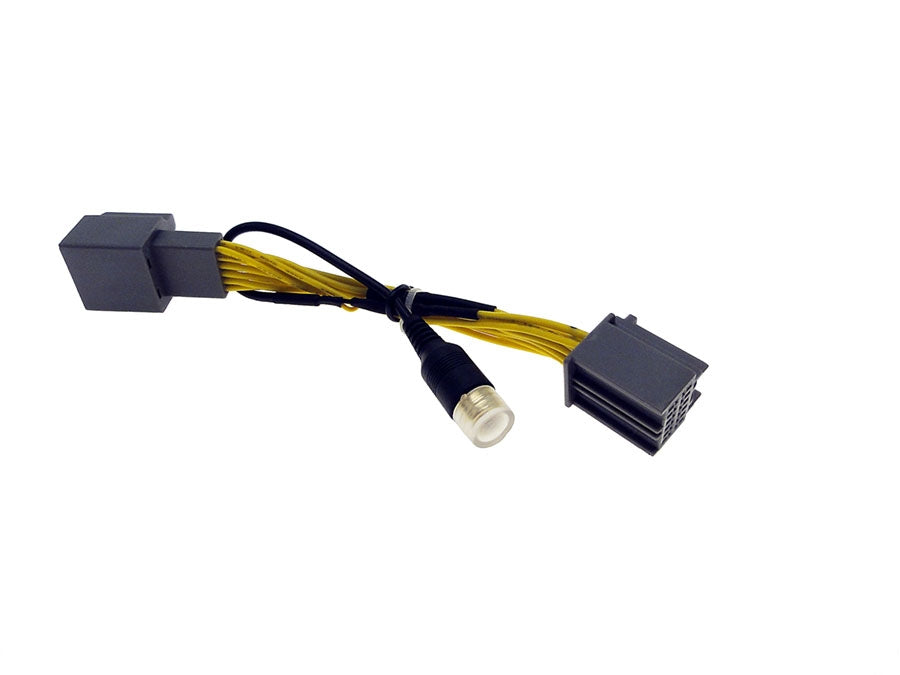

- Factory radio integration harness (Monitor not included)

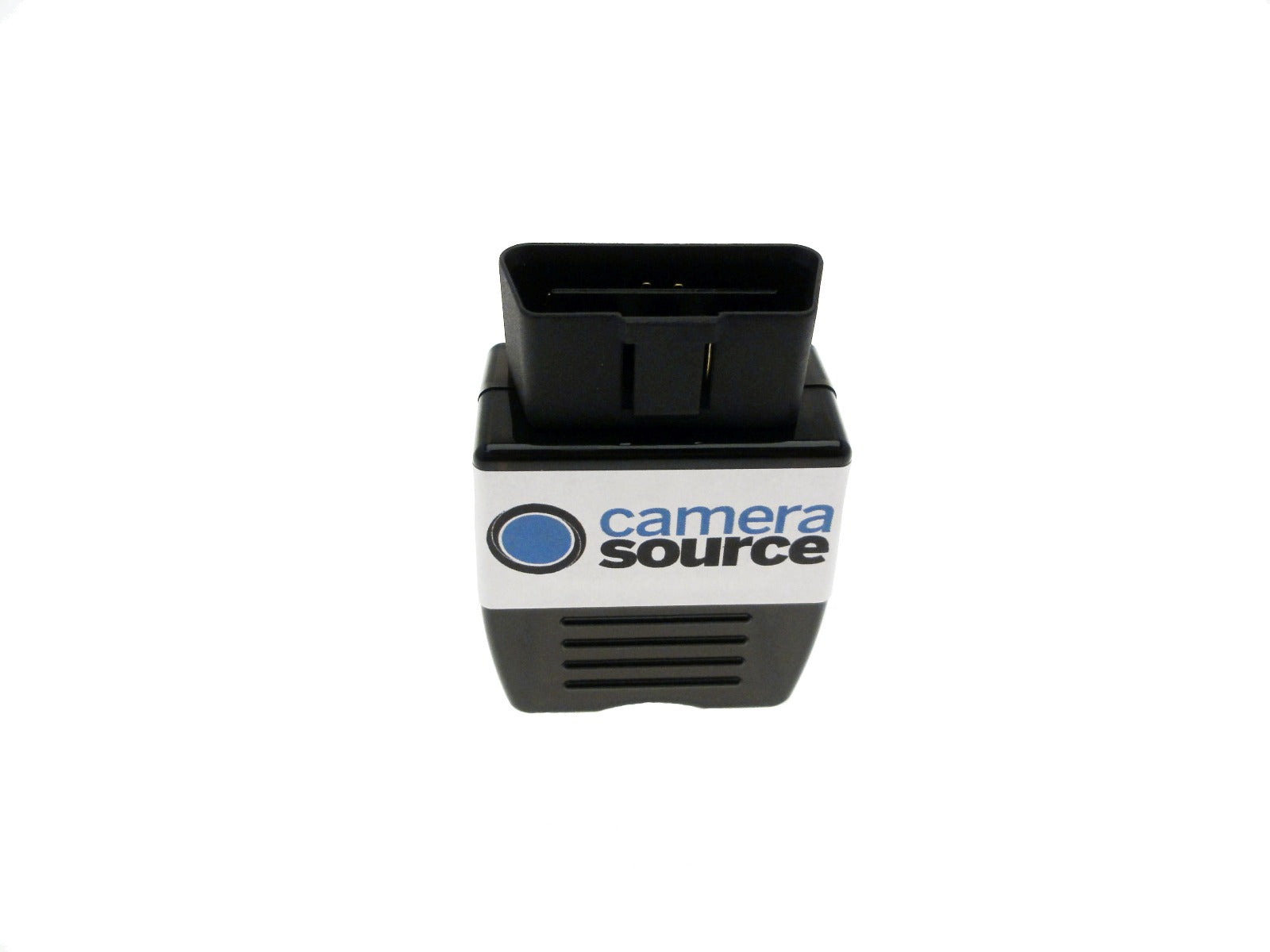

- OBD programming module
Camera Specifications:
- Flush Mount Super CMOS chip - outstanding color, contrast, and clarity!
- Removable parking guidelines
- Image: Mirror/Non mirror switchable
- 170 degree view
- 600 TV lines of resolution
- .1 lux minimum illumination - Outstanding night vision!
- 3 year limited warranty!
**Monitor not included.**
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera |
| For a monitor it uses | Your factory display |
| Fit Type | Universal fit |
| Connection | Plug and Play to Factory Dash Display |
| Make | GMC,Chevrolet |
| Camera Mount Location | Camper/Utility Bed, Universal Mount |
| Night Vision | 0 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 4.2\ MyLink, 8\ MyLInk/Intellilink |
| Reason for Shopping | Adding camera(s) |
| Sensor Brand | EVI Systems |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 1 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Silverado,Silverado HD,Sierra,Sierra HD,Colorado,Canyon |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2014,2015,2016,2017,2018 |
| Make Filter | Chevrolet, GMC |
| Model Filter | Canyon, Colorado, Sierra, Sierra HD, Silverado, Silverado HD |
| Year Filter | 2014, 2015, 2016, 2017, 2018 |
Compatibility
Compatible with the listed vehicles that have the MyLink or Intellink systems with 4.2" or 8" screen.
Vehicle must have option code IO4, IO5, or IO6 on the glovebox sticker to be compatible.
**NOT COMPATIBLE WITH IO3 or IOB DISPLAY**
GMC®
2015-2018 Canyon
2014-2018 Sierra 1500
2015-2018 Sierra HD 2500-3500
Chevrolet®
2015-2018 Colorado
2014-2018 Silverado 1500
2015-2018 Silverado HD 2500-3500
Installation
Camera requires a 22.5 mm hole on a flat surface for flush mounting.(Hole saw included) It will require a flat section approximately 1" x 1" for mounting. Install the camera and run the harness to the front of the vehicle. Find a 12V reverse or accessory power source for the camera.
Make installation even easier with an add on 12 Volt power source to eliminate the need to locate a power source on the vehicle and avoid cutting or splicing into factory wiring! See related item SKU: CS-RPW-P
You will need to remove your factory radio to install the RCA T-Harness to the back of your factory display. Connect the RCA from the main chassis harness to the T-Harness.
Plug the OBD programmer into the OBD port under the steering wheel and programming is completed in less than a minute!
NO DEALER ACTIVATION REQUIRED
