Factory digital mirror camera relocation kit for 2019-25 GM Trucks w/ LEER topper-Camera in Light
SKU#: CS-3GMLR
Availability:
In Stock
SKU#:
CS-3GMLR
$360.00
Quantity
No more blocked mirror camera!
Description
NEW!
Just added a LEER topper to your GM truck and now the mirror camera is blocked? We have a solution!

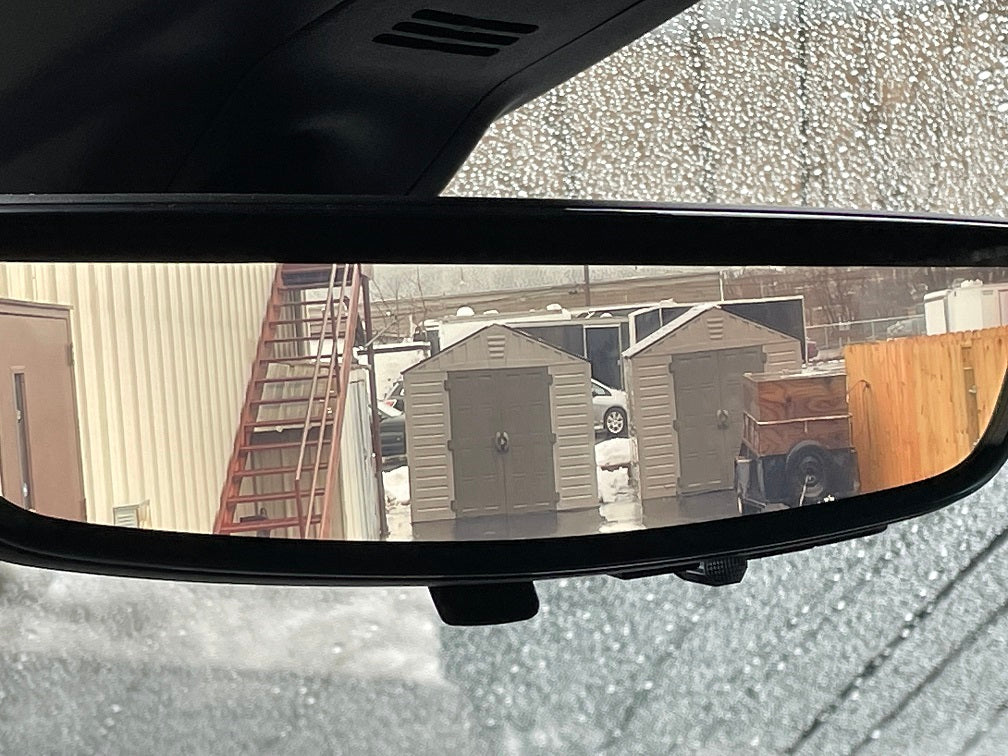

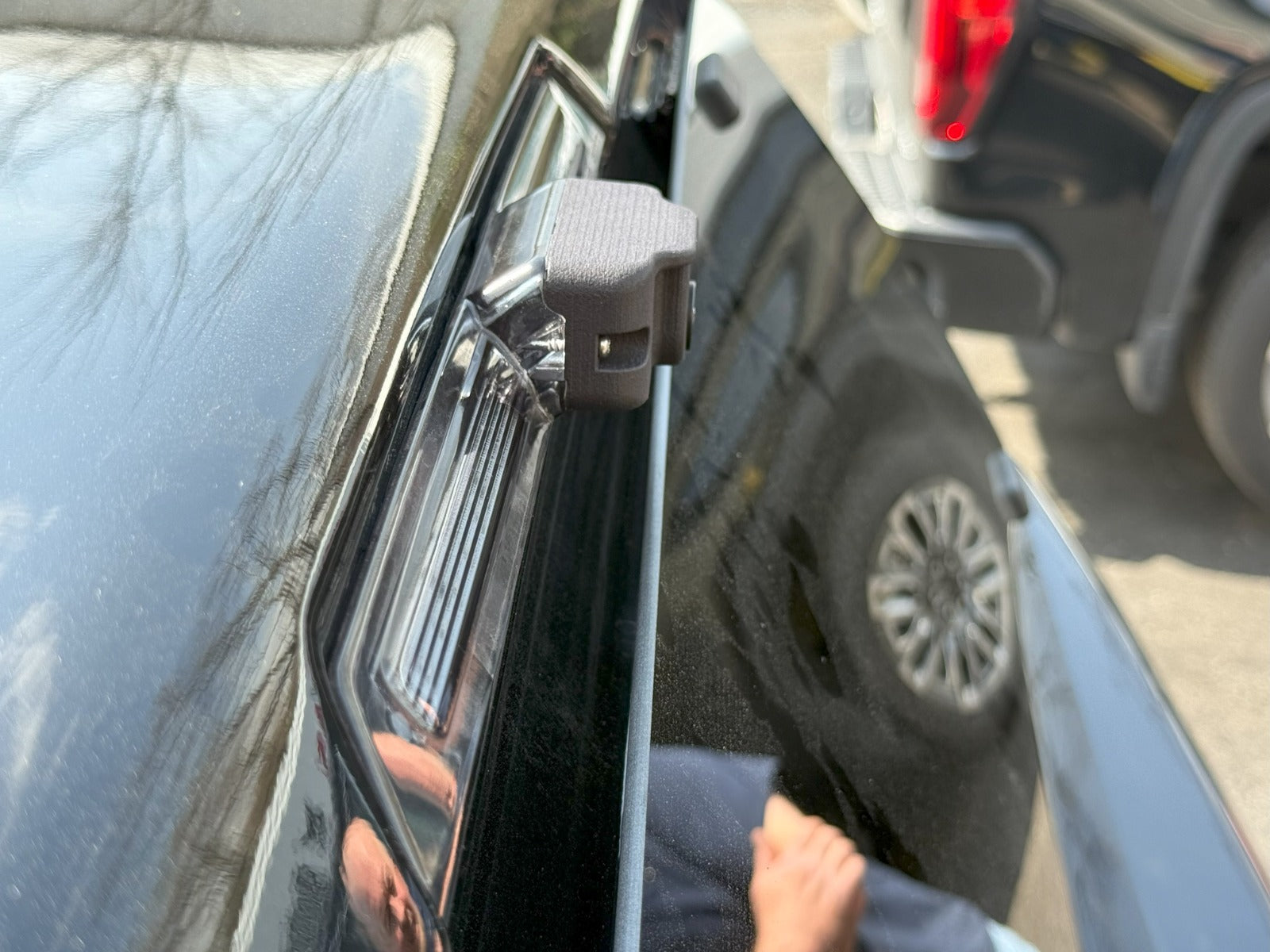

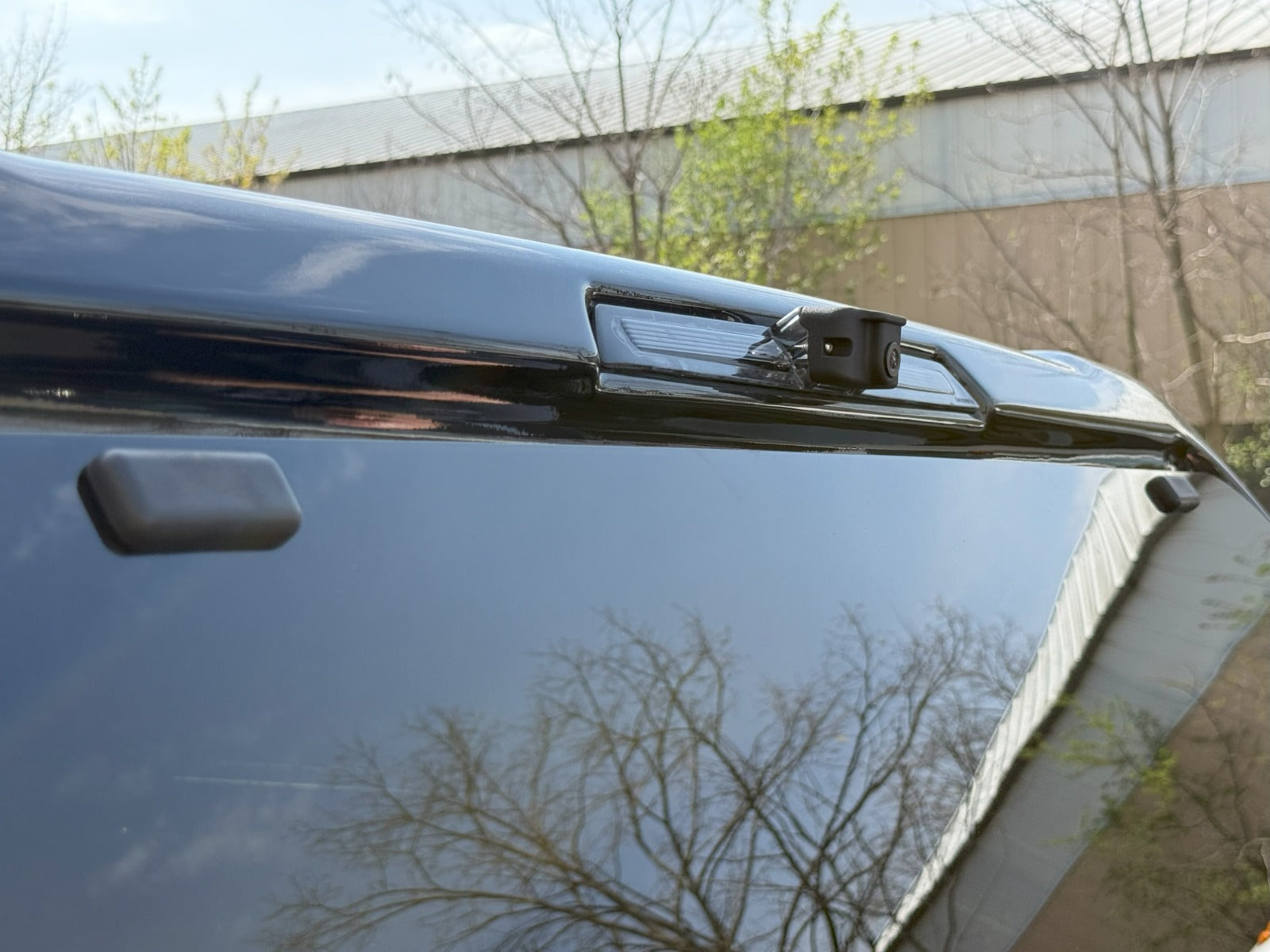

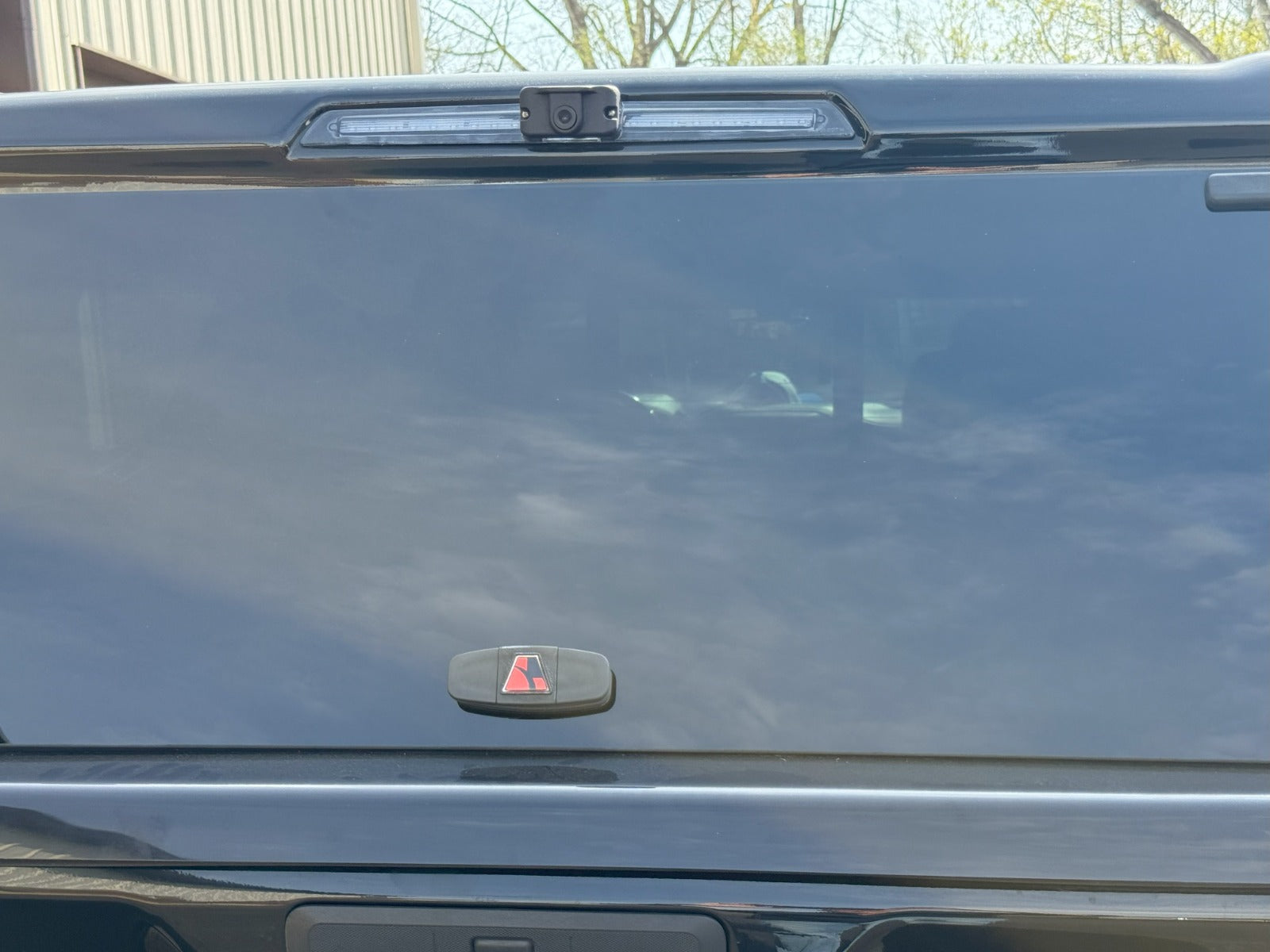

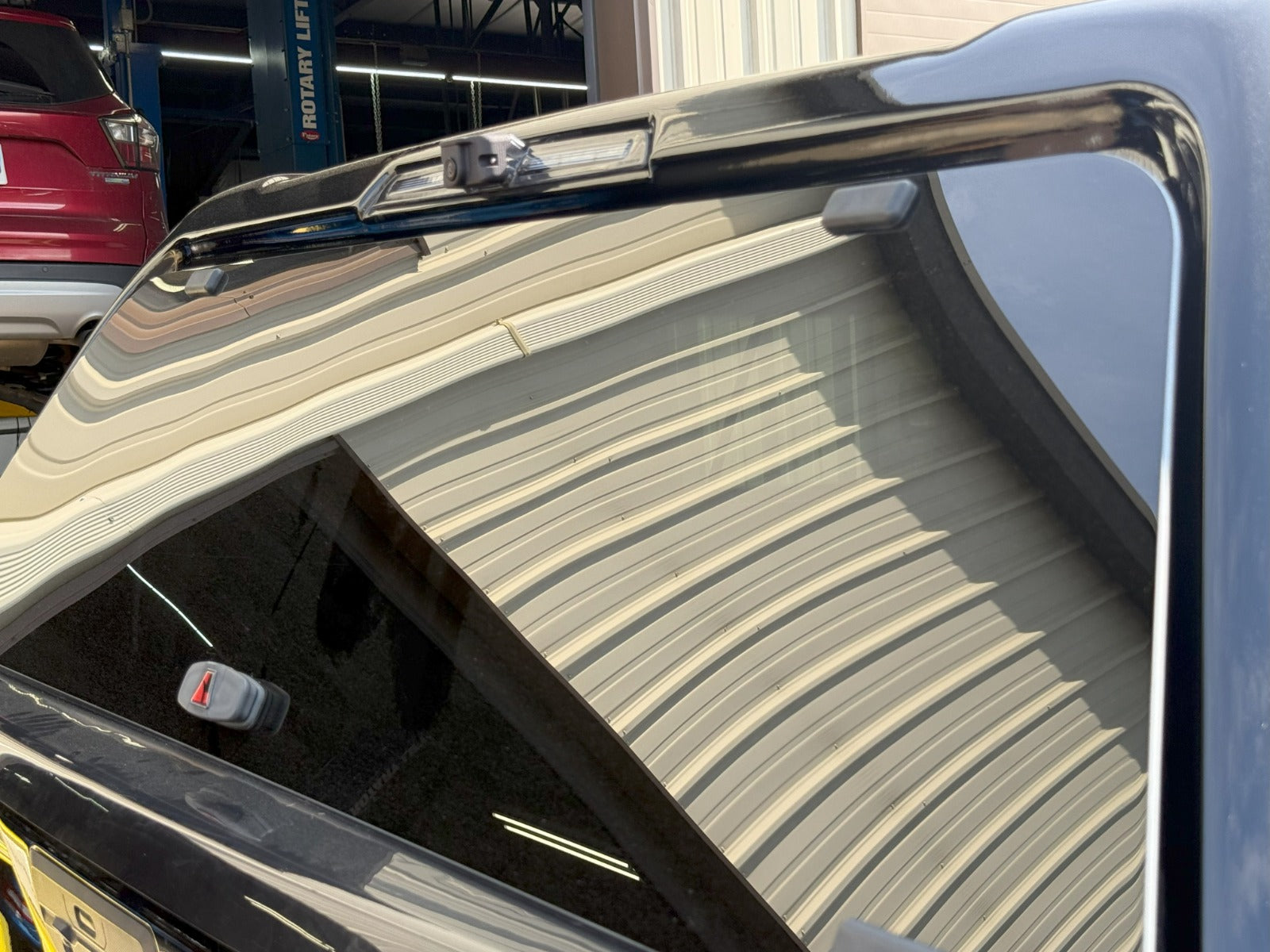

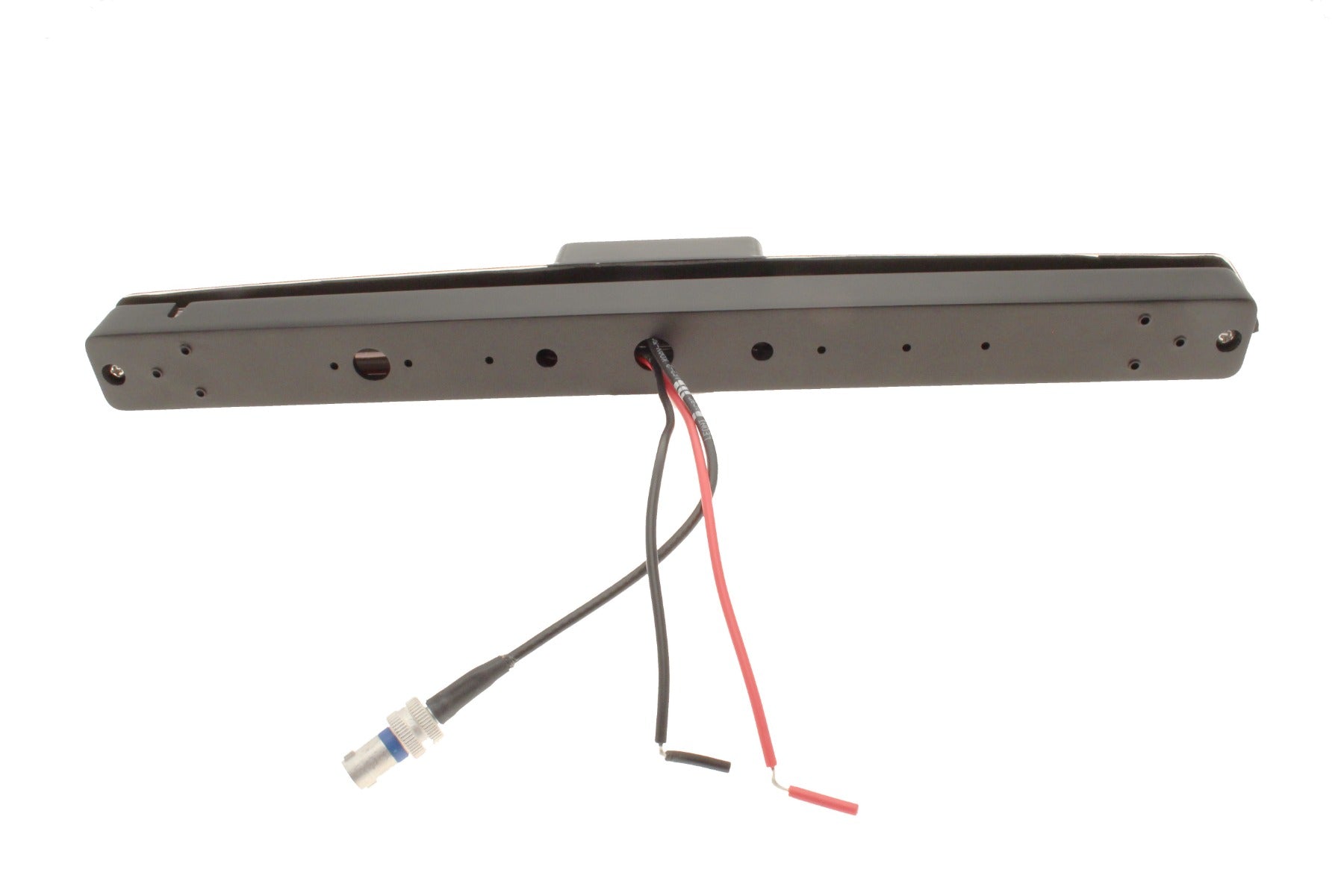

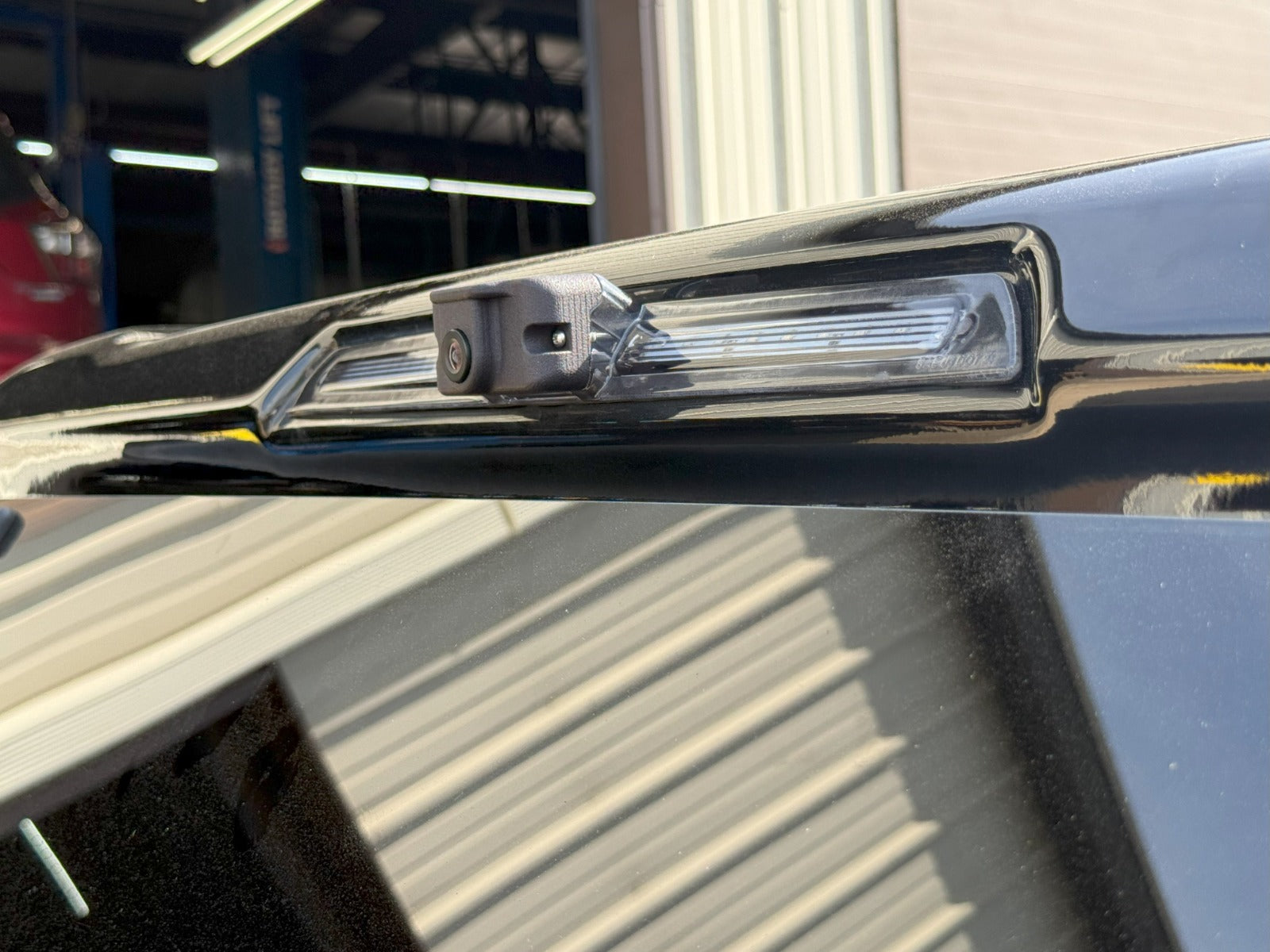

This is a contoured fit relocation kit for the factory camera on GM trucks that shows in the full screen rear view mirror. Truck owners often lose the mirror camera functionality altogether when adding a topper. This kit saves this expensive option! The camera relocation housing is built into a replacement topper brake light and fits as a direct replacement to your existing truck cap brake light.
Remove your existing brake light from the LEER topper. Mount the new topper brake light with camera. Run the camera harness to the factory camera plug, connect the cable into the camera wiring easily accessed in the cab of the truck. The factory mirror camera feature will function the same as before, just in a different location!
Designed for the DIYer for a quick and easy installation! Display not included. Camera included.

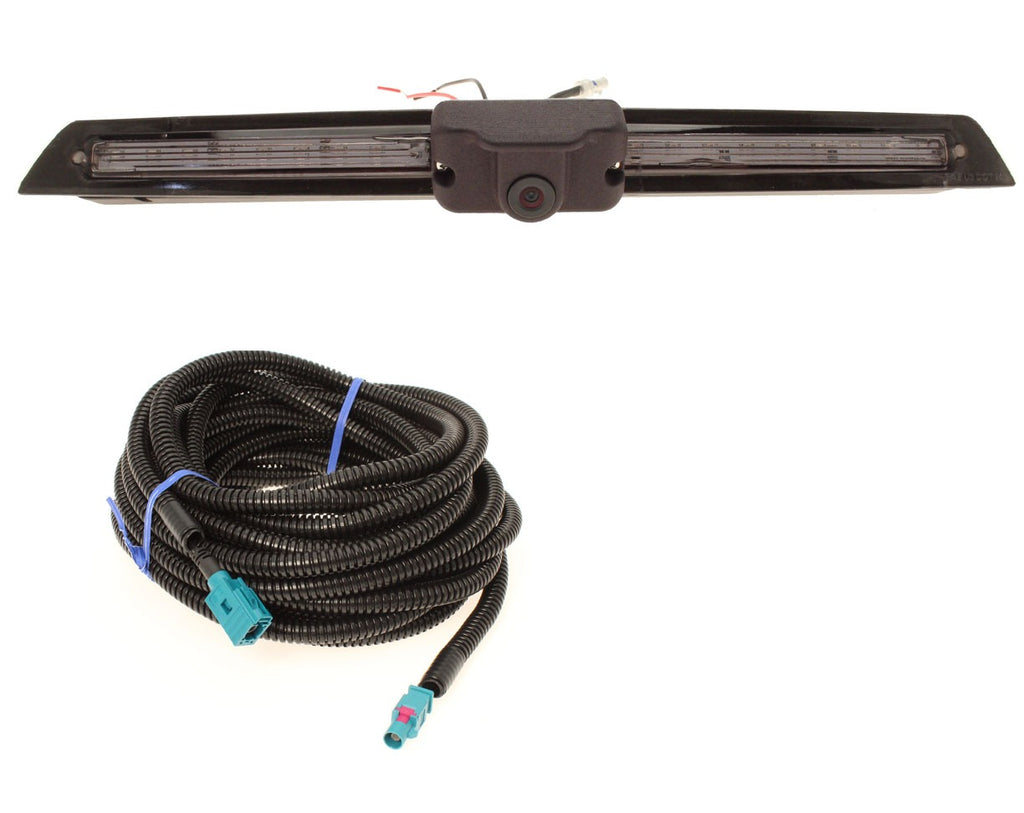

Kit includes the following:

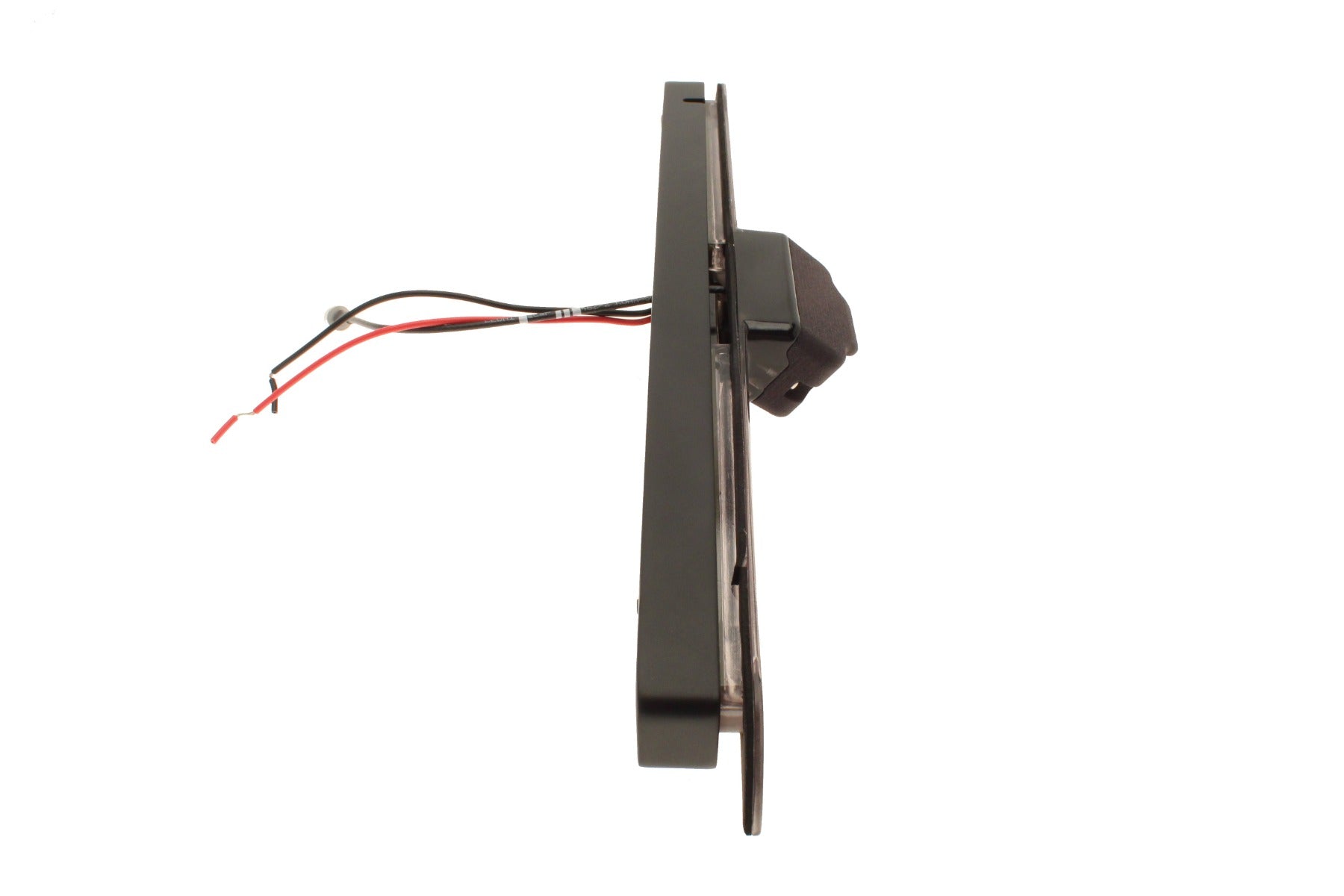

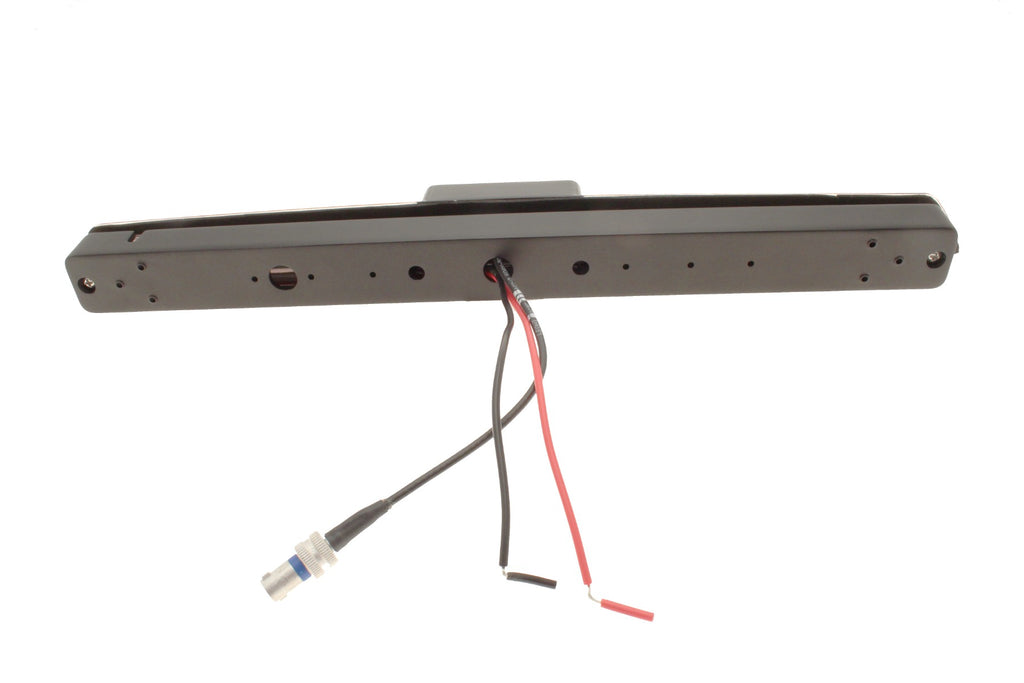

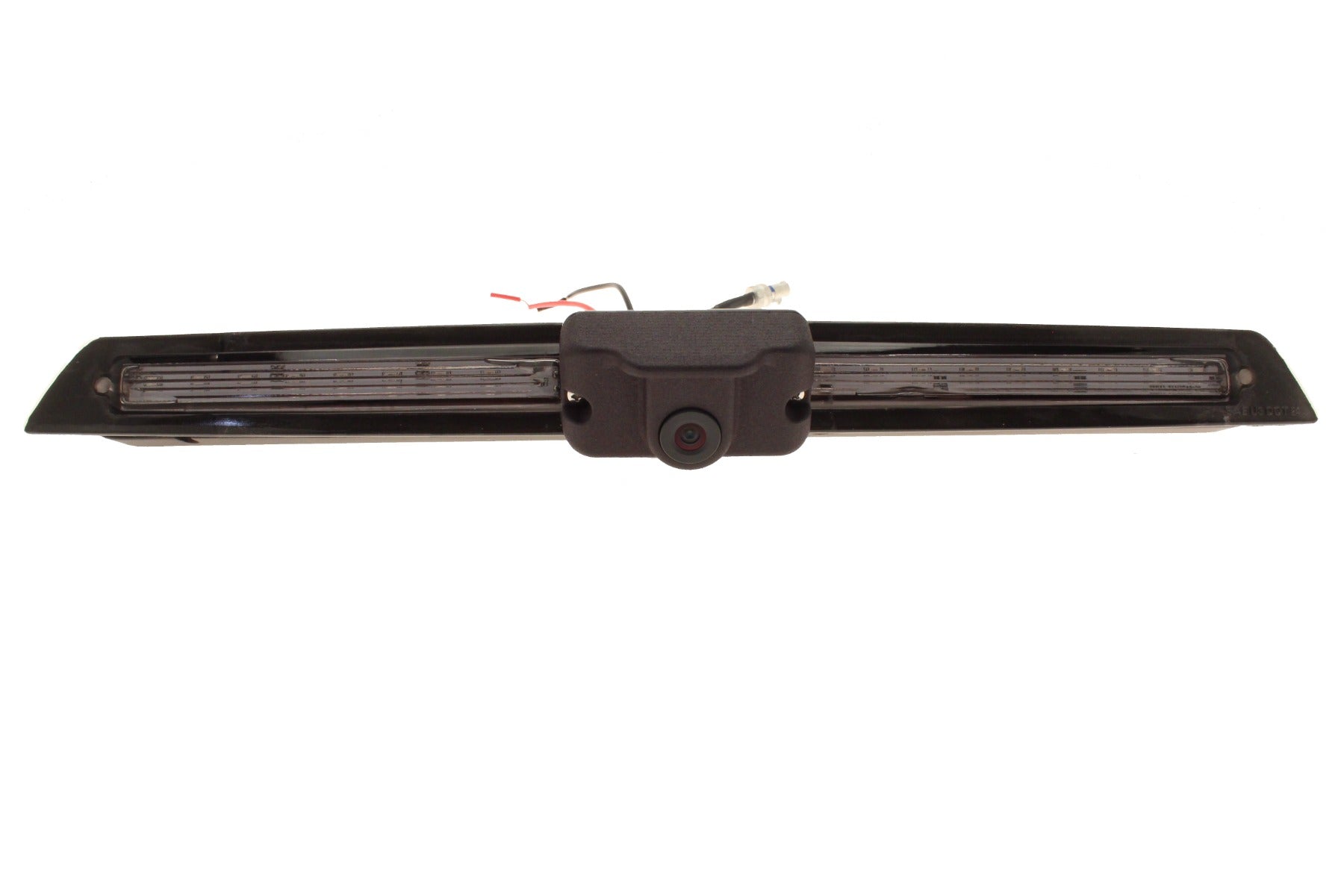

-Replacement 3rd brake light bezel with camera cutout designed for LEER toppers and GM factory mirror camera
-OEM GM mirror camera
-25 foot extension harness
-Install instructions
One year warranty!
Specifications
| System Manufacturer | EVI Systems |
| Camera Type | Rear Camera, Cargo/3rd Brake Light camera |
| Cam Only/Complete Kit | Complete Kit |
| For a monitor it uses | Your factory digital rear view mirror |
| Connection | Factory Connector |
| Make | GMC,Chevrolet |
| Camera Mount Location | Camper/Utility Bed, Factory 3rd Brake Light, Universal Mount |
| Camera Orientation | Rear Facing |
| Reason for Shopping | Relocating factory camera |
| Vehicle Category | Truck, Camper/Trailer (if connecting to vehicle wiring) |
| Model | Silverado,Sierra, Silverado HD, Sierra HD |
| Warranty | 1 Year |
| Waterproof/Dustproof Level | IP69 |
| Wiring Type | Factory Plug&Play |
| Year | 2019,2020,2021,2022,2023,2024,2025 |
| Make Filter | Chevrolet, GMC |
| Model Filter | 1500, HD, Sierra, Sierra HD, Silverado, Silverado HD |
| Year Filter | 2019, 2020, 2021, 2022, 2023, 2024, 2025 |
Compatibility
For 2019-2025 GM trucks- This is a relocation kit for the factory camera on GM trucks that shows in the full screen rear view mirror and have a LEER topper.
This kit provides a way of maintaining the camera system if the third brake light camera is blocked by a topper. Confirmed fit on Leer third brake light.
Installation
Remove the existing truck cap third brake light. Install the new brake light with camera, connect the extension cable and route the cable to the factory connector inside the cab. The connector is located above the headliner in the rear seat of the drivers side and is fairly simple to access, which makes this ideal for DIYers!
Connect the power and ground for the new third brake light to the power and ground you disconnected from the original brake light.
Complete instructions included.
