Plug & Play Camper Camera Kit, Mini Universal Cam Fits Ford® F150
SKU#: CS-FTR-LP-810-5
Availability:
In Stock
SKU#:
CS-FTR-LP-810-5
$199.00
Quantity
Uses factory camera connector under tailgate!
Description
Camera is FMVSS 111 compliant! This is a plug and play camera kit that will allow you to replace your factory tailgate camera with this mini universal camera!
Use this camera for salt spreaders, bed campers, 5th wheel applications, airstream tailgates, and any other application where you are required to remove your factory tailgate. Simply mount the camera on your license plate or any flat surface and run the cable to your factory backup camera connection for a simple and seamless installation. The kit comes with a license plate bracket and a mini-universal bracket, which allows flexibility in mounting locations.
*Check compatibility tab to confirm model years.

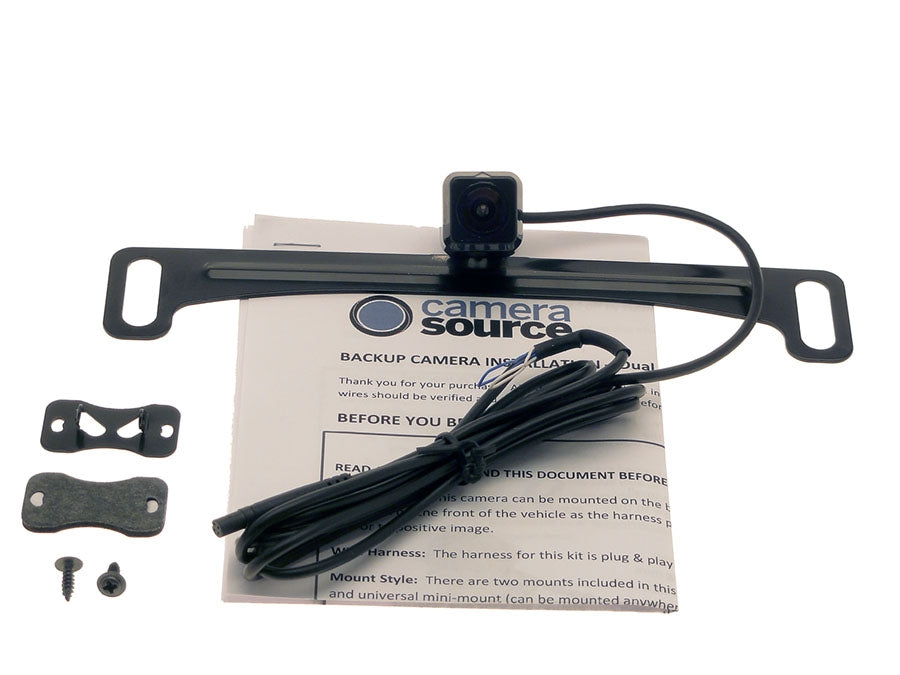

Kit includes the following:

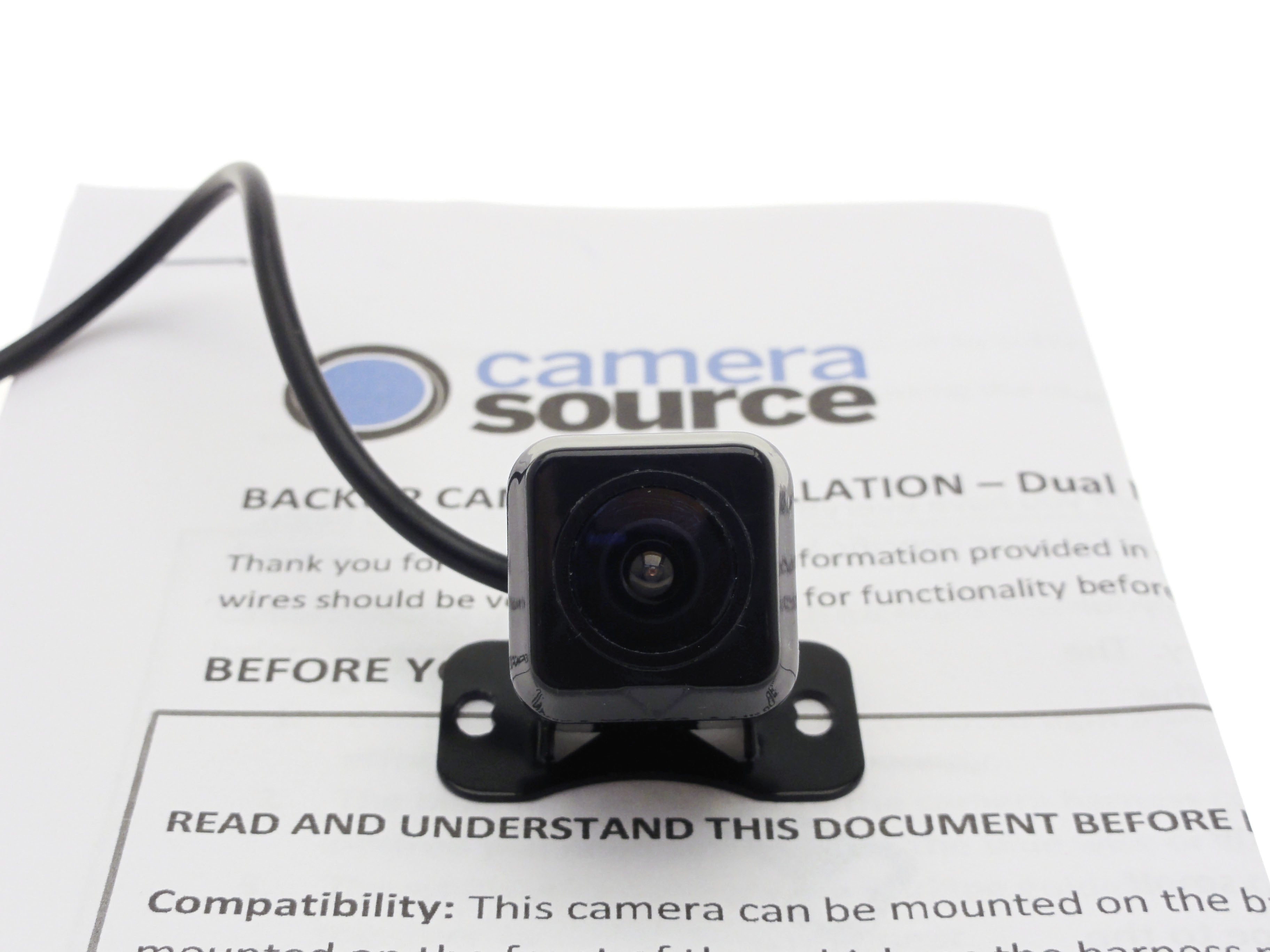

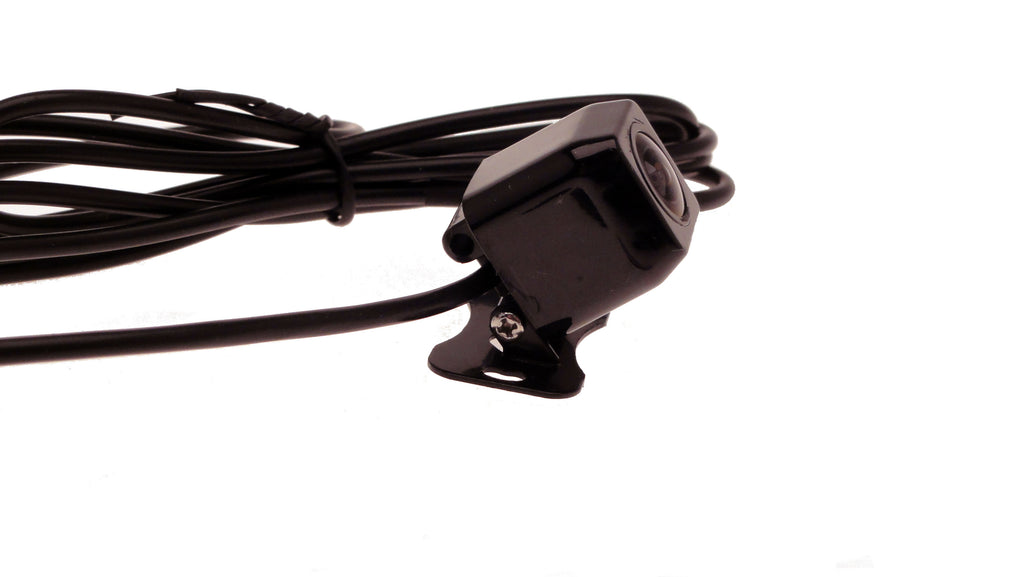

- License plate/universal camera with Super CMOS sensor

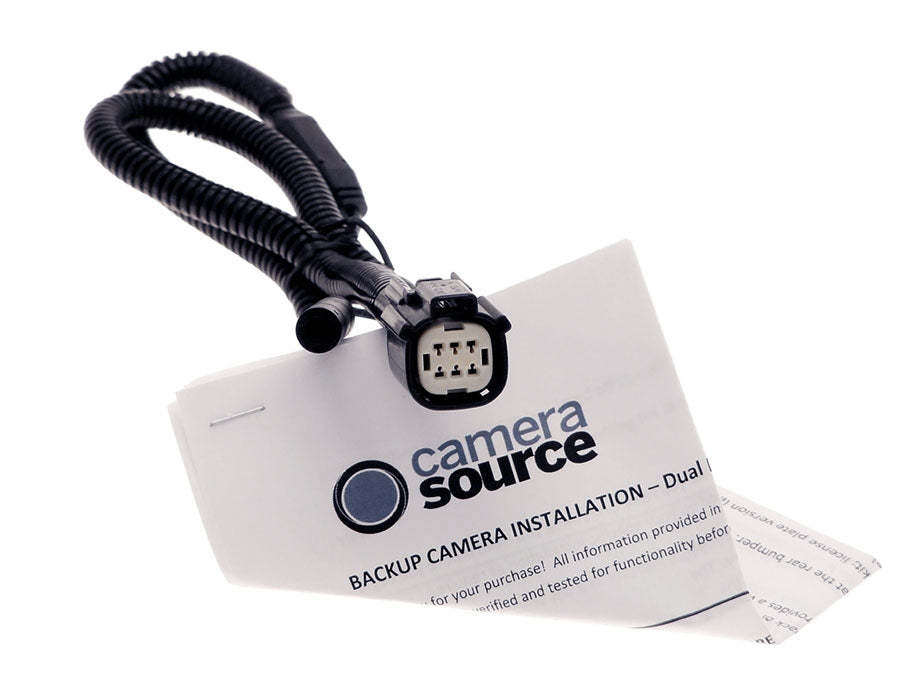

- OEM wiring conversion harness - allows the system to be plug and play with your factory camera connector Select model year from drop down above.
- 5', 10',15', 25' cable options available. Select from drop down above.

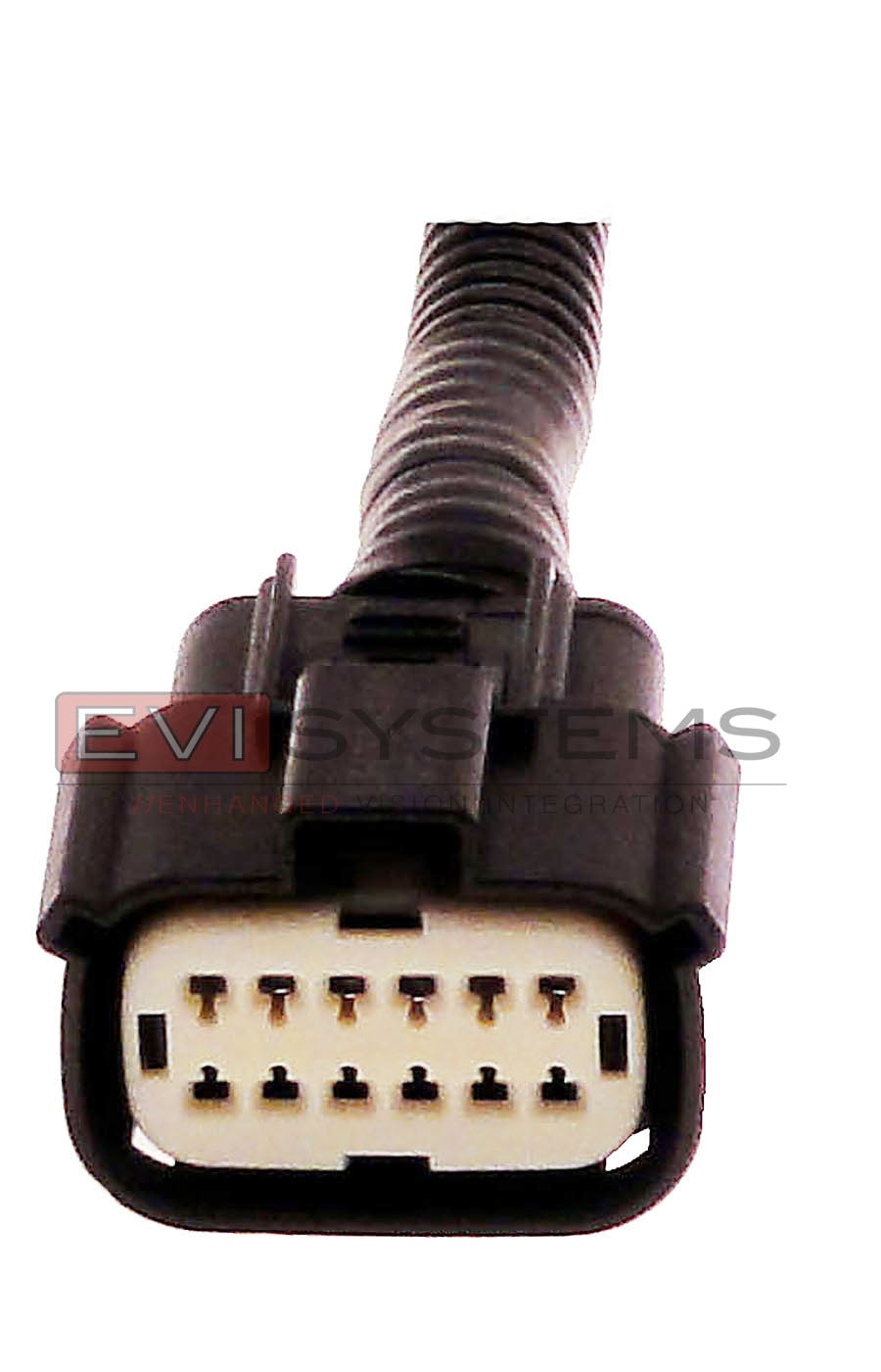

- Camera harness has factory ends for plug and play with your existing wiring
- 3 year warranty!
Camera Specifications:

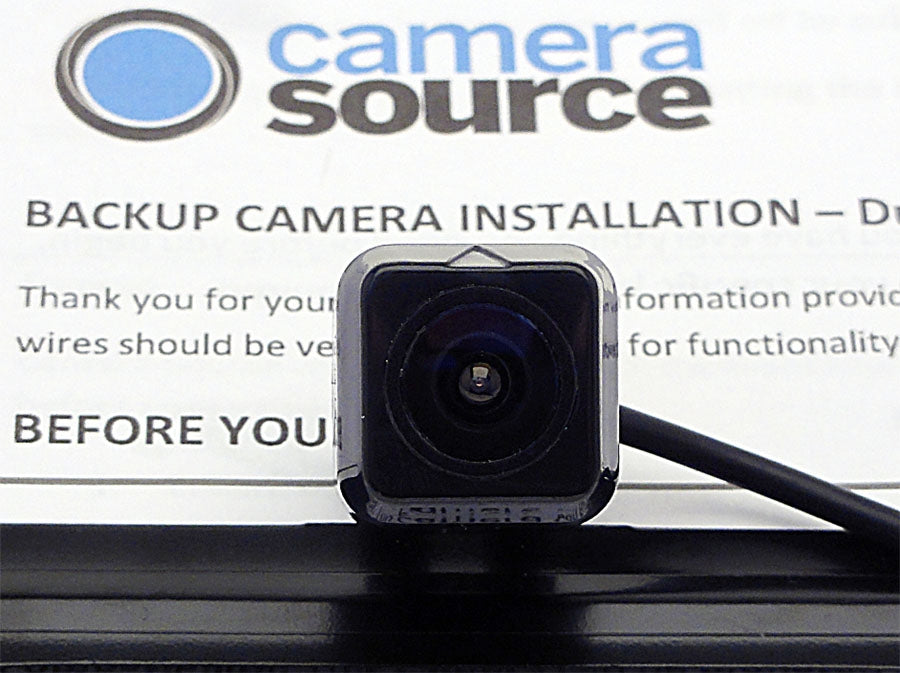

- Camera Source Super CMOS for a super clear image
- Night vision
- 170 degree view
- 600 TV lines of resolution
- Parking guidelines (selectable at the harness)
- Camera can face forward or backward (selectable at the harness)
**Main image is for illustrative purposes only. Your actual connector may be different. See thumbnail pictures for additional images.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera, Utility Bed Camera Systems, Trailer/Camper/5th Wheel camera |
| For a monitor it uses | Your factory display |
| Fit Type | Universal fit |
| Connection | Factory Connector |
| Make | Ford |
| Camera Mount Location | Camper/Utility Bed, Universal Mount |
| Night Vision | < .2 Lux |
| Camera Orientation | Front or Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | Factory LCD |
| Reason for Shopping | Relocating factory camera |
| Sensor Type | Super CMOS |
| Vehicle Category | Truck, Camper/Trailer (if connecting to vehicle wiring), Fleet Vehicle (i.e. cargo van) |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | F-150 |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 68 Camera |
| Wiring Type | Factory Plug&Play |
| Year | 2008,2009,2010,2011,2012,2013,2014,2015,2016,2017,2018,2019,2020 |
| Make Filter | Ford |
| Model Filter | F-150 |
| Year Filter | 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020 |
Compatibility
Ford® F-150 truck with a factory installed backup camera. This kit relies on the factory camera chassis harness to operate.
F-150: 2008-2020

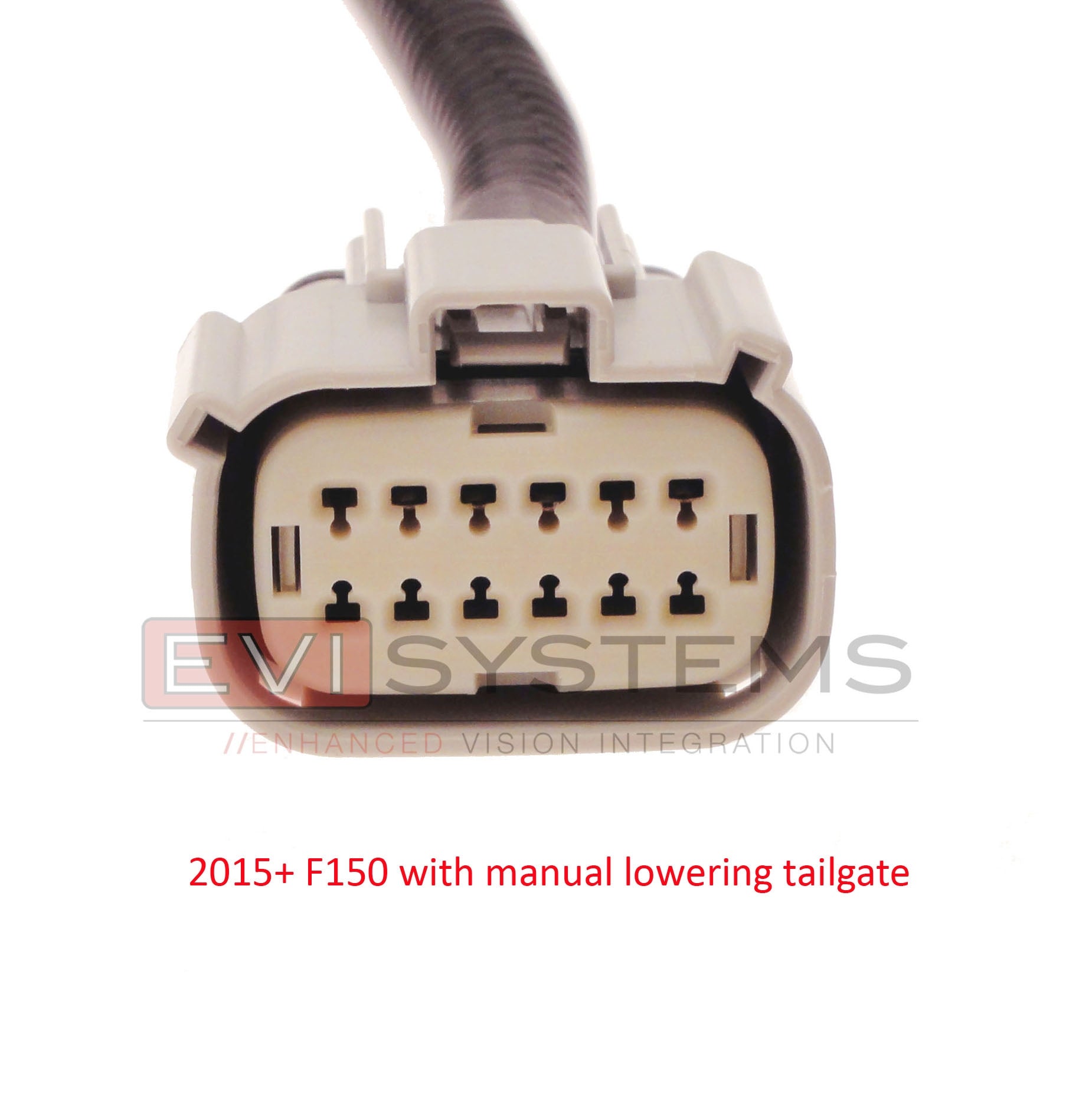

**If your F150 has an automatic lowering tailgate that can be activated with your key fob, be sure to select the Automatic Lowering tailgate option when ordering. The connector for the camera is different for trucks with this option. Compatible with the 360 view system up to 2020. Not compatible with 2021 360 view system.
Note: The automatic lowering tailgate and locking tailgate feature is disabled when using this kit as it is intended for applications where the tailgate is completely removed.
**EVI Systems has certified this camera system to comply with FMVSS 111 regulations as set forth by the National Highway Traffic Safety Administration (NHTSA). Testing has been performed jointly in-house and by a certified laboratory to meet or exceed the minimum requirements set forth by TP-111-V-01. FMVSS 111 field of view requirements and any other vehicle related certification is ultimately the responsibility of the vehicle up-fitter to ensure compliance.
Installation

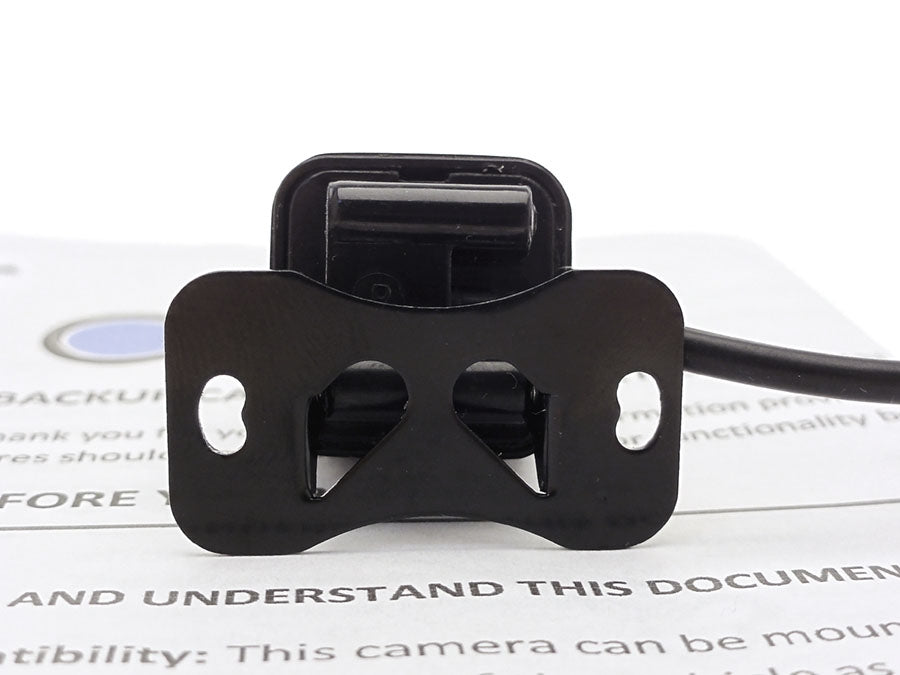

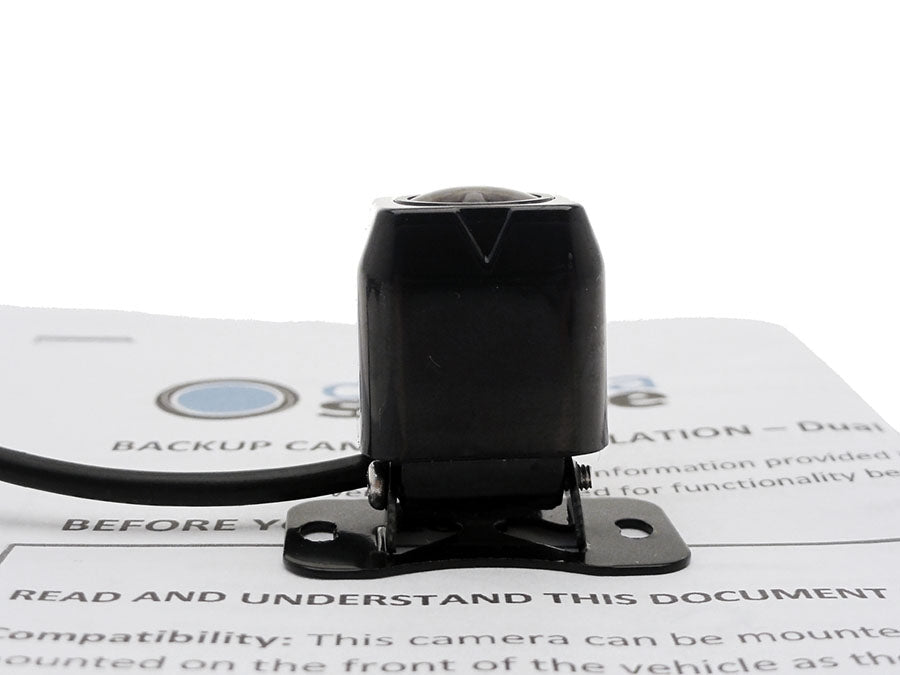

Mount the camera anywhere! Two brackets included!

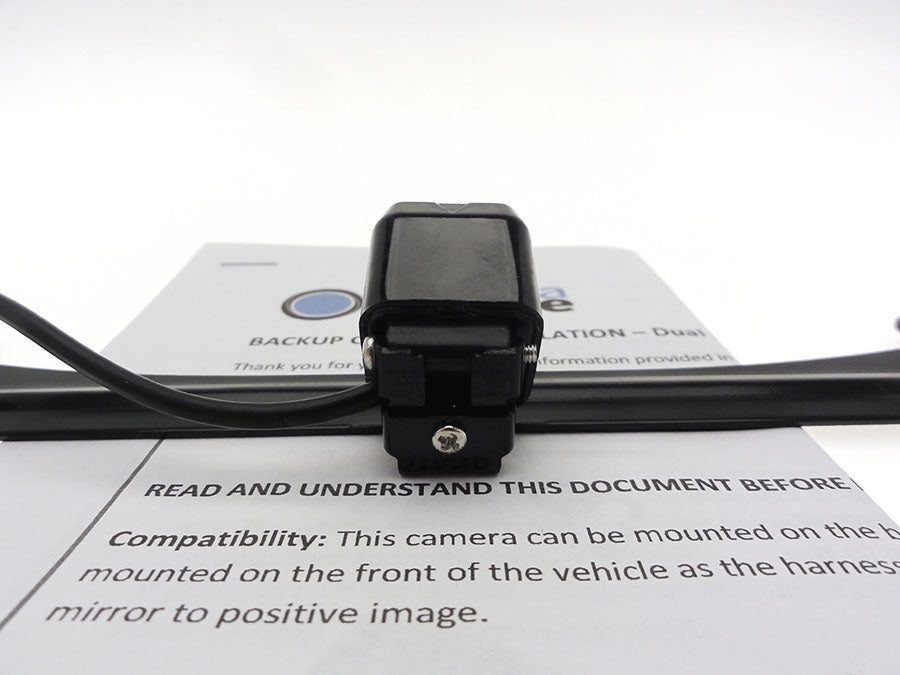

Can be mounted behind your license plate mount using the same screws that hold your license plate in place. Or switch camera over to the universal bracket that allows for surface mount in virtually any location.

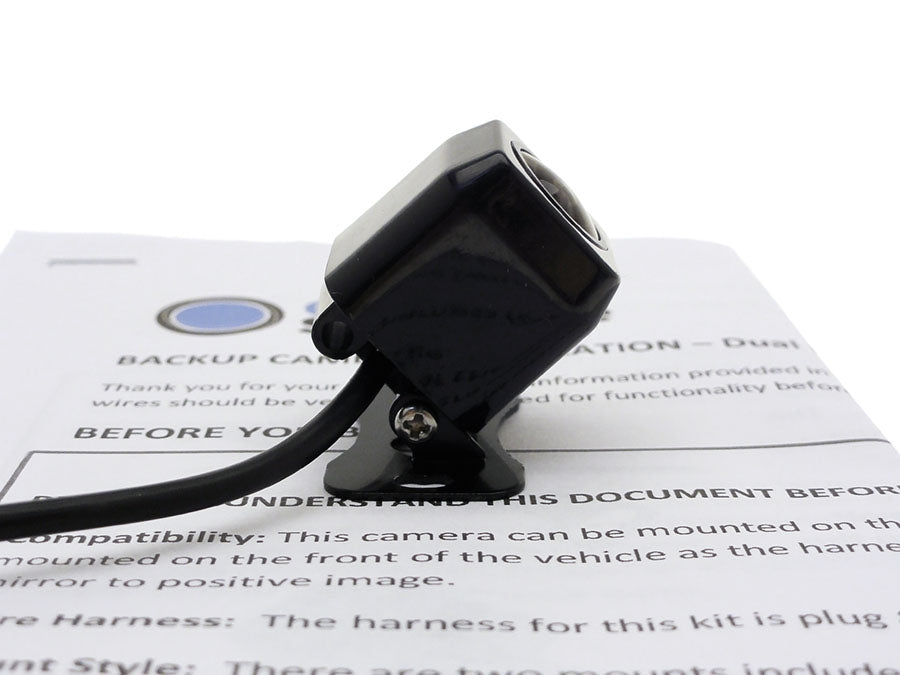

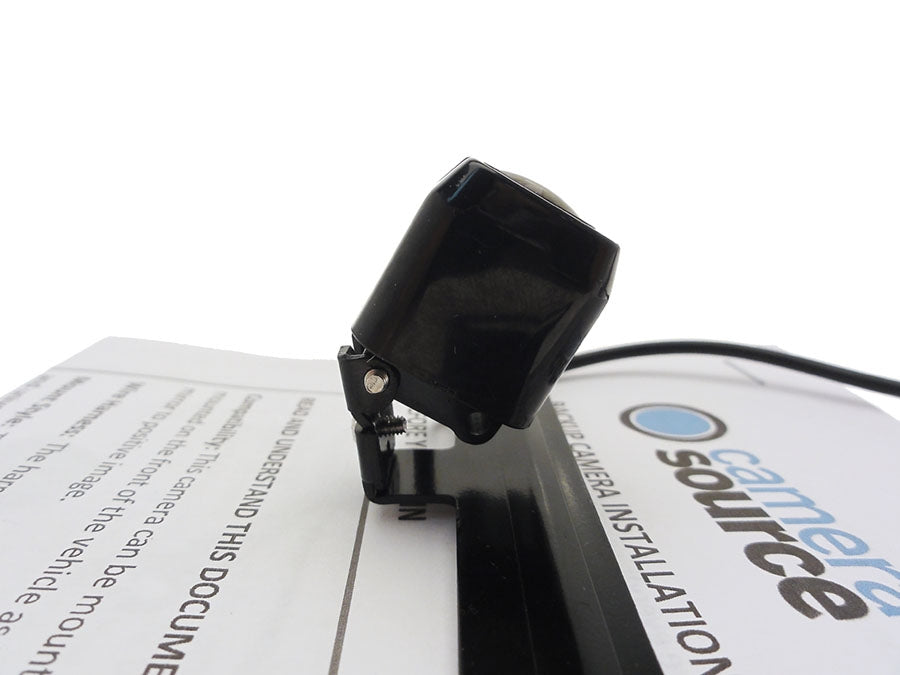

Camera tilt is adjustable so the view can be adjusted to accommodate any view required!
