EVI Systems-10" High Definition Quad View Monitor-Waterproof
SKU#: CS-10QAHD-WP
Availability:
In Stock
SKU#:
CS-10QAHD-WP
$293.00
Quantity

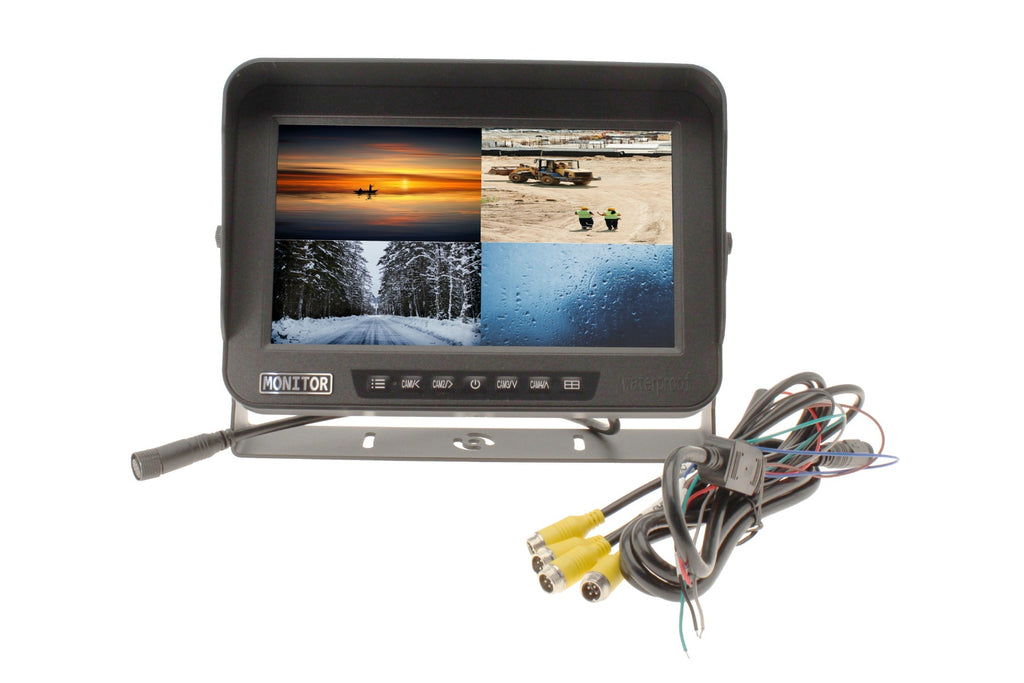

10" Quad View Hi-Def Monitor-WATERPROOF
Description
EVI Systems-10" Analog High Definition digital WATERPROOF display can display 4 cameras simultaneously or one at a time! Ideal for agriculture applications, boats and construction equipment where the monitor may be exposed to water. Display has multiple camera configurations.
This 10" digital color quad view monitor has an ultra clear digital display and designed to work in any vehicle - comes with everything you need to install. The inlcluded mount converts from a dash to window mount easily and the wire harness can adapt to all backup cameras with a locking screw type connector. Works on all 12v or 24v systems!

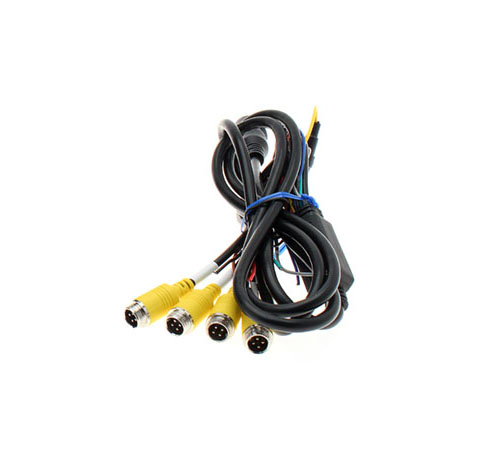

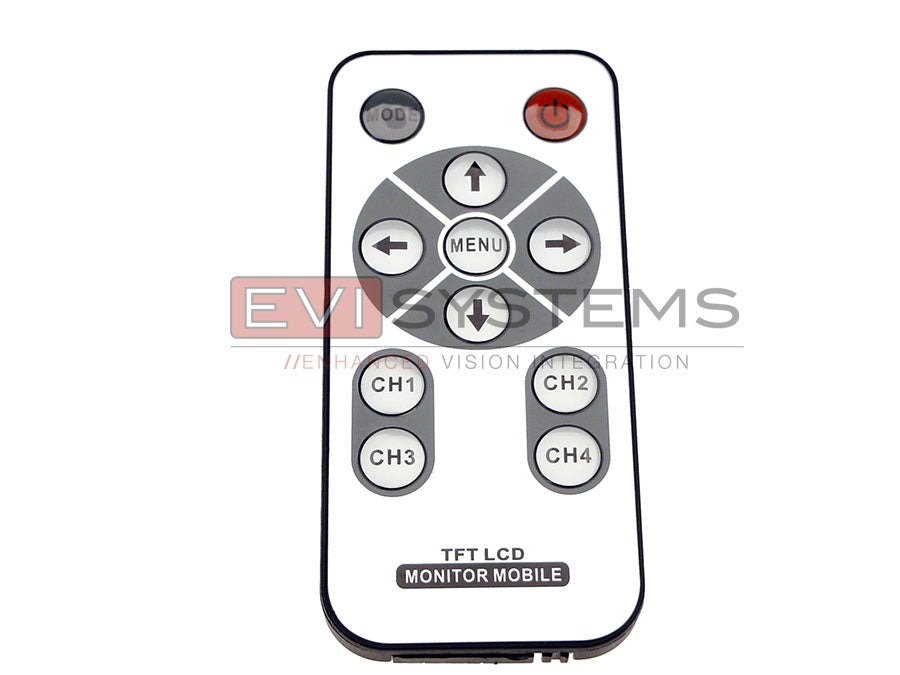

Package includes the monitor, monitor mount, wire harness, and remote.
Specifications:
- screen size: 10.1 inch (diagonal length)
- Built-in quad display
- Waterproof
- High resolution
- 16 : 9 wide screen display
- PAL-NTSC system auto switching
- 1024x600 resolution
- Power supply is DC 12 V/24V compatible
- Remote control, OSD menu
- (4) 4 PIN connector for our commercial grade AHD cameras
- Inputs for up to 4 cameras
Overall monitor dimensions 10-1/4" wide, 6-1/4" tall, 2-1/2" deep at the sunshield. Note that these dimensions are for the monitor only and do not include the mount. Camera's are not included in this package. Bundle with our camera systems for a discounted price!
Warranty Information: 1 year warranty.
Specifications
| System Manufacturer | EVI Systems |
| Audio Input Ports | None |
| Bracket Type | Steel monitor mount |
| Fit Type | Universal fit |
| Impact Rating | 4g |
| Connection | Commercial 4 Pin Coax |
| Includes Remote | Yes |
| Monitor Size | 10" |
| Number of Triggers | 4 |
| Overall Dimensions | 240 x 163 x 26 mm |
| Power Supply | 12-24 Volts |
| Screen Resolution | 1200x600 |
| Split Screen | Yes |
| System Type | Standard Build |
| Camera Input Ports | 4 |
| Video System | NTSC/PAL auto switching |
| Warranty | 1 Year |
| Wiring Type | Hard Wired |
Compatibility
Compatible with any 12v or 24v system.
Installation
Installs anywhere! All installation hardware is included - requires 12 or 24v accessory power, reverse activated power (if desired), and 4 video inputs.
