Commercial camera with OBD Programmer for Factory Display-C2T, Fits 2009-2012 RAM®
SKU#: CS-DTRSK-C2TG
Availability:
In Stock
SKU#:
CS-DTRSK-C2TG
$349.00
Quantity
No dealer programming required!
Description
This is a high quality OEM integrated backup camera solution for your 2009-2012 RAM® 1500 or 2010-12 RAM® 2500,3500 that integrates right into your 8" factory display screen! No dealer programming is required making this a simple OEM integrated solution for your vehicle. Simply mount the camera on any surface and run the cable to the backup camera integration harness(included) on the back of your factory radio. Choose the cable length from the drop down above.

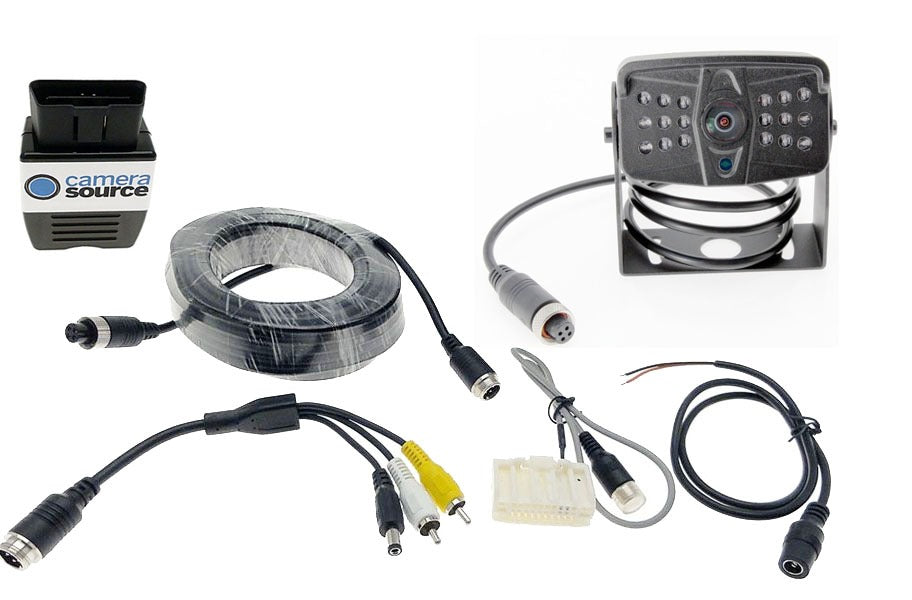

The kit comes with the following:

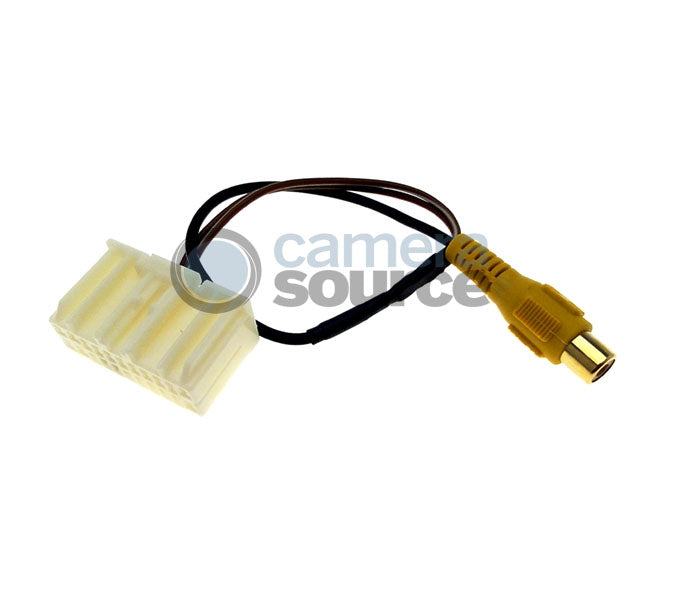

- Factory radio integration harness (Monitor not included)

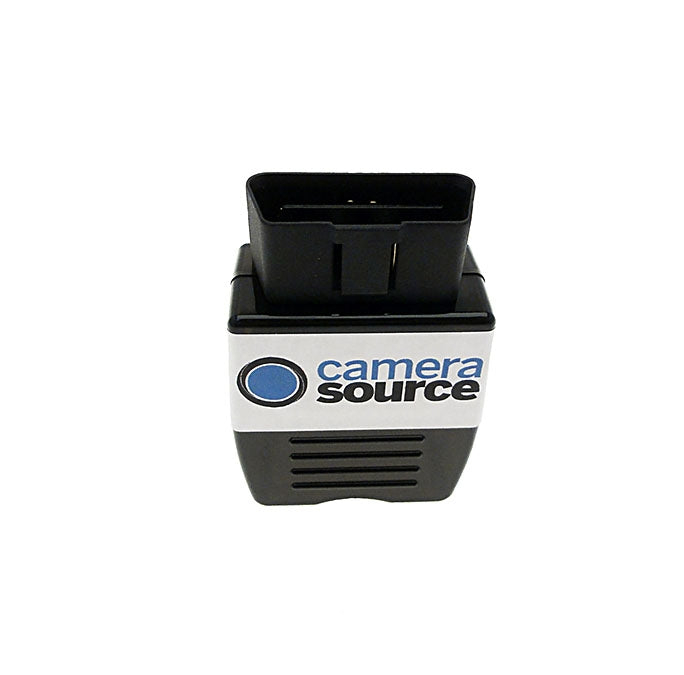

- OBD programming module
-
Heavy duty commercial camera with Sony CCD sensor
-

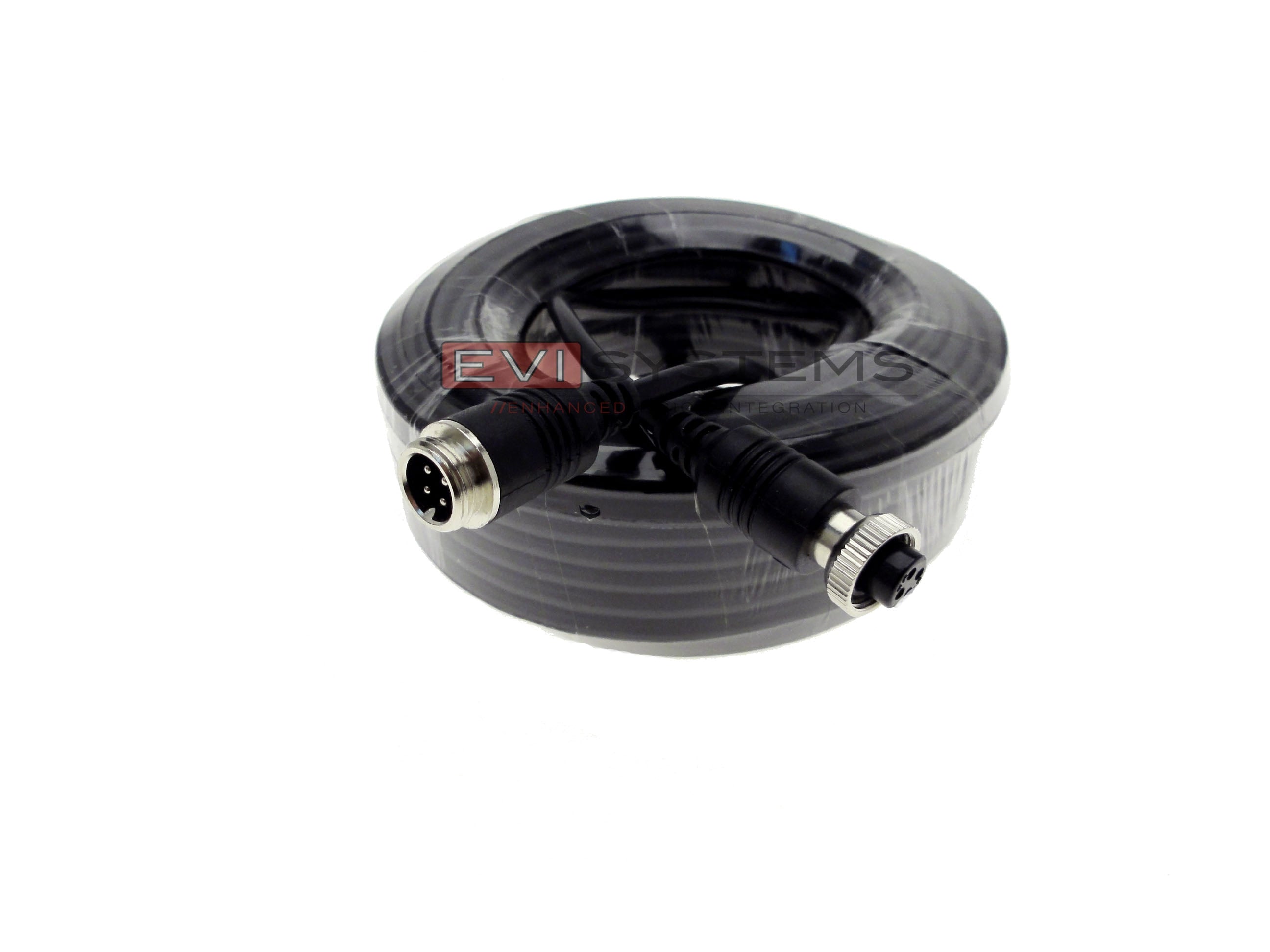

32' coaxial wire harness with weather tight connectors (unless 64' option selected above)
- 4 pin to RCA conversion harness
-
One year warranty!

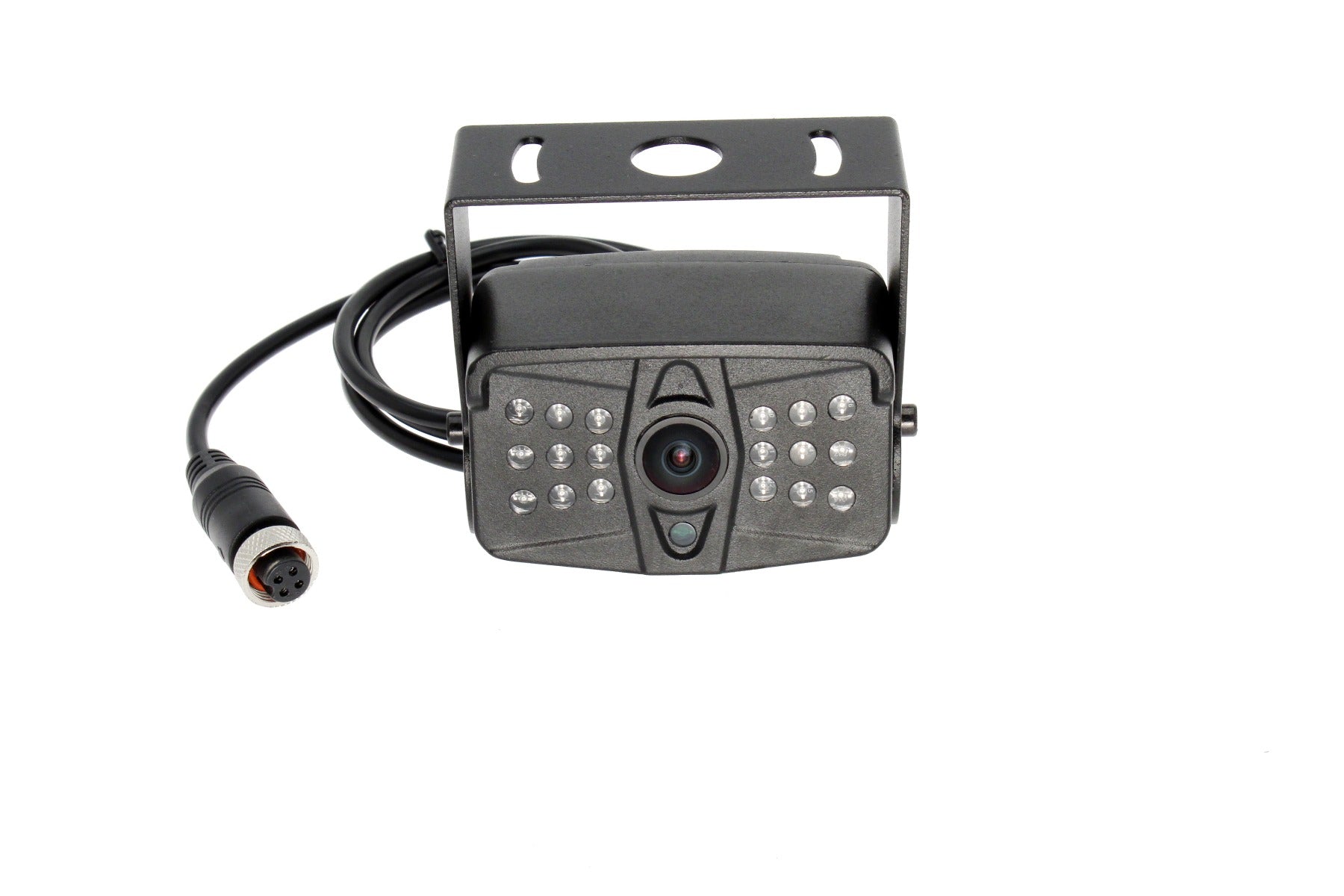

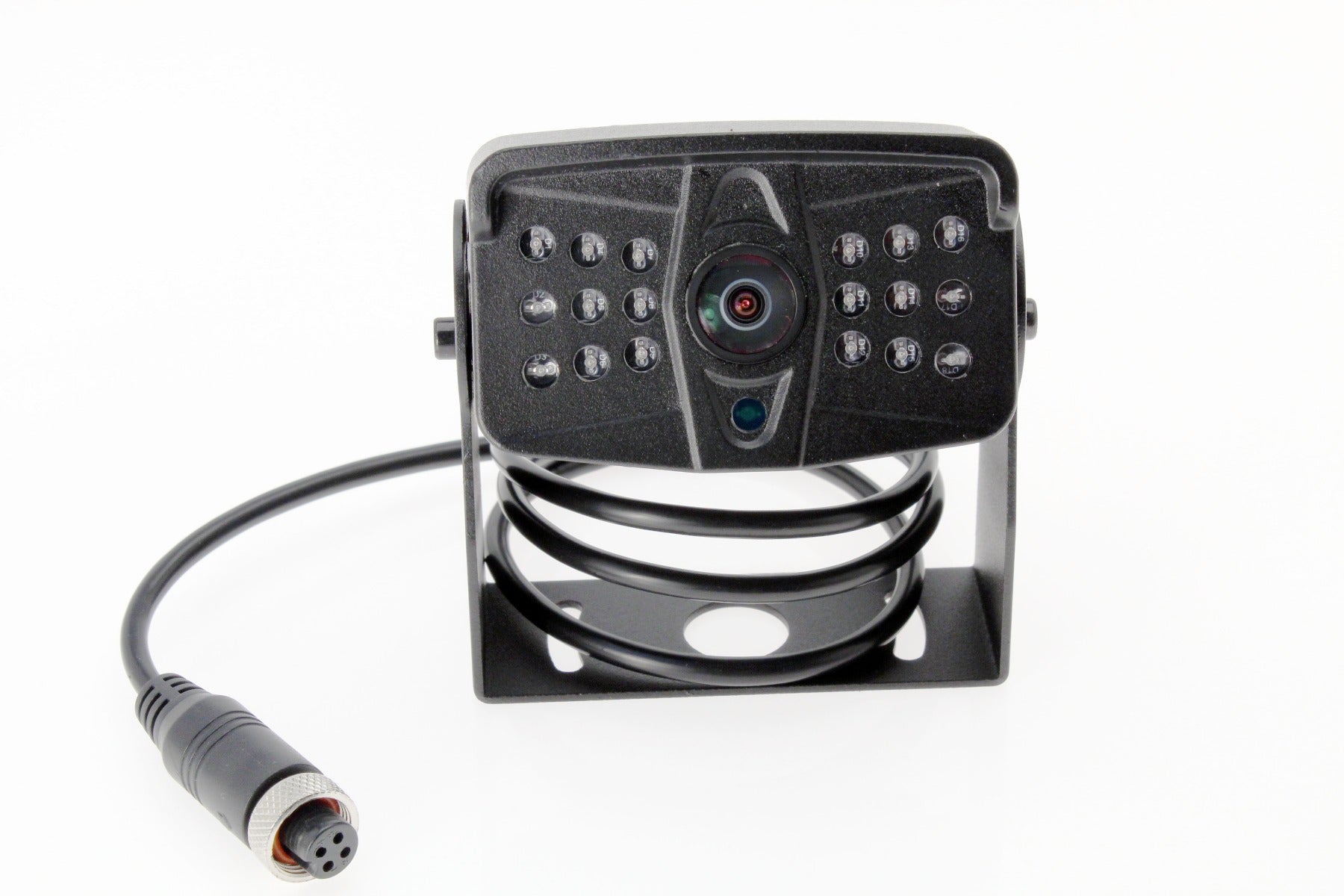

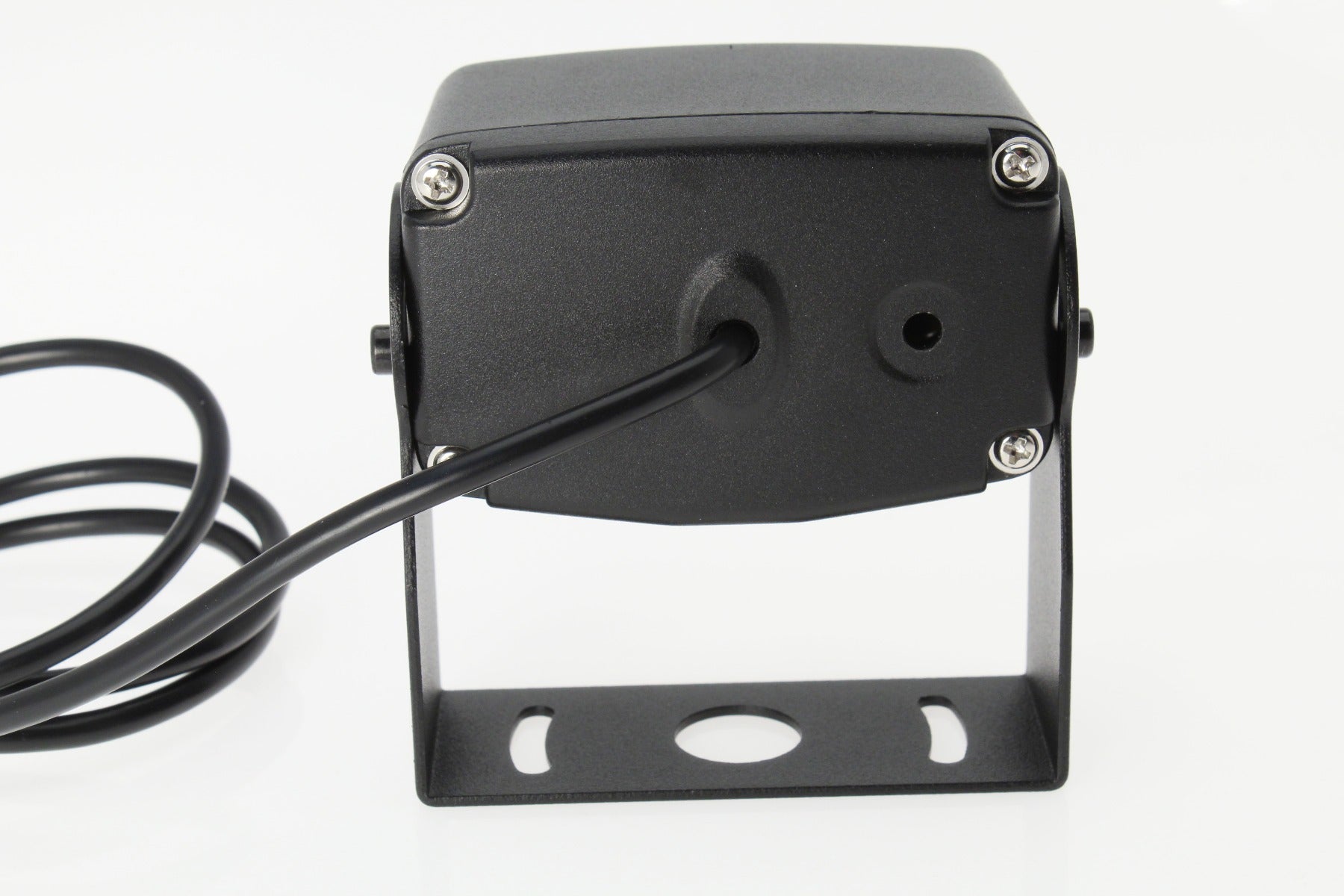

Camera Specifications:
-
Sony Ultra CCD for a really clear image
-
Infra-red LED's that will create a daytime like display even in complete darkness
-
150 degree view
-
700 TV lines of resolution
-
0 lux (no light required to operate)
-
Heavy cast casing and steel mounting bracket
-
Locking weather tight connector
**Monitor not included.**
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 700 TVL |
| Camera Type | Rear Camera |
| For a monitor it uses | Your factory display |
| Fit Type | Universal fit |
| Connection | Plug and Play to Factory Dash Display |
| Make | RAM |
| Camera Mount Location | Universal Mount |
| Night Vision | 0 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Not Available |
| Power Supply | 12 Volts |
| Radio Screen Size | 8.4\ Mopar |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | CCD |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 1 |
| Video System | NTSC |
| Viewing Angle | 150 Degrees |
| Model | 1500,HD |
| Warranty | 1 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2009,2010,2011,2012 |
| Make Filter | Ram |
| Model Filter | 1500, HD |
| Year Filter | 2009, 2010, 2011, 2012 |
Compatibility
Compatible with the listed vehicles that have the MyGig® factory display screen.
2009-2012 RAM® 1500
2010-2012 RAM® 2500,3500
Installation

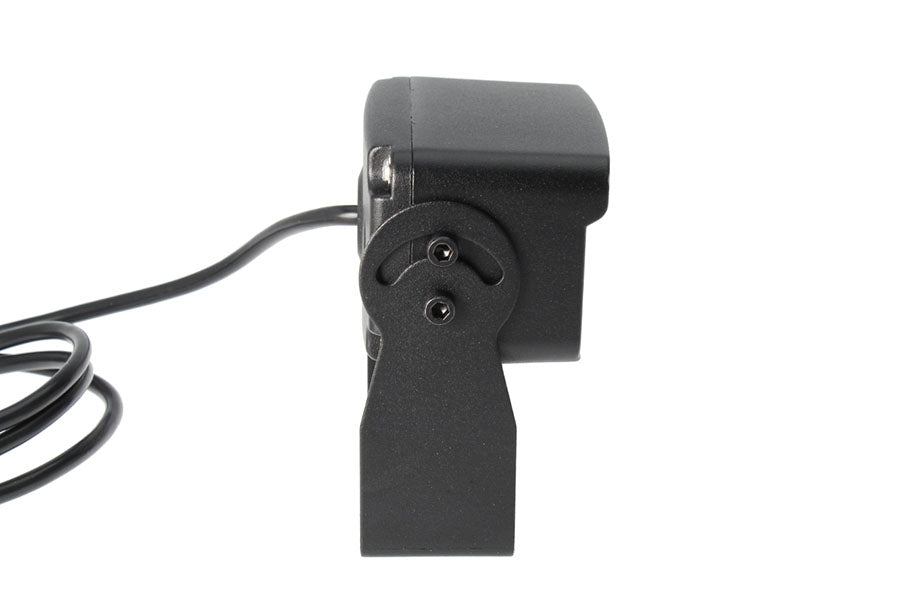

Mount the camera anywhere! Versatile mount allows for surface mount in virtually any location. Camera tilt is adjustable so the view can be adjusted to accommodate any view required! The camera harness will run inside the vehicle to the back of your factory display and you will need to locate a reverse activated 12v power source and ground.
Make installation even easier with an add on 12 Volt power source to eliminate the need to locate a power source on the vehicle and avoid cutting or splicing into factory wiring! See related item SKU: CS-RPW-P
You will need to remove your factory radio to install the RCA T-Harness to the back of your factory display. Connect the RCA from the main chassis harness to the T-Harness.
Plug the OBD programmer into the OBD port under the steering wheel and programming is completed in less than a minute!
NO DEALER ACTIVATION REQUIRED
