DEMO 7" AHD Quad DVR Screen- Rear and Side Camera included
SKU#: CS-7QDVR-RS-DEMO
Availability:
In Stock
SKU#:
CS-7QDVR-RS-DEMO
$210.00
Quantity
Incredible crisp picture-High Definition!
Description
Demo- Kit was used for testing purposes only. Everything is in brand new condition and the monitor still has the protective screen seal on it! No warranty
Complete kit for any application! This kit has everything you need to wire the included AHD (Analog High Definition)camera to this quad view 7" High Definition screen monitor for maximum visibility.
This camera system has commercial grade AHD cameras (1080P!) with superb night vision along with a 7" High Definition digital quad screen DVR monitor for the ultimate in clarity day or night!

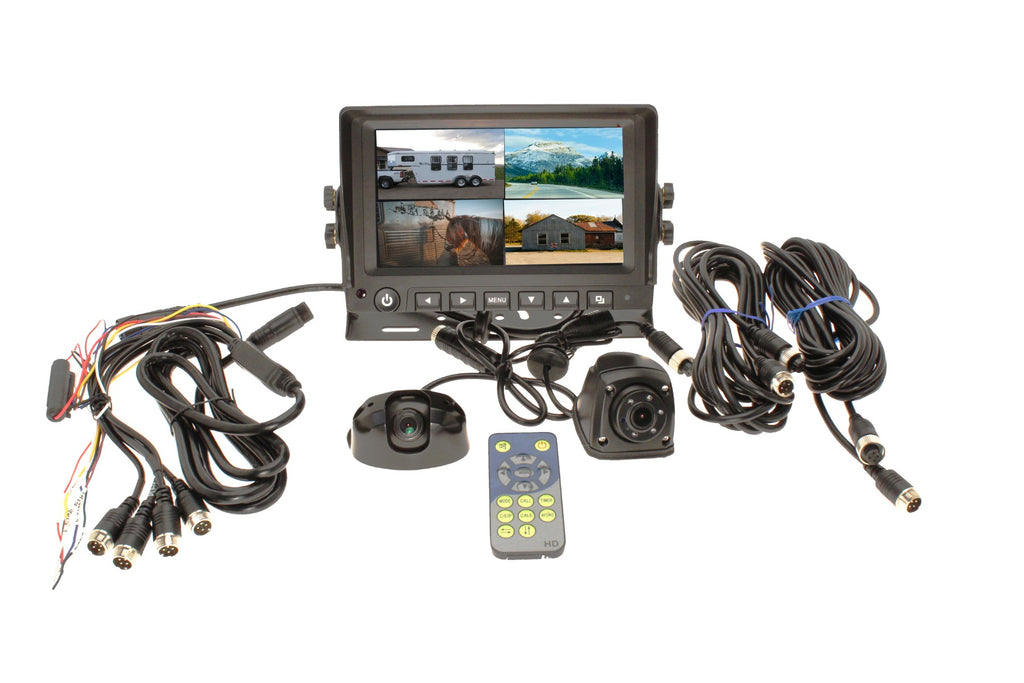

The kit comes with the following items:
- 7" High Definition digital quad screen DVR monitor -watch up to four cameras at once or switch between individual cameras with a button on the front of the display or use the included remote. *SD card not included.
- Monitor wiring harness
- Easy install monitor mount
- 16' twist lock heavy duty cable for side camera (1)
- 32' twist lock heavy duty cable for rear camera(1)

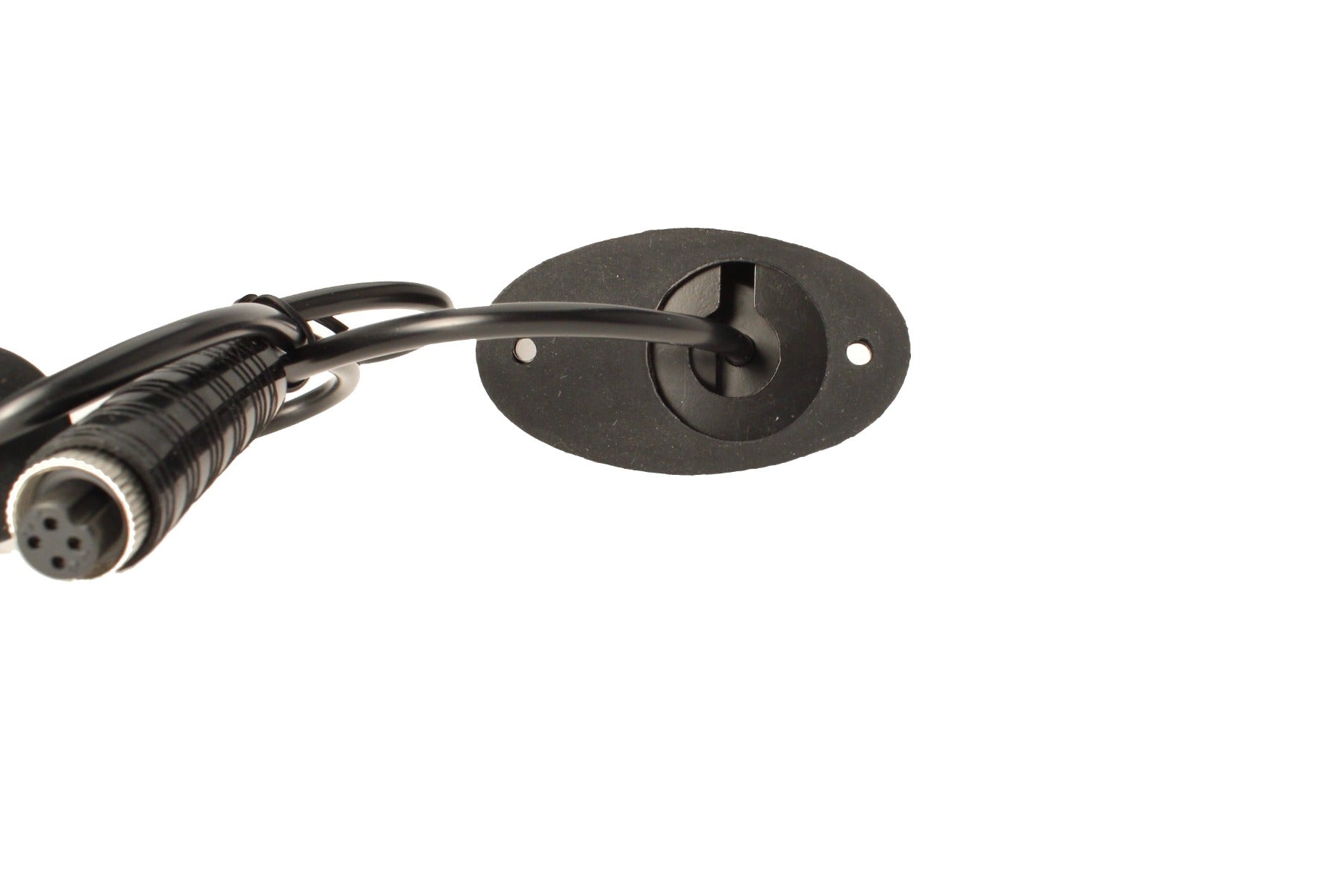

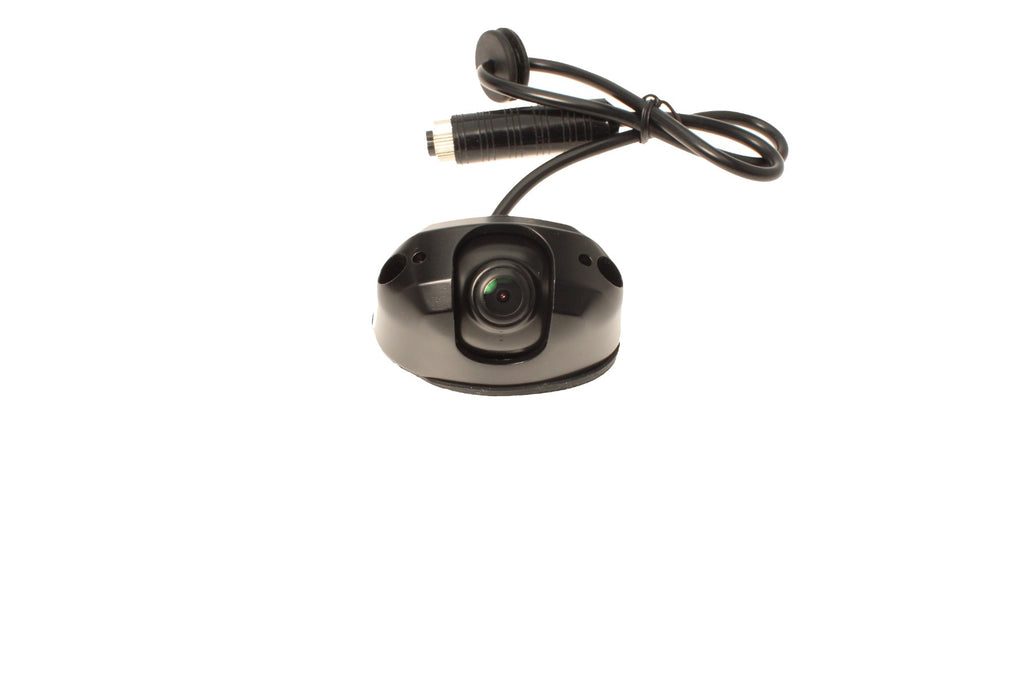

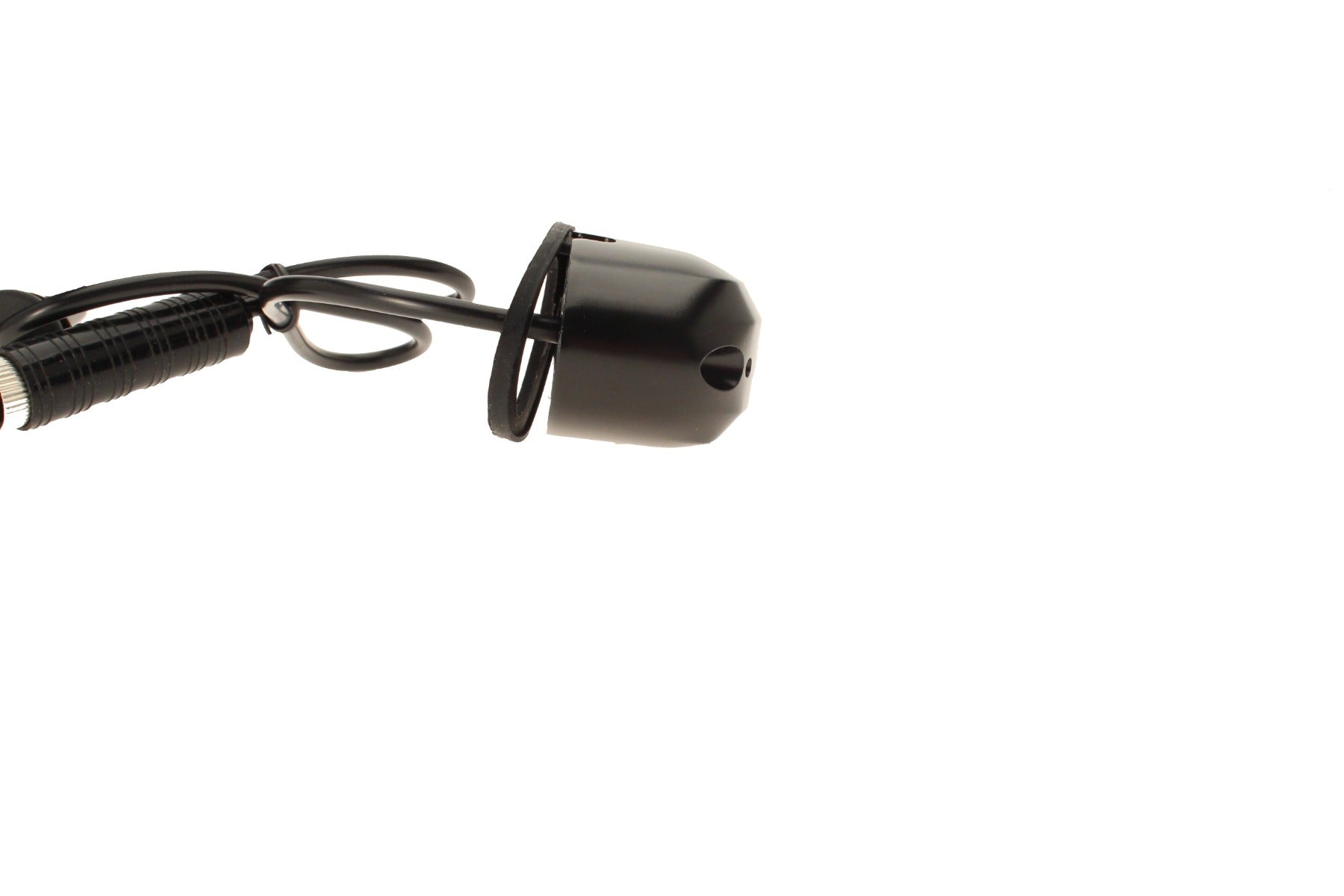

- AHD commercial grade 1080P adjustable camera (1)

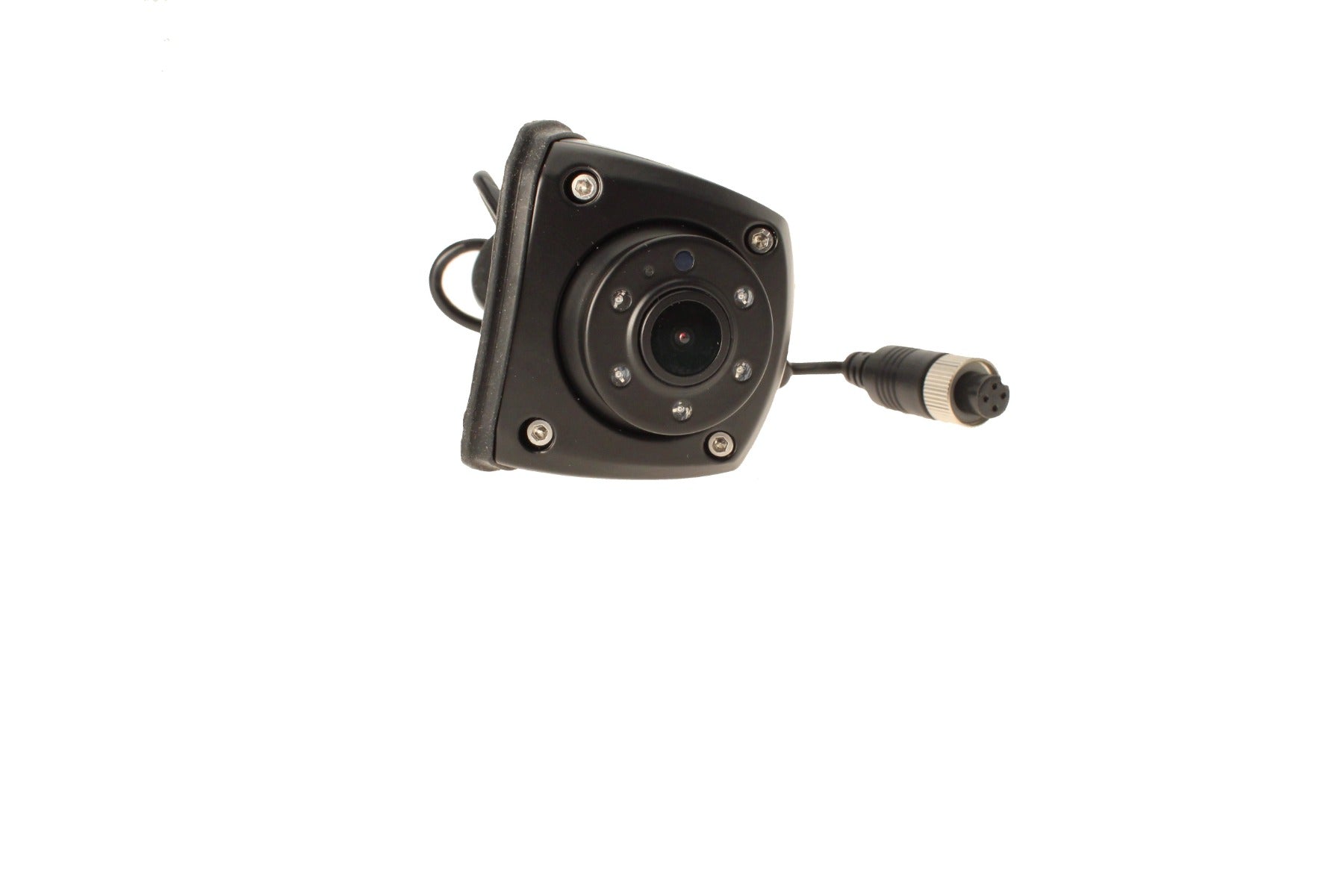

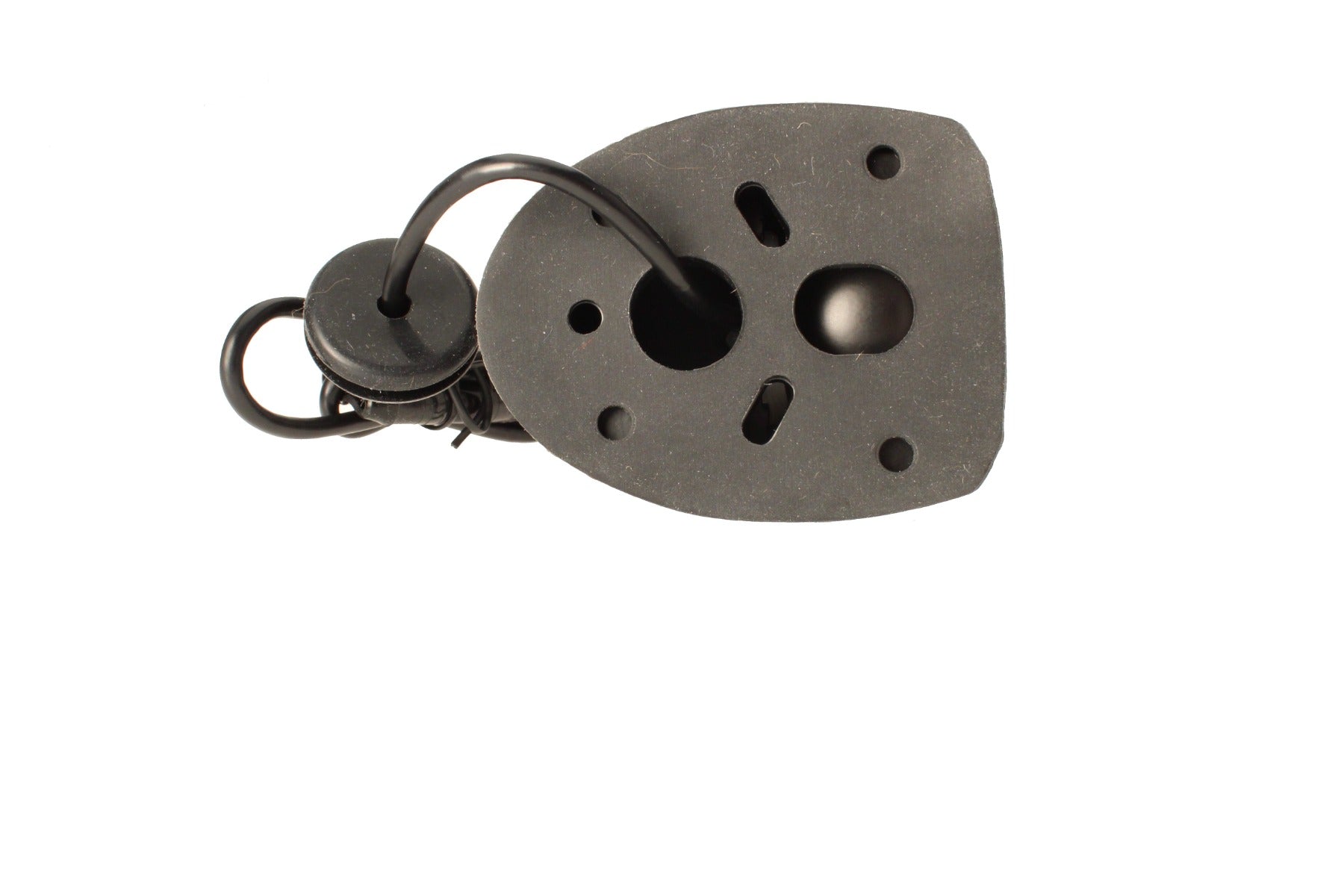

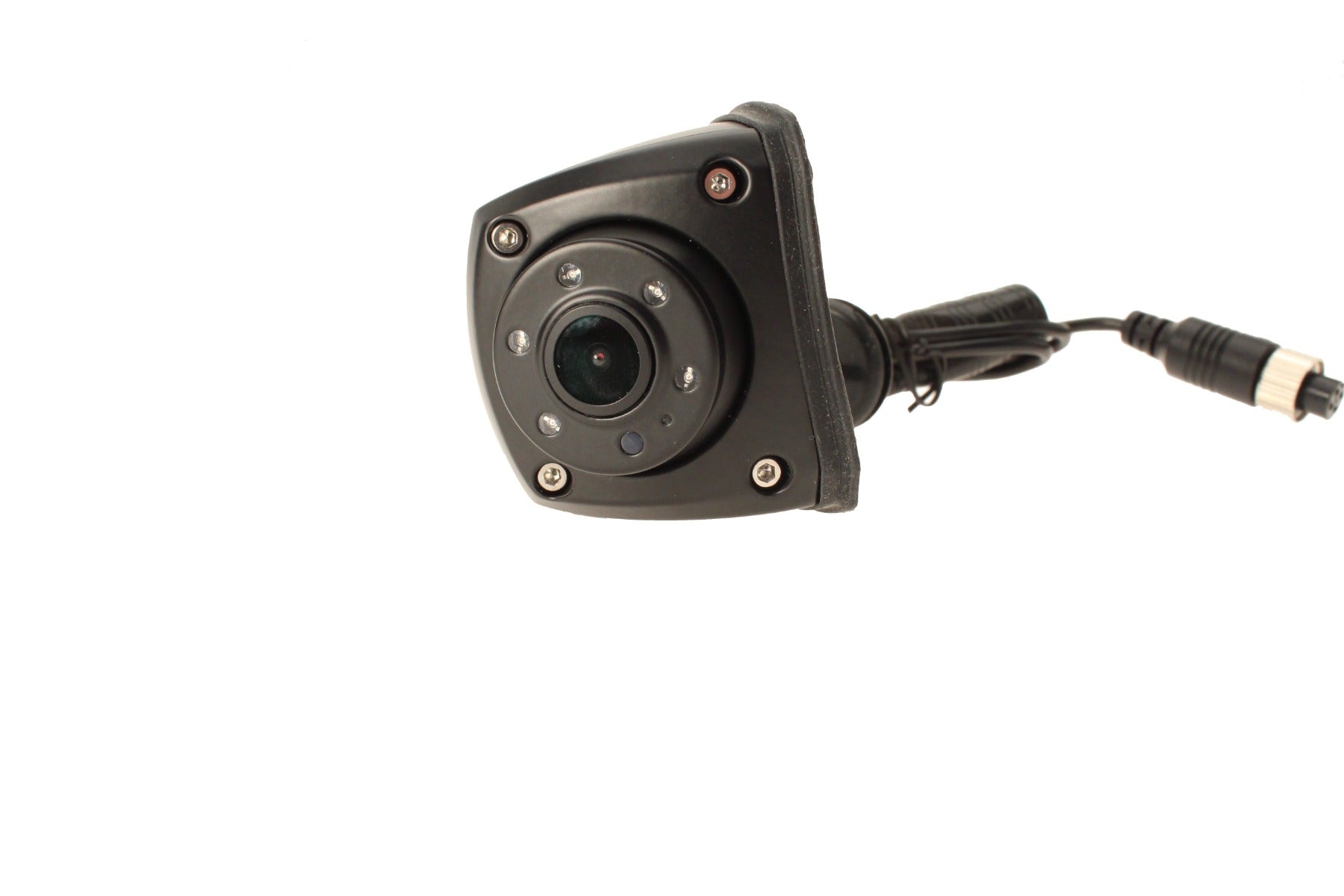

- AHD commercial grade 1080P side camera (1)
Monitor specs:
- Screen size: 7 inch (diagonal length)
- Built in DVR- SD slot supports up to 256GB for approximately 20 hours of recording(SD card not included)
- 16 : 9 wide screen display
- NTSC system
- 1024x600 resolution
- Power supply is DC 12 V/24V compatible
- Remote control, OSD menu;
- 4 PIN connector for AHD commercial grade cameras. Inputs for up to 4 cameras (2 cams included)
Camera specs:
- Analog High Definition
- 1080 resolution!
- 150 degree view
- IR LED's for clear night vision even in complete blackness-side camera only
- Weather grommet for easy cable passage to the interior
- Steel weather tight casing with IP69 water resistance
- Weather tight screw connectors for extremely secure and dry connections
No warranty.
Specifications
| System Manufacturer | EVI Systems |
| Agriculture / Commercial | Commercial |
| Audio Input Ports | None |
| Bracket Type | Steel mount monitor, steel u bracket camera |
| Number of Cameras | 2 |
| Camera Type | Rear Camera, Front Camera, Multiple cameras (kit), Trailer/Camper/5th Wheel camera |
| Cam Only/Complete Kit | Complete Kit |
| For a monitor it uses | Packaged w/Aftermarket Monitor |
| Fit Type | Universal fit |
| Impact Rating | 5G monitor, 50G camera |
| Connection | Commercial 4 Pin Coax |
| Includes Remote | Yes |
| Monitor Size | 7" |
| Camera Mount Location | Universal Mount |
| Night Vision | 0 Lux |
| Number of Triggers | 4 |
| Camera Orientation | Rear Facing |
| Overall Dimensions | 172 x 115 x 22 mm (monitor) |
| Parking Guidelines | Not Available |
| Power Supply | 12-24 Volts |
| Reason for Shopping | Adding camera(s) |
| Screen Resolution | 1024x600 |
| Sensor Brand | Other |
| Sensor Type | CMOS |
| Sound Options | Without Microphone |
| Split Screen | No |
| System Type | Standard Build |
| Vehicle Category | Truck, Camper/Trailer (if needing standalone system), Farm Equipment, Fleet Vehicle (i.e. cargo van), RV, Universal |
| Camera Input Ports | 4 |
| Video System | NTSC |
| Viewing Angle | 150 Degrees |
| Waterproof/Dustproof Level | IP 69 Cameras |
| Wiring Type | Hard Wired |
Compatibility
12 volt DC systems. Universal design will fit on anything! Use this camera system in a horse trailer for monitoring livestock while hauling, monitor grain carts to avoid spillage and overweight loads, see what is behind the combine or folding planter, use anywhere you need better visibility!
Installation
Very simple to install - everything is included in the package! Locate a 12 volt DC power supply to power the monitor. Power is transferred from the monitor directly to the camera, so no need to locate another power source for the camera.
