Commercial Second Cam Option for Sierra/Silverado Factory Display
SKU#: CS-UTC-SWGM
Availability:
In Stock
SKU#:
CS-UTC-SWGM
$435.00
Quantity
Toggle between cameras!
Description
This kit includes a harness that will allow you to use your factory radio display and toggle between your factory installed back up camera and this commercial camera when in reverse. The camera connects to a video switcher harness that connects to the same connector on the back of your factory display that your factory rear camera uses.
This kit comes in handy when you have a trailer behind the truck since the rear of the trailer is a serious blind spot! This kit is designed to solve that problem by adding the second rear camera on the rear of the truck or trailer. This camera has built in LED's for better night vision. Comes with everything you need to install the camera on the rear of the trailer and run a 4 pin coax to the cab to connect to the video switcher. Optional trailer quick disconnect system allowing you to disconnect your trailer with ease by making the camera connections as simple as unplugging the lights of the trailer.
Notes about the included integration cable: Truck must have a rear view camera that was installed at the factory and is displayed on your factory IO4, IO5, or IO6 radio screen (2014-2018 models only)
Kit includes a video switcher harness that allows you to connect both your factory tailgate camera and this commercial camera to your factory radio. The switch allows you to choose which one is displayed in reverse.

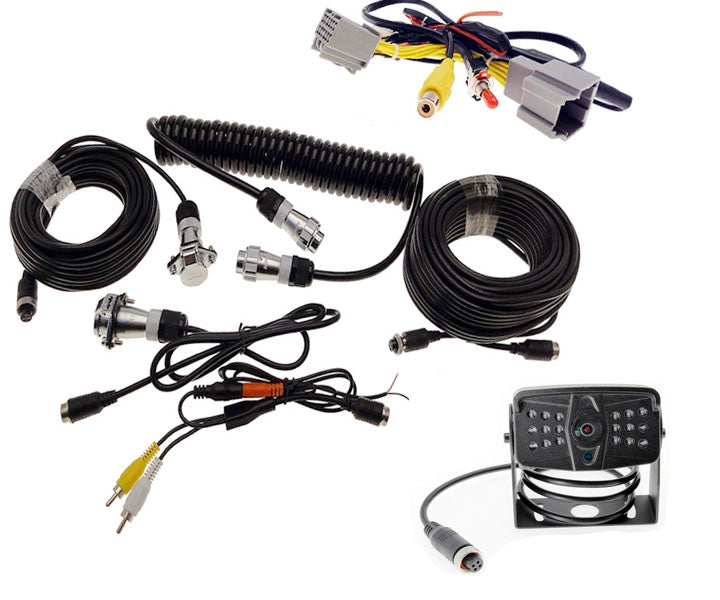

Kit includes:

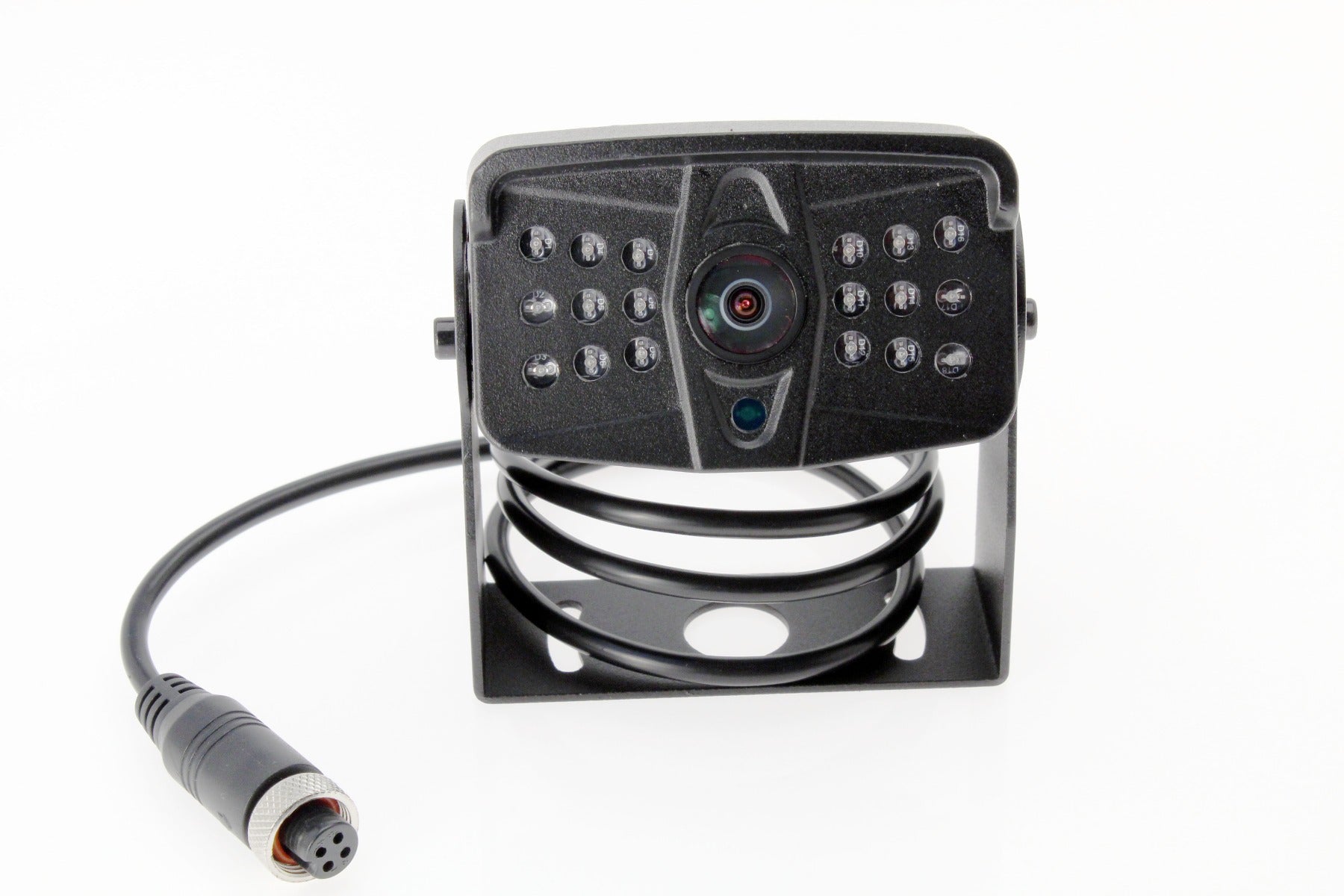

- Commercial grade night vision camera with 700 TV lines of resolution Sony CCD sensor (CS-UCCD-SONY)
- Camera special design allows it to be used with North American factory navigation units

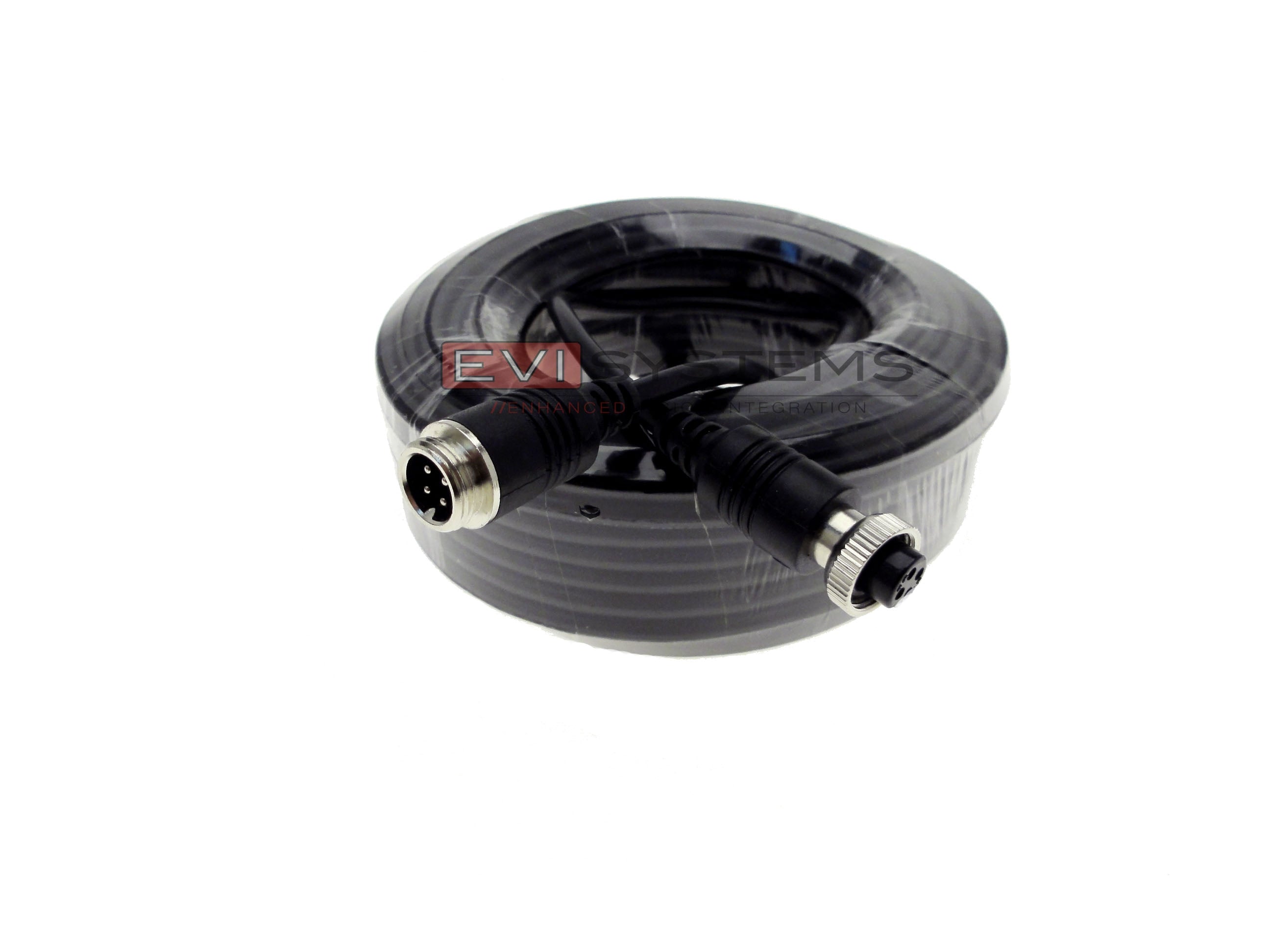

- 64' length 4 pin coaxial weather proof cable (CS-UC20)

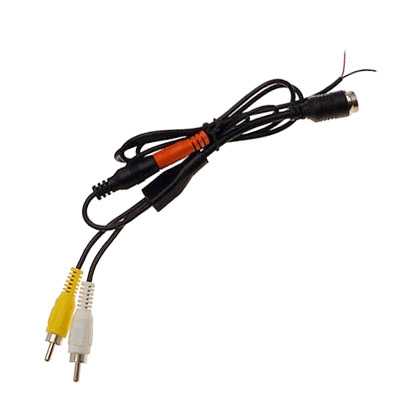

- 4 pin male to RCA conversion harness so that you can connect to the video switcher
- All connections are weather tight except those made inside the cab!

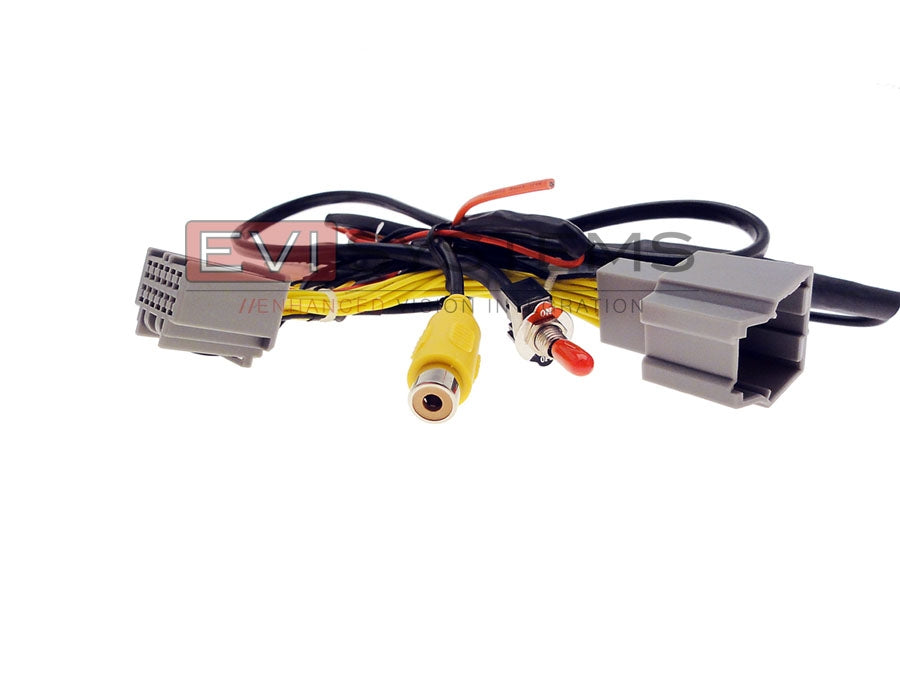

- Integration harness with toggle switch for GM IO4, IO5, IO6 display. Not compatible with IOB display.

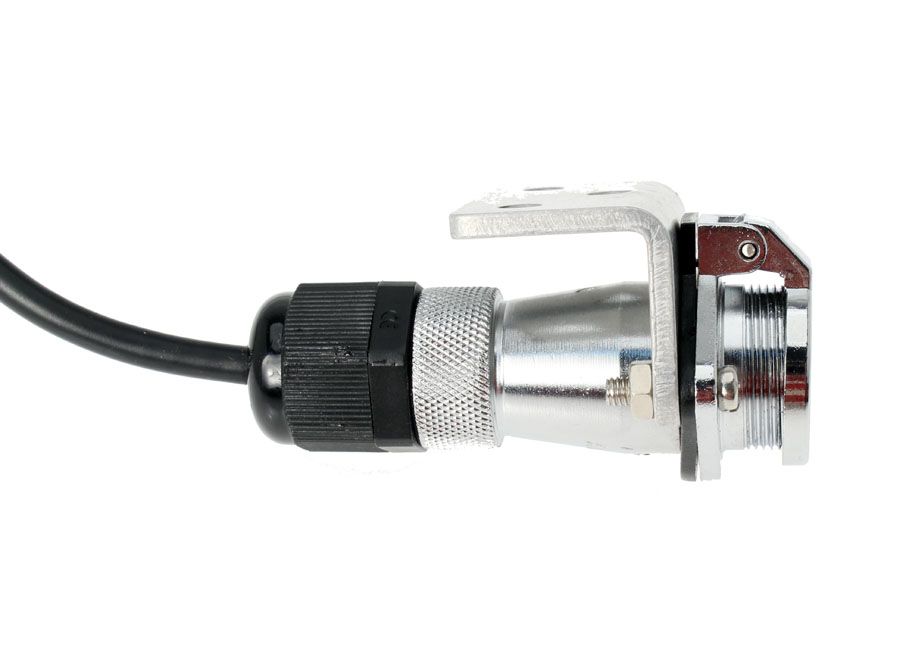

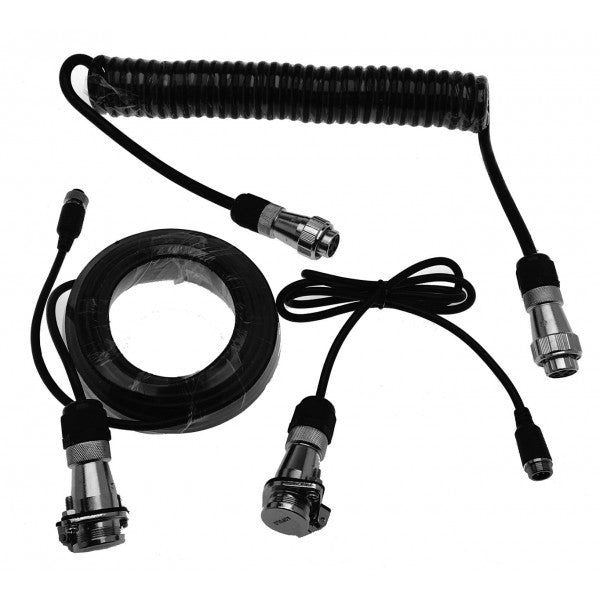

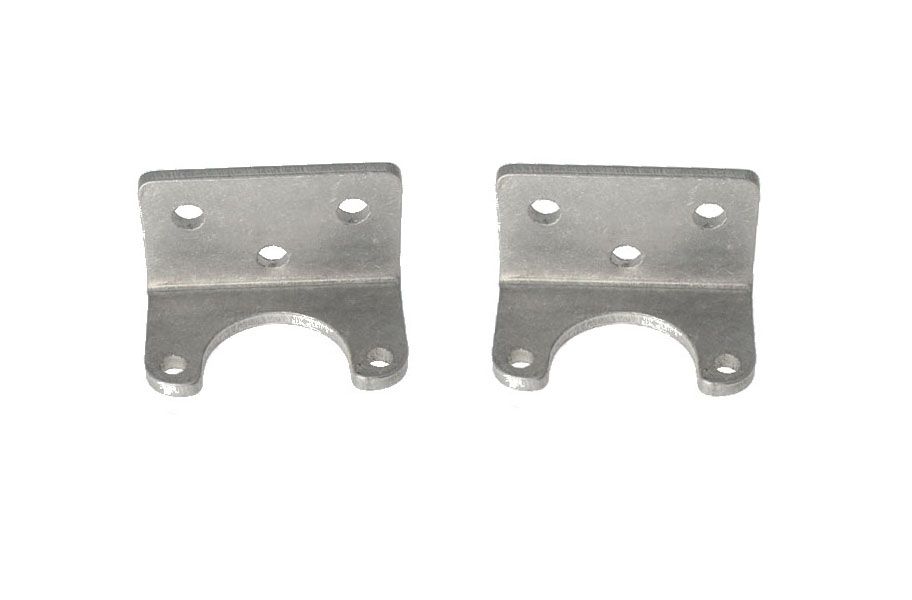

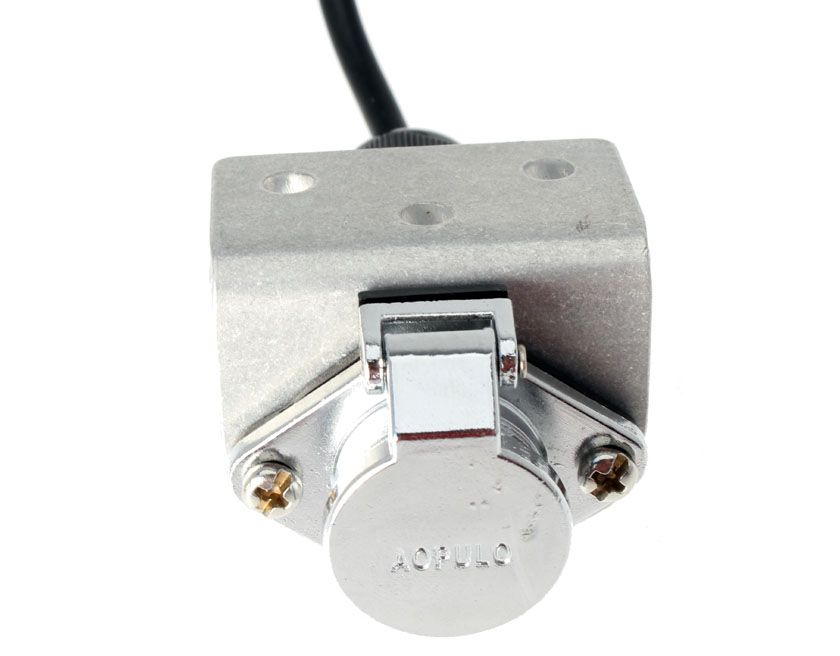

- OPTIONAL-Trailer quick disconnect system for easy camera connections - weather tight! (CS-UTQC)-Mounting brackets included
- Install instructions
- 1 Year warranty
Camera Specifications:
- 1/3" Sony CCD for the highest clarity available
- 700 TV lines of resolution
- 150 degree field of view
- IR LED's for clear night vision even in complete blackness
- Weather grommet for easy cable passage to the interior
- Aluminum alloy weather tight casing with IP68 water resistance
- Weather tight screw connectors for extremely secure and dry connections
- 1 Year Warranty
**Display not included** This kit connects to your existing factory display. Not compatible with IOB display.
Specifications
| System Manufacturer | EVI Systems |
| Camera Resolution | 700 TVL |
| Camera Type | Rear Camera, Utility Bed Camera Systems, Trailer/Camper/5th Wheel camera |
| For a monitor it uses | Your factory display |
| Fit Type | Universal fit |
| Connection | RCA with opt. Factory Interface |
| Make | GMC,Chevrolet |
| Camera Mount Location | Camper/Utility Bed, Universal Mount |
| Night Vision | < .2 Lux |
| Camera Orientation | Rear Facing |
| Power Supply | 12 Volts |
| Radio Screen Size | 4.2\ MyLink, 8\ MyLInk/Intellilink |
| Reason for Shopping | Adding camera(s) |
| Sensor Brand | EVI Systems |
| Sensor Type | CCD |
| Vehicle Interface | Not Included |
| Vehicle Category | Truck, Camper/Trailer (if connecting to vehicle wiring) |
| Viewing Angle | 150 Degrees |
| Model | Sierra,Sierra HD,Silverado,Silverado HD |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP67 |
| Wiring Type | Hard Wired |
| Year | 2014,2015,2016,2017,2018 |
| Make Filter | Chevrolet, GMC |
| Model Filter | Sierra, Sierra HD, Silverado, Silverado HD |
| Year Filter | 2014, 2015, 2016, 2017, 2018 |
Compatibility
2014-2018 Sierra or Silverado with iO4, iO5, or iO6 factory radio. To confirm radio type, locate the Service Parts Identification sticker in your glove box. Look for code IO4, IO5, or IO6 on this glove box sticker to confirm compatibility. See images for example.
Will not work with 7" IOB screen.
Installation
Remove the radio to gain access to the camera connector. Install video switcher harness.
Camera installs virtually anywhere on the trailer. Then route the camera cable along the bottom of the trailer securing with zip ties along the way. Connect to the quick disconnect system at the tongue of the trailer. Install truck portion of the disconnect system to the truck and route the cable to the cab of the vehicle to the back of your factory display. Plug the RCA connector from the camera harness into the T-harness. Locate a reverse activated or accessory 12v power source and clean piece of metal for grounding. Power connections for camera must be made inside the cab.
Make installation even easier with an add on 12 Volt power source to eliminate the need to locate a power source on the vehicle and avoid cutting or splicing into factory wiring! See related item SKU: CS-RPW-P
