Universal backup camera with OBD Programmer for Factory Display-C4T, Fits Chrysler®/Dodge®/Jeep®
SKU#: CS-ULPM-C4TG
Availability:
In Stock
SKU#:
CS-ULPM-C4TG
$272.00
Quantity
No dealer programming required!
Description
This is a high quality OEM integrated backup camera solution for several Chrysler®/Dodge®/Jeep® vehicles that integrates right into your factory display screen! (See compatibility) No dealer programming is required making this a simple OEM integrated solution for your vehicle. The camera can be mounted on the license plate or it also comes with a mini mount that will allow you to mount the camera to the ledge above the license plate if you choose.

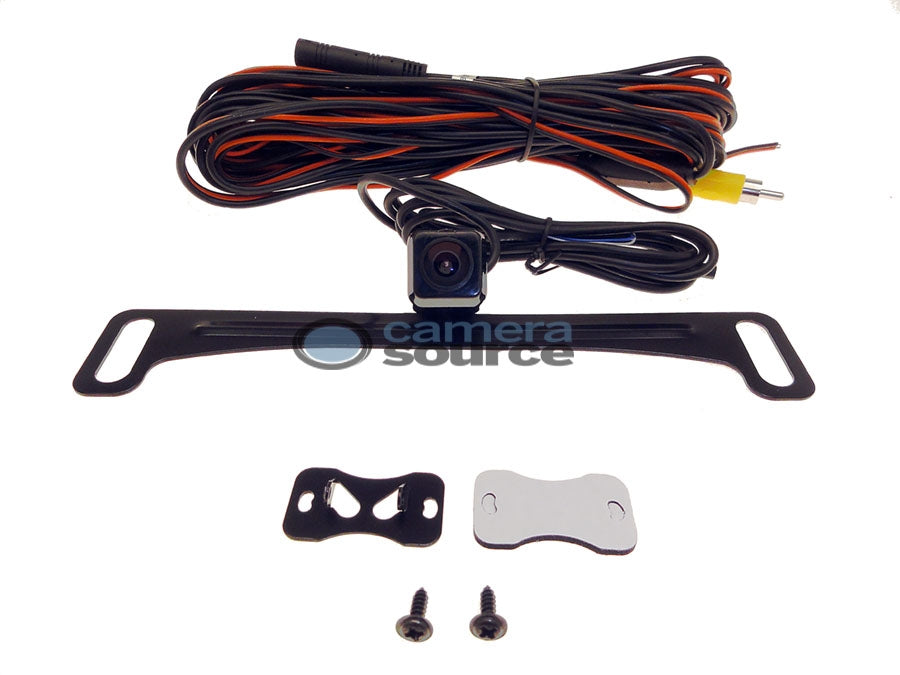

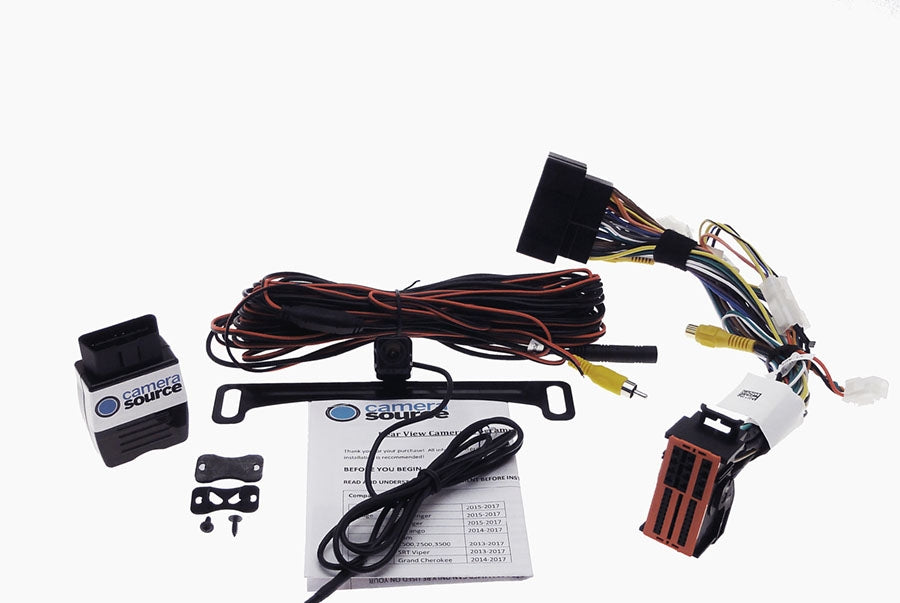

The kit comes with the following:

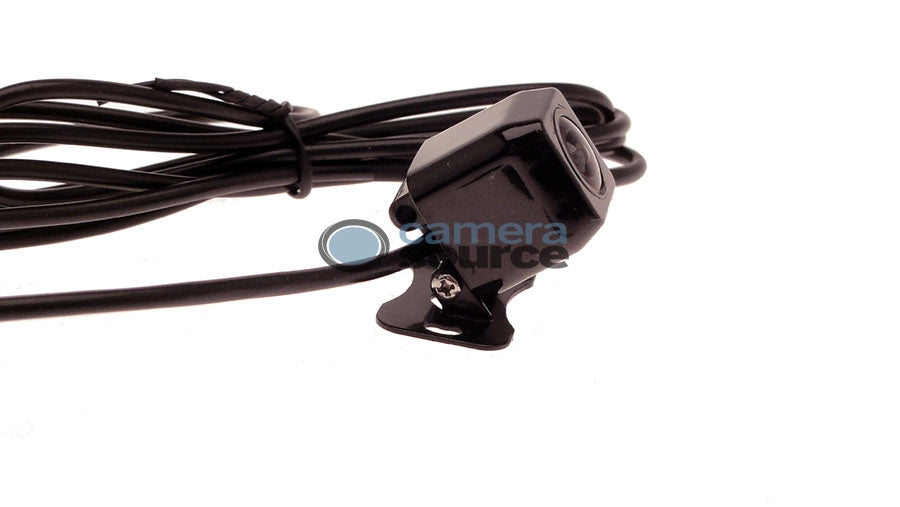

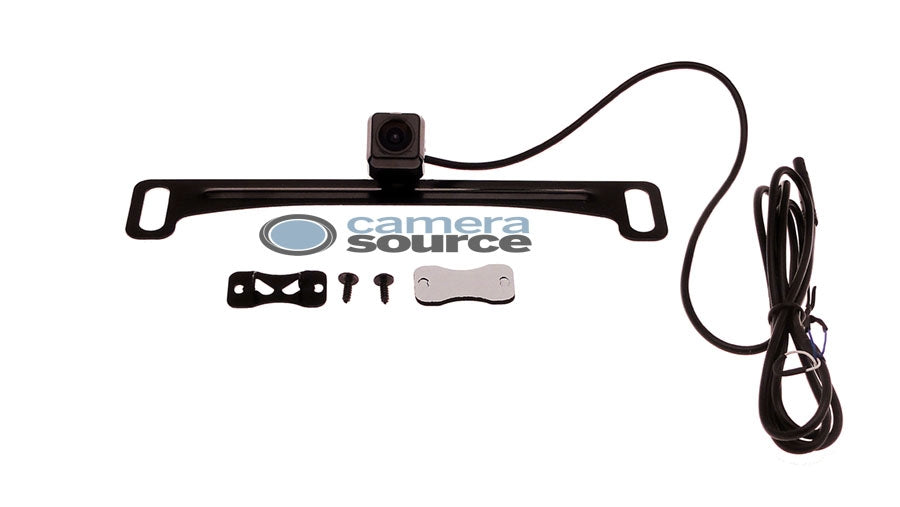

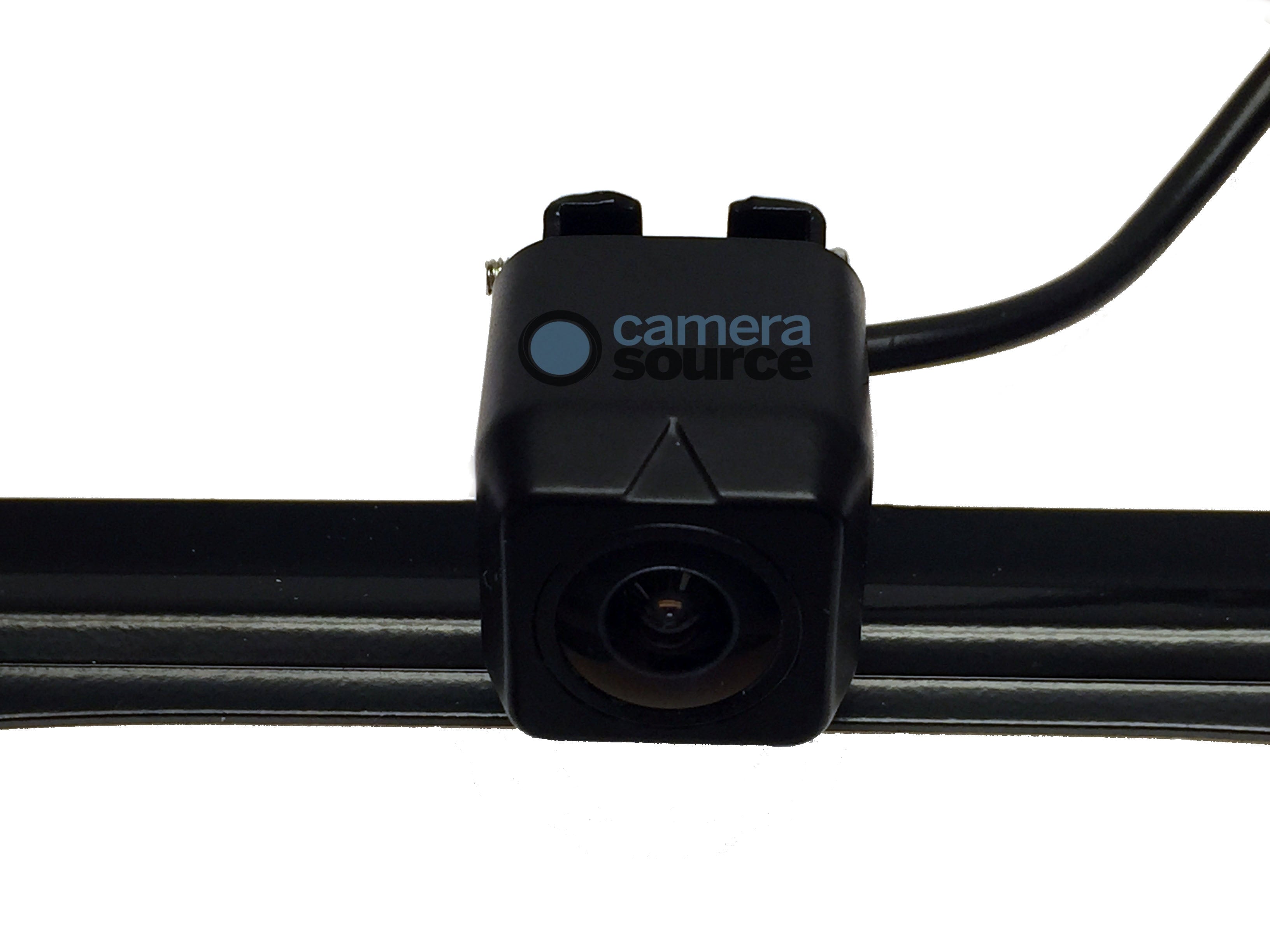

- Dual mount camera system with high grade Super CMOS sensor for an ultra clear view, mount on license plate or lip mount as desired
- Full chassis harness

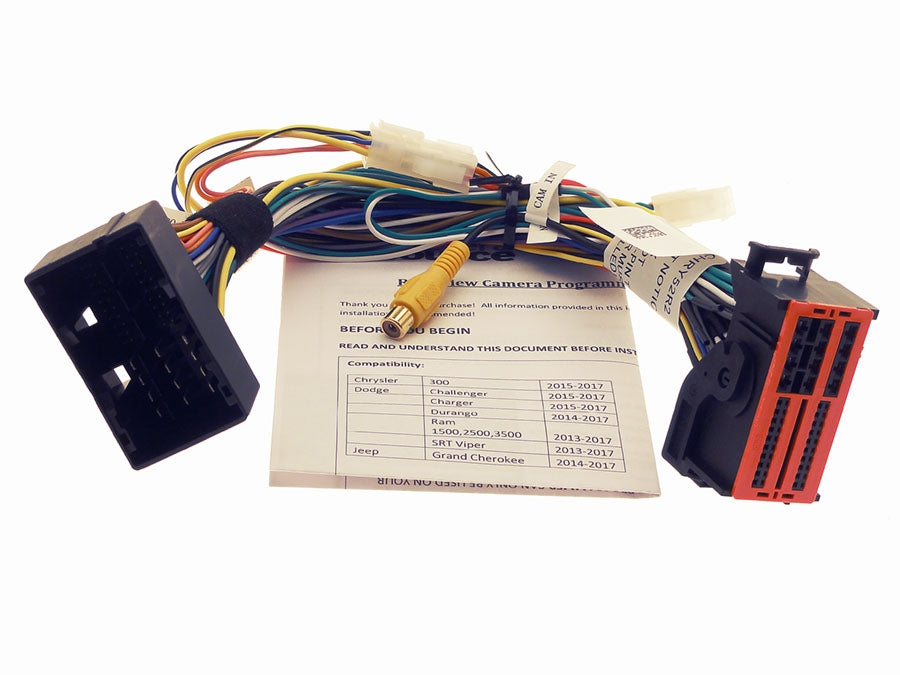

- Factory radio integration harness (Monitor not included)

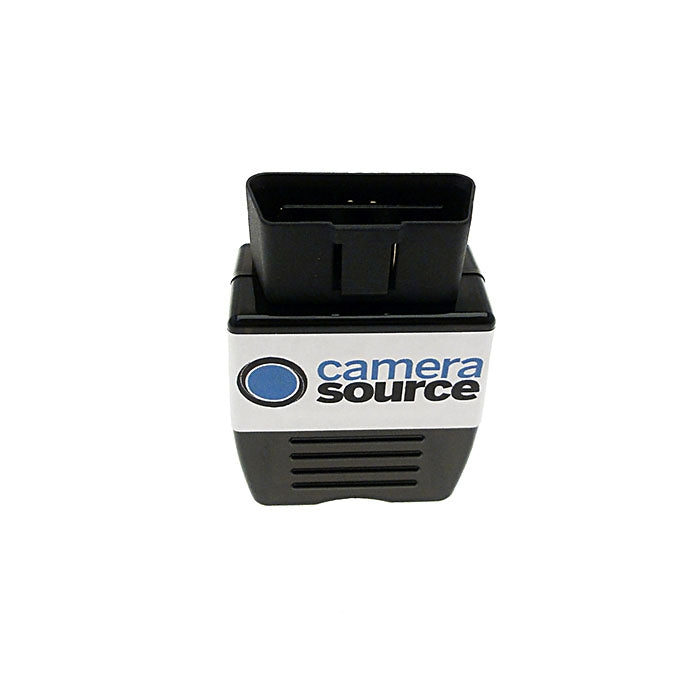

- OBD programming module
- Required mounting hardware/connectors
Camera Specifications:
- Camera Source exclusive Super CMOS high grade sensor with night vision
- Selectable parking guidelines (can be turned off if desired) NOTE: Black center line is not present on actual display
- 600 TV lines of resolution
- <.2 lux minimum illumination - Outstanding night vision!
- 170 degree viewing angle
System has a 3 year warranty!
**Monitor not included.**
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 1 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera |
| For a monitor it uses | Your factory display |
| Fit Type | Universal fit |
| Connection | Plug and Play to Factory Dash Display |
| Make | Dodge,Chrysler,Jeep,RAM |
| Camera Mount Location | Universal Mount |
| Night Vision | .3 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | Factory LCD |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | CMOS III |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Car, Truck |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | 300,Challenger,Charger,Durango,Ram,SRT Viper,Grand Cherokee,Wrangler,1500,HD,Cab & Chassis |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2013,2014,2015,2016,2017 |
| Make Filter | Chrysler, Dodge, Jeep, Ram |
| Model Filter | 300, 1500, Cab & Chassis, Challenger, Charger, Durango, Grand Cherokee, HD, SRT Viper, Wrangler |
| Year Filter | 2013, 2014, 2015, 2016, 2017 |
Compatibility
Compatible with ALL touchscreen factory radios (RA2, RA3, and RA4) in the following vehicles:
Chrysler® 300 2015-2017
Dodge® Challenger 2015-2017
Charger 2015-2017
Durango 2014-2017
SRT Viper 2013-2017
RAM® 1500,2500,3500 2013-2017
Jeep® Grand Cherokee 2014-2017
Installation
Install on either your license plate mount or on any flat surface - comes with two brackets. The camera harness will run inside the vehicle to the back of your factory display and you will need to locate a reverse activated 12v power source and ground.
Make installation even easier with an add on 12 Volt power source to eliminate the need to locate a power source on the vehicle and avoid cutting or splicing into factory wiring! See related item SKU: CS-RPW-P
You will need to remove your factory radio to install the RCA T-Harness to the back of your factory display. Connect the RCA from the main chassis harness to the T-Harness.
Plug the OBD programmer into the OBD port under the steering wheel and programming is completed in less than a minute!
NO DEALER ACTIVATION REQUIRED
