Premium Backup Camera Kit Fits 2007-2013, 14* GM® Silverado, Sierra
SKU#: CS-GMTRb
Availability:
In Stock
SKU#:
CS-GMTRb
$200.00
Quantity
Also 2014 Heavy Duty Models
Description
Premium camera kit- camera will also allow you to see the rear bumper and trailer hitch for easy connections - even at night!

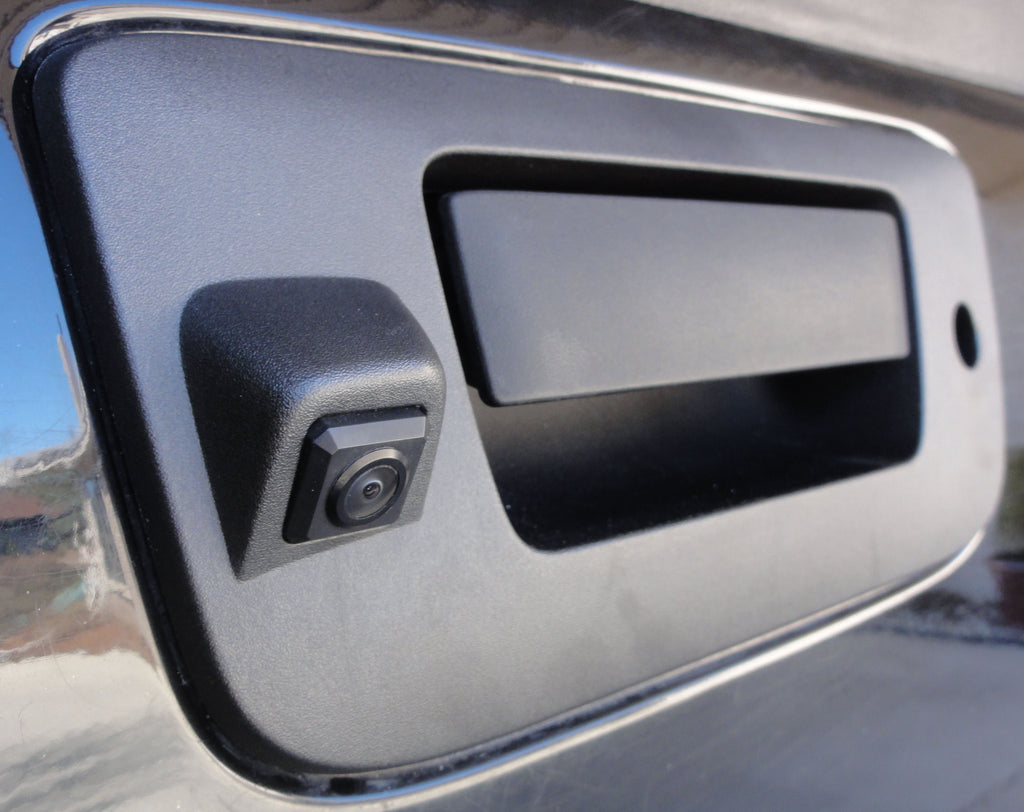

This OE style camera provides superior high definition color, clarity, and excellent night vision! This camera contains the latest technology that even outperforms the factory camera in all categories! Coupled to a OEM GM® bezel, this combination looks like a factory camera, but at a much lower price. This kit comes with the wiring and connectors to install into your truck. *See note below for description of the interface options above.

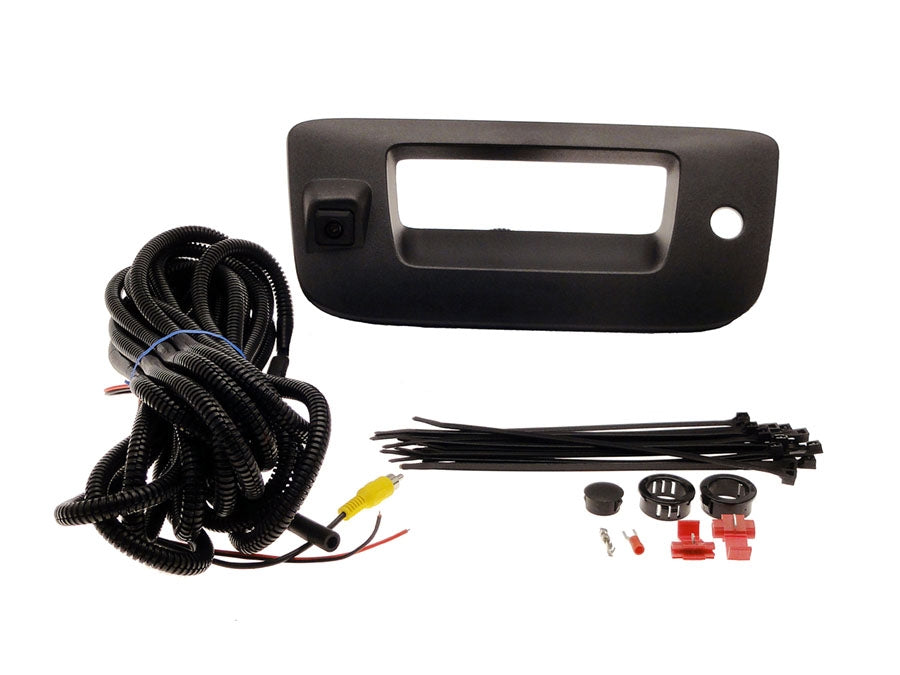

This package contains:
- Premium high definition Super CMOS camera - (Camera Source exclusive), mounted in OEM FACTORY GM® bezel.
- 25' PRELOOMED wiring harness - allows for quick tailgate disconnect with a single connection by the spare tire area. All other electrical connections can be made inside the cab for maximum durability and corrosion avoidance!
- Wire connectors
- Hole grommets (if required to drill)
- Tailgate lock plug for non-locking tailgates
- Detailed installation instructions
- No drilling on newer model trucks with the tailgate drip hole and factory pre-drilled bed (~2009 and newer)
- 3-Year limited camera warranty! This is the best warranty available on any GM® truck camera system on the market.
- The ONLY NBS camera system besides the very expensive GM® kit that has a full length pre-loomed harness and quick tailgate disconnect system!
Camera Specs:
- Super CMOS - The best available and only at Camera Source
- 600 TV lines of resolution
- 170 degree view

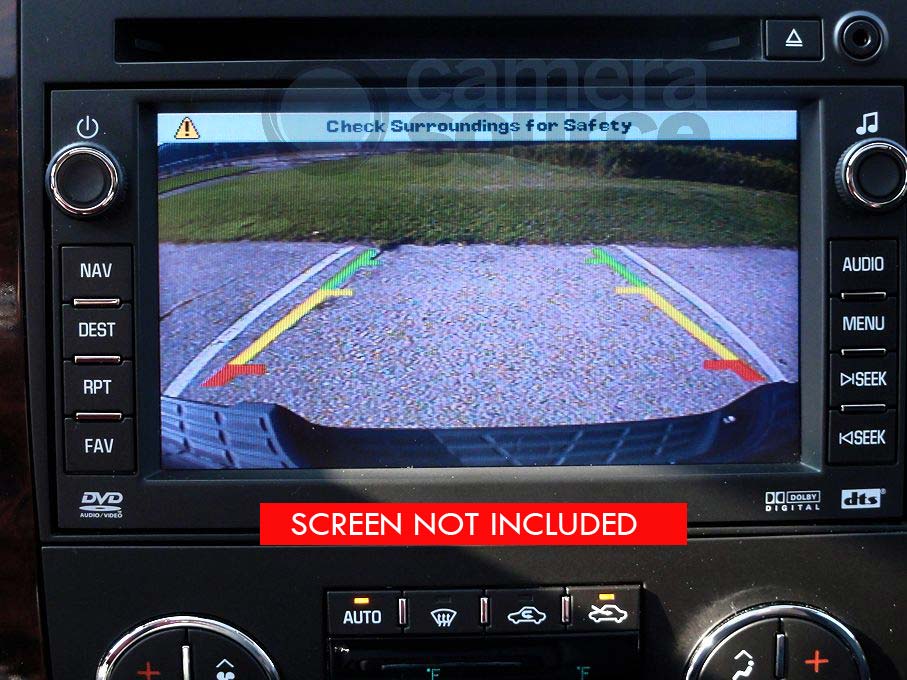

- Optional custom OE inspired parking guidelines - can be turned off at the harness
Additional Information: This bezel and camera replace your existing bezel as a direct replacement kit. This is a high quality affordable alternative to the GM® kit. If you are planning to use your factory navigation radio as the monitor you will need to have it flashed for a backup camera by your dealer before installing this camera system.
NOTE ABOUT INTERFACE HARNESS OPTION ABOVE:
CS-GMVSS1 for 07-11 trucks that have factory installed navigation
CS-GMVSS2 for 07-11 trucks that have factory navigation installed aftermarket (this comes with the complete brown plug)
CS-GMVSS3 for 12-13 and 14 HD trucks with HDD radio
CS-GMMBH for 10-13 and 14 HD trucks that are connecting to a factory rear view mirror with video screen
*CS-GMMBH-P option same as above but for trucks that have a power sliding rear window
Specifications
| System Manufacturer | EVI Systems |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera |
| For a monitor it uses | Your aftermarket display (RCA) |
| Connection | RCA with opt. Factory Interface |
| Make | Chevrolet,GMC |
| Camera Mount Location | Factory Tailgate |
| Night Vision | < .2 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Not Included |
| Vehicle Category | Truck |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Sierra,Sierra HD,Silverado,Silverado HD |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2007,2008,2009,2010,2011,2012,2013,2014 |
| Make Filter | Chevrolet, GMC |
| Model Filter | Sierra, Sierra HD, Silverado, Silverado HD |
| Year Filter | 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 |
Compatibility
NOTE: THIS CAMERA CAN NOT INTERFACE THE NEW HARD DRIVE NAVIGATION SYSTEM IN 2012-2013. It will work with any non-hard drive navigation system in 2007-early 2012.
2007, 2008, 2009, 2010, 2011, 2012, 2013 GM® NBS trucks with or without locking tailgate also 2014 heavy duty models. Includes all the above model years Sierra, Silverado, Denali, and HD models.
Installation
You will replace your factory tailgate bezel with the new bezel containing the camera. Since the bezel is a GM® part you can expect it to have the fit and finish that you would expect from the factory! The camera has a long cable attached that allows it to be disconnected by the spare tire area, making the tailgate removal easy! The included harness will run along the frame of the truck and penetrate the floor of the cab through a floor grommet on the driver's side and run up to the back of your monitor or navigation screen.
If you are planning to use your factory navigation radio as the monitor you will need to have it flashed for a backup camera by your dealer before installing this camera system. The dealer uses a Tech II device and they should flash part #2583-6479 to the radio. The VSS adapter can be added to your order from this screen for a discount but is otherwise available in our online catalog.
NOTE: THIS CAMERA CAN NOT INTERFACE THE NEW HARD DRIVE NAVIGATION SYSTEM IN 2012-2013. It will work with any non-hard drive navigation system in 2007-early 2012.
Watch a video of the flashing process by clicking here!
