Premium Backup Camera Kit with OnStar® Mirror Fits 2009-2013 Avalanche, EXT
SKU#: CS-GMAVL-356
Availability:
In Stock
SKU#:
CS-GMAVL-356
$547.00
Quantity
Superior camera w/ video mirror!
Description

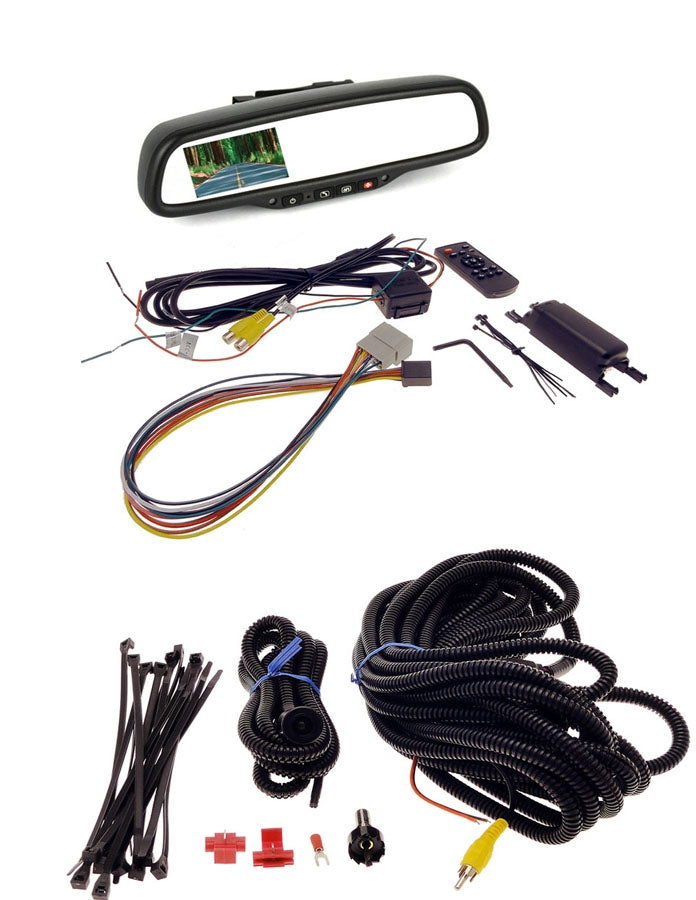

Now easily add a backup camera to your Avalanche or EXT without spending a fortune! This camera will mount into your existing handle bezel and allow you to see the rear bumper and trailer hitch for easy connections - even at night! This kit also includes an OnStar® video mirror with 4.3" display This kit is a nice addition to your Avalanche or EXT and comes with all the wiring and connectors to install into your truck (additional navigation interface may be required if wiring to factory navi - see installation information tab for more info). This package contains:

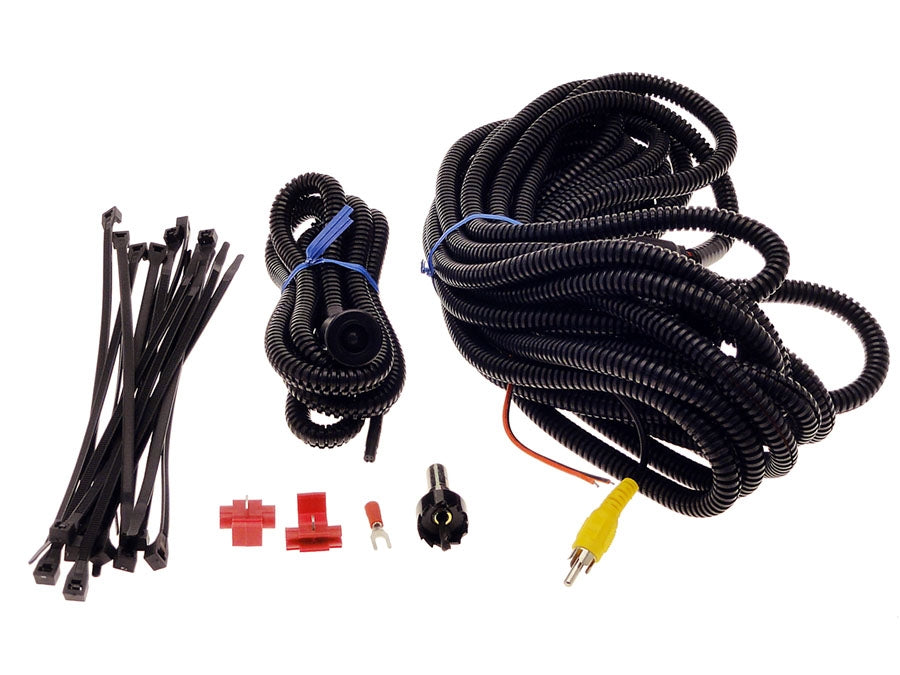

- Premium high definition camera
- Wiring harness - all connections are made inside the cab for maximum corrosion avoidance!
- Wire connectors and zip ties
- Hole saw
- Detailed installation instructions
- 1-Year camera and mirror warranty
Camera Specs:
- Super CMOS - The latest available and only at Camera Source
- 600 TV lines of resolution
- 170 degree view
- Optional custom OE inspired parking guidelines

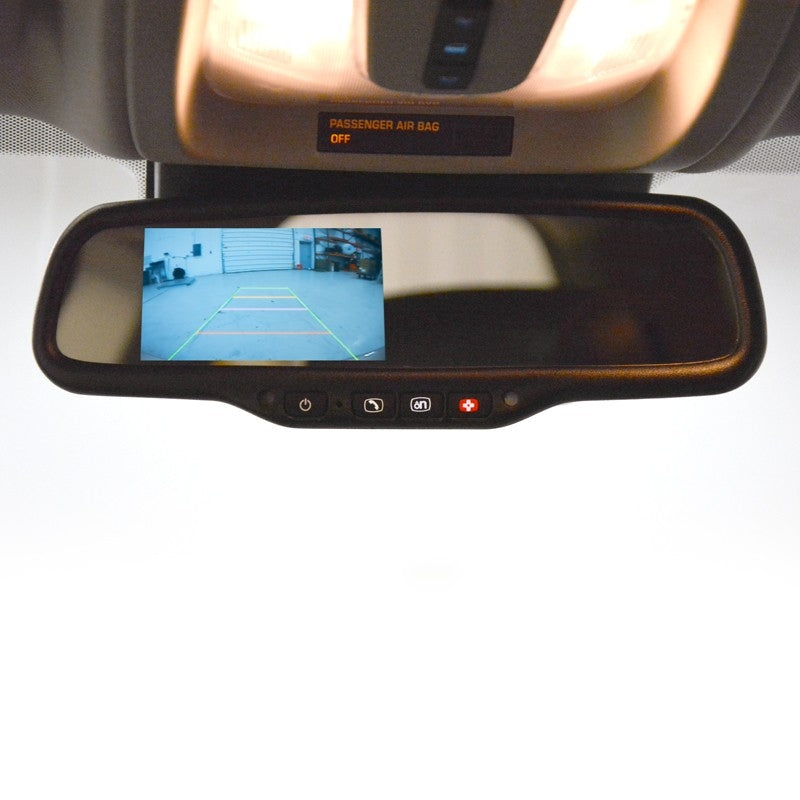

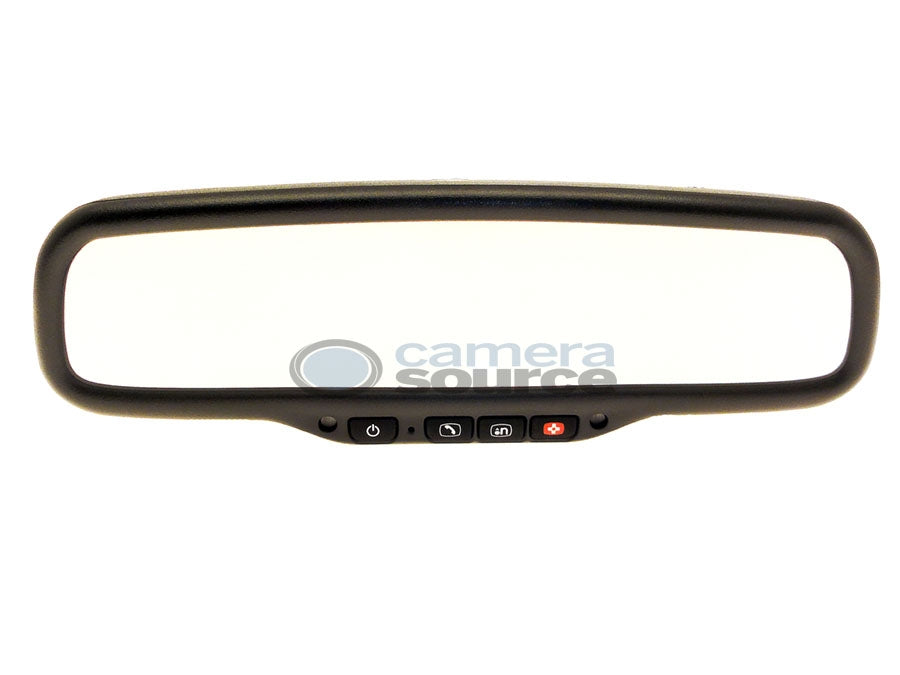

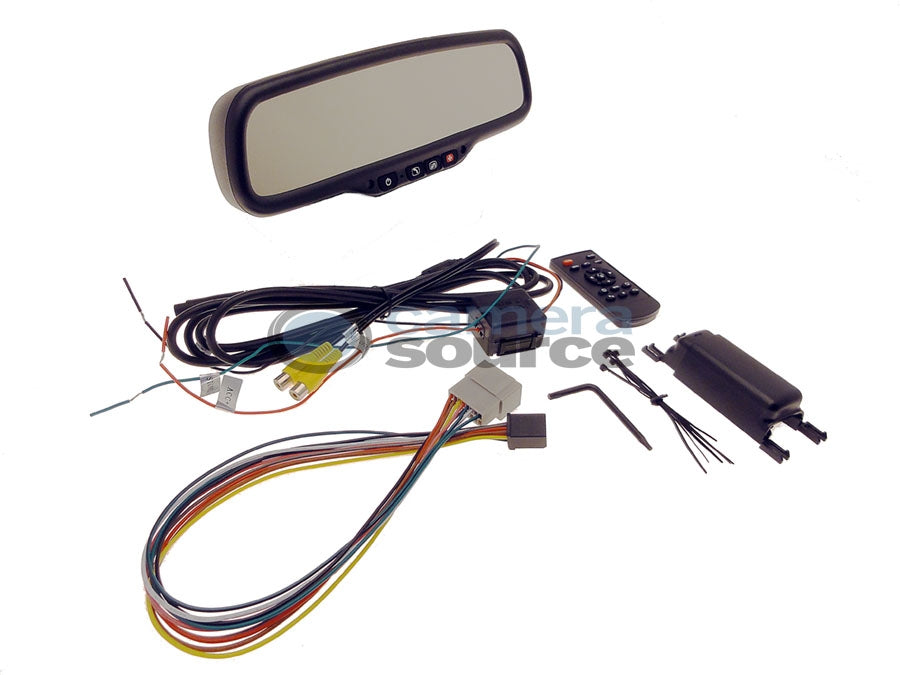

Includes OnStar Rear View Mirror with 4.3 Inch Rear Camera Display and Auto Dimming with Flying Lead Harness: GM® vehicle owners don't have to sacrifice the convenience and safety of their current OnStar® mirror to gain the use of a Rear Camera Display. Mirror auto dims in accordance with the amount of glare from the headlights behind the vehicle, when used with a back up camera (included) the display automatically turns on to show what is directly behind the vehicle whenever shifted into reverse.
Specifications
| System Manufacturer | EVI Systems |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera |
| For a monitor it uses | Packaged w/Rear view mirror display |
| Fit Type | Universal fit |
| Connection | Rearview Mirror |
| Make | Chevrolet,Cadillac |
| Mirror Mount | Wedge Style |
| Mirror Options | Video, OnStar |
| Monitor Size | 4.3'' Mirror |
| Camera Mount Location | Factory Tailgate |
| Night Vision | < .2 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Yes |
| Power Supply | 12 Volts |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Rearview Mirror |
| Vehicle Category | Truck |
| Camera Input Ports | 1 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Avalanche,EXT |
| Warranty | 1 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2009,2010,2011,2012,2013 |
| Make Filter | Cadillac, Chevrolet |
| Model Filter | Avalanche, EXT |
| Year Filter | 2009, 2010, 2011, 2012, 2013 |
Compatibility
2009-2013 Chevrolet® Avalanche and Cadillac® EXT trucks without temp and compass in the mirror. If you have temp/compass in your mirror you need kit CS-GMAVL-356T
MIRROR NOTES: Though this mirror has the OnStar® buttons on it, it will not add OnStar® to any vehicle unless it came equipped with that feature from the factory. Existing mirror must not have passenger airbag indicator light.
Installation

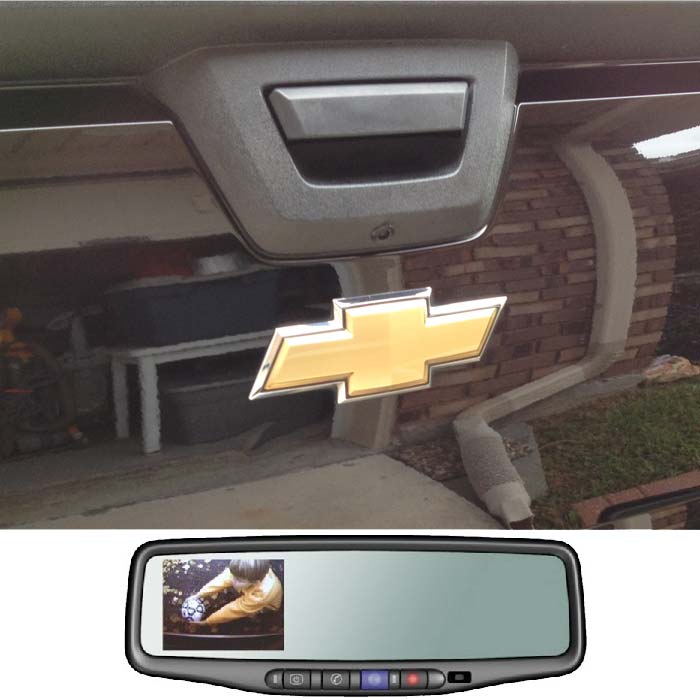

You will need to drill a hole in the bezel of your tailgate handle for the included low profile camera to pass through. The hole saw and instructions are included and it is a very simple process that doesn't even require the bezel to be removed from the truck.
You will need to locate a 12 volt accessory power source, reverse power source, and ground for installing the camera and mirror. These power sources are located in the junction box by the drivers left foot area.

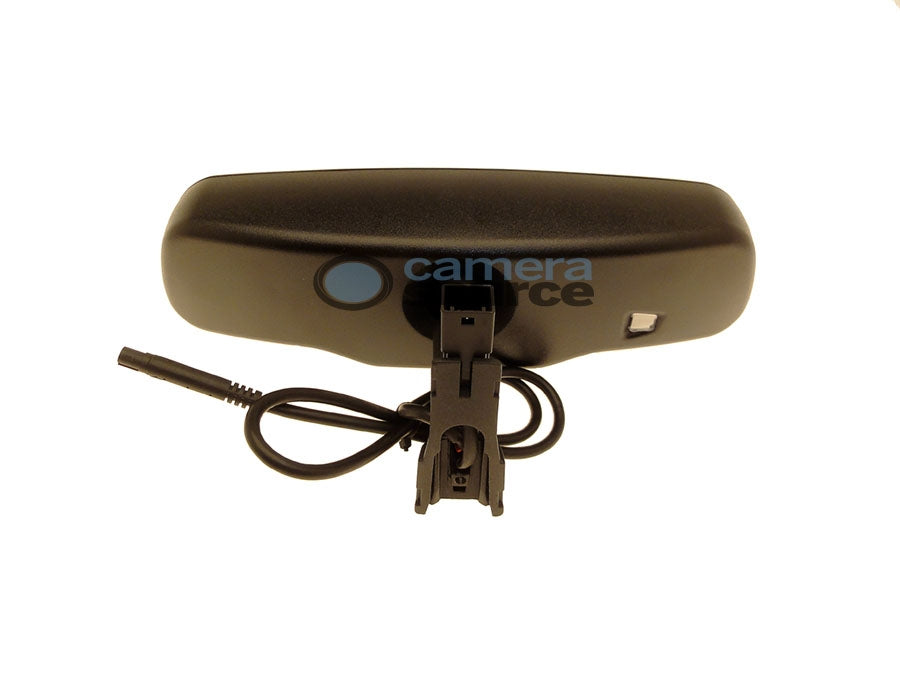

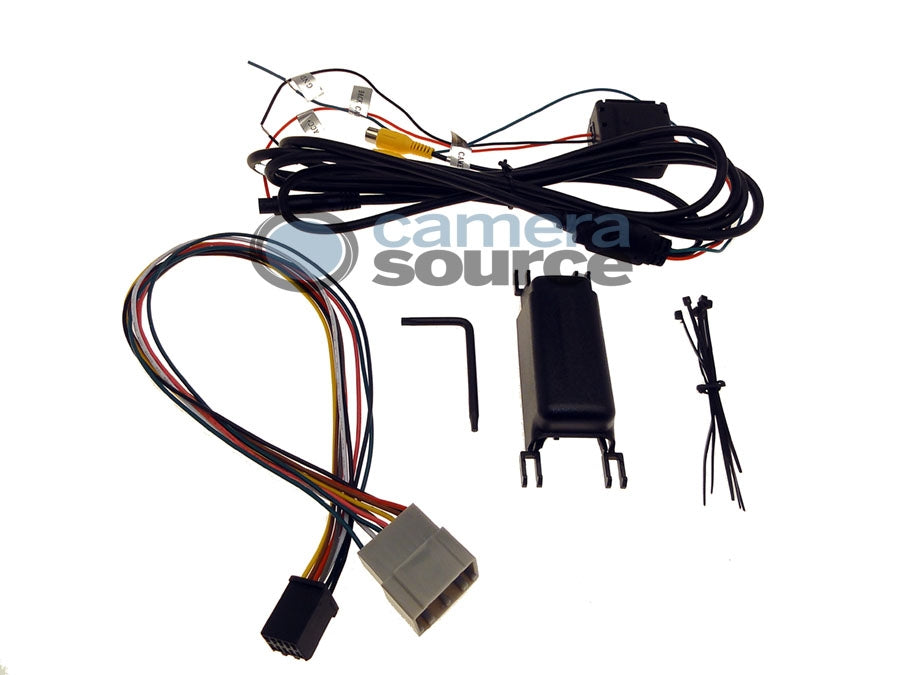

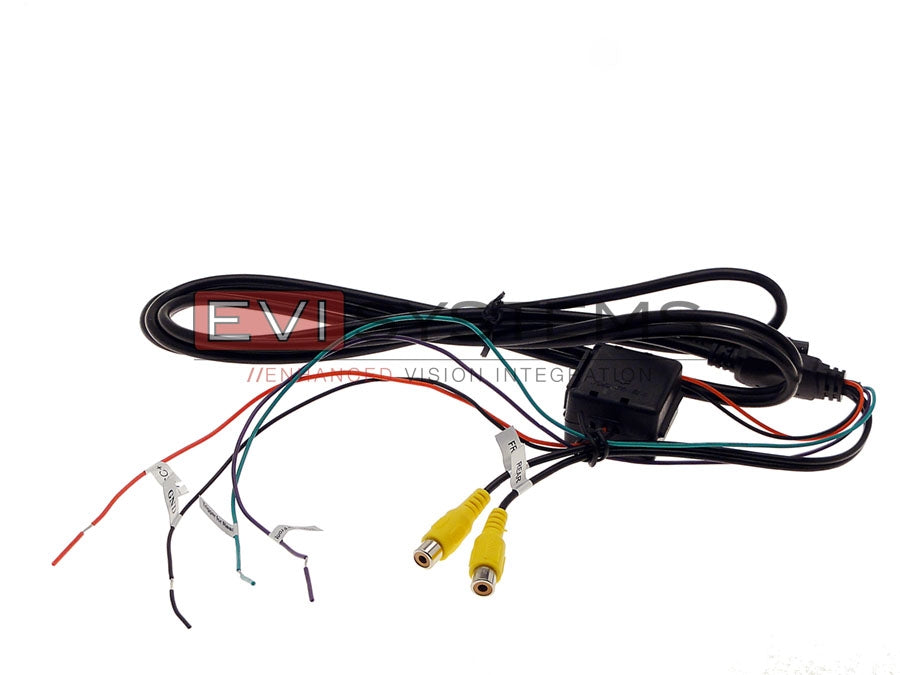

The mirror will replace your factory mirror and will include a harness that terminates with RCA for a simple connection to the camera.
