Premium Backup Camera + OnStar® Mirror, Compass and Temp, Fits 2002-2008 Avalanche, EXT
SKU#: CS-GMAVL-356T
Availability:
In Stock
SKU#:
CS-GMAVL-356T
$553.95
Quantity
OnStar® mirror has compass/temp display!
Description
Now easily add a backup camera to your Avalanche or EXT without spending a fortune! This camera will mount into your existing handle bezel and allow you to see the rear bumper and trailer hitch for easy connections - even at night! This kit also includes an OnStar® video mirror with 4.3" display including compass and temp... TEMP SENSOR INCLUDED.

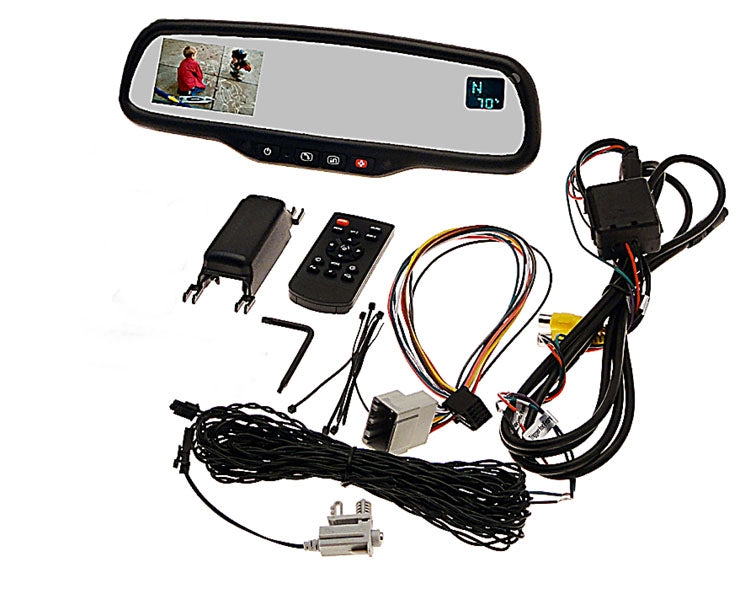

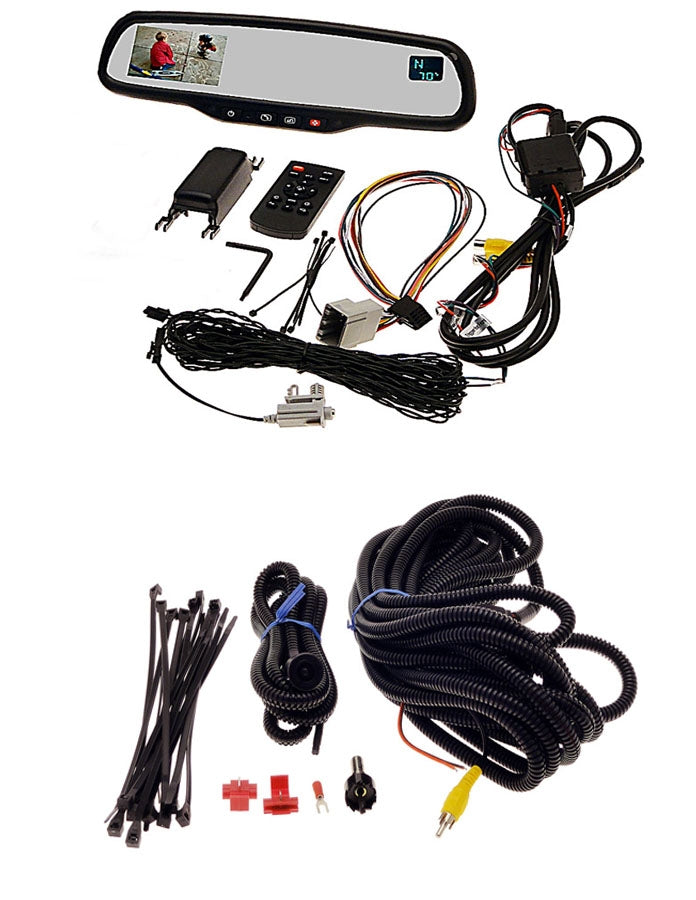

This kit is a nice addition to your Avalanche or EXT and comes with all the wiring and connectors to install into your truck. This package contains:
- Premium Camera Source Super CMOS night vision camera - the best color and clarity available!

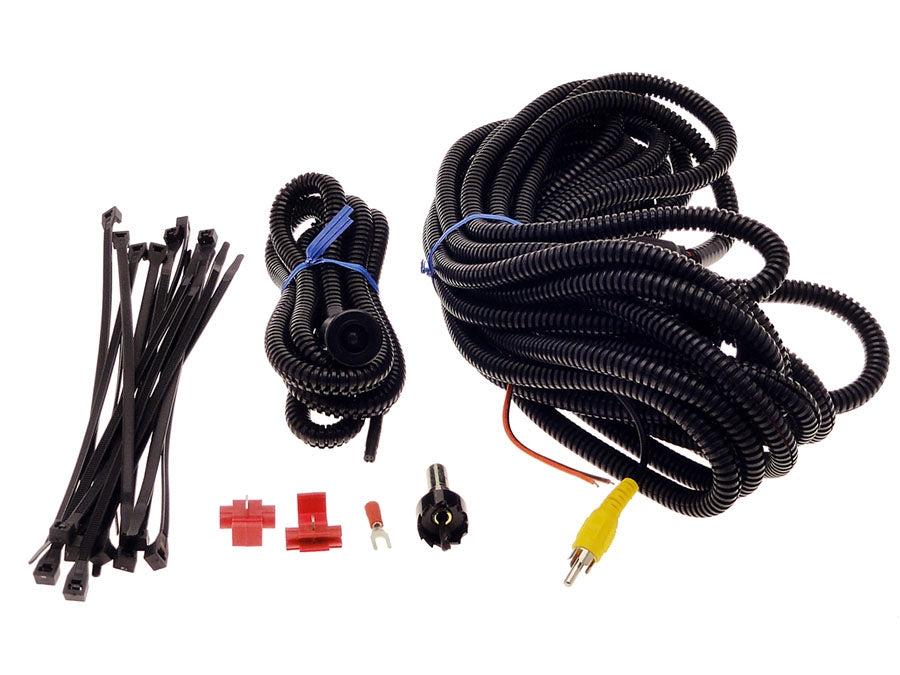

- Pre-loomed camera wiring harness - all connections are made inside the cab for maximum corrosion avoidance!

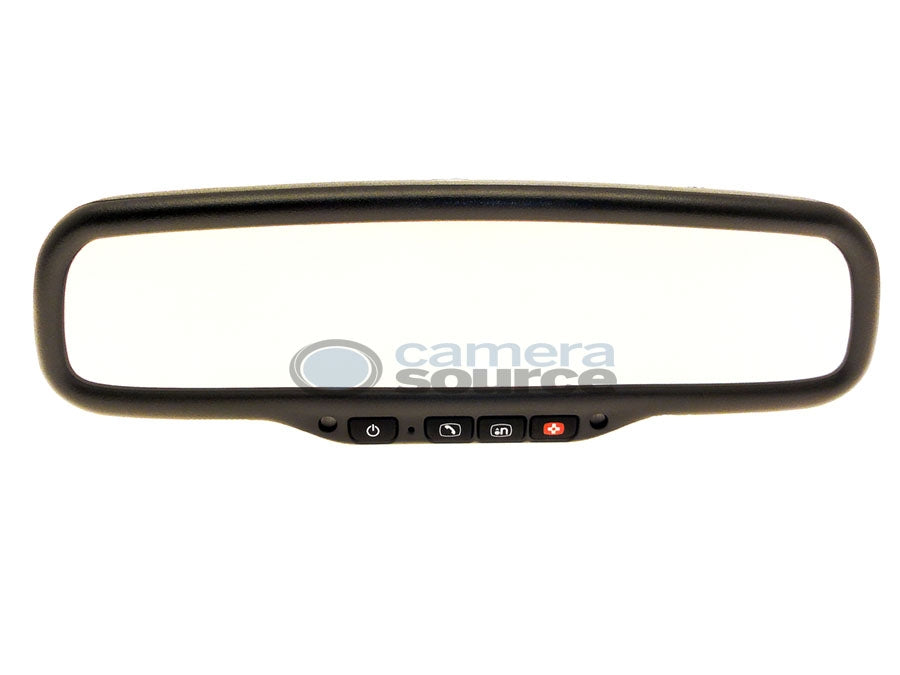

- OnStar® Mirror with 4.3" video display and compass/temp display

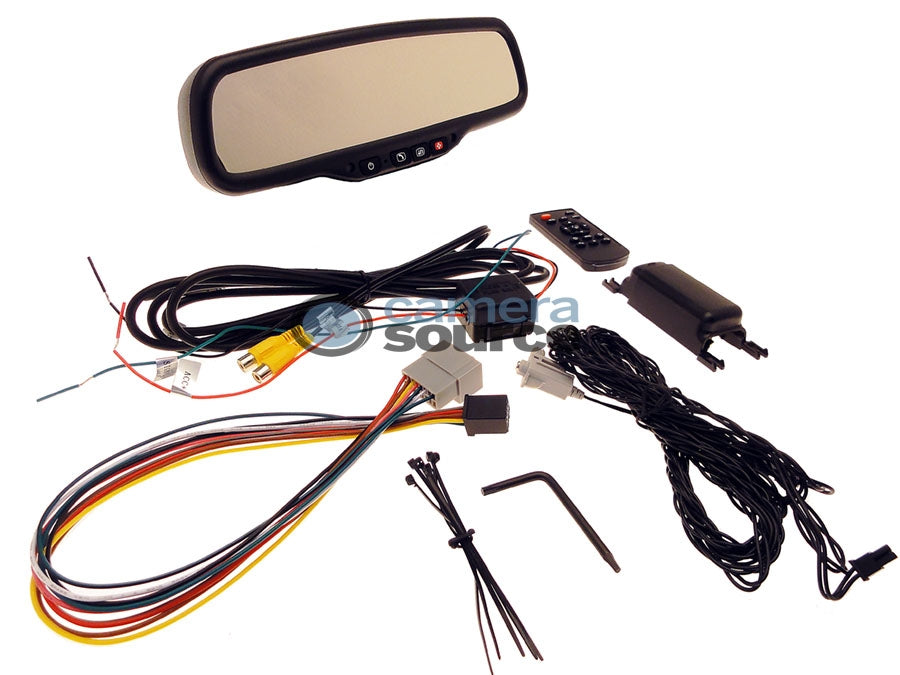

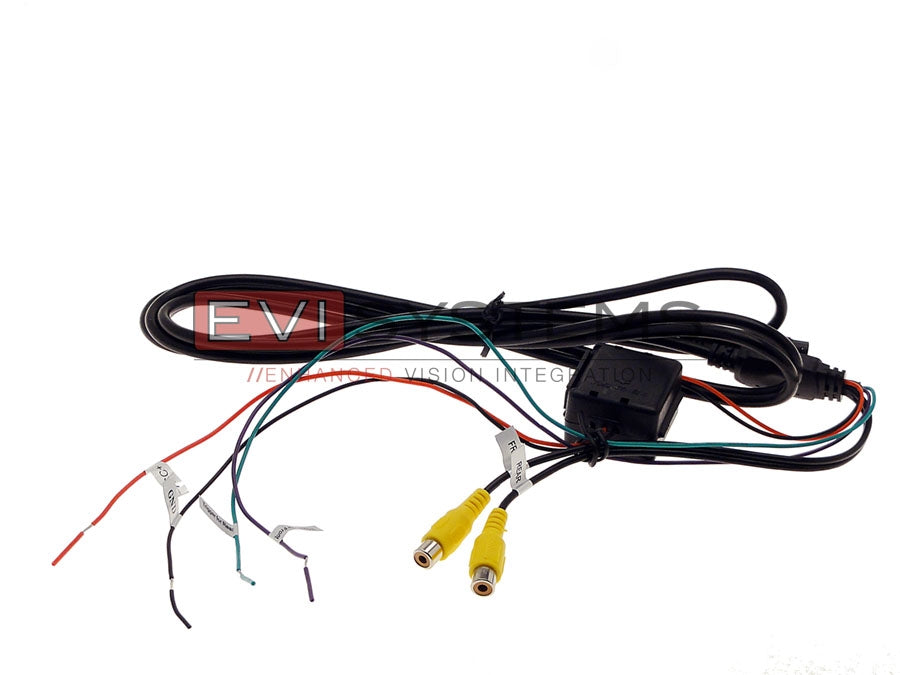

- Mirror harness with RCA connection and temp sensor harness
- Wire connectors and zip ties
- Hole saw
- Detailed installation instructions
- 3-Year camera warranty and 1-Year mirror warranty
Camera Specs:
- Super CMOS - The latest available and only at Camera Source
- 600 TV lines of resolution
- 170 degree view
- Optional custom OE inspired parking guidelines

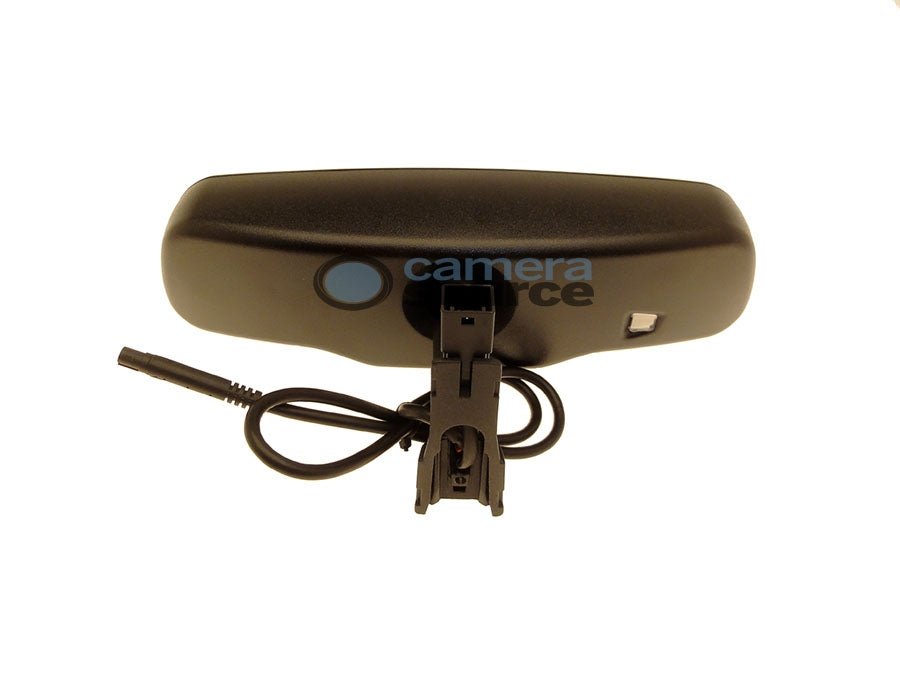

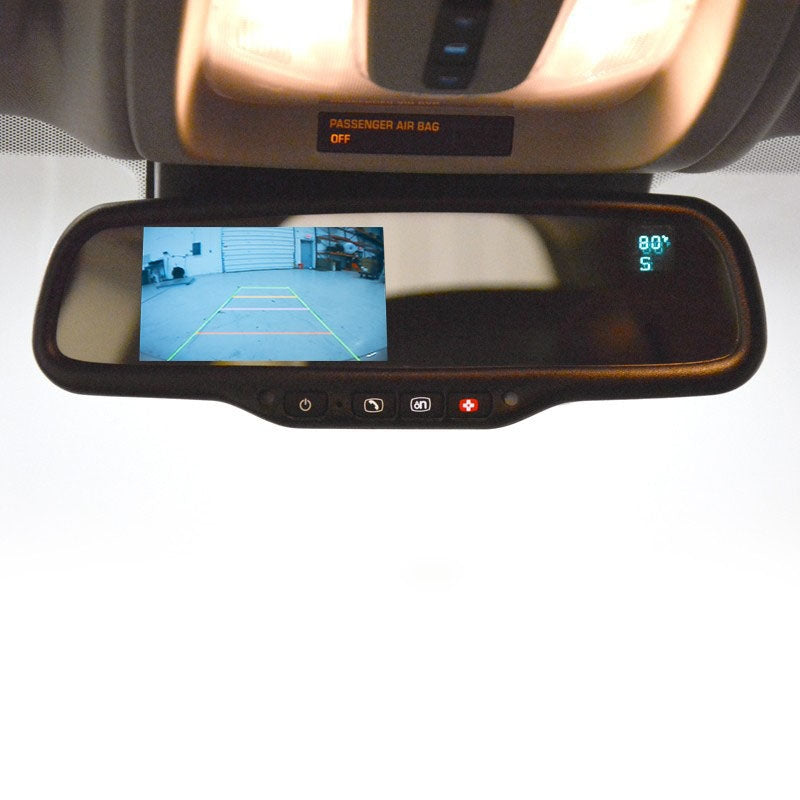

Includes OnStar® Rear View Mirror with 4.3 Inch Rear Camera Display, compass/temp, and Auto Dimming with Flying Lead and temp sensor harness: GM® vehicle owners don't have to sacrifice the convenience and safety of their current OnStar® mirror to gain the use of a Rear Camera Display. Mirror auto dims in accordance with the amount of glare from the headlights behind the vehicle, when used with a back up camera (included) the display automatically turns on to show what is directly behind the vehicle whenever shifted into reverse.
Specifications
| System Manufacturer | EVI Systems |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera |
| For a monitor it uses | Packaged w/Rear view mirror display |
| Fit Type | Universal fit |
| Connection | Rearview Mirror |
| Make | Chevrolet,Cadillac |
| Mirror Mount | Wedge Style |
| Mirror Options | Video, OnStar, Compass, Temp Display |
| Monitor Size | 4.3" |
| Camera Mount Location | Factory Tailgate |
| Night Vision | < .2 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Rearview Mirror |
| Vehicle Category | Truck |
| Camera Input Ports | 1 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | EXT,Avalanche |
| Warranty | 1 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2002,2003,2004,2005,2006,2007,2008 |
| Make Filter | Cadillac, Chevrolet |
| Model Filter | Avalanche, EXT |
| Year Filter | 2002, 2003, 2004, 2005, 2006, 2007, 2008 |
Compatibility
2002-2008 Chevrolet® Avalanche and Cadillac® EXT trucks with temp and compass in the mirror. If you don't have temp/compass in your mirror see SKU: CS-GMAVL-356
MIRROR NOTES: Though this mirror has the OnStar® buttons on it, it will not add OnStar® to any vehicle unless it came equipped with that feature from the factory. Existing mirror must not have passenger airbag indicator light. If you have a passenger airbag light in your mirror this kit is not recommended. If your vehicle has a factory temperature sensor it will need to be replaced with the included sensor.
Installation

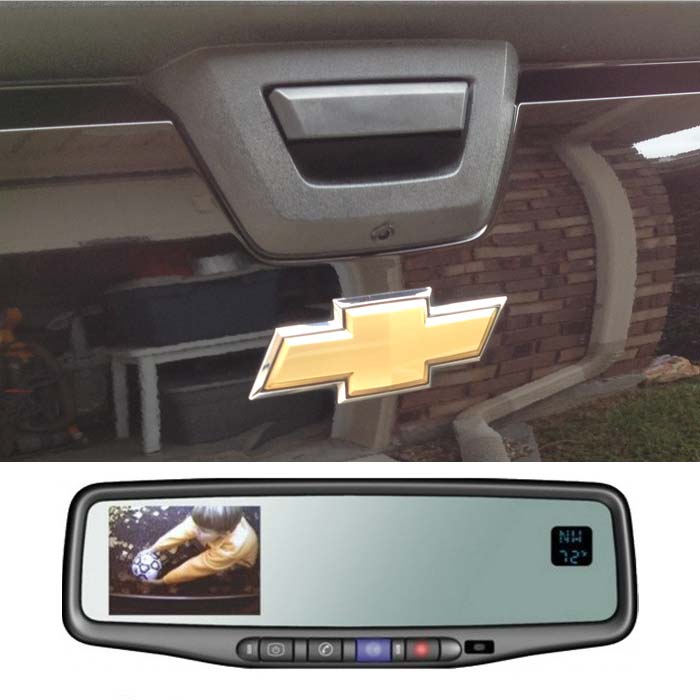

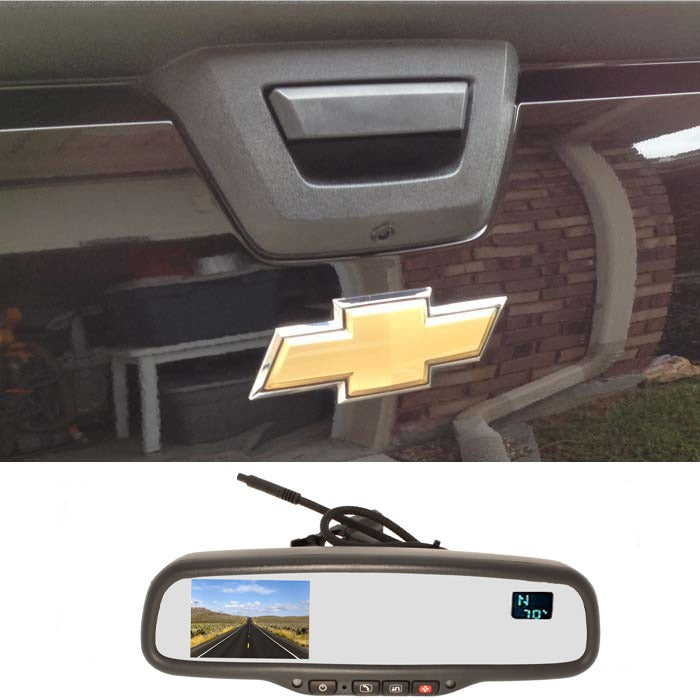

You will need to drill a hole in the bezel of your tailgate handle for the included low profile camera to pass through. The hole saw and instructions are included and it is a very simple process that doesn't even require the bezel to be removed from the truck.
The mirror will replace your factory mirror and will include a harness that terminates with RCA for a simple connection to the camera as well as a new temp sensor harness. If your vehicle has a factory temperature sensor it will need to be replaced with the included sensor.
You will need to locate a 12 volt accessory power source, reverse power source, and ground for installing the camera and mirror. These power sources are located in the junction box by the drivers left foot area.
