Automotive Side Camera Kit
SKU#: CS-USCK
Availability:
In Stock
SKU#:
CS-USCK
$139.00
Quantity
Can be used as a forward or rear facing cam!
Description

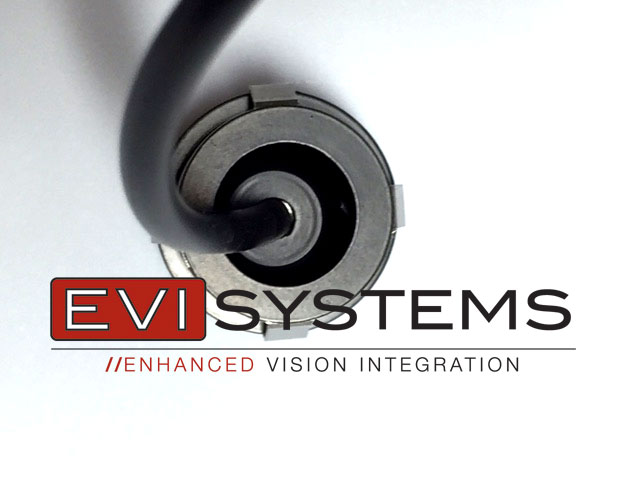

New Super CMOS high quality micro side camera kit for your car or truck!

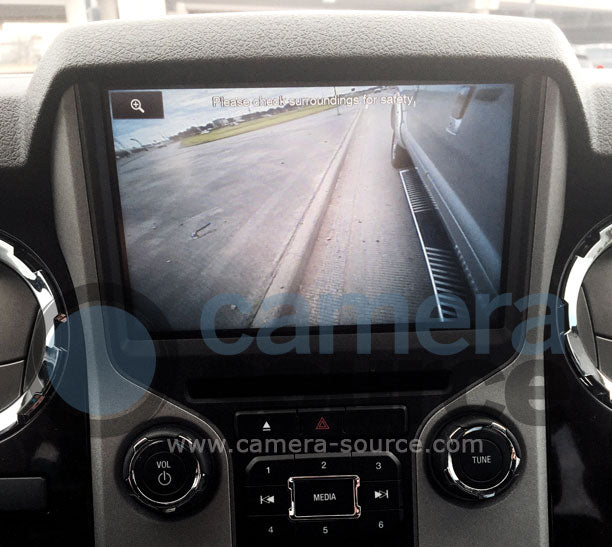

Kit includes 1 high grade camera with bracket that can be mounted virtually anywhere! Mount it under your side mirror, front bumper, rear decklid, fender well, or anywhere else you can imagine. The camera is virtually invisible allowing you to keep a factory look while adding the safety and convenience without having a bulky camera hanging from your vehicle. The head of the camera swivels to allow for an adjustable viewing range and can also be set to view either forward or backward, switching the view in the monitor from mirrored to positive view.
Need more than 1? Add multiple kits to your shopping cart for discounted pricing!

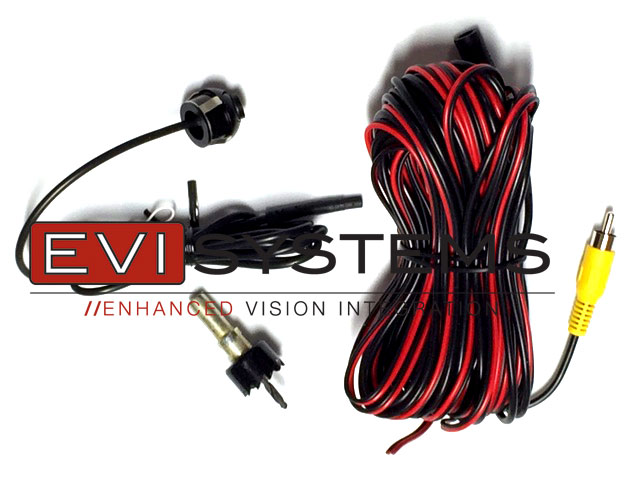

This kit includes the following:
- One Super CMOS night vision side view camera (add a second side view camera at a discount above)
- Camera chassis harness - terminates RCA so it will work with any monitor that has a RCA video input. Works great with multi-cam interfaces!

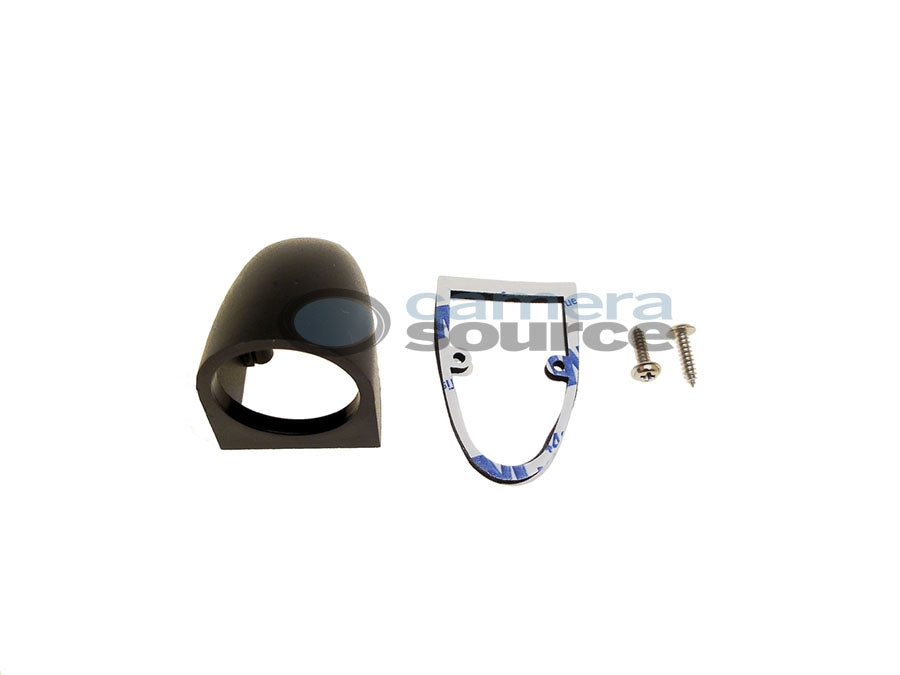

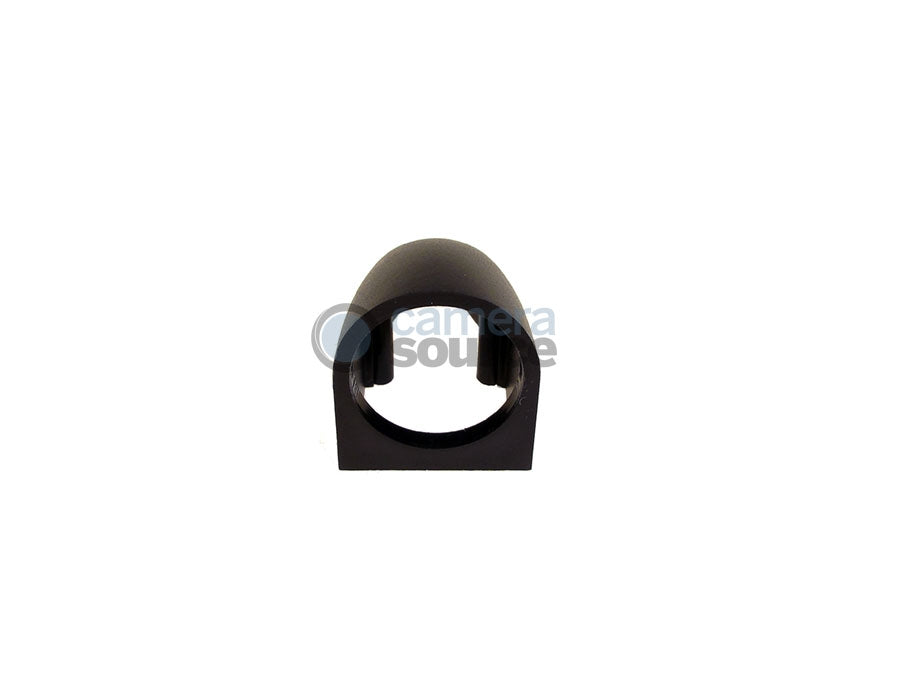

- SIde camera bracket with screws
- Wiring connectors
- Zip ties
- Hole saw
- Instructions
Camera Specifications:
- Camera Source exclusive Super CMOS - 600 TV lines of resolution for the ultimate color and clarity!

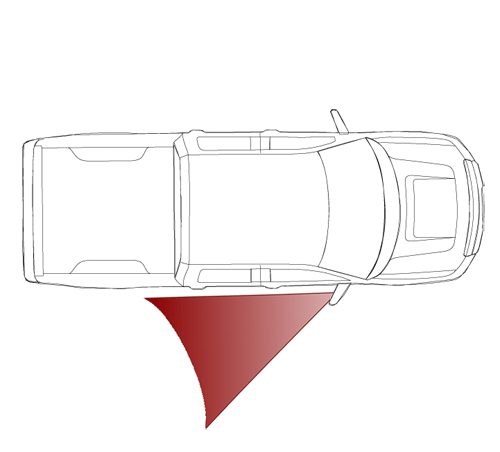

- 150 degree view

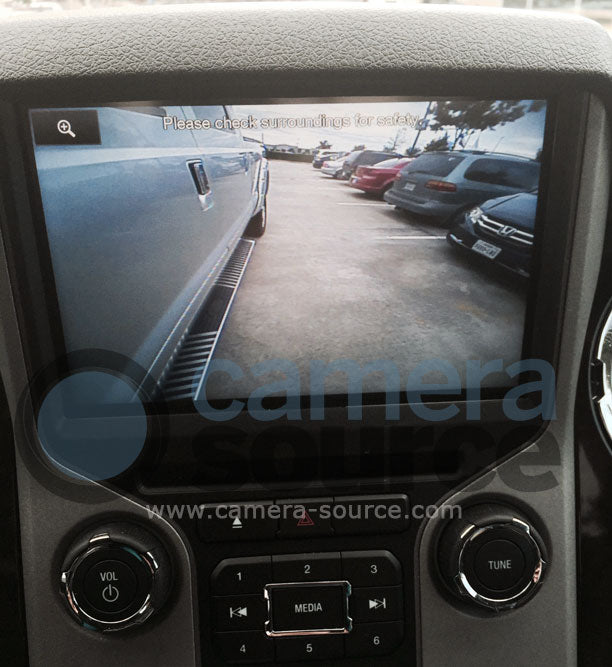

- Mirrored or positive (forward view) select-able

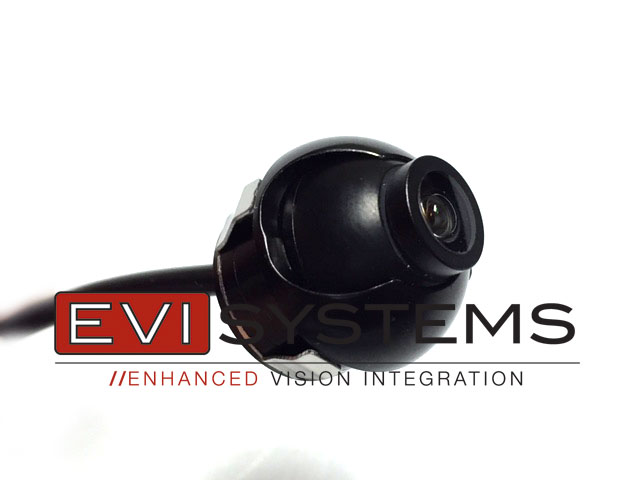

- Swivel lens for aiming
- 3 year limited warranty!
Specifications
| System Manufacturer | EVI Systems |
| Camera Type | Side Camera |
| For a monitor it uses | Your aftermarket display (RCA) |
| Connection | Aftermarket Display (RCA) |
| Camera Mount Location | Side Mirror |
| Night Vision | .2 Lux |
| Camera Orientation | Side Mount |
| Parking Guidelines | Not Available |
| Power Supply | 12 Volts |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Not Included |
| Vehicle Category | Car, Truck |
| Video System | NTSC |
| Viewing Angle | 150 Degrees |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
Compatibility
Works with any vehicle, mounts virtually anywhere you can drill a mounting hole but must be mounted on a flat horizontal plane for proper orientation. Designed for 12 volt systems and works great with any navigation interface or any monitor that has a RCA input for camera.
Installation
Mounting without bracket: Drill the mount hole using the included hole saw. DO NOT REAM OUT THE HOLE or the camera will not fit tightly.

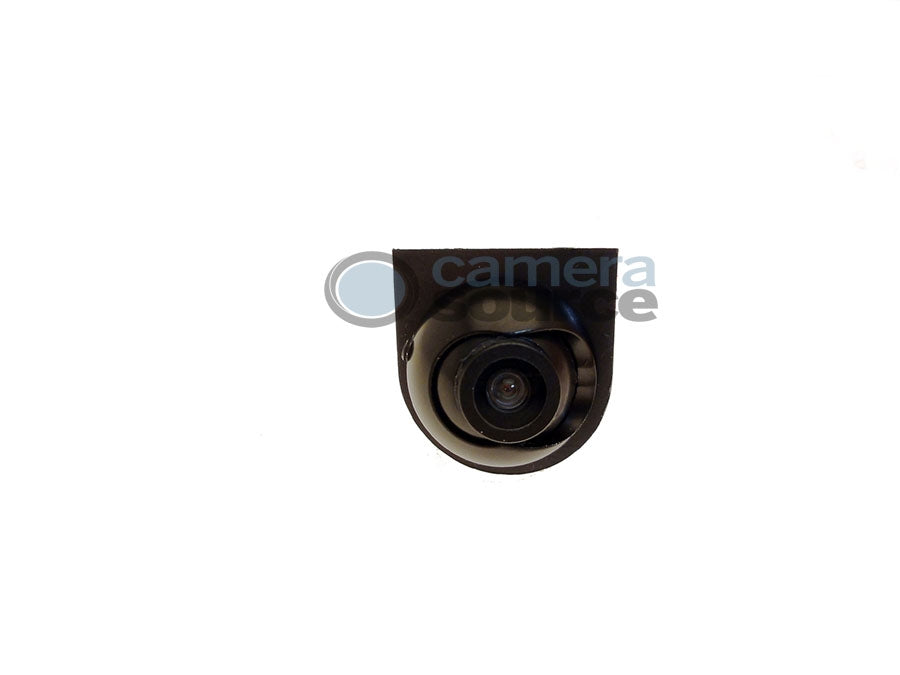

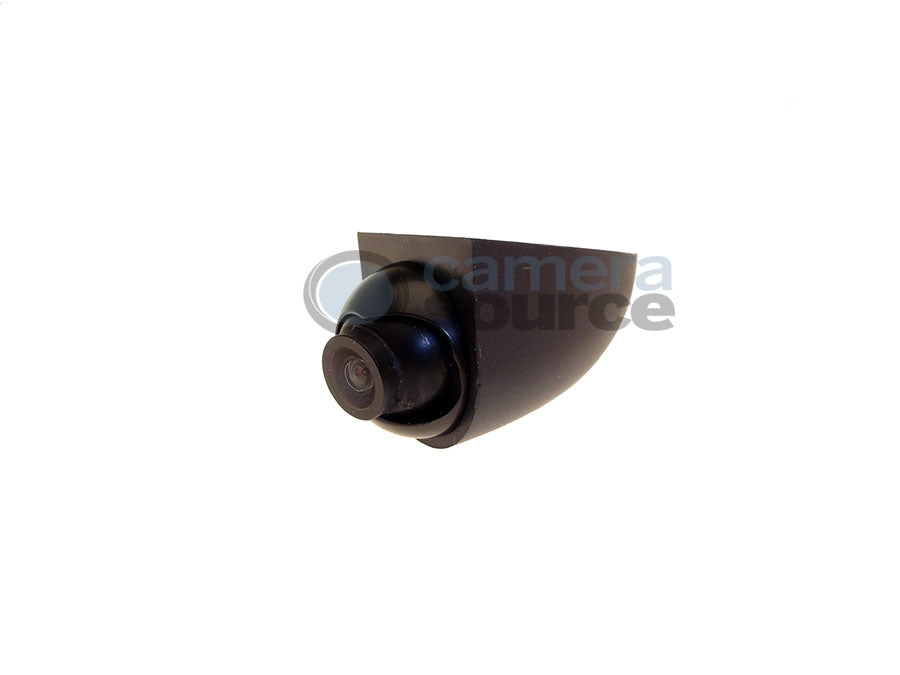

Mounting with bracket:
-Use the foam gasket and attach it to the bottom of the mirror plastic. Attach it so the flat area aims towards the rear of the vehicle. (See pic)
- Drill two pilot holes for the mounting screws and drill a hole in the center of the camera pod opening for the harness to be ran through. DO NOT REAM OUT THE HOLE.
-Mount the pods by screwing from the inside of the mirror. Using a Philips number 1 tip with a ¼ wrench works the best.
Route the harness to your monitor and 12v power source. Make installation even easier with an add on 12 Volt power source to eliminate the need to locate a power source on the vehicle and avoid cutting or splicing into factory wiring! See related item SKU: CS-RPW-P
NOTE: It is important to find a level section on the mirror for camera mounting. If the cameras are installed on a downward sloping portion you won’t get enough vertical adjustment to see traffic next to you. If you do not have a level surface, definitely use the brackets.
