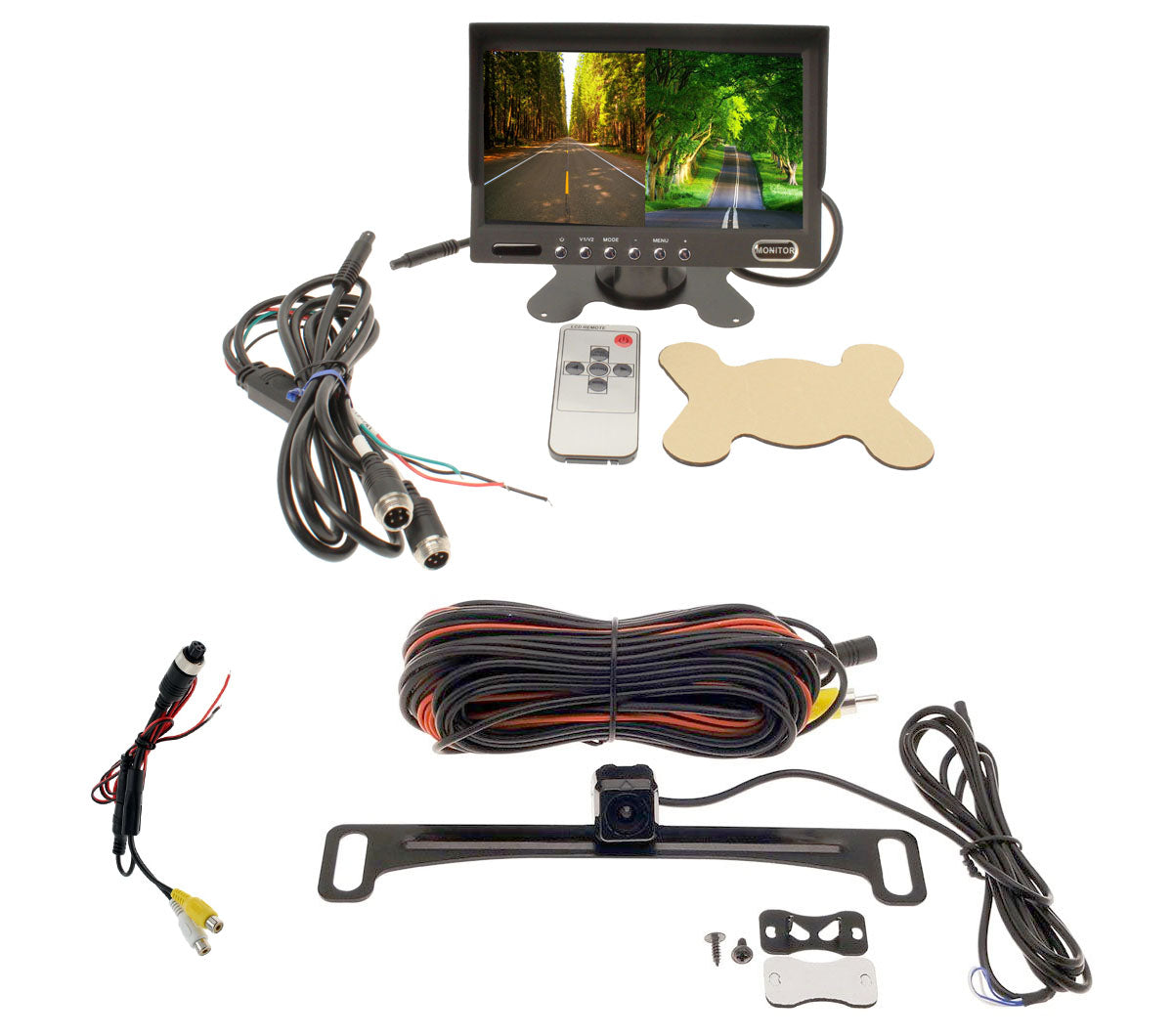

7" Split View Digital Monitor with 1 Mini Universal Camera
SKU#: CS-7SP-ULPM1
Quantity
7" Split View Universal Monitor
7" digital display with 1 Mini Universal camera included. Monitor can display 2 cameras simultaneously or one at a time! Ideal for agriculture applications, RV's and semi-trucks with multiple camera configurations.
The 7" digital color monitor has an ultra-clear digital display and designed to work in any car, truck, tractor, or any other application. The included mount will attach easily to any flat surface, and the wire harness can adapt to all backup cameras with an RCA or locking screw type connector.
The included CMOS license plate mounted backup camera kit will allow you to integrate rear view safety to any vehicle with a license plate. In fact, the camera can be converted to mount on any flat surface! All the cables are included, and the 25' long harness terminates with an RCA connection so you can integrate into any monitor with an RCA video input. The camera has adjustable tilt and comes with parking guideline options, meaning that the guidelines can be turned off. This camera can also be used as a front camera by simply switching it to a forward looking image on the harness during the installation!
Kit includes the following:
Monitor Specifications:
Camera Specifications:
Warranty Information 1 year warranty on monitor and 3 years on camera.
| System Manufacturer | EVI Systems |
| Audio Input Ports | 1 |
| Bracket Type | Plastic pedestal type |
| Fit Type | Universal fit |
| Impact Rating | 4g |
| Connection | Commercial 4 Pin Coax |
| Includes Remote | Yes |
| Monitor Size | 7" |
| Number of Triggers | 4 |
| Overall Dimensions | 172 x 115 x 22 mm |
| Power Supply | 12-24 Volts |
| Screen Resolution | 800x480 |
| Split Screen | Yes |
| System Type | Standard Build |
| Camera Input Ports | 2 |
| Video System | NTSC/PAL auto switching |
| Warranty | 1 Year |
| Wiring Type | Hard Wired |
Installs on any flat surface! Requires 12 or 24v accessory power or reverse activated power (if desired). Two commercial 4 pin coax style video inputs. 4 pin to RCA adapters required for RCA cameras.
